减速齿轮箱图纸(参数详尽)（ID:1104681）

设备部件 / 传动部件 / 减速齿轮箱图纸(参数详尽)

©非原创

平面图

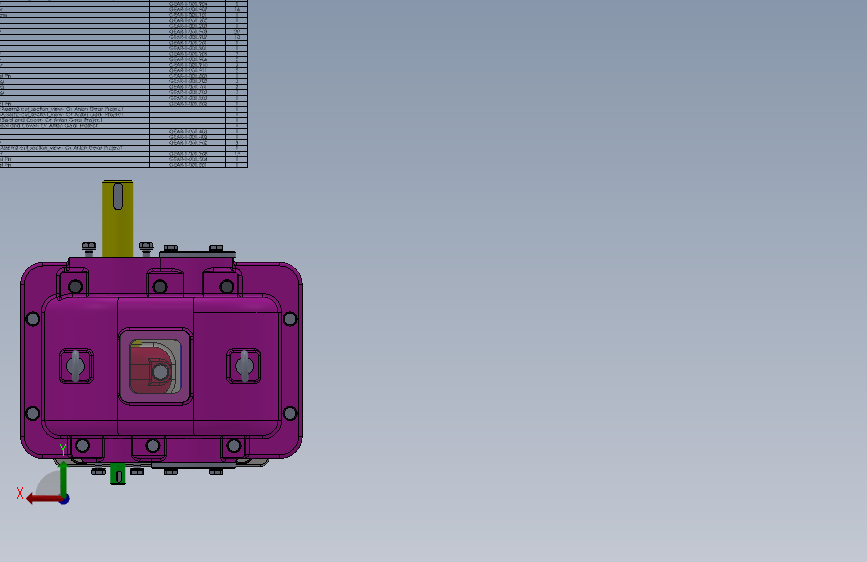

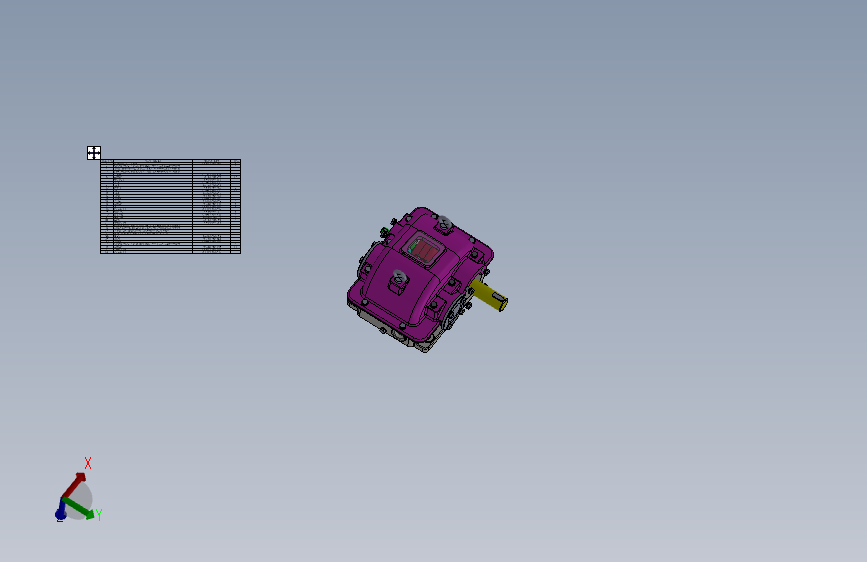

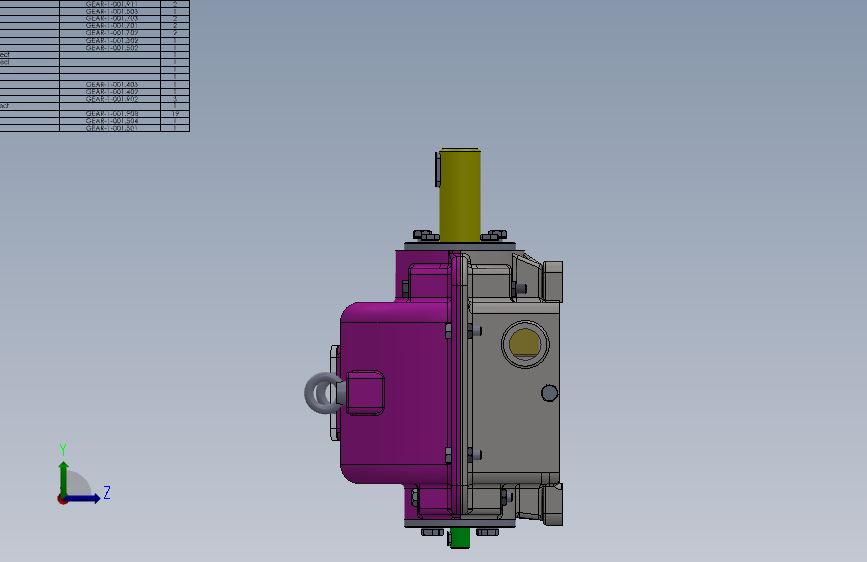

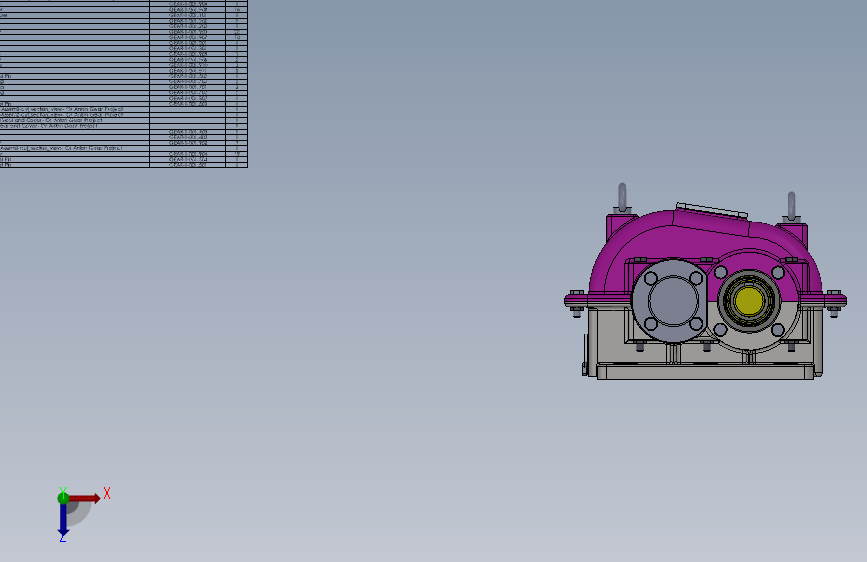

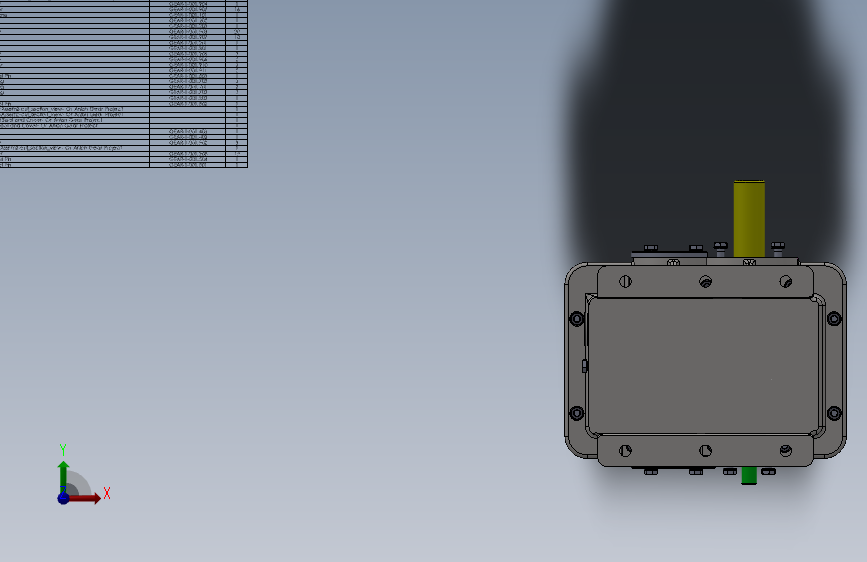

3D视图

文件列表

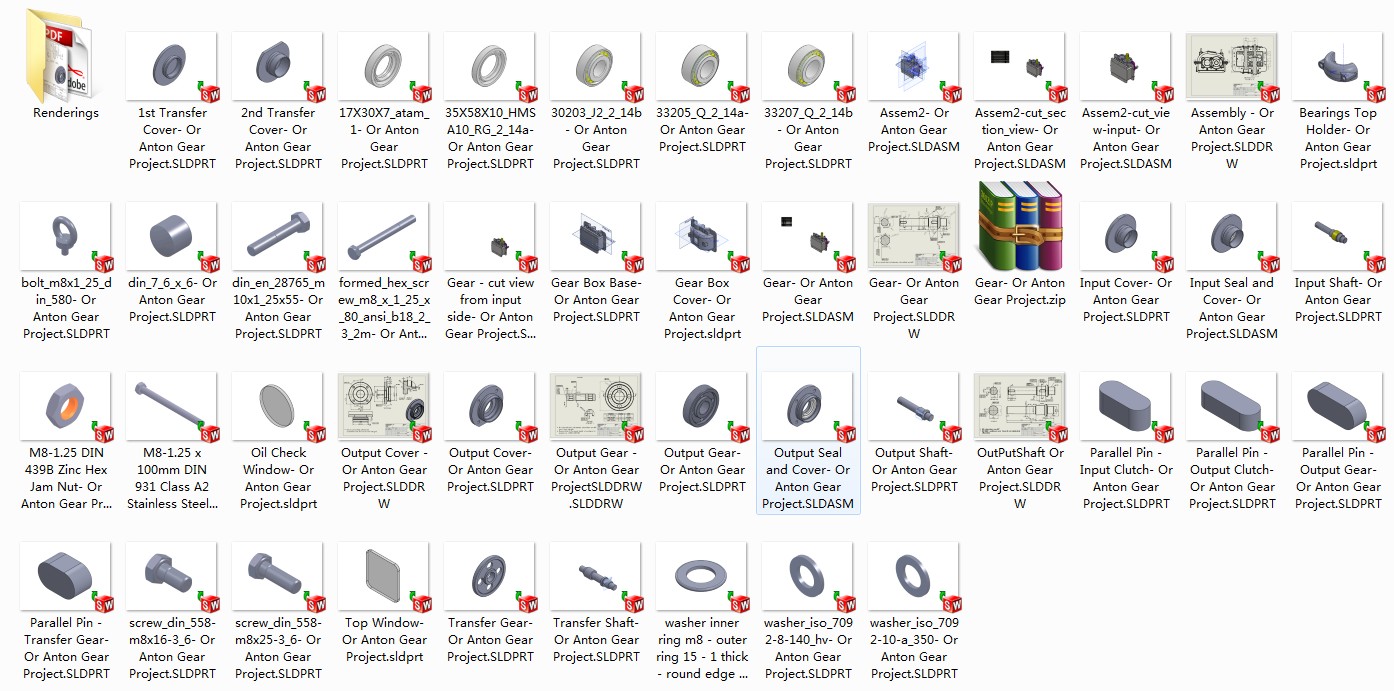

#	文件名称	文件大小
1	17102138292443.rar	107.28M
2	17X30X7_atam_1-OrAntonGearProject.SLDPRT	245.50K
3	1stTransferCover-OrAntonGearProject.SLDPRT	229.00K
4	2ndTransferCover-OrAntonGearProject.SLDPRT	241.50K
5	30203_J2_2_14b-OrAntonGearProject.SLDPRT	789.50K
6	33205_Q_2_14a-OrAntonGearProject.SLDPRT	786.50K
7	33207_Q_2_14b-OrAntonGearProject.SLDPRT	833.00K
8	35X58X10_HMSA10_RG_2_14a-OrAntonGearProject.SLDPRT	270.00K
9	Assem2-cut_section_view-OrAntonGearProject.SLDASM	8.84M
10	Assem2-cut_view-input-OrAntonGearProject.SLDASM	7.04M
11	Assem2-OrAntonGearProject.SLDASM	7.47M
12	Assembly-OrAntonGearProject.SLDDRW	9.33M
13	BearingsTopHolder-OrAntonGearProject.sldprt	462.50K
14	bolt_m8x1_25_din_580-OrAntonGearProject.SLDPRT	149.00K
15	din_7_6_x_6-OrAntonGearProject.SLDPRT	120.50K
16	din_en_28765_m10x1_25x55-OrAntonGearProject.SLDPRT	241.50K
17	finalfullreport-oranton-machinepartsproject-gear1.pdf	7.42M
18	formed_hex_screw_m8_x_1_25_x_80_ansi_b18_2_3_2m-OrAntonGearProject.SLDPRT	134.50K
19	Gear-cutviewfrominputside-OrAntonGearProject.SLDASM	6.18M
20	Gear-OrAntonGearProject.SLDASM	8.11M
21	Gear-OrAntonGearProject.SLDDRW	10.23M
22	Gear-OrAntonGearProject.STEP	7.49M
23	Gear-OrAntonGearProject.zip	50.51M

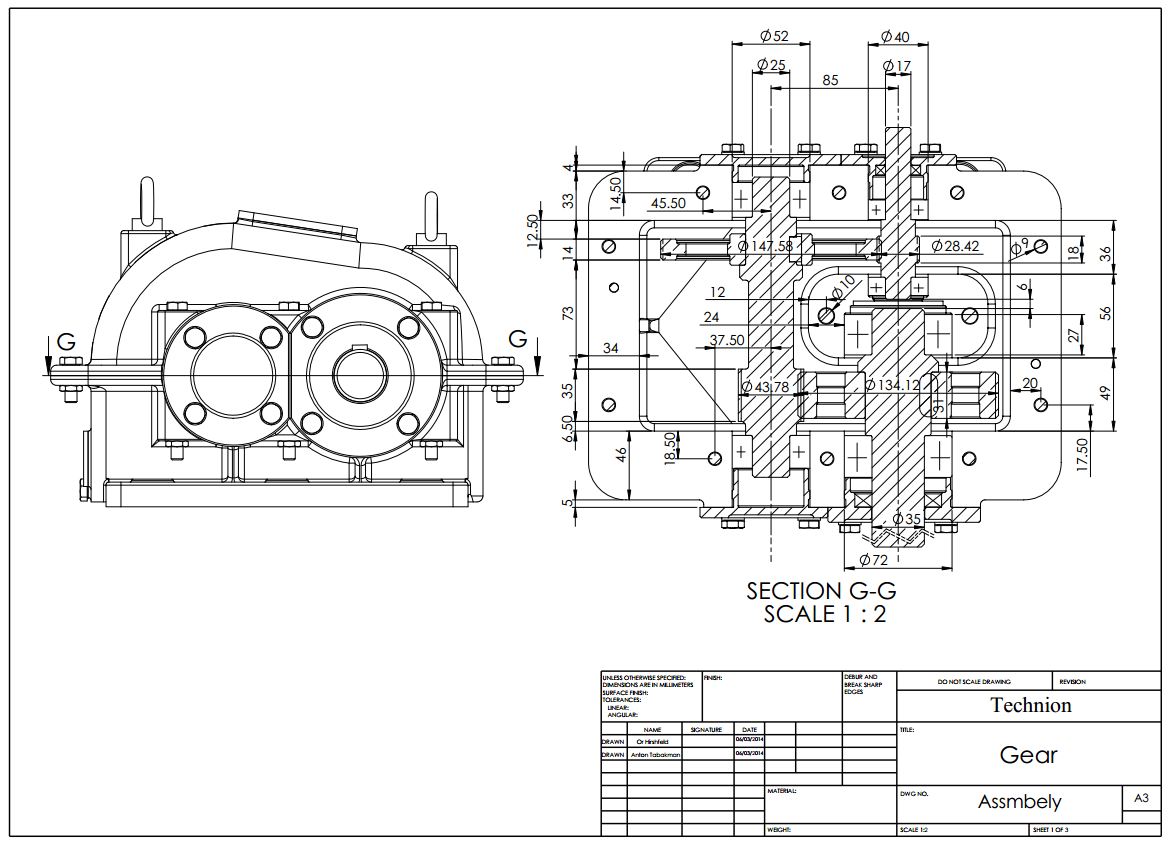

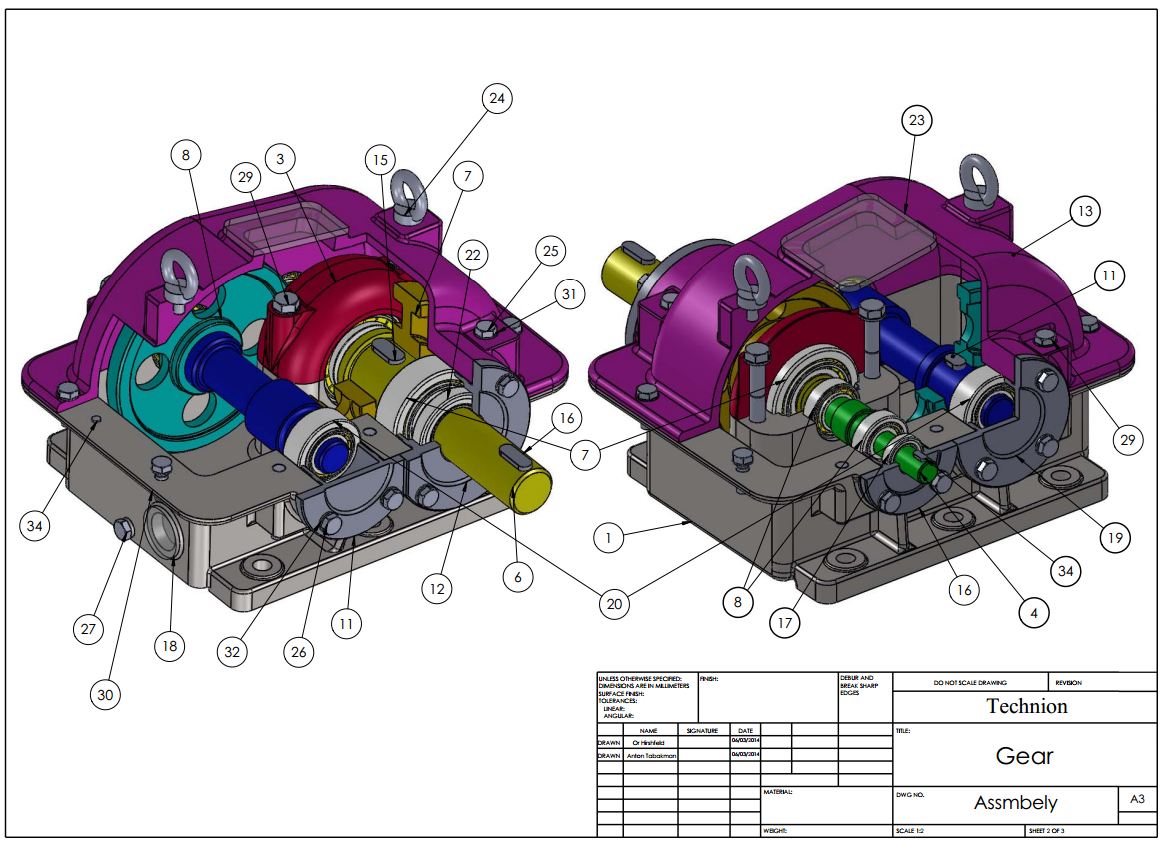

24	gearassembelydra.JPG	153.90K

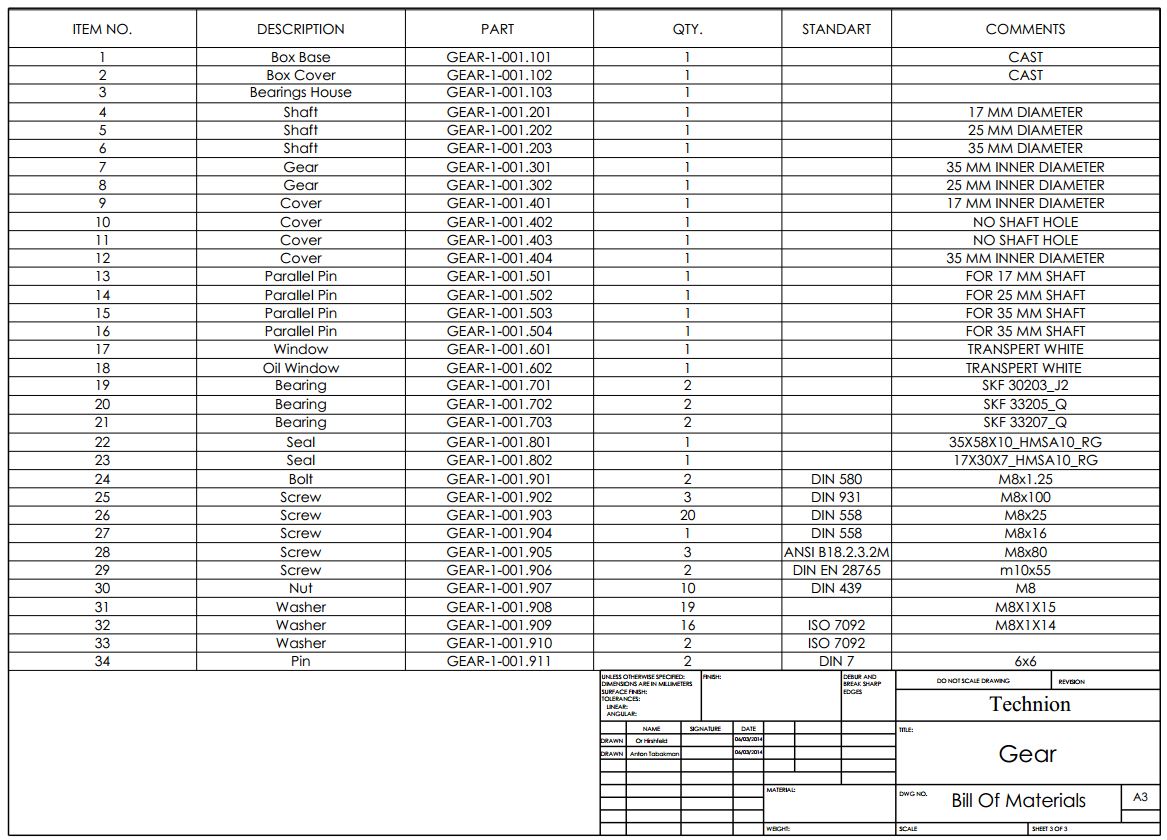

25	gearassembelypartsmachine.JPG	160.18K
26	gearbelyphirshfeldantontabakman.JPG	224.92K
27	GearBoxBase-OrAntonGearProject.SLDPRT	2.93M
28	GearBoxCover-OrAntonGearProject.sldprt	1.92M

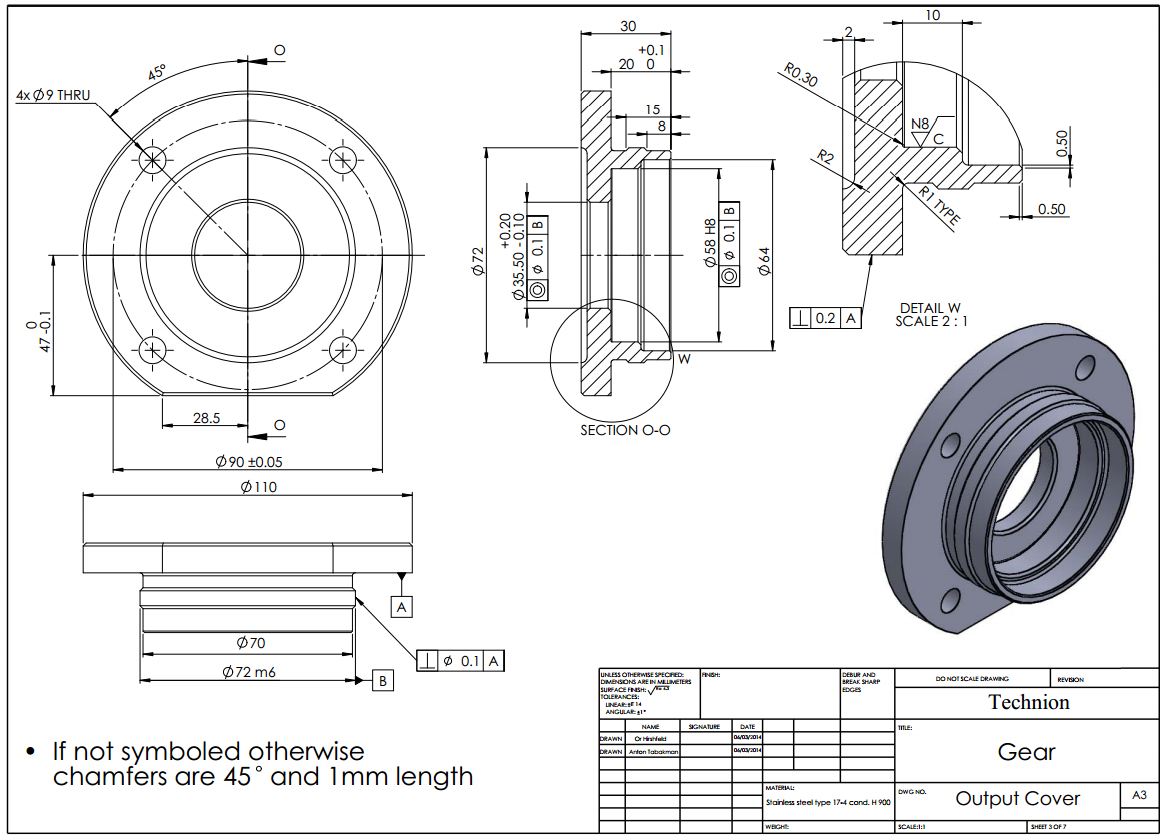

29	gearcutviewmachinepartprojectorhirshfeldantontabakman.JPG	73.71K
30	gearoutputcovermachineparttabakman.JPG	146.35K

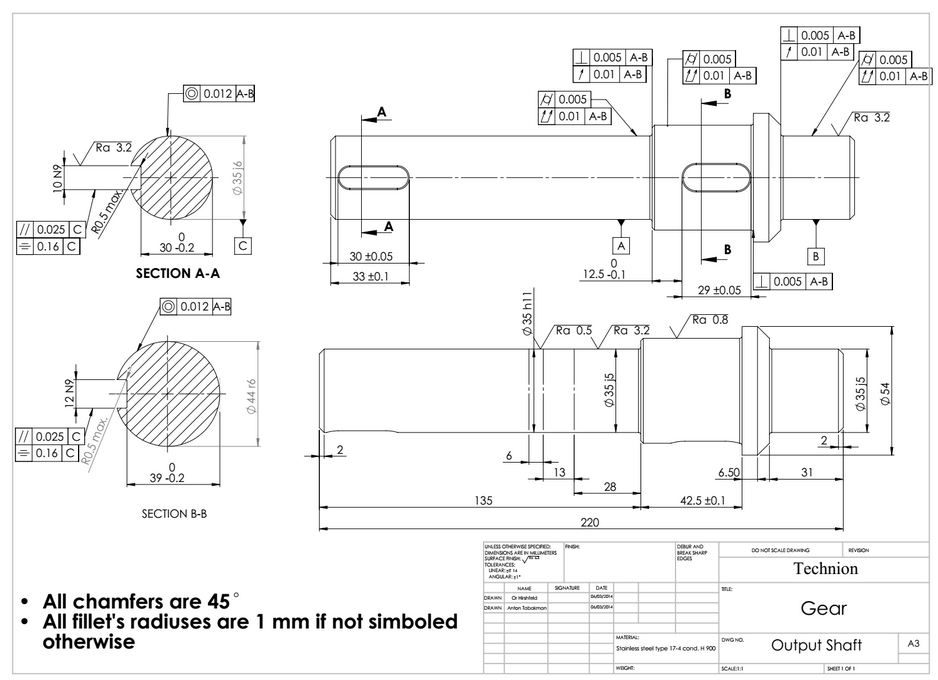

31	gearoutputgearmachinepartntontabakman.JPG	106.65K
32	gearoutputshntontabakman.JPG	92.45K
33	InputCover-OrAntonGearProject.SLDPRT	330.50K
34	InputSealandCover-OrAntonGearProject.SLDASM	296.00K
35	InputShaft-OrAntonGearProject.SLDPRT	356.50K
36	M8-1.25DIN439BZincHexJamNut-OrAntonGearProject.SLDPRT	161.00K
37	M8-1.25x100mmDIN931ClassA2StainlessSteelCapScrew-OrAntonGearProject.SLDPRT	177.00K
38	OilCheckWindow-OrAntonGearProject.sldprt	121.50K
39	OutputCover-OrAntonGearProject.SLDDRW	1.80M
40	OutputCover-OrAntonGearProject.SLDPRT	386.00K

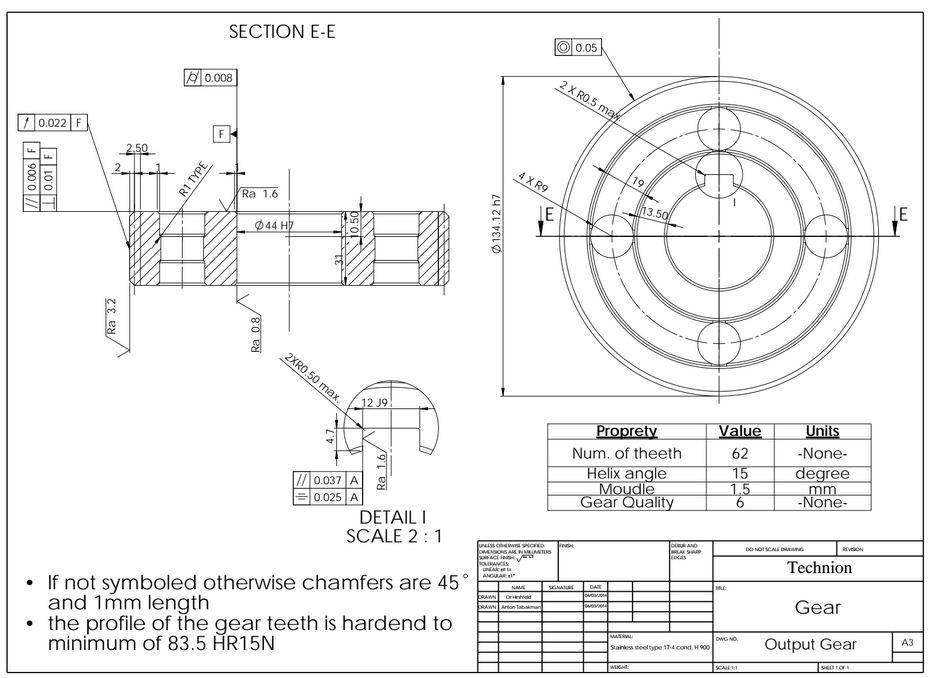

41	OutputGear-OrAntonGearProject.SLDPRT	424.50K
42	OutputGear-OrAntonGearProjectSLDDRW.SLDDRW	1.70M
43	OutputSealandCover-OrAntonGearProject.SLDASM	352.50K
44	OutputShaft-OrAntonGearProject.SLDPRT	435.00K
45	OutPutShaftOrAntonGearProject.SLDDRW	1000.00K
46	ParallelPin-InputClutch-OrAntonGearProject.SLDPRT	116.00K
47	ParallelPin-OutputClutch-OrAntonGearProject.SLDPRT	115.00K
48	ParallelPin-OutputGear-OrAntonGearProject.SLDPRT	127.50K
49	ParallelPin-TransferGear-OrAntonGearProject.SLDPRT	133.00K
50	screw_din_558-m8x16-3_6-OrAntonGearProject.SLDPRT	136.00K
51	screw_din_558-m8x25-3_6-OrAntonGearProject.SLDPRT	137.50K
52	TopWindow-OrAntonGearProject.sldprt	134.00K
53	TransferGear-OrAntonGearProject.SLDPRT	325.50K
54	TransferShaft-OrAntonGearProject.SLDPRT	255.50K
55	washerinnerringm8-outerring15-1thick-roundedge0.5mm-OrAntonGearProject.SLDPRT	171.00K
56	washer_iso_7092-10-a_350-OrAntonGearProject.SLDPRT	95.00K
57	washer_iso_7092-8-140_hv-OrAntonGearProject.SLDPRT	96.50K
58	zzzzz.jpg	285.31K
