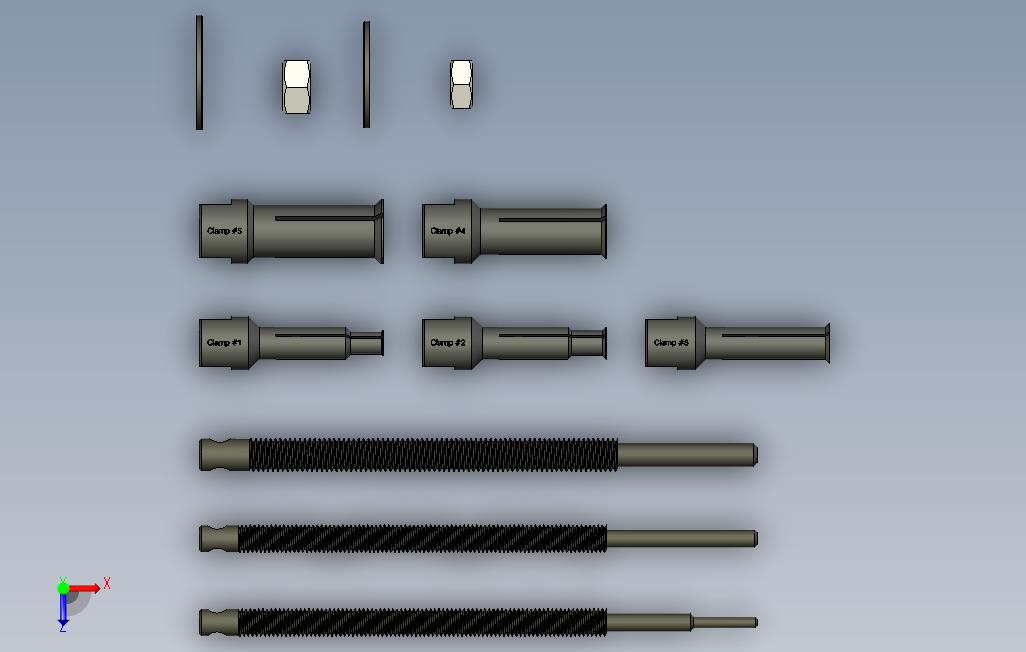

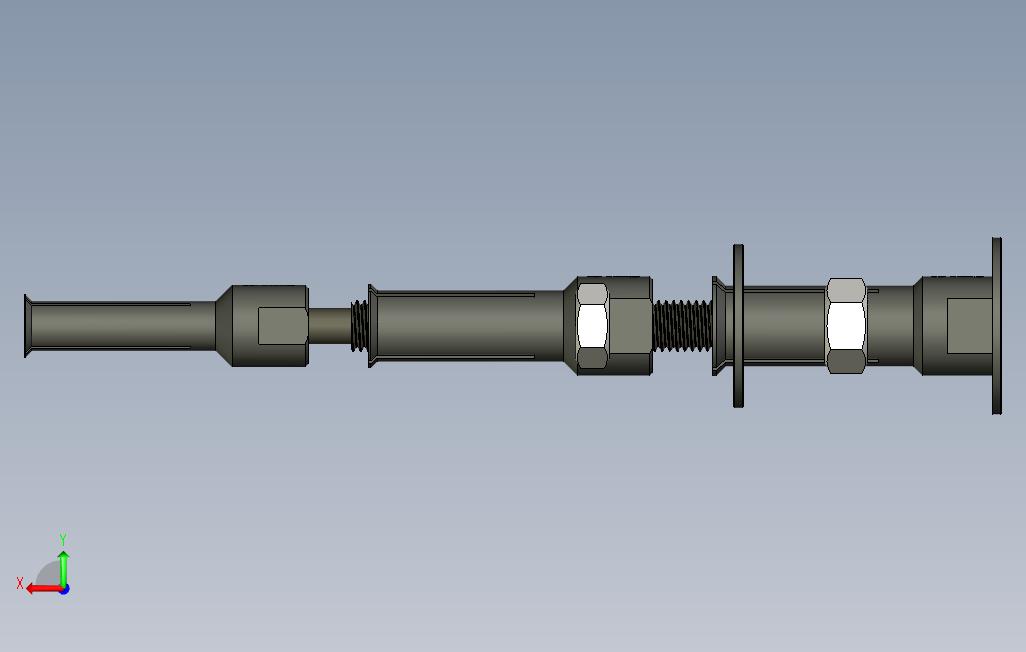

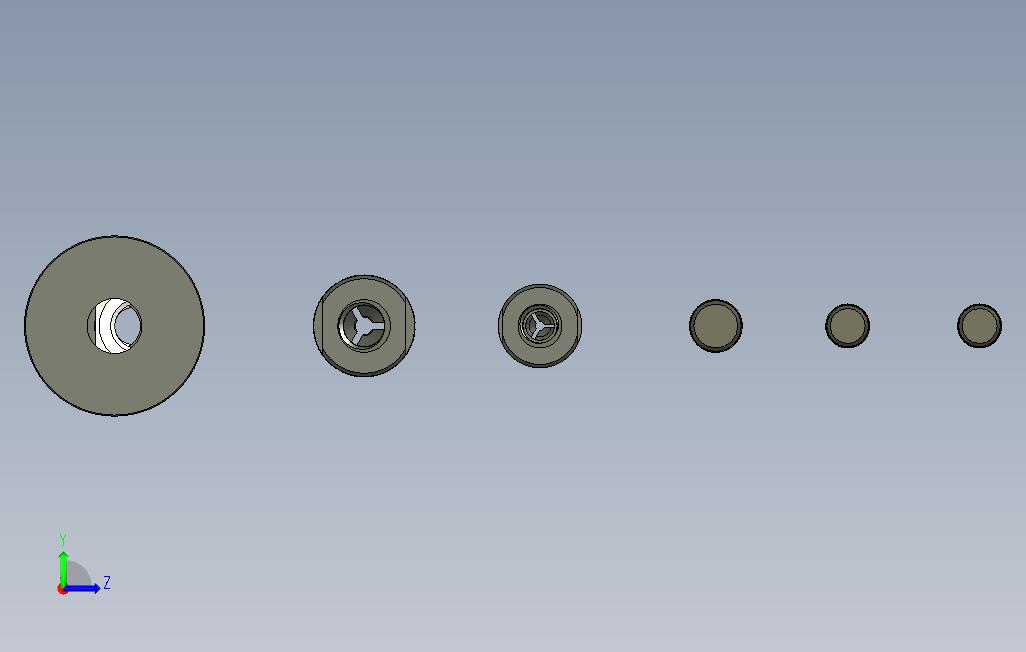

内轴承拉拔器套件（ID:110756）

设备部件 / 传动部件 / 内轴承拉拔器套件

©非原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	Bushing1 Small 35 mm x 96 mm.ipt	762.00K
2	Bushing1 Small 35 mm x 96 mm.stp	653.30K
3	Bushing2 Large 40 mm x 96 mm.ipt	794.50K
4	Bushing2 Large 40 mm x 96 mm.stp	688.88K
5	Clamp1 M10 9.0 mm.ipt	1.20M
6	Clamp1 M10 9.0 mm.stp	907.02K
7	Clamp2 M10 11 mm.ipt	1.25M
8	Clamp2 M10 11 mm.stp	971.49K
9	Clamp3 M10 14.5 mm.ipt	1.26M
10	Clamp3 M10 14.5 mm.stp	969.87K
11	Clamp4 M12 19.5 mm.ipt	1.02M
12	Clamp4 M12 19.5 mm.stp	908.34K
13	Clamp5 M12 23,2 mm.ipt	1.04M
14	Clamp5 M12 23,2 mm.stp	901.82K
15	Inner Bearing Puller Kit Assy.ipt	10.60M
16	Inner Bearing Puller Kit Assy.stp	11.64M
17	Inner Bearing Puller Kit Assy1.png	1.12M
18	Spindle Large M12.ipt	2.18M
19	Spindle Large M12.stp	1.79M
20	Spindle Medium M10.ipt	2.14M
21	Spindle Medium M10.stp	2.41M
22	Spindle Small M10.ipt	2.14M
23	Spindle Small M10.stp	2.42M
24	Washer M10 x 38 mm.ipt	143.00K
25	Washer M10 x 38 mm.stp	9.27K
26	Washer M12 x 41 mm.ipt	143.50K
27	Washer M12 x 41 mm.stp	9.24K
