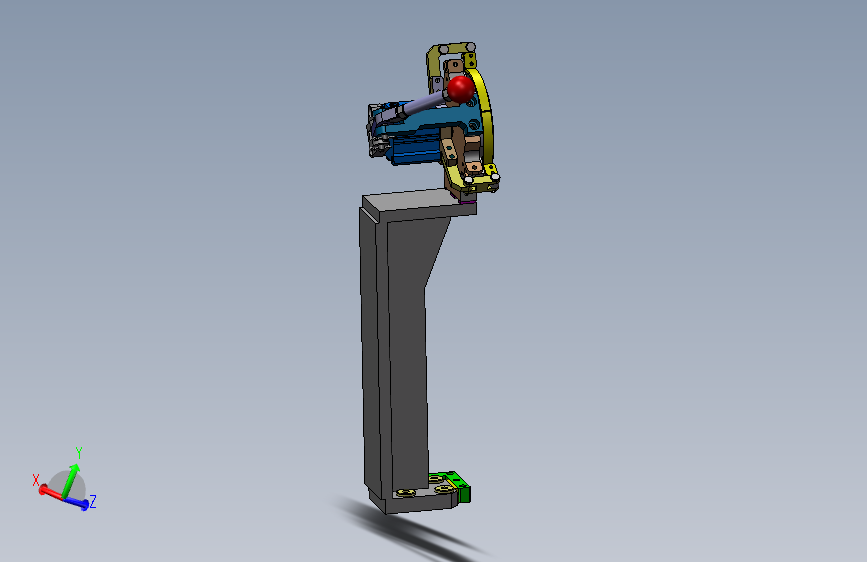

桁架机械手（ID:1214349）

机械设备 / 智能装置 / 桁架机械手

©非原创

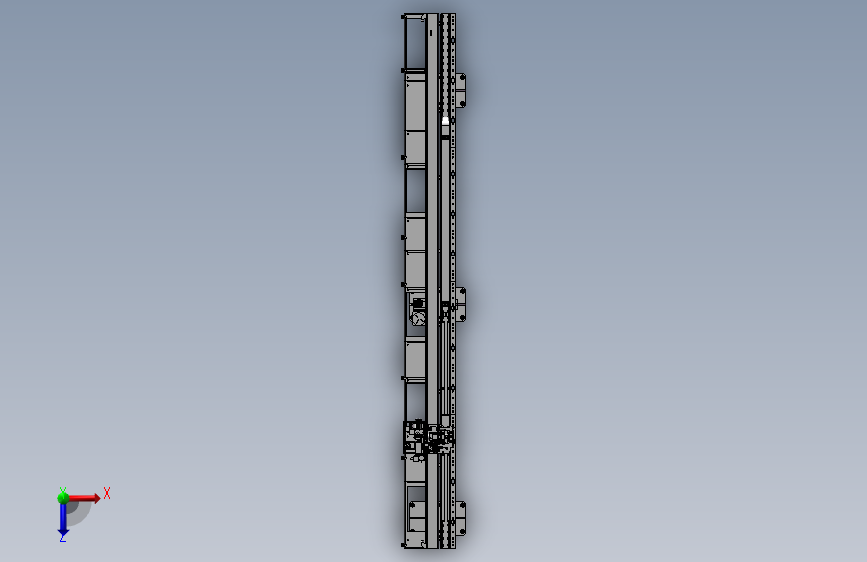

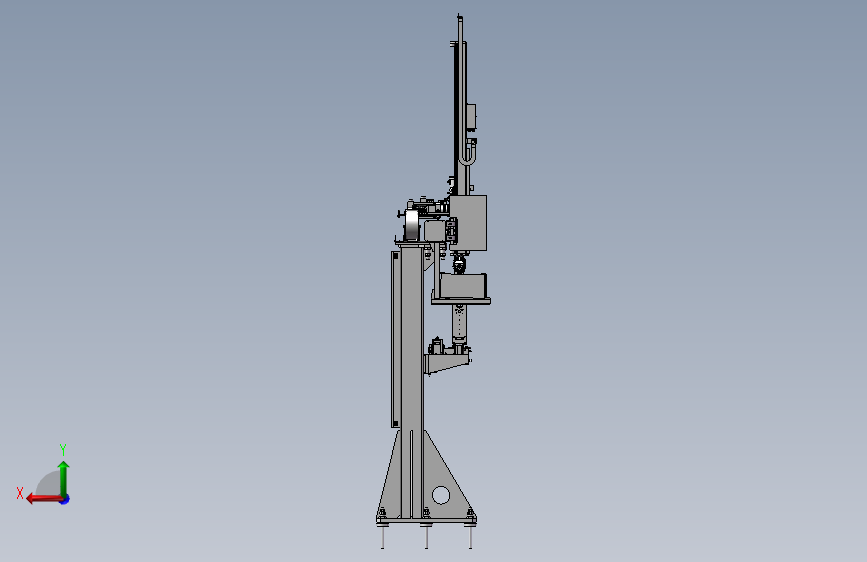

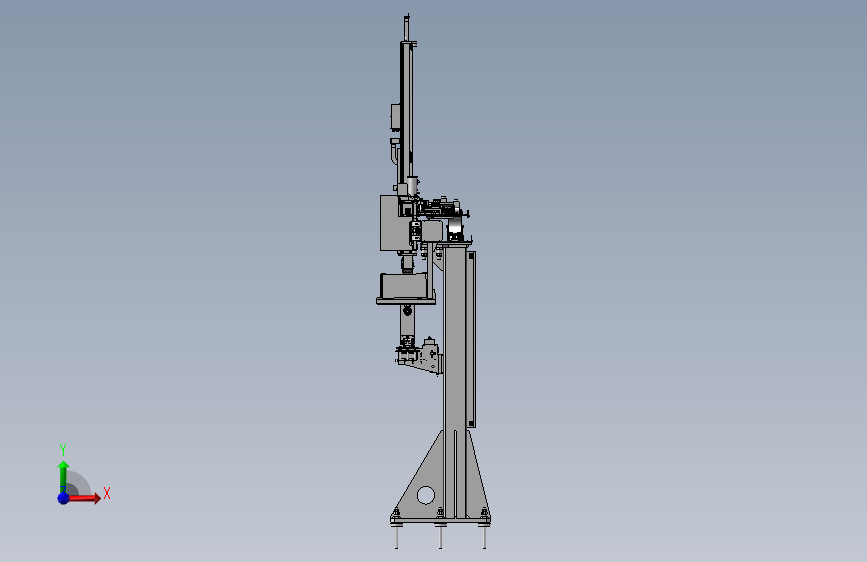

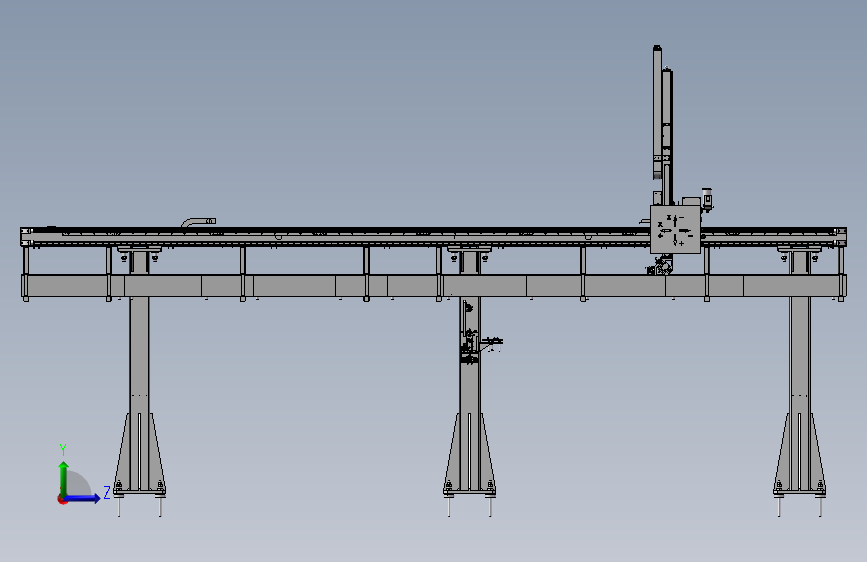

平面图

3D视图

文件列表

#	文件名称	文件大小
1	1711878294215.zip	37.17M

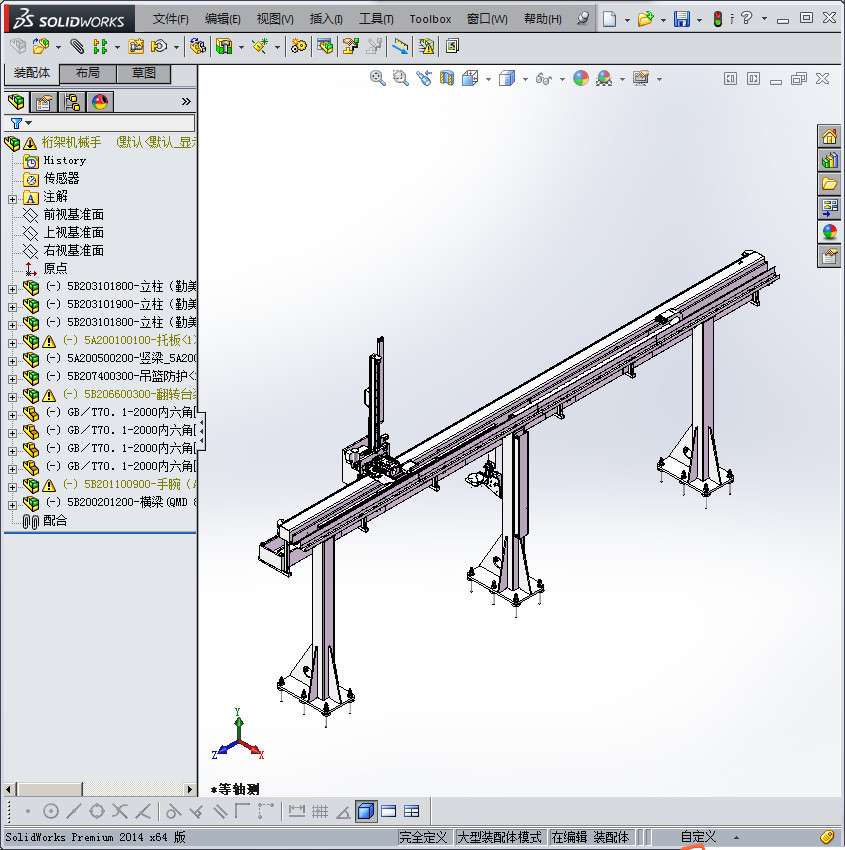

2	QQ截图20160828074557.jpg	184.15K

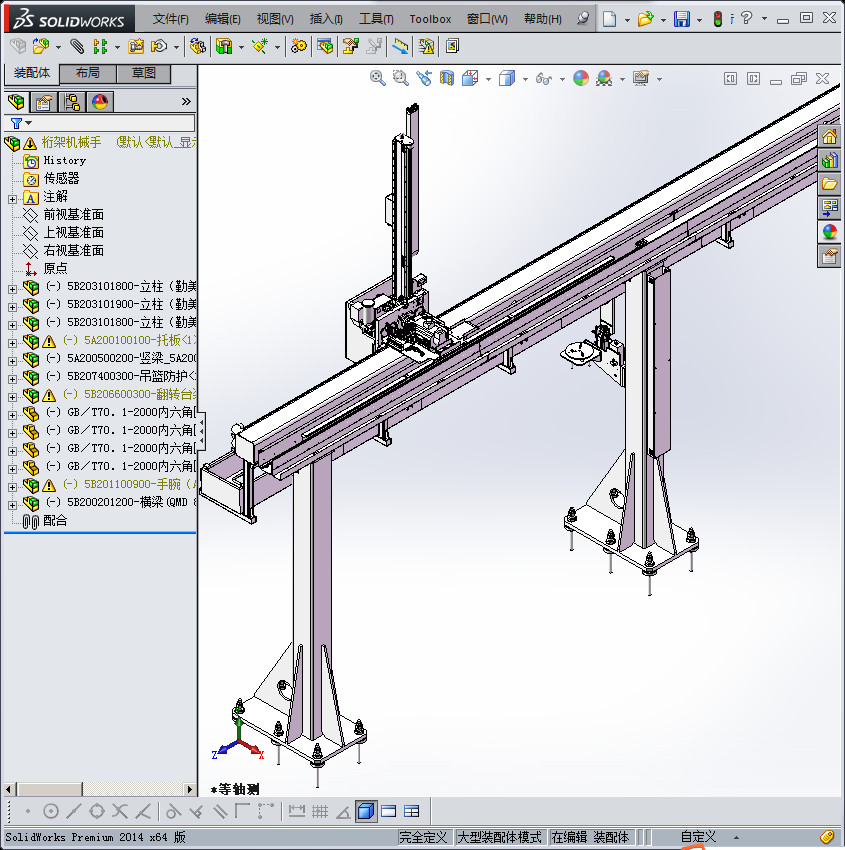

3	QQ截图20160828074600.jpg	215.77K

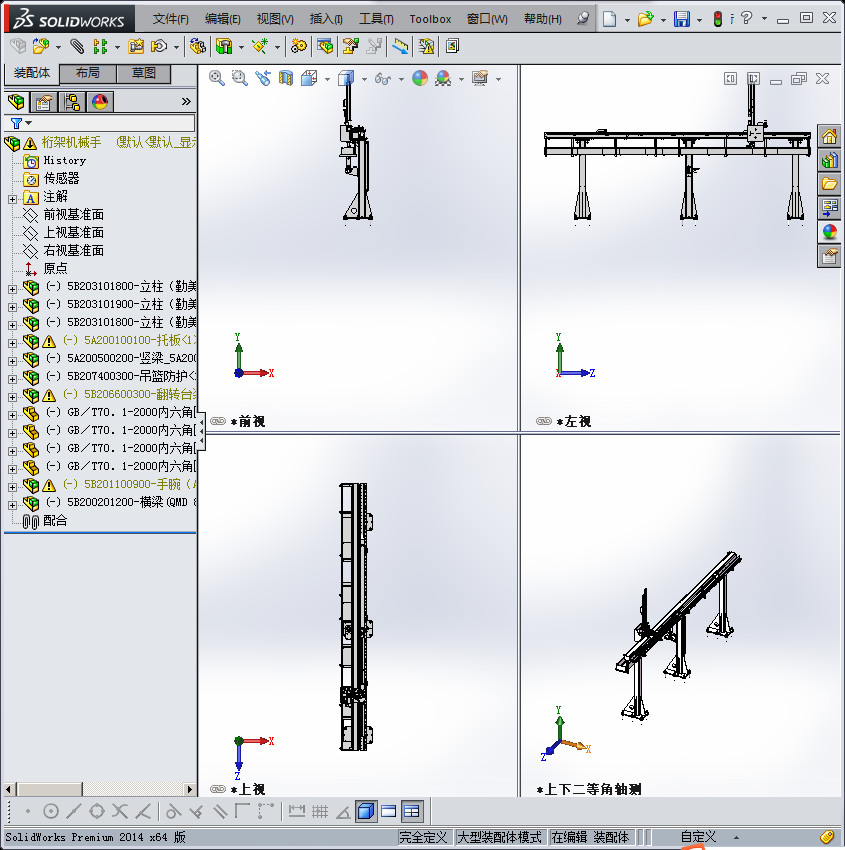

4	QQ截图20160828074603.jpg	179.12K
5	桁架机械手.STEP	72.14M
6	0A200100010-托板.sldprt	113.00K
7	0A200100020-X轴减速机法兰.sldprt	63.50K
8	0A200100030-Z轴减速机法兰.sldprt	71.00K
9	0A200100040-2m斜齿轮.sldprt	547.50K
10	0A200100050-偏心销.sldprt	55.50K
11	0A200100060-齿轮压板.sldprt	52.00K
12	0A200100080-Z轴滑块支架.sldprt	65.50K
13	0A200100090-润滑齿轮支架.sldprt	57.50K
14	0A200100100-润滑齿轮轴.sldprt	59.00K
15	0A200100110-油管护板.sldprt	83.50K
16	0A200100120-Z轴行程开关支架.sldprt	57.50K
17	0A200100130-X轴拖链固定块.sldprt	55.00K
18	0A200100140-X轴拖链安装板.sldprt	191.00K
19	0A200100150-X轴拖链支撑架.sldprt	64.00K
20	0A200100160-Z轴拖链安装板.sldprt	73.50K
21	0A200100170-托板中继盒.sldprt	163.50K
22	0A200100180-托板中继盒盖.sldprt	55.00K
23	0A200100200-后托板护罩.sldprt	115.50K
24	0A200200020-端盖板.sldprt	54.50K
25	0A200200030-硬限位安装块.sldprt	58.00K
26	0A200200040-拖链支架.sldprt	61.00K
27	0A200200050-拖链槽.sldprt	149.00K
28	0A200200070-拖链槽连接板.sldprt	61.00K
29	0A200200080-连接板.sldprt	54.50K
30	0A200200090-拖链垫板.sldprt	66.50K
31	0A200200100-线槽.sldprt	91.00K
32	0A200200120-线槽连接板.sldprt	58.00K
33	0A200500020-挡板.sldprt	55.00K
34	0A200500030-手爪连接板.sldprt	75.00K
35	0A200500060-拖链安装支架.sldprt	59.50K
36	0A200500070-线槽.sldprt	67.00K
37	0A200500080-线槽盖.sldprt	55.00K
38	0A200500090-竖梁1800_导轨上装.sldprt	111.50K
39	0A200600170-缓冲器安装块.sldprt	54.50K
40	0A200600250-顶丝安装板.sldprt	54.50K
41	0A200600260-推动手腕齿轮.sldprt	82.50K
42	0A200600270-推动手腕连接板.sldprt	59.50K
43	0A200600280-手爪连接板.sldprt	78.00K
44	0A200600290-竖梁连接板.sldprt	71.50K
45	0A200600300-硬限位撞块.sldprt	57.50K
46	0A200600310-手腕连接板.sldprt	58.00K
47	0A201100080-手爪连接板.sldprt	67.00K
48	0A201200060-弹簧.sldprt	69.00K
49	0A201200190-手指.sldprt	64.50K
50	0A201200200-推板.sldprt	59.00K
51	0A201200210-推料安装板.sldprt	58.00K
52	0A201200220-导杆.sldprt	53.50K
53	0A201600020-电磁阀支架.sldprt	86.50K
54	0A201600030-气吹块.sldprt	54.00K
55	0A206600020-杆.sldprt	53.00K
56	0A206600030-托盘支架.sldprt	77.00K
57	0A206600040-调节块.sldprt	55.00K
58	0A206600060-中继盒.sldprt	79.00K
59	0A20TT00010-压线板.sldprt	60.00K
60	0A20TT00020-压线板.sldprt	60.00K
61	0A20TT00030-硬限位撞块.sldprt	51.50K
62	0A20TT00040-M36空心螺栓.sldprt	62.00K
63	0A20TT00050-M36螺母.sldprt	58.00K
64	0A20TT00060-垫铁.sldprt	52.00K
65	0A20TT00070-行程开关撞块.sldprt	55.50K
66	0B200200110-拖链槽.sldprt	151.00K
67	0B200200110-横梁（QMD_安装斜齿齿条_按加工_.sldprt	200.50K
68	0B203100040-横梁连接板.sldprt	56.50K
69	0B203100080-立柱_默认_按加工_.sldprt	97.50K
70	0B203100090-立柱_默认_按加工_.sldprt	87.50K
71	0B203100110-桥架.sldprt	82.00K
72	0B203100120-桥架盖.sldprt	58.50K
73	0B206600070-托盘.sldprt	56.00K
74	0B206600110-翻转台支架.sldprt	92.00K
75	0B207400210-吊篮支架_默认_按加工_.sldprt	94.50K
76	0B207400220-吊篮压板.sldprt	58.50K
77	0B207400230-吊篮.sldprt	63.50K
78	0B207400240-吊篮.sldprt	71.00K
79	0B207400250-吊篮.sldprt	74.00K
80	0B207400260-吊篮.sldprt	71.00K
81	0B207400270-吊篮.sldprt	71.00K
82	0B207400290-吊篮.sldprt	71.50K
83	0B20F200100SS00030-翻转台电磁阀装配.sldasm	133.50K
84	0C100500020-竖梁中继盒盖.sldprt	55.00K
85	0C100500030-竖梁中继盒.sldprt	116.00K
86	100M2F.sldprt	72.00K
87	5A200100100-托板.sldasm	485.50K
88	5A200100100SS030-X轴驱动总成腾禾电机_斜齿齿轮.sldasm	150.00K
89	5A200100100SS040-Z轴驱动总成腾禾电机_斜齿齿轮.sldasm	157.00K
90	5A200100100SS050-Z轴润滑齿轮装配_Z轴.sldasm	127.50K
91	5A200100100SS060-X轴润滑齿轮装配.sldasm	127.00K
92	5A200100100SS070-托板中继盒装配.sldasm	126.50K
93	5A200200100SS010-X轴拖链总成.sldasm	142.50K
94	5A200500100SS020-竖梁中继盒装配.sldasm	130.00K
95	5A200500200-竖梁_5A200500100.sldasm	347.00K
96	5A200500200SS010-Z轴拖链总成.sldasm	125.50K
97	5A200601000-手腕.sldasm	149.50K
98	5A201500200SS010-左分油块装配.sldasm	131.50K
99	5A201500200SS020-右分油块装配.sldasm	132.00K
100	5A201600200SS010-托板电磁阀组（AIRTAC电磁阀）_消音器下装直管接头.sldasm	164.00K
101	5A201600300SS010-气吹装配.sldasm	117.00K
102	5A203100100SS010-M36地脚.sldasm	118.50K
103	5A206600100-SS0010翻转台中继盒装配.sldasm	116.00K
104	5B200201200-横梁QMD8000_5A200200100-横梁.sldasm	255.00K
105	5B201100600-手爪装配勤美达翻转台用）.sldasm	139.00K
106	5B201100900-手腕（AF46-40手爪）.sldasm	265.50K
107	5B203101800-立柱（勤美达）.sldasm	162.00K
108	5B203101900-立柱（勤美达带翻转台）.sldasm	166.00K
109	5B206600300-翻转台装配（勤美达）.sldasm	184.00K
110	5B207400300-吊篮防护.sldasm	162.00K
111	A04EB100200-吊环M10×20.sldprt	77.50K
112	A05SB203500-化学锚栓M20×350.sldprt	51.00K
113	A06CB040080-圆柱头内六角螺栓M4×8.sldprt	56.50K
114	A06CB040100-圆柱头内六角螺栓M4×10.sldprt	56.50K
115	A06CB040160-圆柱头内六角螺栓M4×16.sldprt	56.50K
116	A06CB040250-圆柱头内六角螺栓M4X25.sldprt	56.50K
117	A06CB040300-圆柱头内六角螺栓M4×30.sldprt	56.50K
118	A06CB050080-圆柱头内六角螺栓M5×8.sldprt	56.50K
119	A06CB050100-圆柱头内六角螺栓M5×10.sldprt	56.50K
120	A06CB050120-圆柱头内六角螺栓M5×12.sldprt	56.50K
121	A06CB050160-圆柱头内六角螺栓M5×16.sldprt	56.50K
122	A06CB050200-圆柱头内六角螺栓M5×20.sldprt	56.50K
123	A06CB050250-圆柱头内六角螺栓M5×25.sldprt	56.50K
124	A06CB050500-圆柱头内六角螺栓M5X50.sldprt	56.50K
125	A06CB060100-圆柱头内六角螺栓M6×10.sldprt	56.50K
126	A06CB060120-圆柱头内六角螺栓M6×12.sldprt	56.50K
127	A06CB060200-圆柱头内六角螺栓M6X20.sldprt	56.50K
128	A06CB060250-圆柱头内六角螺栓M6×25.sldprt	56.50K
129	A06CB060300-圆柱头内六角螺栓M6X30.sldprt	57.00K
130	A06CB060300-圆柱头内六角螺栓M6×30.sldprt	56.50K
131	A06CB060450-圆柱头内六角螺栓M6×45.sldprt	56.50K
132	A06CB080120-圆柱头内六角螺栓M8×12.sldprt	57.00K
133	A06CB080160-圆柱头内六角螺栓M8×16.sldprt	57.00K
134	A06CB080200-内六角圆柱头螺钉M8×20.sldprt	57.00K
135	A06CB080200-圆柱头内六角螺栓M8×20.sldprt	57.00K
136	A06CB080250-圆柱头内六角螺栓M8X25.sldprt	57.00K
137	A06CB080300-圆柱头内六角螺栓M8×30.sldprt	57.00K
138	A06CB080450-圆柱头内六角螺栓M8X45.sldprt	57.00K
139	A06CB201300-圆柱头内六角螺栓M20×130.sldprt	57.00K
140	A1000030120-圆柱销Φ3×12.sldprt	51.50K
141	A1000040080-圆柱销Φ4×8.sldprt	51.50K
142	A1000040120-圆柱销4×12.sldprt	51.50K
143	A1000050100-圆柱销5×10.sldprt	51.50K
144	A1000050100-圆柱销Φ5×10.sldprt	51.50K
145	A1000060120-圆柱销Φ6×12.sldprt	51.00K
146	A1000060160-圆柱销Φ6×16.sldprt	51.50K
147	A1100060240-内螺纹圆锥销Φ6×24.sldprt	52.00K
148	A15FB050300-外六角螺栓M5×30.sldprt	60.50K
149	A16CB040160-沉头内六角螺栓M4×16.sldprt	56.50K
150	A16CB060100-沉头内六角螺栓M6×10.sldprt	56.50K
151	A16CB060120-沉头内六角螺栓M6×12.sldprt	58.00K
152	A16CB080160-沉头内六角螺栓M8×16.sldprt	56.50K
153	A26CB040060-半圆头内六角螺栓M4×6.sldprt	58.50K
154	A26CB050100-半圆头内六角螺栓M5×10.sldprt	58.50K
155	A26CB060100-半圆头内六角螺栓M6×10.sldprt	58.50K
156	A35000S0120-弹簧卡圈（轴用）.sldprt	55.50K
157	A40JJ00M040-六角螺母M4.sldprt	60.50K
158	A40JJ00M050-六角螺母M5.sldprt	59.00K
159	A40JJ00M200-六角螺母M20.sldprt	60.50K
160	A41JJ00M040-平垫M4.sldprt	51.00K
161	A41JJ00M050-平垫M5.sldprt	51.50K
162	A41JJ00M060-平垫M6.sldprt	51.50K
163	A41JJ00M080-平垫8.sldprt	51.50K
164	A41JJ00M080-平垫M8.sldprt	51.00K
165	A41JJ00M120-平垫M12.sldprt	51.00K
166	A41JJ00M200-平垫M20.sldprt	51.50K
167	A43JJ00M050-弹簧垫圈M5.sldprt	52.00K
168	A43JJ00M060-弹簧垫圈M6.sldprt	52.00K
169	A43JJ00M080-弹簧垫圈M8.sldprt	52.00K
170	A43JJ00M200-弹簧垫圈M20.sldprt	52.00K
171	A54JJ15M120-细牙薄螺母M12×1.5.sldprt	60.50K
172	ACJ1412N-1.sldprt	61.50K
173	ACJ1412N-2.sldprt	57.50K
174	ACJ1412N-3.sldprt	57.00K
175	APY10.sldprt	80.00K
176	BACKCOVER.sldprt	60.50K
177	BODY.sldprt	199.50K
178	Bolt_Hex-M6.0x10.0.sldprt	57.00K
179	D13FSJT0020-防水接头（M18×1.5）.sldprt	82.00K
180	D13FSJT0030-防水接头（M32×1.5）.sldprt	88.50K
181	E3000511010-推力球轴承51101_2.sldprt	90.50K
182	E3000628010-深沟球轴承628／8ZZ.sldprt	149.00K
183	F28HW200020-直线导轨（HGR20R1790C）.sldprt	90.00K
184	F28HW250010-直线导轨（HGR25R5200C）.sldprt	154.00K
185	F43H20C0010-滑块（QHH20CAZ0C）.sldprt	285.50K
186	F43H25C0010-滑块（QHH25CAZ0C）.sldprt	281.00K
187	G03BJES0010-ES油脂泵（56600）.sldprt	115.00K
188	G22JR460010-手爪（AF46-40）.sldasm	176.50K
189	G2300000010-90°摆动手腕推杆.sldprt	93.00K
190	G2300000010-90°摆动手腕支撑轴.sldprt	51.50K
191	G2300000010-90°摆动手腕支撑轴套.sldprt	51.00K
192	G2300000010-90°摆动手腕转轴.sldprt	52.50K
193	G2300000010-90°摆动手腕转轴轴套.sldprt	51.00K
194	G2300000011-90°摆动手腕前支撑板.sldprt	68.00K
195	G2300000011-90°摆动手腕后支撑板.sldprt	68.00K
196	G2300000011-90°摆动手腕缸体.sldprt	72.50K
197	G2300000012-90°摆动手腕.sldasm	176.00K
198	G23ATHRQ030-旋转气缸（HRQ50A）.sldprt	229.50K
199	G24ATAJ0020-液压缓冲器（ACJ1412N）.sldasm	114.00K
200	G27BJ220010-七通分油块（22656J）.sldprt	73.00K
201	G4200520010-直角快插接头（52113-46×0.75）.sldprt	58.50K
202	G42BJ220020-直角接头组件（22646-1T）.sldprt	57.50K
203	G42BJ220040-油塞（22645）.sldprt	56.00K
204	G42BJ220050-直通接头组件（22661T）.sldprt	57.00K
205	G42BJ280010-控制件（28882-1T）.sldprt	60.50K
206	G49ATAS0020-调速阀（ASL8-01）.sldprt	433.00K
207	G49ATAS0030-调速阀（ASL6-01）.sldprt	430.50K
208	G49ATAVC010-单向阀（APCVC10-02）.sldprt	64.00K
209	G49ATBSL020-消音器（BSL02）.sldprt	90.00K
210	G50AT1M0010-阀板（100M3F）.sldprt	76.00K
211	G50AT2S0010-电磁阀（2S030-08）.sldprt	211.50K
212	G50AT4V0010-电磁阀（4V12006B）.sldprt	342.50K
213	GB／T41-20001型六角螺母C级M6.sldprt	59.00K
214	GB／T5781-2000六角头螺栓全螺纹C级M10×100.sldprt	64.00K
215	GB／T5781-2000六角头螺栓全螺纹C级M8×80.sldprt	60.50K
216	GB／T6170-20001型六角螺母A级和B级M10.sldprt	60.50K
217	GB／T6170-20001型六角螺母A级和B级M8.sldprt	60.50K
218	GB／T70．1-2000内六角圆柱头螺钉M10×40.sldprt	57.00K
219	GB／T70．1-2000内六角圆柱头螺钉M6×16.sldprt	56.50K
220	GB／T93-1987标准型弹性垫圈装配6×1．6.sldprt	52.00K
221	GB／T95-2002平垫圈C级6×1．6.sldprt	51.00K
222	H14ATAC0010-管接头（APC6-01）.sldprt	69.50K
223	H14ATAC0020-管接头（APC8-01）.sldprt	69.00K
224	H14ATAC0030-管接头（APC10-02）.sldprt	69.00K
225	H14ATAC0040-管接头（APC6-M5）.sldprt	71.00K
226	H14ATAL0020-管接头（APL8-02）.sldprt	75.00K
227	H14ATAL0040-管接头（APL6-M5）.sldprt	78.50K
228	H15ATAPV010-两通（APV10）_HI.sldprt	70.00K
229	H15ATAPY010-三通（APY10）.sldprt	80.00K
230	H16ATABP020-堵头（ABP02）.sldprt	55.50K
231	JAW.sldprt	74.50K
232	JRT.sldprt	64.00K
233	L21YY020010-齿条（CHTMH-020-10）.sldprt	92.00K
234	L21YY020020-齿条（CHTMH-020-05）.sldprt	68.50K
235	L2200AD0010-润滑齿轮（ADAM6591218）.sldprt	378.00K
236	N20SP090010-减速机（VRL-090B-4-K5-28HA22）.sldprt	155.00K
237	N20SP090020-减速机（VRL-090B-5-K5-28HA22）.sldprt	155.00K
238	Part1.sldprt	62.50K
239	Part18.sldprt	55.50K
240	Part19.sldprt	55.50K
241	Part1_2.sldprt	62.50K
242	Part1_3.sldprt	62.50K
243	Part2.sldprt	56.50K
244	Part22.sldprt	76.00K
245	Part23.sldprt	74.00K
246	Part3.sldprt	54.00K
247	Part4.sldprt	54.00K
248	Part5.sldprt	56.50K
249	Part67.sldprt	444.00K
250	Part7.sldprt	55.50K
251	Part8.sldprt	55.50K
252	Part9.sldprt	77.00K
253	PISTON.sldprt	53.00K
254	PL1002.sldprt	73.50K
255	PLUNGER.sldprt	75.00K
256	QMD.12.001-手指.sldprt	105.50K
257	R12TH130030-伺服电机（THA130152C无刹车）.sldprt	69.00K
258	R12TH130040-伺服电机（THA130152B有刹车）.sldprt	69.00K
259	R25ORD40010-限位开关（D4MC-5020）.sldprt	59.00K
260	R26SKME0010-接近开关（IME08-02BNSZW2S无螺母）.sldprt	65.50K
261	R26SKME0020-接近开关（IME08-02BNSZW2K）.sldprt	63.50K
262	R28ATDH0010-磁性开关（DS1-H-020）.sldprt	69.00K
263	Screw_Round-M3.0x4.0.sldprt	54.00K
264	Screw_Round-M3.0x4.0_2.sldprt	54.00K
265	Screw_Round-M3.0x4.0_3.sldprt	54.50K
266	Text3D-AF46-40-CP-PS.sldprt	260.00K
267	Text3D-www.jrtfa.com.sldprt	508.50K
268	Z02AMLP0010-导轨压块（LP0404-P）.sldasm	113.00K
269	Z02AMLP0010-导轨压块（LP0404-P）.sldprt	53.50K
270	Z08KS280010-JQ2850拖链主体1440.sldprt	61.00K
271	Z08KS380010-JQ3890拖链主体3000.sldprt	59.50K
272	Z09KS280010-JQ2850链头.sldprt	137.00K
273	Z09KS280020-JQ2850链尾.sldprt	127.00K
274	Z09KS280030-JQ2850隔离片.sldprt	90.00K
275	Z09KS280040-JQ2850梳妆板.sldprt	72.50K
276	Z09KS380010-JQ3890链头.sldprt	117.00K
277	Z09KS380020-JQ3890链尾.sldprt	117.00K
278	Z09KS380030-JQ3890隔离片.sldprt	90.00K
279	Z09KS380040-JQ3890电缆C型槽.sldprt	63.00K
280	Z09KSUB0010-电缆夹UB6-12.sldprt	80.50K
281	Z09KSUB0020-电缆夹UB12-18.sldprt	84.50K
282	Z1200000010-一线卡.sldprt	57.50K
283	_X2_BCF8CCB4_X0_.sldprt	54.00K
284	_X2_C2A4D06CB8E8_X0__Round-M3.0x6.0_2.sldprt	54.50K
285	_X2_C2A4D06CB8E8_X0__Round-M3.0x6.0_3.sldprt	54.50K
286	_X2_D30CD2B8_X0_602.sldprt	67.50K
287	桁架机械手.SLDASM	11.69M
