CRH2动车转向架系统1207527===500_SOLIDWORKS 2021_模型图纸下载

首页

图库

工程师

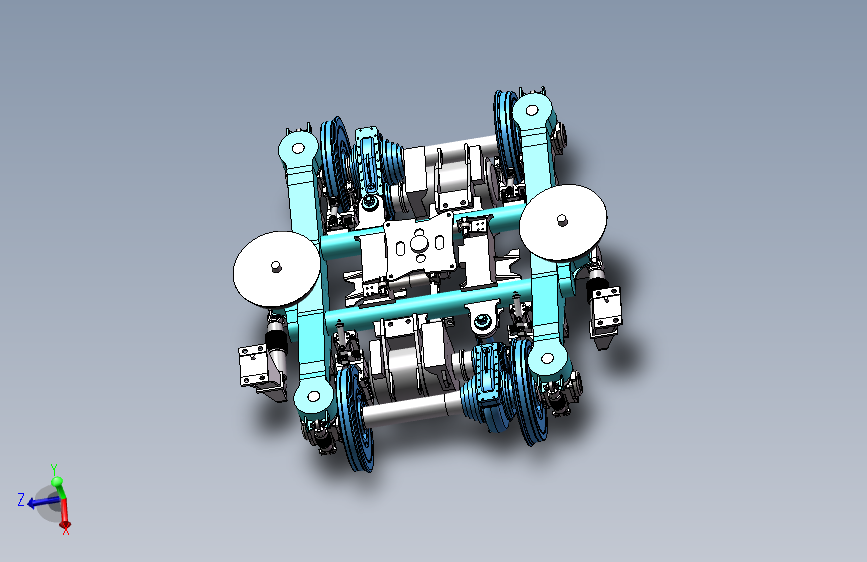

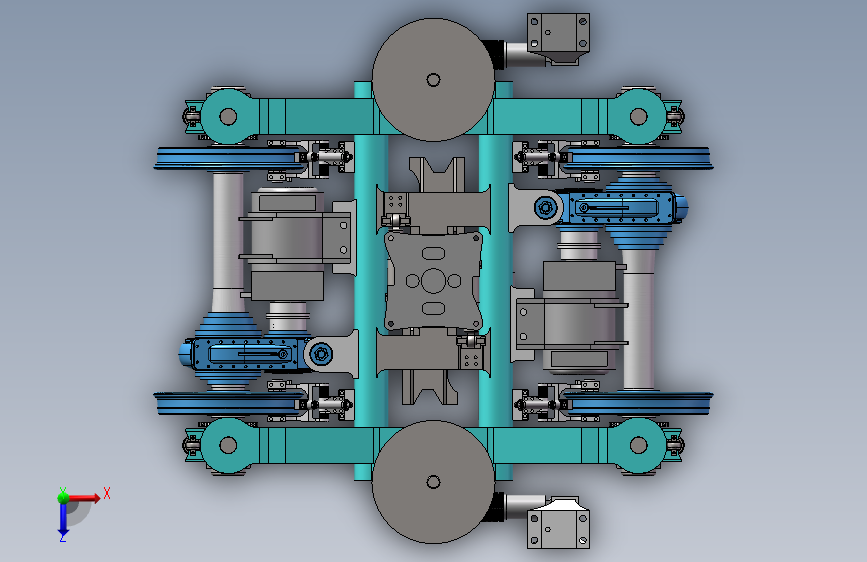

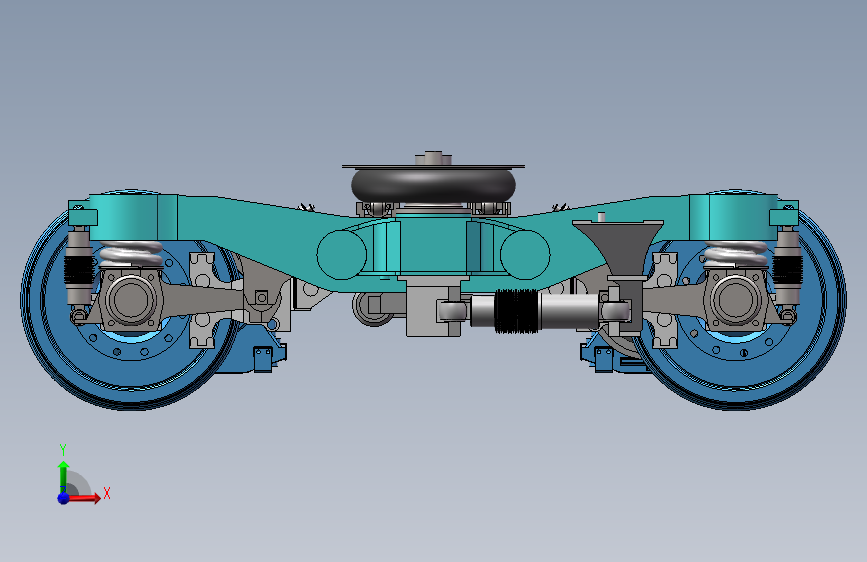

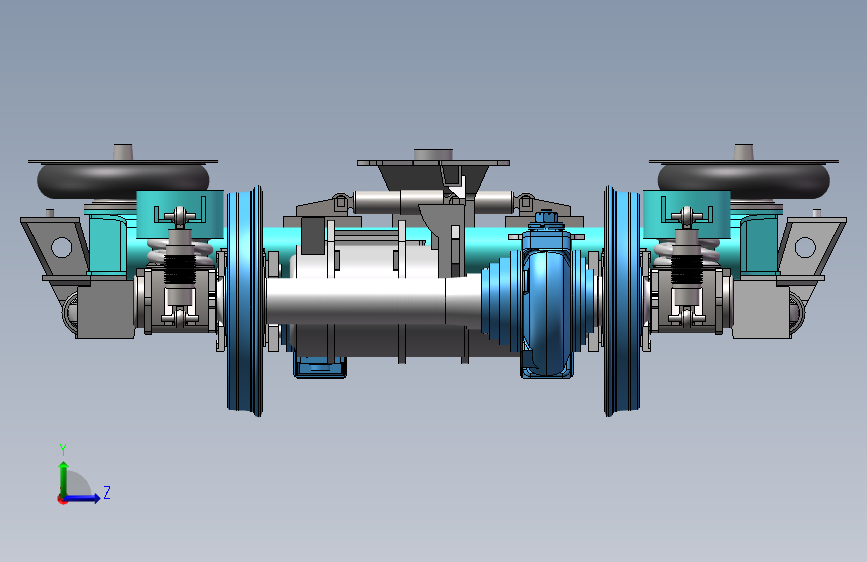

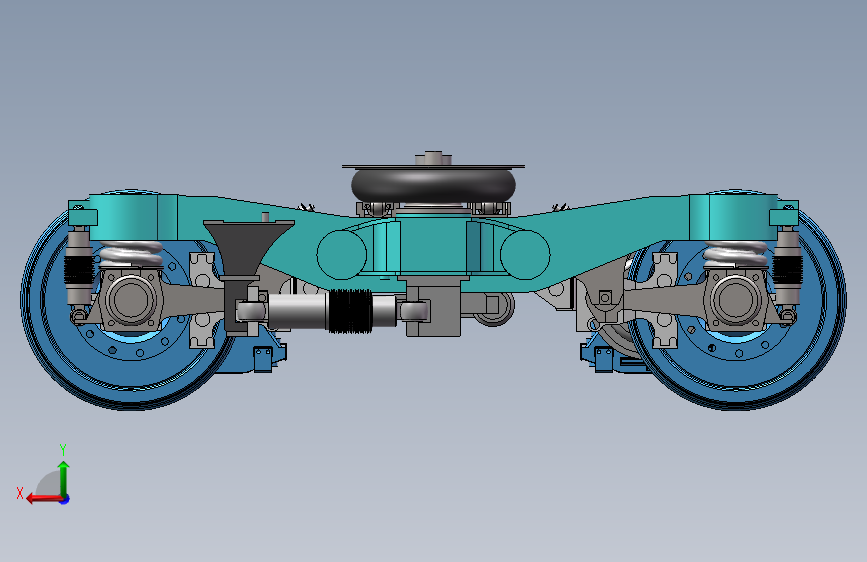

CRH2动车转向架系统1207527===500（ID:1224881）

机械设备 / 非标机械 / CRH2动车转向架系统1207527===500

©非原创

134

平面图

3D视图

文件列表

#	文件名称	文件大小
1	17120358268047.zip	36.24M
2	clx.SLDASM	928.55K
3	CRH2-00-000_动车转向架.SLDASM	4.54M
4	CRH2-01-000_转向架构架.SLDASM	165.65K
5	CRH2-01-001_侧梁.SLDPRT	344.41K
6	CRH2-01-002_下夹板.SLDPRT	127.44K
7	CRH2-01-002_横梁.SLDPRT	102.01K
8	CRH2-01-003_反扣.SLDPRT	90.89K
9	CRH2-01-003_空气弹簧座.SLDPRT	390.97K
10	CRH2-01-004_上夹板.SLDPRT	111.18K
11	CRH2-01-005_橡胶关节.SLDPRT	125.39K
12	CRH2-01-100_弹簧装配体.SLDASM	1.22M
13	CRH2-01-101_轴箱內簧（变螺距螺旋线）.SLDPRT	951.77K
14	CRH2-01-102_轴箱外簧（变螺距螺旋线）.SLDPRT	958.96K
15	CRH2-01-200_垂向减振器.SLDASM	424.71K
16	CRH2-01-201_垂向减振器.SLDPRT	459.21K
17	CRH2-01-202_上关节.SLDPRT	101.71K
18	CRH2-01-203_下关节.SLDPRT	98.91K
19	CRH2-02-000_前轴箱总成.SLDASM	1.67M
20	CRH2-02-001_轴箱体.SLDPRT	265.16K
21	CRH2-03-000_后轴箱总成.SLDASM	1.66M
22	CRH2-03-001_轴箱体.SLDPRT	288.34K
23	CRH2-04-000_轴箱吊座.SLDPRT	103.28K
24	CRH2-05-000_轮对.SLDASM	420.52K
25	CRH2-05-001_车轴.SLDPRT	213.08K
26	CRH2-05-002_轴承盖.SLDPRT	186.50K
27	CRH2-05-003_轴承盖.SLDPRT	122.24K
28	CRH2-05-004_轴承盖.SLDPRT	144.01K
29	CRH2-05-005_轴承盖.SLDPRT	105.03K
30	CRH2-05-100_制动盘车轮.SLDASM	335.32K
31	CRH2-05-101_车轮.SLDPRT	273.70K
32	CRH2-05-102_制动盘.SLDPRT	186.54K
33	CRH2-05-200_齿轮箱.SLDASM	1.29M
34	CRH2-05-201_箱体.SLDPRT	1.71M
35	CRH2-05-202_齿轮箱盖.SLDPRT	372.15K
36	CRH2-05-2031_吊杆.SLDPRT	261.04K
37	CRH2-05-2032_下橡胶垫.SLDPRT	119.76K
38	CRH2-05-2033_套筒.SLDPRT	85.12K
39	CRH2-05-2034_上橡胶垫座.SLDPRT	462.79K
40	CRH2-05-2035_上橡胶垫.SLDPRT	118.67K
41	CRH2-05-2036_吊杆螺母.SLDPRT	191.80K
42	CRH2-05-203_齿轮箱吊杆.SLDASM	635.24K
43	CRH2-05-204_飞石保护板.SLDPRT	86.44K
44	CRH2-05-205_托架.SLDPRT	104.50K
45	CRH2-06-000_齿轮箱吊座.SLDPRT	219.70K
46	CRH2-07-000_牵引电机.SLDPRT	280.03K
47	CRH2-08-000_联轴节总成.SLDASM	134.64K
48	CRH2-08-001_联轴器前端.SLDPRT	114.82K
49	CRH2-08-002_轴.SLDPRT	72.79K
50	CRH2-09-000_电机吊座.SLDPRT	271.04K
51	CRH2-10-000_前制动器总成.SLDASM	447.50K
52	CRH2-10-001_制动吊座.SLDPRT	130.65K
53	CRH2-10-002_卡钳座.SLDPRT	187.50K
54	CRH2-10-003_卡钳.SLDPRT	586.84K
55	CRH2-10-004_制橡胶套.SLDPRT	175.16K
56	CRH2-10-005_制橡胶套25.SLDPRT	131.82K
57	CRH2-10-100_制踏面清扫.SLDASM	134.92K
58	CRH2-10-101_座部.SLDPRT	253.61K
59	CRH2-10-102_清扫板.SLDPRT	126.50K
60	CRH2-11-000_后制动器总成.SLDASM	410.28K
61	CRH2-12-000_轴箱端盖.SLDPRT	140.59K
62	CRH2-13-000_轴箱后盖.SLDASM	112.08K
63	CRH2-13-001_上半盖.SLDPRT	141.72K
64	CRH2-13-002_下半盖.SLDPRT	123.15K
65	CRH2-14-000_左抗蛇形减震器.SLDASM	219.99K
66	CRH2-14-001_车体座.SLDPRT	178.16K
67	CRH2-14-002_连接座.SLDPRT	178.53K
68	CRH2-14-100_抗蛇形减振器.SLDASM	200.15K
69	CRH2-14-101_抗蛇形减振器.SLDPRT	395.18K
70	CRH2-14-102_前轴端.SLDPRT	69.99K
71	CRH2-14-103_后端轴.SLDPRT	69.70K
72	CRH2-15-000_右抗蛇形减震器.SLDASM	225.43K
73	CRH2-15-001_车体座反.SLDPRT	220.92K
74	CRH2-15-002_转向架座反.SLDPRT	232.46K
75	CRH2-16-000_纵向梁.SLDPRT	276.54K
76	CRH2-17-000_横向减振器.SLDASM	189.51K
77	CRH2-17-100_横向减振器.SLDPRT	319.74K
78	CRH2-17-200_前销轴.SLDPRT	69.74K
