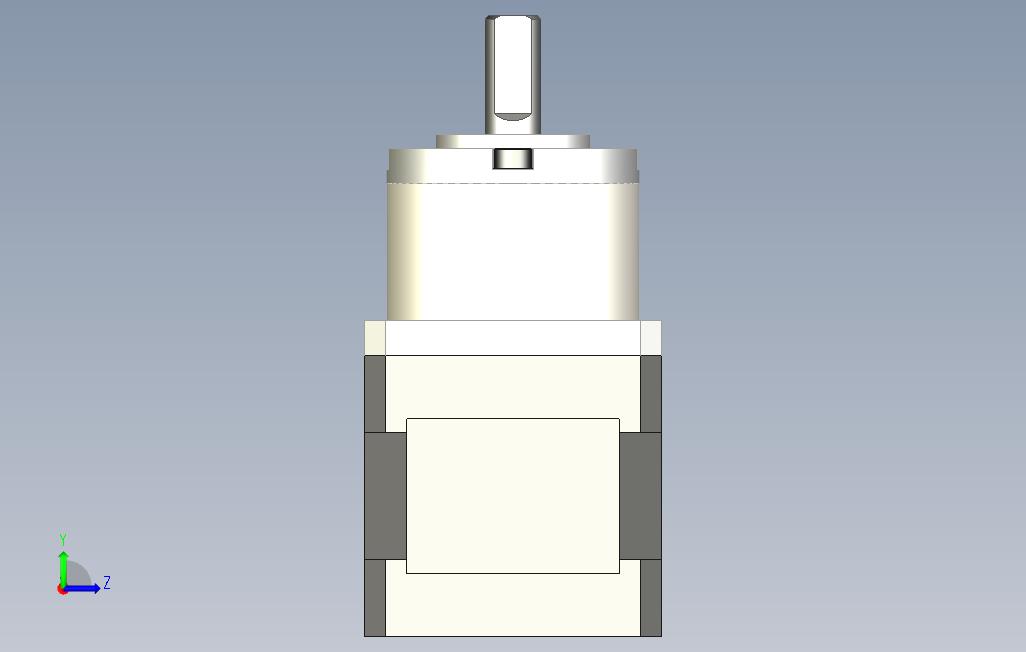

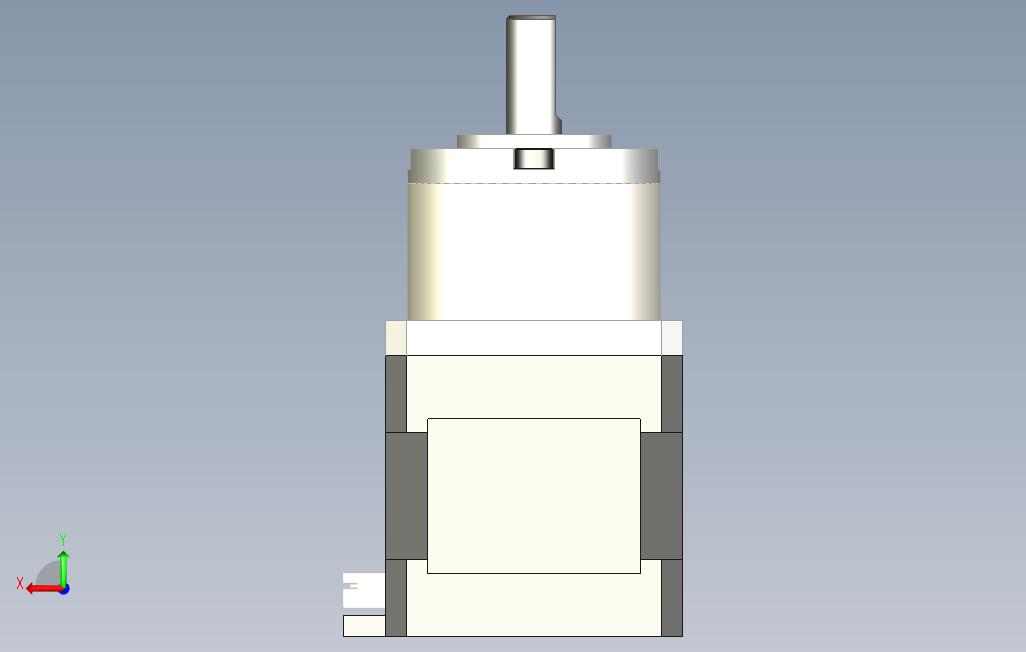

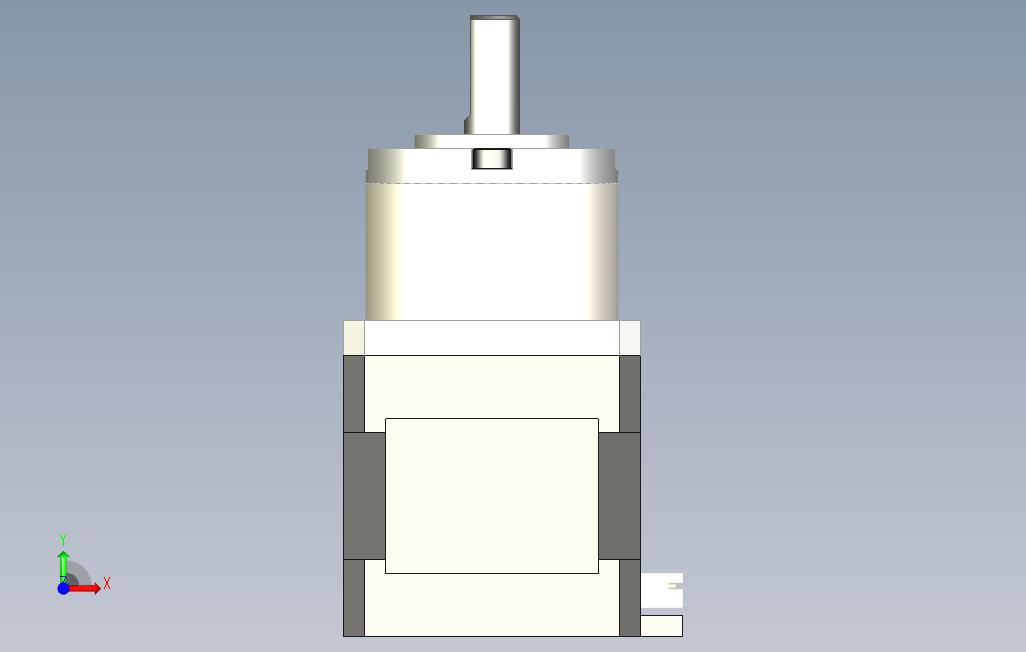

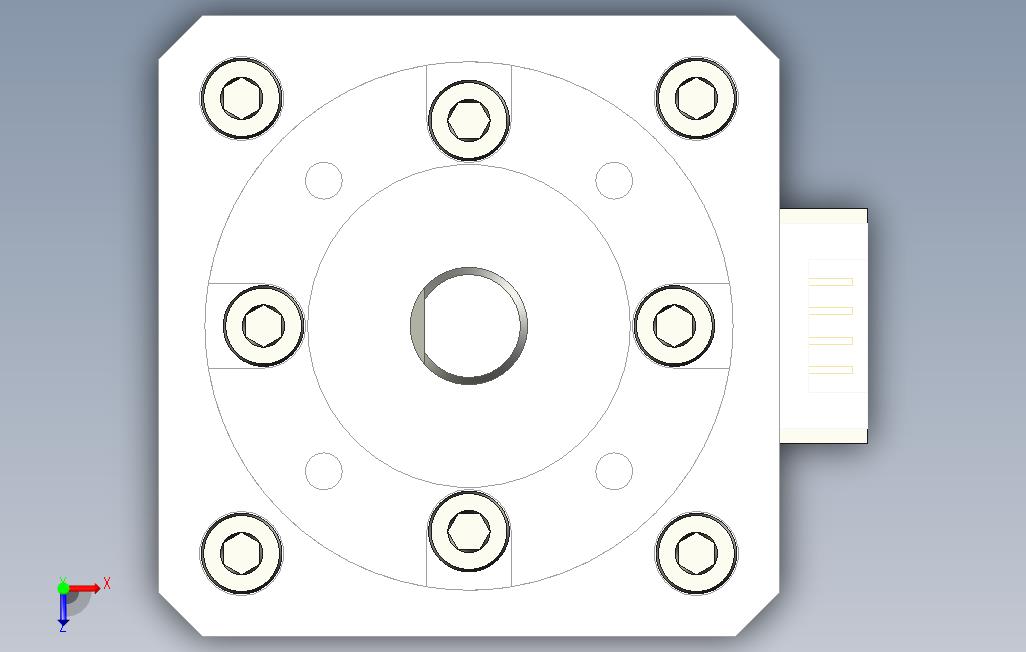

Nem17行星齿轮箱（ID:123505）

设备部件 / 传动部件 / Nem17行星齿轮箱

©非原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	JST 2.0 PH - 6 Pin v5.iam	57.50K
2	JST 2.0 PH - 6 Pin v5.ipt	93.00K
3	M3 x 15mm.iam	57.00K
4	M3 x 15mm.ipt	488.00K
5	M3 x 6mm.ipt	493.00K
6	Mid.ipt	71.50K
7	Mid_1.ipt	71.00K
8	Nema 17 40mm 5-1 Planetary Gearbox 2D.png	584.64K
9	Nema 17 40mm 5_1 Planetary Gearbox v4.f3d	46.08K
10	Nema 17 40mm 5_1 Planetary Gearbox.png	164.05K
11	Nema 17 40mm 5_1 Planetary Gearbox.step	1.11M
12	Nema 17 40mm 5_1 Planetary Gearbox.stl	6.52M
13	Nema 17 40mm v20.iam	68.00K
14	Nema 17 40mm v20.ipt	125.00K
15	Nema 17 5_1 Planetary Gearbox v12.f3d	443.78K
16	Nema 17 5_1 Planetary Gearbox v12.iam	61.00K
17	Nema 17 5_1 Planetary Gearbox v12.ipt	140.00K
18	Nema 17 5_1 Planetary Gearbox.png	108.27K
19	Nema 17 5_1 Planetary Gearbox.step	413.90K
20	Nema 17 5_1 Planetary Gearbox.stl	1.63M
21	Nema 17 Planetary Gearbox.iam	70.50K
22	Pin.ipt	85.50K
23	Screw.ipt	55.00K
24	Screws.iam	64.00K
25	Shaft.ipt	74.50K
26	Shaft_1.ipt	77.00K
