汽车前桥系统三维模型（ID:124963）

交通运输 / 车辆工程 / 汽车前桥系统三维模型

©非原创

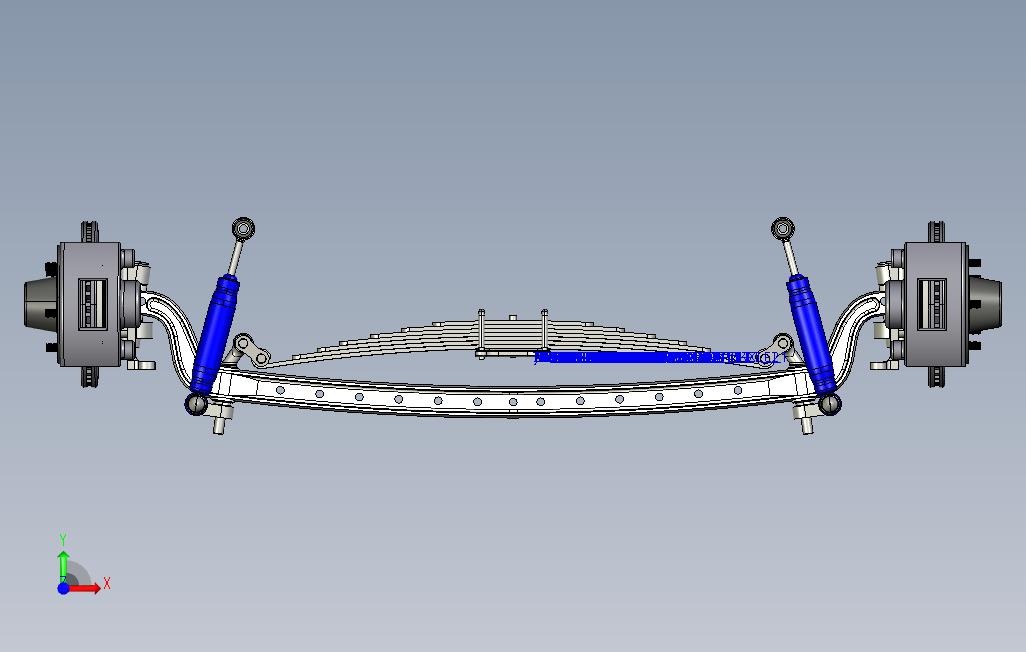

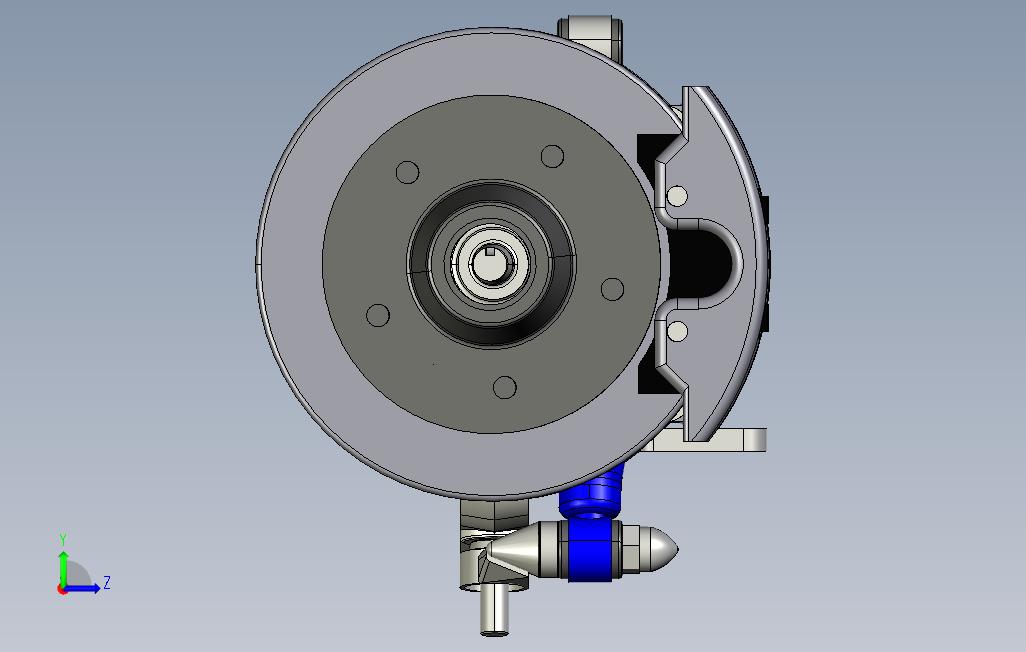

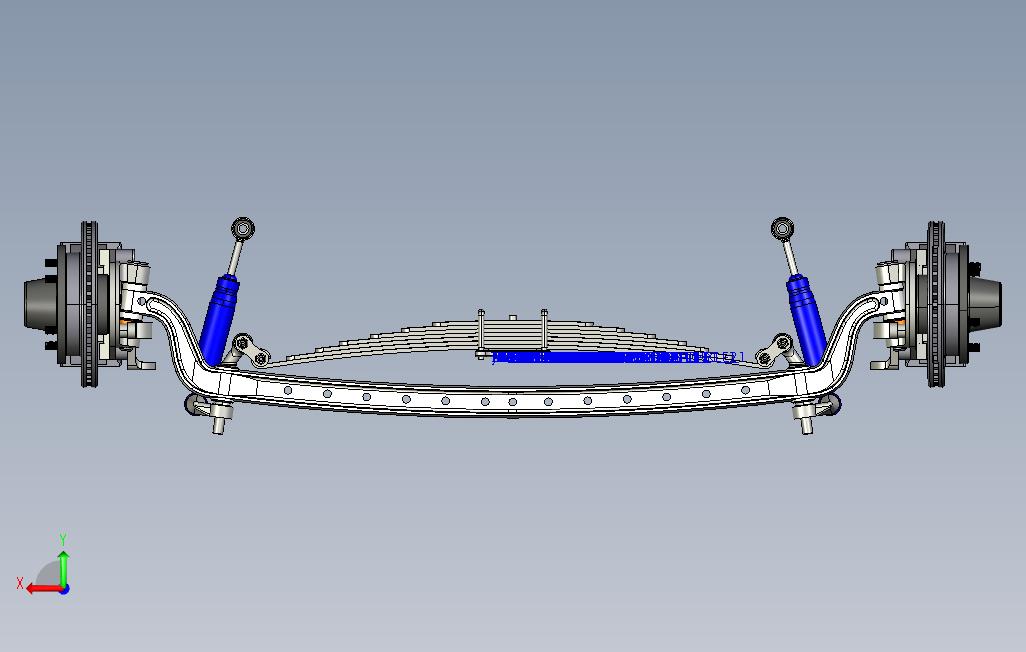

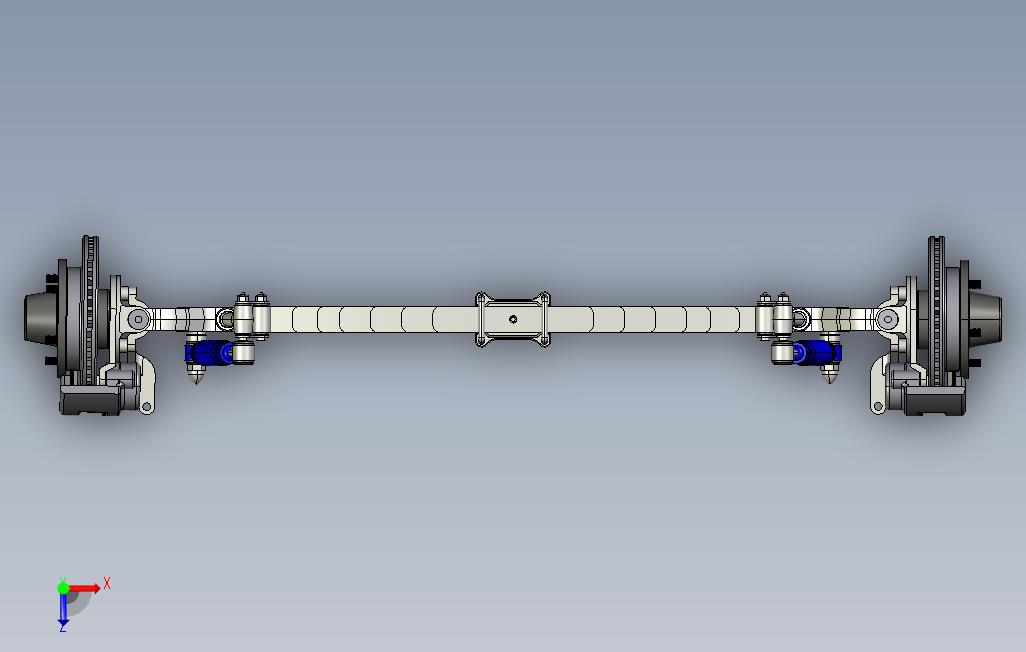

平面图

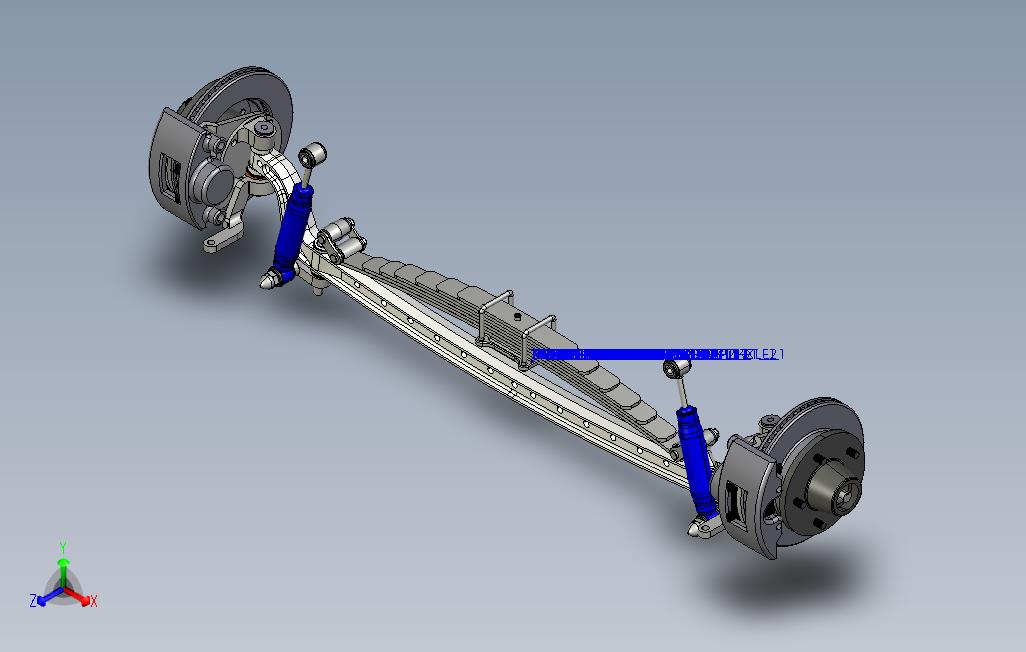

3D视图

文件列表

#	文件名称	文件大小
1	35-40_ford_kingpin.prt	76.38K
2	35_to_40_ford_spindle.prt	228.04K
3	acorn_nut.prt	74.59K
4	brake_caliper.prt	356.76K
5	brake_pad_floater_side.prt	89.60K
6	brake_pad_piston_side.prt	67.00K
7	brake_rotor.prt	3.21M
8	caliper_assy.asm	51.57K
9	driver_steering_arm.prt	159.16K
10	front_shock-main_body.prt	81.44K
11	front_shock-main_body_1.prt	134.82K
12	front_shock-stem.prt	70.39K
13	front_shock-stem_1.prt	54.14K
14	front_shock_assembly.asm	55.22K
15	front_shock_assembly_1.asm	53.95K
16	full_front_drop_axle.asm	45.32K
17	full_front_end_assembly.asm	117.45K
18	full_front_drop_axle_asm.igs	46.07M
19	full_front_drop_axle_asm.stp	8.40M
20	full_front_drop_axle_asm__out.log	2.26K
21	full_front_drop_axle__out.log	5.79K
22	juice_hub.prt	1.40M
23	lower_shock_mounts.prt	86.37K
24	lower_shock_mounts_1.prt	122.60K
25	重复_nut.prt.1	62.22K
26	passenger_steering_arm.prt	158.54K
27	right_brake_caliper_bracket.prt	141.45K
28	shackle-main.prt	112.75K
29	shackle-washer.prt	65.90K
30	shackle_assembly.asm	46.26K
31	shackle_assembly_1.asm	46.26K
32	shackle_washer-half.prt	62.84K
33	shock_assy.asm	48.16K
34	shock_bushing.prt	102.49K
35	shock_mount_opposite.prt	86.50K
36	shock_mount_opposite_1.prt	122.61K
37	shock_sleeve-lwr.prt	52.29K
38	shock_sleeve-upr.prt	52.09K
39	spring-main_leaf.prt	105.60K
40	springbolt.prt	65.84K
41	spring_assembly.asm	54.94K
42	spring_leaf_2.prt	74.90K
43	spring_leaf_3.prt	75.53K
44	spring_leaf_4.prt	77.11K
45	spring_leaf_5.prt	80.78K
46	spring_leaf_6.prt	80.56K
47	spring_leaf_7.prt	85.82K
48	spring_perch.prt	179.49K
49	spring_perch_assembly.asm	35.78K
50	spring_perch_assembly_1.asm	35.79K
51	super_bell_4_inch_drop_axle.prt	936.06K
52	thrust_bearing_for_35-40_ford_k.prt	91.88K
53	tie_bolt_nut.prt	55.36K
54	u-bolt.prt	76.20K
55	u-bolt_plate.prt	166.78K
56	QQ截图20170907211433.png	55.94K
57	QQ截图20170907211451.png	68.17K
58	QQ截图20170907211500.png	32.68K
59	QQ截图20170907211554.png	62.10K
