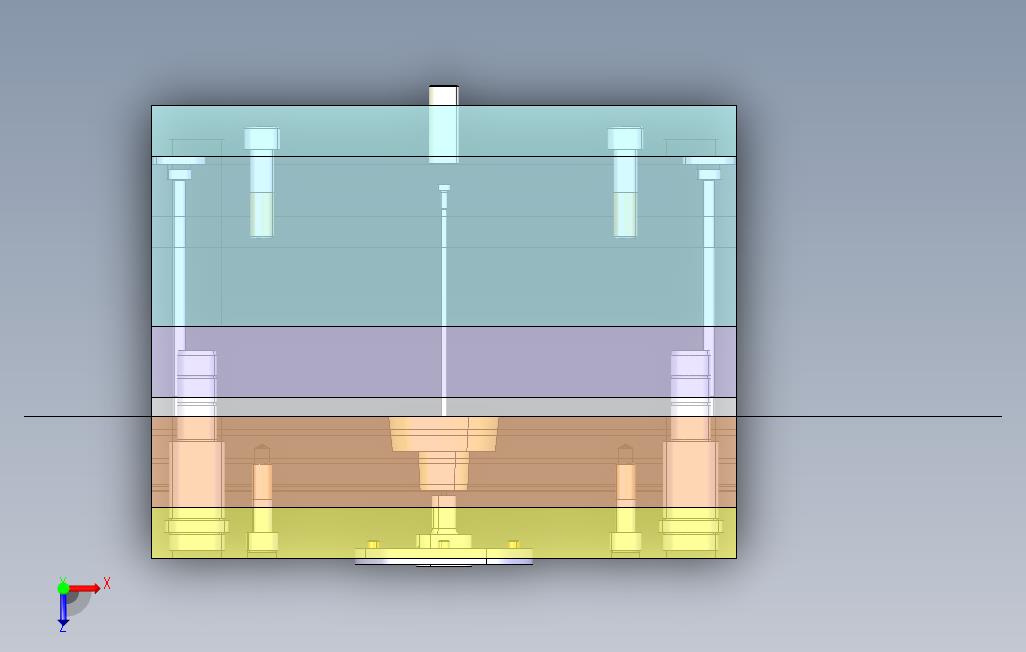

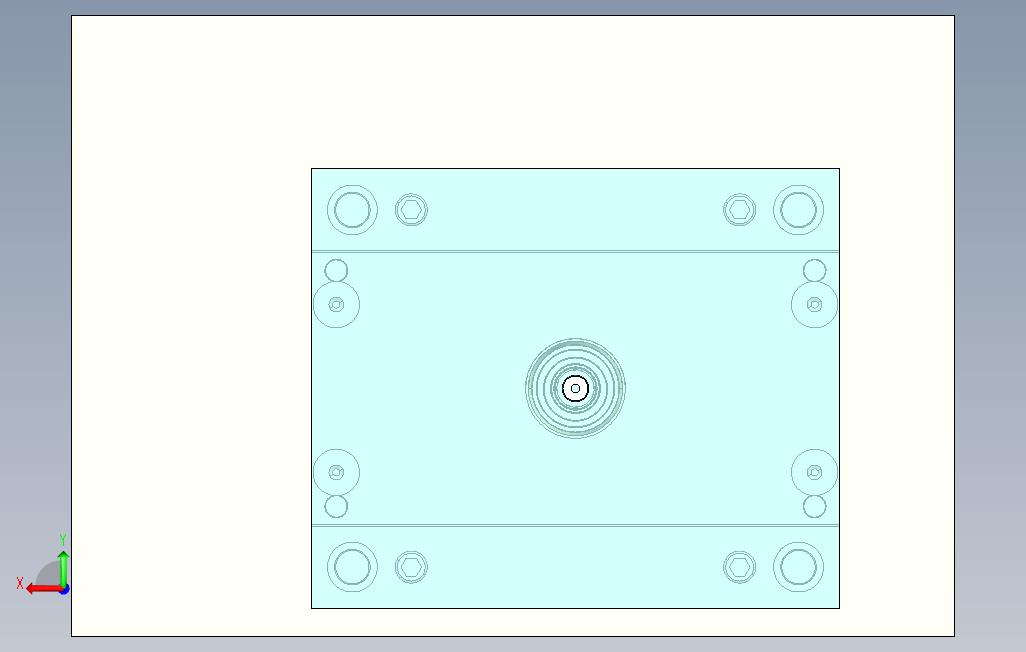

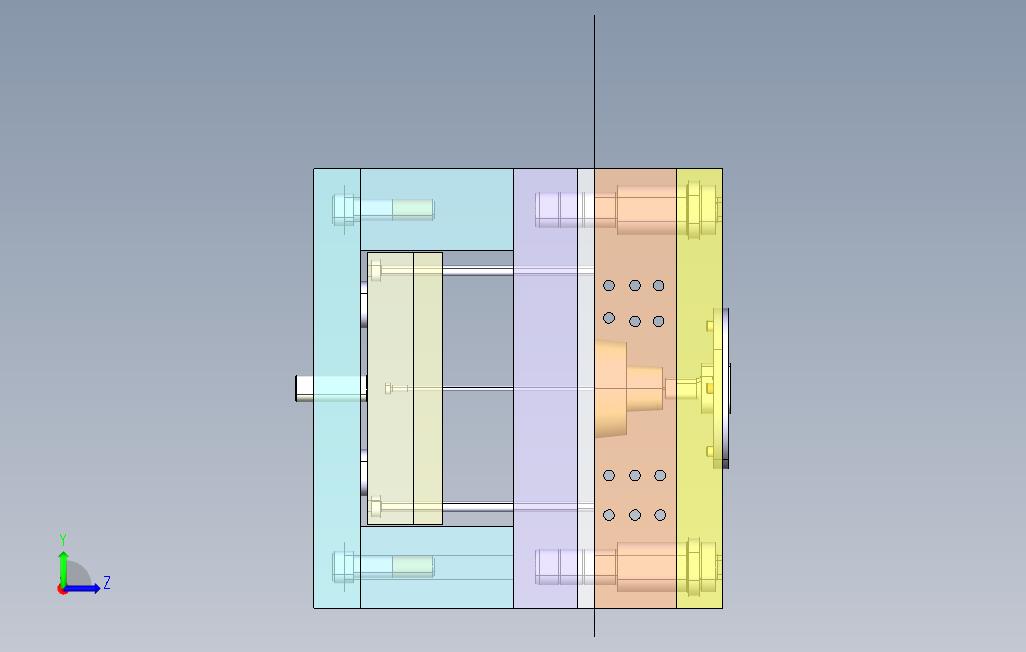

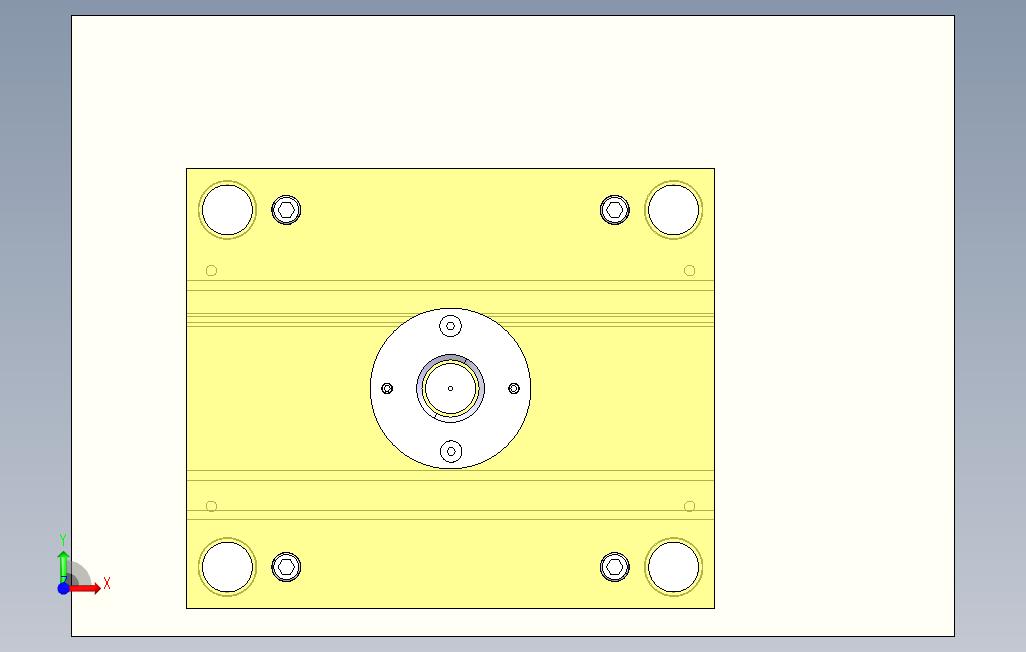

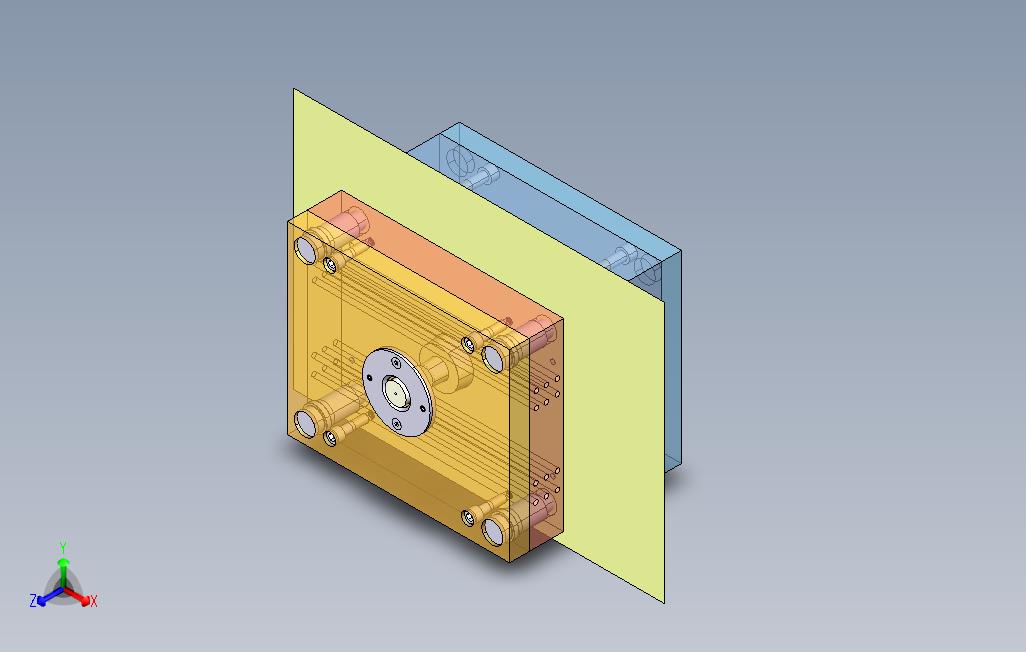

单腔模具(ID:129440)
# | 文件名称 | 文件大小 |
---|---|---|
1 | Bushing_Fb120_3.CATPart | 179.32K |
2 | CapScrew_Is610_2.CATPart | 241.95K |
3 | CapScrew_Is610_3.CATPart | 241.42K |
4 | CavityCooling.CATPart | 48.59K |
5 | CavityPlate.CATPart | 947.84K |
6 | ClampingPlate.CATPart | 618.82K |
7 | CoreCooling.CATPart | 48.46K |
8 | CorePlate.CATPart | 539.95K |
9 | CoreSupportPlate.CATPart | 147.53K |
10 | CountersunkScrew_SM_2.CATPart | 217.27K |
11 | EjectionSide.CATProduct | 76.51K |
12 | EjectorPin_C-EX_3.CATPart | 199.03K |
13 | EjectorPlateA.CATPart | 147.01K |
14 | EjectorPlateB.CATPart | 171.31K |
15 | EjectorSystem.CATProduct | 68.32K |
16 | Ejector_A_2.CATPart | 171.80K |
17 | Ejector_A_3.CATPart | 171.77K |
18 | Ejector_A_4.CATPart | 171.75K |
19 | Ejector_A_5.CATPart | 171.75K |
20 | InjectionSide.CATProduct | 114.61K |
21 | KnockOut_ERDW-NoWasher_2.CATPart | 137.23K |
22 | LeaderPin_FSC_2.CATPart | 305.98K |
23 | LocatingRing_R90_2.CATPart | 249.44K |
24 | LocatingRing_R90_3.CATPart | 188.08K |
25 | LockingScrew_Gs913_2.CATPart | 160.03K |
26 | LockingScrew_Gs913_5.CATPart | 160.05K |
27 | LockingScrew_Gs913_6.CATPart | 160.07K |
28 | Mold.CATProduct | 261.88K |
29 | Mold_EjectionSide.CATPart | 138.95K |
30 | Product1_EjectionSide.CATPart | 165.48K |
31 | Product1_InjectionSide.CATPart | 66.61K |
32 | RiserBar1.CATPart | 109.30K |
33 | RiserBar2.CATPart | 82.65K |
34 | SettingPlate.CATPart | 163.35K |
35 | single cavity mold.CATProduct | 213.93K |
36 | Sleeve_TD_2.CATPart | 121.70K |
37 | Sleeve_TD_4.CATPart | 134.99K |
38 | SprueBushing_AGK-Radius_1.CATPart | 254.59K |
39 | StopPin_SB_4.CATPart | 75.73K |
40 | TlgItfSplit_Product1.CATPart | 71.22K |
41 | TlgItf_EjectionSide.CATProduct | 15.91K |
42 | TlgItf_InjectionSide.CATProduct | 14.04K |
免费下载
发布者
眼睛大的猫咪
创作: 160254
粉丝: 1294
加入时间:2022-08-18

模型信息
图纸格式:catpart,catproduct
文件大小:2.29M
所需金币:0
上传时间:2020-11-18 01:11:07
是否可编辑:可修改,包括参数
版本:CATIA
