工业食品输送机结构3D图纸CATIA设计（ID:134850）

机械设备 / 输送提升设备 / 工业食品输送机结构3D图纸CATIA设计

©非原创

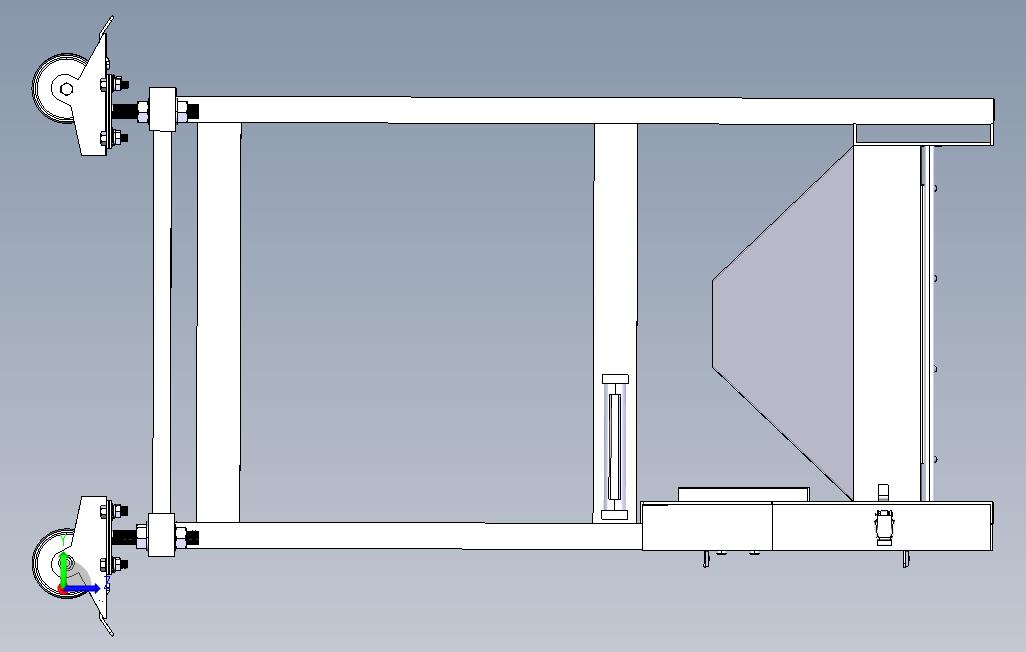

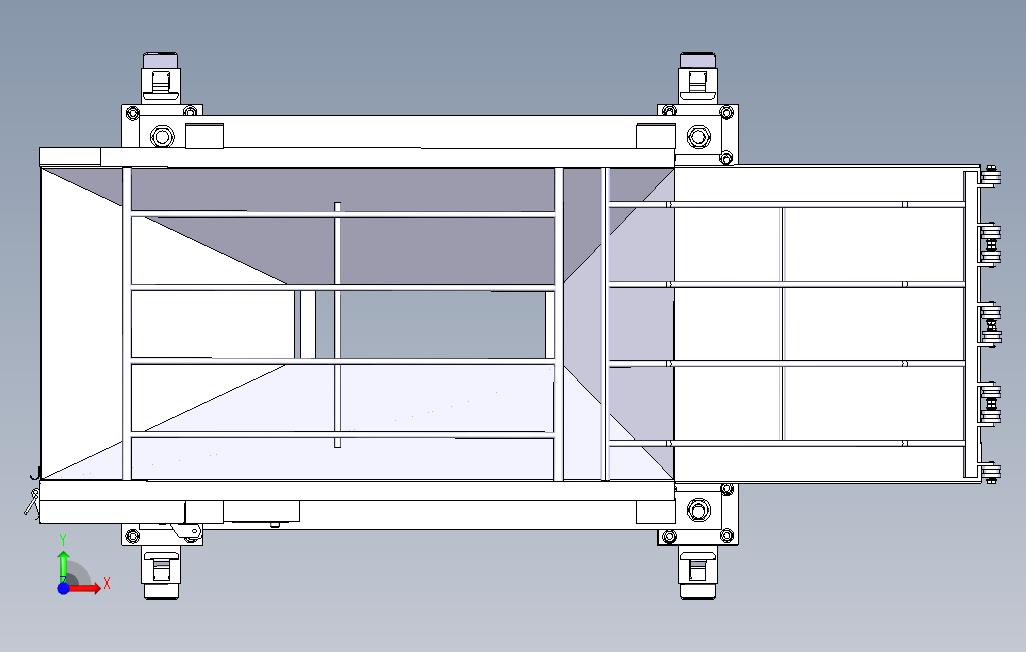

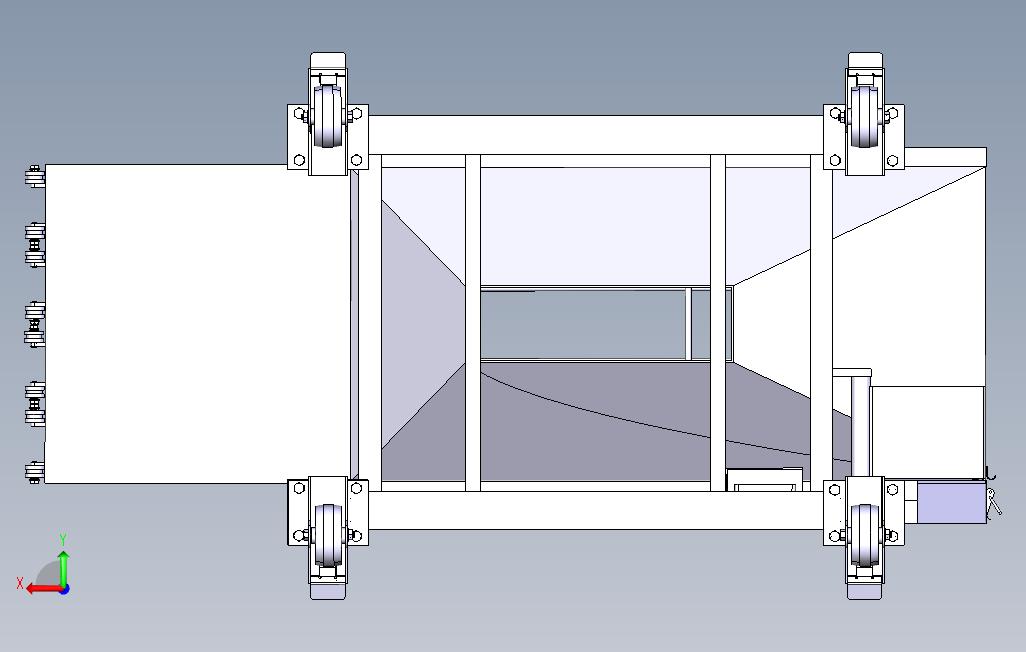

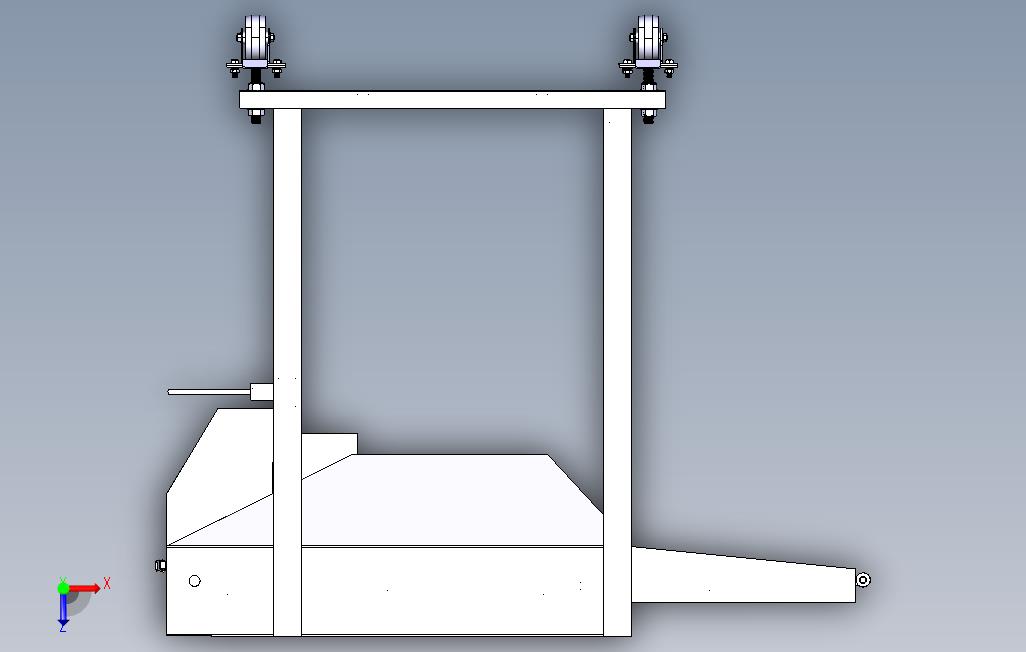

平面图

文件列表

#	文件名称	文件大小
1	100% complete conveyer.CATProduct	475.18K
2	100%.CATProduct	452.11K
3	bar.CATPart	168.63K
4	big nut.CATPart	424.89K
5	big washer.CATPart	345.26K
6	body frame 2.CATPart	490.28K
7	body frame.CATPart	300.22K
8	box.CATPart	119.48K
9	closing end rod.CATPart	50.98K
10	complete door clip.CATProduct	22.42K
11	complete roller.CATProduct	82.17K
12	complete switch box.CATProduct	54.85K
13	conveyer.jpg	280.56K
14	conveyer1.jpg	220.88K
15	door back.CATPart	152.16K
16	door clip.CATPart	224.93K
17	door connector.CATPart	376.47K
18	door pin type screw.CATPart	61.93K
19	door pin.CATPart	102.46K
20	housing right modified.CATPart	250.50K
21	housing right.CATPart	108.87K
22	housing.CATPart	127.66K
23	locker curve.CATPart	109.46K
24	middle rod.CATPart	50.93K
25	off.CATPart	341.28K
26	on.CATPart	344.23K
27	重复_pin.CATPart	90.82K
28	Product1 80%.CATProduct	44.84K
29	Product1.CATProduct	24.28K
30	Product2.CATProduct	16.23K
31	Product3.CATProduct	21.18K
32	rod complte.CATProduct	22.36K
33	rod holder.CATPart	156.23K
34	重复_rod.CATPart	117.65K
35	roller inner part.CATPart	347.15K
36	roller's screw.CATPart	903.09K
37	roller's spring washer.CATPart	368.69K
38	roller's washer.CATPart	345.15K
39	roller.CATPart	385.49K
40	重复_screw.CATPart	904.10K
41	small nut.CATPart	430.68K
42	small spring washer.CATPart	376.93K
43	small washer.CATPart	345.69K
44	sprocket.CATPart	888.82K
45	straight rods.CATPart	64.18K
46	switch box.CATPart	122.97K
47	switch cover.CATPart	85.13K
48	tank 2nd.CATPart	455.78K
49	tank final.CATPart	245.55K
50	tank.CATPart	136.18K
51	tyre casing.CATPart	183.35K
52	tyre complete.CATProduct	86.26K
53	tyre lock.CATPart	1.26M
54	tyre plate with thread.CATPart	3.20M
55	tyre plate.CATPart	1.13M
56	tyre screw.CATPart	1.58M
57	tyre stopper.CATPart	58.79K
58	tyre.CATPart	164.42K
59	更多机械资源.jpg	46.75K
