X轴Y轴齿圈旋转Z轴提升焊接翻转机（ID:1422688）
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 1717078185760.zip | 52.96M |
| 2 | 4卡盘.SLDPRT | 152.06K |
| 3 | 4卡盘爪.SLDPRT | 169.61K |
| 4 | GB825吊环螺钉M20×35.SLDPRT | 143.85K |
| 5 | GB882销轴B型36×110.SLDPRT | 127.33K |
| 6 | GB882销轴B型40×110.SLDPRT | 129.14K |
| 7 | GB882销轴B型40×196.SLDPRT | 122.10K |
| 8 | GBT97.110.SLDPRT | 53.40K |
| 9 | GBT97.116.SLDPRT | 38.07K |
| 10 | GB／T1243双排滚子链24A-4000.SLDPRT | 2.16M |
| 11 | GB／T288调心滚子轴承22220.SLDPRT | 429.70K |
| 12 | GB／T301推力球轴承51313.SLDPRT | 254.84K |
| 13 | GB／T5780六角头螺栓C级M16×55.SLDPRT | 188.10K |
| 14 | GB／T5801滚针轴承NA6913.SLDPRT | 1.79M |
| 15 | GB／T812圆螺母M60×2.SLDPRT | 100.40K |
| 16 | GB／T91开口销B型8×60.SLDPRT | 120.75K |
| 17 | HB315带锁紧槽圆螺母100.SLDPRT | 130.73K |
| 18 | HB315带锁紧槽圆螺母64.SLDPRT | 132.27K |
| 19 | HGH55CA2R3650Z0CII.SLDASM | 469.16K |
| 20 | HGH55CA4R4620Z0CII.SLDASM | 419.92K |
| 21 | HGH55C__X2_53F35C01_X0__temp.sldprt | 440.60K |
| 22 | HGH55C__X2_5DE65C01_X0__temp.sldprt | 440.47K |
| 23 | HGR55_temp-1.sldprt | 477.11K |
| 24 | HGR55_temp-2.sldprt | 476.01K |
| 25 | HGR55_temp-3.sldprt | 712.30K |
| 26 | KAF127R77DRS90L4BE5.SLDPRT | 1.80M |
| 27 | KAF77_A.SLDPRT | 725.90K |
| 28 | LHT6000.07-00.SLDPRT | 525.84K |
| 29 | QC560.20A回转支承.SLDPRT | 195.99K |
| 30 | QWC1000.32.SLDPRT | 801.82K |
| 31 | QWC630.20A.SLDPRT | 902.85K |
| 32 | SF87DRE100L6BE2.SLDPRT | 1.33M |
| 33 | SF97DRS112M6BE11.SLDPRT | 1.32M |
| 34 | SHB60.02-01.SLDPRT | 727.07K |
| 35 | SHB60.02-02.SLDPRT | 115.37K |
| 36 | SHB60.02-03.SLDPRT | 69.15K |
| 37 | SHB60.03-01.SLDPRT | 209.31K |
| 38 | SHB60.03-02.SLDPRT | 211.53K |
| 39 | SHB60.03-03.SLDPRT | 173.05K |
| 40 | SHB60.03-05.SLDPRT | 107.30K |
| 41 | SHB60.03-06.SLDPRT | 169.55K |
| 42 | SHB60.03-07.SLDPRT | 140.27K |
| 43 | SHB60.03-08.SLDPRT | 138.27K |
| 44 | SHB60.03-09.SLDPRT | 126.24K |
| 45 | SHB60.03-10.SLDPRT | 75.72K |
| 46 | SHB60.03-12.SLDPRT | 98.95K |
| 47 | SHB60.03-13.SLDPRT | 140.36K |
| 48 | SHB60.03-14.SLDPRT | 131.54K |
| 49 | SHB60.03.01-00.SLDASM | 180.97K |
| 50 | SHB60.03.01-01.SLDPRT | 58.23K |
| 51 | SHB60.03.01-02.SLDPRT | 63.70K |
| 52 | SHB60.03.01-03.SLDPRT | 114.35K |
| 53 | SHB60.03.01-04.SLDPRT | 55.67K |
| 54 | SHB60.03.01-05.SLDPRT | 53.81K |
| 55 | SHB60.03.01-06.SLDPRT | 60.36K |
| 56 | SHB60.03.01-07.SLDPRT | 51.70K |
| 57 | SHB60.03.01-08.SLDPRT | 72.65K |
| 58 | SHB60.03.01-09.SLDPRT | 126.82K |
| 59 | SHB60.04-01.SLDPRT | 228.43K |
| 60 | SHB60.04-02.SLDPRT | 79.14K |
| 61 | SHB60.04-03.SLDPRT | 63.42K |
| 62 | SHB60.04-04.SLDPRT | 98.14K |
| 63 | SHB60.04-05.SLDPRT | 234.38K |
| 64 | SHB60.05-01.SLDPRT | 138.59K |
| 65 | SHB60.05-02.SLDPRT | 387.57K |
| 66 | SHB60.05-03.SLDPRT | 95.01K |
| 67 | SHB60.05-04.SLDPRT | 80.11K |
| 68 | SHB60.05-05.SLDPRT | 136.34K |
| 69 | SHB60.05-06.SLDPRT | 744.16K |
| 70 | SHB60.05-07.SLDPRT | 92.72K |
| 71 | SHB60.05-10.SLDPRT | 85.47K |
| 72 | SHB60.05-11.SLDPRT | 87.96K |
| 73 | SHB60.05-13.SLDPRT | 118.33K |
| 74 | SHB60.05-14.SLDPRT | 118.52K |
| 75 | SHB60.05-15.SLDPRT | 81.96K |
| 76 | SHB60.05-17.SLDPRT | 96.41K |
| 77 | SHB60.05-18.SLDPRT | 146.80K |
| 78 | SHB60.05-19.SLDPRT | 64.99K |
| 79 | SHB60.06-00.SLDASM | 895.93K |
| 80 | SHB60.06-01.SLDPRT | 196.32K |
| 81 | SHB60.06-02.SLDPRT | 2.16M |
| 82 | SHB60.06-03.SLDPRT | 270.11K |
| 83 | SHB60.06-04.SLDPRT | 219.59K |
| 84 | SHB60.06-05.SLDPRT | 255.18K |
| 85 | SHB60.08-01.SLDPRT | 108.12K |
| 86 | SHB60.08-02.SLDPRT | 167.84K |
| 87 | SHB60.08-03.SLDPRT | 98.58K |
| 88 | SHB60.08-04.SLDPRT | 97.74K |
| 89 | SHB60.09-01.SLDPRT | 458.48K |
| 90 | SHB60.09-03.SLDPRT | 73.56K |
| 91 | SHB60.09-04.SLDPRT | 74.08K |
| 92 | SHB60.09-05.SLDPRT | 225.75K |
| 93 | SHB60.09-06.SLDPRT | 255.62K |
| 94 | SHB60.09-07.SLDPRT | 99.83K |
| 95 | SHB60.09-09.SLDPRT | 273.21K |
| 96 | SHB60.09-10.SLDPRT | 140.04K |
| 97 | SHB60.09-11.SLDPRT | 269.95K |
| 98 | SHB60.09-12.SLDPRT | 159.89K |
| 99 | SHB60.09-13.SLDPRT | 151.73K |
| 100 | SHB60.09.01-00.SLDASM | 449.43K |
| 101 | SHB60.09.01-01.SLDPRT | 117.79K |
| 102 | SHB60.09.01-02.SLDPRT | 419.95K |
| 103 | SHB60.09.01-03.SLDPRT | 129.08K |
| 104 | SHB60.09.01-04.SLDPRT | 88.98K |
| 105 | SHB60.09.01-05.SLDPRT | 73.85K |
| 106 | SHB60.09.01-06.SLDPRT | 104.94K |
| 107 | SHB60.09.01-07.SLDPRT | 105.53K |
| 108 | X轴Y轴齿圈旋转Z轴提升焊接翻转机.SLDASM | 12.05M |
| 109 | YLJ112-10-4.SLDPRT | 131.51K |
| 110 | 三爪卡盘.SLDASM | 114.61K |
| 111 | 升降传动机构.SLDASM | 3.31M |
| 112 | 卡盘.SLDPRT | 189.88K |
| 113 | 卡盘爪.SLDPRT | 175.81K |
| 114 | 四爪卡盘.SLDASM | 104.52K |
| 115 | 回转装置.SLDASM | 1.07M |
| 116 | 回转装置从动端.SLDASM | 611.20K |
| 117 | 垫圈GBT9310.SLDPRT | 59.48K |
| 118 | 垫圈GBT9320.SLDPRT | 41.45K |
| 119 | 垫圈GBT97.120.SLDPRT | 37.87K |
| 120 | 垫圈GB／T9542.SLDPRT | 37.93K |
| 121 | 安全滚轮.SLDASM | 1.71M |
| 122 | 底座.SLDPRT | 376.54K |
| 123 | 挡圈GBT893180.SLDPRT | 46.00K |
| 124 | 滑台部件.SLDASM | 2.01M |
| 125 | 电控柜安装座.SLDPRT | 289.46K |
| 126 | 立柱部件.SLDASM | 628.03K |
| 127 | 翻转传动部件.SLDASM | 944.65K |
| 128 | 螺栓GBT5780M10X45.SLDPRT | 72.31K |
| 129 | 螺栓GBT5781M20X60.SLDPRT | 75.84K |
| 130 | 螺母GBT6170M16.SLDPRT | 80.76K |
| 131 | 螺钉GBT70.1M10X25.SLDPRT | 81.18K |
| 132 | 螺钉GBT78M6X8.SLDPRT | 53.31K |
此图纸下载需要65金币
立即下载
发布者
风之韵
创作: 593
粉丝: 16
加入时间：2024-01-17
模型信息
图纸格式：sldprt,sldasm
文件大小：54.23M
所需金币：65
上传时间：2024-05-30 22:10:00
是否可编辑：可修改，包括参数
版本：SOLIDWORKS 2019
标签
焊接翻转机
提升装置
焊接变位机
旋转机
焊接旋转机
图纸简介
X轴Y轴齿圈旋转丝杠分合Z轴提升焊接翻转机：

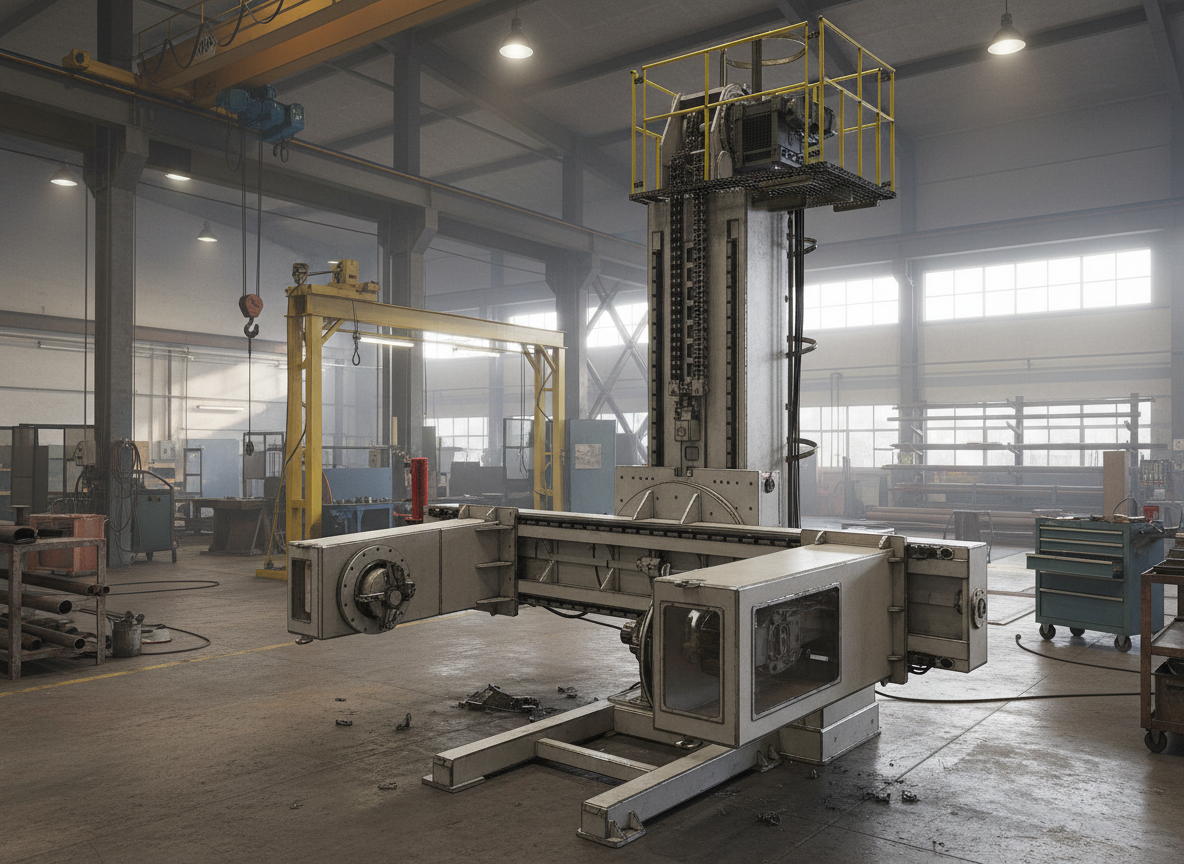

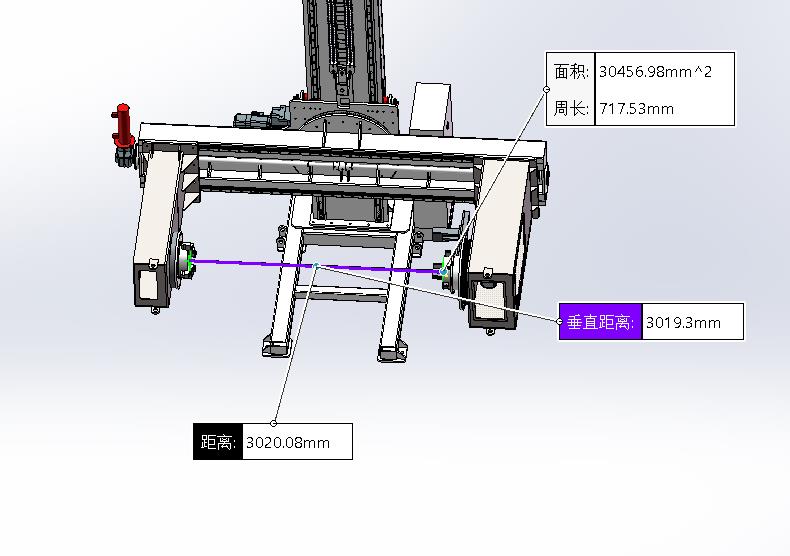

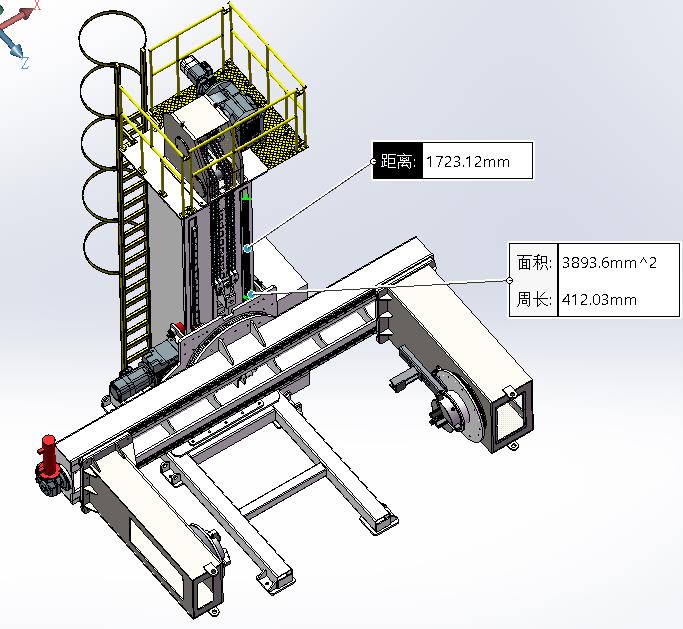

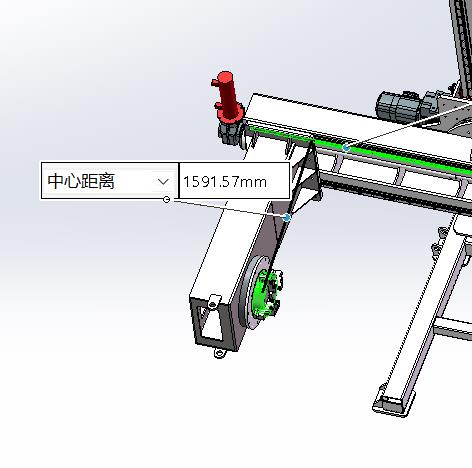

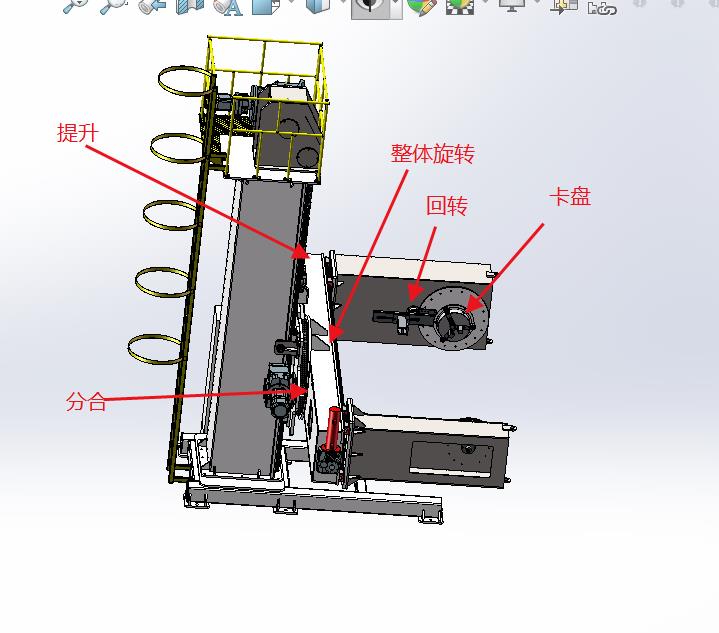

X轴由电机+齿轮驱动旋转，并由丝杠导轨实现分合；工件由两侧四爪卡盘夹紧；Y轴由电机+齿圈实现旋转；Z轴由电机+链轮链条实现提升。并有防掉落装置。提升高度1700mm；最大夹持长度3000mm；最大旋转半径1500mm。
