新型 NURover 6DOF 机械臂_SOLIDWORKS _模型图纸下载

首页

图库

工程师

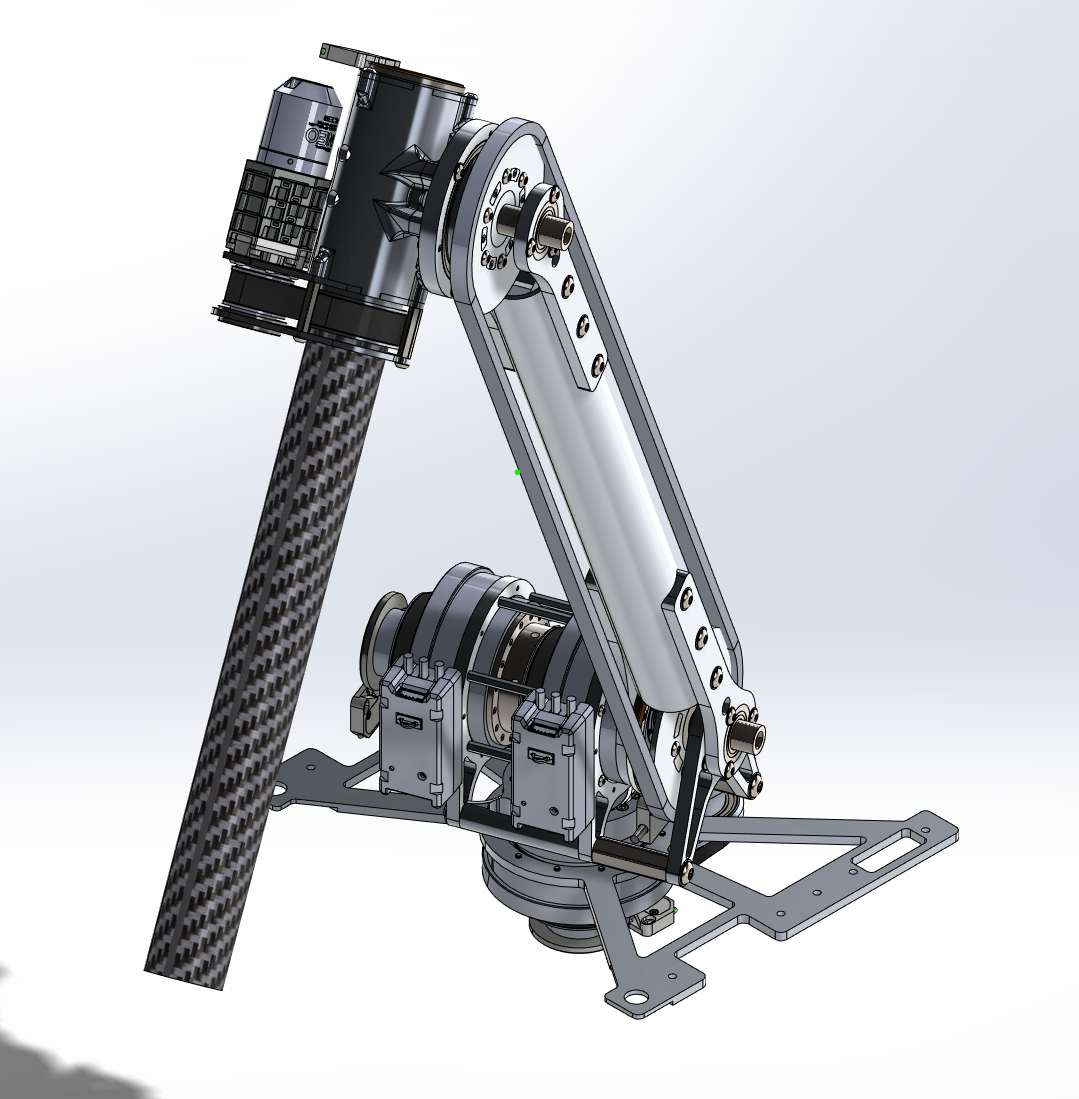

新型 NURover 6DOF 机械臂（ID:1435664）

机械设备 / 非标机械 / 新型 NURover 6DOF 机械臂

©非原创

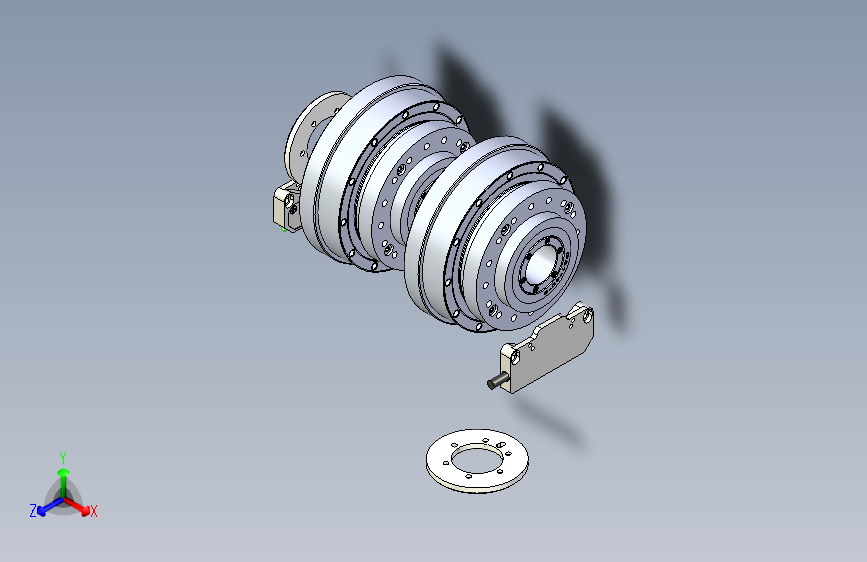

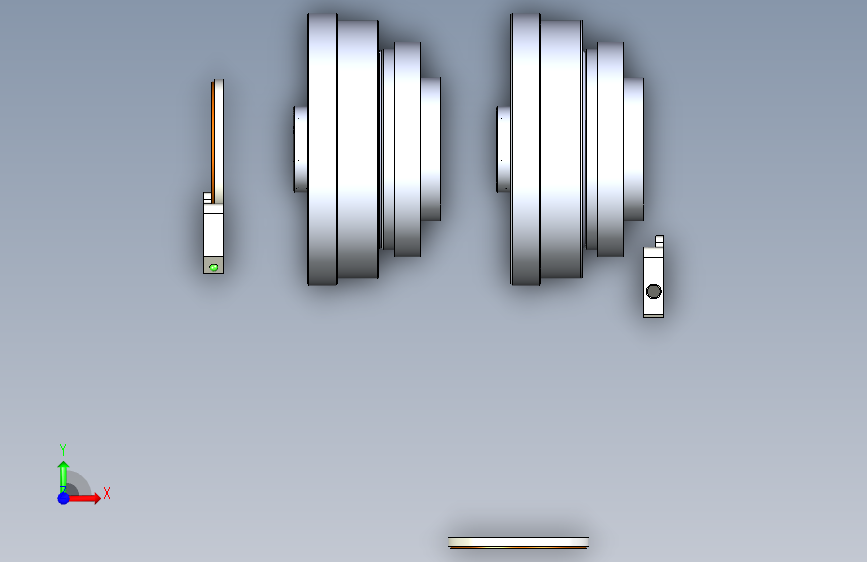

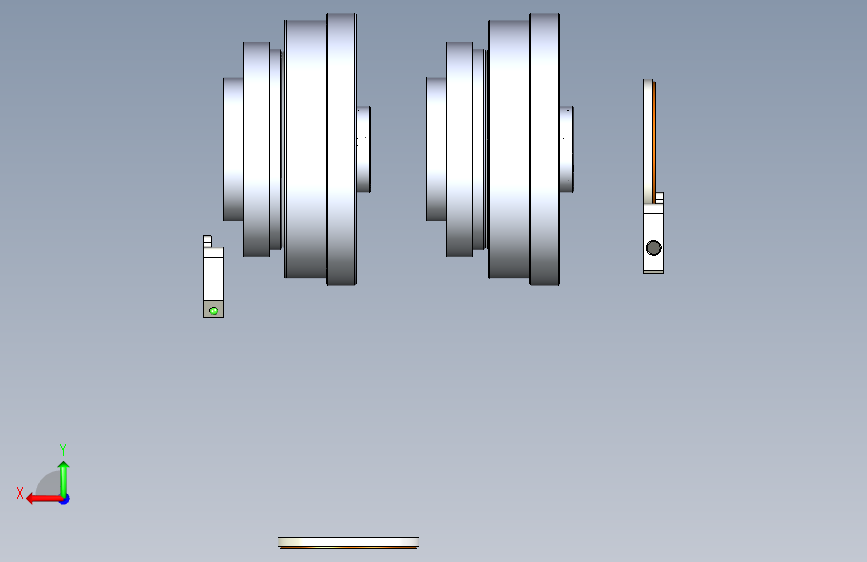

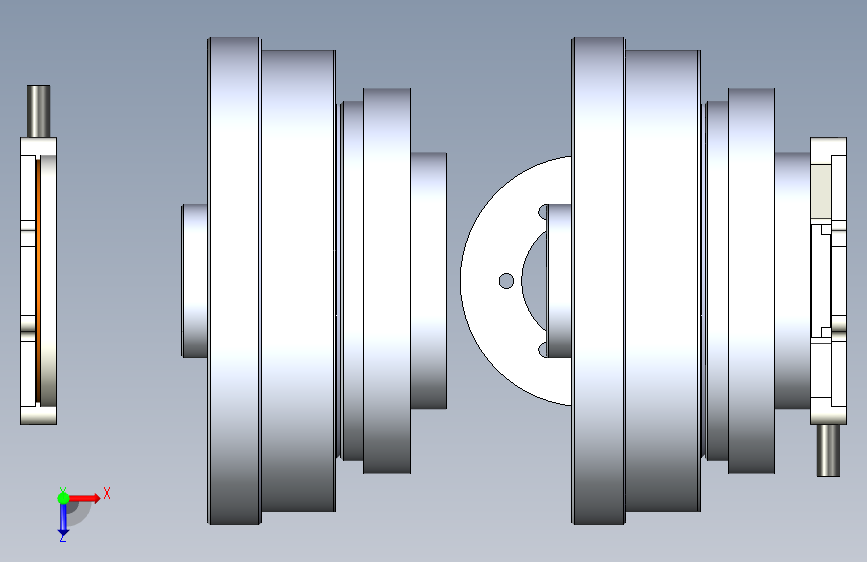

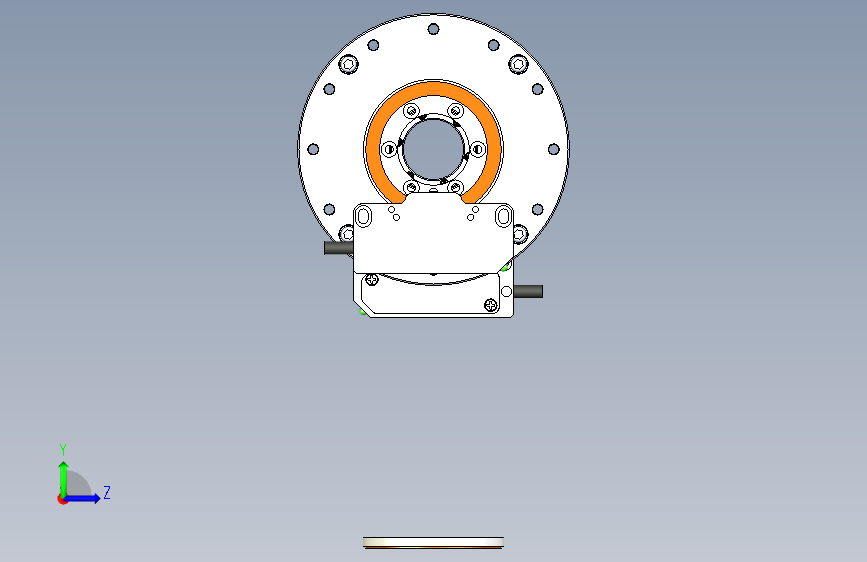

平面图

3D视图

文件列表

#	文件名称	文件大小
1	1717429669174.zip	124.46M
2	4390N169_FlangedUltra-ThinBallBearing_4390N169.par	1.48M
3	4390N176_FlangedUltra-ThinBallBearing_4390N176.par	1.31M
4	5905K357_Needle-RollerBearing_5905K357.par	586.00K
5	6656K216_Ultra-ThinBallBearing_6656K216.par	1.75M
6	6656K221_Ultra-ThinBallBearing_6656K221.par	1.92M
7	6656K234_Ultra-ThinBallBearing_6656K234.par	1.98M
8	6704ZZ^REV-41-1604_UltraplanetarywithNEO550REV-41-1600.par	210.00K
9	91239A111_ButtonHeadHexDriveScrew_91239A111.par	1.09M
10	91239A115_ButtonHeadHexDriveScrew_91239A115.par	1.49M
11	91239A127_ButtonHeadHexDriveScrew_91239A127.par	1.74M
12	91239A128_ButtonHeadHexDriveScrew_91239A128.par	3.01M
13	91239A140_ButtonHeadHexDriveScrew_91239A140.par	1.06M
14	91239A148_ButtonHeadHexDriveScrew_91239A148.par	1.33M
15	91239A150_ButtonHeadHexDriveScrew_91239A140.par	1.06M
16	91239A152_ButtonHeadHexDriveScrew_91239A152.par	1.76M
17	91290A119_AlloySteelSocketHeadScrew_91290A119.par	1.74M
18	91290A130_AlloySteelSocketHeadScrew_91290A130.par	1.75M
19	91290A252_AlloySteelSocketHeadScrew_91290A252.par	1.89M
20	91294A003_BLACKALLOYSTEELFLAT-HEADSOCKETCAPSCREW_91294A003^REV-41-1604_UltraplanetarywithNEO550REV-41-1600.par	841.50K
21	91294A138_Black-OxideAlloySteelHexDriveFlatHeadScrew_91294A138.par	2.29M
22	92137A303_AlloySteelFlangedButtonHeadScrews_92137A303.par	1.02M
23	92137A424_AlloySteelFlangedButtonHeadScrews_92137A424.par	1.64M
24	92137A535_AlloySteelFlangedButtonHeadScrews_92137A535.par	1.43M
25	93655A260_Male-FemaleThreadedHexStandoff_93655A260.par	1.41M
26	93655A721_Male-FemaleThreadedHexStandoff_93655A721.par	1.93M
27	95947A500_AluminumFemaleThreadedHexStandoff_95947A500.par	1.48M
28	95947A547_AluminumFemaleThreadedHexStandoff_95947A547.par	1.91M
29	9731N57_ClampingTwo-PieceShaftCollar_9731N57.par	2.73M
30	AksIM_readhead_MHAx-T.par	669.00K
31	AksIM_ring_MRA7D049AA025B00.par	227.50K
32	AksIM_ring_MRA8D080AA055B00.par	222.50K
33	ArmAssembly.asm	154.00K
34	ArmAssembly.cfg	15.50K
35	ArmAssembly.log	51.48K
36	ArmAssembly.STEP	123.66M
37	ArmAssembly_0.asm	161.00K

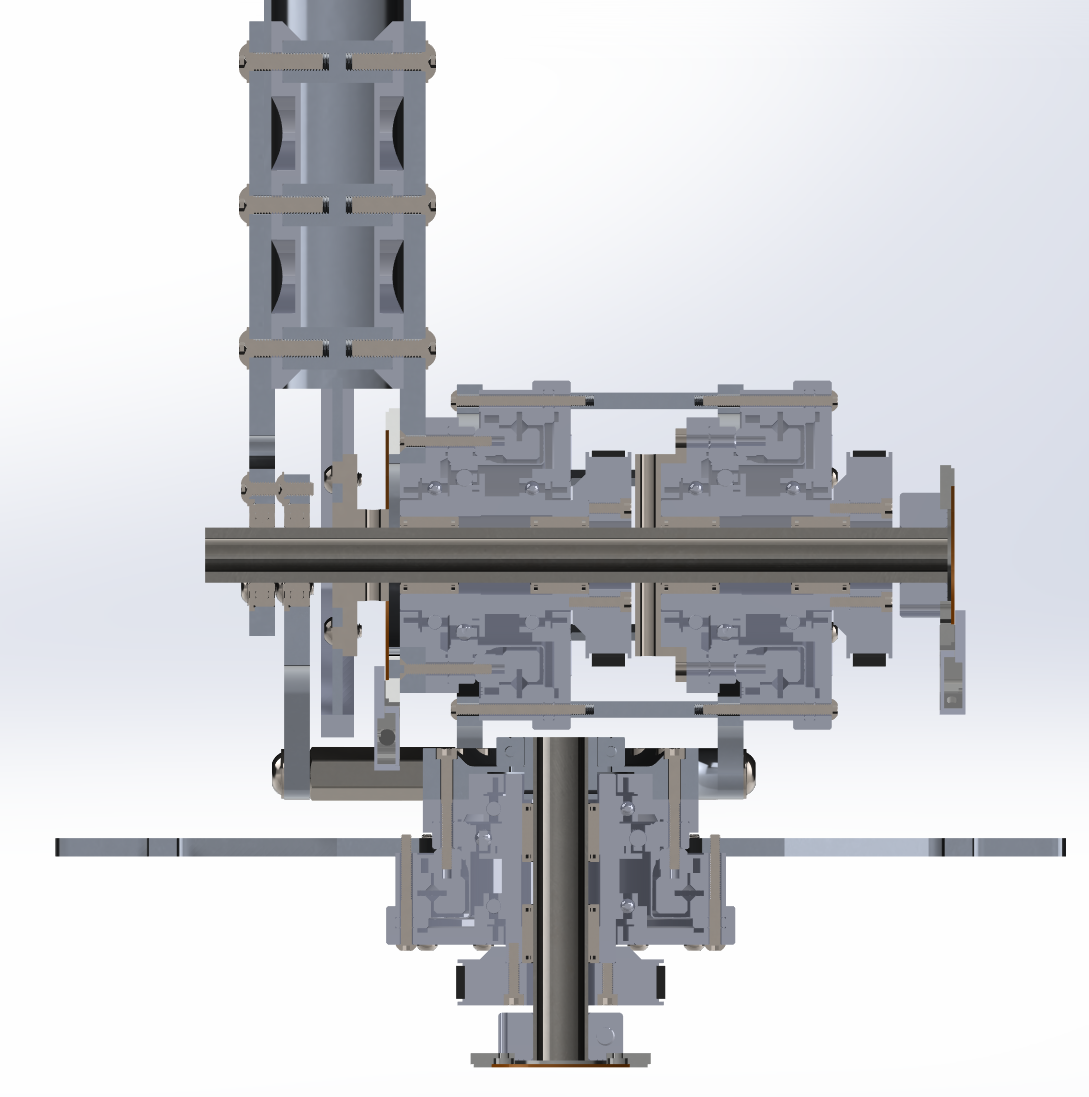

38	armbasecrosssection.png	334.58K

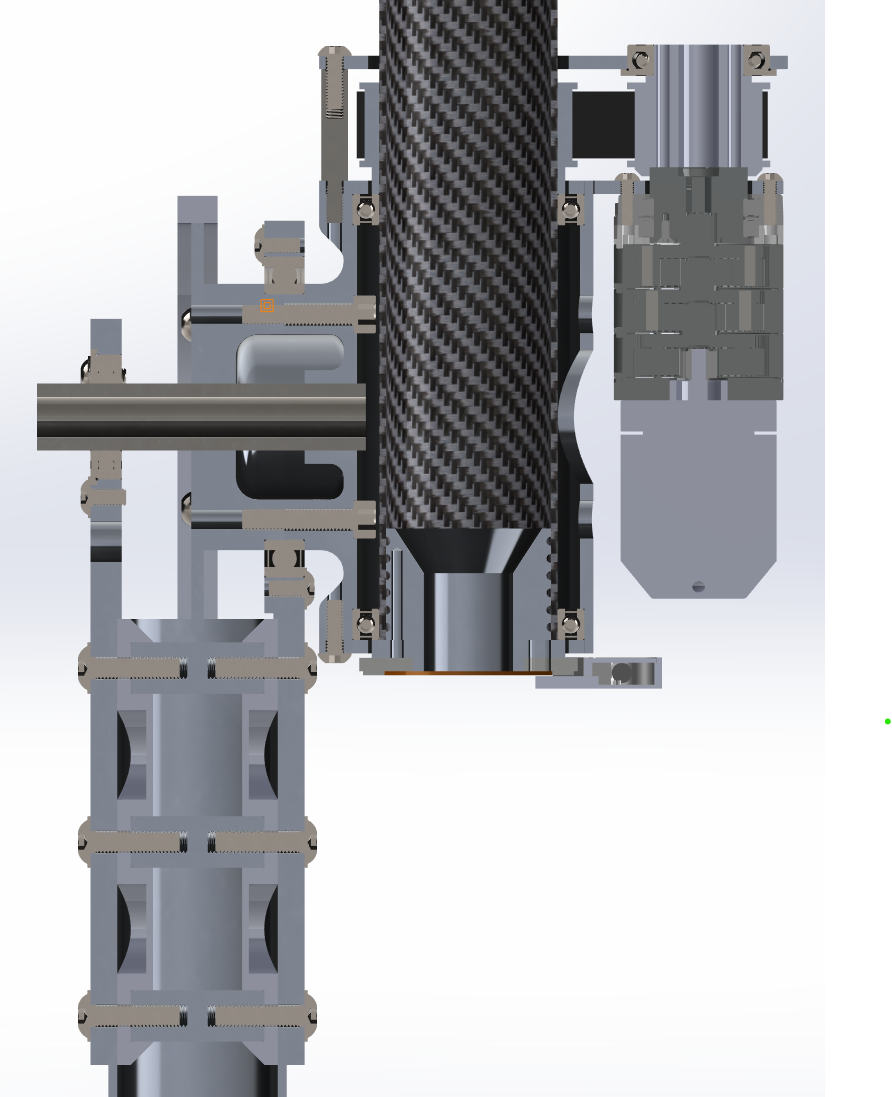

39	ax3ax4crosssection.png	429.88K
40	Axis1Base.asm	219.50K
41	Axis1Belt.par	177.00K
42	Axis1GearboxPulley.par	572.00K
43	Axis1MotorPulley.par	566.00K
44	Axis1MountingBase.par	830.50K
45	Axis2-3Base.asm	329.50K
46	Axis2ClampPlates.par	504.00K
47	Axis2MainTube.par	237.50K
48	Axis2Segment.asm	228.50K
49	Axis3MainTube.par	163.50K
50	Axis3PivotTube.par	165.50K
51	Axis3Segment.asm	241.00K
52	Axis4BearingTube.par	2.19M

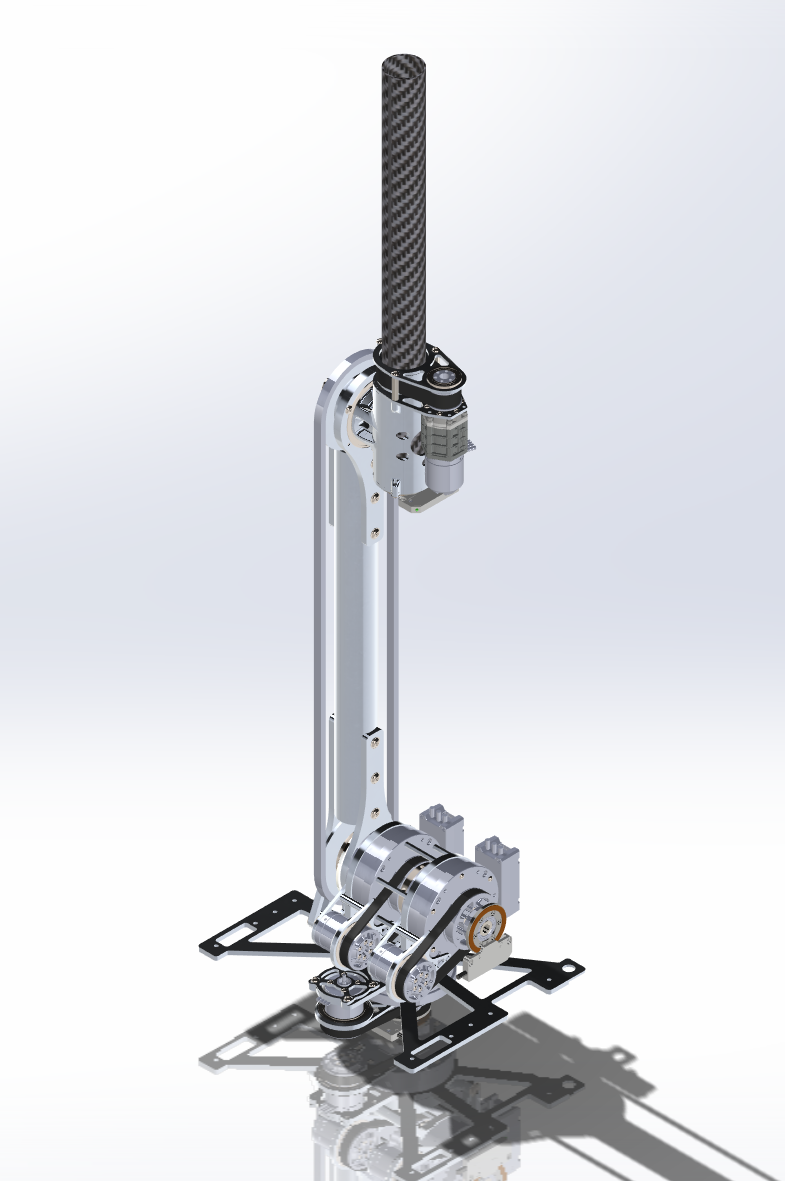

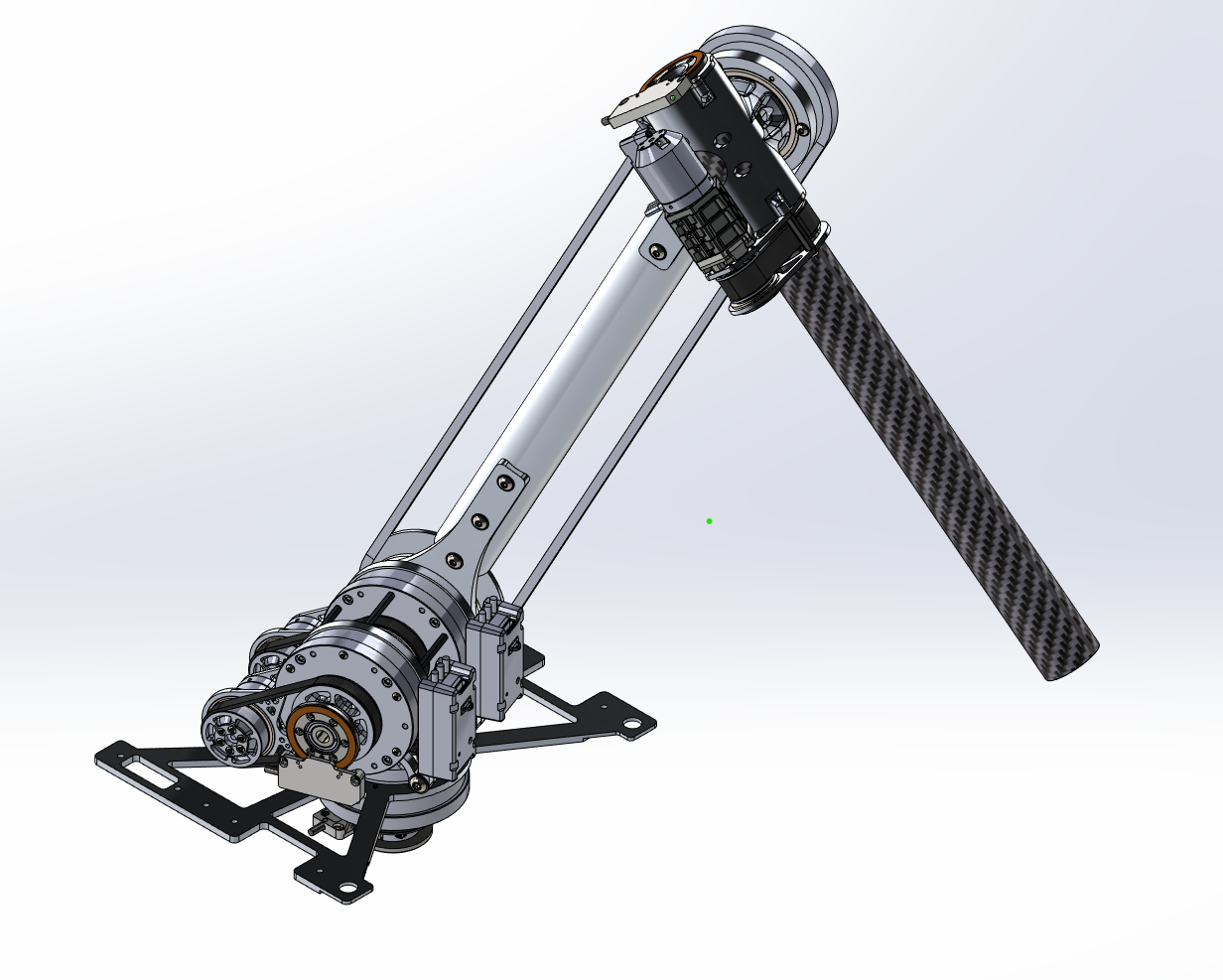

53	Axis4Belt.par	177.00K
54	Axis4GearboxPulley.par	233.00K
55	Axis4MotorBearingPlates.par	462.00K
56	Axis4TubePulley.par	180.50K
57	Axis4TubeRetainerPlug.par	366.00K
58	ChainPath.par	175.00K
59	ChassisBaseplate.par	811.00K
60	DowncomerTube.par	164.50K
61	DrivenSprocket.par	280.00K
62	DrivingSprocket.par	278.00K
63	EncoderRingMountShaftCollar.par	1.65M
64	FrontIsometricarm.png	425.34K
65	GearboxInputBelt.par	179.00K
66	GearboxMountingPlates.par	440.50K
67	GearboxPulley.par	583.50K
68	InputMotorMountingPlates.par	529.50K
69	InputMotorPulley.par	690.50K
70	M3X40_91290A136^UltraplanetarywithNEO550REV-41-1600.par	1.78M
71	M3x8ButtonHead_91239A113^UltraplanetarywithNEO550REV-41-1600.par	1.19M
72	MainTorsionTube.par	163.50K
73	MasterSketch.par	138.50K
74	NEO550REV-21-1651.par	2.99M
75	overallisometric.png	299.79K
76	REV-40-1606_ThroughHole^REV-41-1604_UltraplanetarywithNEO550REV-41-1600.par	1.10M
77	REV-40-16132^REV-41-1603_UltraplanetarywithNEO550REV-41-1600.par	167.50K
78	REV-40-16133^REV-41-1601_UltraplanetarywithNEO550REV-41-1600.par	167.50K
79	REV-40-1613^REV-41-1602_UltraplanetarywithNEO550REV-41-1600.par	167.50K
80	REV-40-16182^REV-41-1603_UltraplanetarywithNEO550REV-41-1600.par	4.71M
81	REV-40-16183^REV-41-1601_UltraplanetarywithNEO550REV-41-1600.par	4.70M
82	REV-40-1618^REV-41-1602_UltraplanetarywithNEO550REV-41-1600.par	4.70M
83	REV-40-16192^REV-41-1603_UltraplanetarywithNEO550REV-41-1600.par	293.00K
84	REV-40-16193^REV-41-1601_UltraplanetarywithNEO550REV-41-1600.par	292.50K
85	REV-40-1619^REV-41-1602_UltraplanetarywithNEO550REV-41-1600.par	292.50K
86	REV-41-1601-1^REV-41-1601_UltraplanetarywithNEO550REV-41-1600.par	1001.50K
87	REV-41-1601-2^REV-41-1601_UltraplanetarywithNEO550REV-41-1600.par	963.50K
88	REV-41-1601-3^REV-41-1601_UltraplanetarywithNEO550REV-41-1600.par	2.49M
89	REV-41-1601^UltraplanetarywithNEO550REV-41-1600.asm	177.50K
90	REV-41-1602-1^REV-41-1602_UltraplanetarywithNEO550REV-41-1600.par	1003.50K
91	REV-41-1602-2^REV-41-1602_UltraplanetarywithNEO550REV-41-1600.par	1.14M
92	REV-41-1602-3^REV-41-1602_UltraplanetarywithNEO550REV-41-1600.par	2.01M
93	REV-41-1602^UltraplanetarywithNEO550REV-41-1600.asm	177.50K
94	REV-41-1603-1^REV-41-1603_UltraplanetarywithNEO550REV-41-1600.par	1002.50K
95	REV-41-1603-2^REV-41-1603_UltraplanetarywithNEO550REV-41-1600.par	1.31M
96	REV-41-1603^UltraplanetarywithNEO550REV-41-1600.asm	174.50K
97	REV-41-1604-1^REV-41-1604_UltraplanetarywithNEO550REV-41-1600.par	532.00K
98	REV-41-1604-2^REV-41-1604_UltraplanetarywithNEO550REV-41-1600.par	818.50K
99	REV-41-1604-3^REV-41-1604_UltraplanetarywithNEO550REV-41-1600.par	231.50K
100	REV-41-1604-4^REV-41-1604_UltraplanetarywithNEO550REV-41-1600.par	184.50K
101	REV-41-1604^UltraplanetarywithNEO550REV-41-1600.asm	183.00K
102	REV-41-1607^UltraplanetarywithNEO550REV-41-1600.par	605.00K
103	REV-41-1608^UltraplanetarywithNEO550REV-41-1600.par	980.00K
104	rightisometricarm.png	599.51K
105	socketheadcapscrew_am_B18.3.1M-2x0.4x4HexSHCS--4NHX^REV-41-1604_UltraplanetarywithNEO550REV-41-1600.par	205.50K
106	SparkMaxREV-11-2158.par	2.83M
107	TubeFlangeHubs.par	483.00K
108	TubeInsertStandoffHolders.par	223.00K
109	UltraplanetarywithNEO550REV-41-1600.asm	184.00K
110	UpperSprocketHub.par	355.50K
111	ZXK20.par	30.30M
