全自动饺子皮机（ID:1440286）

机械设备 / 非标机械 / 全自动饺子皮机

©非原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	17175590458341.rar	25.11M
2	JZP16B内链板连接片.SLDPRT	86.36K
3	JZPASTK-5IK120RGN-CF调速电机.SLDPRT	255.17K
4	JZPcirclipsforholes--typeagb.sldprt	224.92K
5	JZPcirclipsforshaft--typealargegb.sldprt	524.87K
6	JZPdeepgrooveballbearingsgb.sldprt	605.78K
7	JZPE8.SLDPRT	178.76K
8	JZPhexheadbolts-fullthreadgradecgb.sldprt	506.51K
9	JZPhexnutsstyle1-gradesabgb.sldprt	260.55K
10	JZPLKHP50-M10.SLDPRT	410.61K
11	JZPLKHPN40-40.SLDPRT	374.81K
12	JZPM10螺杆.SLDPRT	151.63K
13	JZPshortpitchrollerchainwheel_s_iso.sldprt	1.68M
14	JZPspurgear_gb.sldprt	7.91M
15	JZPUCFLU201.SLDPRT	278.41K
16	JZPUCFLU202.SLDPRT	270.59K
17	JZPUCFLU204.SLDPRT	264.94K
18	JZPUCK204.SLDPRT	271.85K
19	JZP减速机5GN-12.5K.SLDPRT	145.01K
20	JZP压面辊主动轮轴.SLDPRT	149.05K
21	JZP压面辊从动轮轴.SLDPRT	114.56K
22	JZP压面辊侧板.SLDPRT	129.86K
23	JZP压面辊组件.SLDASM	1.50M
24	JZP压面辊调节挡板.SLDPRT	65.89K
25	JZP固定支架.SLDPRT	118.11K
26	JZP尼伦挡板a.SLDPRT	75.45K
27	JZP尼伦挡板b.SLDPRT	74.54K
28	JZP尼伦挡板定位螺栓组件.SLDASM	136.71K
29	JZP尼伦滚轮.SLDPRT	75.20K
30	JZP工作台.SLDPRT	111.86K
31	JZP底座.SLDPRT	486.14K
32	JZP撒面斗组件.SLDASM	410.48K
33	JZP支撑拉杆.SLDPRT	102.78K
34	JZP模具尼伦挡板a.SLDPRT	78.16K
35	JZP模具尼伦挡板b.SLDPRT	78.16K
36	JZP模具辊主动轮轴.SLDPRT	173.70K
37	JZP模具辊从动轮轴.SLDPRT	108.02K
38	JZP模具辊侧板a.SLDPRT	183.31K
39	JZP模具辊侧板b.SLDPRT	176.31K
40	JZP模具辊组件.SLDASM	1.04M
41	JZP模具辊调节挡板辊调节挡板.SLDPRT	68.18K
42	JZP毛刷.SLDPRT	63.07K
43	JZP毛刷轴.SLDPRT	72.47K
44	JZP电机总装.SLDASM	146.85K
45	JZP电机支座.SLDPRT	147.54K
46	JZP皮带.SLDPRT	58.48K
47	JZP盘子.SLDPRT	79.48K
48	JZP罩壳.SLDPRT	210.01K
49	JZP调节杆.SLDPRT	103.58K
50	JZP调节轮.SLDPRT	99.50K

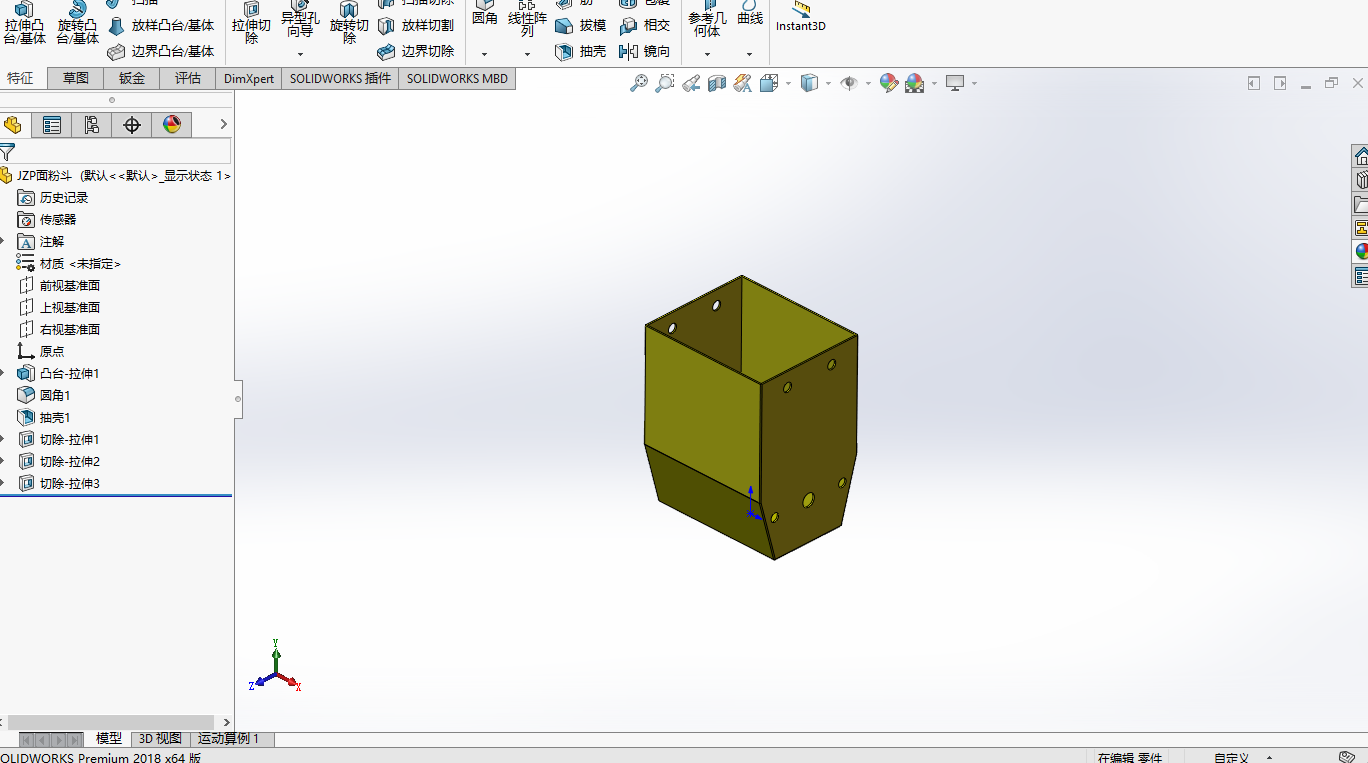

51	JZP输送主动轮轴.SLDPRT	121.02K
52	JZP输送从动轮轴.SLDPRT	110.72K
53	JZP输送带调节端盖.SLDPRT	97.88K
54	JZP输送组件.SLDASM	671.46K
55	JZP连接组件.SLDASM	114.65K
56	JZP面粉斗.SLDPRT	124.05K
57	JZP饺子皮机总装配.SLDASM	3.25M

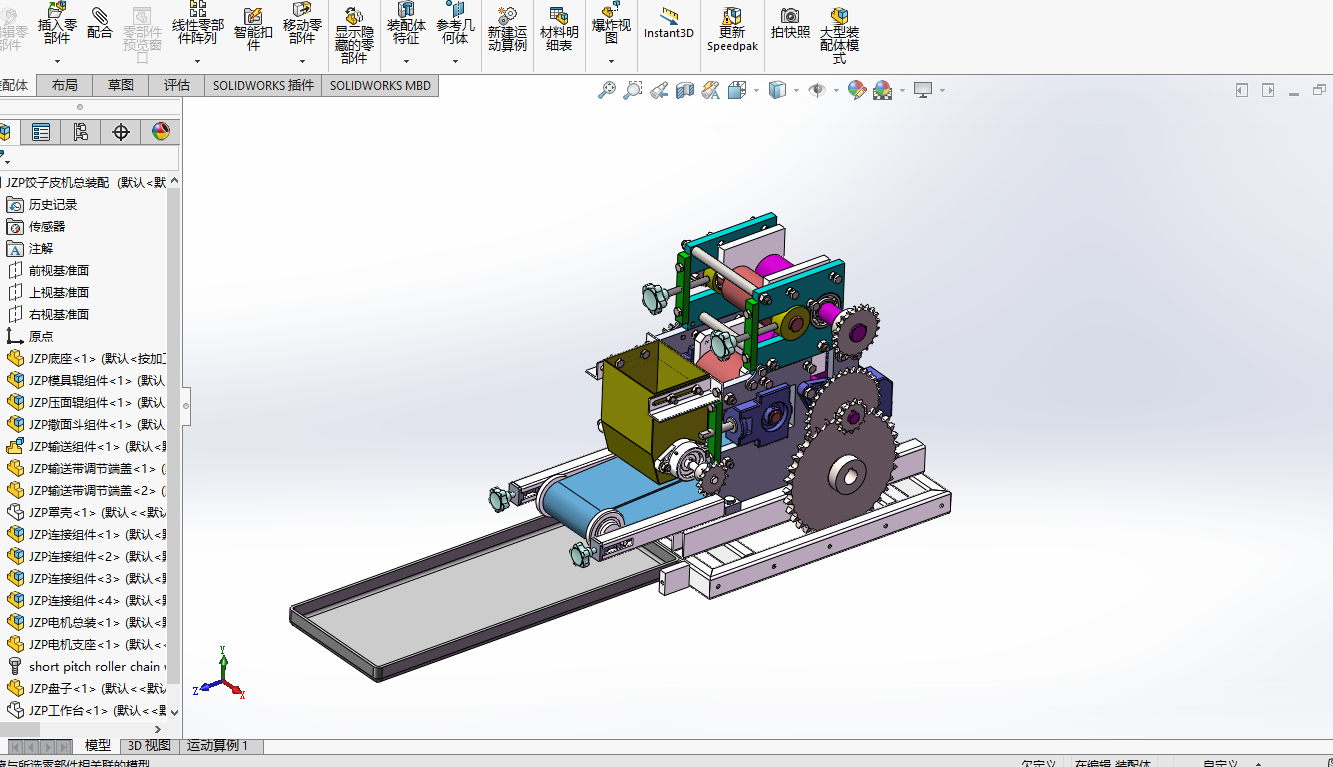

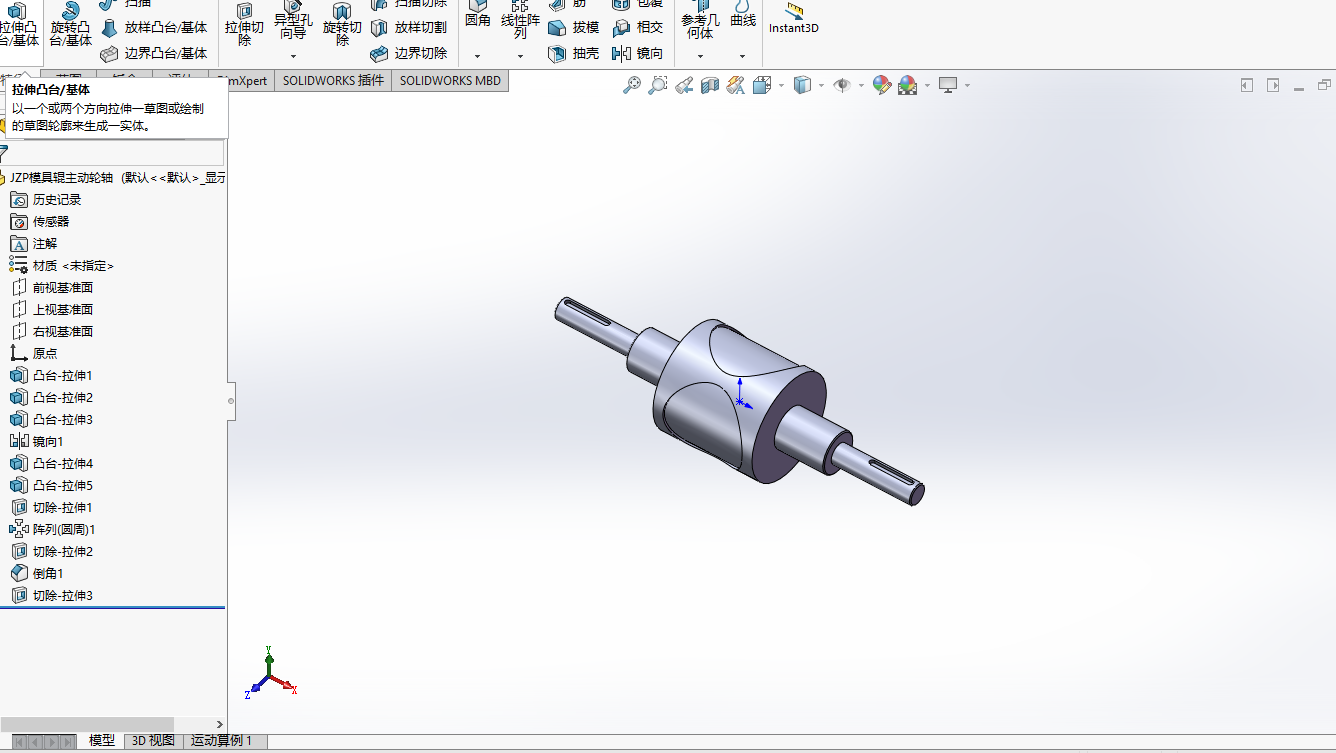

58	主动辊轴建模细节.png	215.23K
59	模型内部细节.png	332.36K

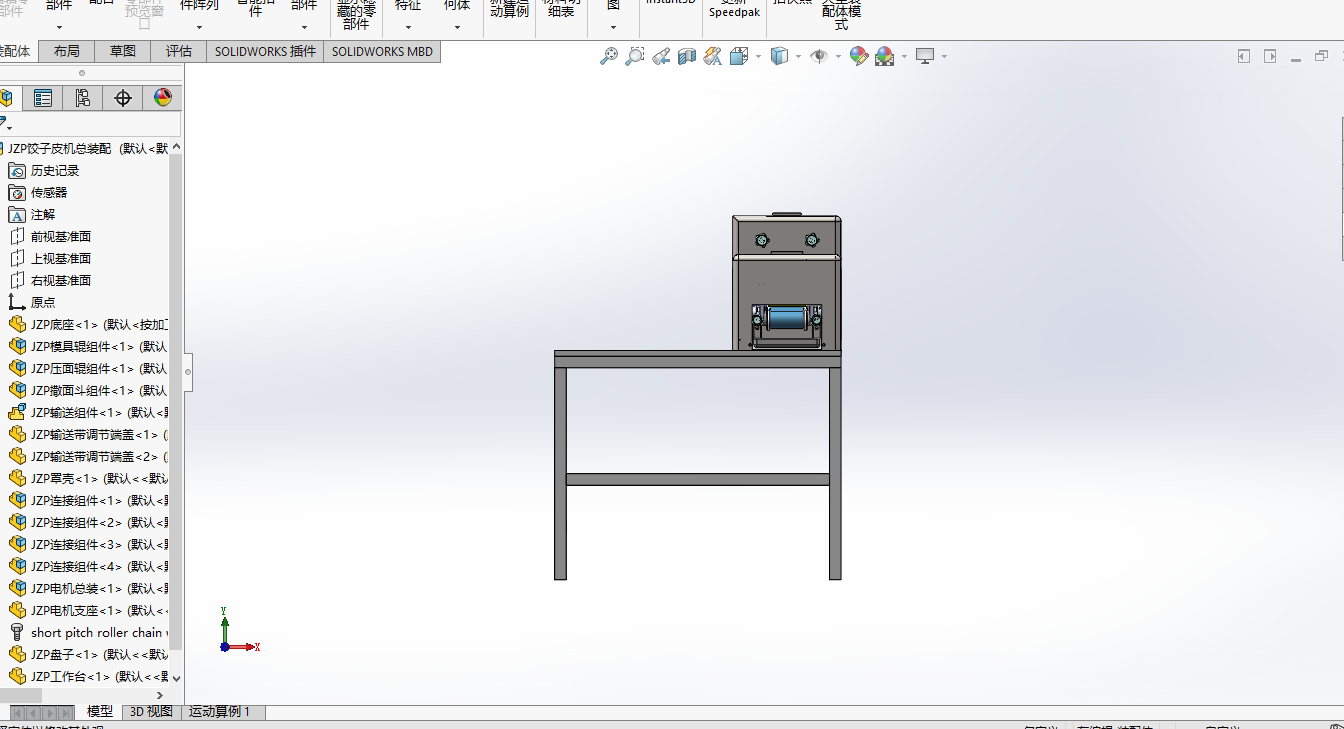

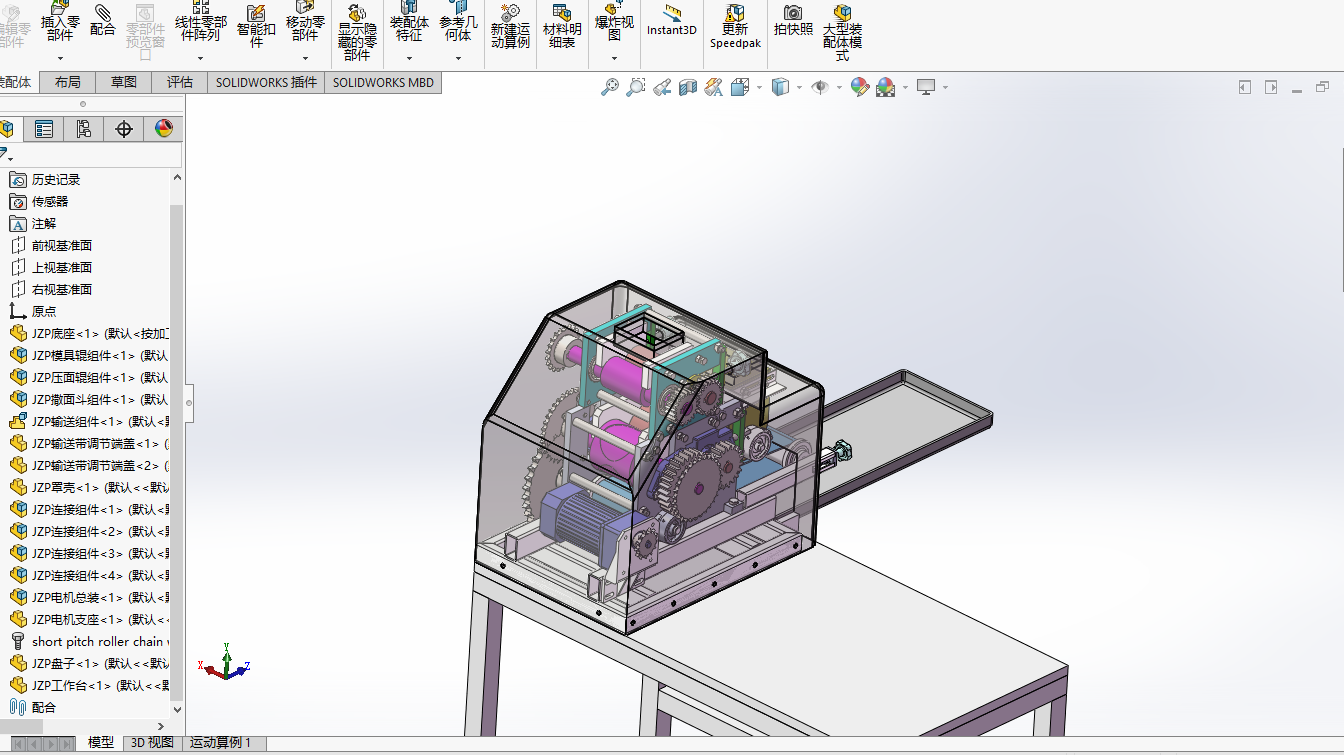

60	模型后侧细节.png	369.88K

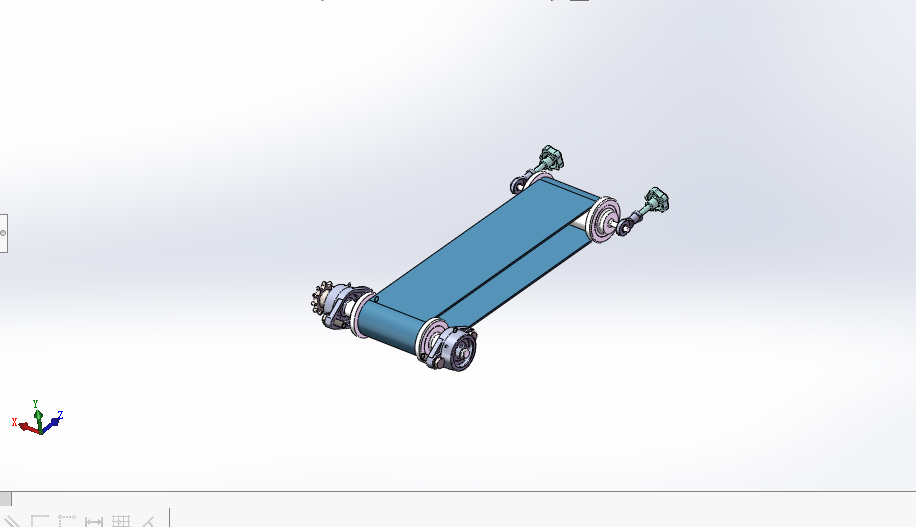

61	输送装置细节.png	87.30K

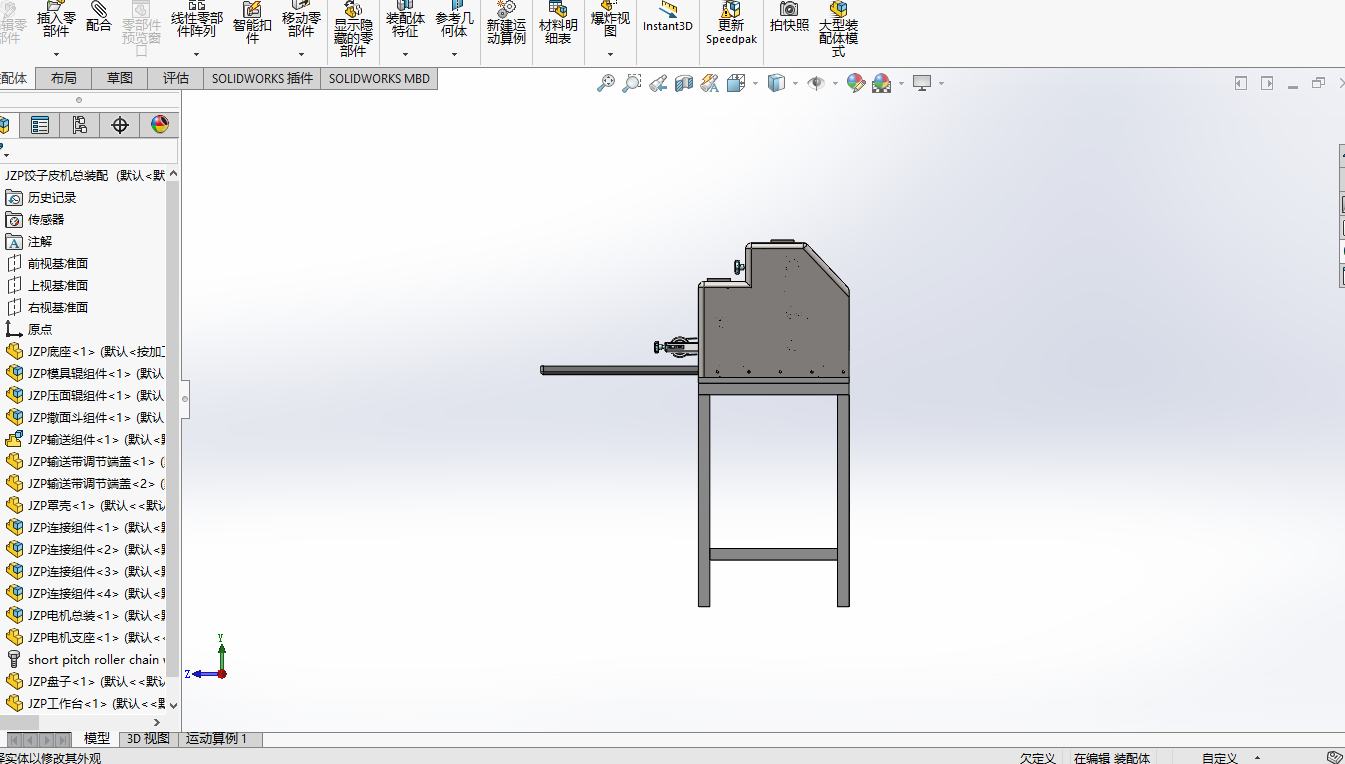

62	面粉斗细节.png	186.33K

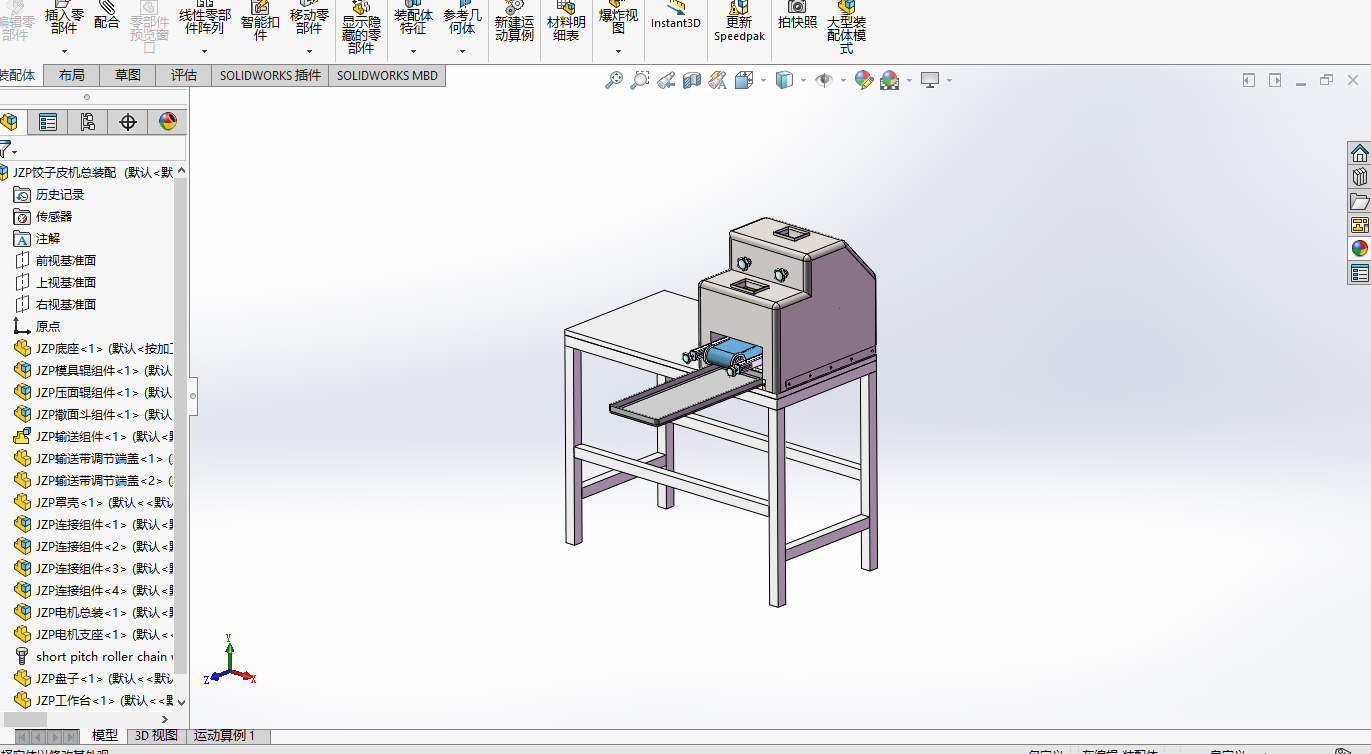

63	饺子皮机侧面.png	204.12K
