维贾纳出版社（ID:150712）

机械设备 / 非标机械 / 维贾纳出版社

©非原创

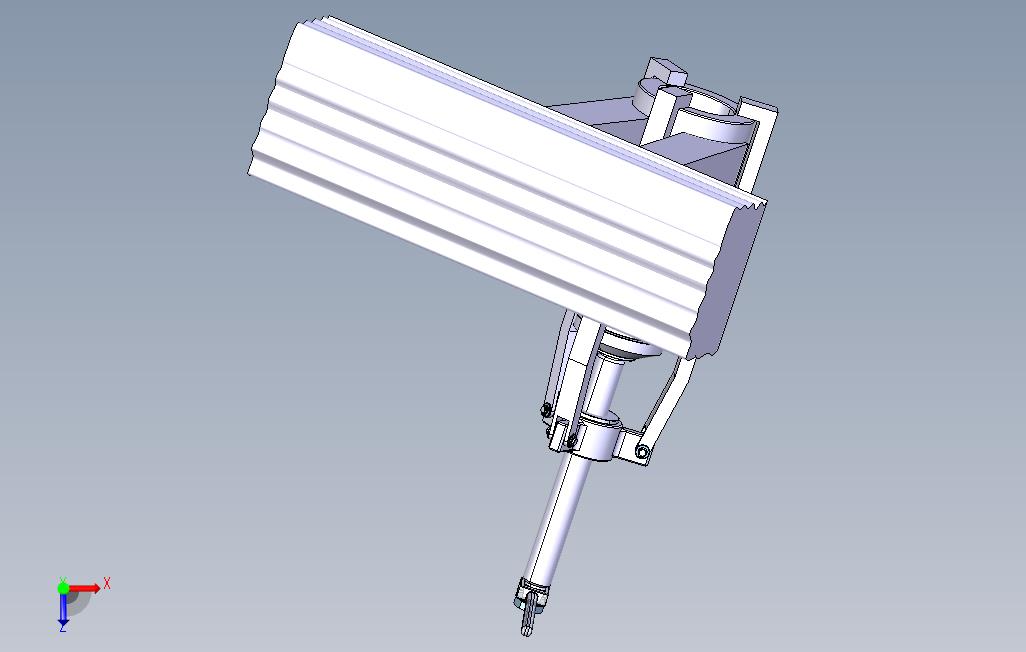

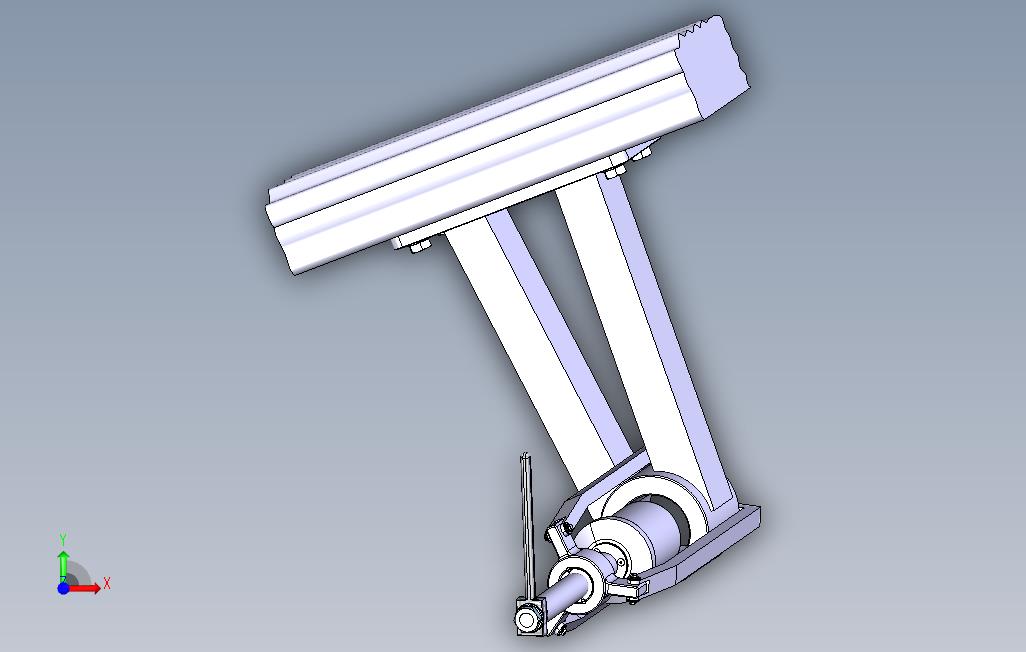

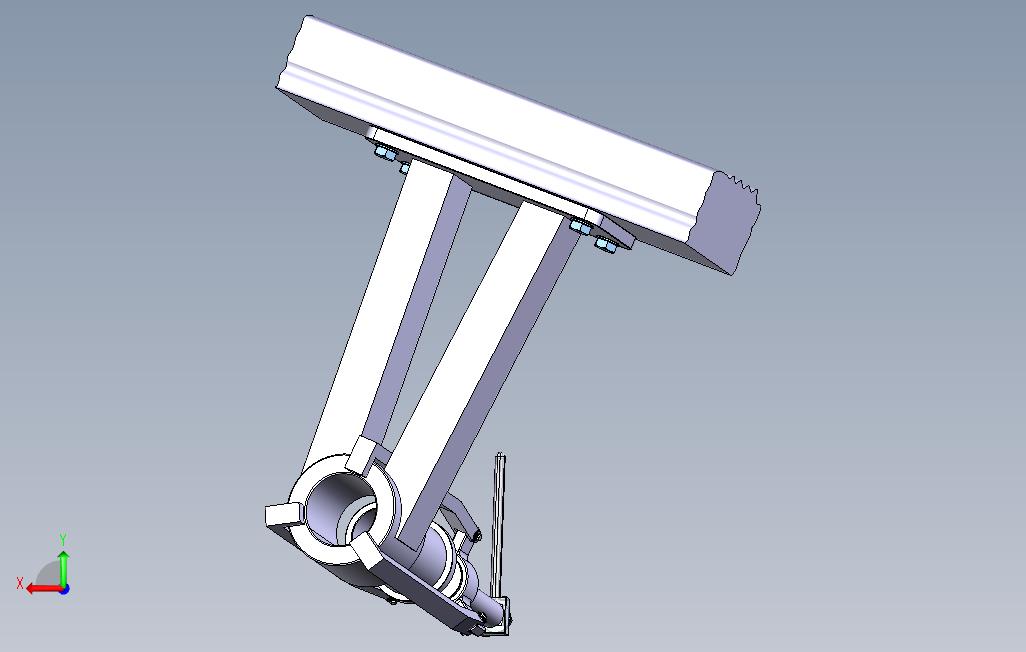

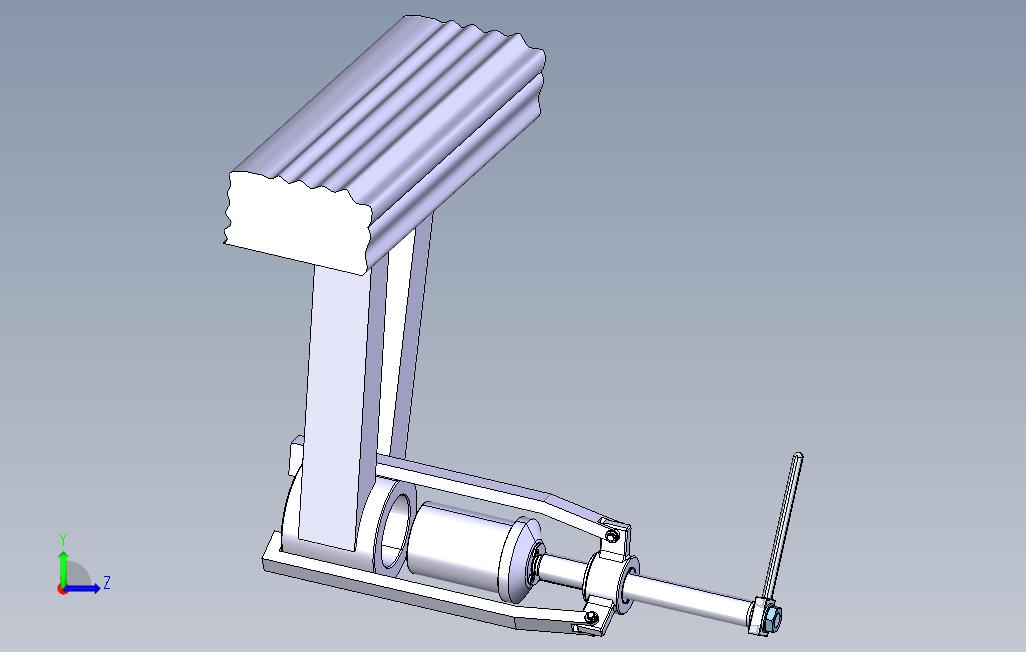

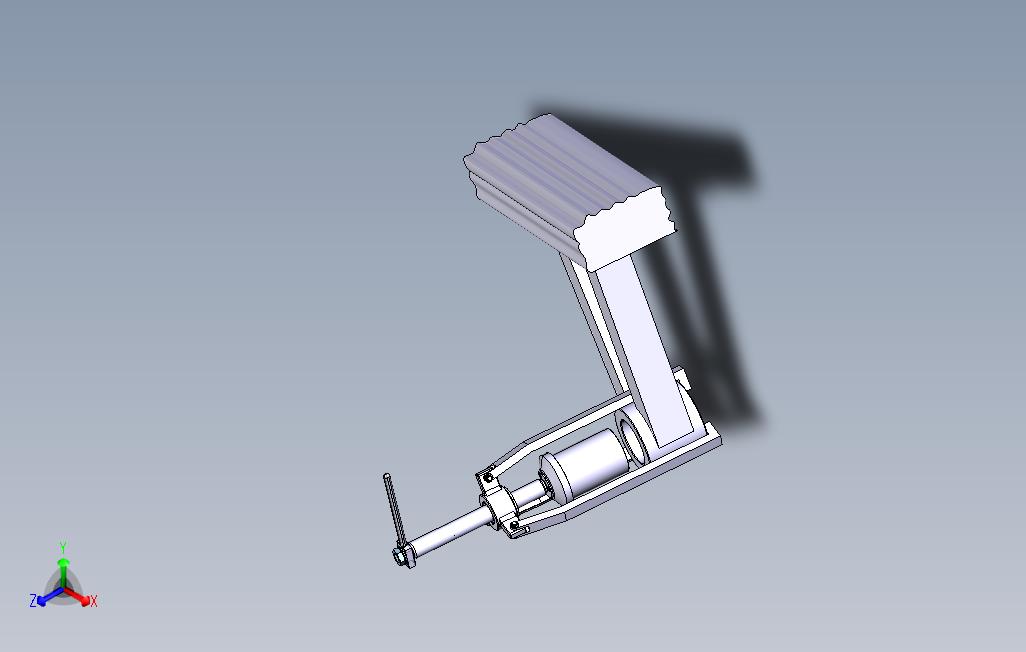

平面图

文件列表

#	文件名称	文件大小
1	Glava_za_upresavanje.CATPart	145.01K
2	Glavina.CATPart	397.63K
3	ISO_10642_M5x20_STEEL_HEXAGON_SOCKET_COUNTERSUNK_HEAD_SCREW.CATPart	148.50K
4	ISO_2342_M8x16_SLOTTED_HEADLESS_WITH_SHANK_SCREW.CATPart	124.92K
5	ISO_4014_M20x90_STEEL_GRADE_A_HEXAGON_HEAD_BOLT.CATPart	155.86K
6	ISO_7089_10x20_STEEL_GRADE_A_NORMAL_SERIES_PLAIN_WASHER.CATPart	90.37K
7	ISO_7089_20x37_STEEL_GRADE_A_NORMAL_SERIES_PLAIN_WASHER.CATPart	68.56K
8	ISO_7089_24x44_STEEL_GRADE_A_NORMAL_SERIES_PLAIN_WASHER.CATPart	69.01K
9	ISO_7090_10x20_STEEL_GRADE_A_CHAMFERED_NORMAL_SERIES_PLAIN_WASHER.CATPart	87.79K
10	ISO_8675_M20x1.5_STEEL_GRADE_C_HEXAGON_METRIC_FINE_THIN_NUT.CATPart	152.68K
11	ISO_8675_M24x2_STEEL_GRADE_C_HEXAGON_METRIC_FINE_THIN_NUT.CATPart	167.75K
12	krak_prese.CATPart	243.82K
13	kugla_na_koju_potiskuje_vreteno.CATPart	64.39K
14	Lezajna_cahura.CATPart	384.76K
15	Matica_trapeznog_vretena.CATPart	165.32K
16	Nosac_krakova_prese.CATPart	551.72K
17	Nosiva_cijev_DESNA.CATPart	98.82K
18	Nosiva_cijev_LIJEVA.CATPart	117.17K
19	Nosiva_ploca.CATPart	174.09K
20	Osigurac.CATPart	174.01K
21	Osigurac_na_glavi vretena.CATPart	148.39K
22	Product1.CATProduct	275.48K
23	Rucica_prese.CATPart	265.29K
24	svornjak.CATPart	184.85K
25	重复_vreteno.CATPart	507.73K
26	zid.CATPart	103.89K
