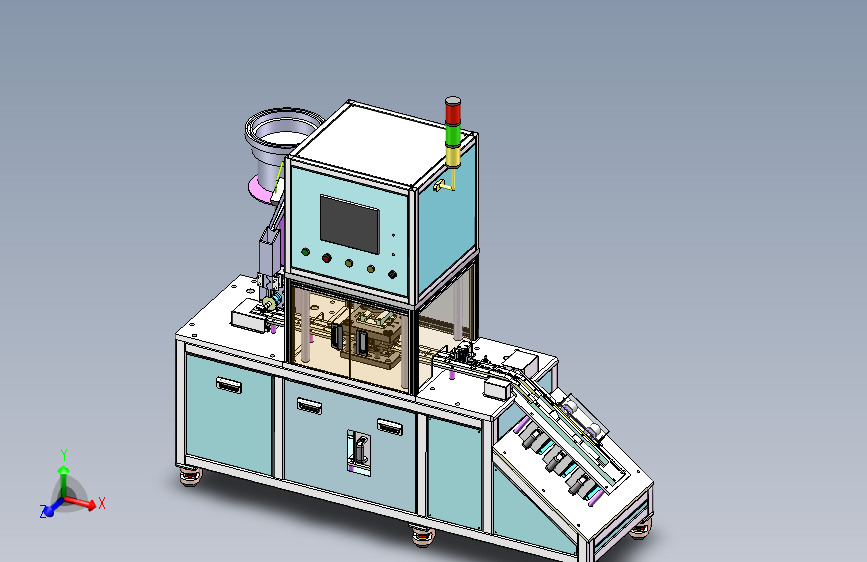

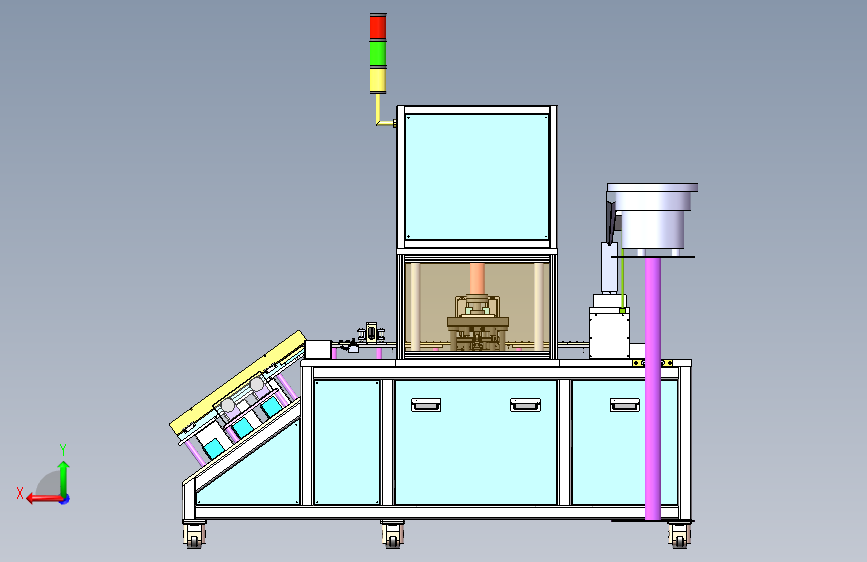

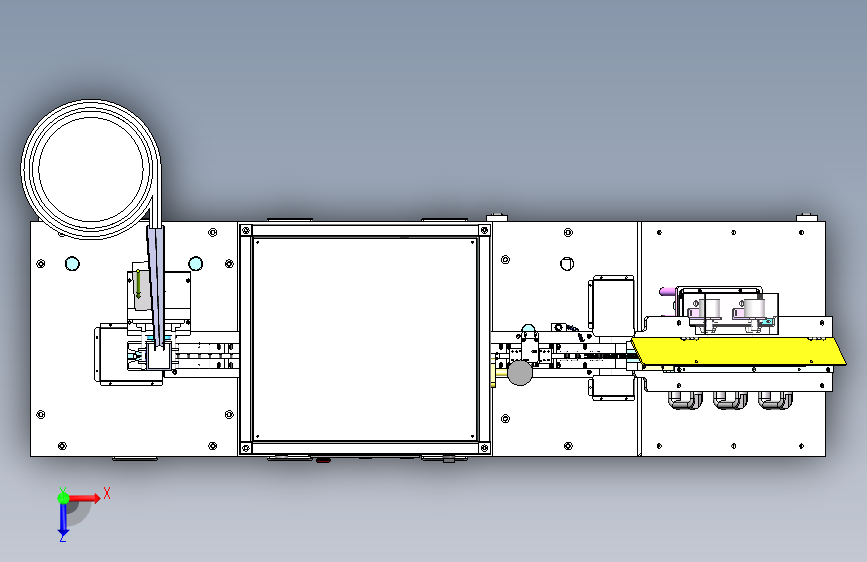

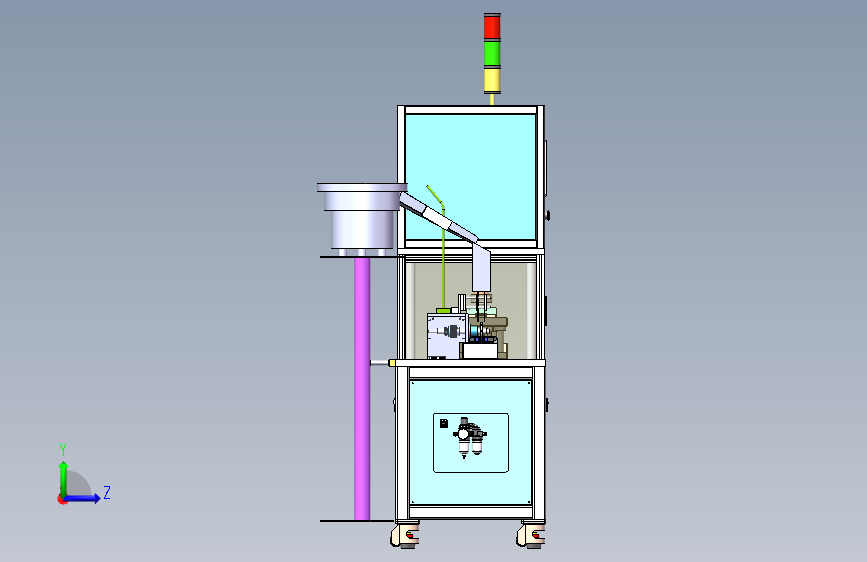

插件二极管引脚成型测试机 sw20（ID:1531535）

查找相似图纸

电力仪表 / 电气元件 / 插件二极管引脚成型测试机 sw20

©非原创

平面图

文件列表

截图

AI截图渲染

✨AI图片渲染

#	文件名称	文件大小
1	17243078432983.rar	88.12M
2	3210丝杆.sldprt	416.98K
3	750W伺服电机.sldprt	866.30K
4	Drawing1_recover001.dwg	30.08K
5	WJ03-061分料管道Aaaaaa.sldprt	112.86K
6	WJ03-067分料二段aaaaaa.sldprt	71.93K
7	WJ04-001机架.sldprt	1.05M
8	WJ04-002入料面板.SLDPRT	256.37K
9	WJ04-003受压板.SLDPRT	244.19K
10	WJ04-004检测面板.SLDPRT	215.98K
11	WJ04-005伺服固定板.SLDPRT	198.88K
12	WJ04-006电控门板.sldprt	212.10K
13	WJ04-007尾端封板.sldprt	192.55K
14	WJ04-008中封板.sldprt	213.87K
15	WJ04-009后封板.sldprt	184.25K
16	WJ04-010小封板.sldprt	90.11K
17	WJ04-011顶封板.sldprt	92.95K
18	WJ04-012异形封板左.sldprt	131.42K
19	WJ04-013异形封板右.sldprt	155.85K
20	WJ04-014承重底板.sldprt	143.00K
21	WJ04-015承重盒盖.SLDPRT	116.79K
22	WJ04-016脚轮垫板.sldprt	61.25K
23	WJ04-017落料板.SLDPRT	178.36K
24	WJ04-018料尾底板.SLDPRT	119.87K
25	WJ04-019前端底板.SLDPRT	103.63K
26	WJ04-020接料档板.SLDPRT	140.09K
27	WJ04-021振动盘支架.SLDPRT	100.36K
28	WJ04-022料头支撑.SLDPRT	94.65K
29	WJ04-023分割器撑杆.SLDPRT	112.58K
30	WJ04-024分割器底板.SLDPRT	72.29K
31	WJ04-025降料封板.sldprt	110.29K
32	WJ04-026料头盒盖.sldprt	122.10K
33	WJ04-027斜臂支撑.SLDPRT	103.08K
34	WJ04-028落料垫板.SLDPRT	249.01K
35	WJ04-029料头管道.SLDPRT	123.81K
36	WJ04-030电控盘.sldprt	139.87K
37	WJ04-031收料头盒.sldprt	59.37K
38	WJ04-032分料盒.sldprt	63.65K
39	WJ04-033拨爪撑板.SLDPRT	108.11K
40	WJ04-034拨爪支撑.SLDPRT	92.78K
41	WJ04-035下料轨道.SLDPRT	236.50K
42	WJ04-036落料对接.sldprt	179.38K
43	WJ04-037落料挡块右.sldprt	106.58K
44	WJ04-038落料挡块左.sldprt	94.85K
45	WJ04-039拨爪连杆.SLDPRT	68.92K
46	WJ04-040拨爪.SLDPRT	102.33K
47	WJ04-041轴承座.SLDPRT	113.94K
48	WJ04-042滚动轴.SLDPRT	74.57K
49	WJ04-043从动轴.SLDPRT	73.97K
50	WJ04-044轨道支撑.SLDPRT	85.92K
51	WJ04-045测试轨垫板.SLDPRT	170.13K
52	WJ04-046轨道垫板.SLDPRT	129.15K
53	WJ04-047隔离柱.sldprt	99.57K
54	WJ04-048落料轨道左.SLDPRT	93.01K
55	WJ04-049落料轨道右.SLDPRT	96.12K
56	WJ04-050绝缘轨道左.SLDPRT	97.33K
57	WJ04-051绝缘轨道右.SLDPRT	99.67K
58	WJ04-052对接轨道左.SLDPRT	131.61K
59	WJ04-053对接轨道右.SLDPRT	134.89K
60	WJ04-054入料对接左.sldprt	153.39K
61	WJ04-055入料对接右.sldprt	156.79K
62	WJ04-056入料轨道右.SLDPRT	131.88K
63	WJ04-057入料轨道左.SLDPRT	138.44K
64	WJ04-058模拟模具.SLDPRT	188.57K
65	WJ04-059模拟模具上.SLDPRT	96.85K
66	WJ04-060模具安装板.sldprt	62.91K
67	WJ04-061模具垫板.SLDPRT	149.74K
68	WJ04-062测试Z架.SLDPRT	99.94K
69	WJ04-063测试顶板.SLDPRT	96.67K
70	WJ04-064测试缸座.SLDPRT	99.27K
71	WJ04-065测试探针.SLDPRT	71.26K
72	WJ04-066测试针座.SLDPRT	153.09K
73	WJ04-067测试支撑.SLDPRT	94.71K
74	WJ04-068测试支架.SLDPRT	78.66K
75	WJ04-069动力防护罩.sldprt	144.41K
76	WJ04-070链轮防护罩.sldprt	120.09K
77	WJ04-071防护罩.sldprt	136.34K
78	WJ04-072分料面板.SLDPRT	121.15K
79	WJ04-073分料竖板左.SLDPRT	128.19K
80	WJ04-074分料顶板.SLDPRT	132.29K
81	WJ04-075固定板.SLDPRT	107.40K
82	WJ04-076分料竖板右.SLDPRT	143.10K
83	WJ04-077分料钣金.SLDPRT	67.60K
84	WJ04-078八分扭力轮.SLDPRT	128.35K
85	WJ04-079分料轴.SLDPRT	76.02K
86	WJ04-080模拟分料轮.sldprt	133.83K
87	WJ04-081张紧底座.SLDPRT	114.74K
88	WJ04-082张紧旋转.SLDPRT	75.39K
89	WJ04-083张紧支撑.SLDPRT	108.61K
90	WJ04-084张紧横梁.SLDPRT	66.11K
91	WJ04-085张紧转轴.SLDPRT	91.21K
92	WJ04-086下防护支架.sldprt	780.51K
93	WJ04-087罩板左右.SLDPRT	64.60K
94	WJ04-088下罩板后.SLDPRT	52.30K
95	WJ04-089下门板.SLDPRT	65.71K
96	WJ04-090上防护支架.sldprt	428.95K
97	WJ04-091左右封板.sldprt	84.79K
98	WJ04-092上后封板.sldprt	85.23K
99	WJ04-093上顶封板.sldprt	86.23K
100	WJ04-094人机面板.SLDPRT	139.80K
101	WJ04-095挡料钣金B.sldprt	95.18K
102	WJ04-096挡料钣金.sldprt	71.47K
103	WJ04-098张紧垫片.sldprt	41.25K
104	WJ04-099载料块.SLDPRT	99.79K
105	WJ04-100振动盘座.sldprt	87.67K
106	WJ04-101振动盘连杆.sldprt	102.41K
107	WJ04-102电缸连杆.sldprt	108.65K
108	WJ04-103电缸安装座.sldprt	165.73K
109	WJ04-104分料转轴.sldprt	85.44K
110	WJ04-105分料挡板.sldprt	80.18K
111	WJ04-106拨爪垫板.sldprt	146.60K
112	WJ04-107拨爪撑杆.SLDPRT	104.48K
113	WJ04-108拨爪保护罩.sldprt	212.91K
114	WJ04-109落料护板.sldprt	73.32K
115	WJ04-110光纤架.sldprt	162.90K
116	WJ04-111降料斗.sldprt	136.07K
117	WJ04-112光纤座.sldprt	96.38K
118	WJ04-112电缸后立板.sldprt	111.10K
119	WJ04-113电缸导程上板.sldprt	222.31K
120	WJ04-114电缸导程下板.sldprt	184.83K
121	WJ04-115电缸导程立板.sldprt	61.80K
122	WJ04-116电缸垫圈.sldprt	44.38K
123	WJ04-117电缸电机板.sldprt	150.98K
124	WJ04-118电缸皮带调节左.sldprt	80.02K
125	WJ04-119电缸皮带调节右.sldprt	80.91K
126	WJ04-120电缸导向轴.sldprt	50.91K
127	WJ04-121电缸司筒.sldprt	118.20K
128	WJ04-122电缸司筒法兰.sldprt	93.84K
129	WJ04-123电缸前立板.sldprt	139.36K
130	WJ04-124电缸防尘板.sldprt	80.81K
131	WJ04-125电缸压力头.sldprt	108.01K
132	WJ04-126电缸散热板.sldprt	91.11K
133	WJ04-127电缸遮光片.sldprt	81.61K
134	WJ04-128电缸顶板.sldprt	221.63K
135	“zongzhuangtu”.SLDASM	10.45M
136	【大量模型】-海淇设计.url	191B
137	三色警示灯.sldprt	142.45K
138	下料震动盘.sldprt	149.71K
139	下机罩.sldasm	46.12K
140	丝杆导套.sldprt	350.21K
141	丝杠支撑座.sldprt	880.67K
142	人机箱.sldasm	49.27K
143	传动链条.sldasm	40.67K
144	光纤支架组.sldasm	35.72K
145	全自动弯角测试机BOM表.xls	27.50K
146	弯角测试机工程图2.dwg	3.32M
147	弯角测试机工程图2_recover.dwg	3.19M
148	弯角电缸机构.sldasm	1.70M
149	必看文档STP如何打开sw文件重命名.pdf	3.01M
150	拨爪档柱.sldprt	42.64K
151	拨爪限位.sldprt	104.79K
152	排向宽窄调节座.sldprt	63.12K
153	排向底座.sldprt	42.13K
154	排向料斗.sldprt	126.07K
155	排向调节座.sldprt	43.58K
156	排向轴承座.sldprt	89.92K
157	插件二极管通用型全自动引脚成型测试机.IGS	125.73M
158	插件二极管通用型全自动引脚成型测试机.STEP	55.22M
159	插件二极管通用型全自动引脚成型测试机.x_t	21.57M
160	散热扇.sldprt	116.25K
161	机架组装图.sldasm	59.92K
162	模具护罩.sldasm	39.15K
163	模拟工件.sldprt	81.40K
164	模拟折弯.sldprt	91.09K
165	模拟转角.sldasm	46.33K
166	止付环.sldprt	156.90K
167	毕紧机构.sldasm	44.83K
168	电磁拨爪.sldasm	93.70K
169	皮带1-3.sldprt	45.39K
170	直线电缸.SLDPRT	408.89K
171	落料斗固定座.sldprt	42.63K
172	落料斗支架.sldprt	52.80K
173	落料盖板.sldprt	33.81K
174	载料轨道.sldasm	61.62K
175	零件1.SLDPRT	68.63K
176	plot.log	162B
177	弯脚机大板加工件.bak	256.43K
178	弯脚机大板加工件.dwg	190.37K
179	弯脚机机架.dwg	867.25K
180	弯脚机钣金件加工图档.dwg	1.21M
181	弯角机NC加工件.dwg	332.89K
182	打K入子.DWG	282.81K
183	打K入子.SLDPRT	132.79K
184	落料机构NC加工件.bak	173.45K
185	落料机构NC加工件.dwg	171.92K
186	载料块.bak	198.54K
187	载料块.dwg	201.07K
188	WJ04-002入料面板.STEP	401.18K
189	WJ04-003受压板.STEP	323.97K
190	WJ04-004检测面板.STEP	318.82K
191	WJ04-005伺服固定板.STEP	293.32K
192	plot.log	159B
193	WJ04-018料尾底板.STEP	134.97K
194	WJ04-036落料对接.STEP	157.39K
195	WJ04-037落料挡块右.STEP	63.46K
196	WJ04-038落料挡块左.STEP	63.61K
197	WJ04-045测试轨垫板.STEP	247.04K
198	WJ04-046轨道垫板.STEP	166.29K
199	WJ04-048落料轨道左.STEP	93.60K
200	WJ04-049落料轨道右.STEP	93.61K
201	WJ04-050绝缘轨道左.STEP	72.30K
202	WJ04-051绝缘轨道右.STEP	72.15K
203	WJ04-052对接轨道左.STEP	114.62K
204	WJ04-053对接轨道右.STEP	114.39K
205	WJ04-054入料对接左.STEP	141.27K
206	WJ04-055入料对接右.STEP	141.57K
207	WJ04-056入料轨道右.STEP	101.93K
208	WJ04-057入料轨道左.STEP	101.78K
209	WJ04-060模具安装板.STEP	54.53K
210	WJ04-061模具垫板.STEP	149.23K
211	WJ04-062测试Z架.STEP	69.45K
212	WJ04-063测试顶板.STEP	54.55K
213	WJ04-064测试缸座.STEP	69.49K
214	WJ04-066测试针座.STEP	170.78K
215	WJ04-067测试支撑.STEP	72.00K
216	WJ04-068测试支架.STEP	52.73K
217	WJ04-072分料面板.STEP	140.68K
218	WJ04-073分料竖板左.STEP	129.74K
219	WJ04-074分料顶板.STEP	142.49K
220	WJ04-075固定板.STEP	102.34K
221	WJ04-076分料竖板右.STEP	129.93K
222	WJ04-081张紧底座.STEP	97.94K
223	WJ04-082张紧旋转.STEP	47.31K
224	WJ04-084张紧横梁.STEP	33.65K
225	WJ04-100振动盘座.STEP	57.90K
226	WJ04-103电缸安装座.STEP	219.64K
227	第二批NC件.bak	367.89K
228	第二批NC件.dwg	269.34K
229	12UU直线轴承.sldprt	121.17K
230	2000W伺服电机.SLDPRT	978.46K
231	AFB2000.SLDASM	621.83K
232	ASC20008_0-0.5_.SLDASM	110.90K
233	ASC20008_0-0.5_.stp	129.52K
234	DH65-S300-T-R5-M1-C1-P2-19X35-70X3-90-M5.SLDPRT	419.48K
235	gb_connecting_piece_ring_rrh26.sldprt	30.74K
236	HI_AFC2000Fl.sldprt	44.12K
237	HI_AFR2000Nut.sldprt	50.14K
238	HTPA28S5M150_B_P20_a.sldprt	118.63K
239	HTPA60S5M150_B_N14_a.sldprt	213.47K
240	M8X1接近开关.SLDASM	93.69K
241	PC602.sldprt	55.16K
242	PL8021.sldprt	55.91K
243	PSAM8body.sldprt	31.67K
244	PSAM8screw.sldprt	37.99K
245	PSL4M5A.SLDPRT	202.51K
246	PSL4M5A.stp	191.97K
247	RSC50H电磁阀.sldprt	28.92K
248	RU45DS分割器.sldprt	58.97K
249	SHPSNA6_1.sldprt	80.50K
250	SHPSNA6_2.sldprt	110.20K
251	SHPSNA6_3.sldprt	102.69K
252	SP25B32_N_16.sldprt	220.69K
253	SP25B32_N_20.sldprt	214.92K
254	TACQ16X10S_0__CS1-G-1_.SLDASM	314.24K
255	TACQ16X10S_0__CS1-G-1_.stp	491.85K
256	WJ04-097SP25B30_N_16.sldprt	204.17K
257	Y90-120W变频电机.sldprt	32.15K
258	_AFC1500Sc.sldprt	30.39K
259	_AFR2000By.sldprt	33.96K
260	_AFR2000Sw.sldprt	55.25K
261	_AL-2000By.sldprt	29.33K
262	_AL-2000Sw.sldprt	47.53K
263	_ASC200-080-0.5By.sldprt	40.78K
264	_ASC200-080-0.5Nut.sldprt	33.32K
265	_CS1-G.sldprt	46.28K
266	_GS-40Ga.sldprt	38.31K
267	_TACQ16X10S_body.sldprt	71.21K
268	_TACQ16X10S_rod.sldprt	46.10K
269	万向8-1底座.SLDPRT	628.70K
270	万向扁嘴.SLDPRT	162.70K
271	万向竹节.SLDPRT	214.12K
272	万向竹节气嘴.SLDASM	665.94K
273	光纤传感器.sldprt	899.15K
274	合页.sldasm	93.19K
275	启动开关.sldprt	45.33K
276	备份属于WJ04-097SP25B30_N_16.sldprt	179.75K
277	威浦WS20-3.SLDPRT	726.38K
278	嵌入式把手.SLDPRT	241.43K
279	急停开关.sldprt	51.67K
280	指示灯.sldprt	44.38K
281	显示器.sldprt	55.94K
282	电源开关.sldprt	56.41K
283	福马脚轮.SLDPRT	227.54K
284	门把手.sldprt	78.90K
285	211型胀紧套19.sldasm	125.17K
286	CHE25c2chain2.sldprt	162.68K
287	CHE25cchain1.sldprt	135.91K
288	CHE25_26.sldasm	165.56K
289	CHE25_26dummy.sldprt	54.96K
290	CHE25_4.sldasm	199.80K
291	CHE25_80.sldasm	195.48K
292	CHE25_80dummy.sldprt	76.17K
293	FRS-310光纤传感器.sldasm	127.16K
294	Gewindestift_DIN_913___M4x3_.sldprt	102.10K
295	Gewindestift_DIN_913___M6x5_.sldprt	97.80K
296	MFUSM_D1_d1.sldprt	147.68K
297	MFUSM_D1_M3__n.sldprt	117.04K
298	MFUSM_D1_w.sldprt	72.66K
299	MLR19body.sldprt	116.88K
300	MLR19bonnet.sldprt	192.79K
301	MLR24.sldasm	128.55K
302	MLR24body.sldprt	116.62K
303	MLR24bonnet.sldprt	195.32K
304	SHHPS6_2.sldasm	78.77K
305	SHHPS6_2_l.sldprt	87.65K
306	SHHPS6_2_pin.sldprt	90.31K
307	SHHPS6_2_r.sldprt	44.16K
308	UPCFAN90.sldprt	156.22K
309	UWAUNB92.sldprt	177.57K
310	HTPA22S5M150_B_P14_a.sldprt	395.95K
311	HTPA28S5M150_B_P11.sldasm	220.52K
312	HTPA28S5M150_B_P11_a.sldprt	510.24K
313	HTPA32S5M250_A_H10.sldasm	198.58K
314	HTPA32S5M250_A_H10_a.sldprt	488.11K
315	HTPA36S5M250_A_H10.sldasm	212.24K
316	HTPA36S5M250_A_H10_a.sldprt	578.25K
317	HTPA72S5M250_A_H12.sldasm	273.20K
318	HTPA72S5M250_A_N25.sldasm	298.39K
319	HTPA72S5M250_A_N25_a.sldprt	792.65K
320	D3K弯角模具总装图.SLDASM	413.45K
321	D3K弯角模具总装图.STEP	6.85M
322	WJMJ08-001.sldprt	58.84K
323	WJMJ08-002.sldprt	34.28K
324	_X2_4E0A6A2153786599677F7B499AD89500_X0_.sldprt	34.17K
325	_X2_4E0A6A2153786599677F_X0_.sldprt	89.74K
326	_X2_4E0A6A2153F352075200FF085F2F811AFF09_X0_.sldprt	34.57K
327	_X2_4E0A6A2156FA5B9A677F_X0_.sldprt	79.00K
328	_X2_4E0A6A215BFC5957_X0_.sldprt	29.06K
329	_X2_4E0A6A215C0F5BFC67F1_X0_.sldprt	28.98K
330	_X2_4E0A6A215DE652075200FF085F2F811AFF09_X0_.sldprt	34.51K
331	_X2_4E0A6A215F397C27538B677F_X0_A.sldprt	39.55K
332	_X2_4E0A6A215F397C27538B677F_X0_B.sldprt	35.33K
333	_X2_4E0A6A215F397C27538B677F_X0_C.sldprt	35.30K
334	_X2_4E0A6A21677F_X0_.sldprt	76.81K
335	_X2_4E0A6A217BA14F5353614F4D9500_X0_.sldprt	39.51K
336	_X2_4E0A6A217F1351B257AB5708_X0_.sldprt	28.83K
337	_X2_4E0A6A2188C5914DFF085F2F811AFF09_X0_.sldasm	55.86K
338	_X2_4E0A6A218F74627F5EA7_X0_A.sldprt	35.55K
339	_X2_4E0A6A218F74627F5EA7_X0_A_X2_63215757_X0_.sldprt	38.57K
340	_X2_4E0A6A218F74627F5EA7_X0_A_X2_88C5914D_X0_.sldasm	33.97K
341	_X2_4E0A6A218F74627F5EA7_X0_B.sldprt	35.99K
342	_X2_4E0A6A218F74627F5EA7_X0_B_X2_5BFC65997247_X0_.sldprt	33.45K
343	_X2_4E0A6A218F74627F5EA7_X0_B_X2_88C5914D_X0_.sldasm	34.79K
344	_X2_4E0A6A218F74627F9500_X0_.sldprt	30.80K
345	_X2_4E0A6A218F74627F_X0_A.sldprt	28.46K
346	_X2_4E0A6A218F74627F_X0_B.sldprt	28.93K
347	_X2_4E0A6A2196504F4D67F188C5914D_X0_.sldasm	33.68K
348	_X2_4E0A6A2196504F4D67F1_X0_.sldprt	29.73K
349	_X2_4E0B6A2152075200538B677F_X0_.sldprt	36.94K
350	_X2_4E0B6A215207520053F3FF085F2F811AFF09_X0_.sldprt	37.04K
351	_X2_4E0B6A21520752005DE6FF085F2F811AFF09_X0_.sldprt	36.71K
352	_X2_4E0B6A2156FA5B9A677F_X0_.sldprt	80.30K
353	_X2_4E0B6A215BFC65995757_X0_A.sldprt	39.52K
354	_X2_4E0B6A215BFC65995757_X0_B.sldprt	38.44K
355	_X2_4E0B6A215BFC65995757_X0_D.sldprt	49.99K
356	_X2_4E0B6A215BFC65995757_X0_D_X2_88C5914DFF085F2F811AFF09_X0_.sldasm	35.59K
357	_X2_4E0B6A215BFC65995757_X0_D_X2_95764EF6_X0_.sldprt	30.37K
358	_X2_4E0B6A215BFC67F15F397C2776D6677F_X0_.sldprt	31.17K
359	_X2_4E0B6A215BFC67F188C5914D_X0_.sldasm	33.82K
360	_X2_4E0B6A215BFC67F1_X0_.sldprt	31.17K
361	_X2_4E0B6A215C0F5BFC5957_X0_.sldprt	29.40K
362	_X2_4E0B6A216210578B520053F388C5914DFF085F2F811AFF09_X0_.sldasm	33.06K
363	_X2_4E0B6A216210578B520053F3FF085F2F811AFF09_X0_.sldprt	35.54K
364	_X2_4E0B6A216210578B52005DE688C5914DFF085F2F811AFF09_X0_.sldasm	34.09K
365	_X2_4E0B6A216210578B52005DE6FF085F2F811AFF09_X0_.sldprt	35.73K
366	_X2_4E0B6A216210578B52005EA75BFC8F68_X0_A.sldprt	34.20K
367	_X2_4E0B6A216210578B52005EA75BFC8F68_X0_B.sldprt	33.76K
368	_X2_4E0B6A216210578B520063215757_X0_.sldprt	37.07K
369	_X2_4E0B6A21677F_X0_.sldprt	55.35K
370	_X2_4E0B6A217B499AD867F1_X0_.sldprt	30.30K
371	_X2_4E0B6A217F1351B257AB5708_X0_.sldprt	29.11K
372	_X2_4E0B6A2188C5914DFF085F2F811AFF09_X0_.sldasm	50.41K
373	_X2_4E0B6A2196504F4D67F188C5914D_X0_.sldasm	33.50K
374	_X2_4E0B6A2196504F4D67F1_X0_.sldprt	29.69K
375	下模导料块CE.sldprt	49.10K
376	侧打K座.sldprt	73.83K
377	打K夹爪.sldprt	42.04K
378	打K左右定位.sldprt	36.57K
379	打K镶块.sldprt	30.53K
380	打K镶块最新.sldprt	30.86K
