阀门complete-6-inches-gate-valve-design-and-its-molds-1 2 SW(1)（ID:1550228）

设备部件 / 管道附件 / 阀门complete-6-inches-gate-valve-design-and-its-molds-1 2 SW(1)

©非原创

平面图

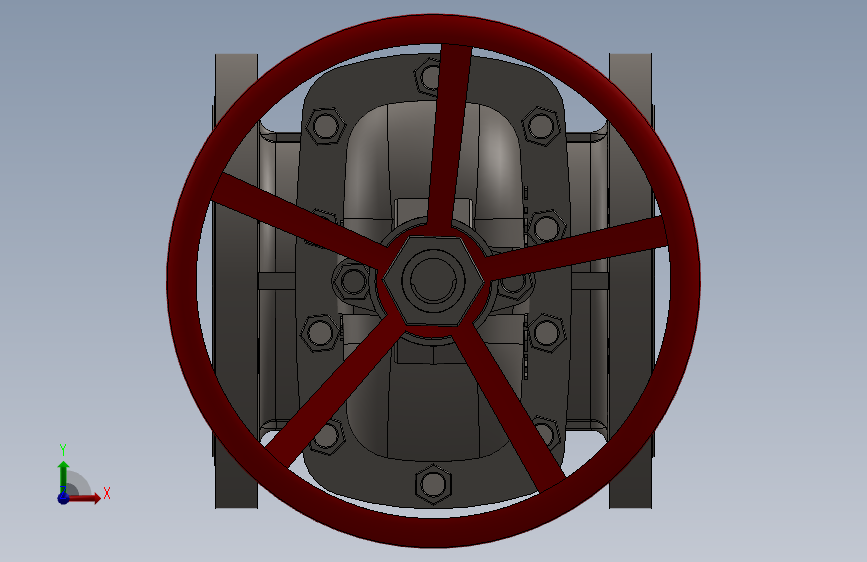

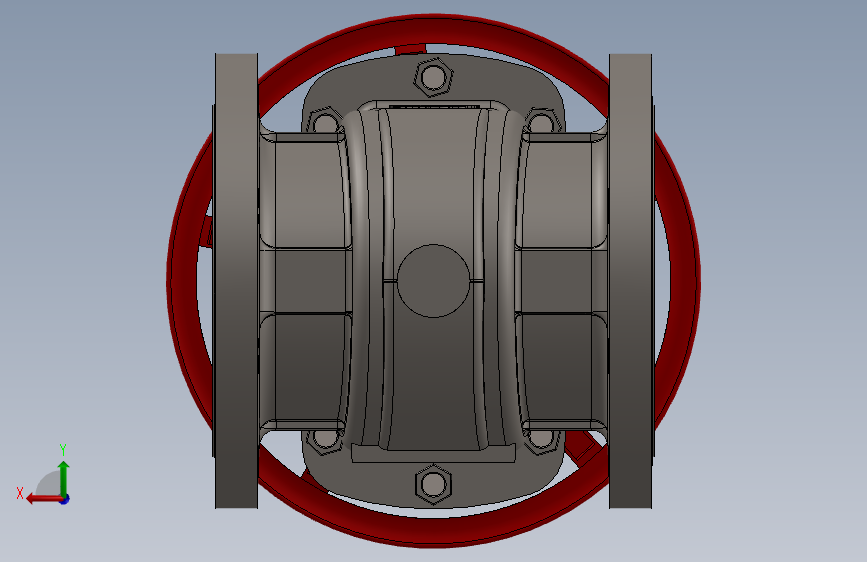

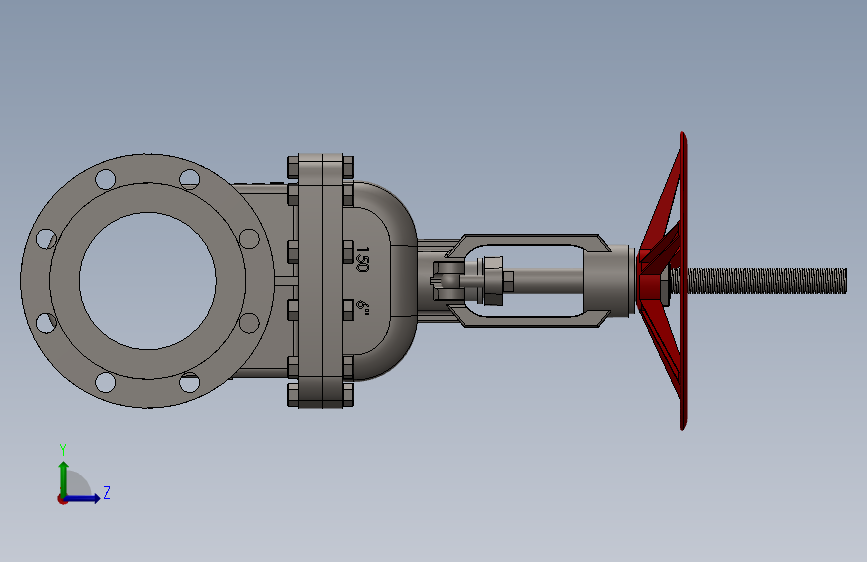

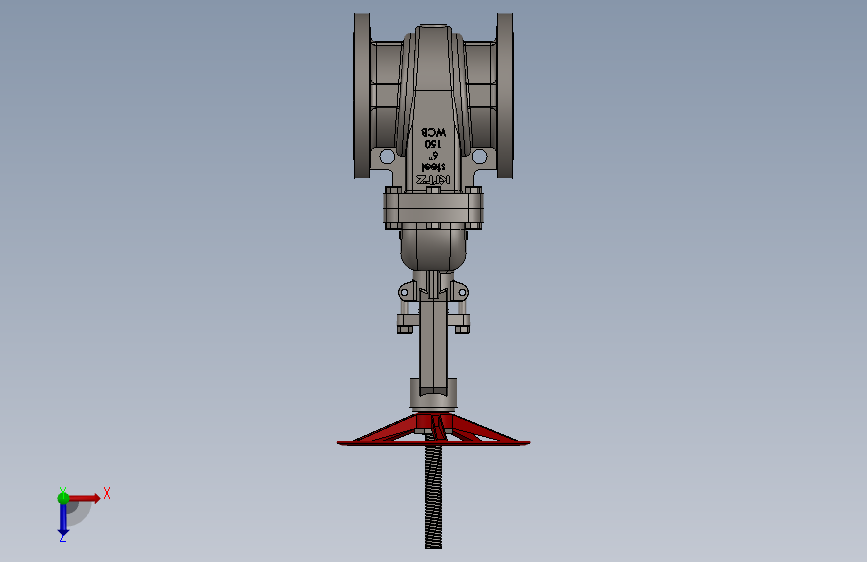

3D视图

文件列表

#	文件名称	文件大小
1	17255047335446.zip	19.39M
2	6inchesgatevalve.SLDASM	2.07M
3	935-VER4-SONBE.SLDPRT	289.47K
4	gate_6_body.SLDPRT	2.23M
5	gate_6_body_mold_inner_body1.SLDPRT	1.84M
6	gate_6_body_mold_out_body1.SLDPRT	2.05M
7	gate_6_body_mold_out_body2.SLDPRT	2.09M
8	gate_6_gate.SLDPRT	316.68K
9	gate_6_gate_mold_p1.SLDPRT	276.48K
10	gate_6_handle.SLDPRT	223.08K
11	gate_6_handle_nut.SLDPRT	128.97K
12	gate_6_POS14.SLDPRT	119.72K
13	gate_6_ring.SLDPRT	76.83K
14	gate_6_seal_press.SLDPRT	140.26K
15	gate_6_seal_press_bosch.SLDPRT	90.63K
16	gate_6_shaft.SLDPRT	958.83K
17	gate_6_shaft_bosch.SLDPRT	94.63K
18	gate_6_shaft_nut.SLDPRT	110.86K
19	gate_6_shaft_nut_locher.SLDPRT	82.33K
20	gate_6_upper_body.SLDPRT	810.88K
21	gate_6_upper_body_inner_mold_right.SLDPRT	678.93K
22	gate_6_upper_body_mold_inner_top.SLDPRT	86.73K
23	gate_6_upper_body_mold_outter_1.SLDPRT	755.64K
24	gate_6_upper_body_mold_outter_2.SLDPRT	706.05K
25	m14bolt.SLDPRT	74.18K
26	mold1_gate_6_body.SLDPRT	1.53M
27	moldaseem_outerbody.SLDPRT	562.60K
28	mold_assem.SLDASM	1.24M
29	nut_m14.SLDPRT	129.02K
