M1067-40L肉类滚揉机（固定式）CAD_AutoCAD_模型图纸下载

首页

图库

工程师

M1067-40L肉类滚揉机（固定式）CAD（ID:1580820）

机械设备 / 非标机械 / M1067-40L肉类滚揉机（固定式）CAD

©非原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	17263202167352.zip	2.00M

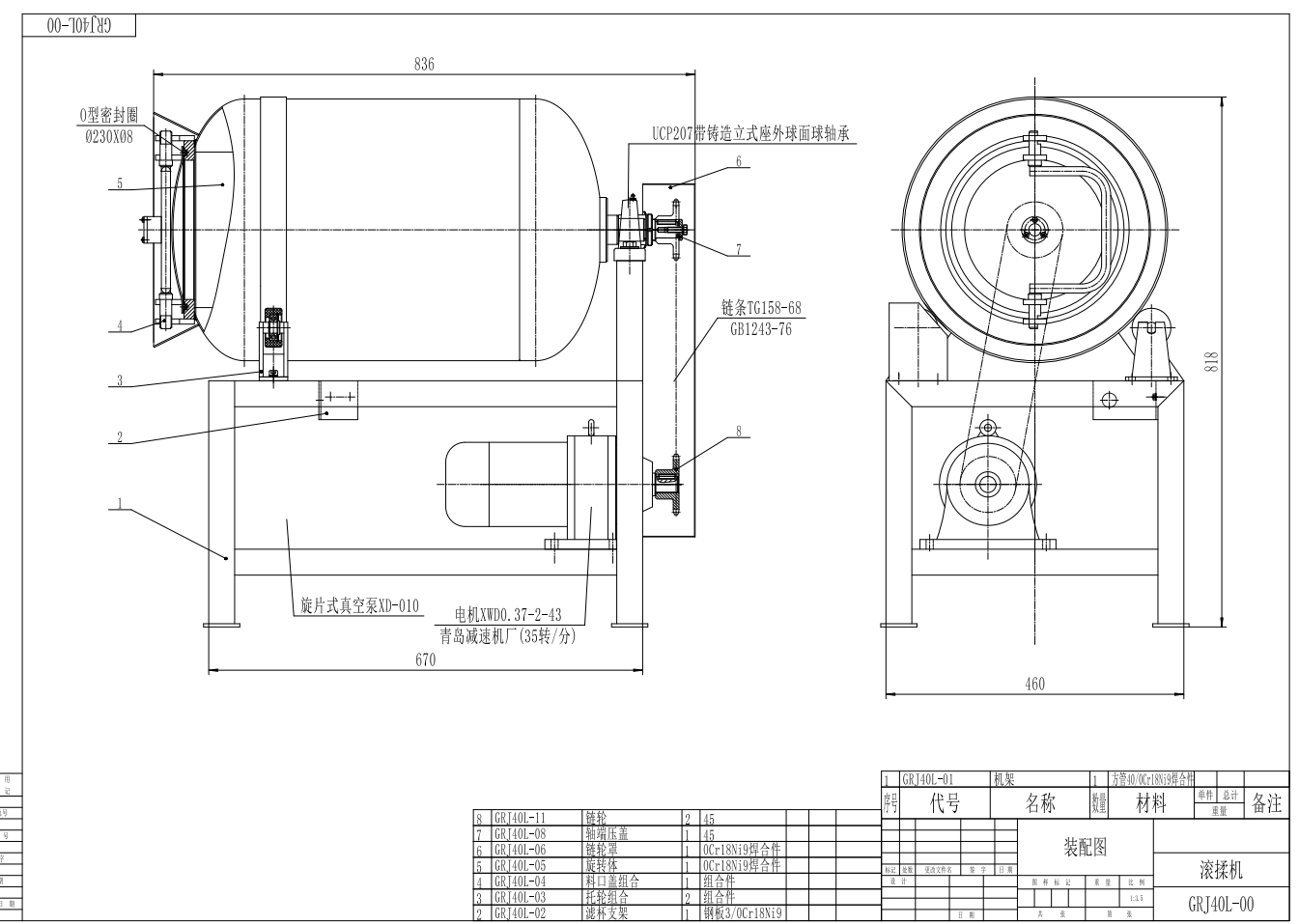

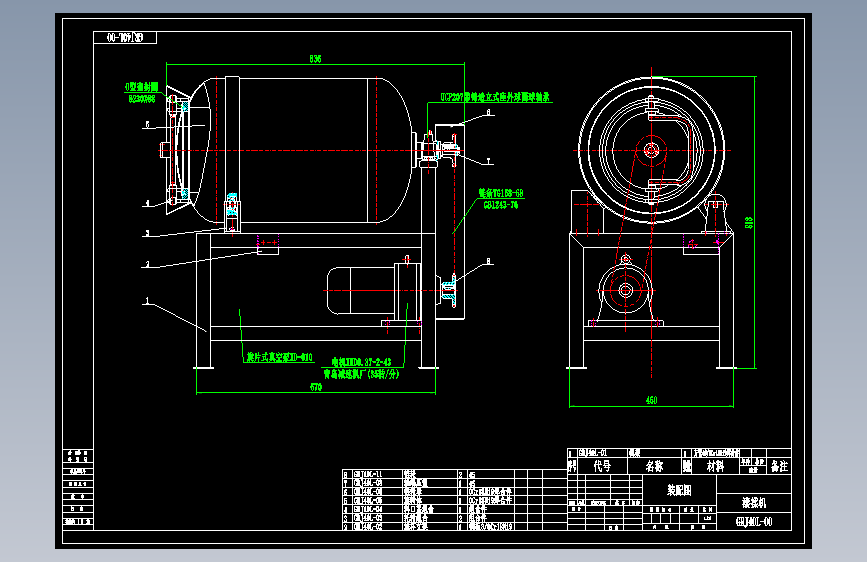

2	00装配图.png	241.76K

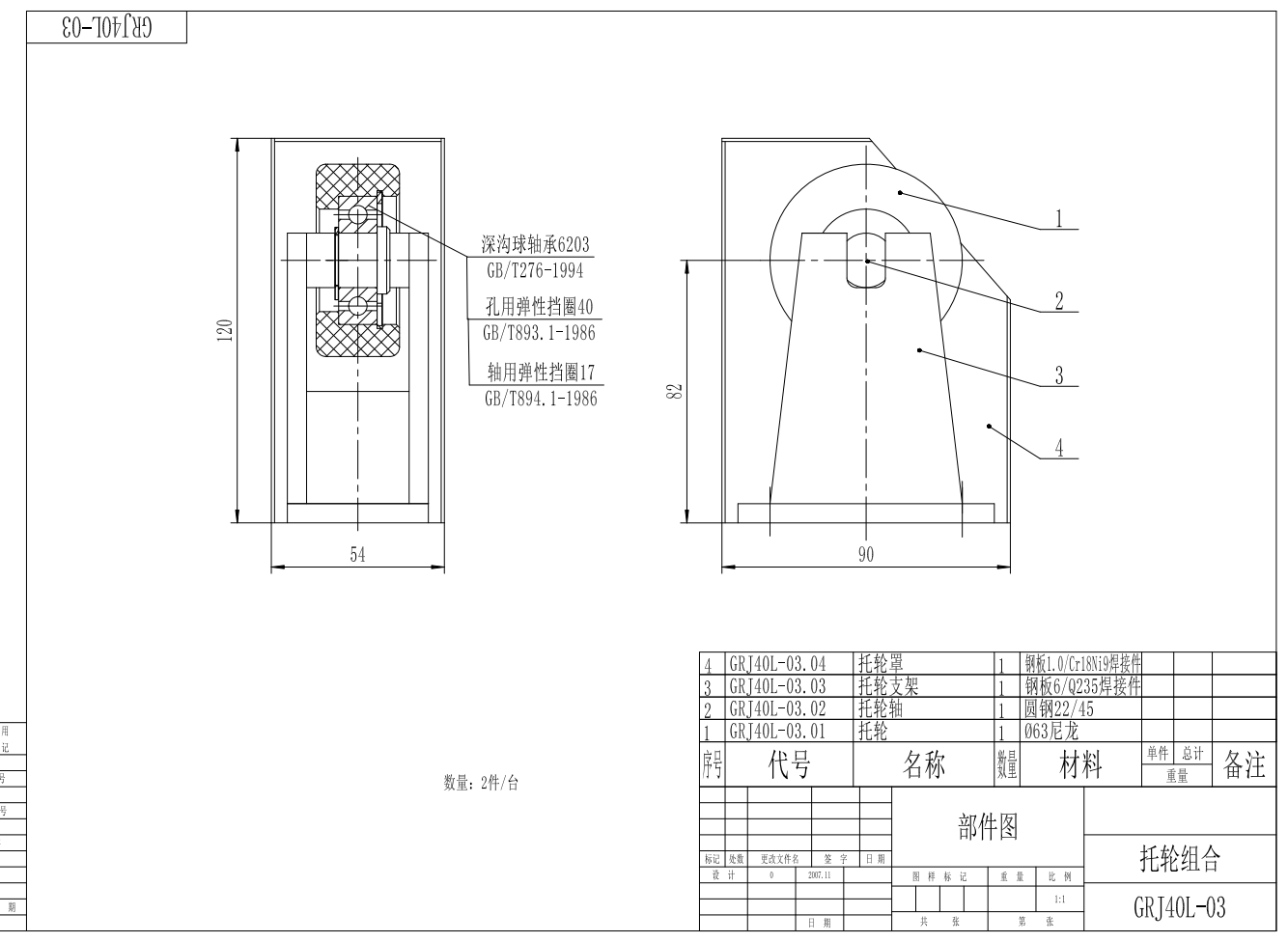

3	0托轮组合.png	168.68K

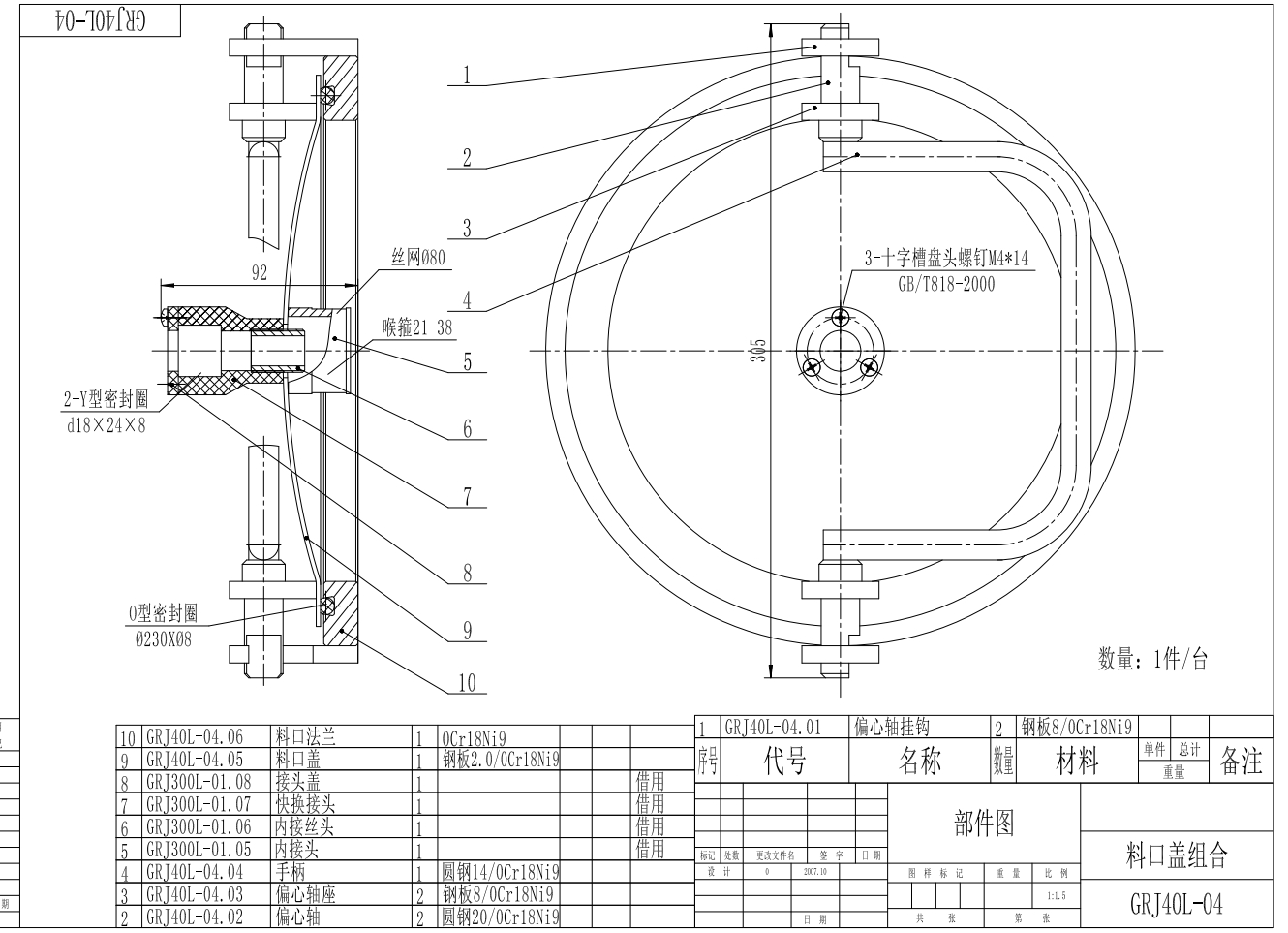

4	0料口盖组合.png	312.56K

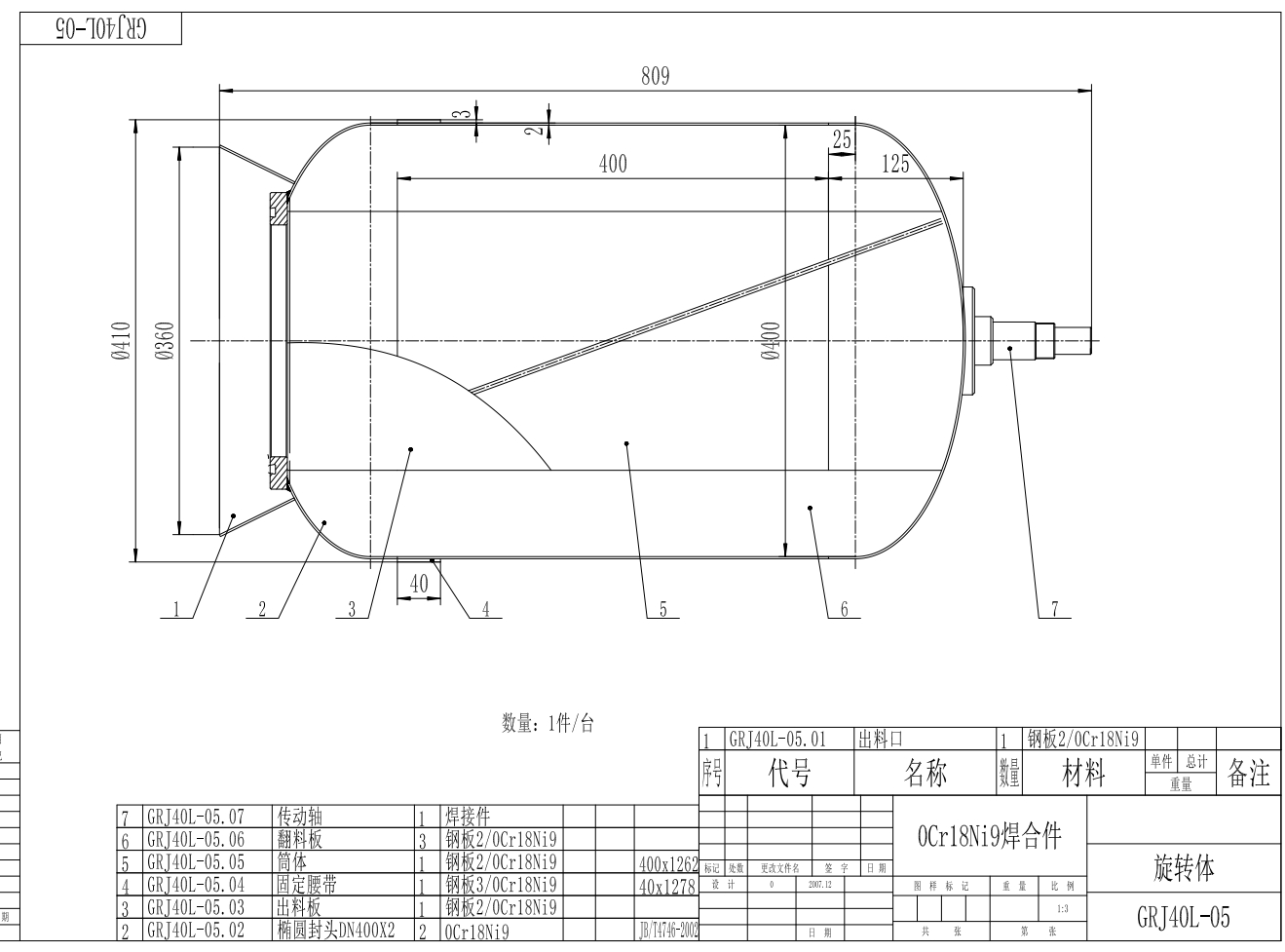

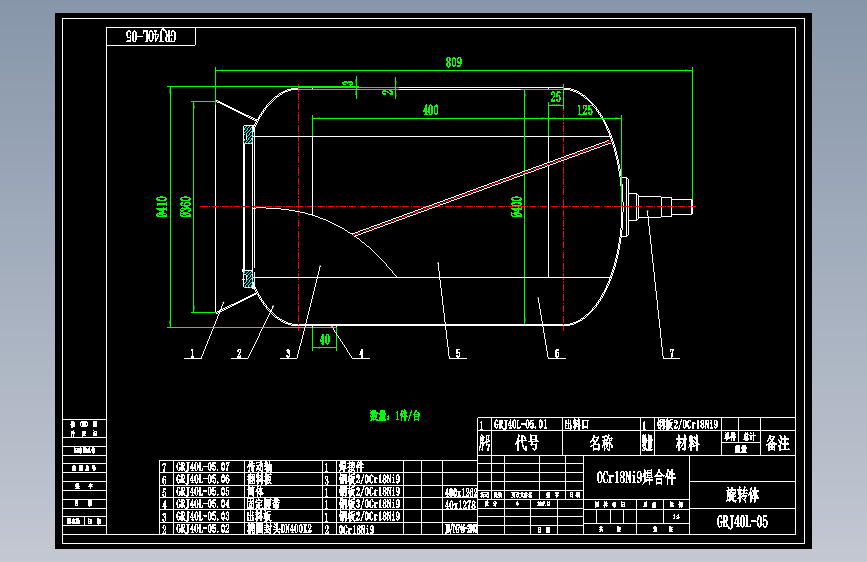

5	0旋转体.png	207.03K
6	GRJ40L-00装配图.dwg	536.25K
7	GRJ40L-00装配图.exb	116.76K
8	GRJ40L-01机架.dwg	366.31K
9	GRJ40L-01机架.exb	40.98K
10	GRJ40L-02滤杯支板.dwg	338.28K
11	GRJ40L-02滤杯支板.exb	21.78K
12	GRJ40L-03.01托轮.dwg	357.92K
13	GRJ40L-03.01托轮.exb	29.49K
14	GRJ40L-03.02托轮轴.dwg	351.30K
15	GRJ40L-03.02托轮轴.exb	26.64K
16	GRJ40L-03.03托轮支架.dwg	343.97K
17	GRJ40L-03.03托轮支架.exb	25.25K
18	GRJ40L-03.04托轮罩.dwg	334.49K
19	GRJ40L-03.04托轮罩.exb	19.40K
20	GRJ40L-03托轮组合.dwg	366.62K
21	GRJ40L-03托轮组合.exb	43.91K
22	GRJ40L-04.01偏心轴挂钩.dwg	335.29K
23	GRJ40L-04.01偏心轴挂钩.exb	18.57K
24	GRJ40L-04.02偏心轴.dwg	341.41K
25	GRJ40L-04.02偏心轴.exb	21.65K
26	GRJ40L-04.03偏心轴座.dwg	337.50K
27	GRJ40L-04.03偏心轴座.exb	18.56K
28	GRJ40L-04.04手柄.dwg	336.21K
29	GRJ40L-04.04手柄.exb	19.52K
30	GRJ40L-04.09料口盖.dwg	341.17K
31	GRJ40L-04.09料口盖.exb	25.45K
32	GRJ40L-04.10料口法兰.dwg	343.52K
33	GRJ40L-04.10料口法兰.exb	24.24K

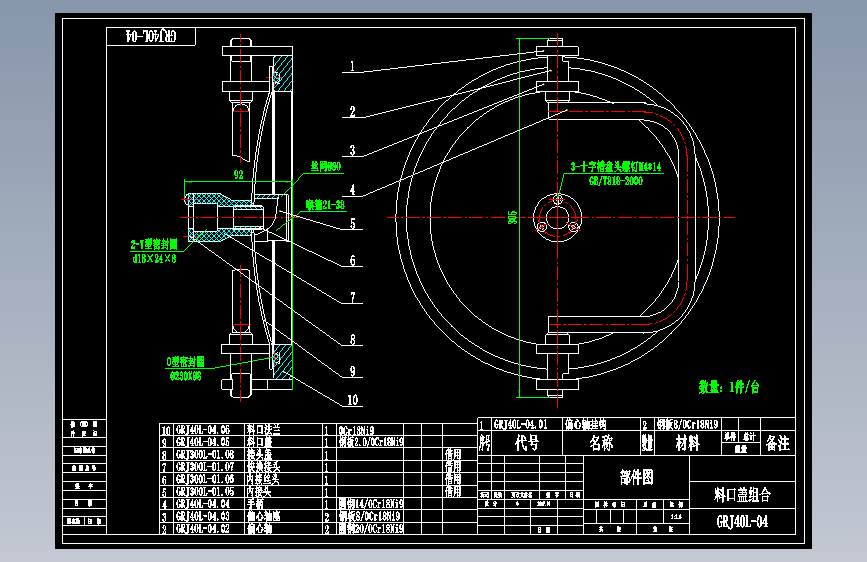

34	GRJ40L-04料口盖组合.dwg	465.22K
35	GRJ40L-04料口盖组合.exb	76.41K
36	GRJ40L-05.01出料口.dwg	342.04K
37	GRJ40L-05.01出料口.exb	24.16K
38	GRJ40L-05.06翻料板.dwg	335.27K
39	GRJ40L-05.06翻料板.exb	18.93K

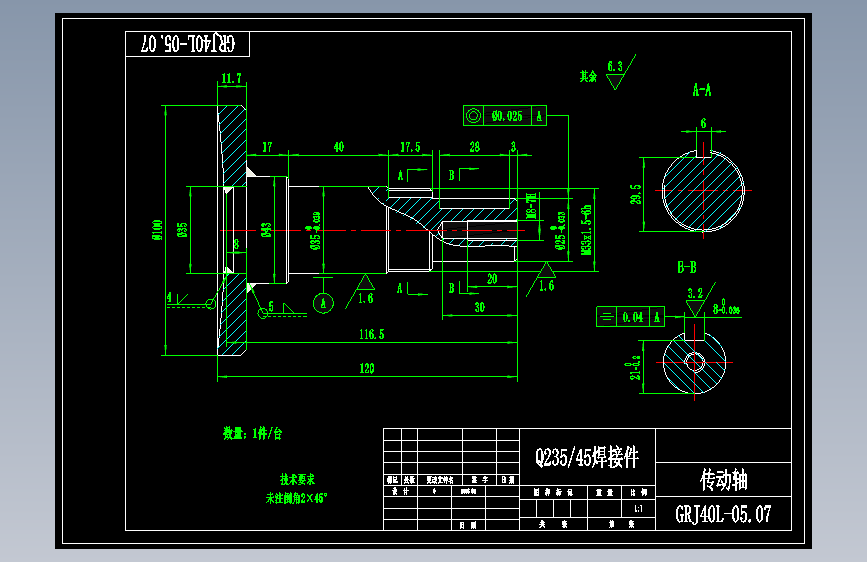

40	GRJ40L-05.07传动轴.dwg	395.58K
41	GRJ40L-05.07传动轴.exb	55.65K
42	GRJ40L-05旋转体.dwg	374.85K
43	GRJ40L-05旋转体.exb	56.14K
44	GRJ40L-06护罩.dwg	337.21K
45	GRJ40L-06护罩.exb	21.00K
46	GRJ40L-07轴端压盖.dwg	332.26K
47	GRJ40L-07轴端压盖.exb	16.73K

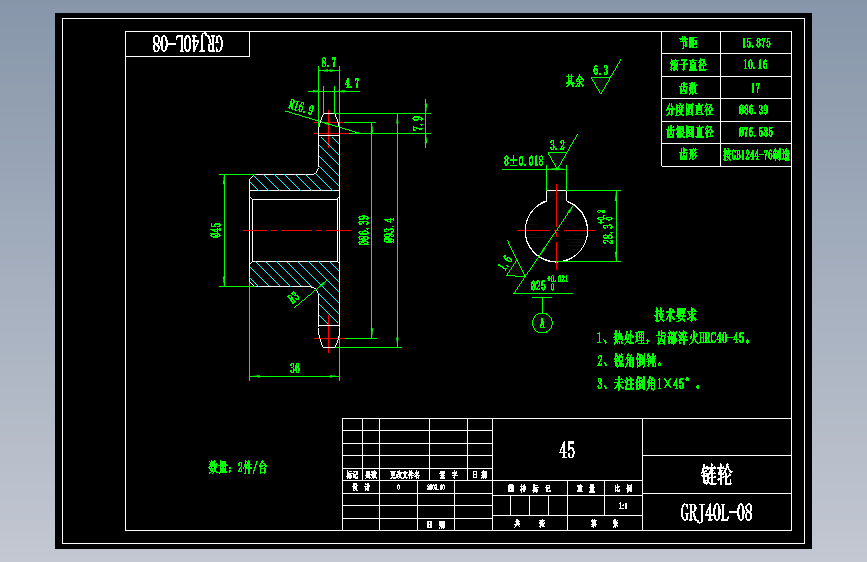

48	GRJ40L-08链轮.dwg	380.51K
49	GRJ40L-08链轮.exb	30.59K
