M4444-JZK50／45－25型双级真空挤砖机（ID:1585527）

机械设备 / 非标机械 / M4444-JZK50／45－25型双级真空挤砖机

©非原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	17265561822834.zip	9.75M

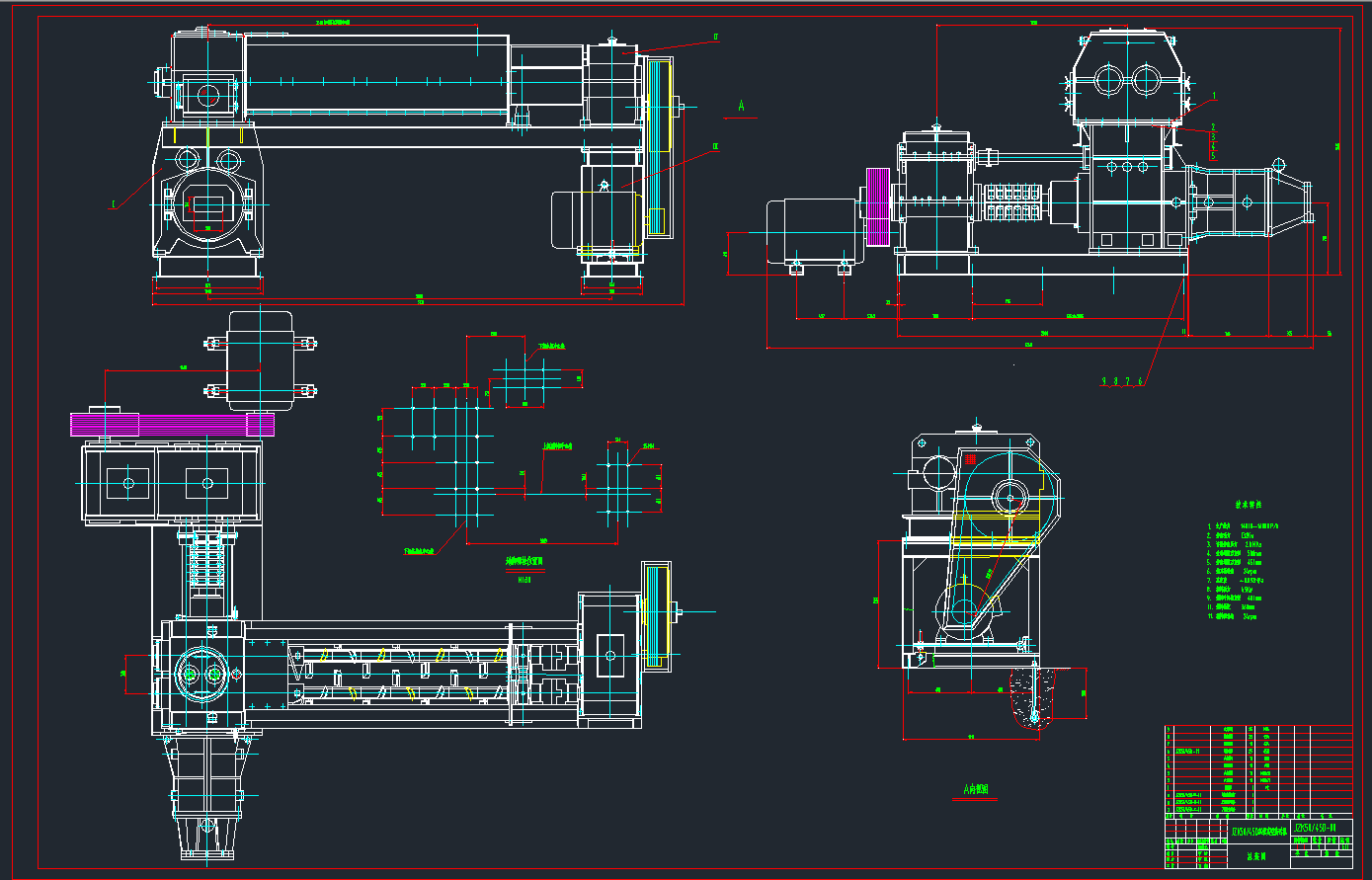

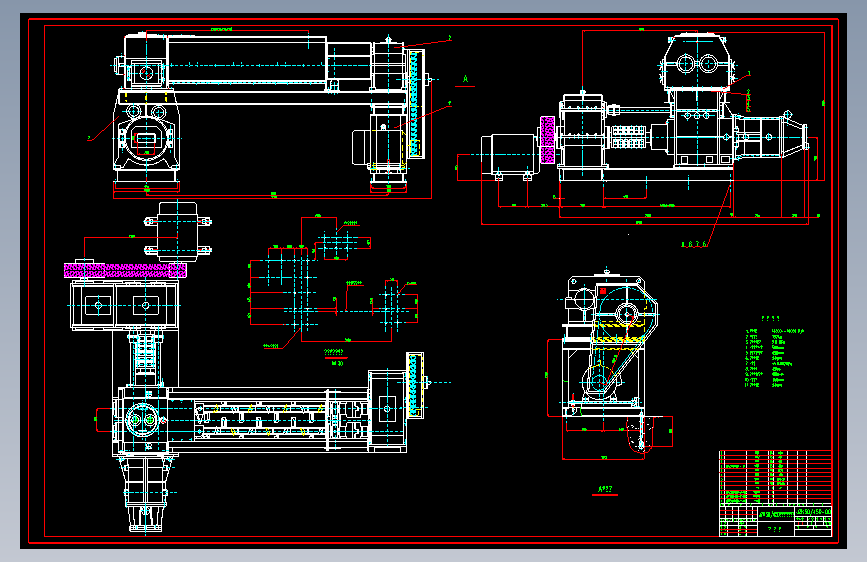

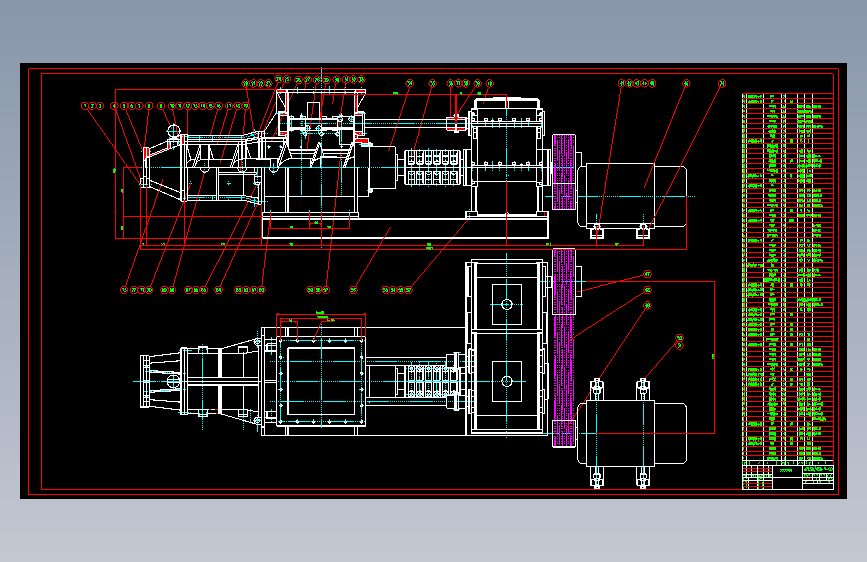

2	0JZK50／45－25型双级真空挤砖机总装图.png	44.30K

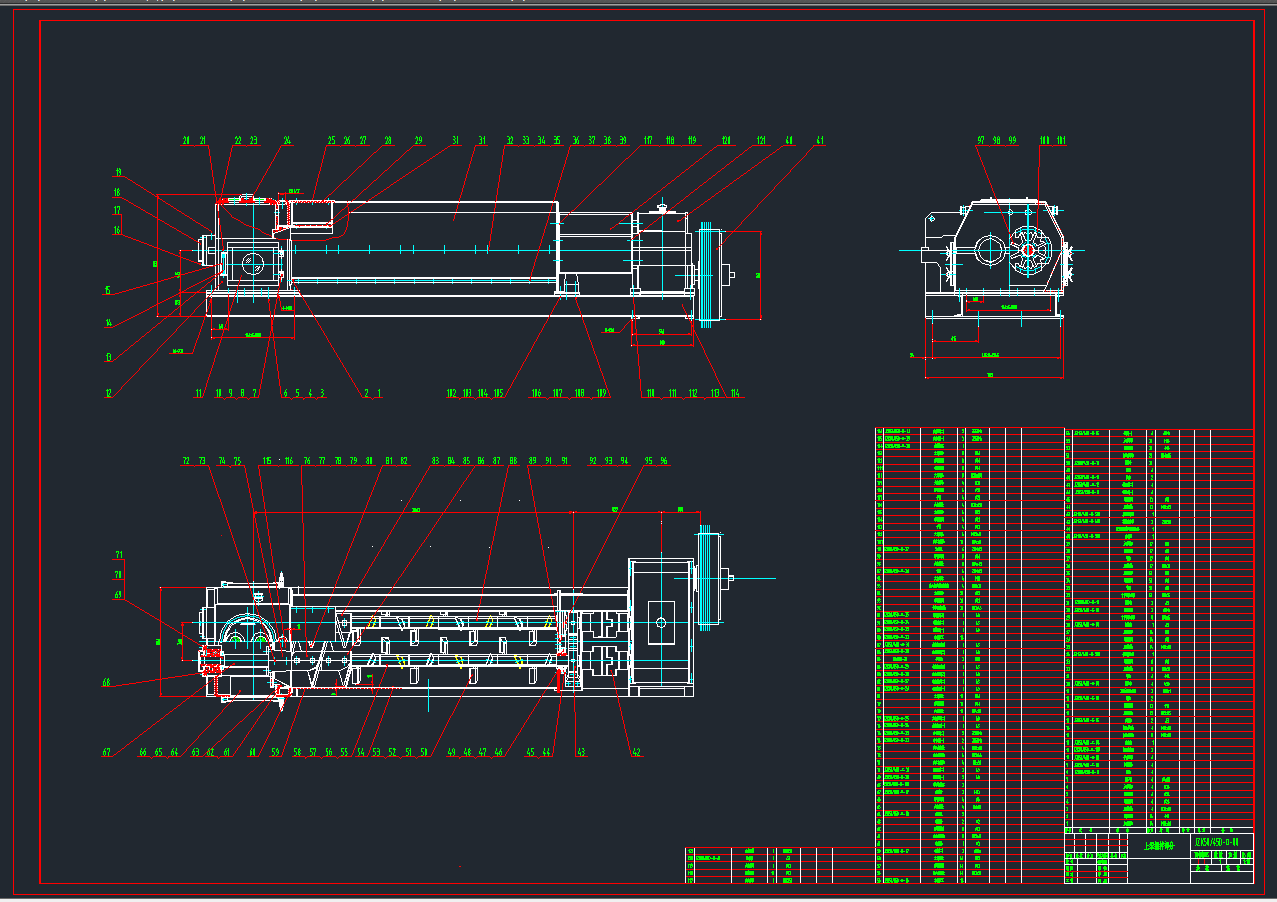

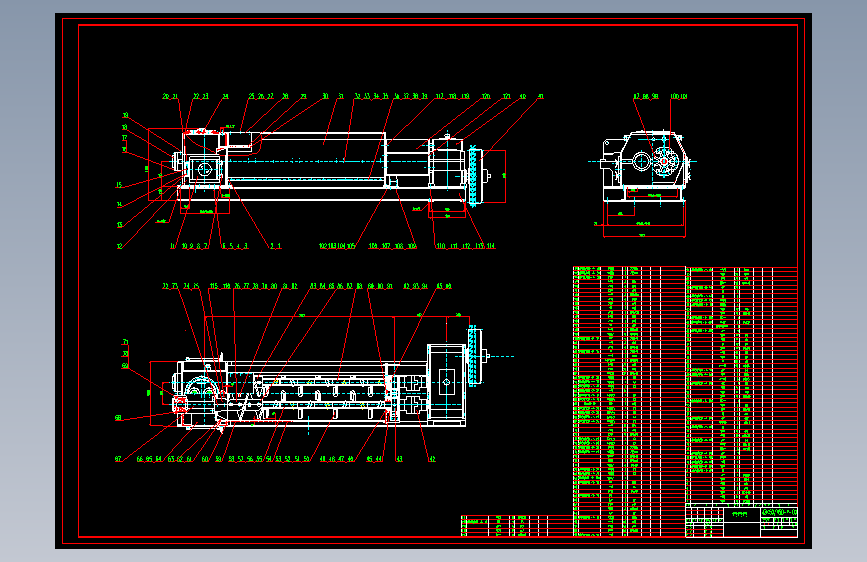

3	0上级搅拌部分.png	49.52K

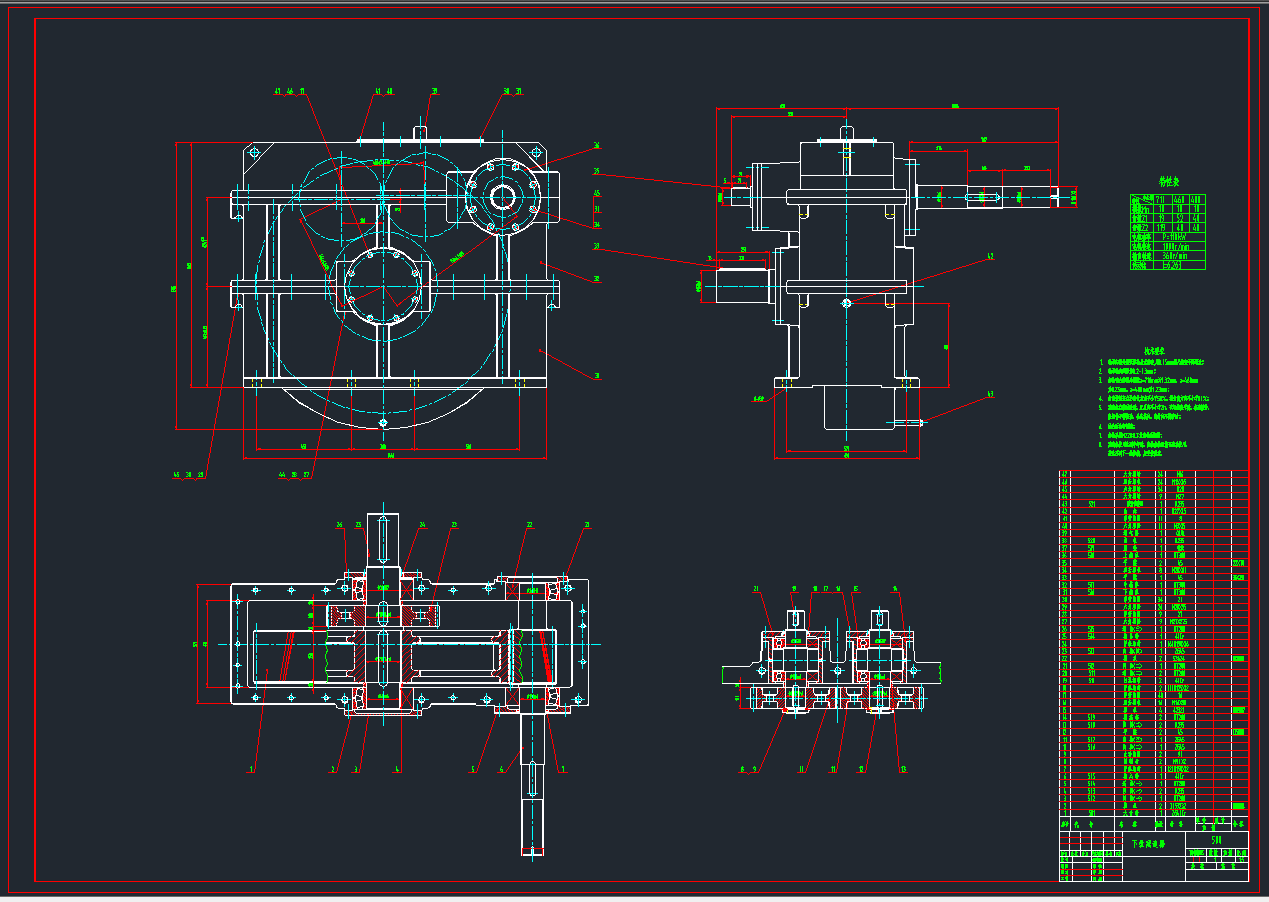

4	0下级减速器.png	50.17K

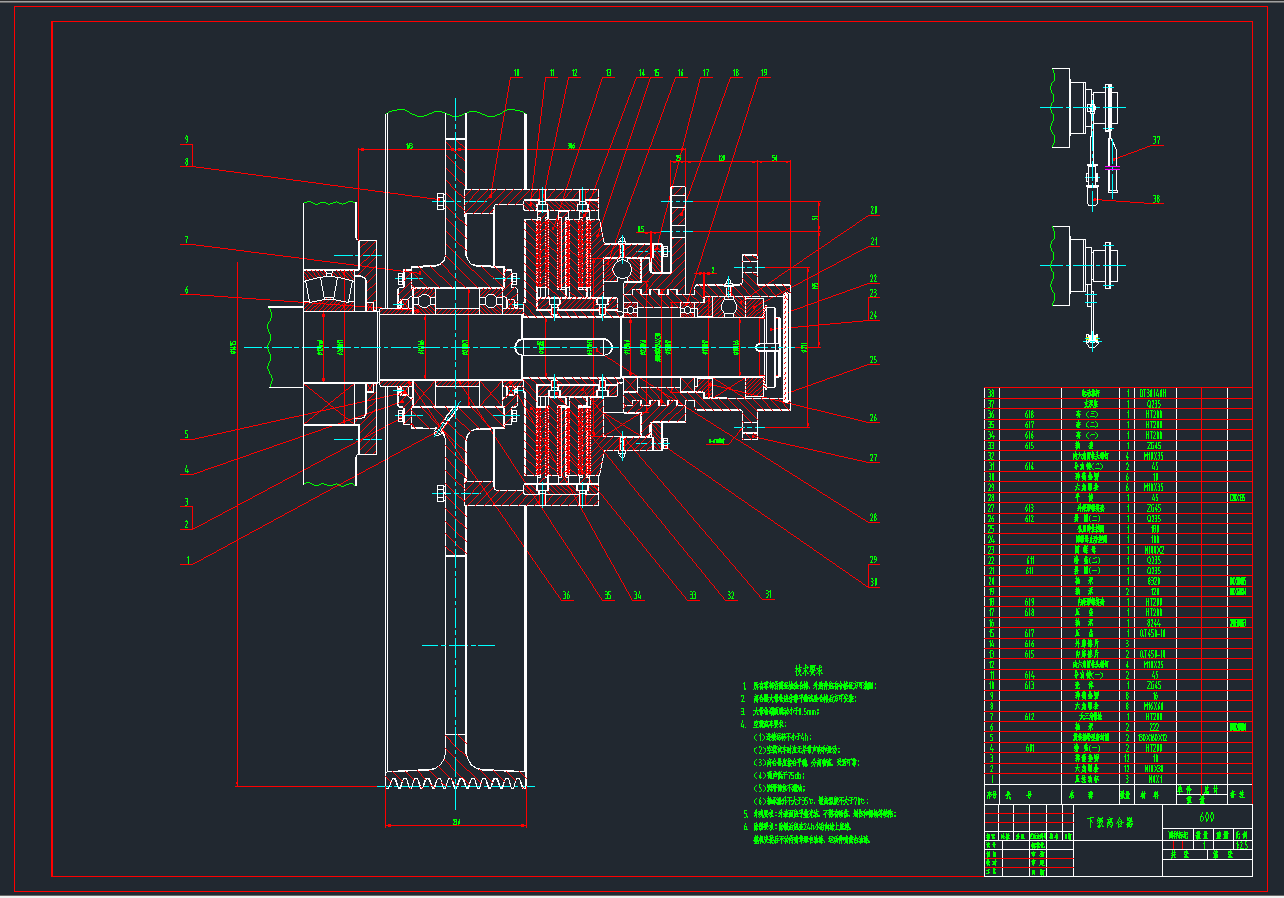

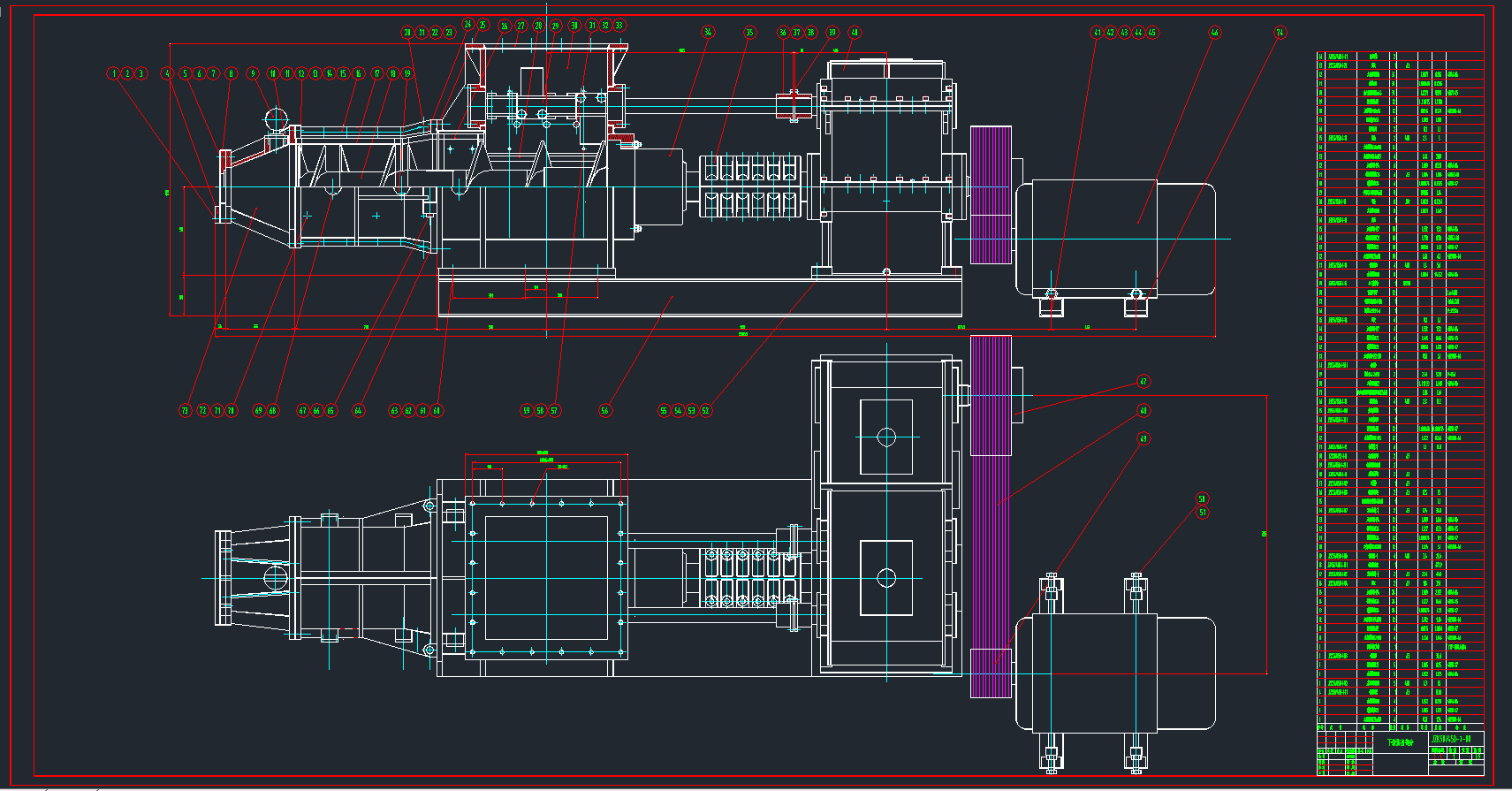

5	0下级挤出部分.png	54.60K

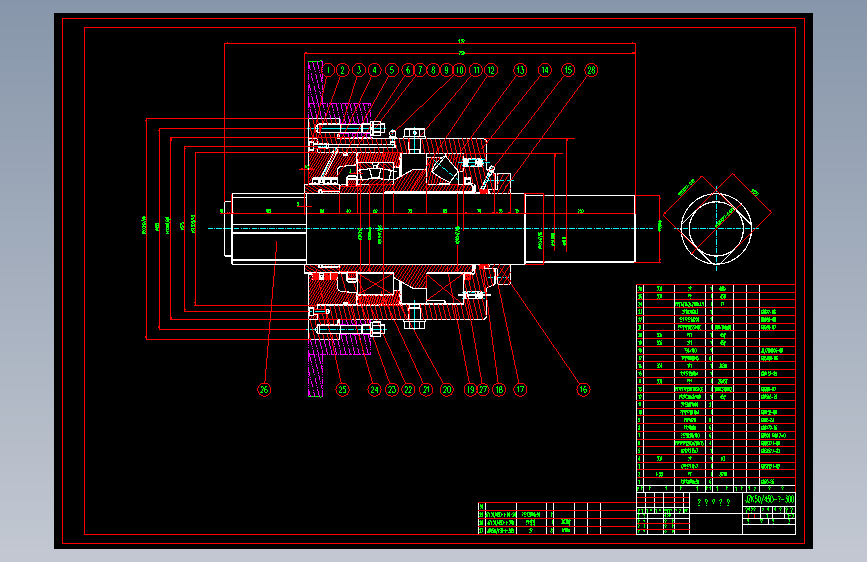

6	0下级离合器.png	58.10K

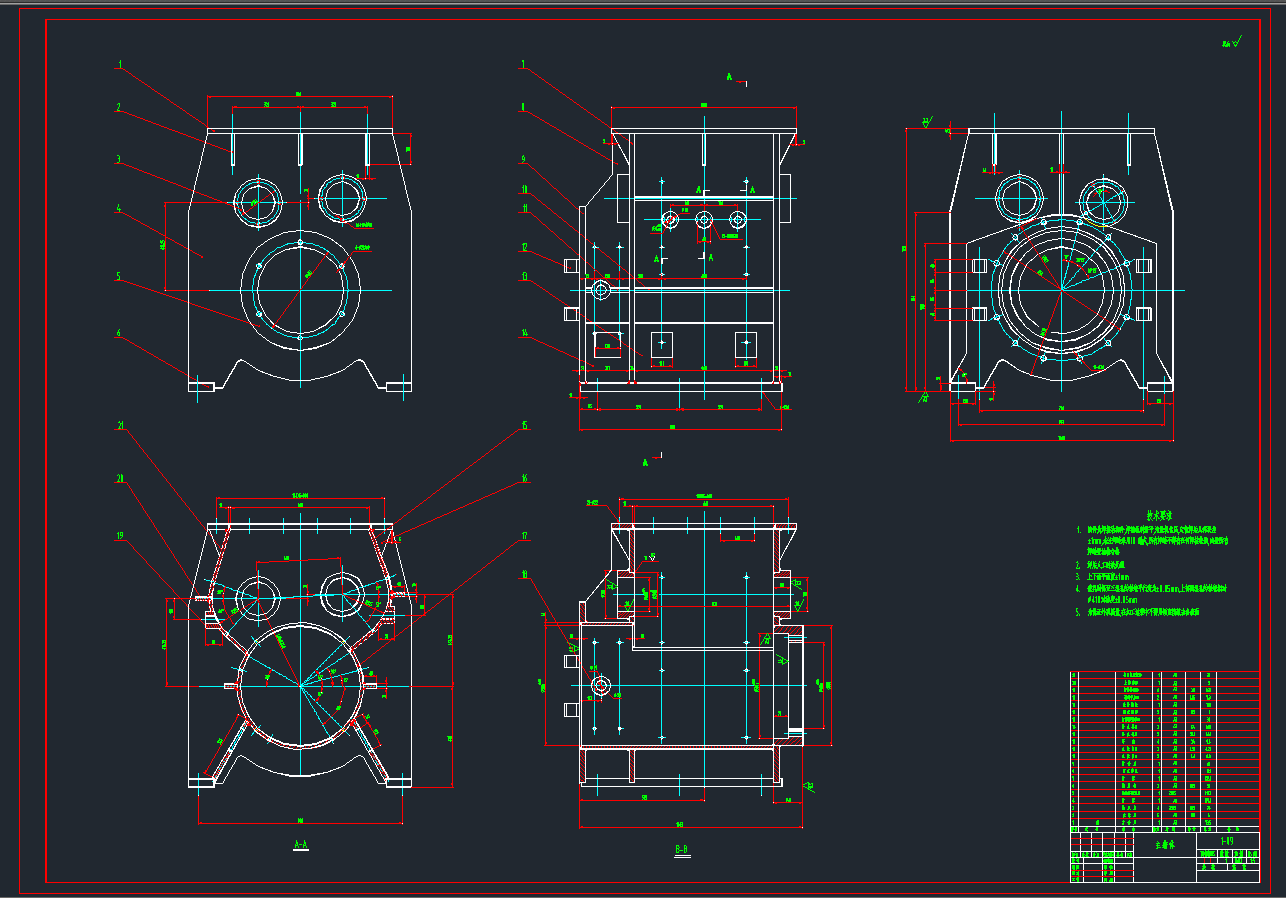

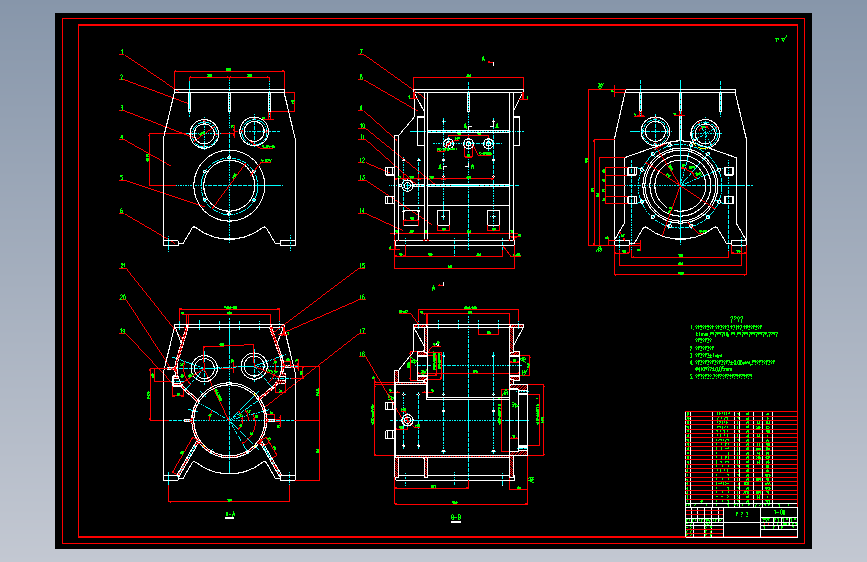

7	0主箱体.png	51.51K

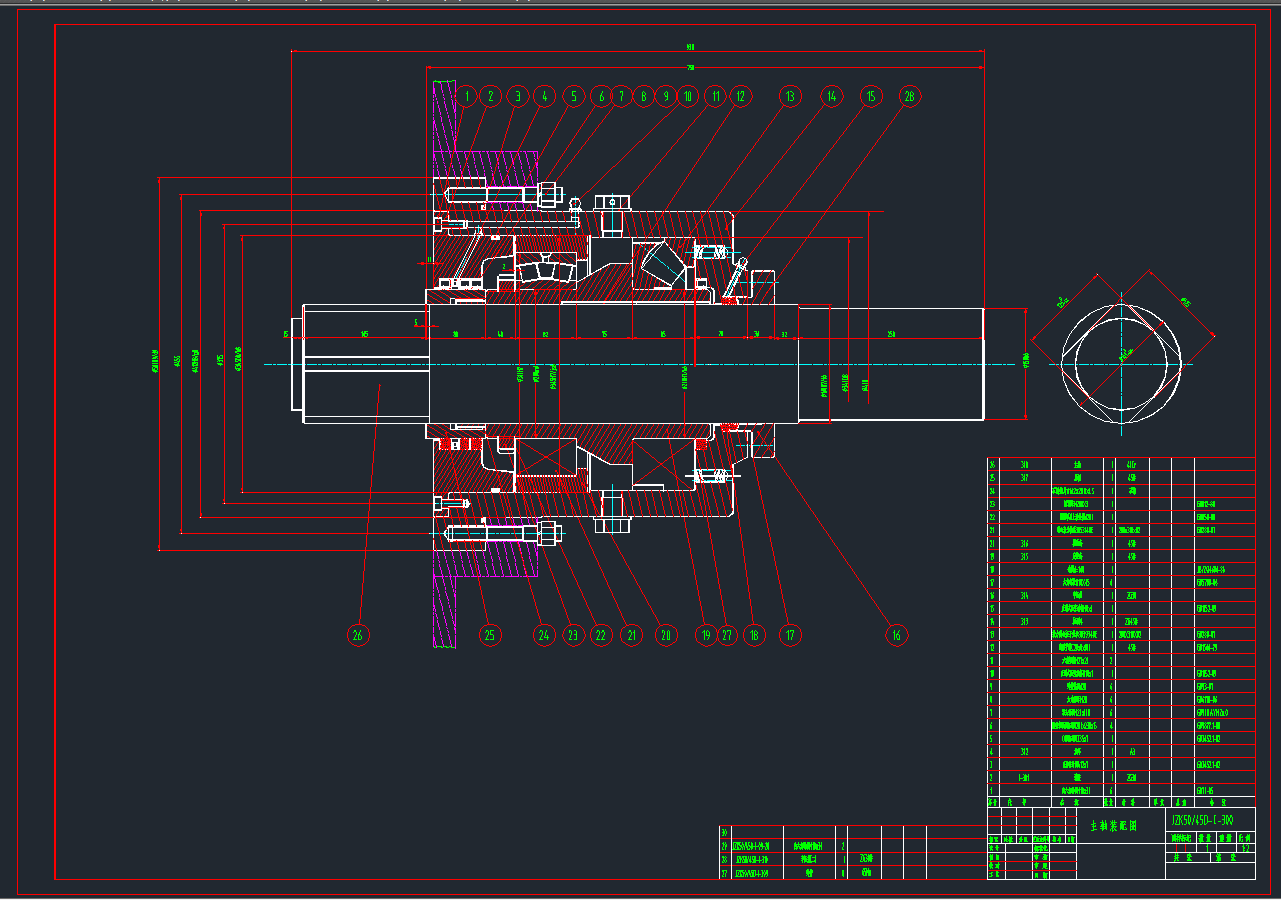

8	0主轴.png	43.78K
9	0主轴绞刀.png	29.81K
10	0外摩擦片.png	40.74K

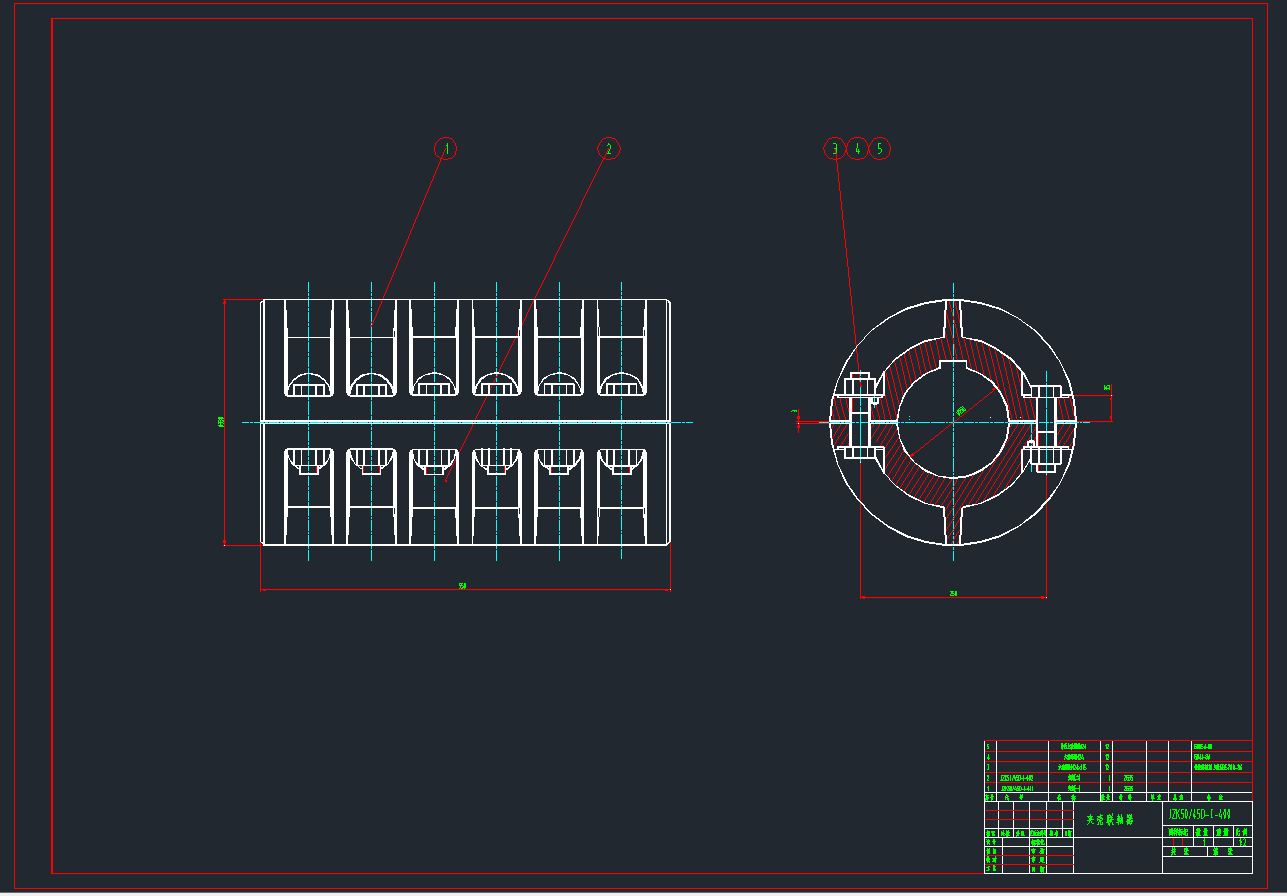

11	0夹壳联轴器.png	20.96K

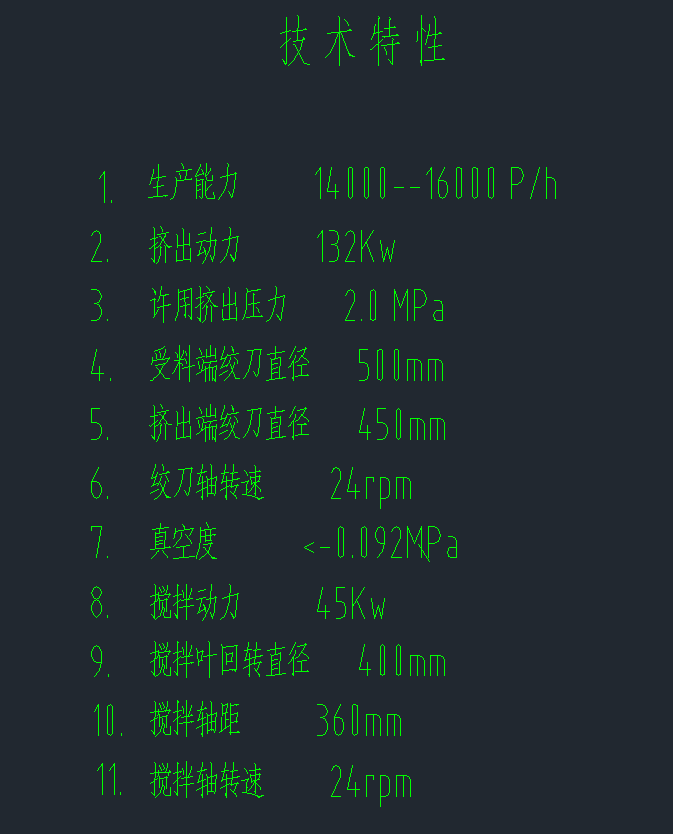

12	0技术参数.png	14.59K

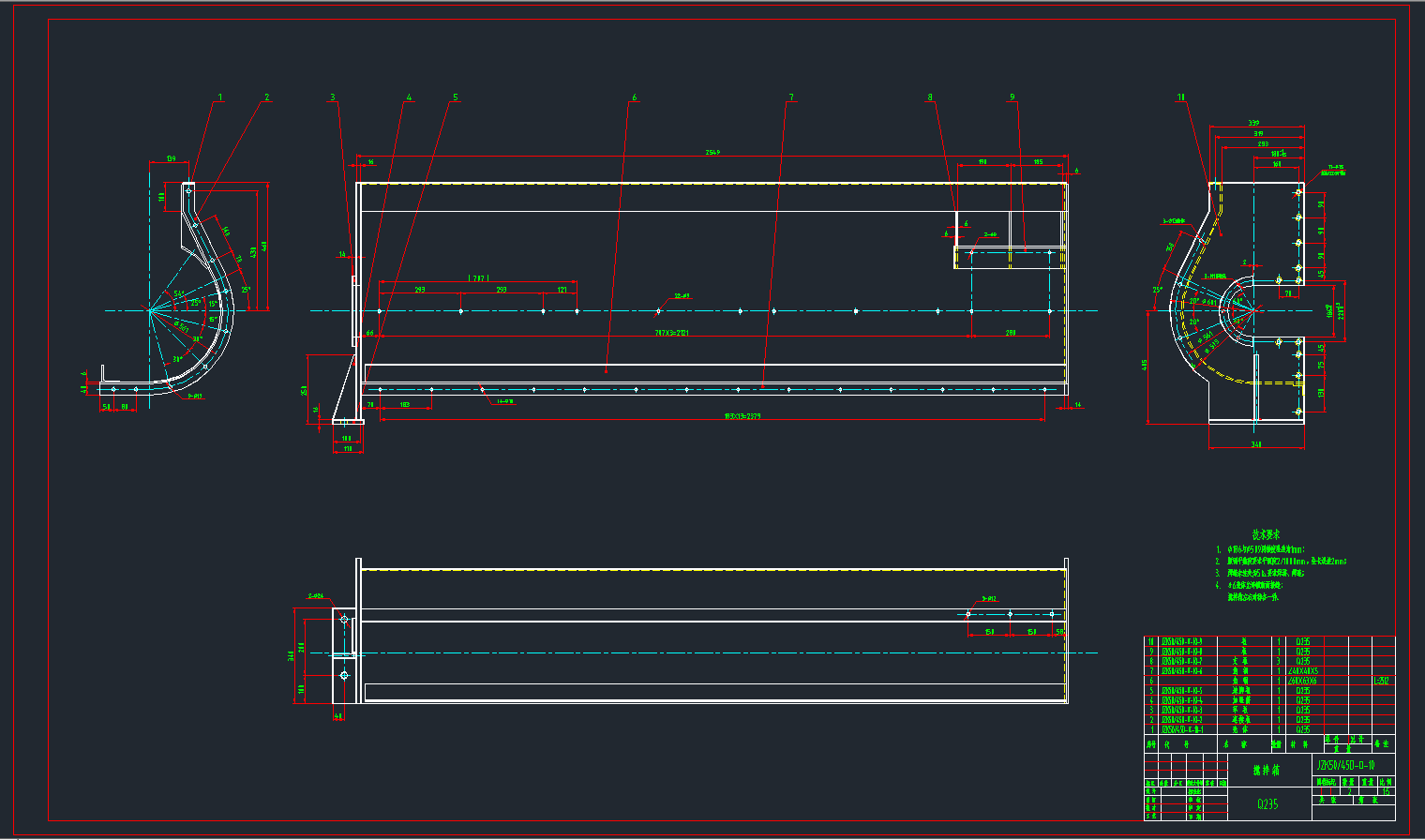

13	0搅拌箱.png	34.80K

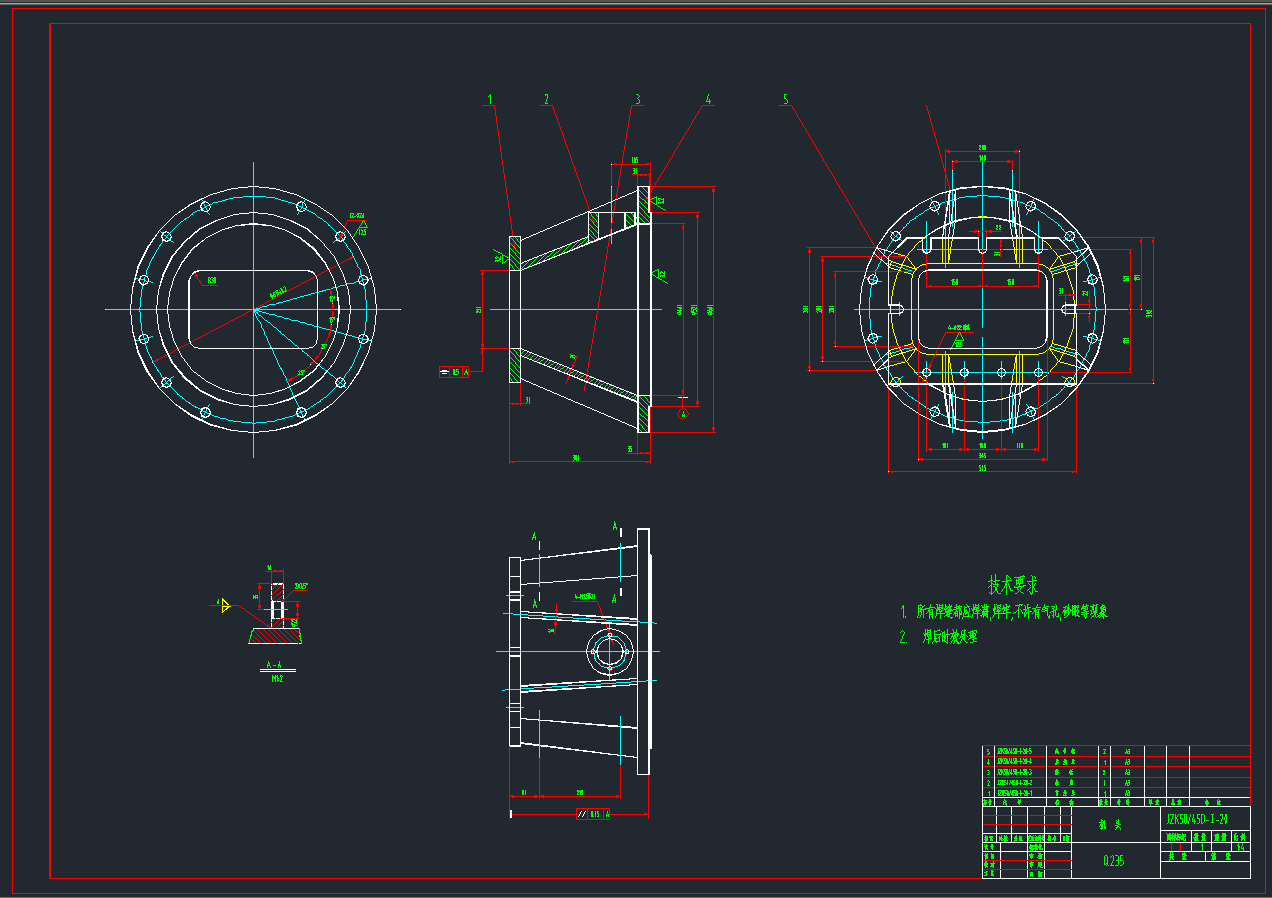

14	0机头.png	35.81K

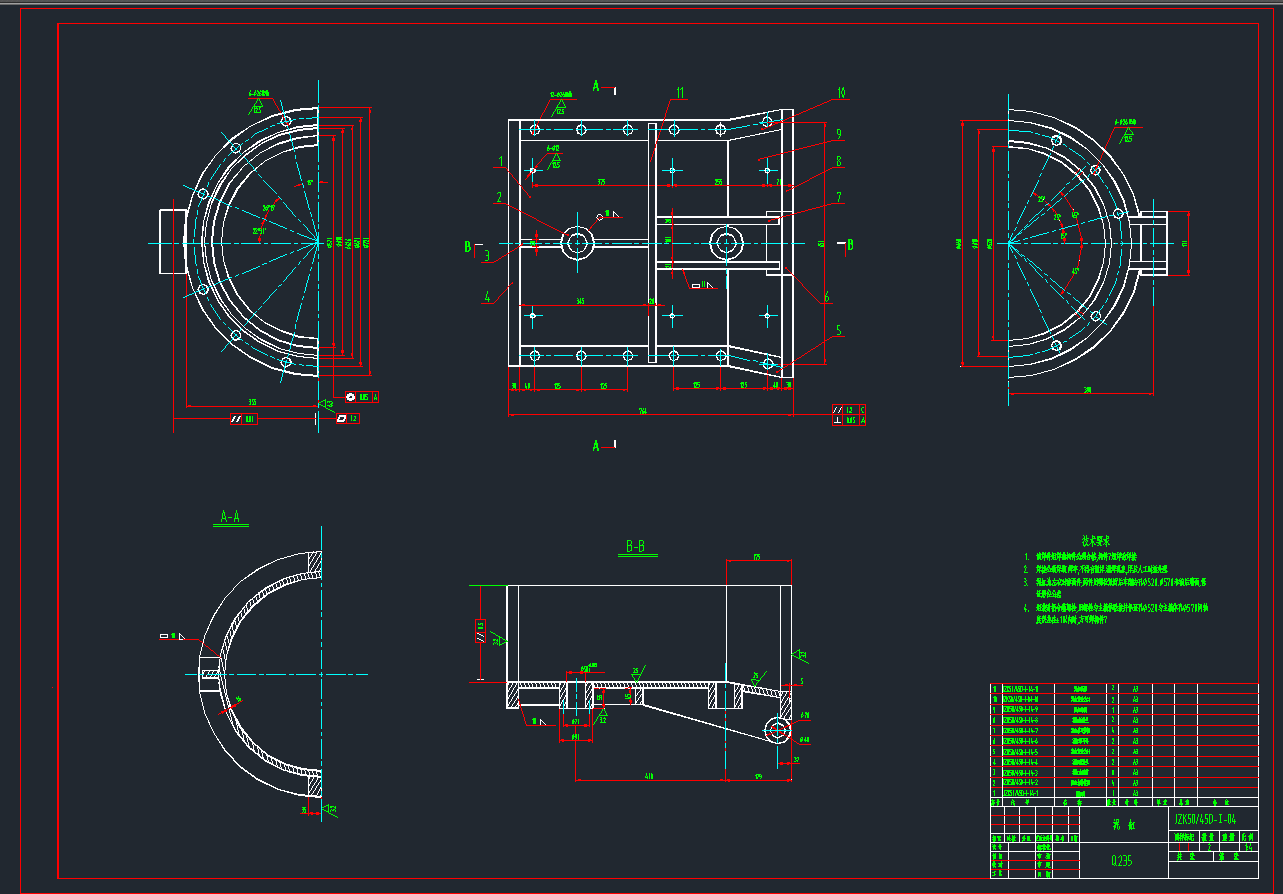

15	0泥缸.png	39.25K
16	0真空箱.png	52.55K

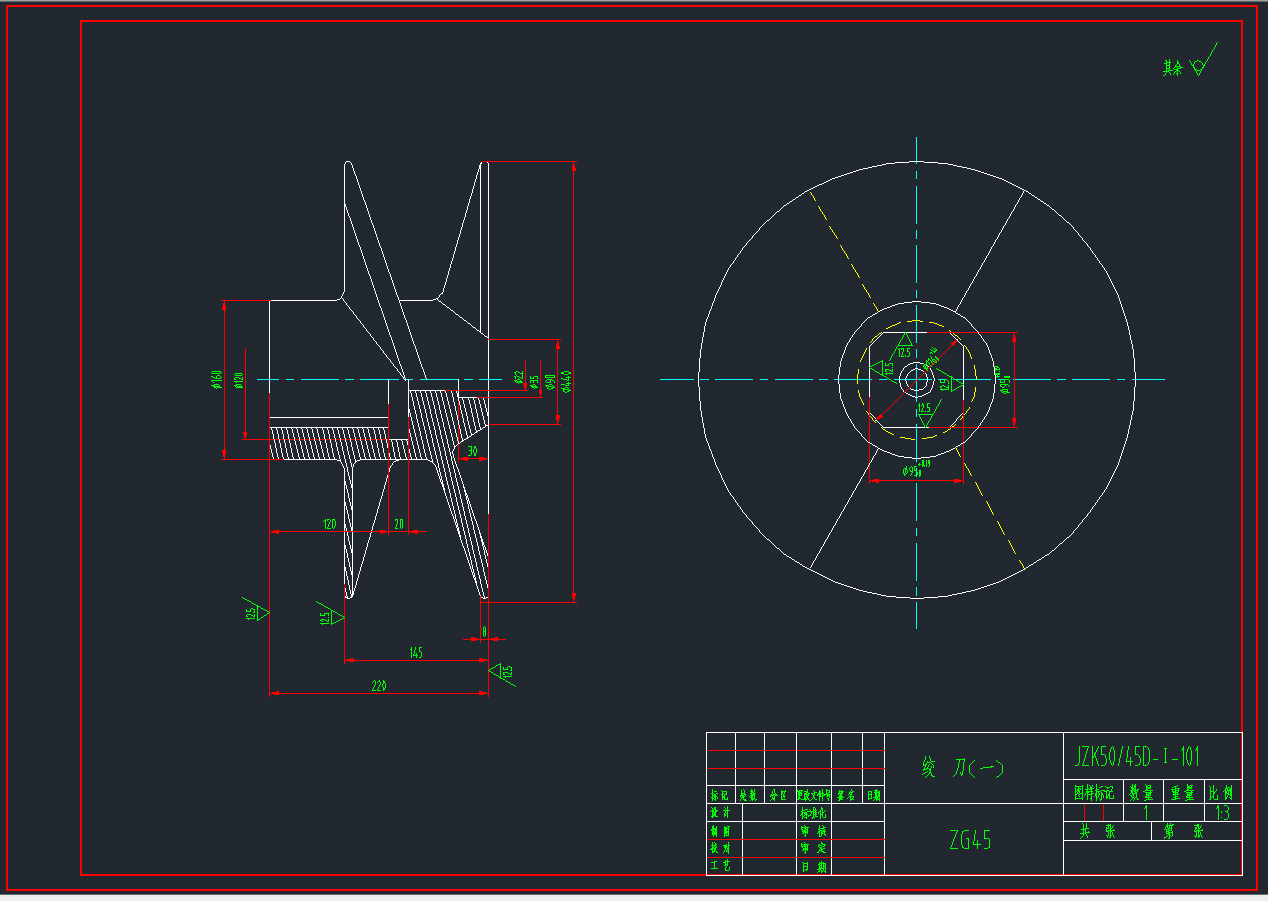

17	0绞刀.png	21.87K

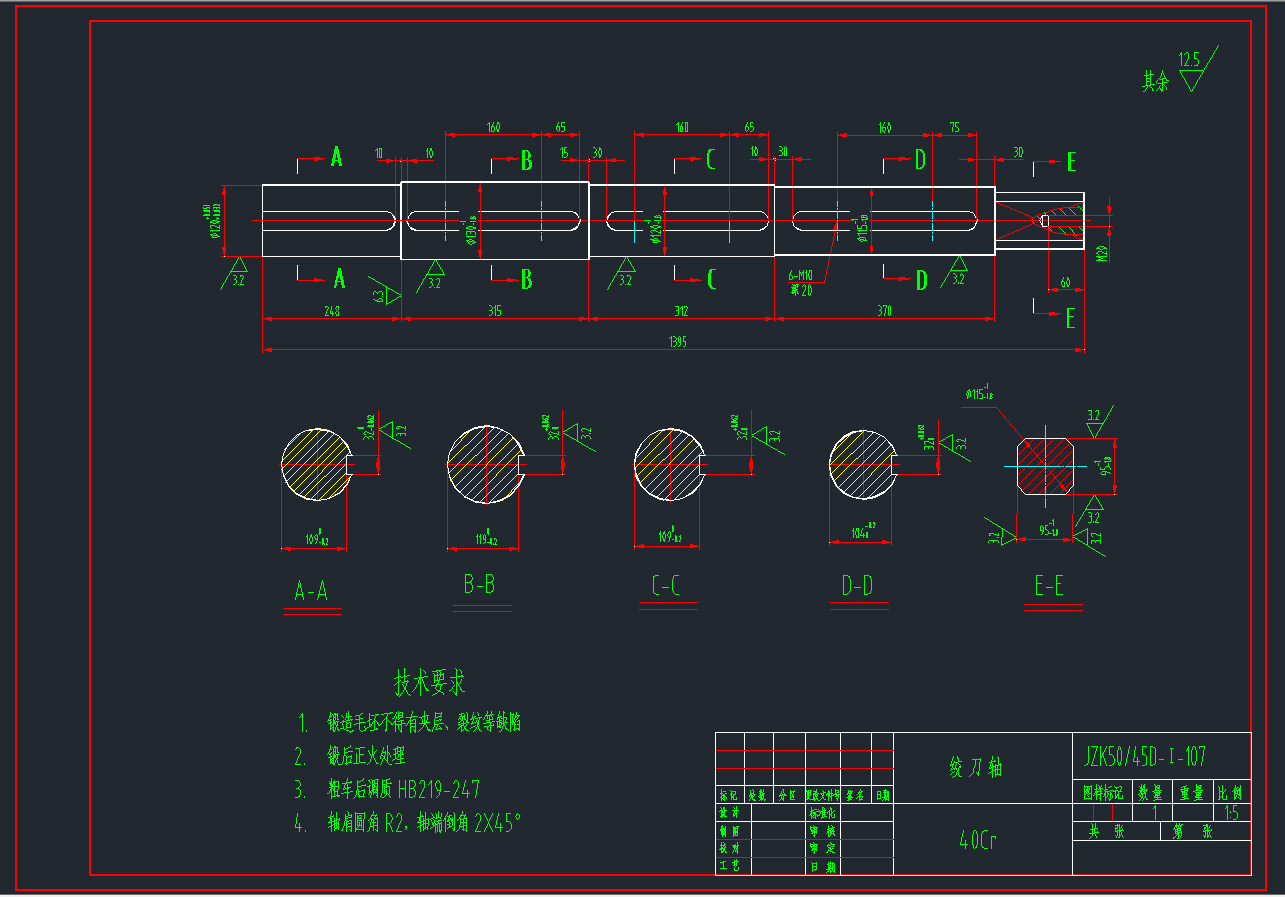

18	0绞刀轴.png	28.11K
