汽车变速箱（手动变速箱）3D模型（ProE_Creo软件打开）（ID:160195）

交通运输 / 车辆相关 / 汽车变速箱（手动变速箱）3D模型（ProE_Creo软件打开）

©非原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	0-0-0-0-asm_transmission.asm	264.46K
2	0-0-0-0-asm_transmission.jpg	303.31K

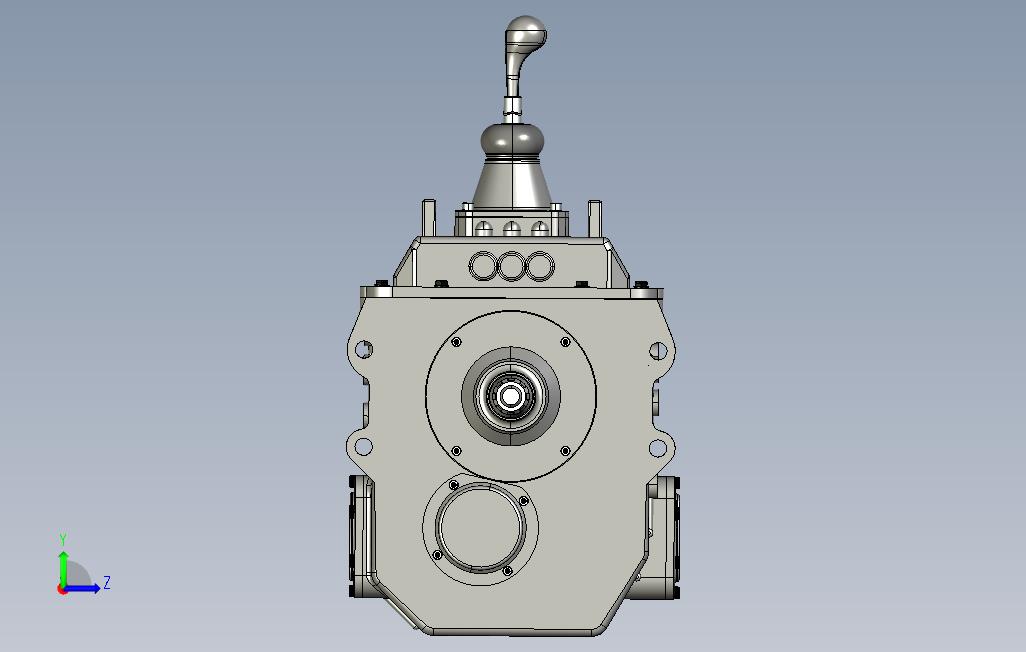

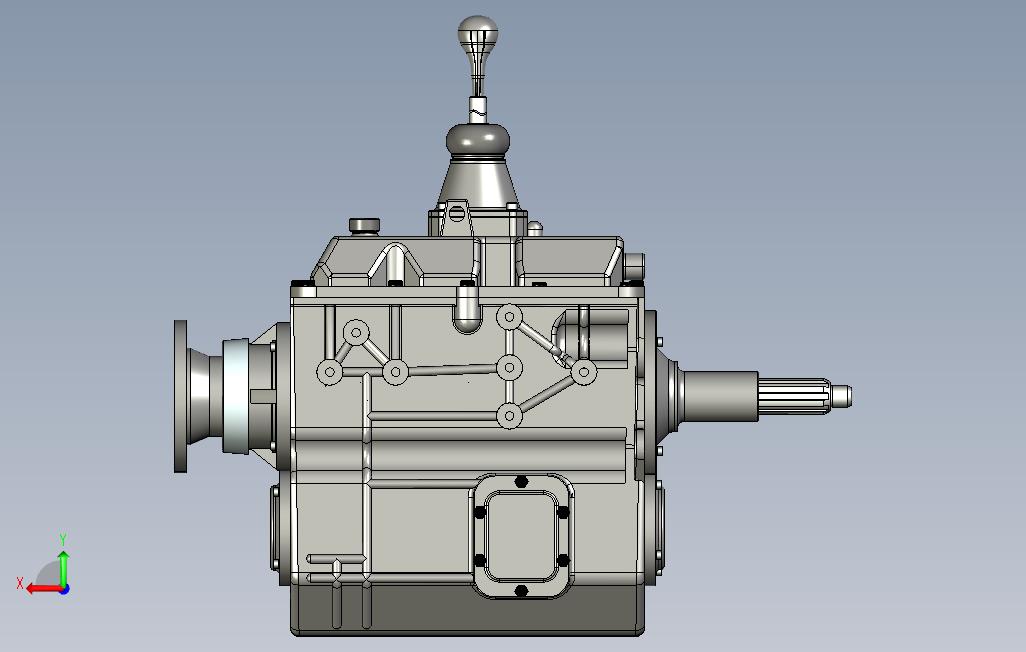

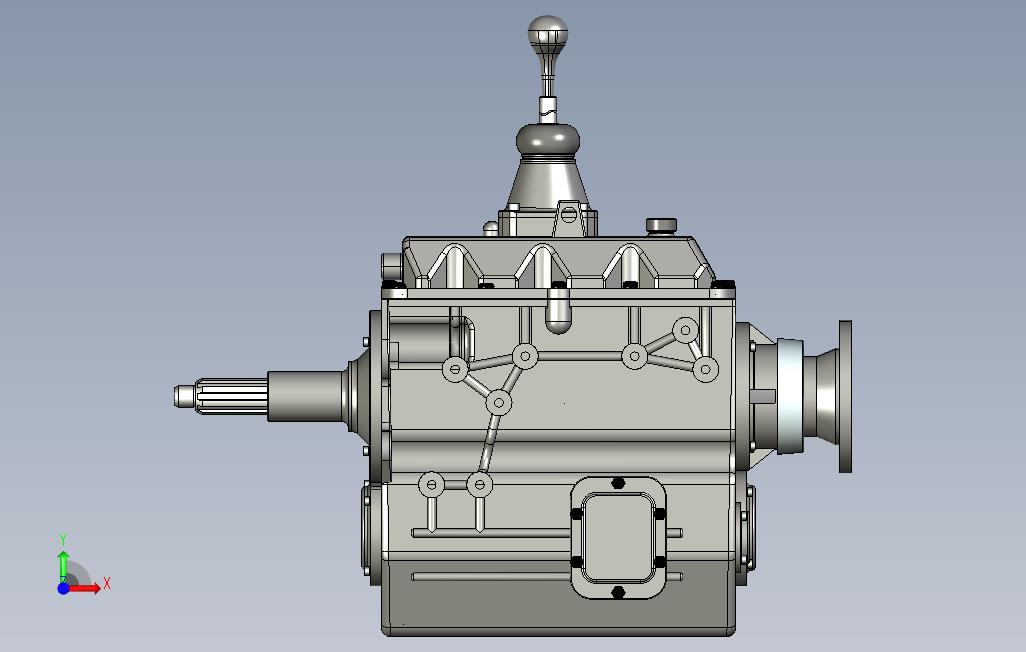

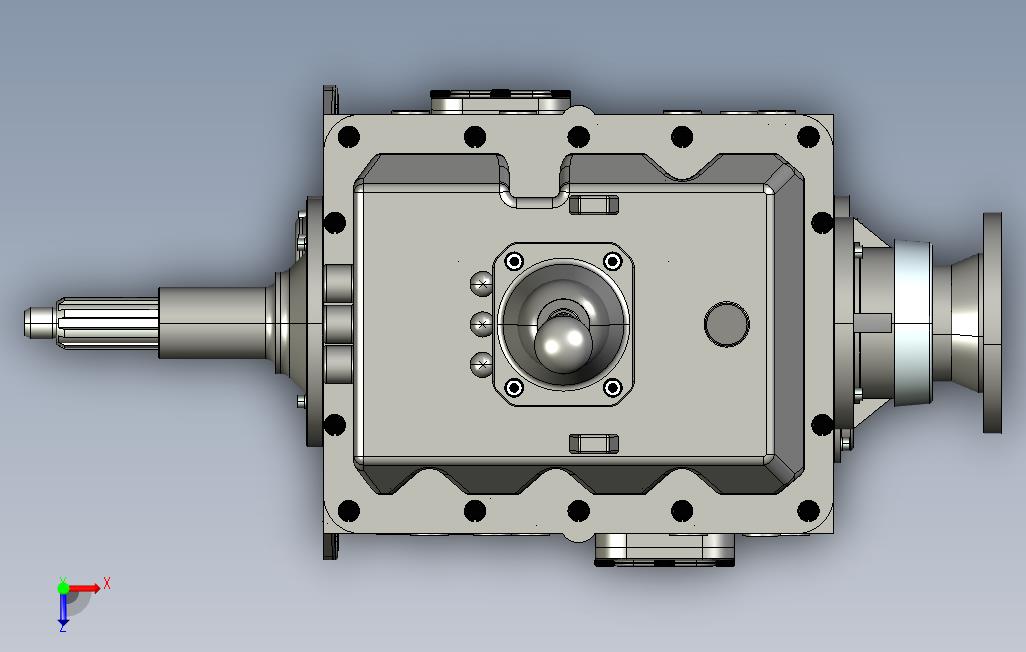

3	0-0-0-0-asm_transmission02.jpg	348.13K
4	0-0-0-1-flange_1.prt	209.98K
5	0-0-0-10-obs_hole_cover.prt	232.05K
6	0-0-0-2-washer_flange_1.prt	54.82K
7	0-0-0-3-oilseal_1.prt	71.85K
8	0-0-0-4-sleeve_3.prt	131.82K
9	0-0-0-5-gear_append.prt	794.33K
10	0-0-0-6-flange_2.prt	401.56K
11	0-0-0-7-washer_flange_2.prt	55.09K
12	0-0-0-8-oilseal_2.prt	84.39K
13	0-0-0-9-washer_oilseal_2.prt	206.65K
14	0-0-0-a-flange_output.prt	792.08K
15	0-0-0-b-endclosure.prt	121.15K
16	0-0-0-c-washer.prt	74.78K
17	0-0-0-d-bolt.prt	115.78K
18	0-0-0-e-flange_3_left.prt	292.30K
19	0-0-0-f-washer_flange_3_left.prt	79.96K
20	0-0-0-g-flange_3_righ.prt	278.40K
21	0-0-0-h-washer_flange_3_right.prt	73.49K
22	0-0-0-i-flange_r.prt	239.99K
23	0-0-0-j-washer_flange_r.prt	74.87K
24	0-0-0-k-washer_gearcase.prt	140.07K
25	0-0-0-l-bolt_transmission.prt	108.64K
26	0-0-0-m-washer_transmission.prt	75.17K
27	0-0-0-n-washer_transmission.prt	61.86K
28	0-0-0-o-bolt_transmission.prt	139.91K
29	1-0-0-0-asm_gear.asm	71.54K
30	1-0-0-1-gearcase_down.prt	4.38M
31	1-1-0-0-asm_1.asm	55.60K
32	1-1-0-1-shaft_1.prt	1.90M
33	1-1-0-2-washer_1.prt	80.55K
34	1-1-0-3-washer_2.prt	80.15K
35	1-1-0-4-bearing_shaft_12.prt	457.34K
36	1-2-0-0-asm_2.asm	87.69K
37	1-2-0-1-shaft_2.prt	4.25M
38	1-2-0-2-bearing_gear_123r.prt	306.80K
39	1-2-0-3-bearing_gear_5.prt	285.48K
40	1-2-0-4-bearing_shaft_12.prt	306.56K
41	1-2-0-5-sleeve_1.prt	121.12K
42	1-2-0-6-sleeve_2.prt	125.94K
43	1-2-0-7-washer.prt	125.69K
44	1-2-0-8-nut.prt	123.71K
45	1-2-0-9-bearing_shaft_2.prt	444.87K
46	1-2-0-a-washer_2.prt	80.33K
47	1-2-1-1-gear_12.prt	2.79M
48	1-2-2-0-gear_22.asm	45.41K
49	1-2-2-1-gear_22.prt	2.14M
50	1-2-3-0-gear_32.asm	47.86K
51	1-2-3-1-gear_32.prt	2.01M
52	1-2-4-0-gear_52.asm	44.46K
53	1-2-4-1-gear_52.prt	1.48M
54	1-2-5-1-gear_r2.prt	2.66M
55	1-2-6-0-asm_1r_synchronizer.asm	43.91K
56	1-2-6-1-syn_1r_joggleseat.prt	1.50M
57	1-2-6-2-syn_1r_jogglecollar.prt	2.73M
58	1-2-7-0-asm_23_synchronizer.asm	75.33K
59	1-2-7-1-syn_23_joggleseat.prt	2.26M
60	1-2-7-2-syn_23_jogglecollar.prt	4.58M
61	1-2-7-3-syn_23_blockingring.prt	4.20M
62	1-2-7-4-syn_23_bevelring.prt	2.53M
63	1-2-7-5-syn_23_spring.prt	794.35K
64	1-2-7-6-syn_23_bracket.prt	64.96K
65	1-2-7-7-syn_23_steelball.prt	73.03K
66	1-2-8-0-asm_45_synchronizer.asm	74.69K
67	1-2-8-1-syn_45_joggleseat.prt	1.51M
68	1-2-8-2-syn_45_jogglecollar.prt	3.67M
69	1-2-8-3-syn_45_blockingring.prt	3.55M
70	1-2-8-4-syn_45_bevelring.prt	1.71M
71	1-2-8-5-syn_45_spring.prt	795.28K
72	1-2-8-6-syn_45_bracket.prt	65.08K
73	1-2-8-7-syn_45_steelball.prt	72.66K
74	1-3-0-0-asm_3.asm	66.07K
75	1-3-0-1-shaft_3.prt	1.27M
76	1-3-0-2-gear_3.prt	1.77M
77	1-3-0-3-gear_23.prt	1.29M
78	1-3-0-4-gear_33.prt	1.76M
79	1-3-0-5-gear_53.prt	1.81M
80	1-3-0-6-sleeve.prt	122.41K
81	1-3-0-7-washer_1.prt	83.88K
82	1-3-0-8-washer_2.prt	79.33K
83	1-3-0-9-bearing_shaft_3.prt	322.46K
84	1-4-0-0-asm_r.asm	53.41K
85	1-4-0-1-shaft_r.prt	112.57K
86	1-4-0-2-gear_r.prt	1.65M
87	1-4-0-3-bearing_gear_r.prt	303.68K
88	1-4-0-4-washer_1.prt	55.34K
89	1-4-0-5-washer_2.prt	80.80K
90	2-0-0-0-asm_shift.asm	66.26K
91	2-0-0-1-washer_gearcase_up.prt	80.11K
92	2-0-0-2-valve.prt	134.50K
93	2-0-0-3-bolt_shift.prt	116.81K
94	2-0-0-4-washer_shift.prt	75.23K
95	2-1-0-0-asm_execution.asm	76.90K
96	2-1-0-1-gearcase_up.prt	1.93M
97	2-1-0-2-lock_spring.prt	827.48K
98	2-1-0-3-lock_steelball.prt	75.35K
99	2-1-0-4-c_lock_steelball.prt	75.36K
100	2-1-0-5-c_lock_pin.prt	58.49K
101	2-1-1-0-asm_execution_1r.asm	60.39K
102	2-1-1-1-shiftshaft_1r.prt	201.08K
103	2-1-1-2-shiftfork_1r.prt	568.26K
104	2-1-1-3-dialblock_1r.prt	244.15K
105	2-1-1-4-bolt_1r.prt	117.15K
106	2-1-1-5-re_spring.prt	798.31K
107	2-1-1-6-re_pin.prt	127.53K
108	2-1-1-7-pin.prt	176.63K
109	2-1-2-0-asm_execution_23.asm	43.67K
110	2-1-2-1-shiftshaft_23.prt	210.45K
111	2-1-2-2-shiftfork_23.prt	699.03K
112	2-1-3-0-asm_execution_45.asm	56.16K
113	2-1-3-1-shiftshaft_45.prt	196.01K
114	2-1-3-2-shiftfork_45.prt	566.54K
115	2-2-0-0-asm_control.asm	54.45K
116	2-2-0-1-shiftlever.prt	264.65K
117	2-2-0-2-shiftleverbracket.prt	656.37K
118	2-2-0-3-spring_bracket.prt	488.78K
119	2-2-0-4-pin_bracket.prt	61.73K
120	2-2-0-5-cover.prt	232.85K
121	2-2-0-6-controller.prt	466.87K
122	std.out	390B
123	trail.txt	131.54K
