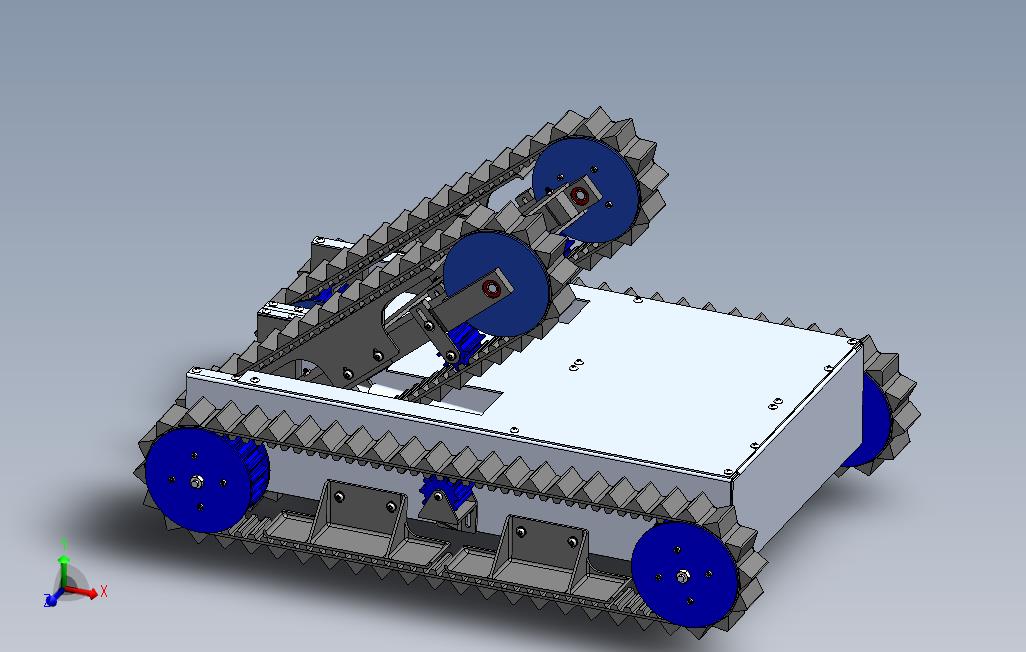

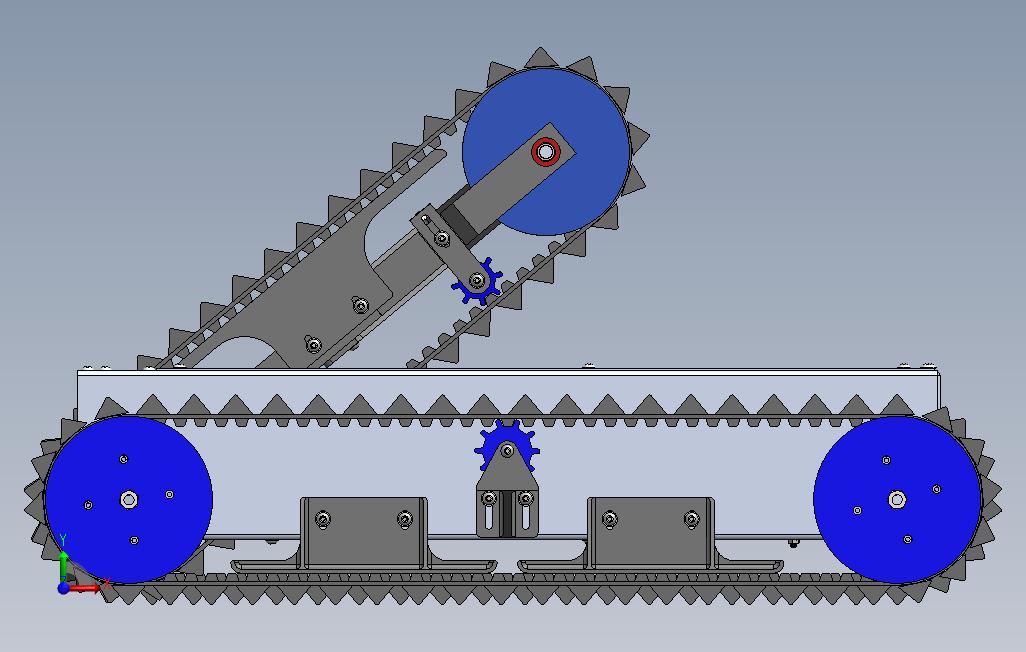

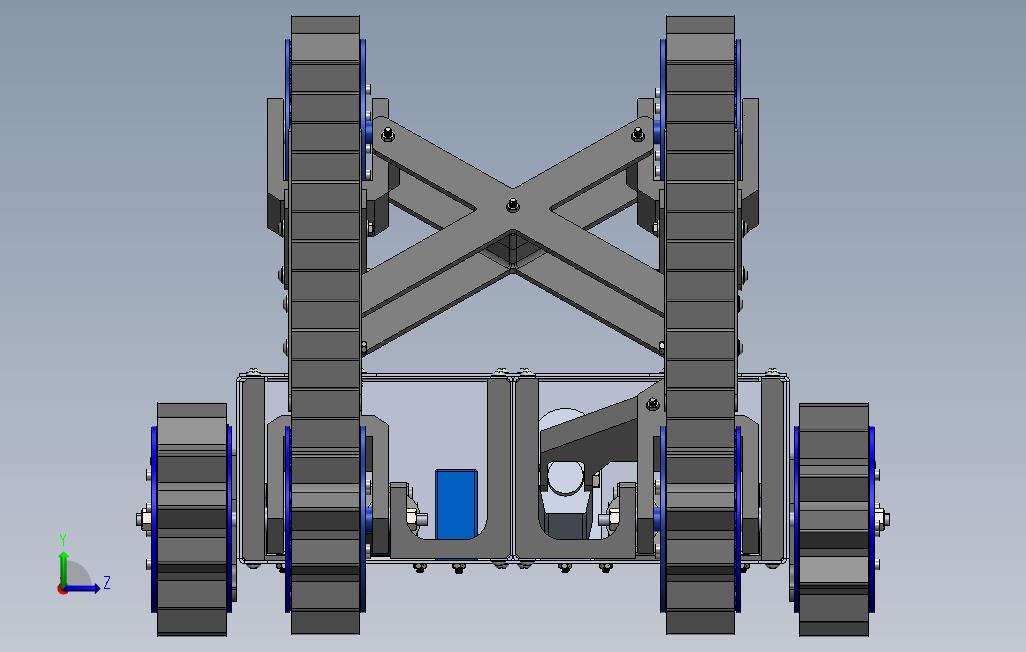

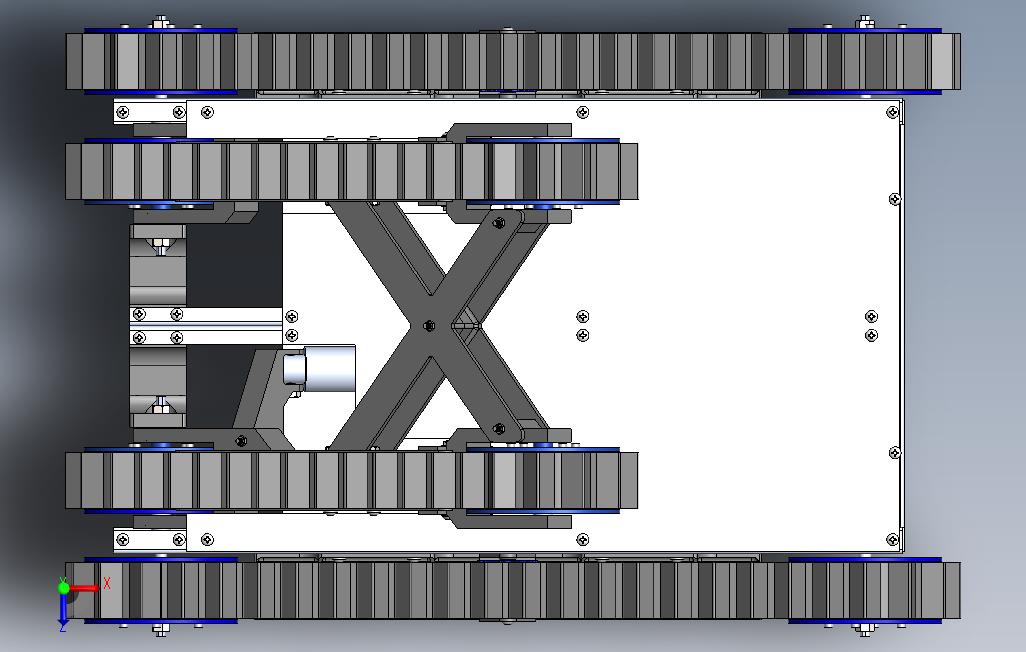

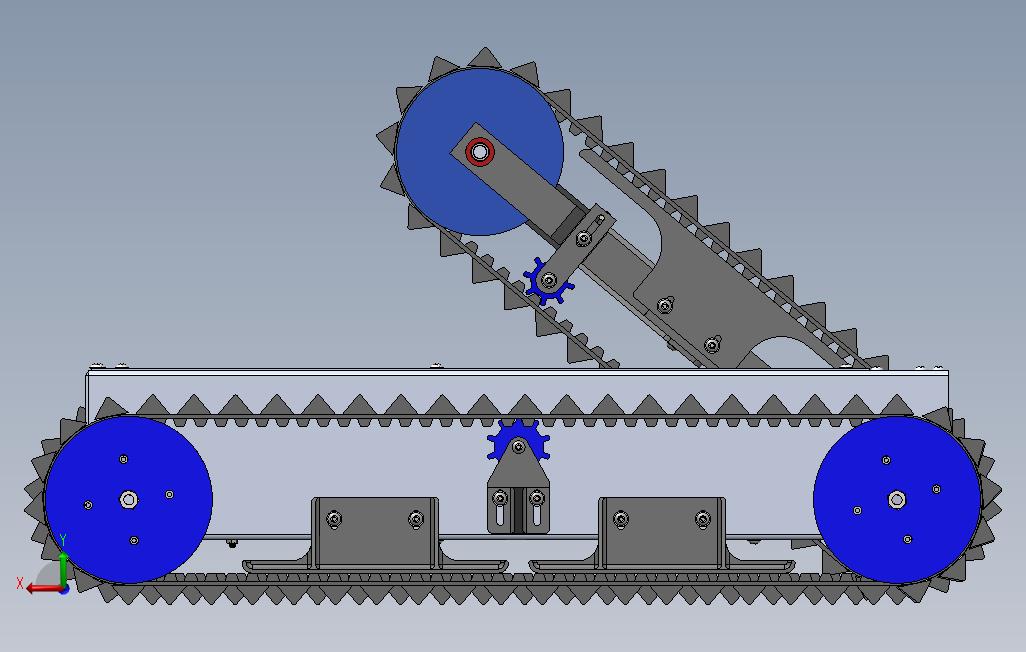

0_楼梯攀岩机（ID:167009）
截图
AI截图渲染
✨AI图片渲染
0.jpg)
4.jpg)
2.jpg)
3.jpg)
1.jpg)
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 90056A192_THREAD-FORMING SCREW FOR SHEET METAL IRON.SLDPRT | 323.17K |
| 2 | 90760A009_ZINC PLATED STEEL NARROW HEX NUT.SLDPRT | 297.50K |
| 3 | 91255A168_ALLOY STEEL BUTTON-HEAD SOCKET CAP SCREW.SLDPRT | 1.21M |
| 4 | 91290A113_BLACK-OXIDE CLASS 12.9 SOCKET HEAD CAP SCREW.SLDPRT | 627.04K |
| 5 | 91306A268_ZINC-PLATED ALLOY STEEL BUTTON-HEAD CAP SCREW.SLDPRT | 1.25M |
| 6 | 92137A305_CLASS 10.9 ALLOY STEEL BUTTON-HEAD CAP SCREW.SLDPRT | 680.64K |
| 7 | 92141A009_TYPE 18-8 STAINLESS STEEL FLAT WASHER.SLDPRT | 66.38K |
| 8 | 92240A545_18-8 STAINLESS STEEL HEX HEAD CAP SCREW.SLDPRT | 845.77K |
| 9 | 92311A143_18-8 SS CUP POINT SET SCREW.SLDPRT | 429.41K |
| 10 | 92949A190_18-8 SS BUTTON-HEAD SOCKET CAP SCREW.SLDPRT | 492.93K |
| 11 | 92949A192_18-8 SS BUTTON-HEAD SOCKET CAP SCREW.SLDPRT | 678.06K |
| 12 | 92949A201_18-8 SS BUTTON-HEAD SOCKET CAP SCREW.SLDPRT | 918.70K |
| 13 | 92949A203_18-8 SS BUTTON-HEAD SOCKET CAP SCREW.SLDPRT | 896.40K |
| 14 | 92949A205_18-8 SS BUTTON-HEAD SOCKET CAP SCREW.SLDPRT | 866.01K |
| 15 | 92949A207_18-8 SS BUTTON-HEAD SOCKET CAP SCREW.SLDPRT | 838.56K |
| 16 | 95462A029_GRADE 5 STEEL HEX NUT.SLDPRT | 388.96K |
| 17 | 95462A505_GRADE 5 STEEL HEX NUT.SLDPRT | 442.17K |
| 18 | Actuator Arm Connecting Bracket.SLDPRT | 119.14K |
| 19 | Actuator Assembly.SLDASM | 54.47K |
| 20 | Actuator Body Mount Bracket.SLDPRT | 115.30K |
| 21 | Arm Base Inner Spacer.SLDPRT | 54.34K |
| 22 | Arm Base Outer Spacer.SLDPRT | 53.93K |
| 23 | Arm Base Right.SLDPRT | 133.54K |
| 24 | Arm Base.SLDPRT | 135.64K |
| 25 | Arm End Right.SLDPRT | 188.38K |
| 26 | Arm End.SLDPRT | 171.59K |
| 27 | Arm Roller Pulley Sprocket.SLDPRT | 180.80K |
| 28 | Arm Shaft Spacer.SLDPRT | 69.64K |
| 29 | Arm Tension Roller.SLDPRT | 175.22K |
| 30 | Back Wall Hole Pattern.PDF | 31.70K |
| 31 | Back Wall Hole Pattern.SLDDRW | 47.43K |
| 32 | Back Wall.SLDPRT | 146.79K |
| 33 | Battery.SLDPRT | 100.77K |
| 34 | Bearing.SLDPRT | 969.53K |
| 35 | Body Assem Flat Pattern.PDF | 47.11K |
| 36 | Body Assem Flat Pattern.SLDDRW | 127.49K |
| 37 | Body Assem.SLDASM | 406.07K |
| 38 | Body Side Hole Pattern.PDF | 36.20K |
| 39 | Body Side Hole Pattern.PDF.SLDDRW | 59.59K |
| 40 | Body Side Hole Pattern.SLDDRW | 63.16K |
| 41 | Body.SLDPRT | 655.81K |
| 42 | C Beam Hole Pattern.PDF | 33.00K |
| 43 | C Beam Hole Pattern.SLDDRW | 53.24K |
| 44 | C Beam Left.SLDPRT | 96.74K |
| 45 | C Beam.SLDPRT | 201.40K |
| 46 | Drive Pulley Arm Assem.SLDASM | 3.31M |
| 47 | Drive Pulley Arm Right Assem.SLDASM | 2.73M |
| 48 | Drive Pulley Rear Assem.SLDASM | 637.34K |
| 49 | Drive Pulley Sprocket Typ 1.SLDPRT | 305.85K |
| 50 | Drive Pulley Sprocket Typ 2.SLDPRT | 307.05K |
| 51 | Drive Pulley Sprocket Typ 3.SLDPRT | 293.09K |
| 52 | Drive Pulley Sprocket Typ 4.SLDPRT | 264.71K |
| 53 | Drive Pulley Wall Arm.SLDPRT | 74.58K |
| 54 | Drive Pulley Wall Rear V2.SLDPRT | 81.40K |
| 55 | Drive Pulley Wall Rear.SLDPRT | 65.51K |
| 56 | Drive Support Arm Typ.SLDPRT | 183.99K |
| 57 | Drive Support Typ 1.SLDPRT | 169.31K |
| 58 | Drive Support.SLDPRT | 168.33K |
| 59 | DriveTooth.SLDPRT | 59.56K |
| 60 | Ebox.SLDPRT | 68.47K |
| 61 | End Axle.SLDPRT | 61.27K |
| 62 | Front Inner Bearing Mount Right.SLDPRT | 78.13K |
| 63 | Front Inner Bearing Mount.SLDPRT | 100.19K |
| 64 | Front Outer Bearing Mount Right.SLDPRT | 62.88K |
| 65 | Front Outer Bearing Mount.SLDPRT | 80.51K |
| 66 | Front Shaft.SLDPRT | 81.07K |
| 67 | Housing Assembly.SLDASM | 130.15K |
| 68 | License Plate.SLDPRT | 542.37K |
| 69 | Linear Actuator Arm.SLDPRT | 40.72K |
| 70 | Motor Bracket 1 Left.SLDPRT | 168.58K |
| 71 | Motor Bracket 1 Right1.SLDPRT | 45.72K |
| 72 | Motor Mount Assembly.SLDASM | 1.31M |
| 73 | Motor Mount Left Assembly.SLDASM | 1.42M |
| 74 | Motor Mount Right Assembly1.SLDASM | 1.54M |
| 75 | Non Reversible ESC.SLDPRT | 92.11K |
| 76 | quicrun25a-116058.pdf | 2.68M |
| 77 | Rear shaft.SLDPRT | 105.88K |
| 78 | Rear Tensioner V2.SLDPRT | 141.28K |
| 79 | Rear Tensioner.SLDPRT | 132.07K |
| 80 | Receiver.SLDPRT | 83.69K |
| 81 | 重复_Reversible ESC.SLDPRT | 123.36K |
| 82 | 重复_Roller Pulley Sprocket.SLDPRT | 184.54K |
| 83 | Side Wall Left.SLDPRT | 189.95K |
| 84 | Side Wall.SLDPRT | 123.15K |
| 85 | Stair Climber BOM.xls | 34.50K |
| 86 | Stair Climber Drive Motor.SLDPRT | 145.48K |
| 87 | Stair Climber Full Assembly Envelope.PDF | 358.32K |
| 88 | Stair Climber Full Assembly.PDF | 298.76K |
| 89 | Stair Climber Full Assembly.SLDASM | 6.79M |
| 90 | Stair Climber Full Assembly.SLDDRW | 7.08M |
| 91 | Stair Climber Linear Actuator.SLDPRT | 96.44K |
| 92 | StairTooth.SLDPRT | 58.66K |
| 93 | Supported Drive Pulley Arm Assem.SLDASM | 260.30K |
| 94 | Tensioner Plate Typ 1 V2.SLDPRT | 81.98K |
| 95 | Tensioner Plate Typ 1.SLDPRT | 84.08K |
| 96 | Tensioner Plate Typ 2 V2.SLDPRT | 61.56K |
| 97 | Tensioner Plate Typ 2.SLDPRT | 75.01K |
| 98 | Top Lid Hole Pattern.PDF | 36.11K |
| 99 | Top Lid Hole Pattern.SLDDRW | 61.94K |
| 100 | Top Lid.SLDPRT | 218.18K |
| 101 | Tread Arm.SLDPRT | 72.50K |
| 102 | Tread Rear PRINTER READY.SLDPRT | 546.36K |
| 103 | Tread Rear.SLDPRT | 71.22K |
| 104 | X - Member Typ 2.SLDPRT | 137.96K |
| 105 | X - Member.SLDPRT | 78.56K |
免费下载
发布者
眼睛大的猫咪
创作: 160219
粉丝: 1517
加入时间：2022-08-18
模型信息
图纸ID：167009
图纸格式：sldprt,sldasm,pdf
文件大小：50.15M
所需金币：0
上传时间：2020-12-19 06:12:14
是否可编辑：可修改，包括参数
软件版本：SOLIDWORKS 2017
