电感碳刷架整形自动焊接机

（ID:1756316）

改图/画图

机械设备 / 非标机械 / 电感碳刷架整形自动焊接机

©原创

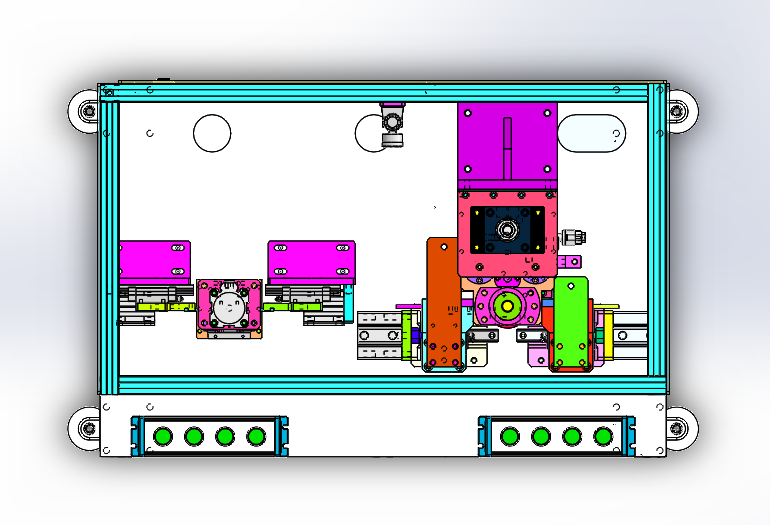

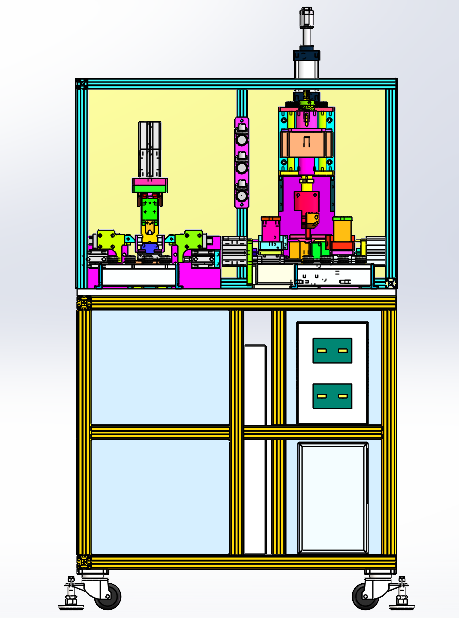

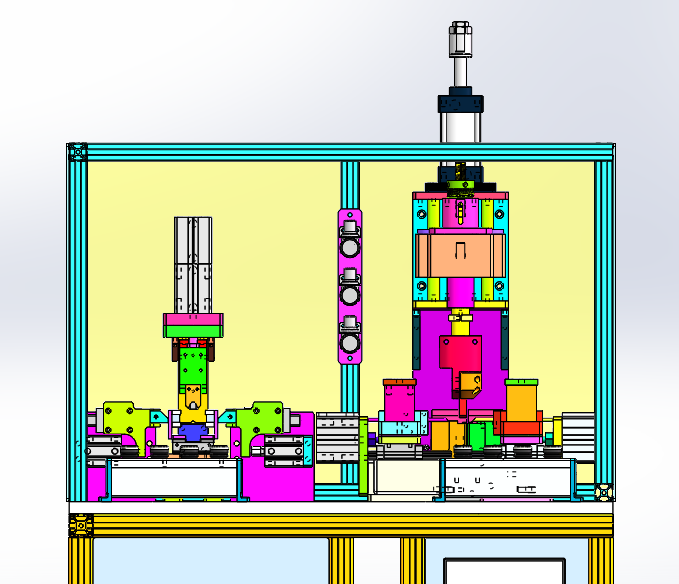

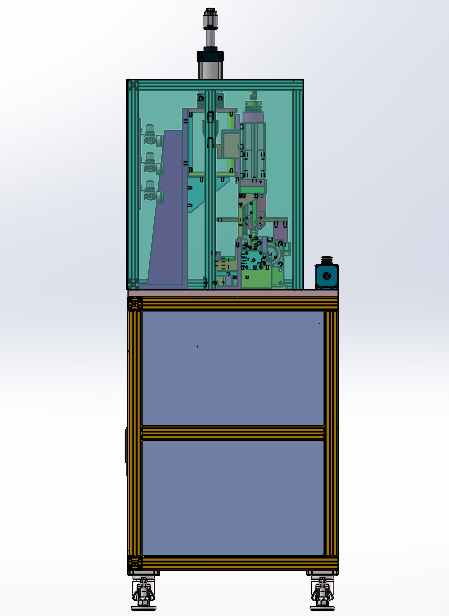

平面图

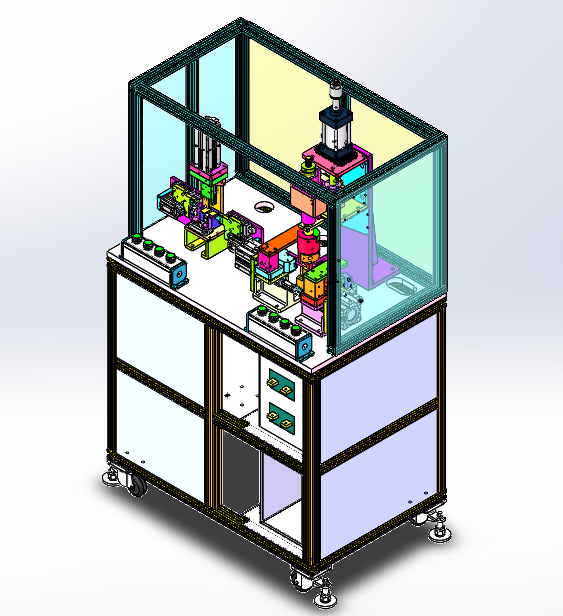

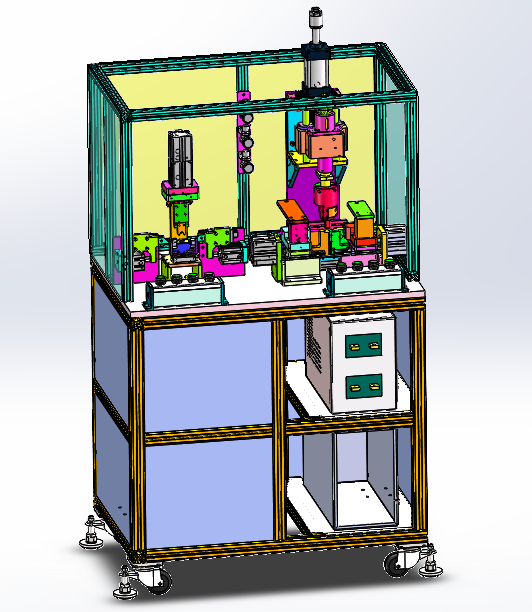

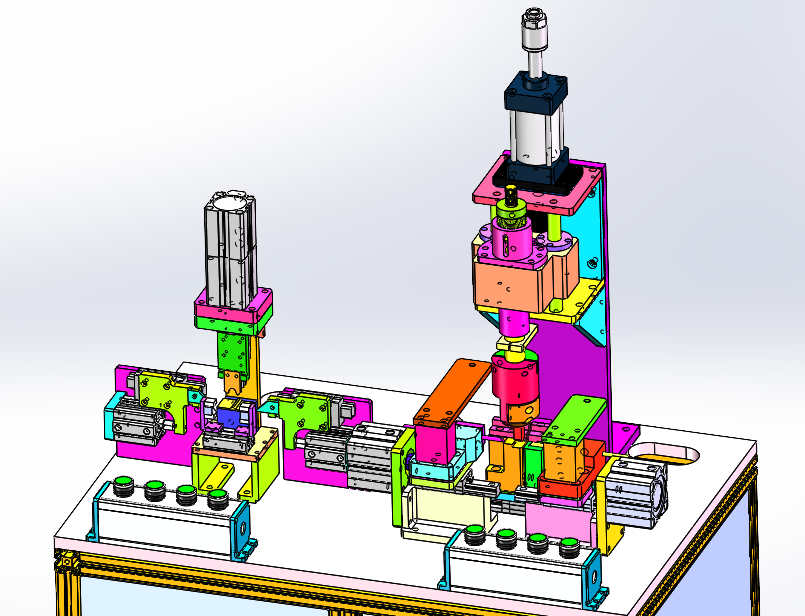

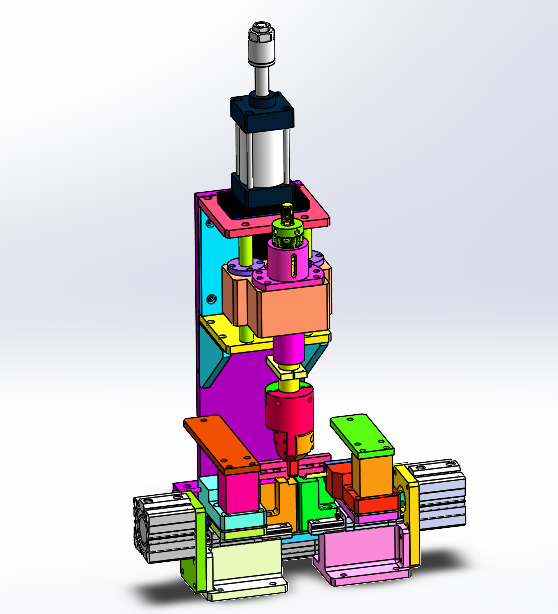

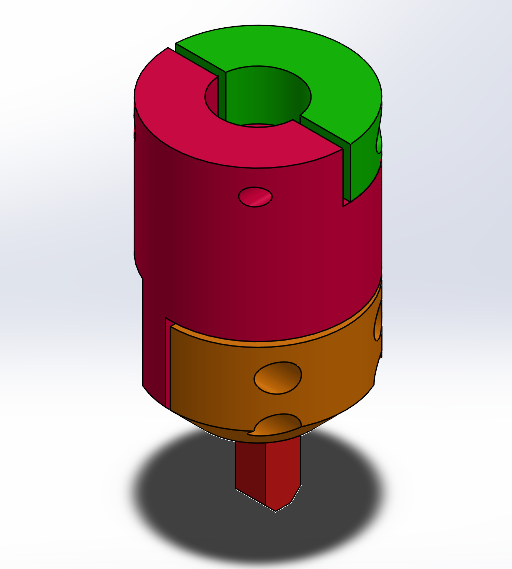

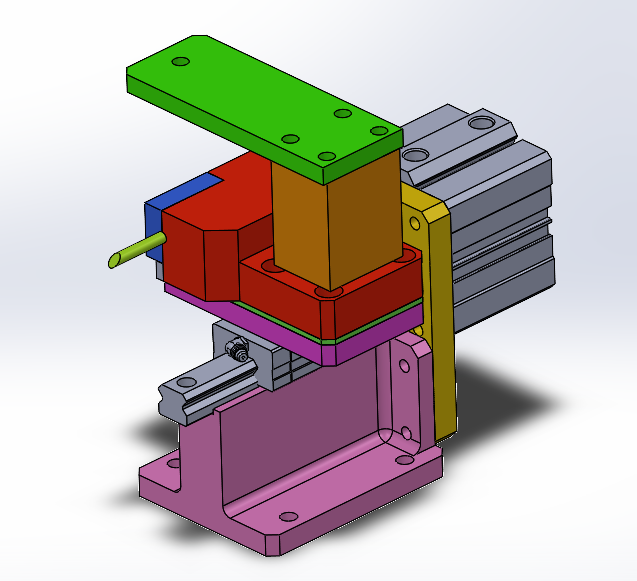

3D视图

文件列表

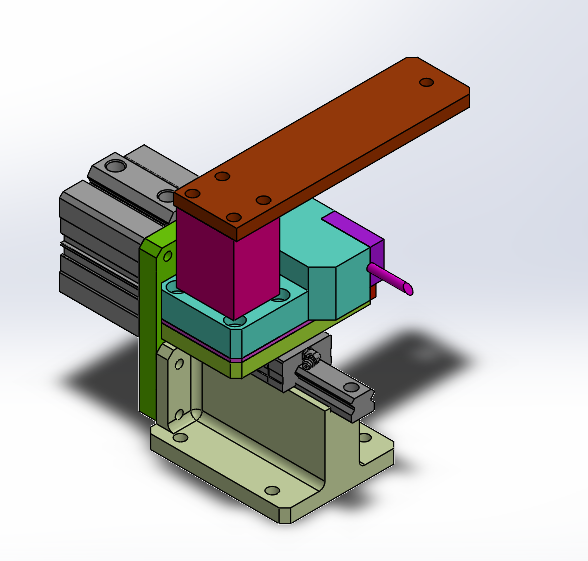

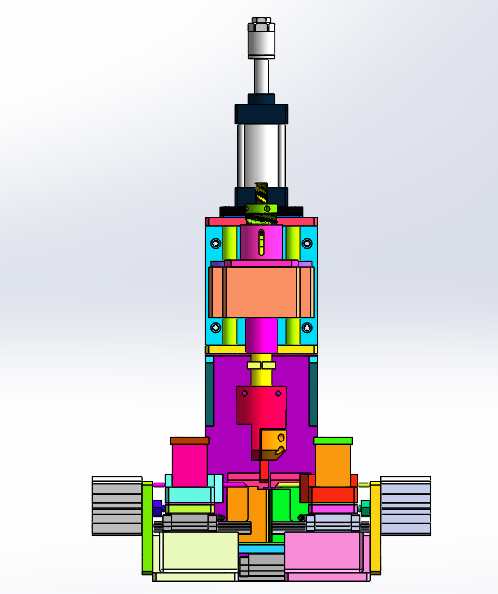

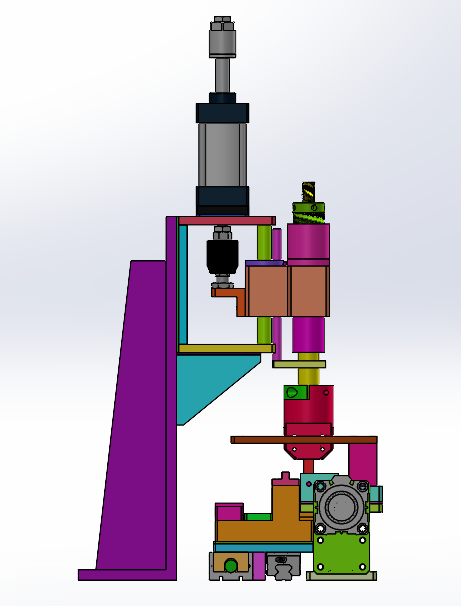

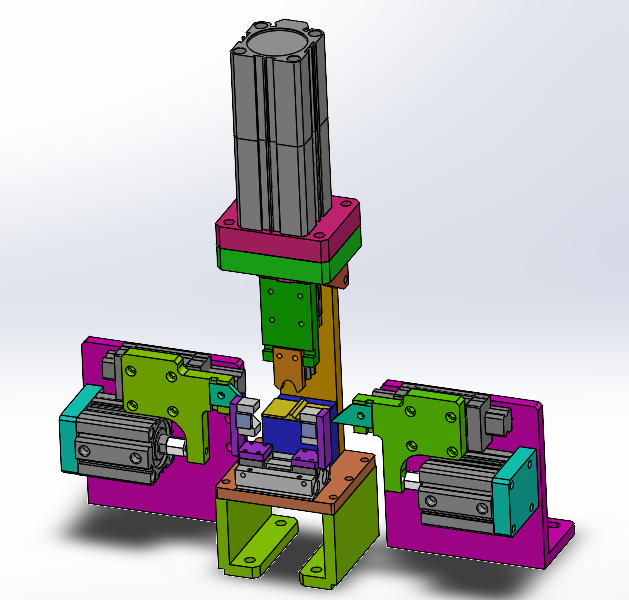

截图

AI截图渲染

✨AI图片渲染

#	文件名称	文件大小
1	ACQ40x25S0.1.sldasm	171.31K
2	ACQJ-100x30_stoper.1.sldprt	126.80K
3	ACQJ100x30-30SB00.1.sldasm	241.77K
4	ACQJ100_Ad_Nut.1.sldprt	92.79K
5	ACQJ100_Nut.1.sldprt	91.21K
6	ACQJS-100x30-B30_r30-0.1.sldprt	90.06K
7	ACQJS-100x30-B_b30.1.sldprt	296.49K
8	ACQS-40x2525_b.1.sldprt	293.54K
9	ACQS-40x25_25r.1.sldprt	78.34K
10	DG-TSJ-HJ-001.SLDASM	775.54K
11	DG-TSJ-HJ-002.SLDASM	4.90M
12	DG-TSJ-HJ-004.SLDPRT	196.99K
13	DG-TSJ-HJ-005.SLDASM	1.04M
14	DG-TSJ-HJ-006.SLDASM	770.99K
15	DG-TSJ-HJ-007.SLDPRT	101.36K
16	DG-TSJ-HJ-008.SLDPRT	125.50K
17	DG-TSJ-HJ-009.SLDPRT	125.57K
18	DG-TSJ-HJ-010.SLDPRT	105.66K
19	DG-TSJ-HJ-011.SLDPRT	225.69K
20	DG-TSJ-HJ-012.SLDPRT	61.03K
21	DG-TSJ-HJ-013.SLDPRT	82.63K
22	DG-TSJ-HJ-014.SLDPRT	63.70K
23	DG-TSJ-HJ-015.SLDPRT	88.00K
24	DG-TSJ-HJ-016.SLDPRT	188.51K
25	DG-TSJ-HJ-017.SLDPRT	128.59K
26	DG-TSJ-HJ-018.SLDPRT	51.30K
27	DG-TSJ-HJ-019.SLDASM	112.52K
28	DG-TSJ-HJ-020.SLDPRT	807.96K
29	DG-TSJ-HJ-021.SLDPRT	69.84K
30	DG-TSJ-HJ-022.SLDPRT	1.18M
31	DG-TSJ-HJ-023.SLDPRT	162.13K
32	DG-TSJ-HJ-024.SLDPRT	95.40K
33	DG-TSJ-HJ-025.SLDPRT	107.40K
34	DG-TSJ-HJ-026.SLDPRT	124.76K
35	DG-TSJ-HJ-027.SLDPRT	151.14K
36	DG-TSJ-HJ-028.SLDPRT	89.82K
37	DG-TSJ-HJ-029.SLDPRT	78.38K
38	DG-TSJ-HJ-030.SLDPRT	95.62K
39	DG-TSJ-HJ-031.SLDPRT	81.86K
40	DG-TSJ-HJ-032.SLDPRT	106.52K
41	DG-TSJ-HJ-033.SLDPRT	97.78K
42	DG-TSJ-HJ-034.SLDPRT	142.98K
43	DG-TSJ-HJ-035.SLDPRT	109.77K
44	DG-TSJ-HJ-036.SLDPRT	165.86K
45	DG-TSJ-HJ-037.SLDPRT	80.88K
46	DG-TSJ-HJ-038.SLDPRT	106.88K
47	DG-TSJ-HJ-039.SLDPRT	97.74K
48	DG-TSJ-HJ-040.SLDPRT	89.44K
49	DG-TSJ-HJ-041.SLDPRT	513.56K
50	DG-TSJ-HJ-042.SLDPRT	97.26K
51	DG-TSJ-HJ-043.SLDPRT	67.56K
52	DG-TSJ-HJ-044.SLDPRT	63.77K
53	DG-TSJ-HJ-045.SLDPRT	116.14K
54	DG-TSJ-HJ-046.SLDPRT	123.64K
55	DG-TSJ-HJ-047.SLDPRT	99.35K
56	DG-TSJ-HJ-048.SLDPRT	50.91K
57	DG-TSJ-HJ-049.SLDASM	511.45K
58	DG-TSJ-HJ-050.SLDPRT	74.30K
59	DG-TSJ-HJ-051.SLDASM	2.16M
60	DG-TSJ-HJ-052.SLDPRT	90.83K
61	DG-TSJ-HJ-053.SLDPRT	1.15M
62	DG-TSJ-HJ-054.SLDPRT	83.89K
63	DG-TSJ-HJ-055.SLDPRT	75.58K
64	DG-TSJ-HJ-056.SLDPRT	65.32K
65	DG-TSJ-HJ-057.SLDPRT	66.40K
66	DG-TSJ-HJ-058.SLDPRT	67.33K
67	DG-TSJ-HJ-059.SLDPRT	65.43K
68	DG-TSJ-HJ-060.SLDPRT	66.83K
69	F-M16X150F.sldprt	139.31K
70	LMFxxUULMFxxLUU直线轴承.SLDPRT	140.11K
71	LMHxxUULMHxxLUU.SLDPRT	156.66K
72	LSH15BK-HN-N-A-M4.1.sldprt	202.13K
73	LSH15HN1X120S30AN-M4.1.sldasm	113.44K
74	LSH15HN1X120S30AN-M4_d.1.sldprt	29.05K
75	LSH15RLX120-S30-N-D.1.sldprt	116.80K
76	LSH20BK-HN-N-A-M6.1.sldprt	237.10K
77	LSH20BK-HN-N-A-M6.sldprt	235.63K
78	LSH20HN1X120S30AN-M6.1.sldasm	144.21K
79	LSH20HN1X120S30AN-M6_d.1.sldprt	30.48K
80	LSH20HN1X140S10AN-M6.sldasm	135.22K
81	LSH20HN1X140S10AN-M6_d.sldprt	30.23K
82	LSH20RLX120-S30-N-D.1.sldprt	121.58K
83	LSH20RLX140-S10-N-D.sldprt	126.81K
84	LSH25BK-HN-N-A-M6.sldprt	234.58K
85	LSH25HN1X165S22_5AN-M6.sldasm	166.25K
86	LSH25HN1X165S22_5AN-M6_d.sldprt	29.58K
87	LSH25RLX165-S22_5-N-D.sldprt	139.86K
88	MHF2-12D1-1.1.sldprt	50.28K
89	MHF2-12D1-2.1.sldprt	37.49K
90	MHF2-12D1-3.1.sldprt	38.12K
91	MHF2-12D1_24_0_.1.SLDASM	150.55K
92	SDA50x50S0.1.sldasm	162.22K
93	SDAS-50x5050_b.1.sldprt	274.76K
94	SDAS-50x5050_r.1.sldprt	76.09K
95	TSJ-ZX-001.1.SLDPRT	43.17K
96	TSJ-ZX-002.1.SLDPRT	107.28K
97	TSJ-ZX-003.1.SLDPRT	44.88K
98	TSJ-ZX-004.1.SLDPRT	50.01K
99	TSJ-ZX-005.1.SLDPRT	99.72K
100	TSJ-ZX-006.1.SLDPRT	94.85K
101	TSJ-ZX-007.1.SLDPRT	106.94K
102	TSJ-ZX-008.1.SLDPRT	88.35K
103	TSJ-ZX-009.1.SLDPRT	82.80K
104	TSJ-ZX-010.1.SLDPRT	70.67K
105	TSJ-ZX-011.1.SLDPRT	85.28K
106	TSJ-ZX-012.1.SLDPRT	92.69K
107	TSJ-ZX-013.1.SLDPRT	85.50K
108	TSJ-ZX-014.1.SLDPRT	83.89K
109	TSJ-ZX-015.1.SLDPRT	120.47K
110	TSJ-ZX-016.1.SLDPRT	52.40K
111	TSJ-ZX-017.1.SLDPRT	45.67K
112	TSJ-ZX-018.1.SLDPRT	67.18K
113	TSJ-ZX-019.1.SLDPRT	51.71K
114	TSJ-ZX-020.1.SLDPRT	53.73K
115	TSJ-ZX-021.1.SLDPRT	78.65K
116	TSJ-ZX-022.1.SLDPRT	71.37K
117	TSJ-ZX-023.1.SLDPRT	64.50K
118	TSJ-ZX-024.1.SLDPRT	52.54K
119	TSJ-ZX-025.1.SLDPRT	40.51K
120	TSJ-ZX-026.1.SLDPRT	49.63K
121	TSJ-ZX-027.1.SLDPRT	136.39K
122	TSJ-ZX-028.1.SLDPRT	50.39K
123	TSJ-ZX-029.1.SLDPRT	86.48K
124	ZD-JGJ-024.1.SLDPRT	79.91K
125	ZD-JGJ-024.11.SLDPRT	389.00K
126	~$镜向零件43.SLDPRT	14B
127	焊接机电源.SLDPRT	56.08K
128	电感碳刷架整形自动焊接机.SLDASM	7.14M
129	镜向LSH20BK-HN-N-A-M6.sldprt	198.66K
130	镜向LSH20HN1X140S10AN-M6.sldasm	24.86K
131	镜向LSH20RLX140-S10-N-D.sldprt	53.85K
132	镜向装配体3.sldasm	790.62K
133	镜向零件15.SLDPRT	160.50K
134	镜向零件37-副本.SLDPRT	80.04K
135	镜向零件38.SLDPRT	98.41K
136	镜向零件39.SLDPRT	140.63K
137	镜向零件43.SLDPRT	51.44K
138	镜向零件44.SLDPRT	97.00K
139	镜向零件45.SLDPRT	83.28K
140	镜向零件47.SLDPRT	103.67K
141	镜向零件71.SLDPRT	569.29K
142	镜向零件72.SLDPRT	35.46K
143	镜向零件73.SLDPRT	63.94K
144	ACQ50x25S0.sldasm	166.89K
145	ACQ63x25S0.sldasm	192.67K
146	ACQS-50x2525_b.sldprt	275.94K
147	ACQS-50x25_25r.sldprt	72.90K
148	ACQS-63x2525_b.sldprt	292.46K
149	ACQS-63x25_25r.sldprt	76.92K
150	镜向ACQ63x25S0.sldasm	22.84K
151	镜向ACQS-63x2525_b.sldprt	212.91K
152	镜向ACQS-63x25_25r.sldprt	45.30K
153	MDJ32-StoperNut.sldprt	92.63K
154	MDJ32x10-Stoper.sldprt	122.62K
155	MDJ32x15-10-S10015-Rod.sldprt	94.33K
156	MDJ32x15-10S0x0.sldasm	278.97K
157	MDJ32x15-NutRod.sldprt	93.79K
158	MDJ32x15-S15-Body.sldprt	394.75K
159	F-SC63FASC.sldprt	94.98K
160	M16x1_5-Nut.sldprt	91.43K
161	SC-63-M16x1_530-A_Nut.sldprt	121.84K
162	SCJ-63x50-30-S30_r.sldprt	106.78K
163	SCJ63x50-30S0030.sldasm	234.57K
164	SCJ63X50_c.sldprt	246.55K
165	SDAT50x40x5S00.sldasm	233.14K
166	SDATS-50x40x5405_r_3.sldprt	59.44K
167	SDATS-50x40x5_405b.sldprt	523.50K
168	SDATS-50x40x5_405r.sldprt	81.44K
169	SDR100061.SLDPRT	264.79K
170	SDR100061.stp	294.74K
171	急停开关.1.1.1.SLDPRT	367.31K
172	按钮-启动-带指示灯.11.1.1.SLDPRT	167.23K
173	按钮-复位-带指示灯.1.1.1.1.SLDPRT	161.15K
174	按钮盒.1.1.SLDPRT	95.19K
175	按钮盒支架.1.1.SLDPRT	218.74K
176	按钮盒盖.1.1.SLDPRT	138.70K
177	操作按钮开关盒HJJ.SLDASM	224.33K
178	DG-TSJ-HJ-003.SLDPRT	3.44M
179	DG-TSJ-HJ-004.SLDASM	319.14K
180	hexheadbolts-fullthreadgradecgb1.1.SLDPRT	88.49K
181	hexnuts1-finepitch-gradesabgb1.1.SLDPRT	87.73K
182	hexnutsstyle1-gradesabgb1.1.SLDPRT	79.42K
183	hexthinnutsgradesabgb1.1.SLDPRT	80.79K
184	SHB-KK-005-1.1.1.SLDPRT	120.63K
185	SHB-KK-005-2.1.1.SLDPRT	193.81K
186	SHB-KK-005-3.1.1.SLDPRT	117.75K
187	SHB-KK-005-4.1.1.SLDPRT	160.99K
188	SHB-KK-005-5.1.1.SLDPRT	103.43K
189	SHB-KK-005-6.1.1.SLDPRT	108.09K
190	YLF-YZ-002.1.SLDPRT	42.93K
191	启动按钮盒组装.sldasm	21.86K
192	急停按钮盒组装.sldasm	22.24K
193	RH-DY-001.SLDASM	283.36K
194	RH-DY-002.SLDPRT	211.06K
195	RH-DY-003.SLDPRT	465.39K
196	RH-DY-004.SLDPRT	60.80K
197	RH-DY-005.SLDPRT	60.28K
198	DPH-DX-002.SLDPRT	390.15K
199	DPH-DX-003.SLDPRT	131.50K
200	DPH-DX-004.SLDPRT	375.18K
201	DPH-DX-005.sldasm	686.68K
202	DX-001.SLDASM	933.11K
203	DX-005-1锁扣主体.sldprt	147.00K
204	DX-005-2卡板.sldprt	102.79K
205	DX-005-3扣臂.sldprt	81.76K
206	DX-005-4.sldprt	48.71K
207	DX-005-5.sldprt	49.51K
208	DX-005-6.SLDPRT	119.74K
209	DG-TSJ-HJ-056-1.SLDPRT	206.00K
210	DG-TSJ-HJ-056-2.SLDPRT	60.39K
211	DG-TSJ-HJ-056.SLDASM	101.14K
212	电感碳刷架整形自动焊接机.docx	11.42K

此图纸下载需要1050金币

立即下载

发布者

淡笑看过尘世

创作: 2529

粉丝: 37

加入时间：2022-03-31

私信

关注

模型信息

图纸ID：1756316

图纸格式：sldasm,sldprt,stp

文件大小：50.13M

所需金币：1050

上传时间：2025-01-08 19:55:37

是否可编辑：可修改，包括参数

软件版本：SOLIDWORKS 2020

图纸简介
