泵芯铁壳封边机（ID:1760571）

机械设备 / 非标机械 / 泵芯铁壳封边机

©原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	17366517157243.zip	73.30M
2	FBJ-001.SLDPRT	106.09K
3	FBJ-002.SLDPRT	37.23K
4	FBJ-003.SLDASM	10.22M
5	FBJ-004.SLDPRT	160.34K
6	FBJ-005.SLDPRT	110.37K
7	FBJ-006.SLDPRT	105.64K
8	FBJ-007.SLDPRT	70.35K
9	FBJ-008.SLDPRT	81.14K
10	FBJ-009.SLDPRT	117.52K
11	FBJ-010.SLDPRT	179.74K
12	FBJ-011.SLDPRT	104.29K
13	FBJ-012.SLDPRT	133.99K
14	FBJ-013.SLDPRT	103.95K
15	FBJ-014.SLDASM	1.42M
16	FBJ-015.SLDPRT	91.66K
17	FBJ-016.SLDPRT	78.64K
18	FBJ-017.SLDPRT	94.00K
19	FBJ-018.SLDPRT	54.94K
20	FBJ-019.SLDASM	402.55K
21	FBJ-020.SLDPRT	241.64K
22	FBJ-021.SLDPRT	84.64K
23	FBJ-022.sldasm	924.17K
24	FBJ-023.SLDPRT	50.54K
25	FBJ-024.SLDPRT	37.59K
26	FBJ-025.SLDPRT	80.47K
27	FBJ-026.SLDPRT	87.32K
28	FBJ-027.SLDPRT	110.29K
29	FBJ-028.SLDPRT	70.79K
30	FBJ-029.SLDPRT	101.99K
31	FBJ-030.SLDPRT	80.73K
32	FBJ-031.SLDPRT	70.11K
33	FBJ-032.SLDPRT	177.44K
34	FBJ-033.SLDPRT	107.99K
35	FBJ-034.SLDPRT	203.91K
36	FBJ-035.SLDPRT	164.62K
37	FBJ-036.SLDPRT	68.86K
38	FBJ-037.SLDPRT	80.35K
39	FBJ-038.SLDPRT	86.59K
40	FBJ-039.SLDPRT	131.16K
41	FBJ-040.SLDPRT	85.25K
42	FBJ-041.SLDPRT	101.73K
43	FBJ-042.SLDPRT	49.30K
44	FBJ-043.SLDPRT	75.01K
45	FBJ-044.SLDPRT	76.73K
46	FBJ-045.SLDPRT	78.68K
47	FBJ-046.SLDPRT	74.04K
48	FBJ-047.SLDPRT	68.16K
49	FBJ-048.SLDPRT	70.40K
50	FBJ-049.SLDPRT	88.09K
51	FBJ-050.SLDPRT	90.31K
52	FBJ-051.SLDPRT	76.39K
53	FBJ-052.SLDPRT	86.94K
54	FBJ-053.SLDPRT	60.63K
55	FBJ-054.SLDPRT	51.25K
56	FBJ-055.SLDPRT	94.93K
57	FBJ-056.SLDPRT	66.44K
58	FBJ-057.SLDPRT	74.33K
59	FBJ-058.SLDPRT	61.13K
60	FBJ-059.SLDPRT	69.62K
61	FBJ-060.SLDPRT	60.04K
62	FBJ-061.SLDPRT	61.51K
63	FBJ-062.sldasm	318.64K
64	FBJ-063.SLDPRT	10.52M
65	FBJ-064.SLDPRT	1.17M
66	FBJ-065.SLDPRT	154.30K
67	FBJ-066.SLDASM	338.26K
68	FBJ-067.SLDPRT	79.13K
69	FBJ-068.SLDPRT	93.55K
70	FBJ-069.SLDPRT	89.49K
71	FBJ-070.SLDPRT	72.51K
72	FBJ-071.SLDPRT	74.39K
73	FBJ-072.SLDPRT	89.13K
74	FBJ-073.SLDPRT	65.30K
75	FBJ-074.SLDPRT	80.99K
76	FBJ-075.SLDPRT	73.60K
77	FBJ-076.SLDPRT	85.71K
78	FBJ-077.SLDPRT	35.25K
79	FBJ-078.sldasm	729.38K
80	FBJ-079.SLDPRT	81.02K
81	FBJ-080.SLDPRT	74.51K
82	FBJ-081.SLDPRT	84.76K
83	FBJ-082.SLDPRT	80.31K
84	FBJ-083.SLDPRT	60.93K
85	FBJ-084.SLDPRT	59.39K
86	FBJ-085.sldasm	25.88K
87	FBJ-086.SLDPRT	64.11K
88	FBJ-087.SLDPRT	62.94K
89	FBJ-088.SLDPRT	62.66K
90	FBJ-089.SLDPRT	62.66K
91	GB-LHHelicalgear2.5M32T45HA20PA40FW---32A75H50L0.8N.SLDPRT	2.07M
92	GB-LHHelicalgear2.5M77T45HA20PA20FW---77A75H50L0.8N.SLDPRT	5.70M
93	GB-RHHelicalgear2.5M32T45HA20PA40FW---32A75H50L0.8N.SLDPRT	2.11M
94	GB-RHHelicalgear2.5M77T45HA20PA20FW---77A75H50L0.8N-2.SLDPRT	5.65M
95	GB-RHHelicalgear2.5M77T45HA20PA20FW---77A75H50L0.8N.SLDPRT	5.74M
96	GB_CONNECTING_PIECE_RING_RRA95.SLDPRT	49.74K
97	GB_FASTENER_NUT_RNM50X1.5-N.SLDPRT	71.81K
98	GB_FASTENER_SCREWS_HSHCSM5X35-N.SLDPRT	84.57K
99	GB_FASTENER_SCREWS_HSHCSM5X35-N.STEP	52.47K
100	LMFxxUULMFxxLUU直线轴承.SLDPRT	113.83K
101	LMK50UU直线轴承.SLDPRT	121.36K
102	pulf-90.1.SLDPRT	243.19K
103	Rollingbearings6000GB276-94.SLDPRT	410.88K
104	Rollingbearings6002GB276-94.SLDPRT	436.72K
105	Rollingbearings61800GB276-94.SLDPRT	507.07K
106	Rollingbearings61909GB276-94.SLDPRT	594.31K
107	Rollingbearings61912GB276-94.SLDPRT	688.83K
108	SOH-57C-22X22.IGS	803.90K
109	SOH-57C-22X22.SLDPRT	449.11K
110	产品.SLDPRT	45.01K
111	门框.SLDPRT	346.20K
112	25MANut.sldprt	96.86K
113	25_Nut.sldprt	87.78K
114	F-MA20LB25.sldprt	86.58K
115	MBL25X300CA_BODY.sldprt	123.93K
116	MBL25X300SCALB0.sldasm	130.48K
117	MBL25X300SCALB0_dummy.sldprt	31.13K
118	MBL25X300_Rod.sldprt	83.26K
119	F-M6X100F.sldprt	188.21K
120	MD20x15-NutRod.sldprt	92.45K
121	MD20x15-S15-Body.sldprt	313.12K
122	MD20x15-S15-Rod.sldprt	77.06K
123	MD20x15S0.sldasm	230.43K
124	F-M27X200F.sldprt	159.22K
125	F-SC125FA.sldprt	125.02K
126	SC-125X250-nut.sldprt	88.59K
127	SC-125X3000-rod.sldprt	71.69K
128	SC125X300.sldprt	260.59K
129	SC125X300S-FA00.sldasm	146.89K
130	SC125X300S-FA00.sldprt	31.22K
131	F-M12X125F.sldprt	144.05K
132	F-M12X125Y.sldprt	140.18K
133	SC-40-M12x1_25-Nut.sldprt	92.48K
134	SC-40x25-S0_r.sldprt	86.96K
135	SC40x25S000.sldasm	187.26K
136	SC40X25_c.sldprt	226.03K
137	F-SC40CBSC.sldprt	170.85K
138	F-SC40TCM150.sldprt	108.31K
139	F-SC40TCSC.sldprt	146.64K
140	SC-40Screw.sldprt	69.36K
141	SC-40x25-S-CB0_r.sldprt	78.73K
142	SC-40x25-S-TC0_r.sldprt	86.54K
143	SC40x25SCB000.sldasm	239.66K
144	SC40x25STC000.sldasm	211.35K
145	C-SSRXN36Y12.sldasm	158.85K
146	C-SSRXN36Y12.swb	48.99K
147	C-SSRXN36Y12_b.sldprt	130.02K
148	C-SSRXN36Y12_r.sldprt	114.82K
149	C-SSRXN36Y12_s.sldprt	158.83K
150	readme-and-terms-of-use-3d-cad-models.txt	1.91K
151	DX-001.SLDASM	863.36K
152	DX-002.SLDPRT	380.74K
153	DX-003.SLDPRT	117.61K
154	DX-004.SLDPRT	367.19K
155	DX-005-1锁扣主体.sldprt	146.19K
156	DX-005-2卡板.sldprt	102.69K
157	DX-005-3扣臂.sldprt	82.06K
158	DX-005-4.sldprt	48.87K
159	DX-005-5.sldprt	48.48K
160	DX-005-6.SLDPRT	119.67K
161	DX-005.sldasm	687.37K
162	2HLSJSX-B.sldprt	2.60M
163	b370v01-L.SLDASM	2.57M
164	DJ-ZD-370W.sldprt	989.07K
165	JXH-1_defeature.sldprt	1.51M
166	hexheadbolts-fullthreadgradecgb1.SLDPRT	88.67K
167	hexnuts1-finepitch-gradesabgb1.SLDPRT	87.82K
168	hexnutsstyle1-gradesabgb1.SLDPRT	80.12K
169	hexthinnutsgradesabgb1.SLDPRT	80.92K
170	SHB-KK-005-1.1.SLDPRT	121.48K
171	SHB-KK-005-2.1.SLDPRT	193.25K
172	SHB-KK-005-3.1.SLDPRT	118.06K
173	SHB-KK-005-4.1.SLDPRT	160.87K
174	SHB-KK-005-5.1.SLDPRT	104.11K
175	SHB-KK-005-6.1.SLDPRT	108.07K
176	SHB-KK-005.1.SLDASM	323.52K
177	泵芯铁壳封边机.docx	13.18K

此图纸下载需要2275金币

立即下载

发布者

淡笑看过尘世

创作: 2422

粉丝: 32

加入时间：2022-03-31

私信

关注

模型信息

图纸格式：sldprt,sldasm,step,igs

文件大小：75.06M

所需金币：2275

上传时间：2025-01-12 11:15:42

是否可编辑：可修改，包括参数

版本：SOLIDWORKS 2020

标签

图纸简介

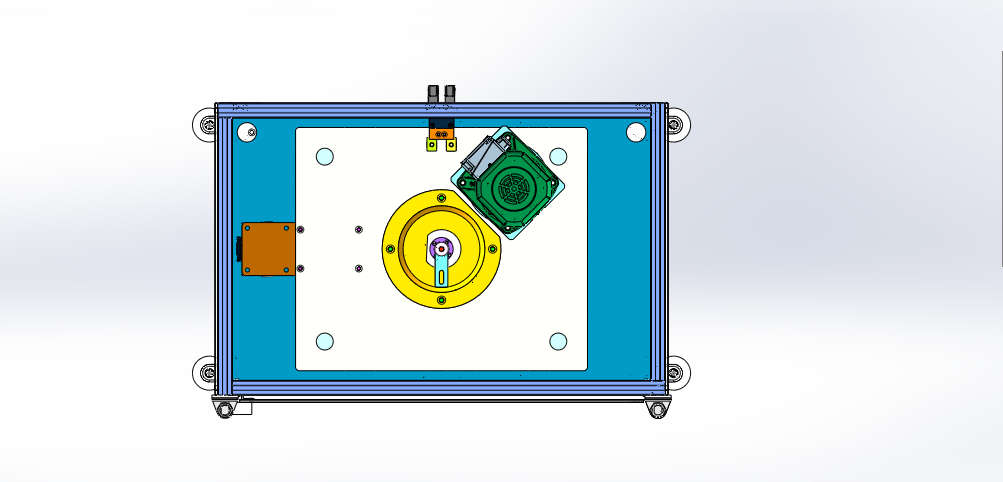

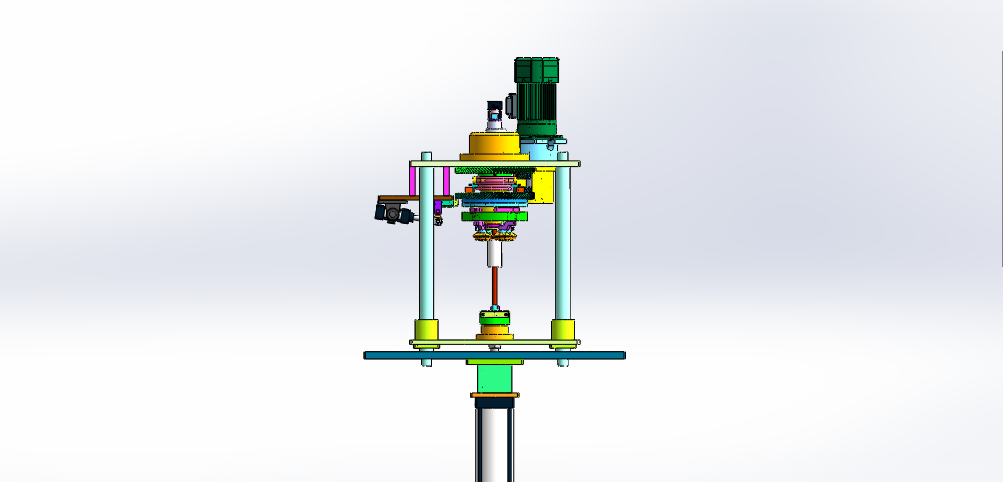

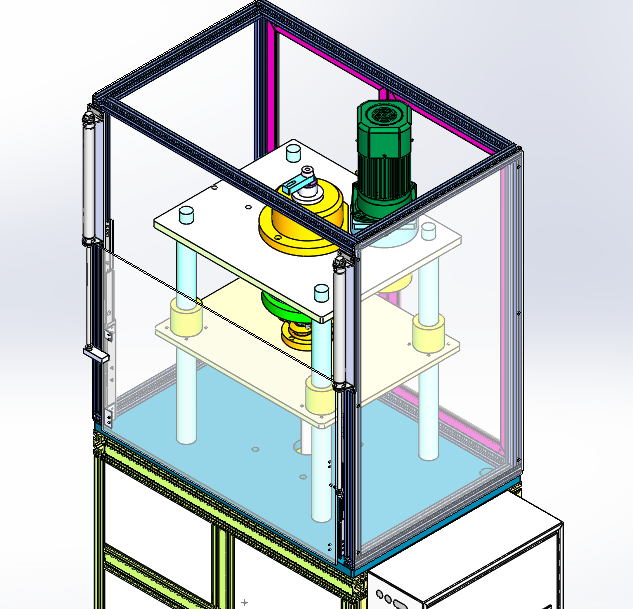

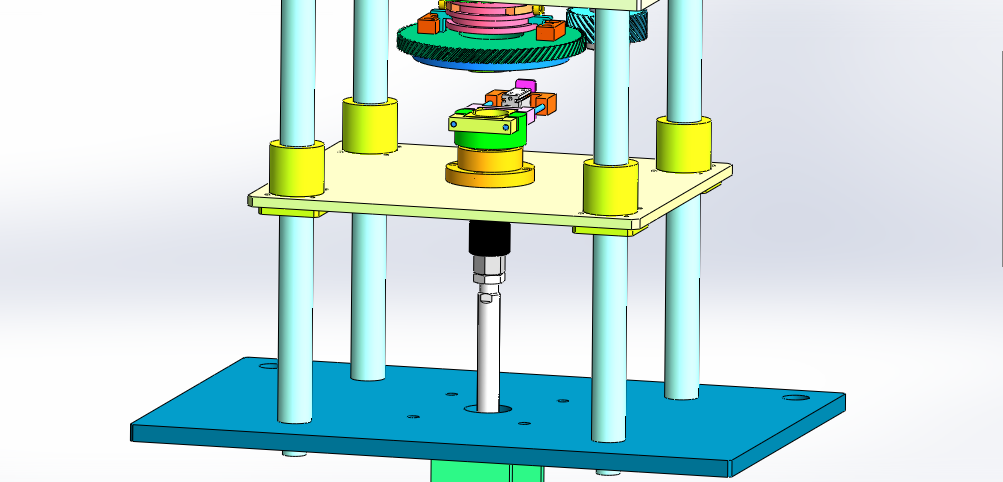

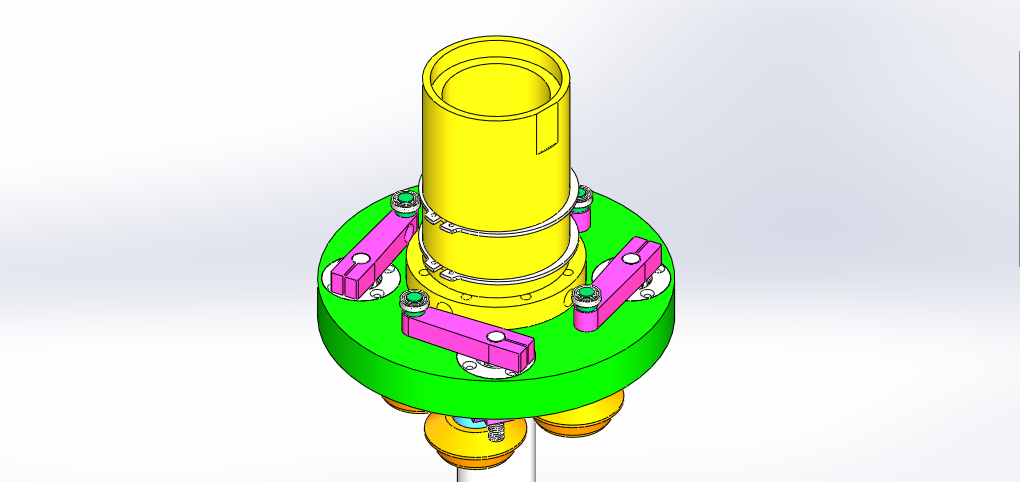

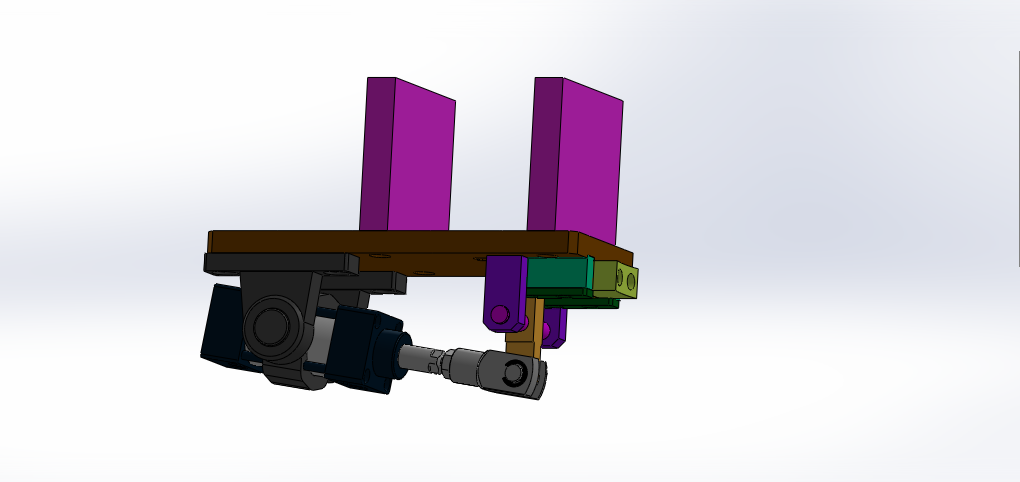

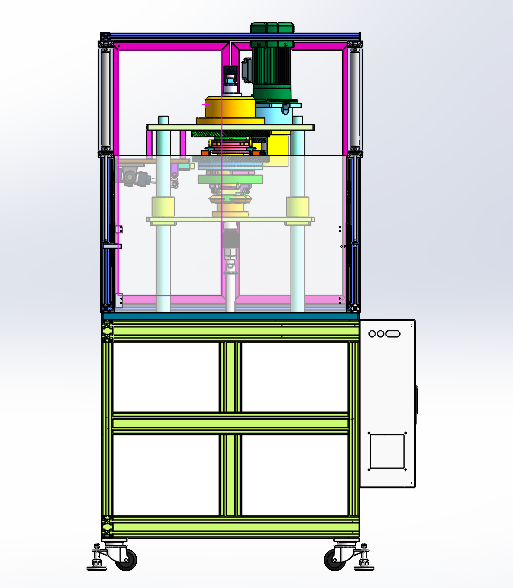

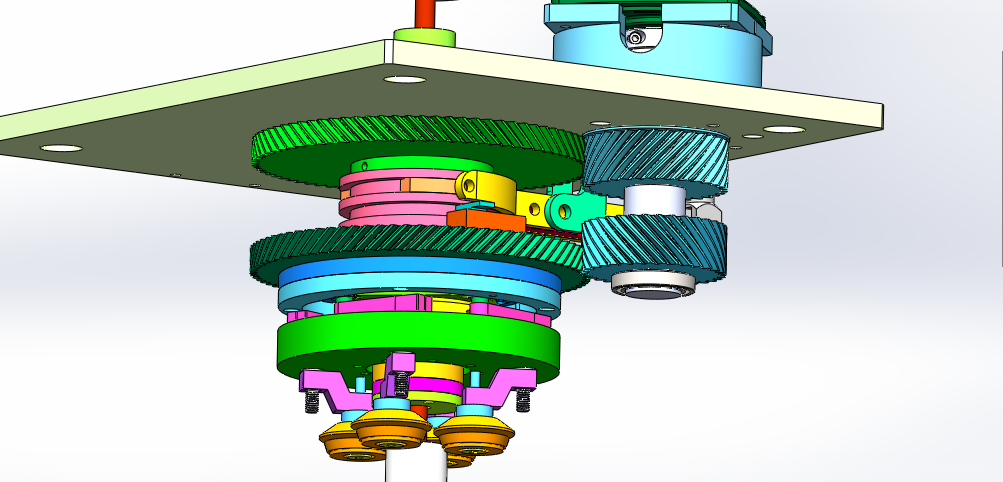

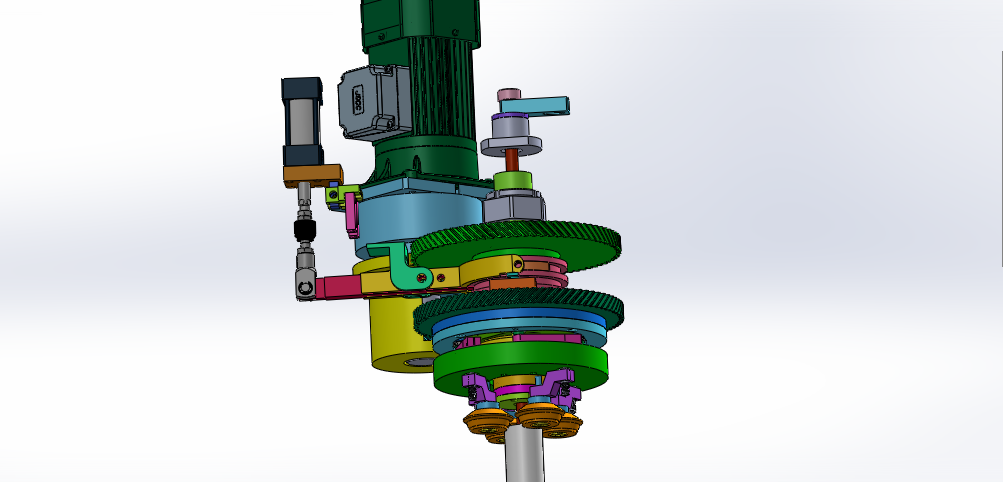

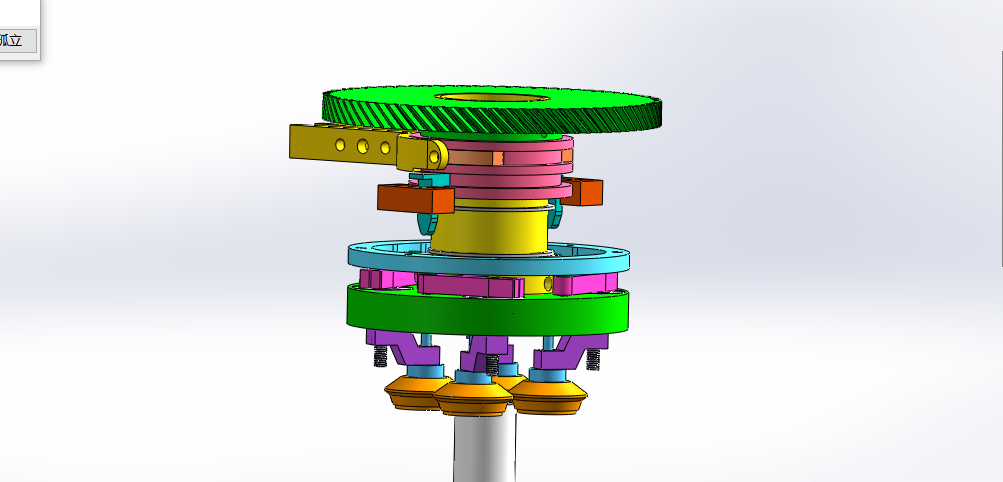

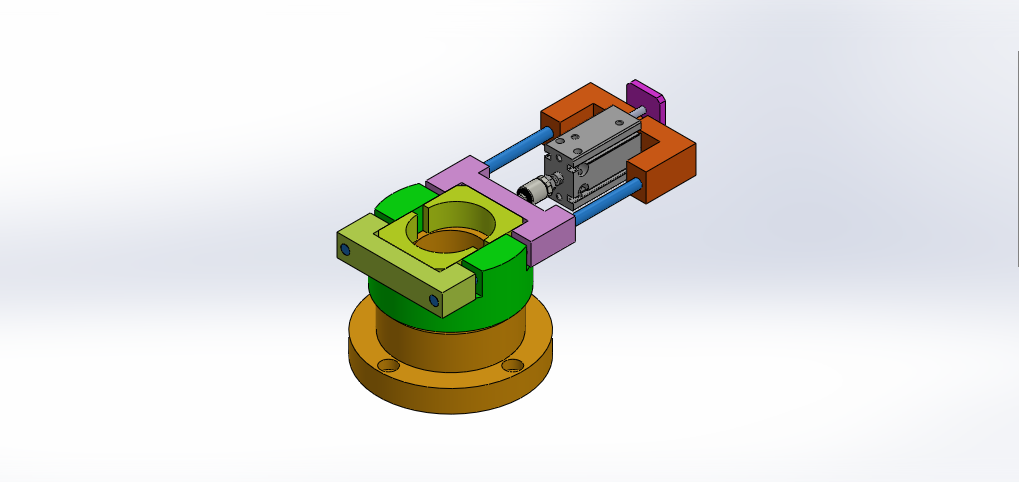

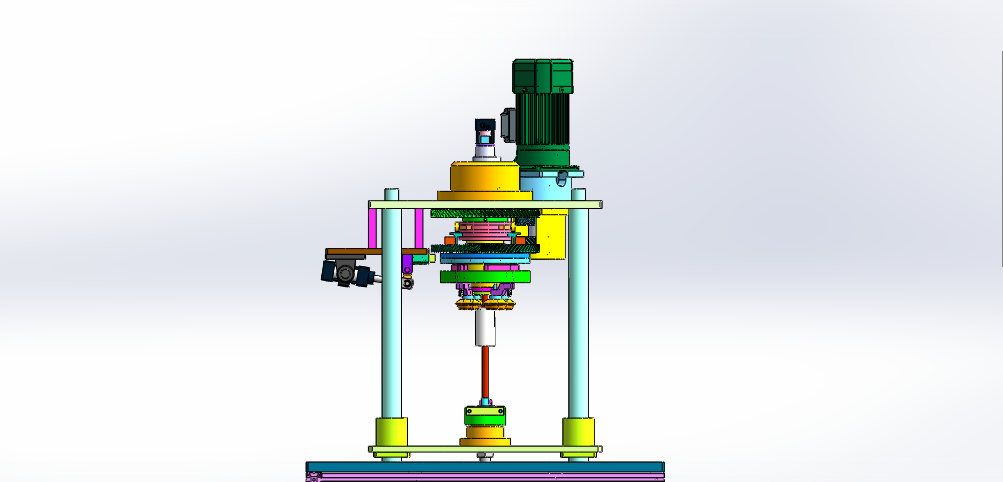

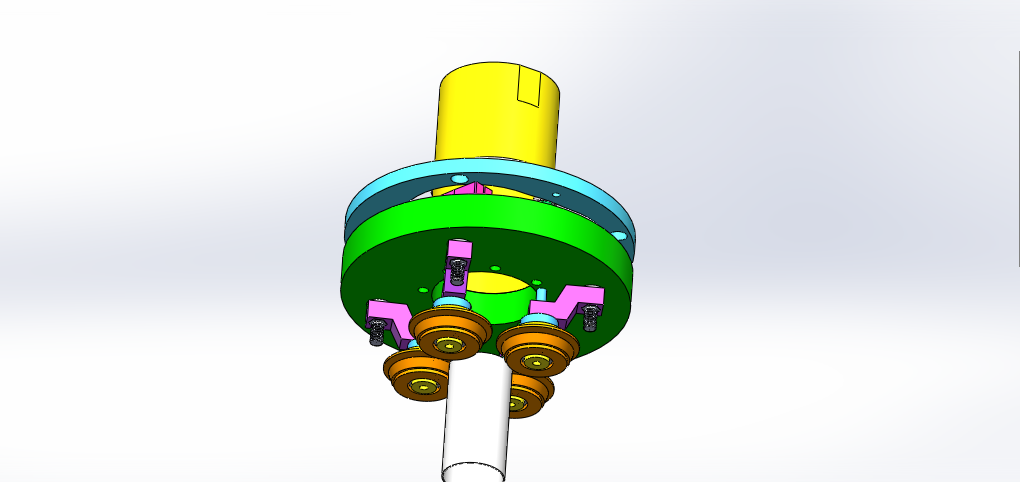

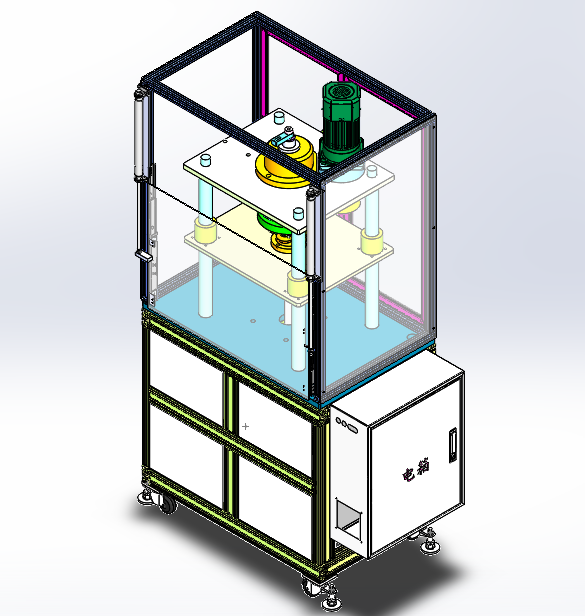

泵芯铁壳封边机设计思路：用于把燃油泵泵头盖封边压紧，保证密封不漏油。边旋转边压紧，把铁壳边缘压成斜面形状从而实现封边的效果。上方是封边的旋转压紧机构，由四组锥形封边压轮机构以及挤压摆臂组成，四组压轮程圆周均匀分布，安装在圆盘上，圆盘通过旋转的同时，把四组组压轮带动旋转，圆盘是由旋转套驱动，旋转套上一共有两个大齿轮，扭力输入是由上面的一对大齿轮通过电机旋转实现，下面的一对大齿轮是用于给压轮实现挤压的动作，配合上方的拨叉机构和通过凸轮槽结构实现挤压运动，从而完成封边的动作。泵芯铁壳封边机结构介绍：铝型材机架、防护罩、泵芯铁壳定位工装、铁壳压紧组件、封边压轮机构、齿轮传动机构、拨叉及其驱动连杆
