杠杆零件加工工艺及钻孔的夹具设计【含三维】（ID:1908177）

设备部件 / 工器具 / 杠杆零件加工工艺及钻孔的夹具设计【含三维】

©非原创

平面图

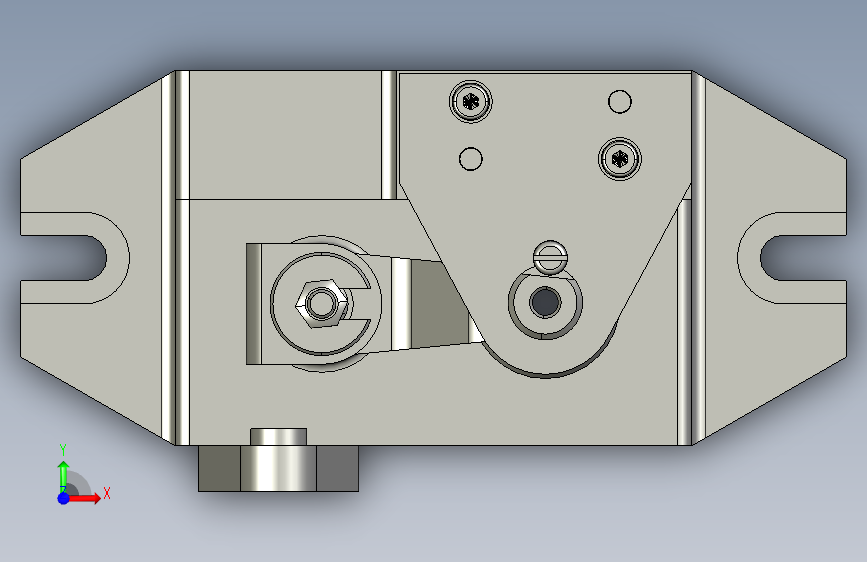

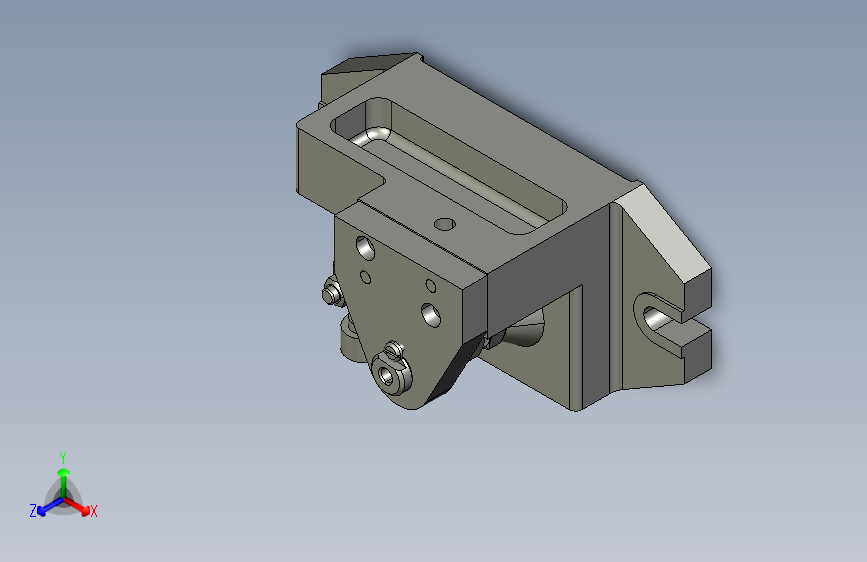

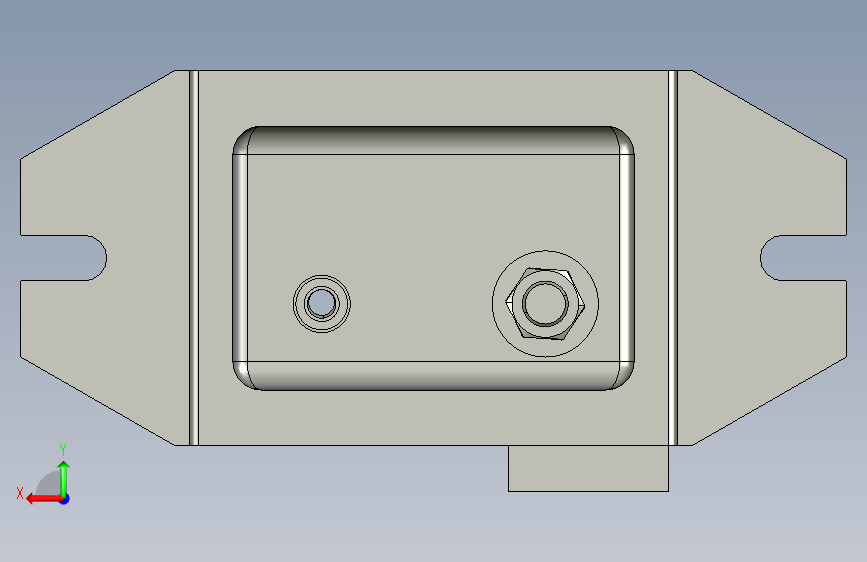

3D视图

文件列表

#	文件名称	文件大小
1	17415857578930.zip	5.85M

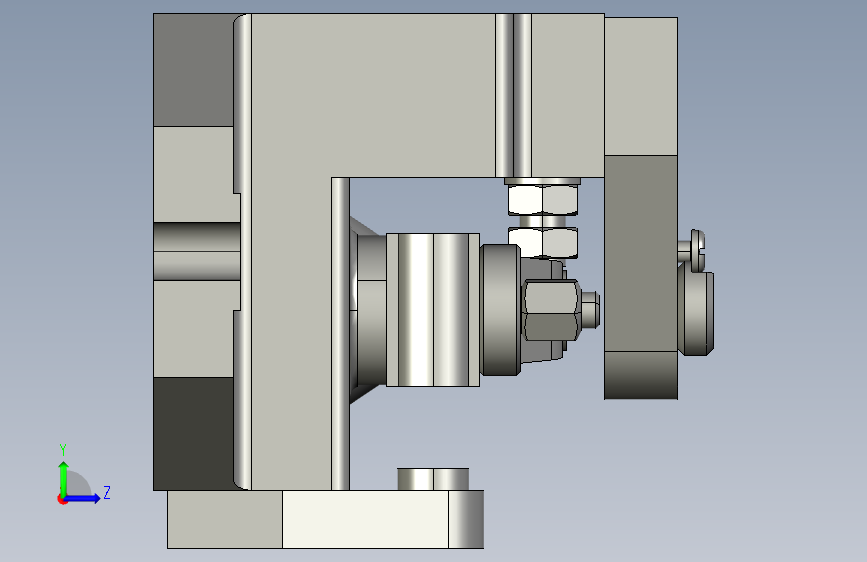

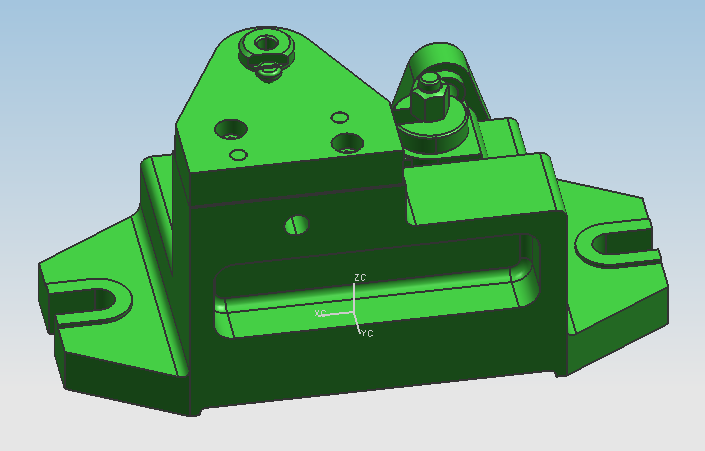

2	三维截2.png	26.14K

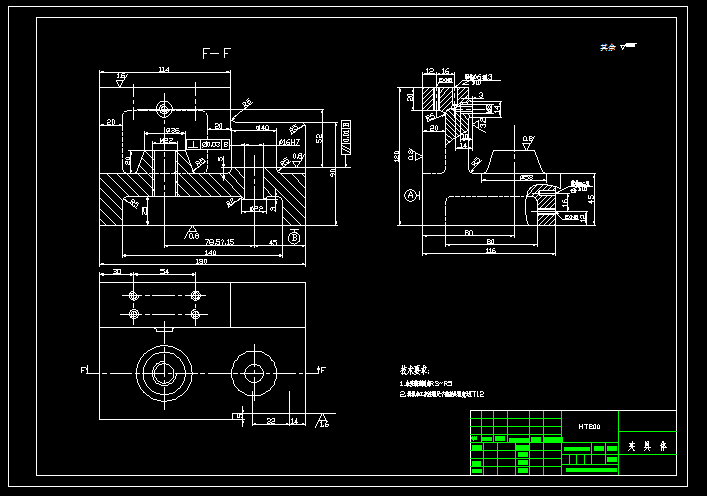

3	夹具体.png	11.79K

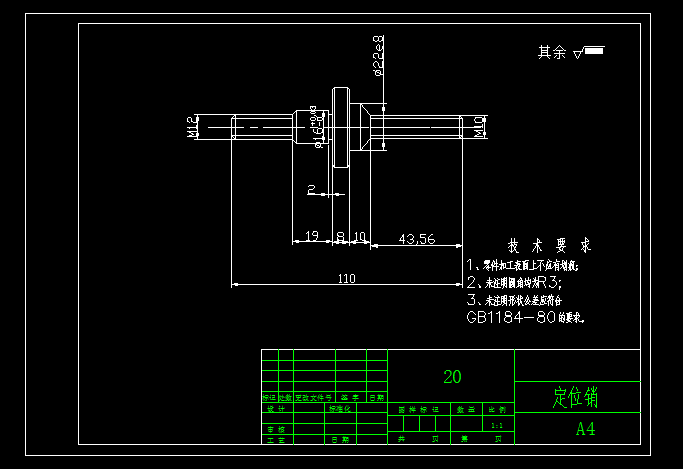

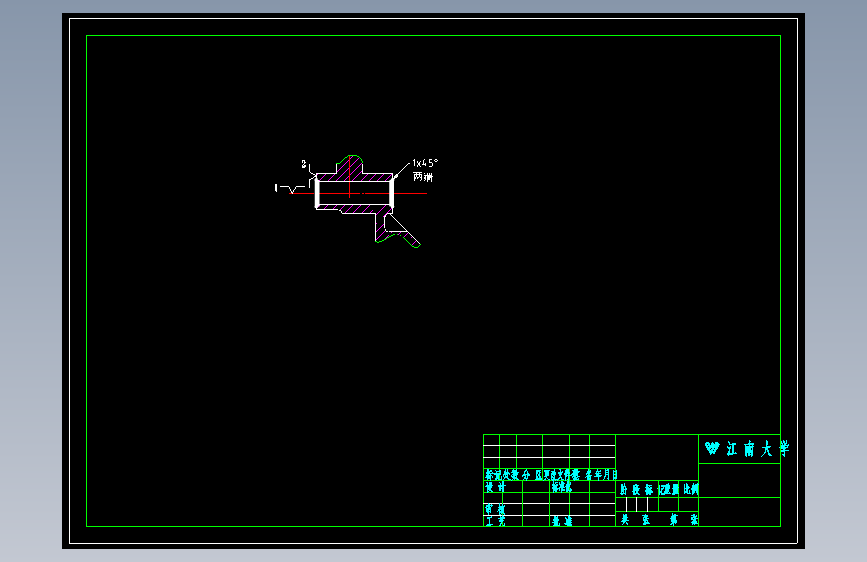

4	定位销.png	8.83K

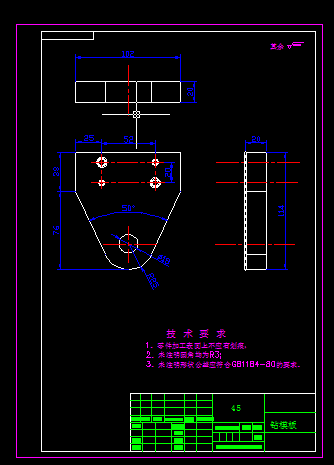

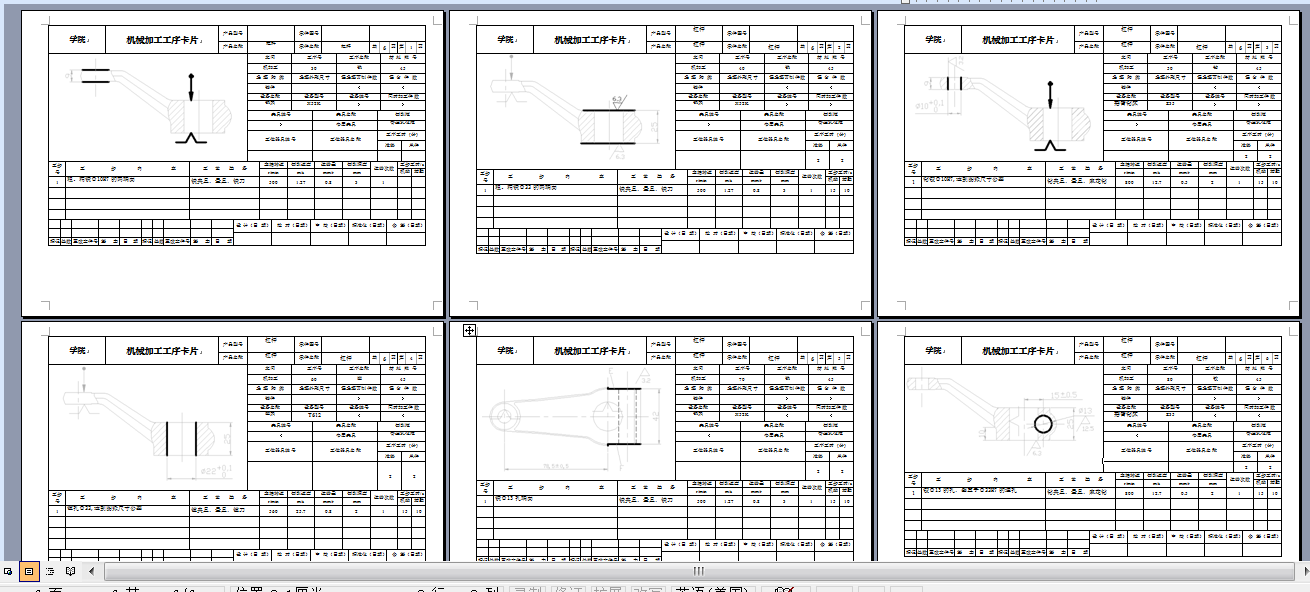

5	工序卡.png	79.93K

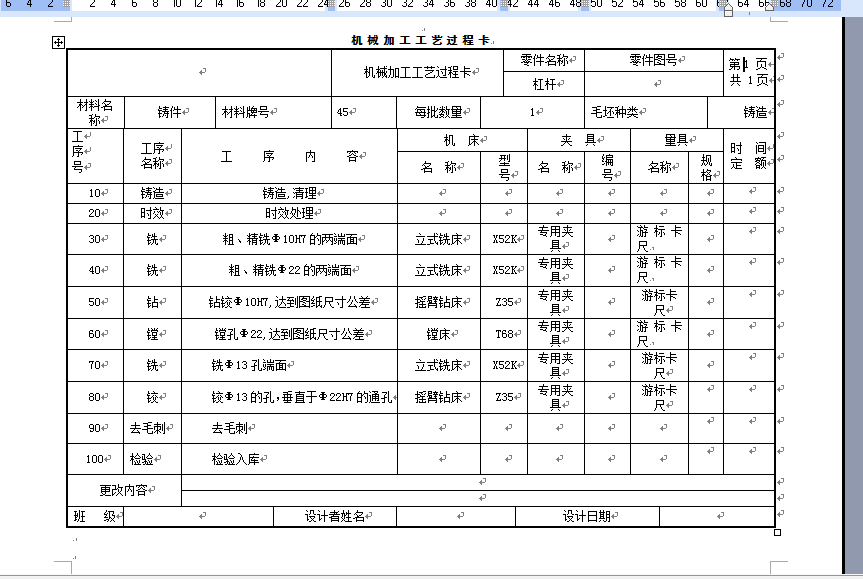

6	文件目录.png	42.88K

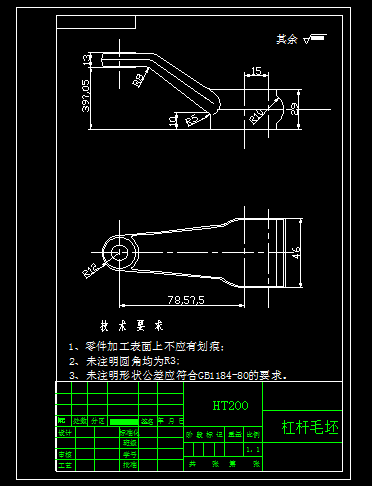

7	杠杆毛坯.png	10.37K

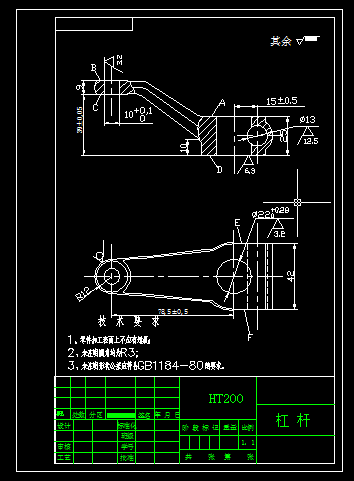

8	杠杆零件图.png	9.66K

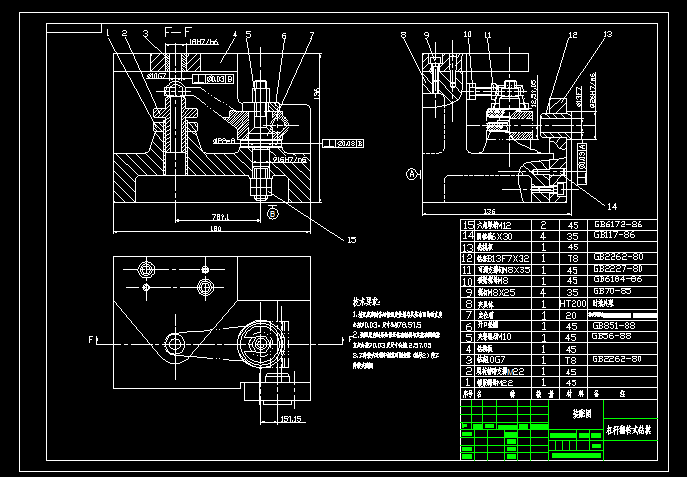

9	装配图.png	18.78K

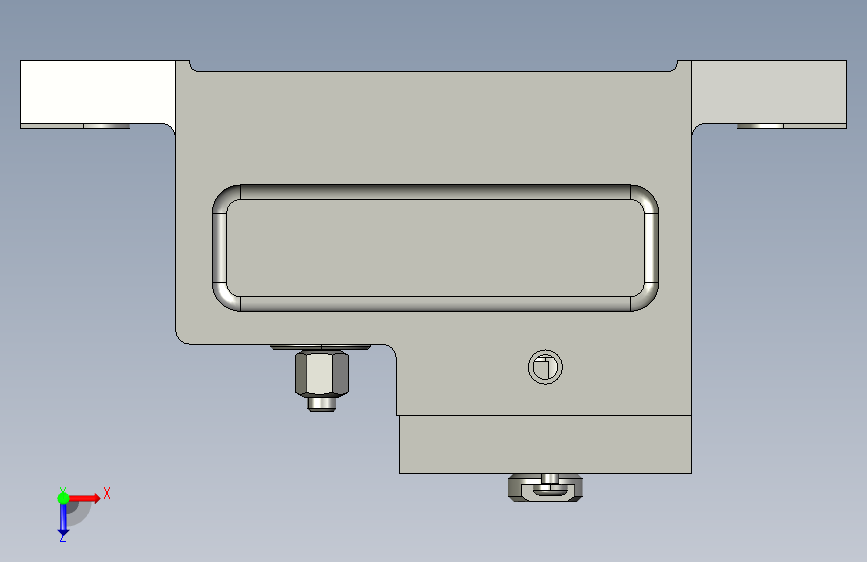

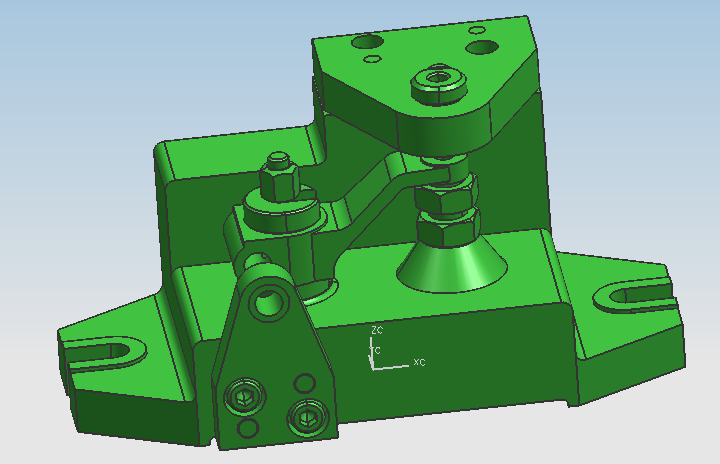

10	装配图三维.png	34.04K
11	说明书1.png	73.64K

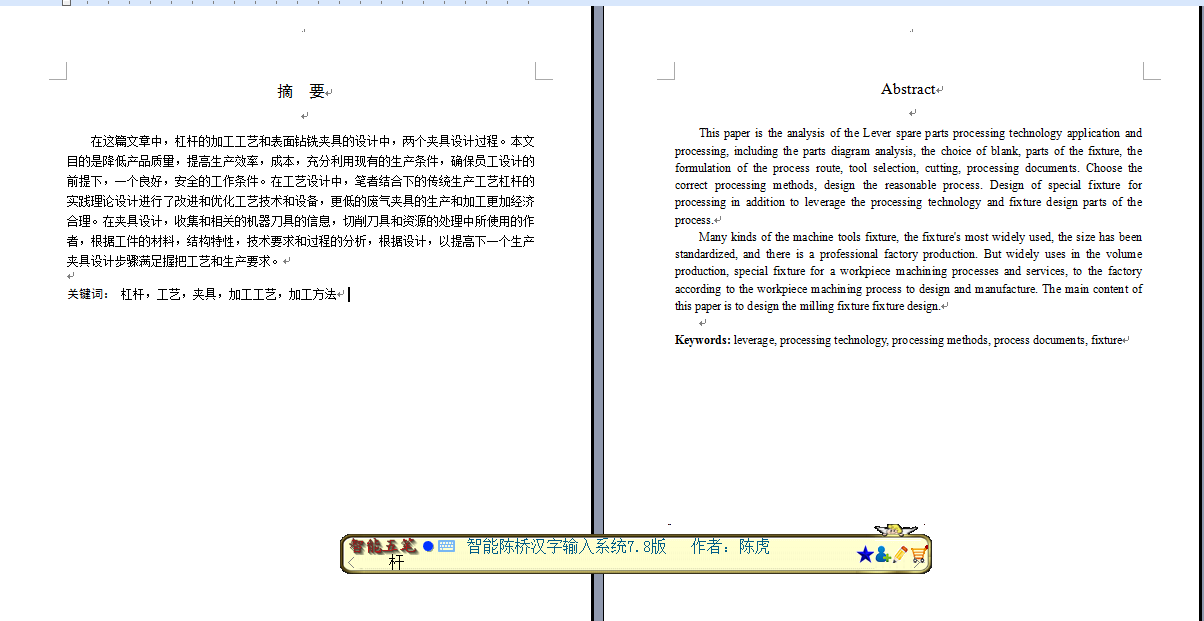

12	说明书2.png	46.50K
13	说明书3.png	54.67K
14	说明书4.png	94.23K
15	过程卡.png	26.10K

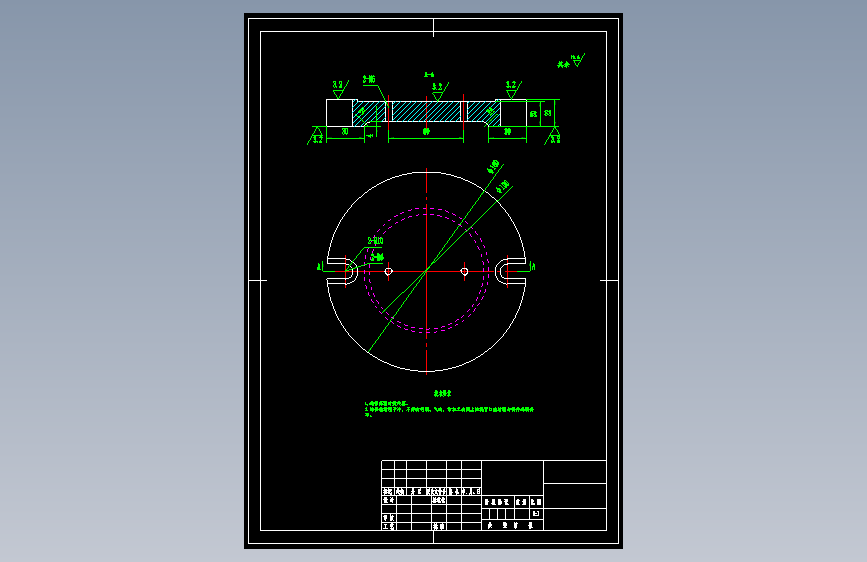

16	钻模板.png	7.08K
17	中英文翻译文献.doc	350.00K
18	任务书.docx	19.77K
19	夹具体.dwg	81.56K
20	定位销.dwg	53.91K
21	杠杆机械加工工序卡.doc	289.00K
22	杠杆机械加工工艺过程卡.doc	54.00K
23	杠杆零件.dwg	70.77K
24	毛坯.dwg	65.34K
25	论文.doc	3.57M
