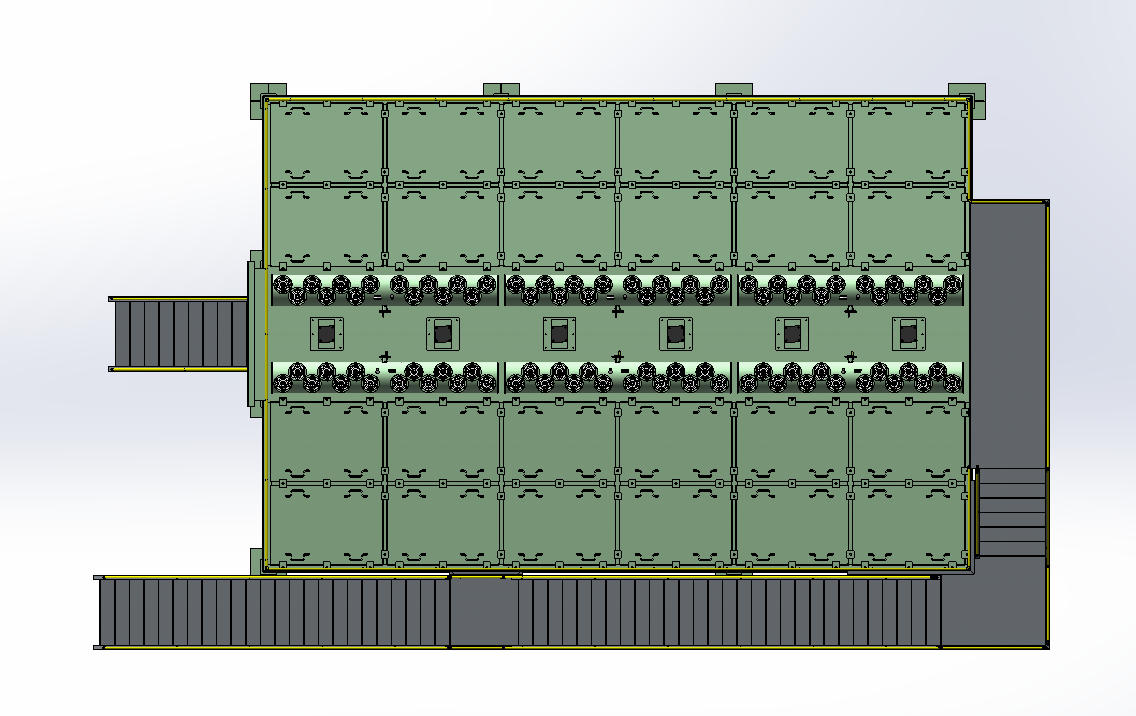

CC10-00-00(100000m3布袋除尘器)（ID:1909078）
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 17416546788247.zip | 81.37M |

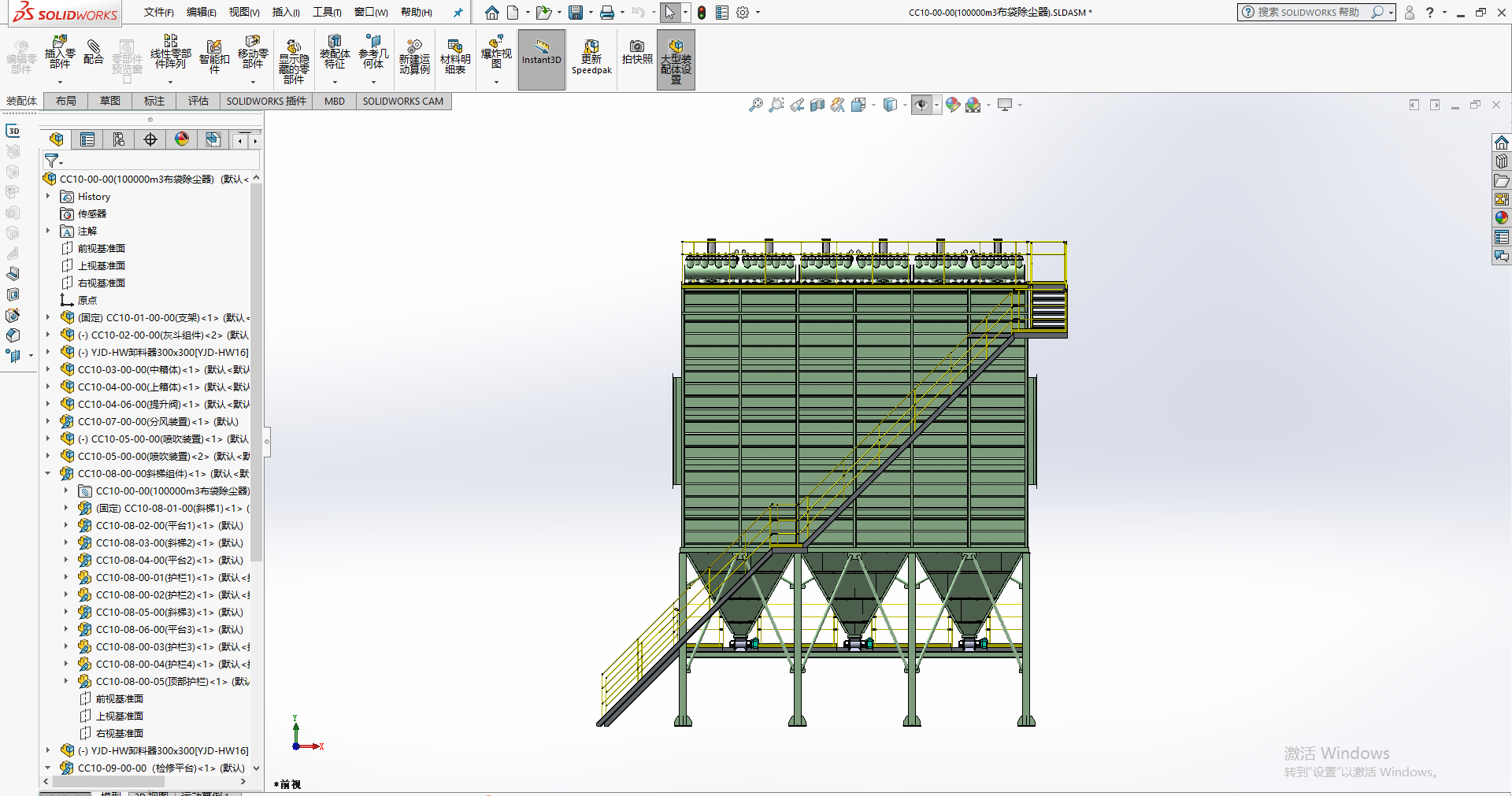

| 2 | CC10-00-00100000m3布袋除尘器.SLDASM | 17.21M |

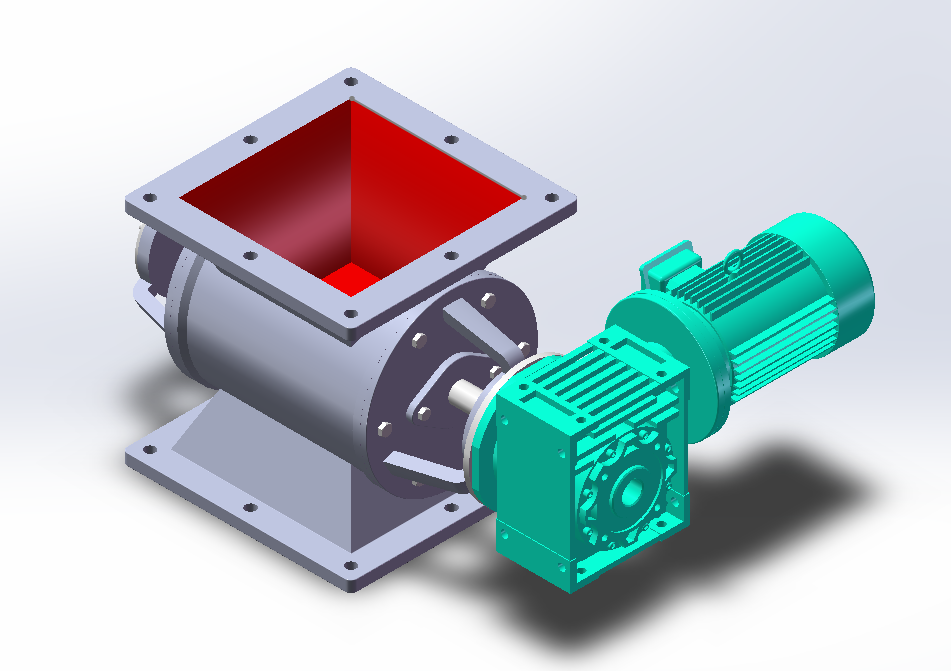

| 3 | YJD-HW卸料器300x300[YJD-HW16].SLDASM | 2.43M |

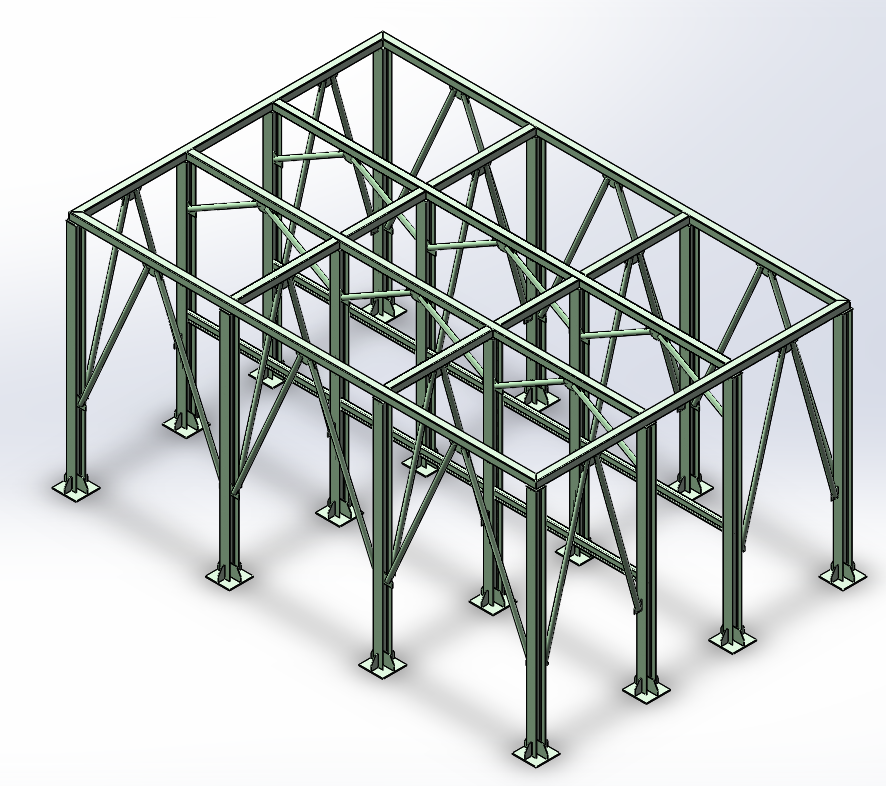

| 4 | CC10-01-00-00支架.SLDASM | 716.67K |
| 5 | CC10-01-01-00立柱.SLDASM | 511.72K |
| 6 | CC10-01-02-00斜撑1.SLDASM | 323.52K |
| 7 | CC10-01-03-00斜撑2.SLDASM | 320.87K |
| 8 | CC10-01-05-00斜撑3.SLDASM | 314.88K |
| 9 | CC10-02-00-00灰斗组件.SLDASM | 451.76K |
| 10 | CC10-02-01-00灰斗侧板组件.SLDASM | 220.83K |
| 11 | CC10-02-01-01灰斗侧板1.SLDPRT | 205.81K |
| 12 | CC10-02-01-02灰斗侧板2.SLDPRT | 206.46K |
| 13 | CC10-02-01-03灰斗侧板3.SLDPRT | 232.99K |
| 14 | CC10-02-01-04灰斗侧板4.SLDPRT | 259.61K |
| 15 | CC10-02-02-00人孔Φ600.SLDASM | 855.53K |
| 16 | CC10-02-03灰斗法兰.SLDPRT | 187.99K |
| 17 | CC10-02-04布气板.SLDPRT | 148.22K |
| 18 | CC10-02-05拉杆.SLDPRT | 118.33K |

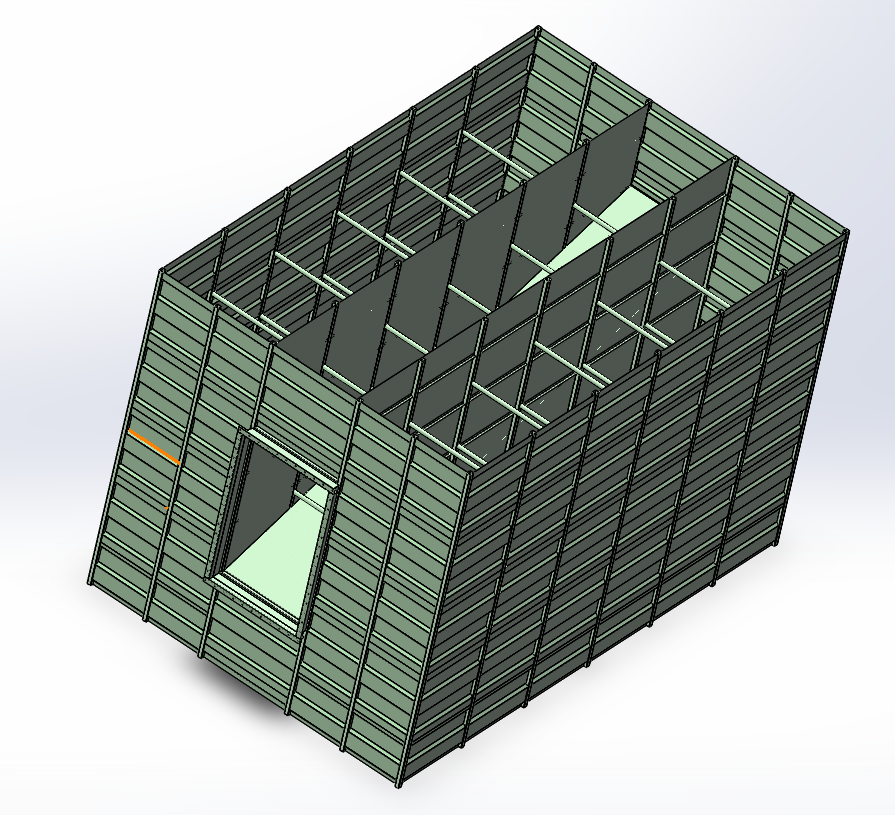

| 19 | CC10-03-00-00中箱体.SLDASM | 468.22K |
| 20 | CC10-03-01-00框架.SLDASM | 499.59K |
| 21 | CC10-03-01瓦楞板1520x1400.SLDPRT | 159.14K |
| 22 | CC10-03-02-00隔板.SLDASM | 232.46K |
| 23 | CC10-03-02瓦楞板1520x900.SLDPRT | 153.69K |
| 24 | CC10-03-03-00斜隔板.SLDASM | 281.22K |
| 25 | CC10-03-03瓦楞板1070x1400.SLDPRT | 159.75K |
| 26 | CC10-03-04-00进出法兰.SLDASM | 508.41K |
| 27 | CC10-03-04瓦楞板1070x900.SLDPRT | 154.00K |
| 28 | CC10-03-05瓦楞板1120x310.SLDPRT | 123.81K |
| 29 | CC10-03-06瓦楞板1120x1400.SLDPRT | 161.78K |

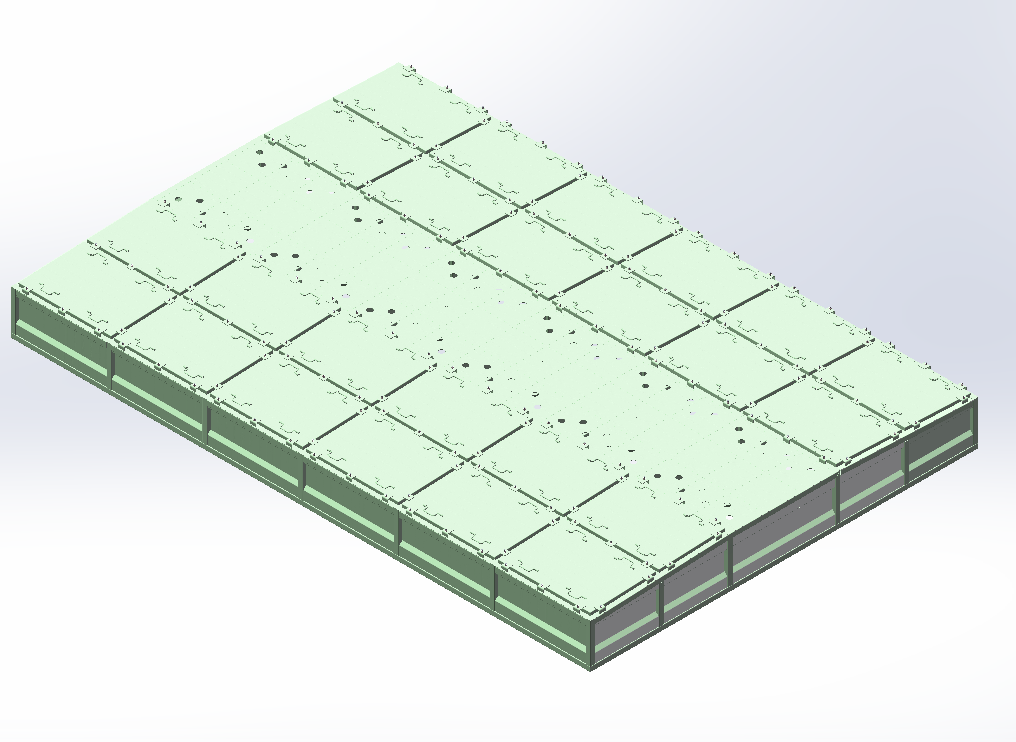

| 30 | CC10-04-00-00上箱体.SLDASM | 2.18M |
| 31 | CC10-04-00-01瓦楞板1120x676.SLDPRT | 132.67K |
| 32 | CC10-04-00-02瓦楞板1520x575.SLDPRT | 135.66K |
| 33 | CC10-04-00-03瓦楞板1070x674.SLDPRT | 146.67K |
| 34 | CC10-04-00-04瓦楞板1070x623.SLDPRT | 146.57K |
| 35 | CC10-04-00-05隔板1120x676.SLDPRT | 101.85K |
| 36 | CC10-04-00-06隔板1070x674.SLDPRT | 110.94K |
| 37 | CC10-04-00-07隔板1070x623.SLDPRT | 112.15K |
| 38 | CC10-04-00-08法兰.SLDPRT | 183.36K |
| 39 | CC10-04-01-00上箱体框架.SLDASM | 3.59M |
| 40 | CC10-04-01-01顶板.SLDPRT | 509.84K |
| 41 | CC10-04-01-02角铁1.SLDPRT | 169.48K |
| 42 | CC10-04-01-03C型槽1.SLDPRT | 165.86K |
| 43 | CC10-04-01-04角铁2.SLDPRT | 126.63K |
| 44 | CC10-04-01-05C型槽2.SLDPRT | 104.85K |
| 45 | CC10-04-02-00盖板.SLDASM | 1.19M |
| 46 | CC10-04-03-00孔板.SLDASM | 423.85K |
| 47 | CC10-04-04-00压板1.SLDASM | 310.21K |
| 48 | CC10-04-05-00压板2.SLDASM | 321.80K |
| 49 | CC10-04-06-00封板.SLDASM | 388.86K |
| 50 | 螺柱M16-100.SLDPRT | 95.02K |
| 51 | 镜向CC10-04-00-01瓦楞板1120x676.SLDPRT | 172.10K |
| 52 | 镜向CC10-04-00-03瓦楞板1070x674.SLDPRT | 116.35K |
| 53 | 镜向CC10-04-00-04瓦楞板1070x623.SLDPRT | 116.99K |
| 54 | 镜向CC10-04-01-04角铁2.SLDPRT | 111.46K |
| 55 | 镜向镜向CC10-04-00-03瓦楞板1070x674.SLDPRT | 107.35K |
| 56 | 镜向镜向CC10-04-00-04瓦楞板1070x623.SLDPRT | 108.64K |
| 57 | 镜向镜向CC10-04-01-04角铁2.SLDPRT | 107.60K |
| 58 | A21型微启式安全阀[DN20].sldprt | 284.41K |

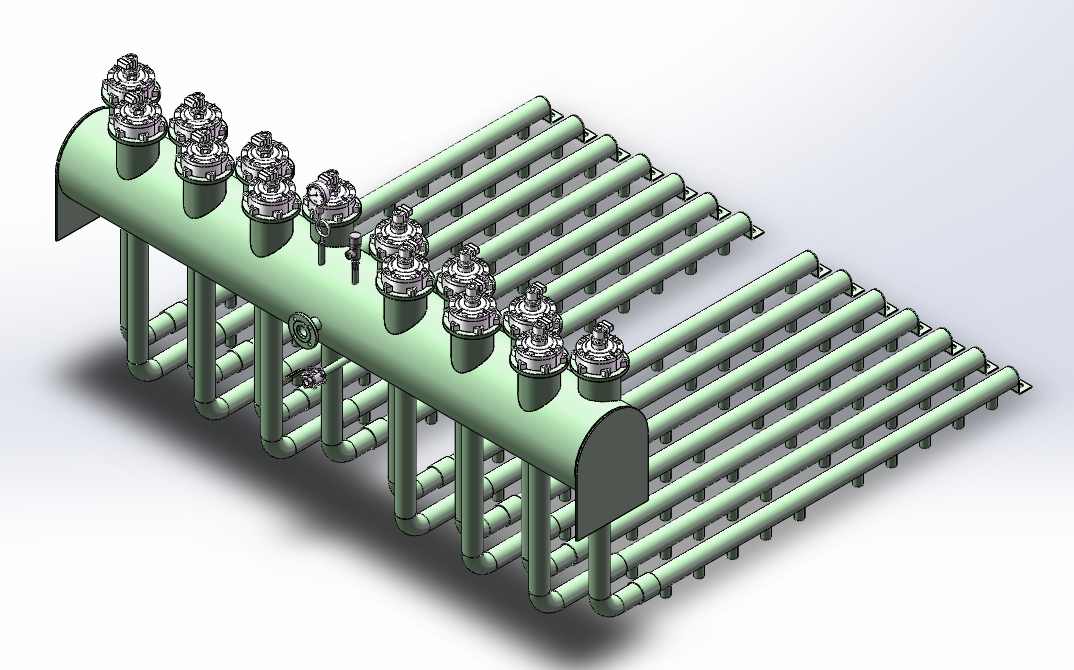

| 59 | CC10-05-00-00喷吹装置.SLDASM | 1.67M |
| 60 | CC10-05-00-01套管.SLDPRT | 155.00K |

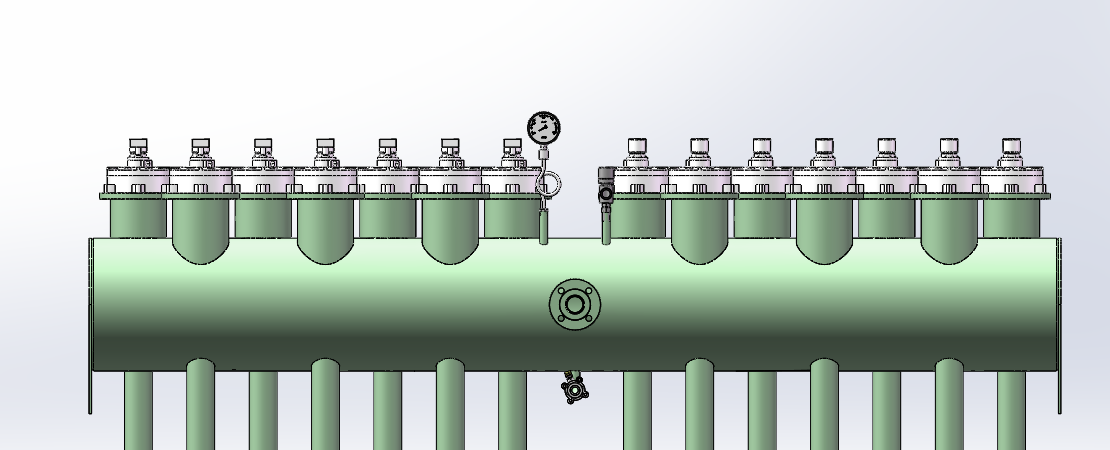

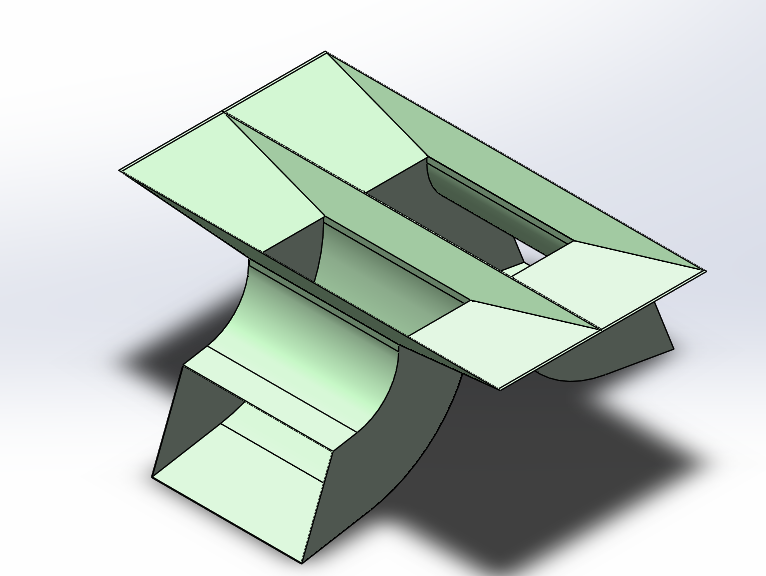

| 61 | CC10-05-01-00气包.SLDASM | 2.62M |
| 62 | CC10-05-01-01脉冲阀法兰.SLDPRT | 145.35K |
| 63 | CC10-05-02-00喷吹直管.SLDASM | 409.85K |
| 64 | 法兰DN50.SLDPRT | 157.16K |
| 65 | 球阀DN25.SLDPRT | 516.86K |
| 66 | 高原淹没式DMF-Y-76S电磁脉冲阀[DMF-Y-76S].SLDPRT | 497.17K |
| 67 | 高原淹没式DMF-Y-76S电磁脉冲阀[DMF-Y-76S].step | 845.06K |
| 68 | 压力表M20×1.5.sldprt | 1.11M |
| 69 | 压力表缓冲管模型.IGS | 9.20M |
| 70 | 压力表缓冲管模型.SLDASM | 664.06K |
| 71 | 压力表缓冲管模型.STEP | 6.19M |
| 72 | 压力表缓冲管模型.x_t | 1.25M |
| 73 | 压力表缓冲管模型四视图.png | 828.79K |
| 74 | 压力表缓冲管模型左视图.png | 358.68K |
| 75 | 压力表缓冲管模型渲染图.png | 585.87K |
| 76 | 压力表缓冲管模型设计树.png | 351.35K |
| 77 | 缓冲管.SLDPRT | 582.17K |
| 78 | CC10-04-06-00-01压板.SLDPRT | 124.54K |
| 79 | CC10-04-06-00-02密封垫.SLDPRT | 130.87K |
| 80 | CC10-04-06-00提升阀.SLDASM | 1.70M |
| 81 | CC10-04-06-01-00阀盘.SLDASM | 396.72K |
| 82 | CC10-04-06-01-02阀盘板.SLDPRT | 147.07K |
| 83 | CC10-04-06-02-00气缸座.SLDASM | 733.99K |
| 84 | SC标准气缸系列[SC-200X500-S].SLDASM | 1.27M |
| 85 | CC10-07-00-00分风装置.SLDASM | 340.42K |
| 86 | CC10-08-00-00斜梯组件.SLDASM | 3.32M |
| 87 | CC10-08-00-01护栏1.SLDPRT | 926.93K |
| 88 | CC10-08-00-02护栏2.SLDPRT | 768.09K |
| 89 | CC10-08-00-03护栏3.SLDPRT | 673.36K |
| 90 | CC10-08-00-04护栏4.SLDPRT | 289.09K |
| 91 | CC10-08-00-05顶部护栏.SLDPRT | 1.66M |
| 92 | CC10-08-01-00斜梯1.SLDASM | 354.08K |
| 93 | CC10-08-02-00平台1.SLDASM | 356.63K |
| 94 | CC10-08-03-00斜梯2.SLDASM | 502.82K |
| 95 | CC10-08-04-00平台2.SLDASM | 396.87K |
| 96 | CC10-08-05-00斜梯3.SLDASM | 363.28K |
| 97 | CC10-08-06-00平台3.SLDASM | 391.57K |
| 98 | CC10-09-00-00（检修平台.SLDASM | 6.22M |
| 99 | CC10-09-01-00（台面.SLDASM | 1.33M |
| 100 | CC10-09-02-00（护栏.SLDASM | 11.20M |
| 101 | CC10-09-03-00（斜梯.SLDASM | 359.28K |
| 102 | CC10-09-04-00护手.SLDPRT | 290.46K |
此图纸下载需要1250金币
立即下载
发布者
皓月当空
创作: 68
粉丝: 45
加入时间：2021-06-01
模型信息
图纸格式：sldasm,sldprt,step,igs,x_t
文件大小：83.32M
所需金币：1250
上传时间：2025-03-11 08:58:06
是否可编辑：可修改，包括参数
版本：SOLIDWORKS 2020
标签
袋式除尘器
布袋
图纸简介
处理量：100000m3/h；840根Φ130*6000布袋；过滤面积：2100m2；全过滤风速：0.8m/min；84个3寸淹没式脉冲阀；6个过滤腔式配置6个提升阀； 袋式除尘器是一种干式滤尘装置。滤料使用一段时间后，由于筛滤、碰撞、滞留、扩散、静电等效应，滤袋表面积聚了一层粉尘，这层粉尘称为初层，在此以后的运动过程中，初层成了滤料的主要过滤层，依靠初层的作用，网孔较大的滤料也能获得较高的过滤效率。随着粉尘在滤料表面的积聚，除尘器的效率和阻力都相应的增加，当滤料两侧的压力差很大时，会把有些已附着在滤料上的细小尘粒挤压过去，使除尘器效率下降。另外，除尘器的阻力过高会使除尘系统的风量显著下降。因
