G06940-斯特林发动机21（ID:1911506）

交通运输 / 车辆相关 / G06940-斯特林发动机21

©非原创

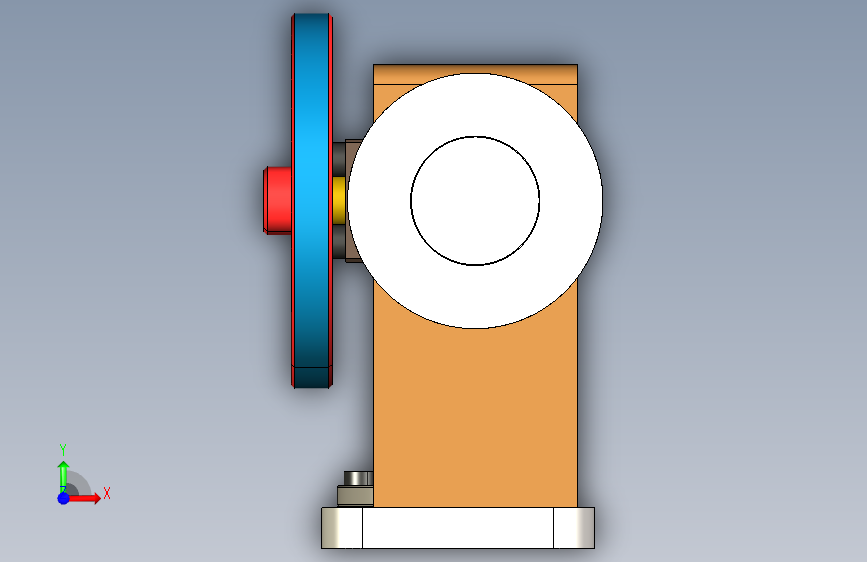

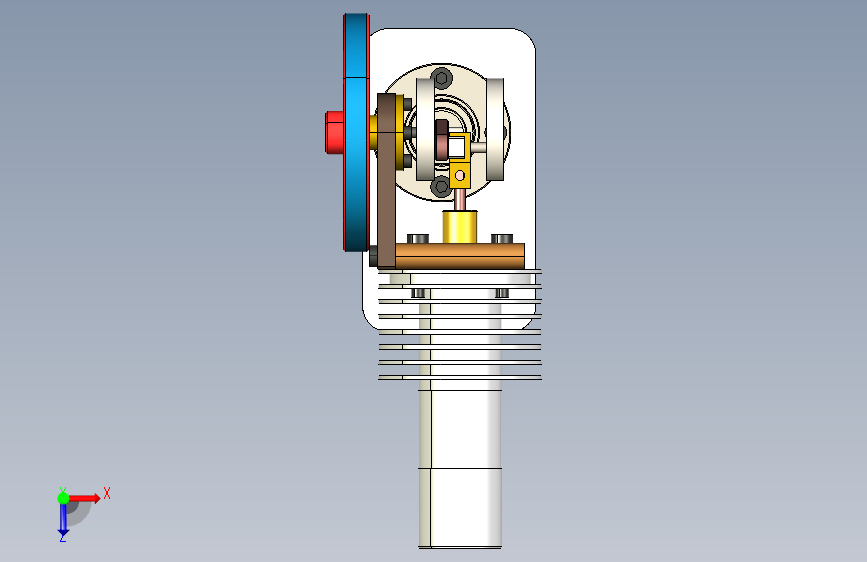

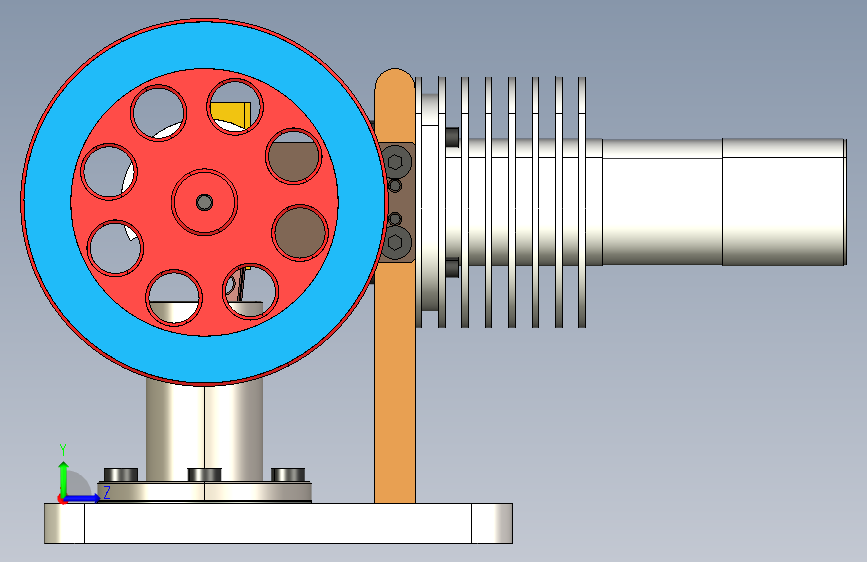

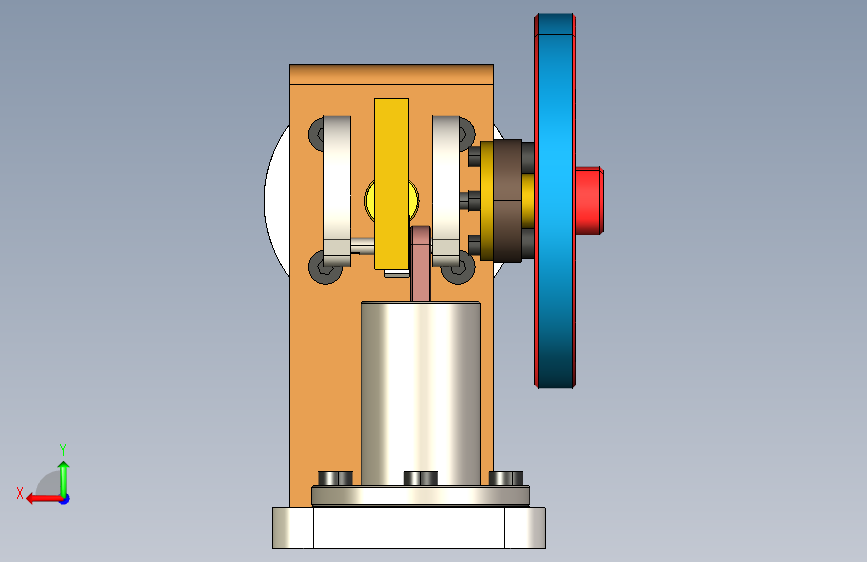

平面图

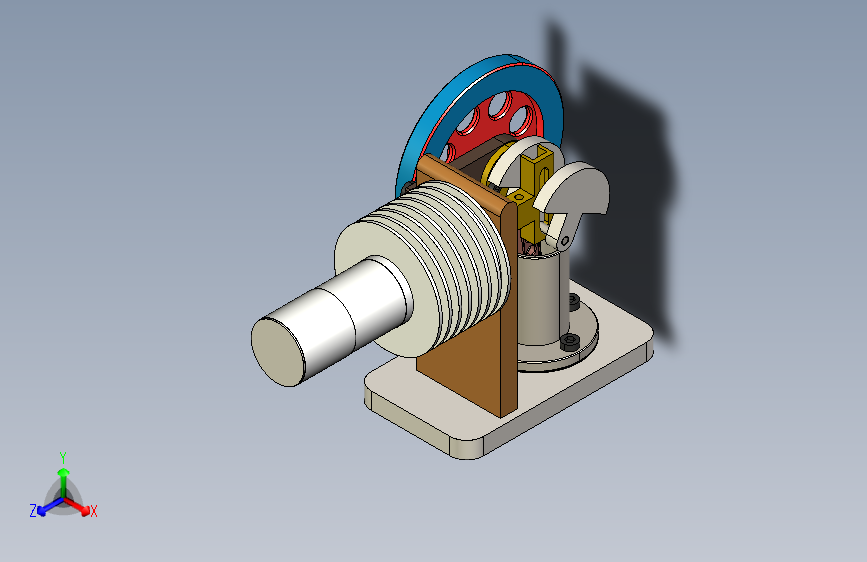

3D视图

文件列表

#	文件名称	文件大小
1	1.Base.STL	93.44K
2	10.Flywheel.STL	223.13K
3	11.Piston.STL	63.07K
4	12.PistonPin.STL	18.34K
5	13.Slider.STL	8.87K
6	14.Crosshead.STL	29.87K
7	15.CrankRod.STL	189.24K
8	16.StandSupport.STL	144.71K
9	17.Stand.STL	102.43K
10	17417771107461.zip	8.18M
11	18.HeatExchangeCylinderHrad.STL	23.91K
12	19.HeatExchangePistonExhaust.STL	73.81K
13	2.BallBearingSupport.STL	80.26K
14	20.HeatExchangePistonHead.STL	23.91K
15	21.HeatExchangepistonshaft.STL	20.10K
16	22.HeatExchangePistonTube.STL	25.08K
17	23.HeatExchangeCylinder.STL	198.32K
18	3.CrankShaft.STL	22.15K
19	4.CounterWeightA.STL	51.45K
20	5.CounterWeightB.STL	36.70K
21	6.CylinderCover.STL	37.39K
22	7.CylinderPacking.STL	53.60K
23	8.Cylinder.STL	110.43K
24	9.FlywheelShaft.STL	19.42K
25	CylinderCapScrewM6X20.STL	16.78K
26	CylinderheadcapscrewM4X12.STL	16.59K
27	CylinderheadcapscrewM6X16.STL	17.37K
28	CylinderheadcapscrewM6X25.STL	16.20K
29	DowelPinM3X16.STL	7.50K
30	DowelPinM5X20.STL	7.50K
31	FinalAssembly.IGS	4.79M

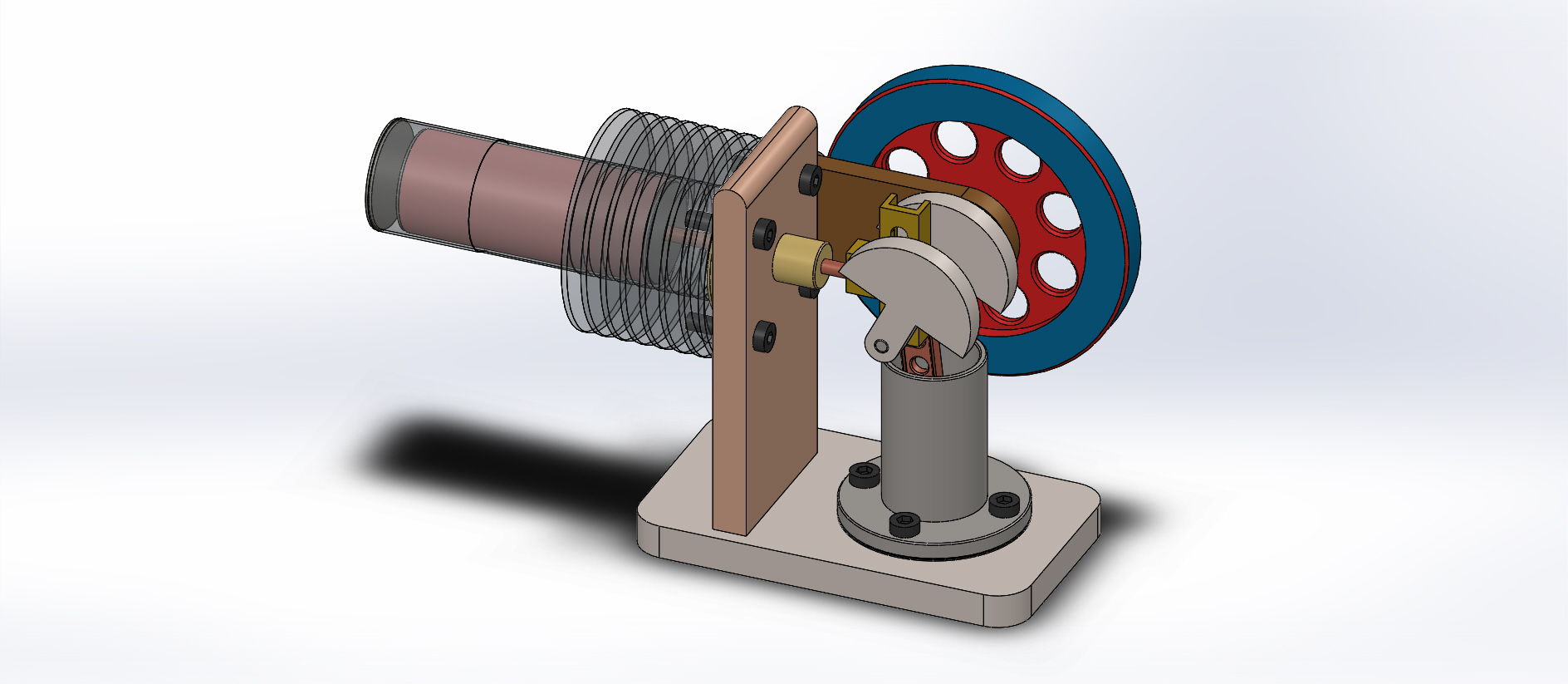

32	FinalAssembly.JPG	313.70K
33	FinalAssembly.mp4	1.38M
34	HexagonSocketScrewM5X10.STL	10.14K
