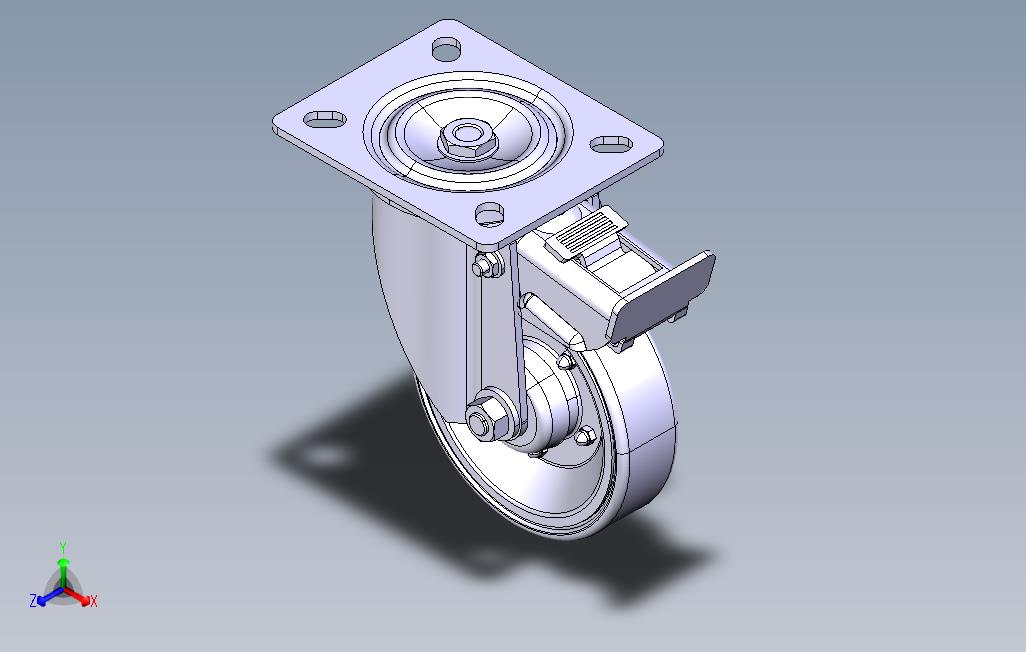

手推车带刹车（ID:191225）

交通运输 / 车辆相关 / 手推车带刹车

©非原创

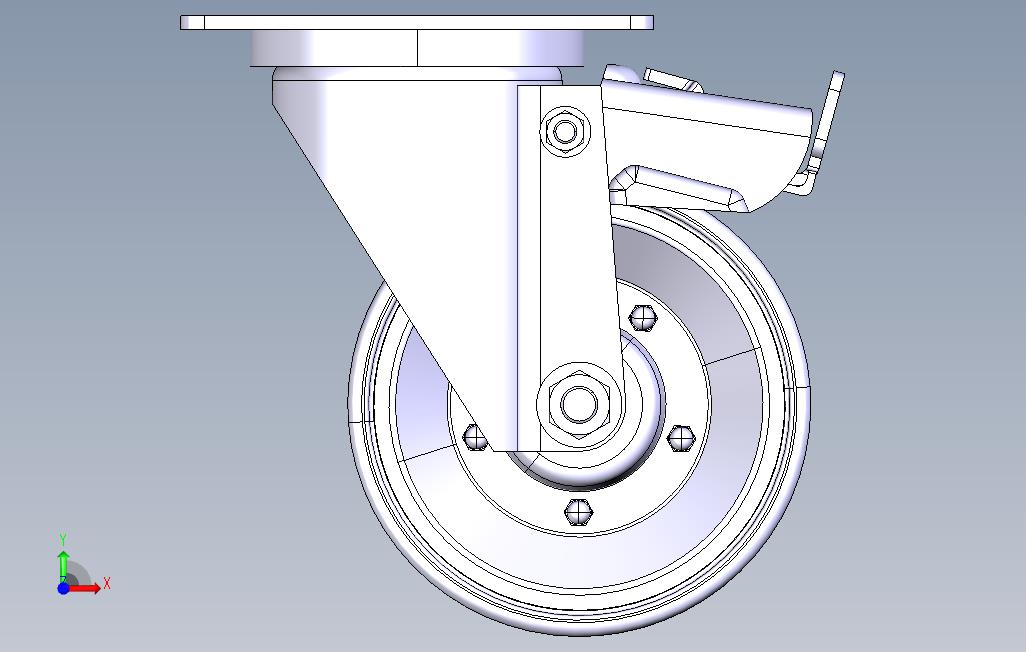

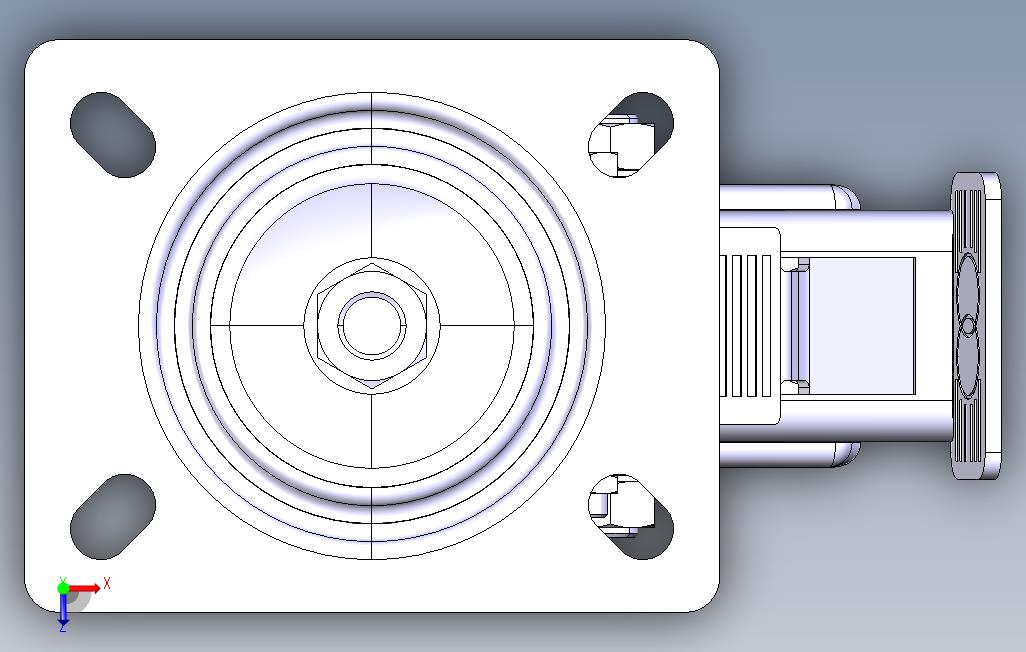

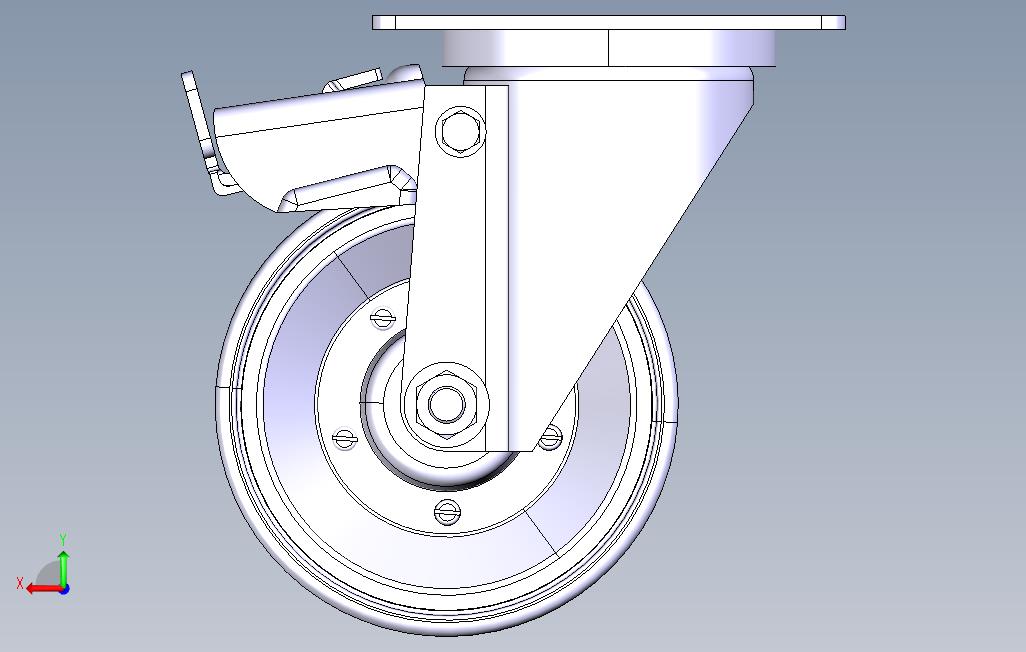

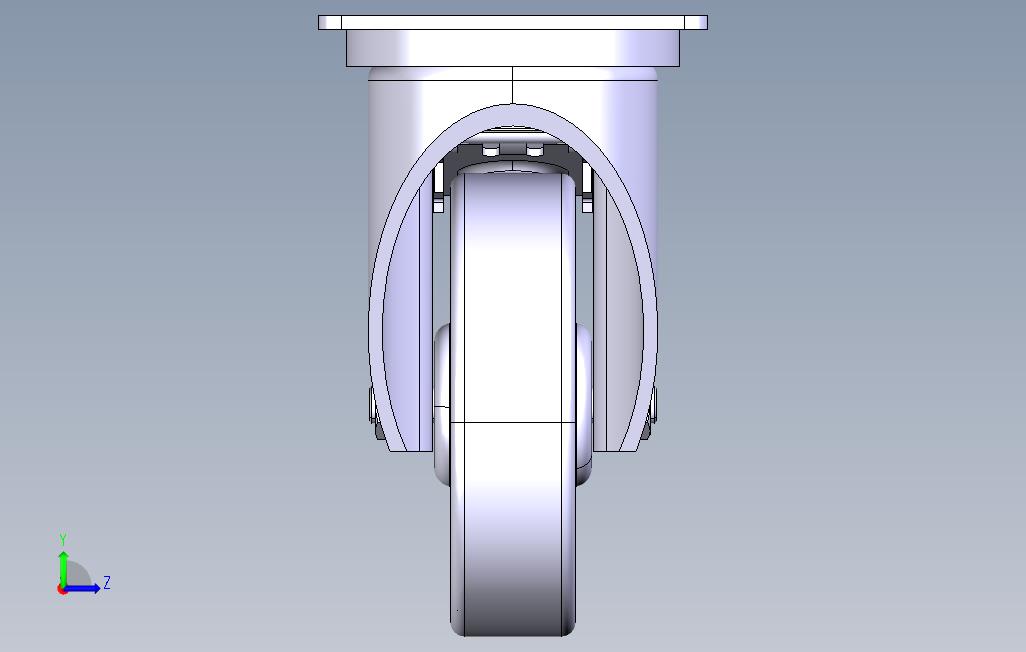

平面图

文件列表

#	文件名称	文件大小
1	Balls_1_Ball-1.CATPart	40.64K
2	Balls_B-1.CATPart	41.19K
3	C-100X30-SLS-00.00.001.CATPart	99.30K
4	C-100X30-SLS-00.00.002.CATPart	99.30K
5	M10_flat washer narrow_B18.22M - Plain washer, 10 mm, narrow.CATPart	43.54K
6	M10_hex nut jam_B18.2.4.5M - Hex jam nut, M10 x 1.5, with 16mm WAF --D-N.CATPart	80.84K
7	M3x5_slotted pan head screws_GB_FASTENER_SCREWS_NCHB M3X5-5-N.CATPart	56.14K
8	M3_lid nut_GB_FASTENER_NUT_LN M3-N.CATPart	90.12K
9	M5x50_hex bolt_B18.2.3.5M - Hex bolt M5 x 0.8 x 50 --16N.CATPart	60.22K
10	M5_flat washer narrow_B18.22M - Plain washer, 5 mm, narrow.CATPart	43.54K
11	M5_hex nut jam_B18.2.4.5M - Hex jam nut, M5 x 0.8 --D-N.CATPart	79.85K
12	M8_flat washer narrow_B18.22M - Plain washer, 8 mm, narrow.CATPart	43.77K
13	M8_hex nut_B18.2.4.1M - Hex nut, Style 1, M8 x 1.25 --D-N.CATPart	80.42K
14	Needle roller bearing_D12_AFBMA 18.1.3.4 - 15NM72 - 16,SI,AC,16.CATPart	76.67K
15	SRCb-42.00.00.000.CATProduct	77.97K
16	SRCb-42.00.00.000_1.JPG	119.51K
17	SRCb-42.00.00.000_1A.JPG	108.49K
18	SRCb-42.00.00.000_2.JPG	109.17K
19	SRCb-42.00.00.000_3.JPG	71.48K
20	SRCb-42.00.00.000_4.JPG	136.66K
21	SRCb-42.00.00.000_A.JPG	236.14K
22	SRCb-42.00.00.000_B.JPG	230.10K
23	SRCb-42.00.00.001.CATPart	149.63K
24	SRCb-42.00.00.002m.CATPart	337.75K
25	SRCb-42.00.00.003.CATPart	183.60K
26	SRCb-42.00.00.004.CATPart	189.68K
27	SRCb-42.00.00.005.CATPart	206.77K
28	SRCb-42.00.00.006.CATPart	255.64K
29	SRCb-42.00.00.007.CATPart	64.00K
30	SRCb-42.00.00.008.CATPart	55.13K
31	SRCb-42.00.00.009.CATPart	57.24K
