壁挂式燃气锅炉的鼓风机（ID:192663）

机械设备 / 通用设备 / 壁挂式燃气锅炉的鼓风机

©非原创

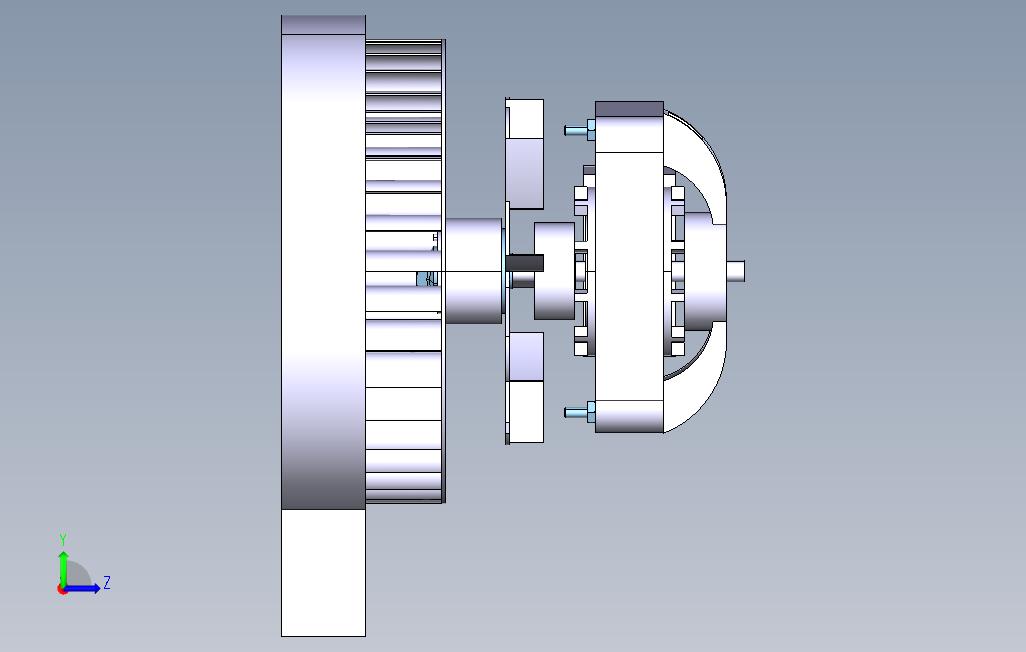

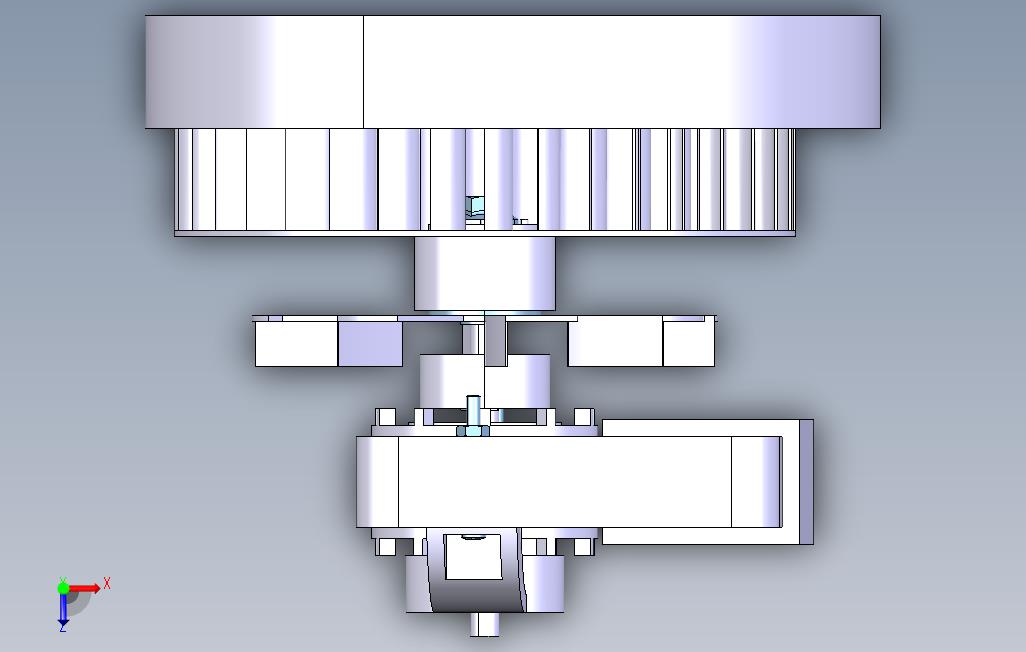

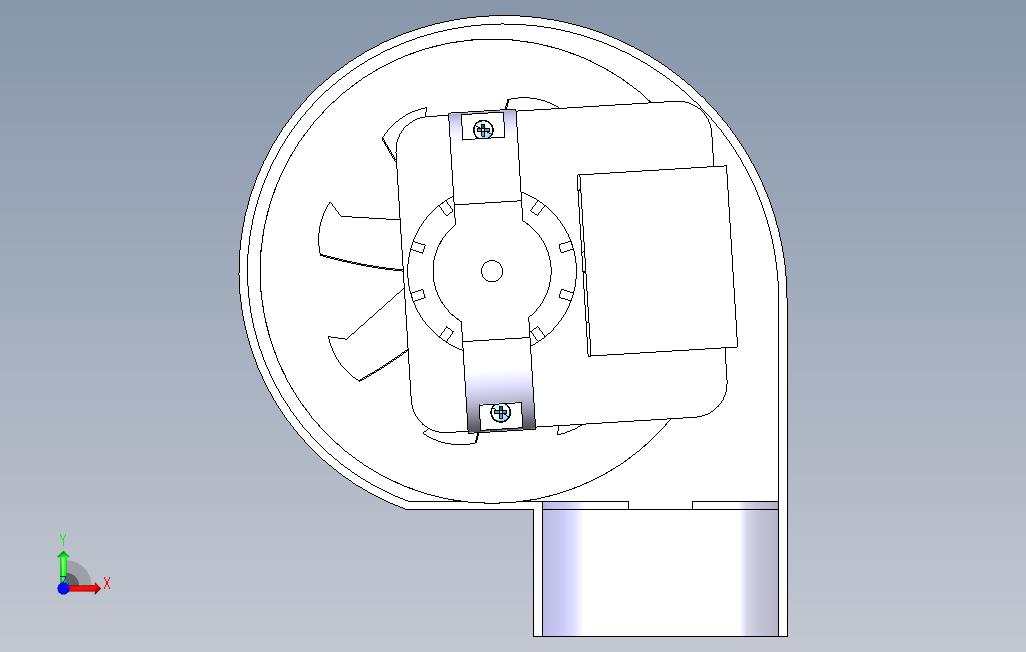

平面图

文件列表

#	文件名称	文件大小
1	ALT KOZA.CATPart	268.42K
2	ANSI_B18_22_5x20_STEEL_PLAIN_WASHER.CATPart	58.16K
3	ANSI_B27_7M_3CM1_5_STEEL_EXTERNAL_RETAINING_E_RING.CATPart	157.72K
4	ARA ELEMAN.CATPart	871.48K
5	ASME_B18_2_4_1M_M2.5_STEEL_HEXAGON_STYLE_1_NUT.CATPart	134.01K
6	ASME_B18_2_4_4M_M5_STEEL_HEXAGON_FLANGED_NUT.CATPart	184.03K
7	ASME_B18_6_7M_M2.5x25_STEEL_COUNTERSUNK_OVAL_HEAD_RECESS_TYPE_1_MC_SCREW.CATPart	166.15K
8	BOBIN.CATPart	445.10K
9	conta 2.CATPart	341.90K
10	conta rulman.CATPart	89.32K
11	demontaj yeni.tif	2.96M
12	IKI AYAKLI.CATPart	151.84K
13	KUCUK FAN.CATPart	533.78K
14	pervane.CATPart	425.79K
15	montaj resmi yeni.tif	2.96M
16	Resim 2.jpg	251.79K
17	Resim.jpg	443.56K
18	重复_rulman.CATPart	67.95K
19	silindir.CATPart	1.33M
20	siyah silindr.CATPart	342.39K
21	YENI MIL.CATPart	80.48K
22	YENI MONTAJ CATIA.CATProduct	141.73K
23	Yeni salyangoz.tif	2.96M
