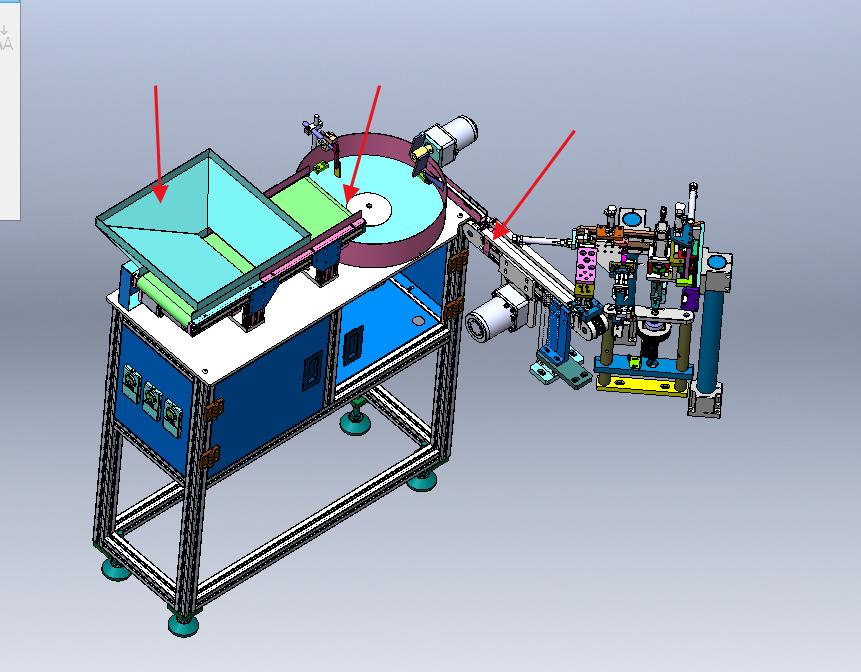

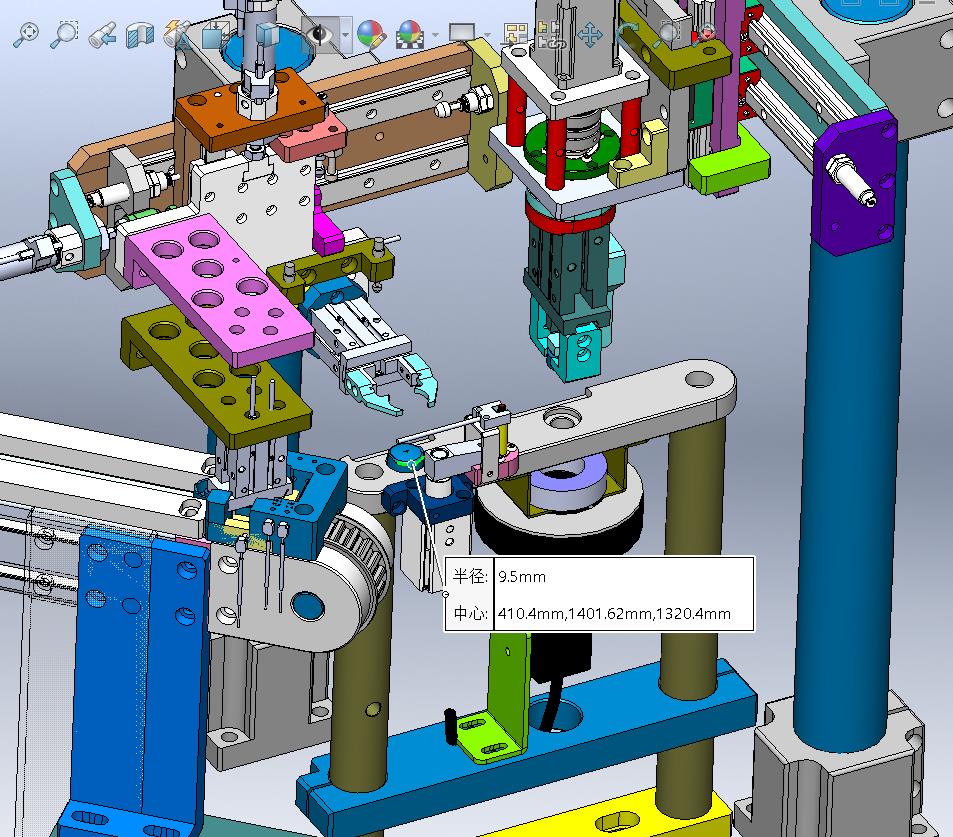

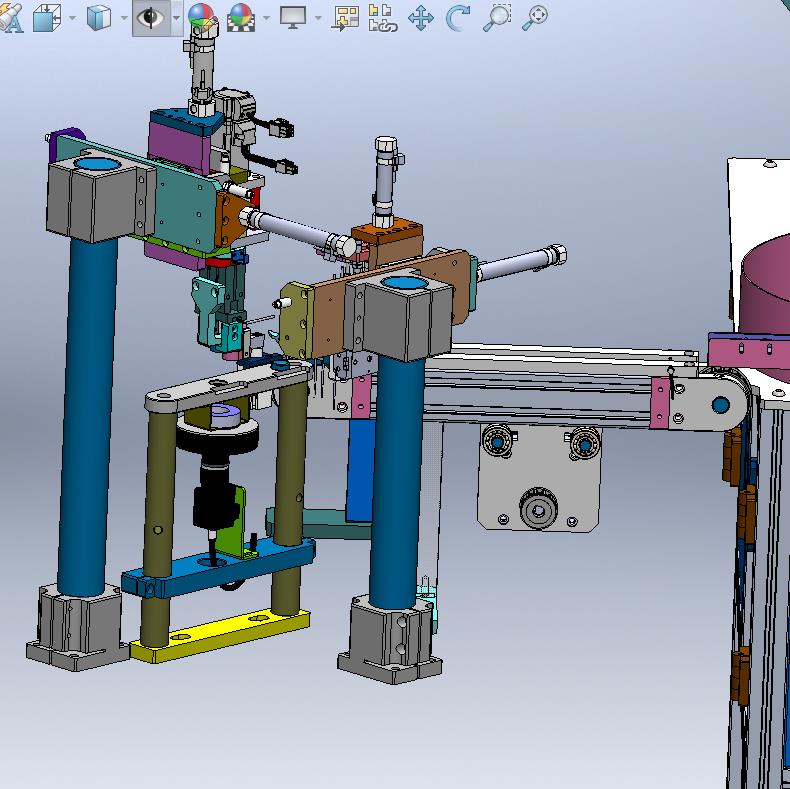

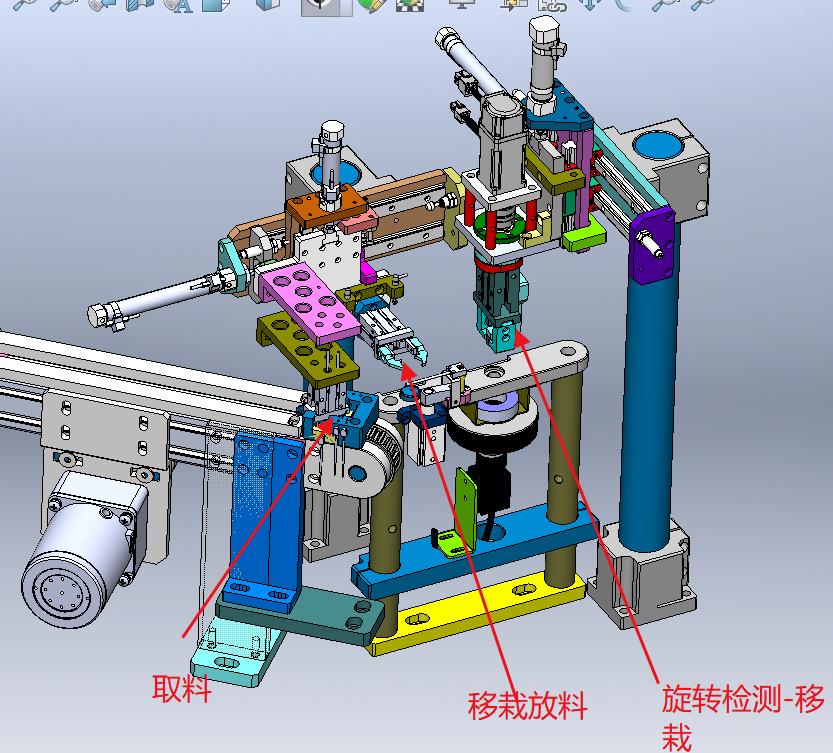

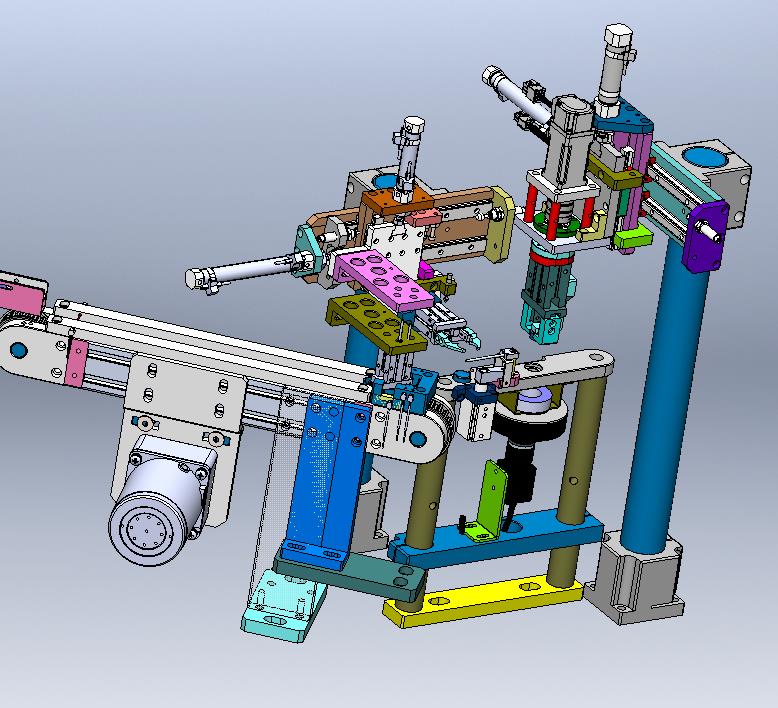

按钮自动上料-移栽-检测-旋转机械手及配套设备（ID:2014857）

机械设备 / 非标机械 / 按钮自动上料-移栽-检测-旋转机械手及配套设备

©原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	003pointfaded.p2s	1.07K
2	00backdrop-studioroom.p2s	1.06K
3	11whitekitchen.p2s	1.08K
4	1744446008947.zip	82.92M
5	3IK15RA-C_AF0^3ik15ra-c_asm2_70TSZJZ.sldprt	23.99K
6	3ik15ra-c_asm2^70TSZJZ.sldasm	34.06K
7	3pointbeige.hdr	5.31M
8	4ik25rgn-c-4gn15kJZ.SLDASM	1.01M
9	4IK25RGN-C-4GN3K-200K_ASM_1_AF0_ASMJZ.sldasm	258.30K
10	4IK25RGN-C_5_AF0JZ.sldprt	57.41K
11	55rooftop.p2s	1.07K
12	5GN3K～200K_1JZ.sldprt	262.01K
13	5GU3KB-200KBJZ.sldprt	299.96K
14	5IK40A-C.stpJZ.sldprt	147.94K
15	5IK40A-C.stp_2JZ.sldprt	73.77K
16	5IK40A-C5GN3K～18K.stpJZ.sldprt	328.17K
17	5IK40A-CJZ.sldasm	34.09K
18	5IK40A-C_2JZ.sldasm	33.96K
19	5IK40GN-C5GN3K-18KJZ.sldasm	939.59K
20	5IK40GN-C5GN3K-200KJZ.sldasm	35.15K
21	5IK40RGN-C5GN40KJZ.SLDASM	1.11M
22	5IK60RA-CFJZ.sldasm	35.08K
23	5IK60RGU-CF5GU50KBJZ.SLDASM	889.79K
24	70TSZJZ.sldasm	32.71K
25	90TSFZJZ.sldprt	310.69K
26	A1430调速器JZ.SLDPRT	1.04M
27	ACA0806-1JZ.SLDASM	125.01K
28	ACA1007-01HZGJZ.SLDPRT	86.42K
29	ACA1007-02HZGJZ.SLDPRT	76.04K
30	ACA1007-03HZGJZ.SLDPRT	76.34K
31	ACA1007-ccHZGJZ.SLDASM	150.88K
32	AOB03-4040E_L1060JZ.sldprt	266.71K
33	AOB03-4040E_L320JZ.sldprt	266.30K
34	AOB03-4040E_L360JZ.sldprt	267.06K
35	AOB03-4040E_L800JZ.sldprt	266.81K
36	ASM0026_ASMJZ.sldasm	986.79K
37	B6003ZZJZ.SLDPRT	163.31K
38	bluehorizon.png	1.23M
39	C-HLKDE12_01JZ.sldprt	89.13K
40	C-HLKDE12_203JZ.SLDASM	182.84K
41	C-HLKDE12_M5-16JZ.sldprt	22.13K
42	cameraJZ.sldprt	362.96K
43	cameralightJZ.sldprt	38.17K
44	circlipsforholes--typeagbJZ.sldprt	143.17K
45	circlipsforshaft--typealargegbJZ.sldprt	159.31K
46	color.p2m	392B
47	CXDQ01-08-02-25爪子B按钮JZ.SLDPRT	147.68K
48	CXDQ02-04-03-05气缸座JZ.SLDPRT	190.50K
49	CXDQ02-04-03-06限位座JZ.SLDPRT	206.59K
50	CXDQ02-04-03-07限位座JZ.SLDPRT	204.00K
51	CXDQ04-03-03-11爪子JZ.SLDPRT	199.73K
52	CXDQ04-03-03-12爪子JZ.SLDPRT	182.29K
53	CXDQ04-03-04-01长靠模JZ.SLDPRT	255.22K
54	CXDQ04-03-06-07回转座JZ.SLDPRT	224.44K
55	CXDQ04-03-06-08气爪座JZ.SLDPRT	220.64K
56	deepgrooveballbearingsgbJZ.sldprt	719.05K
57	DEG11-D29-d8-e10JZ.SLDPRT	310.57K
58	DFL26-C1-11双联JZ.SLDPRT	190.44K
59	DFL26-D1-03双联JZ.SLDPRT	309.53K
60	DFL26-D1-03双联（按钮2）JZ.SLDPRT	278.75K
61	DFL26-D1-06双联JZ.SLDPRT	326.64K
62	EAR15-T10200-12-A-C-d12JZ.SLDPRT	261.80K
63	EAR15-T10200-20-A-Y-d30-Q35-R35-S12-T12JZ.SLDPRT	502.97K
64	EBJ01-S5M100-20-A-N-d12JZ.SLDPRT	301.11K
65	EGH-CA系列直线导轨[EGH四方型15C重负荷A上锁式]HL05-01JZ.sldasm	317.18K
66	EGH-CA系列直线导轨[EGH四方型15C重负荷A上锁式]HL05-01按钮JZ.sldasm	297.34K
67	EGH-CA系列直线导轨[EGH四方型15C重负荷A上锁式]_滑块1HL05-01JZ.sldprt	565.36K
68	EGH-CA系列直线导轨[EGH四方型15C重负荷A上锁式]_滑块1HL05-01按钮JZ.sldprt	492.94K
69	EGH-CA系列直线导轨[EGH四方型15C重负荷A上锁式]_滑轨HL05-01JZ.sldprt	146.11K
70	EGH-CA系列直线导轨[EGH四方型15C重负荷A上锁式]_滑轨HL05-01按钮JZ.sldprt	163.84K
71	F-M6X100FHZGJZ.SLDPRT	183.59K
72	ft-r31JZ.SLDPRT	77.16K
73	GCY08-D12-H15JZ.SLDASM	166.34K
74	GCY08-D12-H15_001JZ.sldprt	176.34K
75	hexagonsocketbuttonheadscrewsgbJZ.sldprt	166.81K
76	hexagonsocketheadcapscrewsgbJZ.sldprt	382.12K
77	hexnutsstyle1-gradesabgbJZ.sldprt	201.76K
78	HFC01-50JZ.SLDASM	232.88K
79	HFZ16_CL__DMSH-2_JZ.SLDASM	235.20K
80	HFZ20_CL___JZ.SLDASM	220.79K
81	HLCY02-02-00-03电箱板提升JZ.SLDPRT	171.34K
82	HLCY12-02-00-01上料输送带安装板ANNIUJZ.SLDPRT	190.25K
83	HLCY12-02-00-02型材AOB02-H2060ANNIUJZ.sldprt	208.29K
84	HLCY12-02-00-03型材ANNIUJZ.SLDPRT	320.84K
85	HLCY12-02-00-04支脚连接板AANNIUJZ.SLDPRT	145.77K
86	HLCY12-02-00-06电机安装板ANNIUJZ.SLDPRT	226.41K
87	HLCY12-02-00-07主动轮安装座ANNIUJZ.SLDPRT	151.20K
88	HLCY12-02-00-08主动轴ANNIUJZ.SLDPRT	184.24K
89	HLCY12-02-00-09同步轮罩ANNIUJZ.sldprt	210.08K
90	HLCY12-02-00-10同步轮EBJ01-S5M100-20-A-N-d10ANNIUJZ.SLDPRT	415.40K
91	HLCY12-02-00-13挡板AANNIUJZ.SLDPRT	147.15K
92	HLCY12-02-00-17拉带托板ANNIUJZ.SLDPRT	138.76K
93	HLCY12-02-00-18加强板ANNIUJZ.SLDPRT	117.67K
94	HLCY12-02-00-20张紧调节座ANNIUJZ.SLDPRT	92.27K
95	HLCY12-02-00-21从动轮轴ANNIUJZ.SLDPRT	158.83K
96	HLCY12-02-00-22从动滚筒ANNIUJZ.SLDPRT	190.07K
97	HRQ3_DMSH-2_JZ.SLDASM	363.34K
98	J-WJG11-0604-001JZ.sldprt	33.07K
99	J-WJG11-0604-002JZ.sldprt	45.86K
100	J-WJG11-0604-003JZ.sldprt	46.05K
101	J-WJG11-0604JZ.SLDASM	159.72K
102	kitchen.hdr	6.07M
103	L17100-A05-P05JZ.SLDPRT	200.67K
104	L17100-A05-P07JZ.SLDPRT	166.36K
105	L17100-A05-P08JZ.SLDPRT	258.92K
106	L17100-A05-P12JZ.SLDPRT	230.63K
107	L17100-A05-P13JZ.SLDPRT	243.22K
108	L17100-A05-P14JZ.SLDPRT	366.12K
109	M3_1JZ.sldprt	81.72K
110	M3_3JZ.sldprt	48.47K
111	M3_4JZ.sldprt	40.39K
112	M4弯头激光对射光电开关传感器BJTL04JZ.SLDPRT	96.84K
113	MGN12H-90-01HZGJZ.SLDPRT	199.02K
114	MGN12H-90-02HZGJZ.SLDPRT	209.06K
115	MGN12H-90HZGJZ.SLDASM	165.40K
116	MGN15-160-01HZGJZ.SLDPRT	215.46K
117	MGN15-160-02HZGJZ.SLDPRT	231.78K
118	MGN15-160HZGJZ.SLDASM	152.79K
119	MI16x100SU_0__DMSG-N-2_按钮JZ.SLDASM	191.89K
120	MI16x40SU_0__DMSG-N-2_按钮JZ.SLDASM	217.45K
121	MI20x40SU_0__DMSG-2_JZ.SLDASM	223.57K
122	MSMF012L1U2MJZ.SLDASM	418.79K
123	parallelpinshardeningsteelgbJZ.sldprt	167.43K
124	plainwashers-lseries-gradesacgbJZ.sldprt	108.32K
125	pm-u25_stepJZ.SLDPRT	105.62K
126	pm-y65JZ.SLDPRT	266.86K
127	polishedsteel.p2m	658B
128	PRT0099^3ik15ra-c_asm2_70TSZJZ.sldprt	41.18K
129	PRT0101^3ik15ra-c_asm2_70TSZJZ.sldprt	40.88K
130	PRT0123JZ.sldprt	50.05K
131	PRT0124JZ.sldprt	51.27K
132	PRT0125JZ.sldprt	50.78K
133	PRT0126JZ.sldprt	50.55K
134	PRT0127JZ.sldprt	50.33K
135	PRT0128JZ.sldprt	55.50K
136	PRT0129JZ.sldprt	49.56K
137	PRT0130JZ.sldprt	49.45K
138	PRT0131JZ.sldprt	42.15K
139	QCKL16x10S_07DMSG2_JZ.SLDASM	173.66K
140	RDM01-03-04-15支撑光轴JZ.SLDPRT	222.56K
141	RDM01-03-04-16主轴转接块JZ.SLDPRT	233.53K
142	RDM01-03-04-18离心机轴承座JZ.SLDPRT	217.88K
143	reflectiveshadowfloor.p2m	203B
144	rooftopsunrise.png	457.95K
145	satinfinishstainlesssteel.p2m	665B
146	shadowfloor.p2m	201B
147	sky.hdr	5.09M
148	softbox.png	69.18K
149	studioroom.hdr	2.82M
150	TAC21-M6-L13_GCY12JZ.sldprt	21.64K
151	TBH84-d6-L10-M4轴肩螺钉JZ.SLDPRT	116.36K
152	WAD21-D80-M16-L100JZ.SLDASM	179.10K
153	XAD05-A120门扣JZ.SLDPRT	152.78K
154	yjp26-30-39HZGJZ.SLDPRT	148.96K
155	yjp26-30-47ANNIUJZ.SLDPRT	283.18K
156	yjp26-30-48ANNIUJZ.SLDPRT	205.70K
157	yjp26-30-48HZGJZ.SLDPRT	220.76K
158	yjp26-30-49ANNIUJZ.SLDPRT	329.13K
159	yjp26-30-50ANNIUJZ.SLDPRT	263.91K
160	yjp26-30-50HZGJZ.SLDPRT	306.15K
161	YWLH-D4-L25JZ.SLDPRT	204.46K
162	ZCD01-D50JZ.SLDPRT	212.13K
163	ZCD11-D50JZ.SLDPRT	190.43K
164	ZJJZ.SLDPRT	1.71M
165	ZJ上料皮带线转接板JZ.SLDPRT	182.63K
166	ZJ离心机地脚安装板JZ.SLDPRT	152.42K
167	ZJ离心机拨料电机座JZ.SLDPRT	172.53K
168	ZJ离心机检测光轴JZ.SLDPRT	164.38K
169	ZJ离心机检测立轴JZ.SLDPRT	98.85K
170	ZJ进料皮带线端部限位块（前后端识别）JZ.SLDPRT	459.26K
171	_ACA-0806-1_BodyJZ.sldprt	51.60K
172	_ACA-0806-1_NTJZ.sldprt	41.56K
173	_CableBrakeTop02_CE01_MSMFJZ.sldprt	22.28K
174	_CableBrakeTop02_CE02_MSMFJZ.sldprt	28.43K
175	_CableMotorBottom02_CM2_MSMFJZ.sldprt	34.23K
176	_CableMotorTop02_MSMFJZ.sldprt	19.72K
177	_CS1-M-S16_2按钮JZ.sldprt	58.18K
178	_CS1-M-S16_3按钮JZ.sldprt	58.88K
179	_CS1-M-S20JZ.sldprt	37.73K
180	_DMSG_GN_11JZ.sldprt	29.11K
181	_DS1-HJZ.sldprt	43.35K
182	_DS1-H_2JZ.sldprt	44.18K
183	_HFC01-50-001JZ.sldprt	30.83K
184	_HFC01-50-002JZ.sldprt	37.00K
185	_HFZ16CL_bodyJZ.sldprt	111.47K
186	_HFZ16CL_flJZ.sldprt	44.61K
187	_HFZ16CL_frJZ.sldprt	44.96K
188	_HFZ20CL_bodyJZ.sldprt	78.01K
189	_HFZ20CL_flJZ.sldprt	41.33K
190	_HFZ20CL_frJZ.sldprt	40.84K
191	_HRQ3_bodyJZ.sldprt	201.36K
192	_HRQ3_tableJZ.sldprt	69.61K
193	_MHMFConnector9Pin_A6JZ.sldprt	75.78K
194	_MI16-M16x1.5-Nut_2按钮JZ.sldprt	43.55K
195	_MI16-M16x1.5-Nut_3按钮JZ.sldprt	46.89K
196	_MI16-M6x1-Nut_2按钮JZ.sldprt	45.25K
197	_MI16-M6x1-Nut_3按钮JZ.sldprt	50.73K
198	_MI16x100-S-U_c按钮JZ.sldprt	59.53K
199	_MI16x100-S-U_r按钮JZ.sldprt	37.71K
200	_MI16x40-S-U_c按钮JZ.sldprt	59.74K
201	_MI16x40-S-U_r按钮JZ.sldprt	39.58K
202	_MI20-M22x1.5-NutJZ.sldprt	24.88K
203	_MI20-M8x1.25-NutJZ.sldprt	26.81K
204	_MI20x40-S-U_cJZ.sldprt	34.74K
205	_MI20x40-S-U_rJZ.sldprt	21.96K
206	_MotorConnector_2JZ.sldprt	118.78K
207	_MSMF01NoWithkey_bJZ.sldprt	118.01K
208	_QCKL16x10-S07_rJZ.sldprt	126.85K
209	_QCKL16x10-S0_bJZ.sldprt	70.20K
210	_WAD21-D80-M16-L100-001JZ.sldprt	47.51K
211	_WAD21-D80-M16-L100-002JZ.sldprt	45.07K
212	上料输送机ANNIUJZ.SLDASM	2.47M
213	上料输送线挡板JZ.SLDPRT	135.86K
214	上料输送线组件JZ.SLDASM	2.18M
215	同步皮带线张紧轴JZ.SLDPRT	156.52K
216	按钮伺服电机底座JZ.SLDPRT	265.96K
217	按钮双联搬运JZ.SLDASM	1.41M
218	按钮双联搬运导轨座JZ.SLDPRT	291.58K
219	按钮插入上下限位块JZ.SLDPRT	162.68K
220	按钮插入上下限位块座JZ.SLDPRT	150.36K
221	按钮插入伺服电机光轴JZ.SLDPRT	251.33K
222	按钮插入伺服电机座JZ.SLDPRT	194.94K
223	按钮插入加强块JZ.SLDPRT	159.10K
224	按钮插入感应片JZ.SLDPRT	204.32K
225	按钮插入旋转轴JZ.SLDPRT	177.54K
226	按钮插入横移气缸座JZ.SLDPRT	184.56K
227	按钮插入横移限位座BJZ.SLDPRT	213.46K
228	按钮插入横移限位座JZ.SLDPRT	201.40K
229	按钮插入气爪座JZ.SLDPRT	216.13K
230	按钮插入轴套JZ.SLDPRT	198.66K
231	按钮插入轴隔套JZ.SLDPRT	177.64K
232	按钮搬运下限位块JZ.SLDPRT	195.39K
233	按钮搬运下限位块座JZ.SLDPRT	156.09K
234	按钮搬运插入组件JZ.SLDASM	2.19M
235	按钮搬运旋转限位块JZ.SLDPRT	177.70K
236	按钮搬运翻转靠模组件JZ.SLDASM	844.76K
237	按钮正反检测光电支架JZ.SLDPRT	213.76K
238	按钮正反检测夹紧气缸座JZ.SLDPRT	218.02K
239	按钮正反检测探针座JZ.SLDPRT	135.55K
240	按钮皮带线料斗JZ.SLDPRT	219.05K
241	按钮皮带线端部限位块JZ.SLDPRT	244.39K
242	按钮相机光源支架JZ.SLDPRT	199.17K
243	按钮相机固定座JZ.SLDPRT	237.18K
244	按钮相机支架JZ.SLDPRT	189.19K
245	按钮离心上料机组件JZ.SLDASM	5.26M
246	按钮离心机主轴JZ.SLDPRT	183.04K
247	按钮离心机围筒JZ.SLDPRT	211.11K
248	按钮离心机围筒固定块JZ.SLDPRT	198.06K
249	按钮离心机围筒调节板AJZ.SLDPRT	114.71K
250	按钮离心机围筒调节板BJZ.SLDPRT	112.25K
251	按钮离心机大板JZ.SLDPRT	277.94K
252	按钮离心机拨料电机轴JZ.SLDPRT	199.99K
253	按钮离心机机架JZ.SLDASM	691.26K
254	按钮离心机架侧板AJZ.SLDPRT	239.78K
255	按钮离心机架侧板BJZ.SLDPRT	234.13K
256	按钮离心机架侧板CJZ.SLDPRT	260.58K
257	按钮离心机架钣金门JZ.SLDPRT	269.86K
258	按钮离心机离心盘JZ.SLDPRT	172.43K
259	按钮离心机防堵拨片JZ.SLDPRT	141.05K
260	按钮离心电机安装板JZ.SLDPRT	179.19K
261	按钮翻转搬运靠模底座JZ.SLDPRT	184.39K
262	按钮自动上料-移栽-检测-旋转机械手及配套设备JZ.SLDASM	8.16M
263	按钮输送线底板JZ.SLDPRT	207.75K
264	按钮输送线支撑板JZ.SLDPRT	123.85K
265	按钮靠模支撑光轴JZ.SLDPRT	200.84K
266	探针JZ.SLDPRT	74.64K
267	接近开关SN04-N2JZ.SLDPRT	308.06K
268	有字按钮JZ.SLDPRT	266.26K
269	检测杆连接片JZ.SLDPRT	141.66K
270	正反检测夹紧气缸摆臂JZ.SLDPRT	285.84K
271	环形光源R50-26-13JZ.SLDPRT	151.09K
272	眼镜片压平块按钮JZ.SLDPRT	150.24K
273	离心机检测杆JZ.SLDPRT	150.56K
274	离心机缺料检测组件JZ.SLDASM	271.34K
275	离心盘锥度块JZ.SLDPRT	127.74K
276	镜向按钮离心机围筒JZ.SLDPRT	90.38K
277	镜头光源JZ.SLDASM	369.05K
