龙门式XYZ三轴运动模组--962613--150（ID:2043298）

机械设备 / 非标机械 / 龙门式XYZ三轴运动模组--962613--150

©非原创

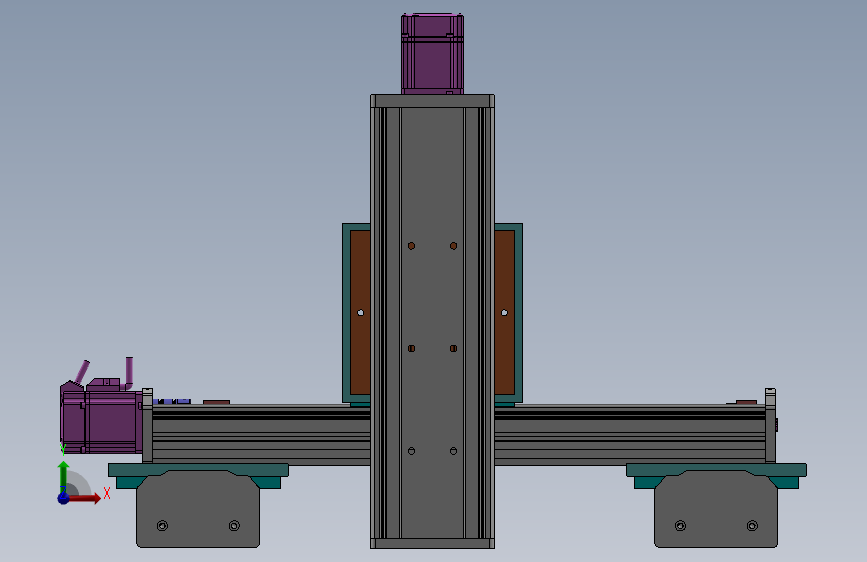

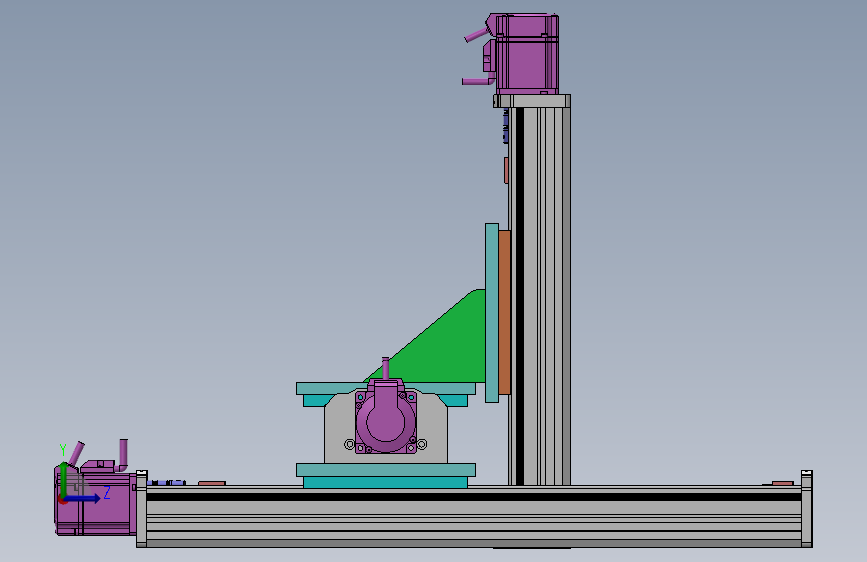

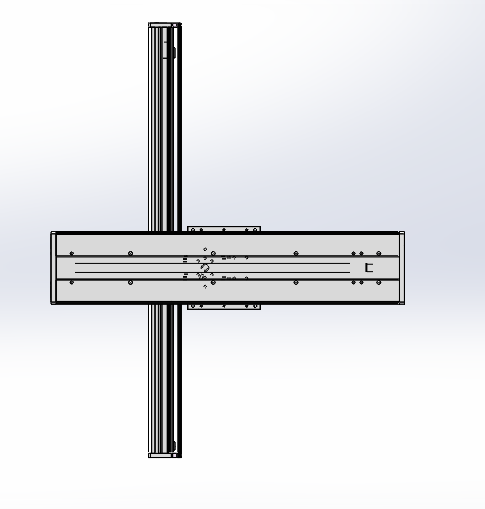

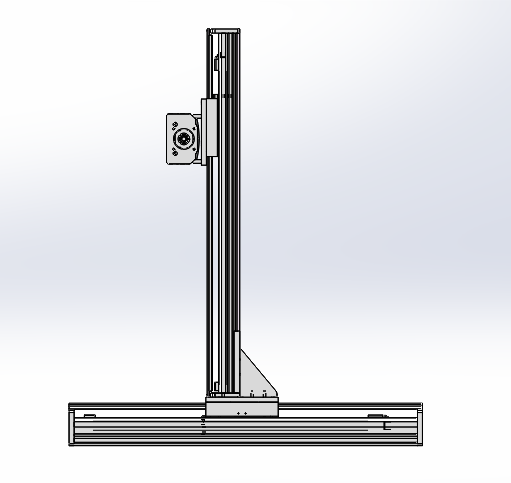

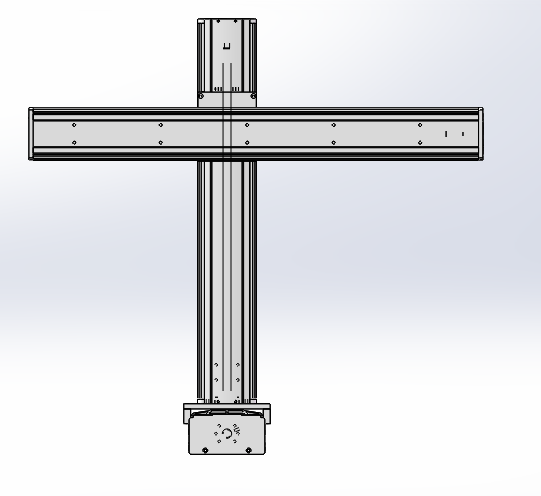

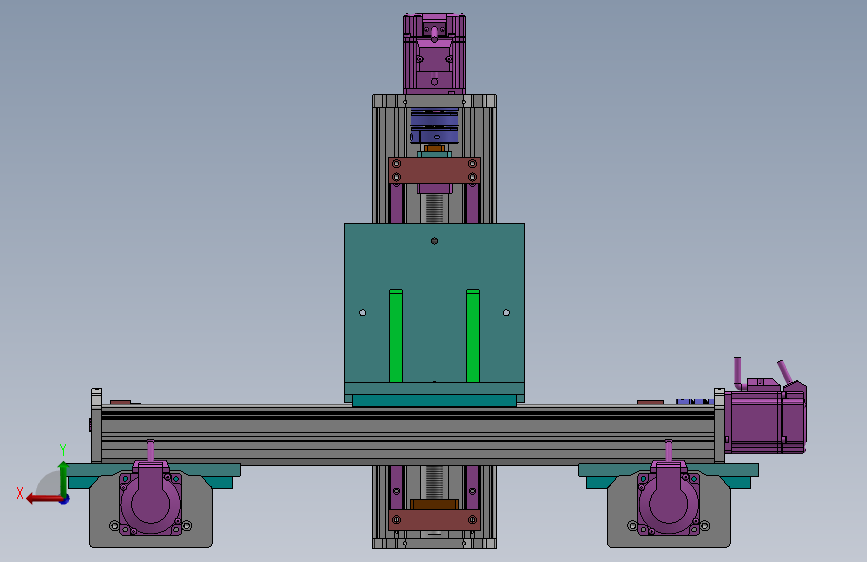

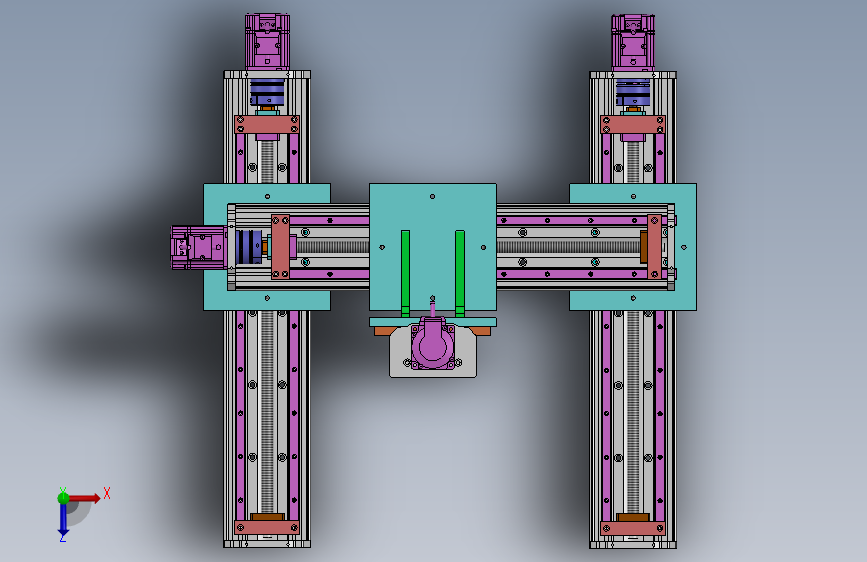

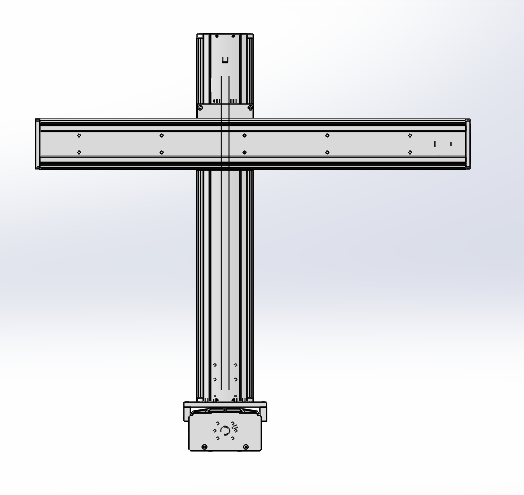

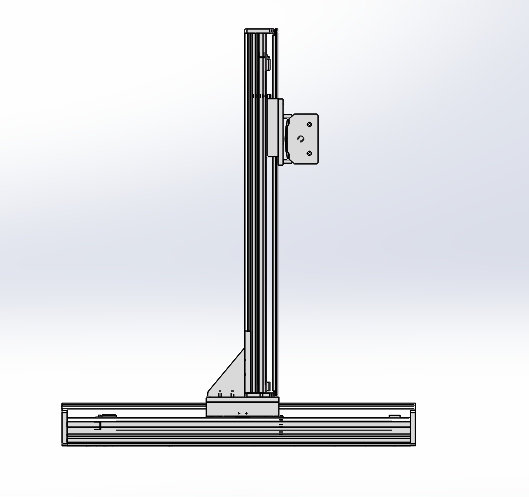

平面图

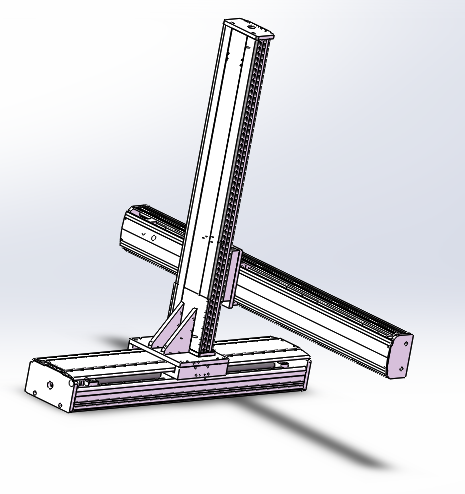

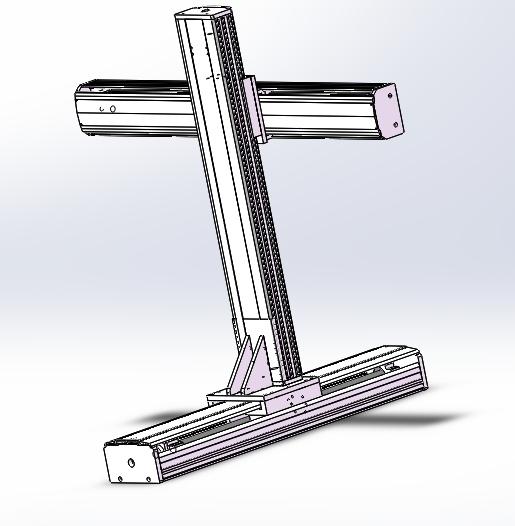

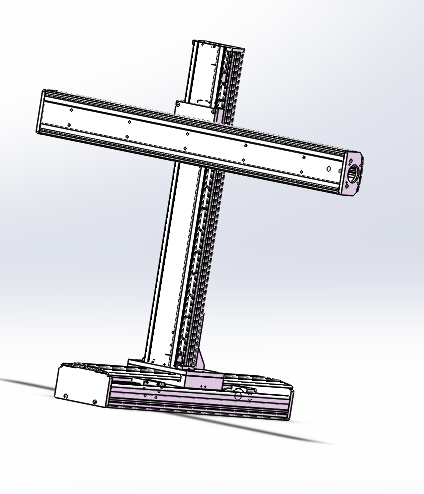

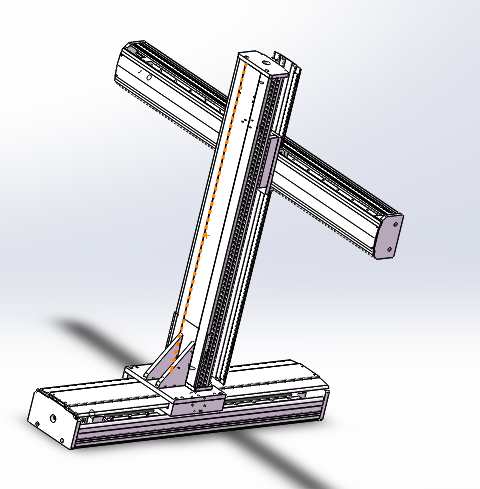

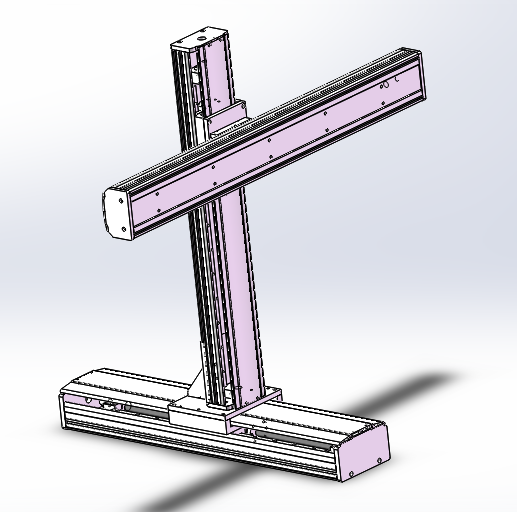

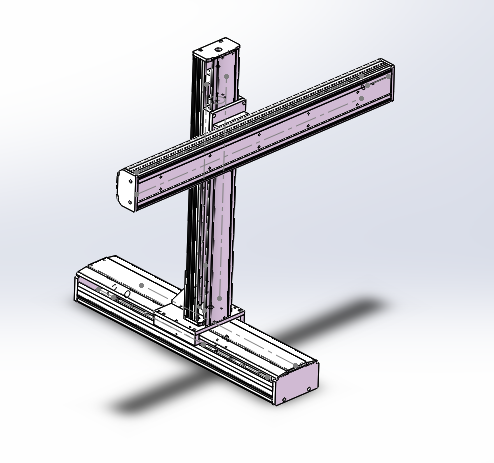

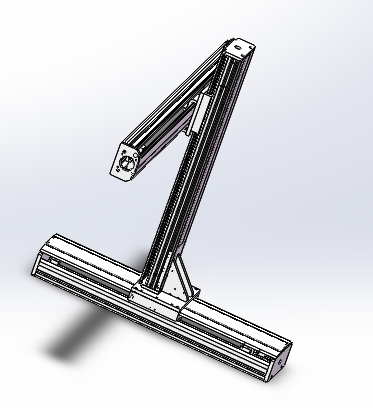

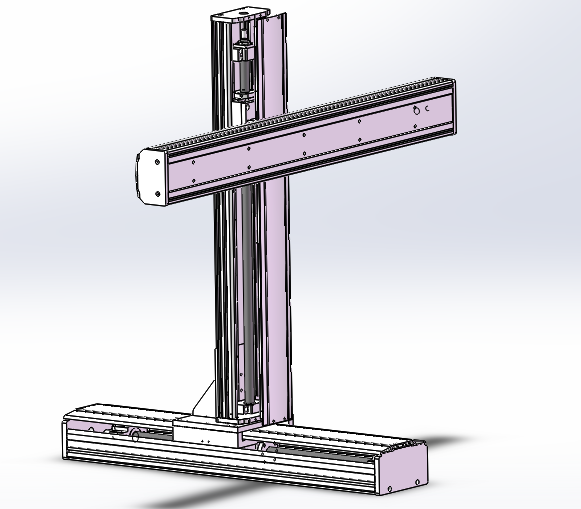

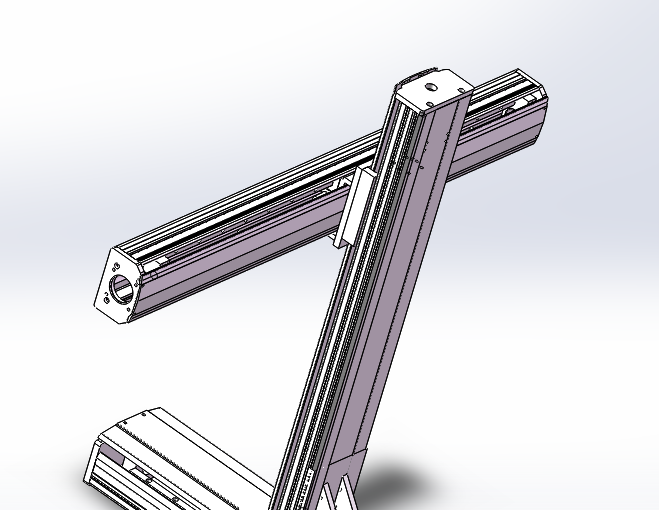

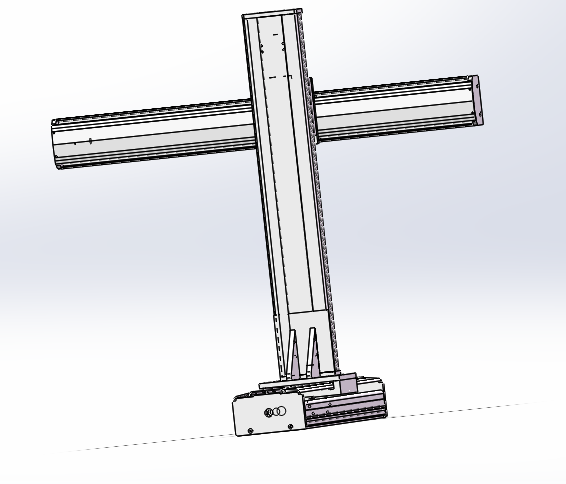

3D视图

文件列表

#	文件名称	文件大小
1	17449896044238.rar	18.81M
2	XYZ三维模组.SLDASM	6B
3	XY轴装配.SLDASM	6B
4	XZ轴连接座.DWG	107.97K
5	丝杆支撑座-支撑端.SLDASM	91.50K
6	丝杠支撑座-固定.SLDASM	116.13K
7	松下-400W伺服电机.SLDPRT	5.59M
8	松下400W伺服电机.sldprt	356.07K
9	滑道.DWG	100.00K
10	电机配联轴器.SLDASM	311.82K
11	联轴器.SLDPRT	1009.03K
12	龙门式xyz三轴.dwg	704.25K
13	龙门式xyz三轴.SLDASM	1017.66K
14	龙门式xyz三轴.SLDDRW	358.16K
15	XEGH15CA滑块120.SLDPRT	107.41K
16	XKH120-1050-795-01.SLDPRT	574.98K
17	XKH120-1050-795-02.SLDPRT	96.81K
18	XKH120-1050-795-05.SLDPRT	118.44K
19	XKH120-1050-795-06.SLDPRT	98.08K
20	XKH120-1050-795-07.SLDPRT	161.99K
21	XKH120-1050-795-09.SLDPRT	104.22K
22	XKH120-1050-795-10.SLDPRT	109.41K
23	X丝杠套筒.SLDPRT	91.65K
24	X轴带底板连接.SLDASM	595.18K
25	X轴方向.SLDASM	667.71K
26	X连接件01.SLDPRT	112.43K
27	底座连接件.SLDPRT	95.07K
28	EGH15CA滑块120.SLDPRT	108.11K
29	KH120-1050-795-01.SLDPRT	544.38K
30	KH120-1050-795-02.SLDPRT	98.78K
31	KH120-1050-795-05.SLDPRT	120.77K
32	KH120-1050-795-06.SLDPRT	97.60K
33	KH120-1050-795-07.SLDPRT	159.64K
34	KH120-1050-795-09.SLDPRT	103.39K
35	KH120-1050-795-10.SLDPRT	109.02K
36	Y轴方向.SLDASM	668.54K
37	丝杠套筒.SLDPRT	92.52K
38	连接件01.SLDPRT	112.69K
39	SZBKH120KH136KH175-05.SLDPRT	112.34K
40	XEGH15CA滑块120Z.SLDPRT	108.54K
41	XKH120-1050-795-01Z.SLDPRT	440.67K
42	XKH120-1050-795-02Z.SLDPRT	92.00K
43	XKH120-1050-795-05Z.SLDPRT	116.26K
44	XKH120-1050-795-06Z.SLDPRT	97.67K
45	XKH120-1050-795-07Z.SLDPRT	160.15K
46	XKH120-1050-795-09Z.SLDPRT	103.59K
47	XKH120-1050-795-10Z.SLDPRT	109.09K
48	X丝杠套筒Z.SLDPRT	91.26K
49	X连接件01Z.SLDPRT	113.54K
50	Z轴带连接件.SLDASM	323.42K
51	Z轴方向.SLDASM	665.14K
52	底板1.SLDPRT	80.06K
53	肋板连接件.SLDPRT	94.10K
54	肋板连接件2.SLDPRT	93.85K
55	12damper.sldprt	66.21K
56	brwd12cover.sldprt	75.62K
57	BRWZ12bearing.sldprt	53.57K
58	BRWZ12nut.sldprt	95.39K
59	BRWZ12spacer.sldprt	54.09K
60	BSWD12.sldasm	101.47K
61	BSWD12housing.sldprt	79.54K
62	bearingB6000ZZ.sldprt	121.09K
63	BUND12.sldasm	112.54K
64	bund12damper.sldprt	66.29K
65	bundBUND12housing.sldprt	72.46K
66	STWN10.sldprt	88.82K
67	QQ截图20170316102014.png	95.34K
68	QQ截图20170316102034.png	70.20K
69	QQ截图20170316102049.png	28.37K
70	QQ截图20170316102101.png	25.43K
71	QQ截图20170316102113.png	29.08K
72	QQ截图20170316102123.png	24.81K
73	QQ截图20170316102150.png	139.88K
74	QQ截图20170316102201.png	104.32K
75	QQ截图20170316102208.png	113.27K
76	QQ截图20170316102224.png	26.51K
77	QQ截图20170316102234.png	70.67K
78	QQ截图20170316102247.png	76.44K
79	QQ截图20170316102306.png	99.87K
80	QQ截图20170316102317.png	110.19K
81	QQ截图20170316102452.png	95.74K
