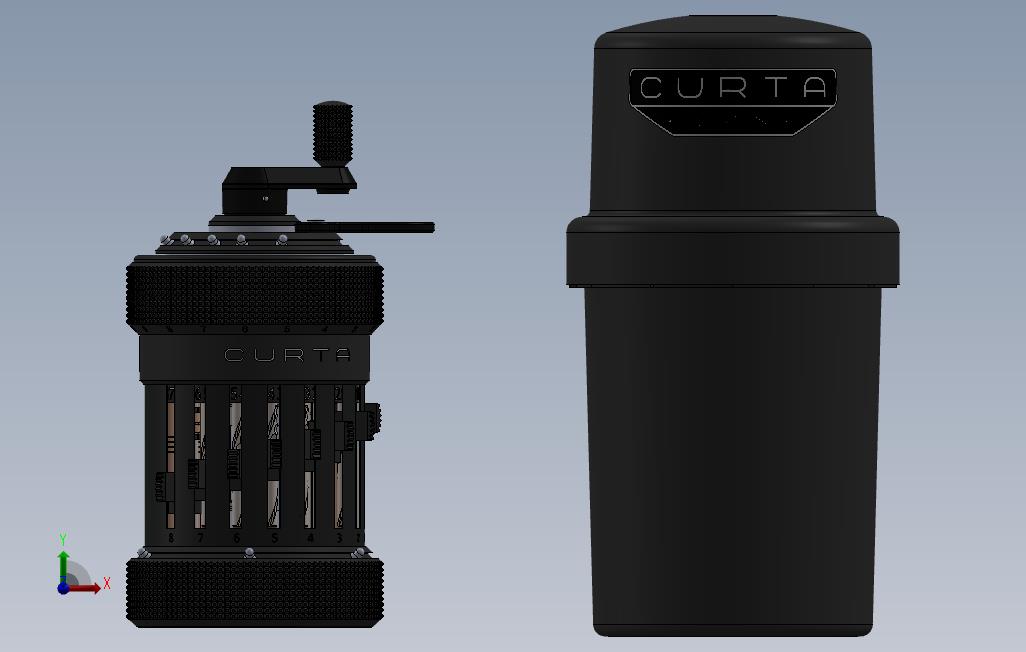

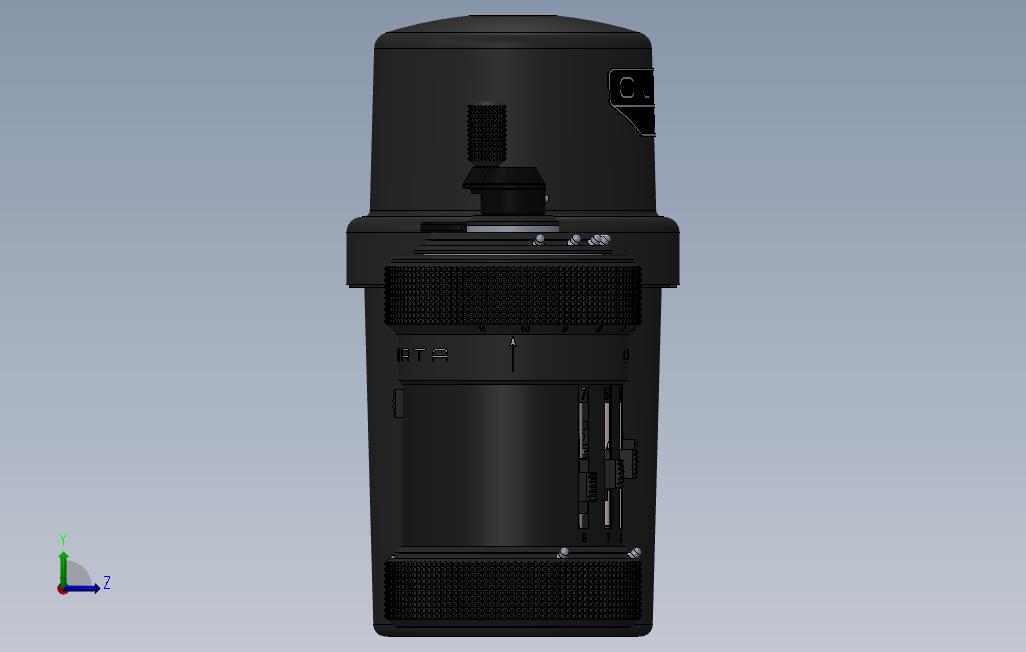

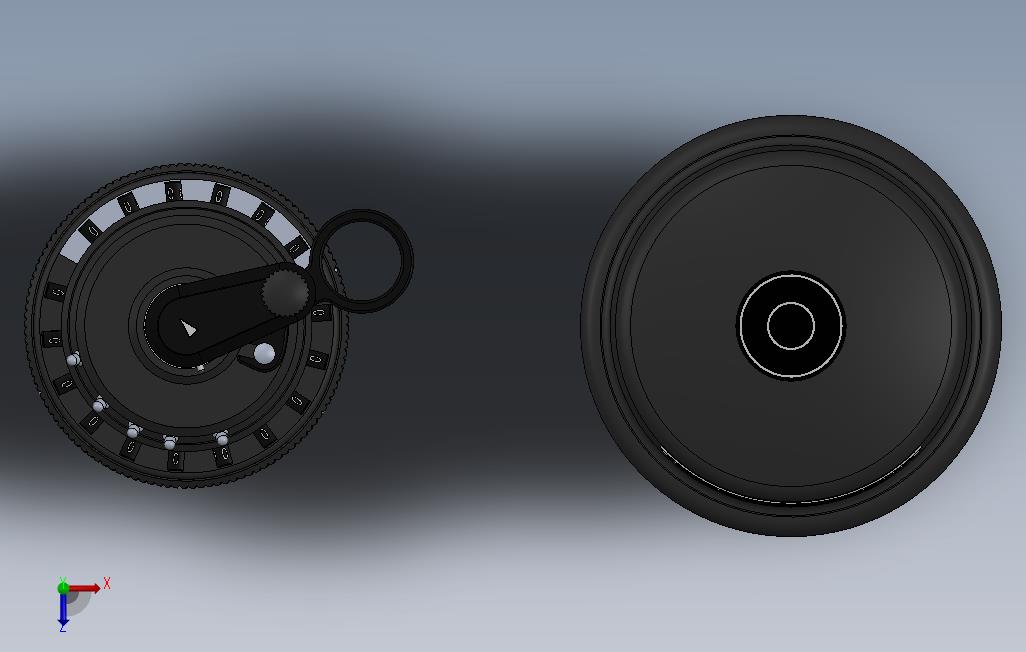

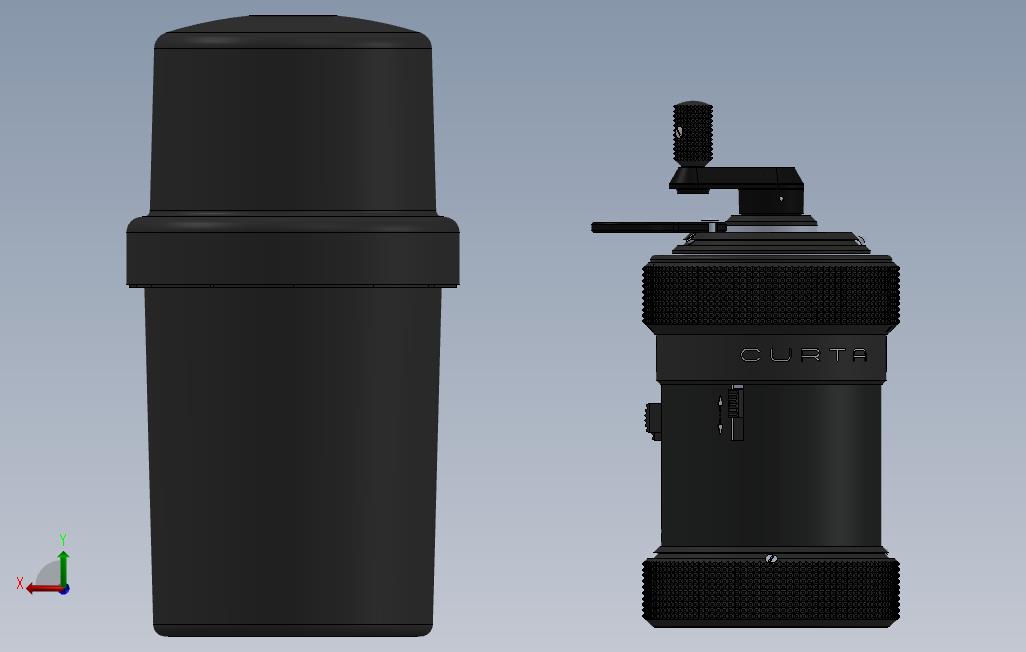

类型1型计算器CA1930（ID:204703）
4.jpg)
0.jpg)
2.jpg)
1.jpg)
3.jpg)
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 10.001 Step Drum.SLDPRT | 306.57K |
| 2 | 10.002 Upper Main Housing.SLDPRT | 1.70M |
| 3 | 10.003 Main Shaft.SLDPRT | 78.87K |
| 4 | 10.004 Spider Spring.SLDPRT | 126.18K |
| 5 | 10.005 Tens Carry Lever Result Side.SLDPRT | 145.92K |
| 6 | 10.005b Tens Carry Block Result Side assy.SLDASM | 176.43K |
| 7 | 10.006 Tens Carry Lever Units Side.SLDPRT | 160.54K |
| 8 | 10.006b Tens Carry Block Units Side assy.SLDASM | 177.79K |
| 9 | 10.007 Tens Carry Lever Spring.SLDPRT | 211.17K |
| 10 | 10.008 Numeral Dial Axle.SLDPRT | 97.78K |
| 11 | 10.009 Tens Bell Body.SLDPRT | 216.37K |
| 12 | 10.010 Step Drum Positioning Tongue.SLDPRT | 69.69K |
| 13 | 10.011 Upper Main Casting.SLDPRT | 511.46K |
| 14 | 10.012 Crank Handle.SLDPRT | 973.70K |
| 15 | 10.014a Trasmision Shaft 1.SLDPRT | 55.83K |
| 16 | 10.014b Trasmision Shaft 2.SLDPRT | 70.04K |
| 17 | 10.014c Trasmision Shaft 3.SLDPRT | 71.84K |
| 18 | 10.014d Trasmision Shaft 4.SLDPRT | 65.74K |
| 19 | 10.015 Retaining Screw for 10.010 (M1.7-0.35 x 5.8 x 3.8).SLDPRT | 132.38K |
| 20 | 10.016 Counter Lock Plunger.SLDPRT | 78.20K |
| 21 | 10.018 Ten Carry Lever Bearing Block.SLDPRT | 101.81K |
| 22 | 10.019 Numeral Dial Pin (round).SLDPRT | 44.06K |
| 23 | 10.019 Speed Roll Pin.SLDPRT | 45.20K |
| 24 | 10.020 Guiding Sleeve.SLDPRT | 87.41K |
| 25 | 10.021 Numeral Dial Pin.SLDPRT | 53.55K |
| 26 | 10.022 Crank Bolt.SLDPRT | 73.77K |
| 27 | 10.023 Reversing Lever Spring (3.5-500gr Kd=4500 Kg.cm2).SLDPRT | 409.73K |
| 28 | 10.024 Eraser Fixer Pin.SLDPRT | 75.42K |
| 29 | 10.025 Main Bearing Sleeve.SLDPRT | 437.37K |
| 30 | 10.026 Carriage Holding Nut.SLDPRT | 291.36K |
| 31 | 10.027 Carriage Locating Pin.SLDPRT | 76.76K |
| 32 | 10.028 Baseplate.SLDPRT | 77.13K |
| 33 | 10.029 Numeral Roll.SLDPRT | 639.01K |
| 34 | 10.030 Clearing Plate.SLDPRT | 207.06K |
| 35 | 10.031 Tens Bell Shim.SLDPRT | 64.02K |
| 36 | 10.032 Guiding Sleeve.SLDPRT | 88.66K |
| 37 | 10.033 Flat Spring.SLDPRT | 113.66K |
| 38 | 10.034 Clearing Lever New (plastic).SLDPRT | 203.97K |
| 39 | 10.034 Clearing Lever.SLDPRT | 192.77K |
| 40 | 10.035 Spring Sleeve.SLDPRT | 85.00K |
| 41 | 10.036 CirClip.SLDPRT | 77.20K |
| 42 | 10.038 Trasmissing Gear 1.SLDPRT | 88.45K |
| 43 | 10.039 Triggering Stud.SLDPRT | 120.80K |
| 44 | 10.040 Carriage Casting (new).SLDPRT | 346.16K |
| 45 | 10.041 Pressure Sleeve.SLDPRT | 74.74K |
| 46 | 10.042 Compensation Sleeve.SLDPRT | 67.58K |
| 47 | 10.043 Numeral Dial 1.SLDPRT | 872.71K |
| 48 | 10.045 Numeral Dial 2.SLDPRT | 841.43K |
| 49 | 10.046 Decimal Marker.SLDPRT | 80.11K |
| 50 | 10.047 Decimal Marker Spring (Kd=45 Kg.mm2).SLDPRT | 447.32K |
| 51 | 10.048 Cylindrical Screw (M1.7-0.35 x 2.6).SLDPRT | 70.78K |
| 52 | 10.049 Locking Gear.SLDPRT | 87.46K |
| 53 | 10.050 Carriage Pressure Spring (6.3-320gr Kd=4600 Kg.cm2).SLDPRT | 452.98K |
| 54 | 10.051 Compensation Sleeve.SLDPRT | 60.51K |
| 55 | 10.052 Five Toothed Gear.SLDPRT | 201.45K |
| 56 | 10.053 Tens Carry Gear 2.SLDPRT | 88.46K |
| 57 | 10.054 Pressure Sleeve.SLDPRT | 79.81K |
| 58 | 10.055 Guiding Sleeve.SLDPRT | 88.81K |
| 59 | 10.056 Guiding Sleeve.SLDPRT | 90.87K |
| 60 | 10.057 Setting Knob.SLDPRT | 173.91K |
| 61 | 10.058 Locking Spring.SLDPRT | 1.41M |
| 62 | 10.059 Shouldered Screw (M1.7-0.30 x 4.85 x 2).SLDPRT | 98.46K |
| 63 | 10.061 Setting Shaft.SLDPRT | 232.20K |
| 64 | 10.062 Base Ring.SLDPRT | 2.78M |
| 65 | 10.064 Support Column.SLDPRT | 69.93K |
| 66 | 10.065 Reversing Lever Shaft.SLDPRT | 79.65K |
| 67 | 10.066 Reversing Knob.SLDPRT | 120.26K |
| 68 | 10.067 Reversing Fork.SLDPRT | 135.25K |
| 69 | 10.068 Steering Ring.SLDPRT | 118.67K |
| 70 | 10.069 Spring Pin (M1 x 5.5).sldprt | 112.12K |
| 71 | 10.069 Tension Pin (M1 x 5.5).sldprt | 110.99K |
| 72 | 10.070 Step Drum Positioning Spring (half).SLDPRT | 282.37K |
| 73 | 10.070 Step Drum Positioning Spring.SLDPRT | 254.12K |
| 74 | 10.071 Locking Ring.SLDPRT | 118.55K |
| 75 | 10.072 Step Drum Engagement Pin.SLDPRT | 52.27K |
| 76 | 10.073 Setting Knob Spring (Kd=6500 Kg.cm2).SLDPRT | 480.89K |
| 77 | 10.074 Countersunk Screw (M1.2-0.25 x 2.8)-.SLDPRT | 71.54K |
| 78 | 10.075 Guiding Screw (M1.4-0.3 x 1.6).SLDPRT | 115.19K |
| 79 | 10.076 Result Counter Segment (10 teeth).SLDPRT | 100.75K |
| 80 | 10.077 Lower Main Casting.SLDPRT | 261.55K |
| 81 | 10.078 Result Counter Segment (1 tooth).SLDPRT | 109.79K |
| 82 | 10.079 Result Counter Segment (9 teeth).SLDPRT | 121.26K |
| 83 | 10.080 Result Counter Segment (2 teeth).SLDPRT | 113.76K |
| 84 | 10.081 Result Counter Segment (8 teeth).SLDPRT | 119.68K |
| 85 | 10.082 Result Counter Segment (3 teeth).SLDPRT | 115.93K |
| 86 | 10.083 Result Counter Segment (7 teeth).SLDPRT | 119.69K |
| 87 | 10.084 Result Counter Segment (4 teeth).SLDPRT | 117.31K |
| 88 | 10.085 Collar.SLDPRT | 548.03K |
| 89 | 10.086 Clear Locking Pin Spring (Kd=8000 kg.cm2).SLDPRT | 381.40K |
| 90 | 10.087 Result Counter Segment (6 teeth).SLDPRT | 117.96K |
| 91 | 10.088 Carriage Ring.SLDPRT | 4.26M |
| 92 | 10.089 Carriage Cage.SLDPRT | 817.00K |
| 93 | 10.090 Result Counter Segment (5 teeth).SLDPRT | 116.89K |
| 94 | 10.091 Turns Counter Segment (1 tooth).SLDPRT | 114.55K |
| 95 | 10.093 Clearing Lever Rivet.SLDPRT | 97.59K |
| 96 | 10.094 Rivet Washer.SLDPRT | 74.36K |
| 97 | 10.095 Spring Housing for 10.024.SLDPRT | 53.04K |
| 98 | 10.096 Turns Counter Segment (9 teeth).SLDPRT | 119.65K |
| 99 | 10.097 Circlip for Trasmission shaft.SLDPRT | 82.75K |
| 100 | 10.098 Suplement Washer.SLDPRT | 71.05K |
| 101 | 10.099 Suplement Washer.SLDPRT | 73.81K |
| 102 | 10.100 Tens Carry Disc for Turns Counter.SLDPRT | 112.49K |
| 103 | 10.101 Tens Carry Disc for Turns Counter.SLDPRT | 112.35K |
| 104 | 10.102 Distance Disc.SLDPRT | 66.69K |
| 105 | 10.103 Distance Disc.SLDPRT | 72.78K |
| 106 | 10.104 Locking Disc for Turns Counter.SLDPRT | 74.69K |
| 107 | 10.105 Tens Carry Locking Disc for Turns Counter.SLDPRT | 73.45K |
| 108 | 10.106 Locking Disc for Results Counter.SLDPRT | 74.47K |
| 109 | 10.107 Tens Carry Locking Disc for Result Counter.SLDPRT | 73.13K |
| 110 | 10.109 Pin Screw (M1.4-0.3 x 1.4).SLDPRT | 96.77K |
| 111 | 10.110 Compensation Sleeve.SLDPRT | 61.36K |
| 112 | 10.111 Zero Positioner Disc.SLDPRT | 562.16K |
| 113 | 10.112 Zero Positioner Roller.SLDPRT | 71.98K |
| 114 | 10.113 Non Return Pawl.SLDPRT | 83.65K |
| 115 | 10.114 Zero Positioner Lever.SLDPRT | 90.48K |
| 116 | 10.115 Zero Positioner Spring.SLDPRT | 896.79K |
| 117 | 10.116 Zero Positioner Shoulder Screw (M1.7-0.3 x 9.4 x 1.6).SLDPRT | 80.66K |
| 118 | 10.118 Disc Spring Clip.SLDPRT | 186.32K |
| 119 | 10.119 Step Drum Fastening Segment.SLDPRT | 71.54K |
| 120 | 10.120 Supporting Disc.SLDPRT | 84.56K |
| 121 | 10.121 Non Return Pawl Bush.SLDPRT | 90.14K |
| 122 | 10.124 Sealing Ring.SLDPRT | 101.79K |
| 123 | 10.125 Zero Positioner Lever Bush.SLDPRT | 79.23K |
| 124 | 10.126 Decorative Cover.SLDPRT | 80.51K |
| 125 | 10.129 Pressure Ring.SLDPRT | 66.17K |
| 126 | 10.130 Large Rubber Insert.SLDPRT | 52.44K |
| 127 | 10.131 Small Rubber Insert.SLDPRT | 57.78K |
| 128 | 10.133 Special Circlip.SLDPRT | 76.41K |
| 129 | 10.134 Carriage Stop Pin.SLDPRT | 66.67K |
| 130 | 10.135 Setting Shaft Bearing Pin.SLDPRT | 69.93K |
| 131 | 10.136 Holding Plate.SLDPRT | 68.96K |
| 132 | 10.137 Lower Reversing Shaft Sleeve.SLDPRT | 48.84K |
| 133 | 10.138 Upper Reversing Shaft Sleeve.SLDPRT | 56.49K |
| 134 | 10.140 Guiding Sleeve.SLDPRT | 92.37K |
| 135 | 10.141 Pressure Sleeve.SLDPRT | 76.20K |
| 136 | 10.142 Toothed Clearing Segment (inner).SLDPRT | 223.66K |
| 137 | 10.142 Toothed Clearing Segment (outer).SLDPRT | 221.07K |
| 138 | 10.143 Shim for Clearing Plate.SLDPRT | 66.33K |
| 139 | 10.145 Steel Ball 2.0mm.SLDPRT | 166.56K |
| 140 | 10.146 Balancing Disc.SLDPRT | 55.40K |
| 141 | 10.147 Bearing Bush.SLDPRT | 71.06K |
| 142 | 10.148 Cylindrical Pin (1.0x10).SLDPRT | 61.74K |
| 143 | 10.149 Cylindrical Pin (0.8x4).SLDPRT | 74.57K |
| 144 | 10.150 Cylindrical Pin (1.5x5).SLDPRT | 82.19K |
| 145 | 10.152 Spring Washer.SLDPRT | 107.73K |
| 146 | 10.153 Compensation Ring.SLDPRT | 66.32K |
| 147 | 10.154 Number Label.SLDPRT | 604.97K |
| 148 | 10.155 Seal Ring.SLDPRT | 119.35K |
| 149 | 10.156 Case Cap Mark (old).SLDPRT | 287.46K |
| 150 | 10.156 Case Cap Mark.SLDPRT | 696.66K |
| 151 | 10.158 Serial Number Plate.SLDPRT | 2.47M |
| 152 | 10.160 Baseplate Type 2.SLDPRT | 1.67M |
| 153 | 10.161 Strap Screw (M8-0.75 x 2.5).SLDPRT | 227.15K |
| 154 | 10.162 Strap Screw Washer (leather).SLDPRT | 176.12K |
| 155 | 10.163 Link.SLDPRT | 123.41K |
| 156 | 10.203 Numeral Dial 1 assy.SLDASM | 310.86K |
| 157 | 10.204 Numeral Dial 2a assy.SLDASM | 300.31K |
| 158 | 10.205 Numeral Dial 2b assy.SLDASM | 301.84K |
| 159 | 10.206 Tens Bell assy.SLDASM | 199.29K |
| 160 | 10.207 Trasmision Shaft 1 assy.SLDASM | 77.91K |
| 161 | 10.208 Trasmision Shaft 2 assy.SLDASM | 83.08K |
| 162 | 10.209 Trasmision Shaft 3 assy.SLDASM | 82.90K |
| 163 | 10.210 Curta Type 1 assy.SLDASM | 11.95M |
| 164 | 10.211 Reversing Lever assy.SLDASM | 97.26K |
| 165 | 10.212 Setting shaft assy.SLDASM | 333.89K |
| 166 | 10.213 Step Drum assy.SLDASM | 352.72K |
| 167 | 10.214 Main Shaft Complete assy.SLDASM | 349.72K |
| 168 | 10.215 Housing assy.SLDASM | 1.73M |
| 169 | 10.216 Trasmision Shaft 4 assy.SLDASM | 81.00K |
| 170 | 10.218 Reversing Gear.SLDASM | 97.07K |
| 171 | 10.219 Double Seting Gear.SLDASM | 93.38K |
| 172 | 10.220 Tens Carry Gear assy.SLDASM | 101.15K |
| 173 | 10.221 Products Units Locking Gear.SLDASM | 83.60K |
| 174 | 10.222 Quotient Units Locking Gear.SLDASM | 82.59K |
| 175 | 10.223 Main Shaft assy.SLDASM | 80.64K |
| 176 | 10.224 Non Return Pawl assy.SLDASM | 94.31K |
| 177 | 10.225 Zero Positioner Lever assy.SLDASM | 81.29K |
| 178 | 10.226 Carriage Casting assy.SLDASM | 274.76K |
| 179 | 10.227 Upper Main Casting assy with Tens Bell assy.SLDASM | 473.66K |
| 180 | 10.228 Container assy.SLDASM | 1.20M |
| 181 | 10.228a Container Lid.SLDPRT | 348.21K |
| 182 | 10.228b Container Base.SLDPRT | 1.56M |
| 183 | 10.229 Main Bearing Sleeve assy.SLDASM | 344.70K |
| 184 | 10.230 Trasmission Gear assy.SLDASM | 84.87K |
| 185 | 10.231 Lower Main Casting assy.SLDASM | 1.25M |
| 186 | 10.232 Main Assembly Step 1.SLDASM | 1.95M |
| 187 | 10.233 Main Assembly Step 2.SLDASM | 2.87M |
| 188 | 10.234 Main assembly Step 3.SLDASM | 7.20M |
| 189 | 10.236 Trasmission Shaft 4 complete assy.SLDASM | 156.06K |
| 190 | 10.237 Trasmission Shaft 1 complete assy.SLDASM | 152.13K |
| 191 | 10.238 Trasmission Shaft 2 complete assy.SLDASM | 159.29K |
| 192 | 10.239 Trasmission Shaft 3 complete assy.SLDASM | 150.67K |
| 193 | 10.240 Setting Knob complete.SLDASM | 806.72K |
| 194 | 10.241 Reversing Lever with Shaft assy.SLDASM | 453.40K |
| 195 | 10.242 Crank (Delrin) with Pin.SLDASM | 219.17K |
| 196 | 10.242 Crank (Delrin).SLDPRT | 357.28K |
| 197 | 10.243 Carriage assy Step 1.SLDASM | 2.04M |
| 198 | 10.244 Clearing Plate assy.SLDASM | 782.14K |
| 199 | 10.245 Crank assy.SLDASM | 485.12K |
| 200 | 10.246 Zero Positioner assy.SLDASM | 151.20K |
| 201 | 10.248 Upper Main Casting with Pins.SLDASM | 260.57K |
| 202 | 10.249 Baseplate assy.SLDASM | 367.27K |
| 203 | 10.250 Setting Knob with Guiding Screw.SLDASM | 100.25K |
| 204 | 10.301 Decimal Marker assy.SLDASM | 496.63K |
| 205 | 2037 Zero Position Roller Screw (M1.7-0.35 x 5.4 x 2.4).SLDPRT | 135.44K |
| 206 | 2074 Hexagonal Nut (M1.7-0.35 x 1.4).SLDPRT | 102.51K |
| 207 | 2118 Retaining Screw (M1.4-0.3 x 1.1).SLDPRT | 105.25K |
| 208 | A01 Taper Pin (ISO 2339 - A - 1.0 x 14 - St).sldprt | 86.71K |
| 209 | A09 Countersunk Screw (M2-0.4 x 18 - 6S).sldprt | 153.01K |
| 210 | A18 Steel Ball 1.0mm.SLDPRT | 162.27K |
| 211 | B01 Cylindrical Screw (M1.4-0.3 x 3 - 3S).sldprt | 158.87K |
| 212 | B05 Cylindrical Screw (M1.4-0.3 x 5 - 5S).sldprt | 168.26K |
| 213 | B10 Hexagonal Nut (M1.4-0.3 x 1).SLDPRT | 102.92K |
| 214 | B14 Cylindrical Screw (M1-0.25 x 3 - 3S).sldprt | 157.41K |
| 215 | C18 Taper Pin (ISO 2339 - A - 1 x 8 - St).sldprt | 87.54K |
| 216 | C26 Cylindrical Screw (M1.4-0.3 x 2 - 2S).sldprt | 137.14K |
| 217 | Carriage01.JPG | 499.76K |
| 218 | Carriage02.JPG | 472.56K |
| 219 | Carriage03.JPG | 494.06K |
| 220 | Complete Group.JPG | 472.09K |
| 221 | Curta01.JPG | 469.45K |
| 222 | Curta02.JPG | 482.20K |
| 223 | Curta03.JPG | 648.96K |
| 224 | Curta04.JPG | 506.45K |
| 225 | Curta05.JPG | 550.32K |
| 226 | Curta06.JPG | 614.84K |
| 227 | Curta07.JPG | 434.07K |
| 228 | Curta08.JPG | 585.23K |
| 229 | Curta09.JPG | 512.45K |
| 230 | Curta10.JPG | 439.48K |
| 231 | Curta11.JPG | 698.92K |
| 232 | D10 Steel Ball 2.0mm.SLDPRT | 166.50K |
| 233 | D11 Taper Pin (ISO 2339 - A - 0.6 x 4 - St).sldprt | 96.97K |
| 234 | E03 Steel Ball 1.8mm.SLDPRT | 163.56K |
免费下载
发布者
FL丶凌风
创作: 36141
粉丝: 343
加入时间：2021-03-01
模型信息
图纸格式：sldprt,sldasm
文件大小：92.26M
所需金币：0
上传时间：2021-03-21 04:03:11
是否可编辑：可修改，包括参数
版本：SOLIDWORKS 2017
标签
图纸简介
版权说明
用户在本站上传的作品如侵犯到您的权益，请与本站管理员联系删除。用户在本站下载的原创作品，只拥有作品的使用权，著作权归原作者所有，未经合法授权，用户不得以任何形式发布、传播、复制、转售该作品。
0.jpg)
0.jpg)
0.jpg)
0.jpg)
0.jpg)
0.jpg)
0.jpg)
0.jpg)
0.png)
0_0_364.png)
0_0_364.png)
0.png)
0.png)
0_0_364.png)
0.jpg)
QQ在线客服
官方QQ群
