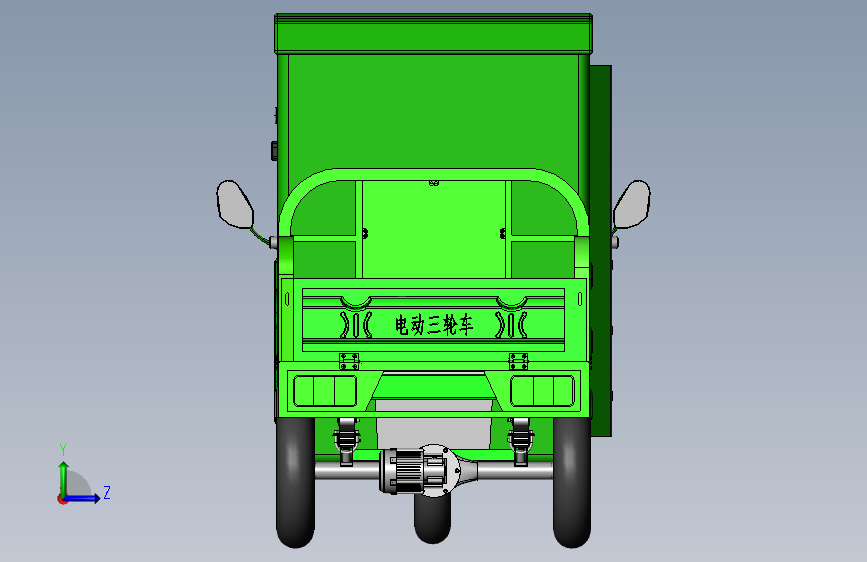

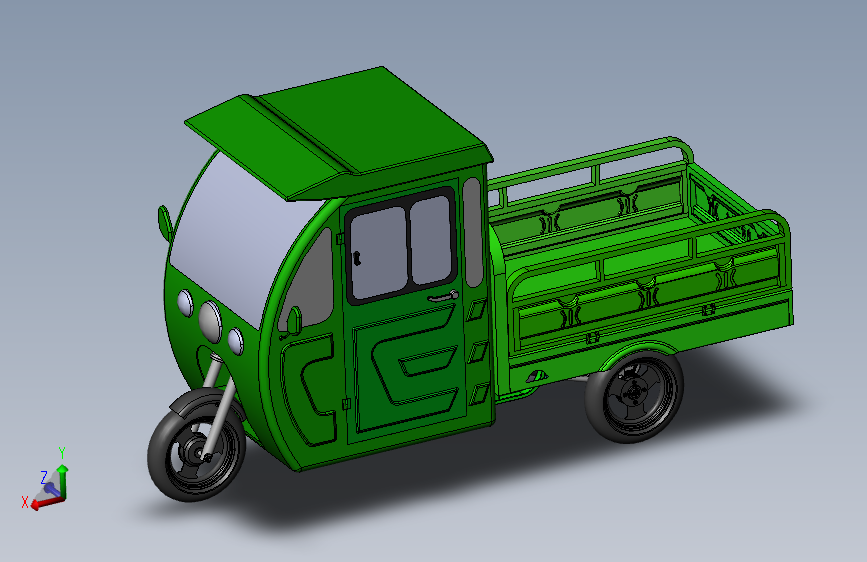

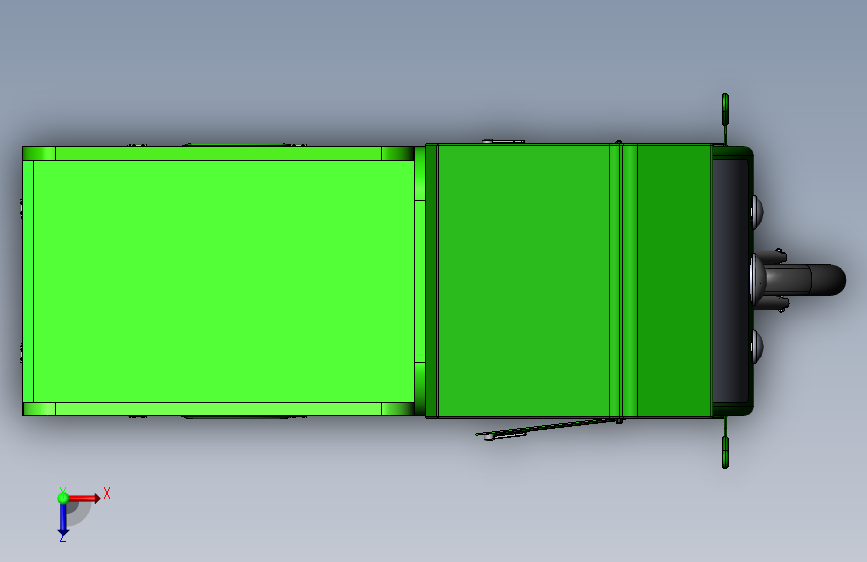

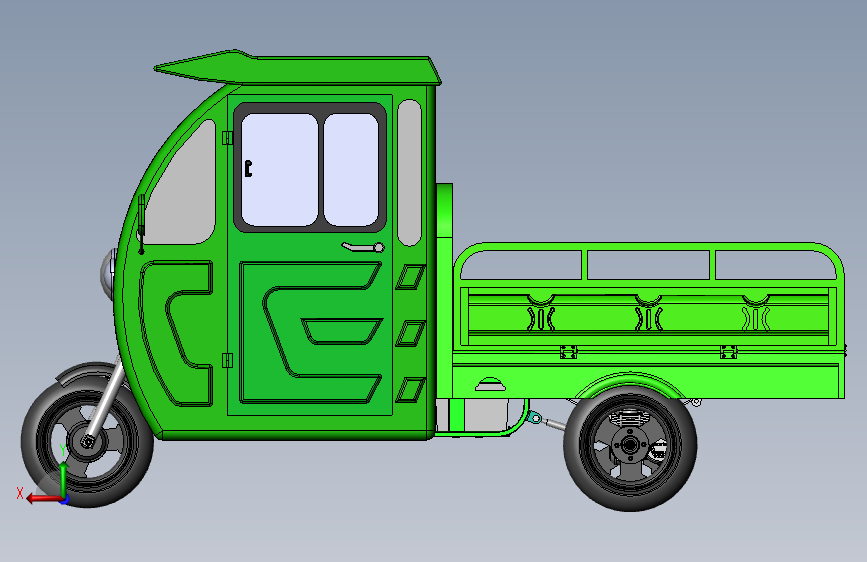

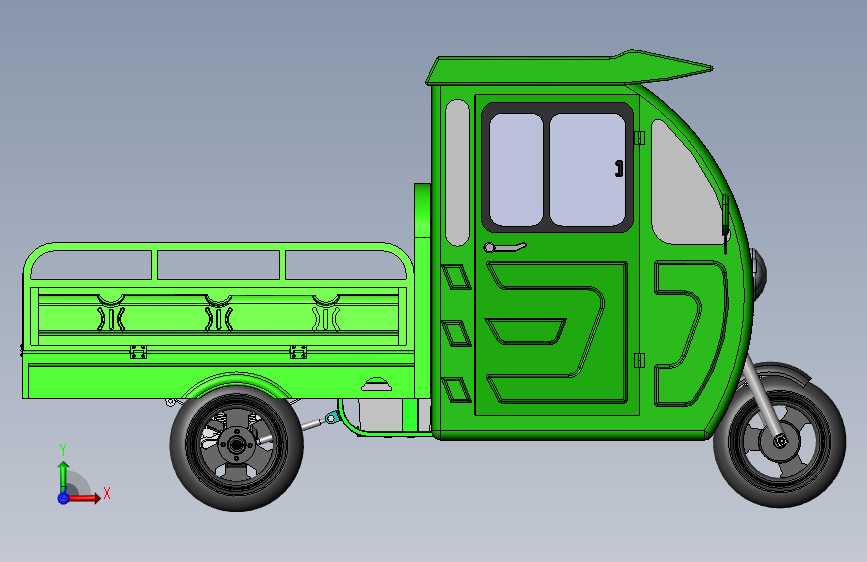

电动三轮车样图==849327=50（ID:2076463）

交通运输 / 车辆工程 / 电动三轮车样图==849327=50

©非原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	17458883165377.zip	22.59M
2	0电动三轮车整体装配.SLDASM	5.07M
3	0电动三轮车整体装配.SLDDRW	1.05M
4	0电动三轮车整体装配.STEP	26.53M
5	1-10支撑管.sldprt	27.63K
6	1-11横梁3.sldprt	28.33K
7	1-12耳.sldprt	30.43K
8	1-13套管.sldprt	23.37K
9	1-14耳.sldprt	27.21K
10	1-1方管.sldprt	78.84K
11	1-20护管.sldprt	39.96K
12	1-21横梁4.sldprt	27.66K
13	1-22套管.sldprt	22.28K
14	1-23板.sldprt	168.29K
15	1-24板.sldprt	84.87K
16	1-25角钢.sldprt	25.92K
17	1-2方管（中）.sldprt	51.34K
18	1-3横梁1.sldprt	28.38K
19	1-4横梁2.sldprt	25.95K
20	1-5支撑杆.sldprt	27.88K
21	1-6角钢.sldprt	25.99K
22	1-7钢板.sldprt	23.10K
23	1-8侧支撑管.sldprt	49.20K
24	1-9竖支撑.sldprt	28.10K
25	1车架.sldasm	42.04K
26	2-10-1合页.sldprt	26.17K
27	2-10-2合页.sldprt	27.76K
28	2-10-3销.sldprt	25.62K
29	2-10-4挡环.sldprt	24.35K
30	2-1车厢底板.SLDDRW	535.00K
31	2-1车厢底板.sldprt	80.75K
32	2-1车厢底板（装配）.sldasm	41.11K
33	2-2车厢支撑管.sldprt	28.03K
34	2-3支撑横梁.sldprt	28.99K
35	2-4车瓦（右）.sldprt	40.49K
36	2-5车瓦（左）.sldprt	33.64K
37	2-6-1车门架.SLDDRW	422.00K
38	2-6-1车门架.sldprt	42.45K
39	2-6-2车门板.sldprt	263.74K
40	2-6车门（右）.sldasm	32.47K
41	2-7-1车门架.sldprt	41.00K
42	2-7-2车门板.SLDDRW	631.00K
43	2-7-2车门板.sldprt	621.73K
44	2-7车门（左）.sldasm	33.65K
45	2-8-1车门架.sldprt	31.34K
46	2-8-2车门板.sldprt	503.29K
47	2-8车门（后）.sldasm	32.75K
48	2-9-1车门架.sldprt	119.25K
49	2-9-2车门板.sldprt	226.59K
50	2-9-3车门棉垫.sldprt	31.67K
51	2-9-4车门瓦.sldprt	35.69K
52	2-9-5车门瓦.sldprt	34.80K
53	2-9车门（前）.sldasm	33.97K
54	2车厢装配.sldasm	39.12K
55	3-10挡环.sldprt	26.98K
56	3-11挡环.sldprt	26.58K
57	3-12减震弹簧.sldprt	140.66K
58	3-13-1安装板.sldprt	40.16K
59	3-13-2壳.sldprt	80.65K
60	3-13-3喇叭.sldprt	41.67K
61	3-13-4安装板.sldprt	27.52K
62	3-13喇叭.sldasm	31.34K
63	3-14车胎.sldprt	65.96K
64	3-15轴.sldprt	24.06K
65	3-17大灯.sldprt	55.61K
66	3-18侧灯.sldprt	60.76K
67	3-19车瓦.sldprt	40.68K
68	3-1车把.sldprt	93.23K
69	3-20手刹（左）.sldprt	29.52K
70	3-21手刹（左）.sldprt	32.85K
71	3-22反光镜安装块.sldprt	29.49K
72	3-23后视镜.sldprt	45.90K
73	3-24后视镜.sldprt	58.77K
74	3-2车把固定板.sldprt	117.11K
75	3-3加紧块.sldprt	40.17K
76	3-4车把固定板.sldprt	64.98K
77	3-5仪表盘.sldprt	86.21K
78	3-6套筒.sldprt	35.26K
79	3-7套筒.sldprt	34.74K
80	3-8支撑杆.sldprt	63.74K
81	3-9支撑杆.sldprt	85.24K
82	3车头.sldasm	43.89K
83	4-10挡环.sldprt	27.67K
84	4-11拉杆.sldprt	24.83K
85	4-12螺钉.sldprt	25.04K
86	4-15螺栓.sldprt	25.15K
87	4-16轮毂装配.sldasm	32.84K
88	4-17车胎.sldprt	52.57K
89	4-1变速箱.sldprt	199.76K
90	4-2-1减速器.sldprt	47.33K
91	4-2-2电机.sldprt	95.64K
92	4-2-3电机壳.sldprt	304.60K
93	4-2电机减速器.sldasm	31.83K
94	4-5套筒.sldprt	41.11K
95	4-6套筒.sldprt	41.54K
96	4-7安装盘.sldprt	31.07K
97	4-8轮毂.sldprt	40.39K
98	4后桥.sldasm	34.81K
99	5-1车座箱.SLDDRW	543.50K
100	5-1车座箱.sldprt	60.60K
101	5-1车座箱装配.sldasm	31.79K
102	5-2车座.sldprt	32.93K
103	5-3车座架.sldprt	42.33K
104	5-4电瓶.sldprt	43.47K
105	5车座装配.sldasm	33.63K
106	6-1-1钢板1.sldprt	26.21K
107	6-1-2钢板2.sldprt	25.75K
108	6-1-3钢板3.sldprt	24.37K
109	6-1-4钢板4.sldprt	25.31K
110	6-1-5夹紧套.sldprt	30.81K
111	6-1减震钢板.sldasm	30.84K
112	6-2U型夹环.sldprt	23.54K
113	6-3夹板.sldprt	26.50K
114	6-4盖.sldprt	30.57K
115	6-5减震弹簧.sldprt	125.39K
116	6-6U型夹环.sldprt	29.97K
117	6-7夹紧板.sldprt	24.83K
118	6-8螺钉.sldprt	26.27K
119	chemenban.SLDPRT	832.00K
120	chemengjia.SLDPRT	282.50K
121	chemenjia.SLDPRT	365.50K
122	chexiangdiban.SLDPRT	446.00K
123	chezuoxiang.SLDPRT	290.50K
124	hexagonheadbolts-fullthreadgb_GB_FASTENER_BOLT_STBABAM10X50-C.sldprt	32.54K
125	hexagonnutswithflangegb_GB_HEXAGON_TYPE12M12-N.sldprt	44.19K
126	hexagonsocketheadcapscrewsgb_GB_FASTENER_SCREWS_HSHCSM6X16-C.sldprt	30.59K
127	hexagonsocketheadcapscrewsgb_GB_FASTENER_SCREWS_HSHCSM8X16-C.sldprt	31.31K
128	hexnutsstyle1-gradesabgb_GB_FASTENER_NUT_SNAB1M10-N.sldprt	26.85K
129	hexslottedandcastlenuts1-gradeabgb_GB_FASTENER_NUT_SNNAB1BM20YB-N.sldprt	47.04K
130	hexthinnuts-gradesab-chamferedgb_GB_FASTENER_NUT_STNABM10-N.sldprt	27.85K
131	hexthinnuts-gradesab-chamferedgb_GB_FASTENER_NUT_STNABM8-N.sldprt	27.02K
132	panheadcrossrecessscrew_bsi_ISO7045-M6x20-Z---20N.sldprt	34.87K
133	plainwashers--productgradecgb_GB_FASTENER_WASHER_SMWC8.sldprt	23.29K
134	plainwashers-chamfered--normalseries-agb_GB_FASTENER_WASHER_SWCA10.sldprt	22.57K
135	plainwashers-nseries-gradeagb_GB_FASTENER_WASHER_PWNA6.sldprt	22.09K
136	slottedcountersunkheadtappingscrewsgb_GB_CROSS_SCREWS_TYPE132ST5.5X25C-C.sldprt	26.56K
137	三轮车棚.SLDDRW	468.00K
138	三轮车棚.SLDPRT	815.26K
139	右车棚门.SLDPRT	819.55K
140	套筒.SLDDRW	510.00K
141	把手.SLDPRT	404.00K
142	车厢架.SLDDRW	518.50K
143	车棚.SLDPRT	210.00K
144	车门.SLDDRW	496.00K
145	车门.SLDPRT	516.84K
146	零件1.SLDPRT	511.00K
