AGC小车（ID:2083295）

交通运输 / 车辆工程 / AGC小车

©非原创

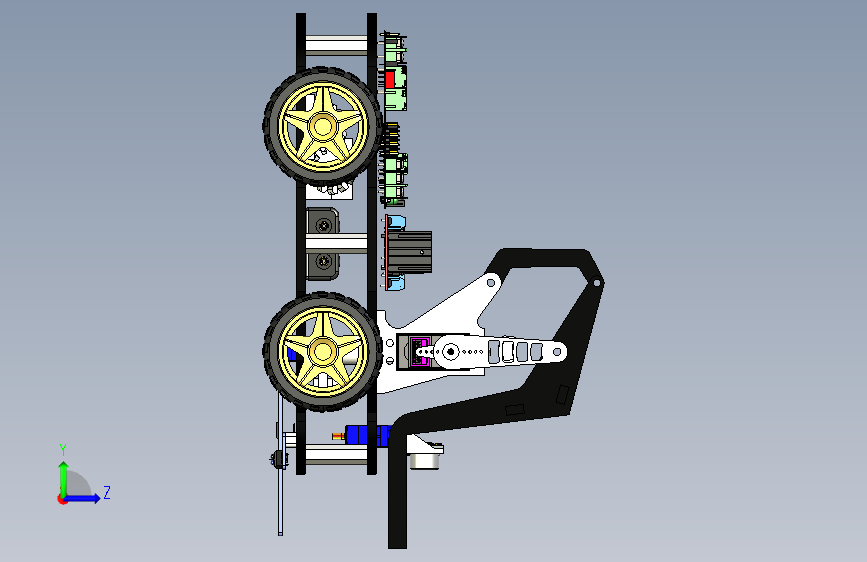

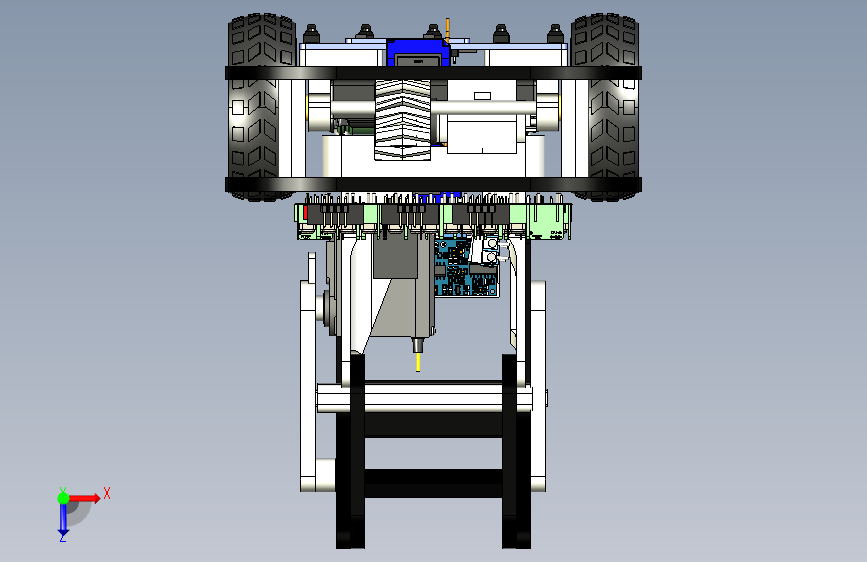

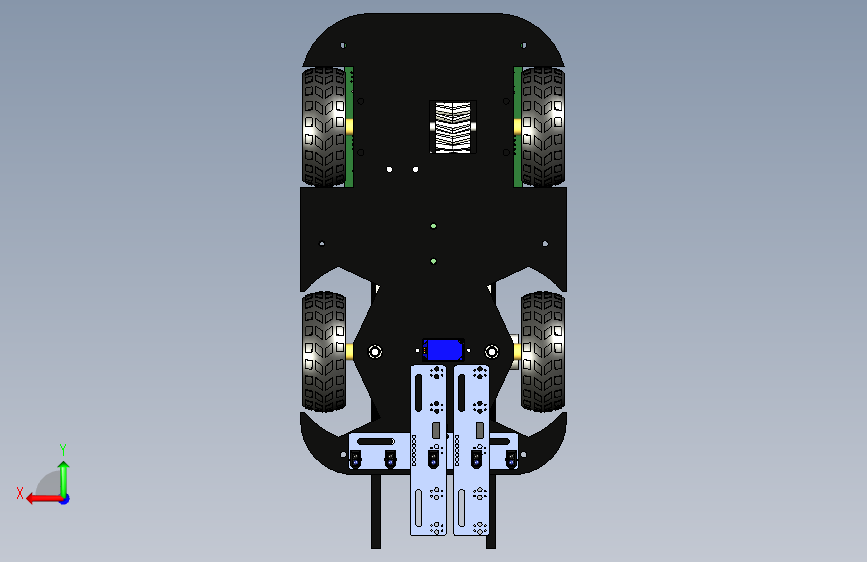

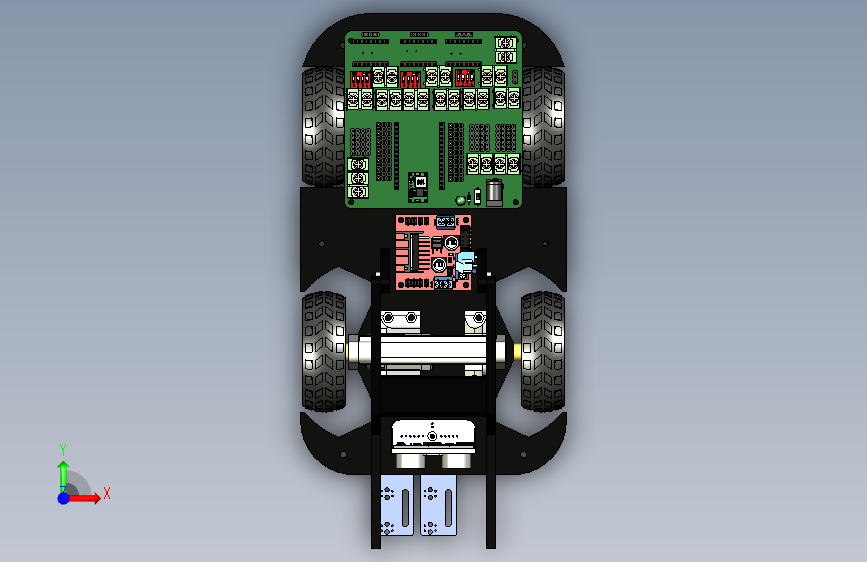

平面图

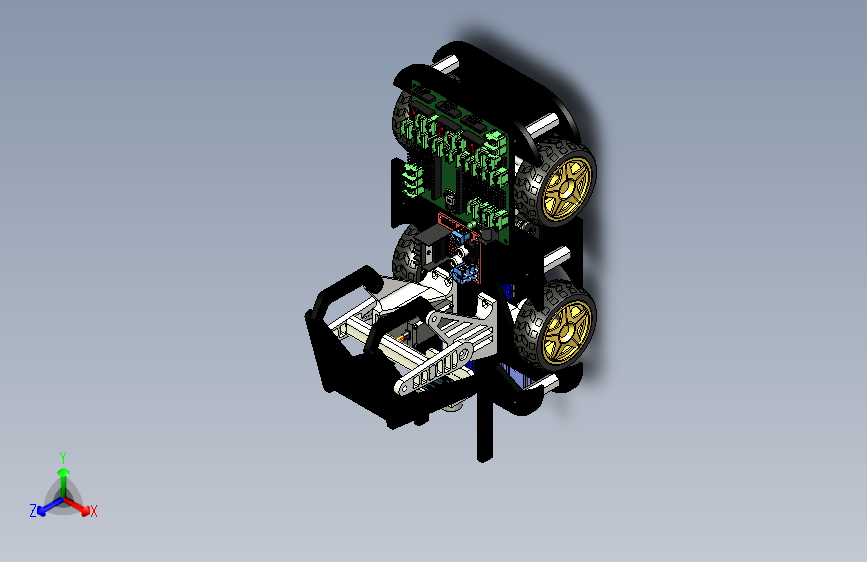

3D视图

文件列表

#	文件名称	文件大小
1	17461681182407.zip	69.46M

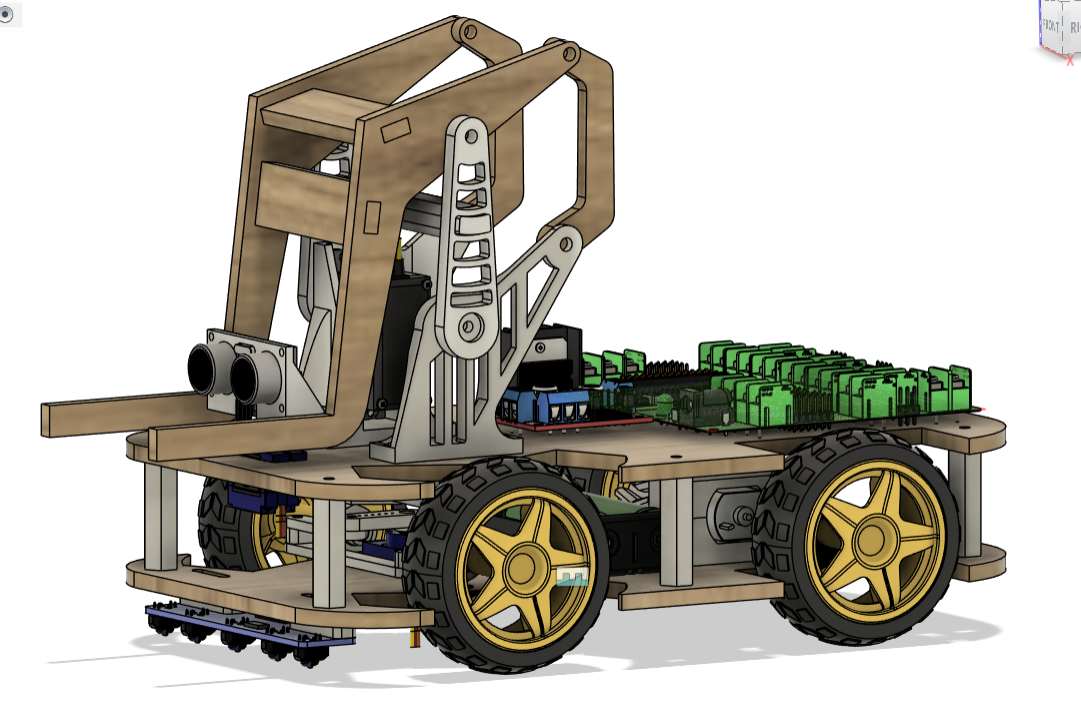

2	AGVRobot.png	560.99K
3	AGVRobot.step	54.83M

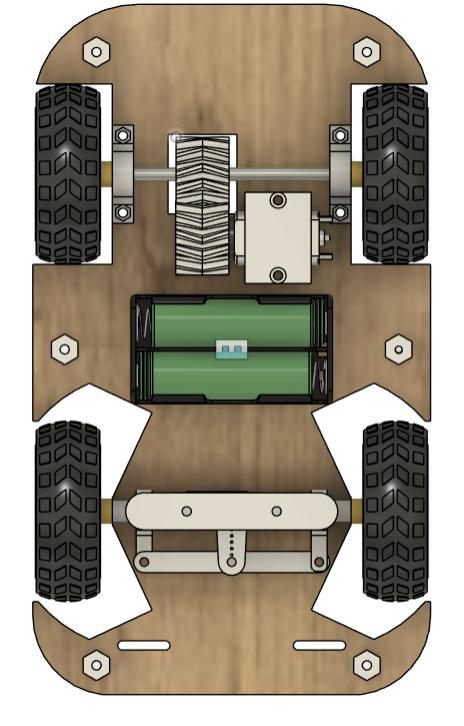

4	AGVRobot_Bottom.png	302.35K
5	Arm_state_1_x2.dxf	3.34K
6	arm_state_2.dxf	3.73K
7	Bottom_plane.dxf	7.91K
8	connecter_x2.dxf	2.80K
9	Top_plane.dxf	6.68K
10	base_left.stl	98.81K
11	Column_x6.stl	2.37M
12	connecter.stl	112.48K
13	input_gear.stl	4.37M
14	Line_tracking_sensor_mount.stl	45.79K
15	Motormount_1.stl	119.81K
16	Motormount_2.stl	100.08K
17	Out_gear.stl	4.36M
18	servo_arm_left.stl	148.91K
19	servo_arm_right.stl	170.20K
20	Servo_base_right.stl	144.71K
21	Shaftsupportbearing_1.stl	96.76K
22	Shaftsupportbearing_2.stl	96.76K
23	Steeringsystem_1.stl	122.35K
24	Steeringsystem_2_x2.stl	713.95K
25	Steeringsystem_3.stl	33.48K
26	steeringsystem_4.stl	44.42K
27	steeringsystem_5.stl	191.20K
28	steeringsystem_6_x2.stl	95.30K
29	steeringsystem_7_x2.stl	128.70K
30	Ultrasonic_sensor_mount.stl	255.94K
