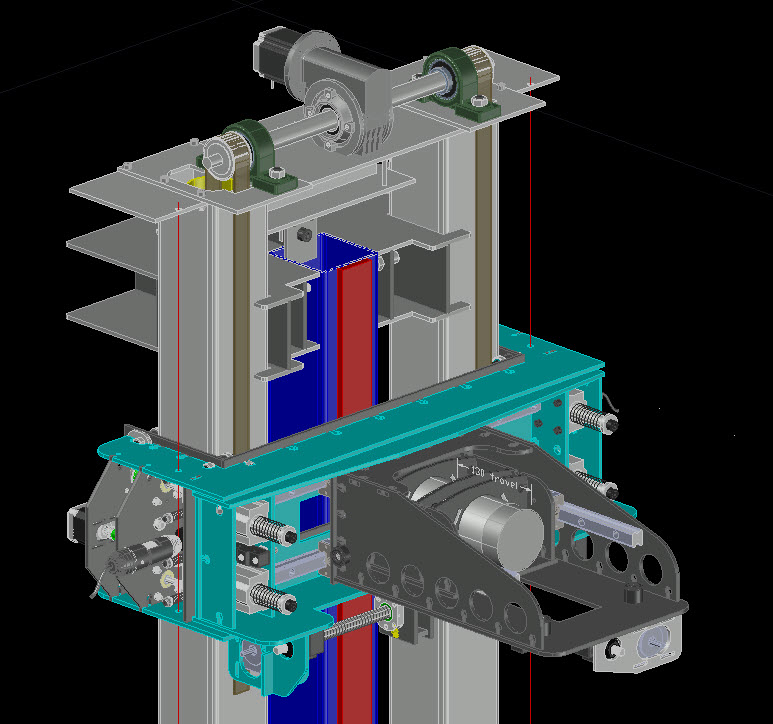

G025722-在钢管上铣削平面的机器，用于安装线性轨道。=飞机_AutoCAD 2018_模型图纸下载

首页

图库

工程师

G025722-在钢管上铣削平面的机器，用于安装线性轨道。=飞机（ID:2209458）

交通运输 / 航空航天 / G025722-在钢管上铣削平面的机器，用于安装线性轨道。=飞机

©非原创

平面图

文件列表

#	文件名称	文件大小
1	17488437885643.zip	87.56M

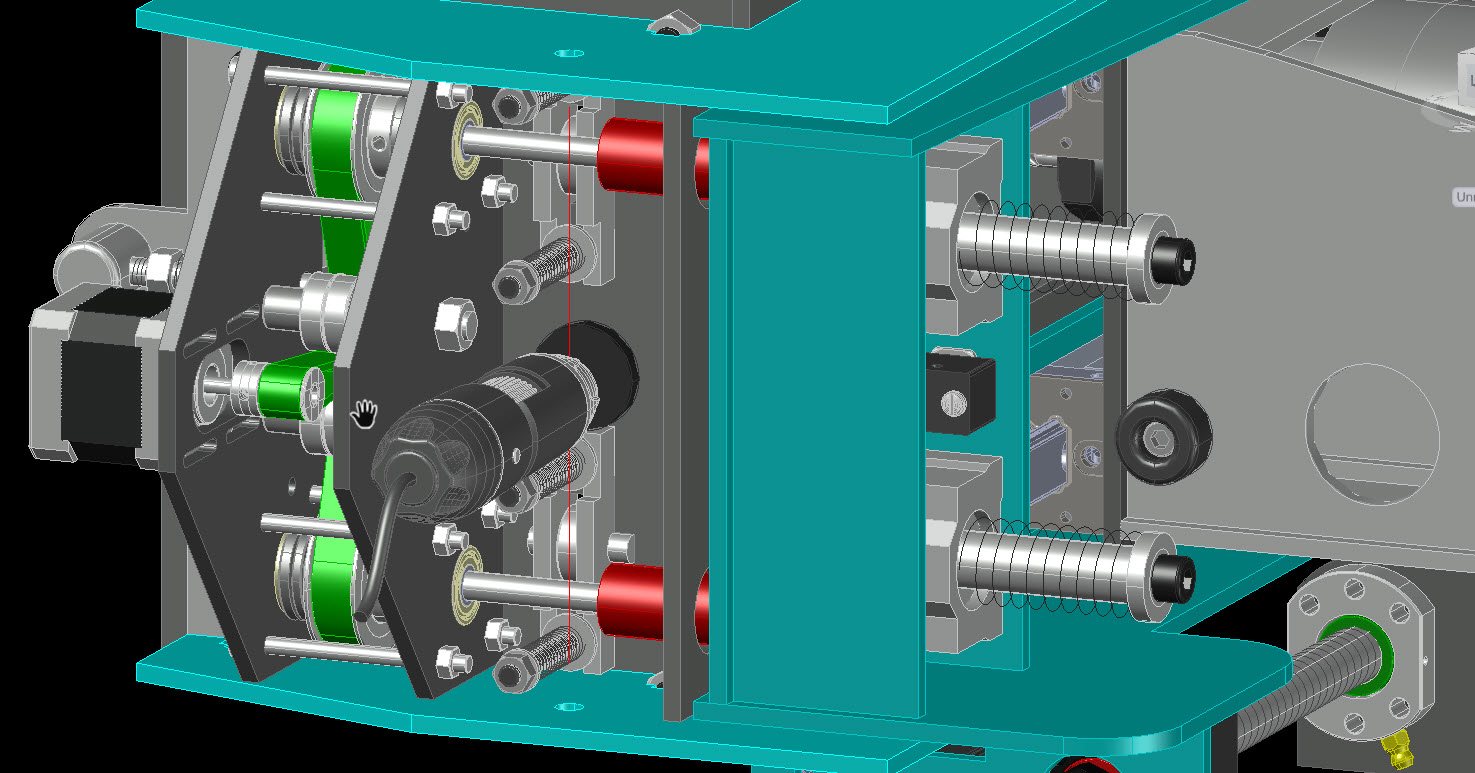

2	Alignmentsystem.jpg	239.54K

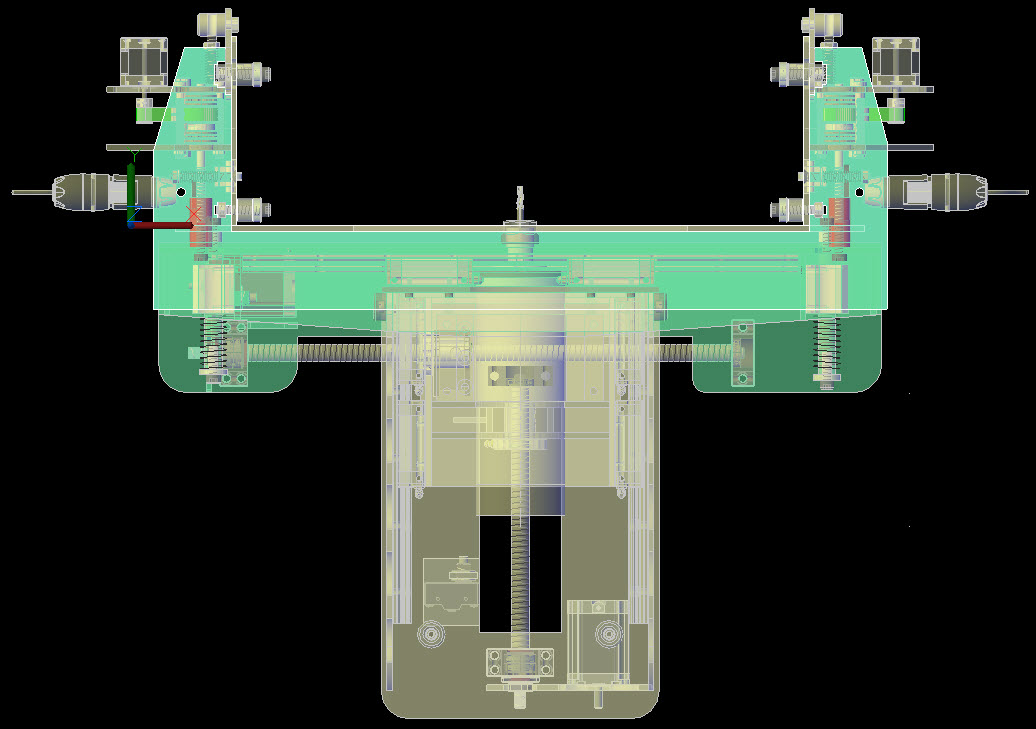

3	Planview.jpg	113.38K

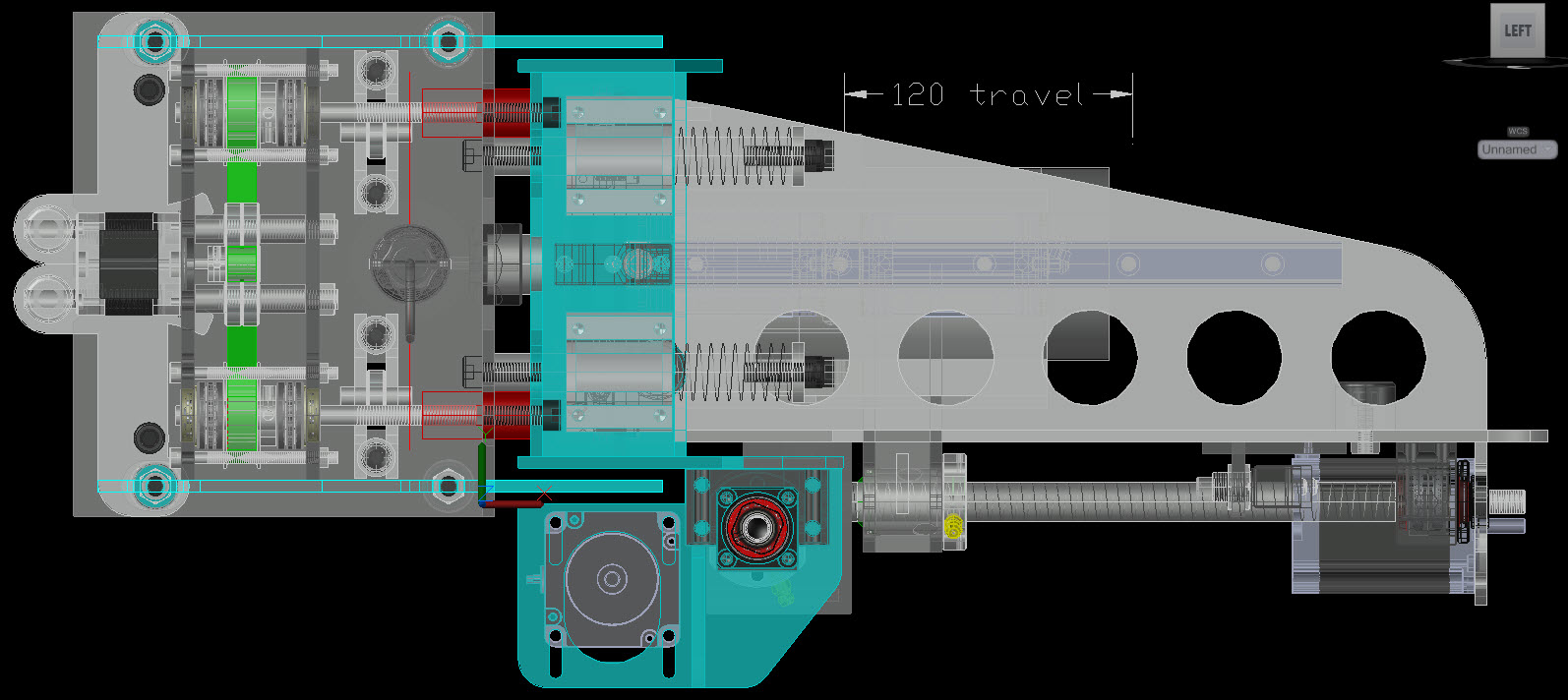

4	Sideview.jpg	211.52K

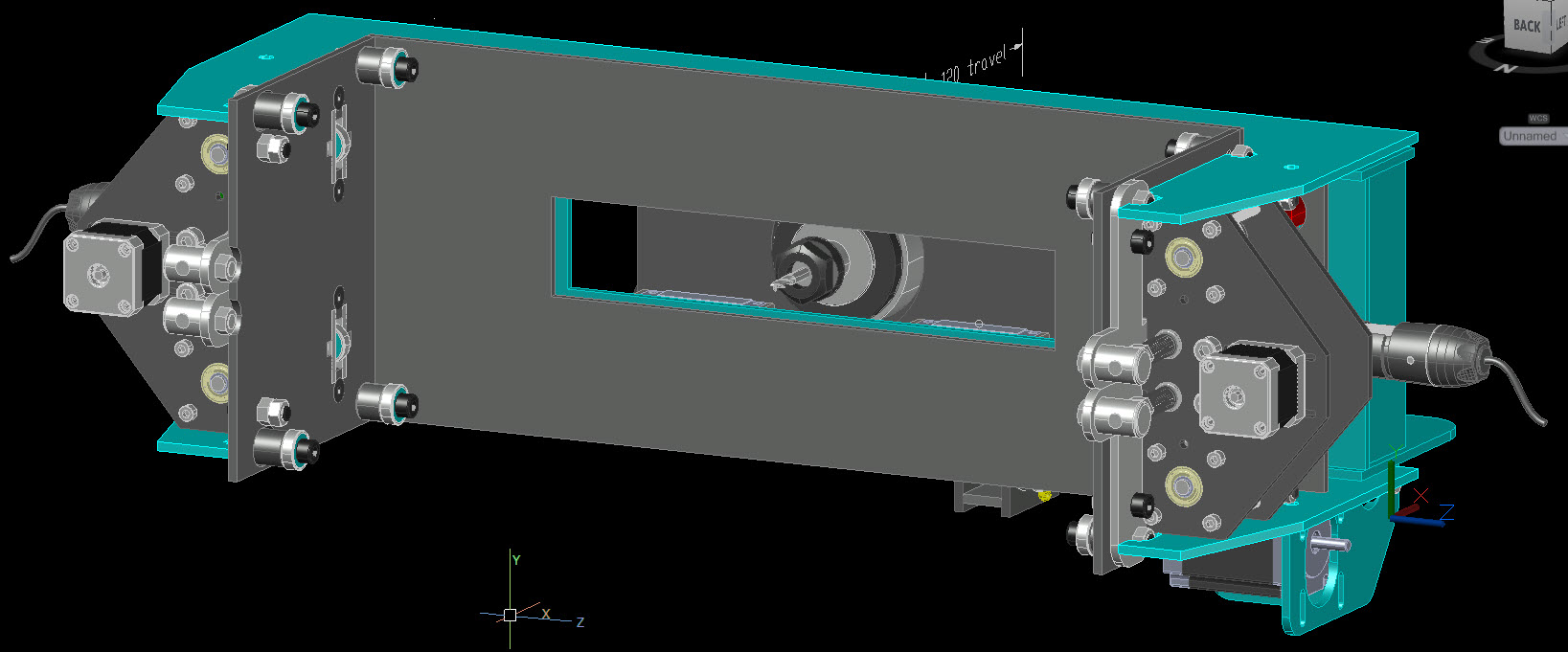

5	Spindle.jpg	158.97K

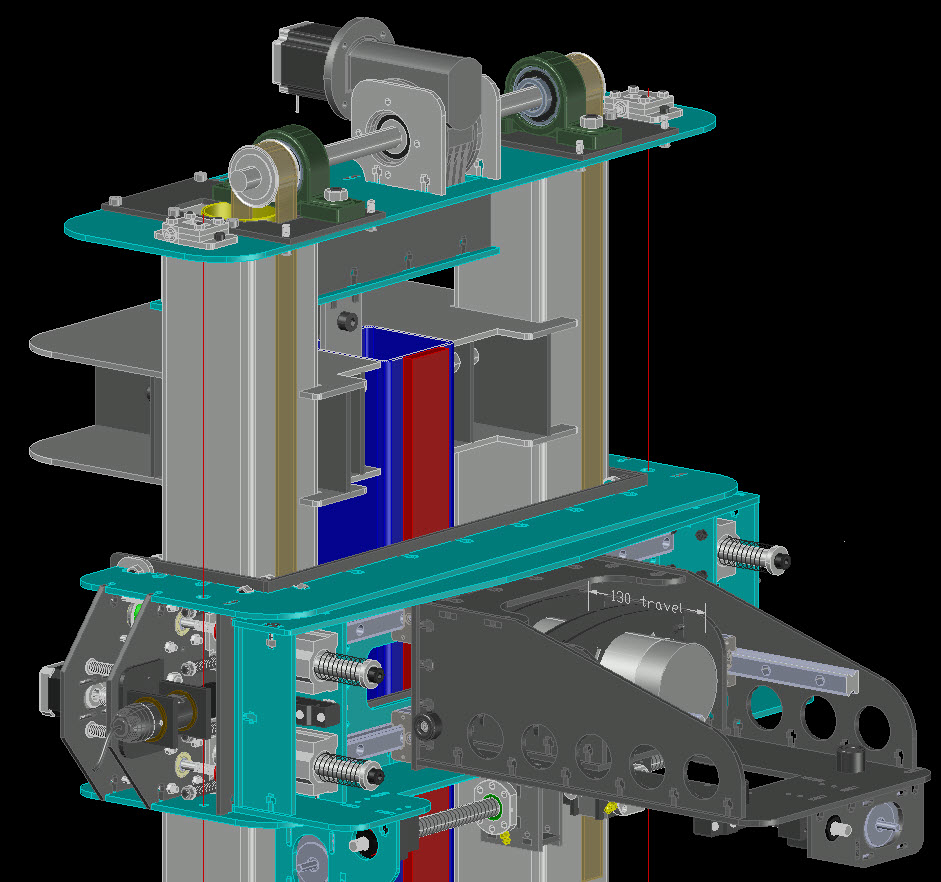

6	View16-02-20214-28-24PM.jpg	181.54K
7	VIEW3-02-20211-56-12PM.jpg	121.18K
8	ViewCrosshead.jpg	203.78K

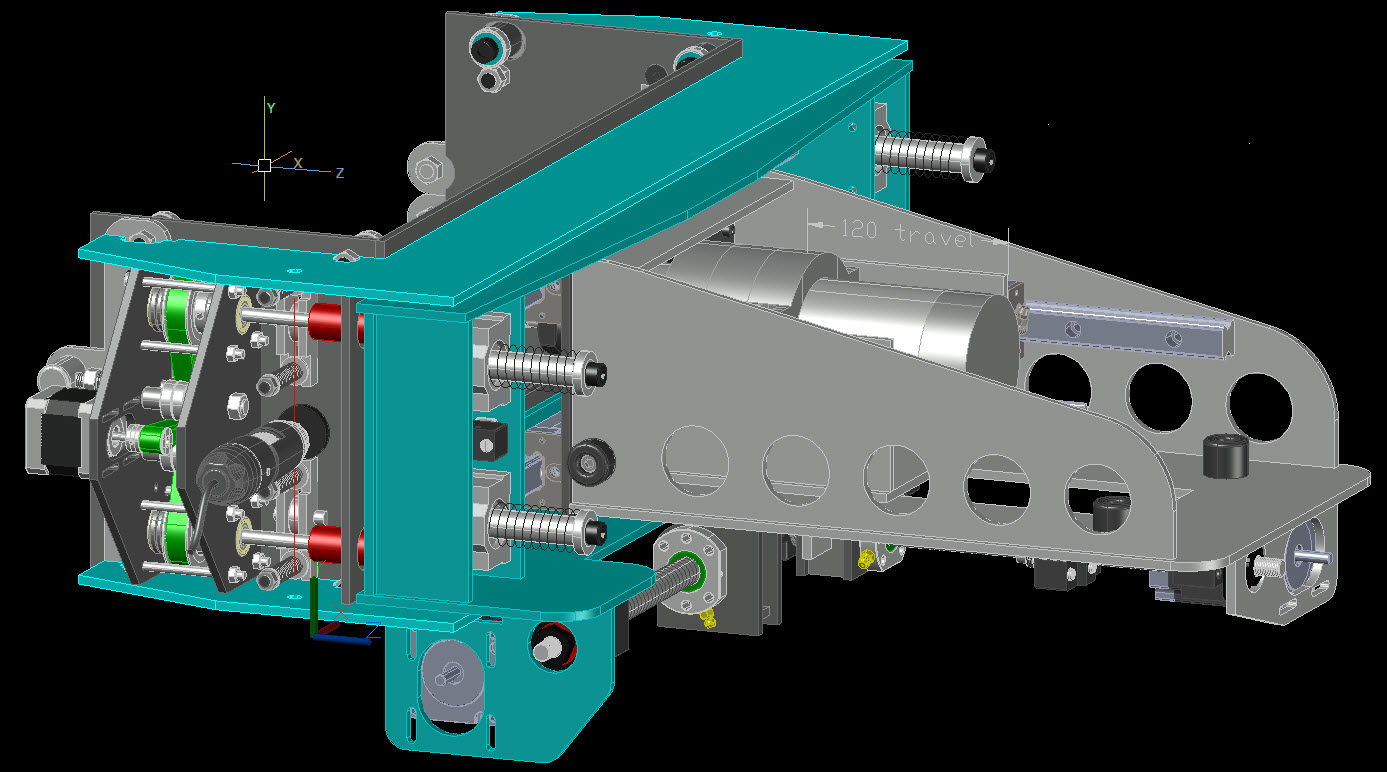

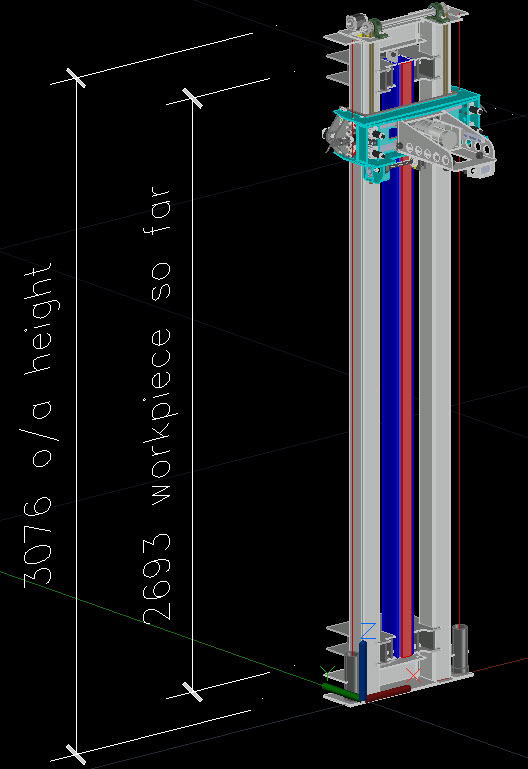

9	ViewOverall.jpg	72.58K

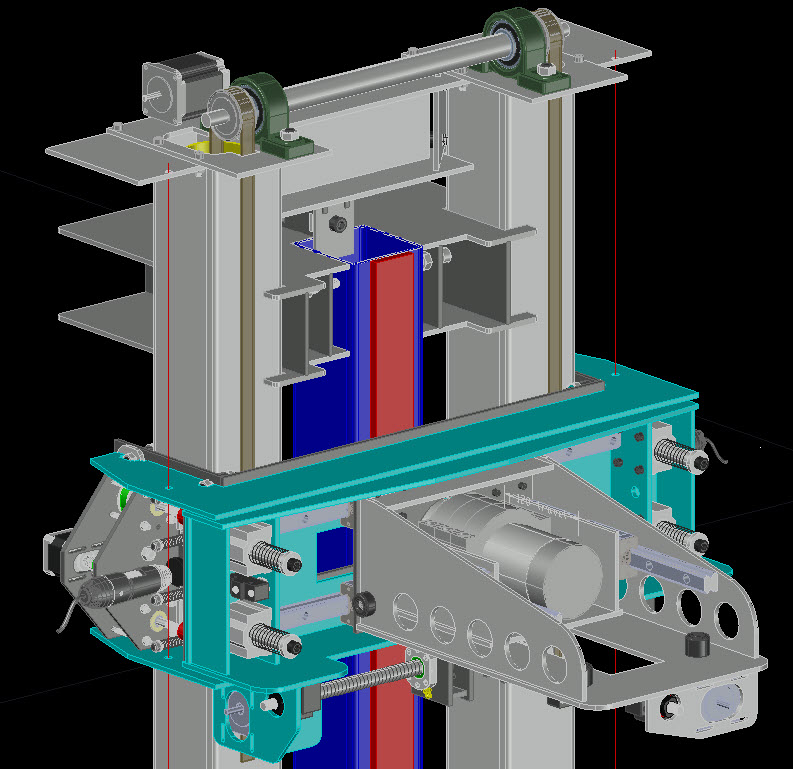

10	ViewOverallZoomed.jpg	144.33K
11	_MainV2021-Standard54.zip	31.57M
12	_MainV2021-Standard28.zip	23.83M
13	51201.dwg	37.72K
14	Angleboltassy.dwg	433.46K
15	Ballnut16mm.dwg	662.12K
16	Baserailassy.dwg	445.34K
17	BearingBall22x8x7skateboard.dwg	40.73K
18	bearingpressureasy.dwg	542.25K
19	Chinesespindlebracket.dwg	467.98K
20	ER11olletChuck6mmshaft.dwg	1.76M
21	frame100mmsteeltubes.dwg	430.73K
22	LimitswitchMoujenMJ2_1307.dwg	666.85K
23	M10capscrewx40mmlong.dwg	90.74K
24	M10capscrewx55mmlong.dwg	105.12K
25	M10capscrewx75mmlong.dwg	90.37K
26	M10CSKcapscrewx30mmlong.dwg	85.16K
27	M10Nut.dwg	54.05K
28	M10x30mmlongNut.dwg	101.58K
29	M12Capscrew55mm.dwg	110.69K
30	m12nut.dwg	45.12K
31	M4capscrew12mm.dwg	79.00K
32	M5CapScrew25mm.dwg	171.21K
33	M5CapScrew65mm.dwg	223.38K
34	M5CountersunkScrew25mm.dwg	172.47K
35	M5nut.dwg	40.08K
36	M6capscrew15mm.dwg	71.34K
37	M6capscrew20mm.dwg	79.28K
38	M6Countersinkscrew60mm.dwg	129.07K
39	M6nut.dwg	41.40K
40	M8capscrew25mm.dwg	80.81K
41	M8capscrew40mm.dwg	83.88K
42	M8capscrew65mm.dwg	158.08K
43	M8nut.dwg	42.90K
44	Microscopeasy.dwg	1.48M
45	MotorBuhler103x54mm.dwg	425.61K
46	Sensordriveassembly.dwg	4.49M
47	Sidebearingtensionerasy.dwg	498.93K
48	Spindleassy.dwg	421.46K
49	SpindleChinese2.2kw.dwg	453.11K
50	StepMotorNema23OceanContFL57STH56-2804B.dwg	245.33K
51	Workepiece100x100x4with10mmfacing.dwg	433.33K
52	WormGearboxSW030tPA.dwg	603.01K
53	Xaxisasy.dwg	1.58M
54	Xaxisballscrewasy.dwg	2.84M
55	Yaxissensoralignasy.dwg	900.72K
56	zAxisasy.dwg	1.35M
57	Zaxisballscrewasy.dwg	3.09M
58	_Clamp100x100.dwg	555.75K
59	_Crossrailassy.dwg	2.46M
60	_Headrailassy.dwg	1.10M
61	_MainV2021.dwg	505.39K
62	_MainV2021.txt	2.40K
