G026523-变速箱设计=直升机（ID:2215032）

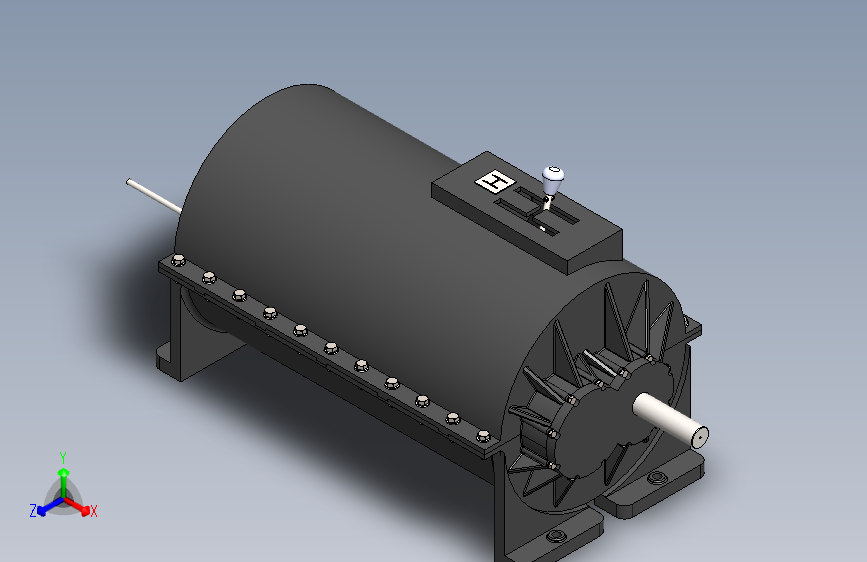

0.png)
2.png)

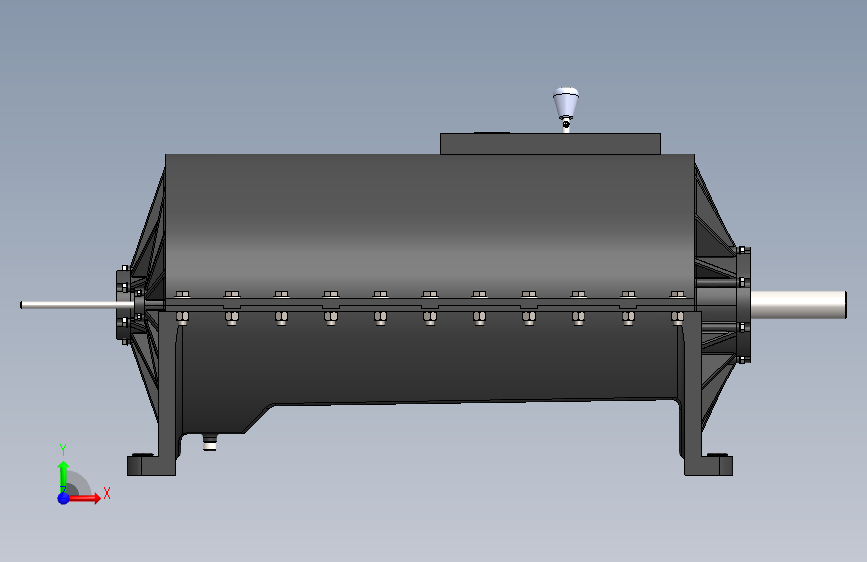

3.png)

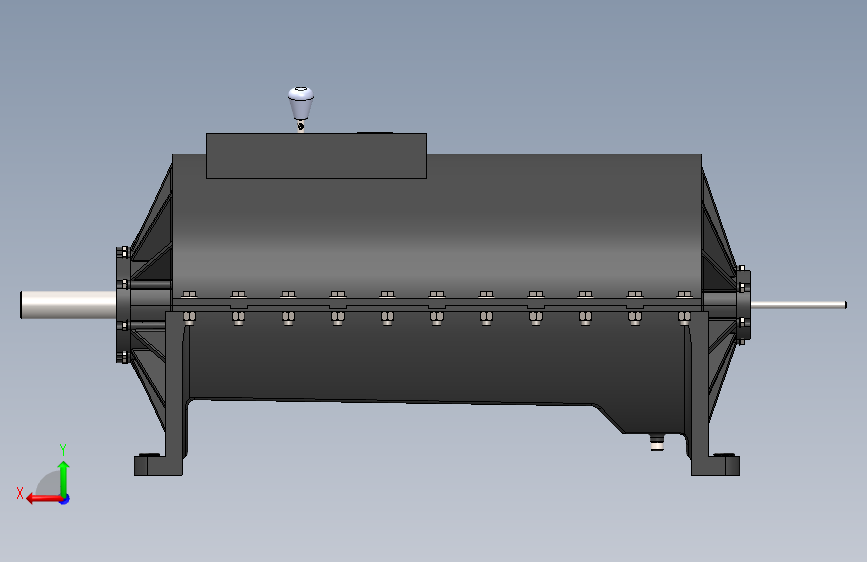

4.png)

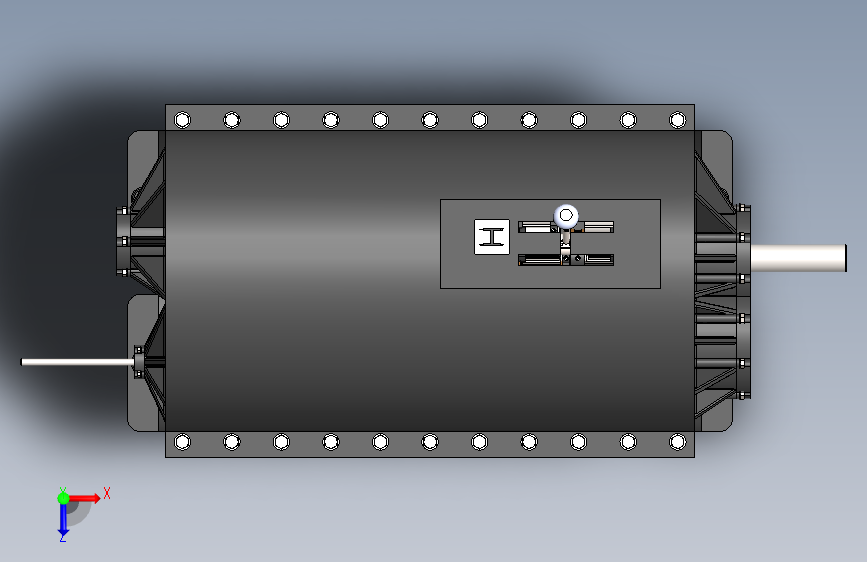

1.png)
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 1.JPG | 171.50K |

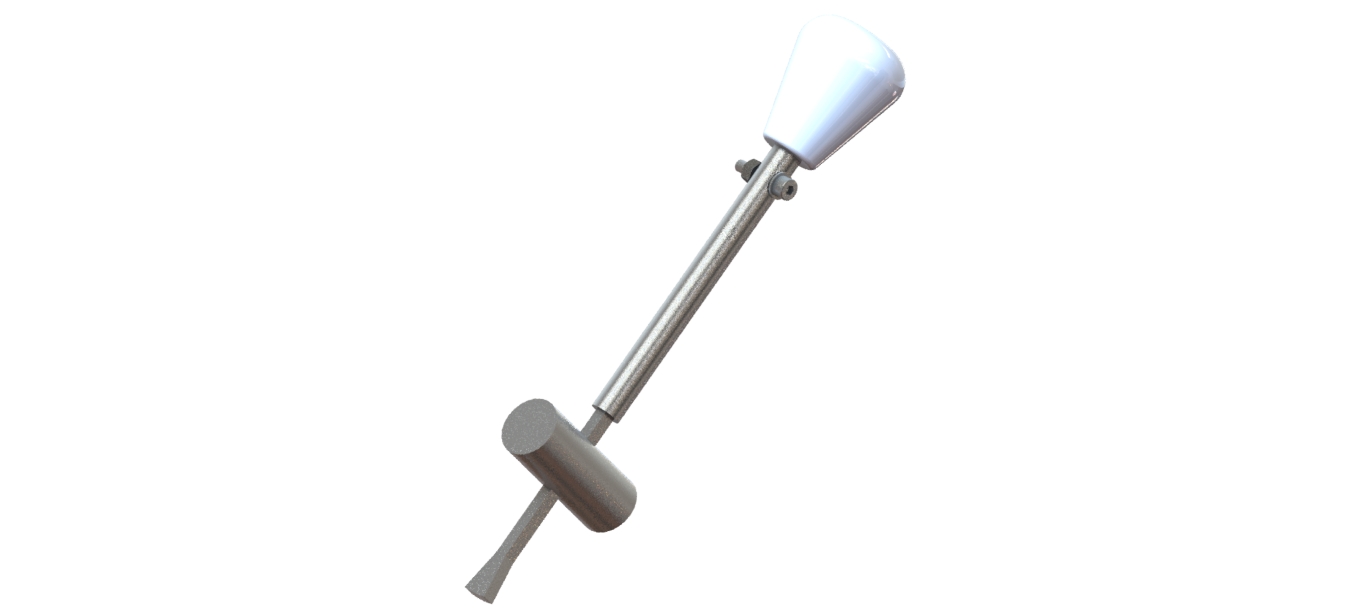

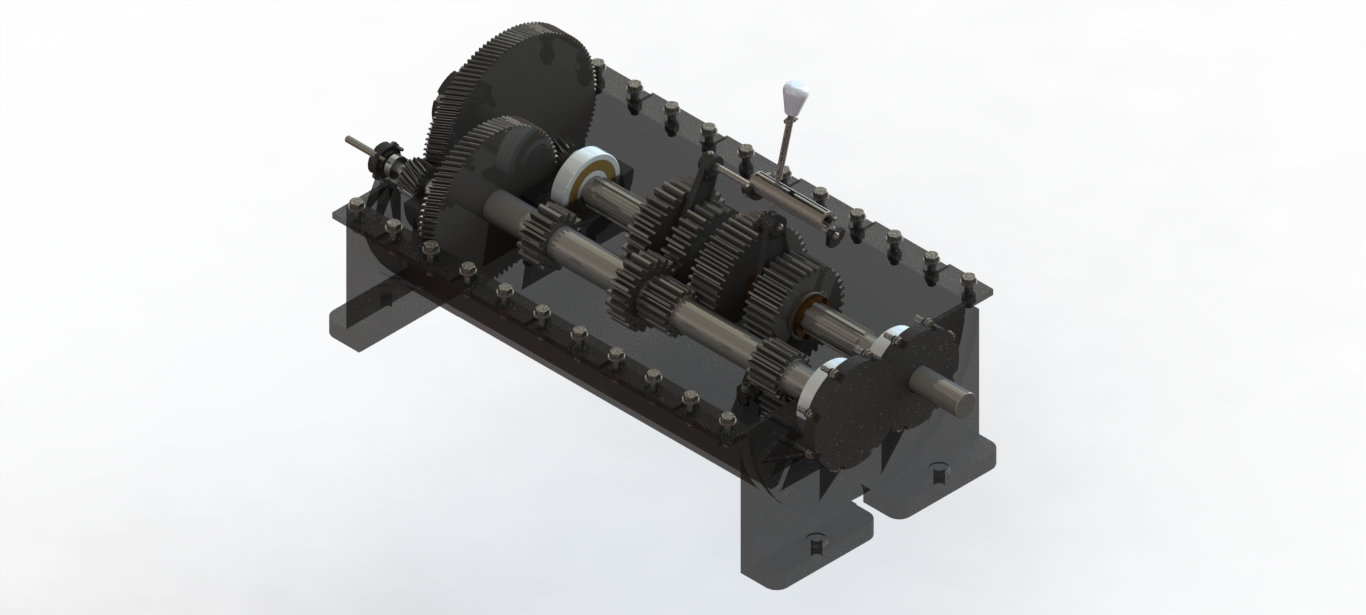

| 2 | 17488757769279.zip | 83.28M |
| 3 | 4.JPG | 304.26K |
| 4 | 6..JPG | 172.19K |

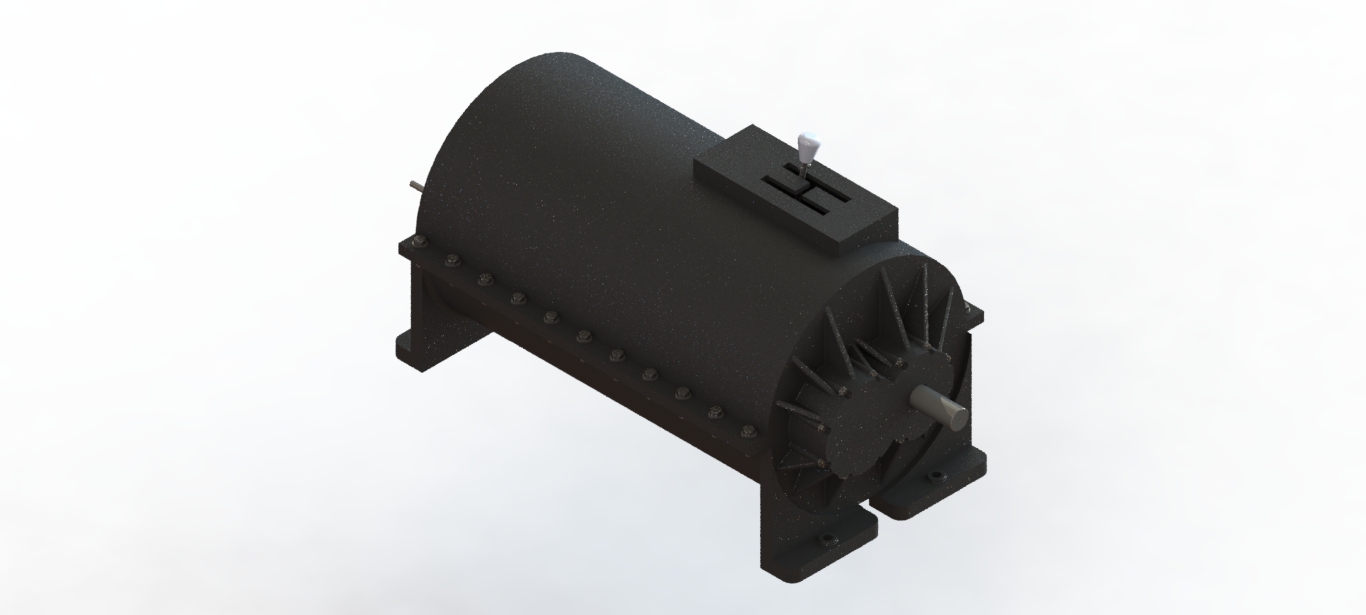

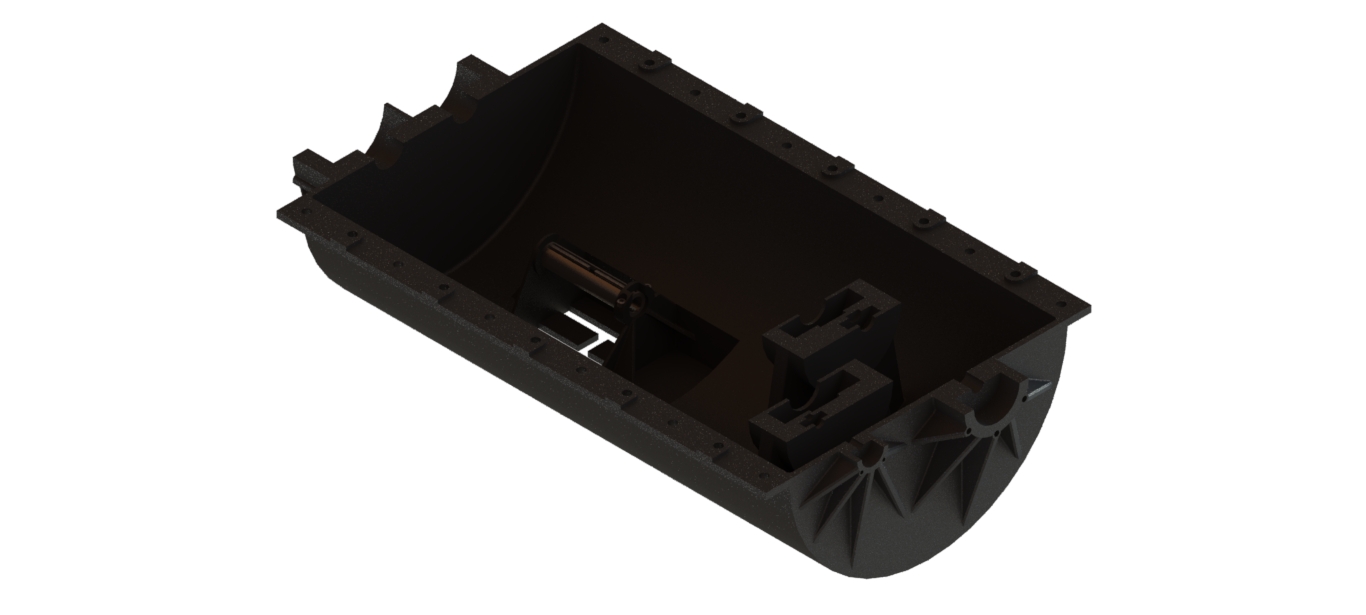

| 5 | Casingtoppartassembly.JPG | 134.57K |
| 6 | Finaldesigncalculationreport.zip | 5.10M |

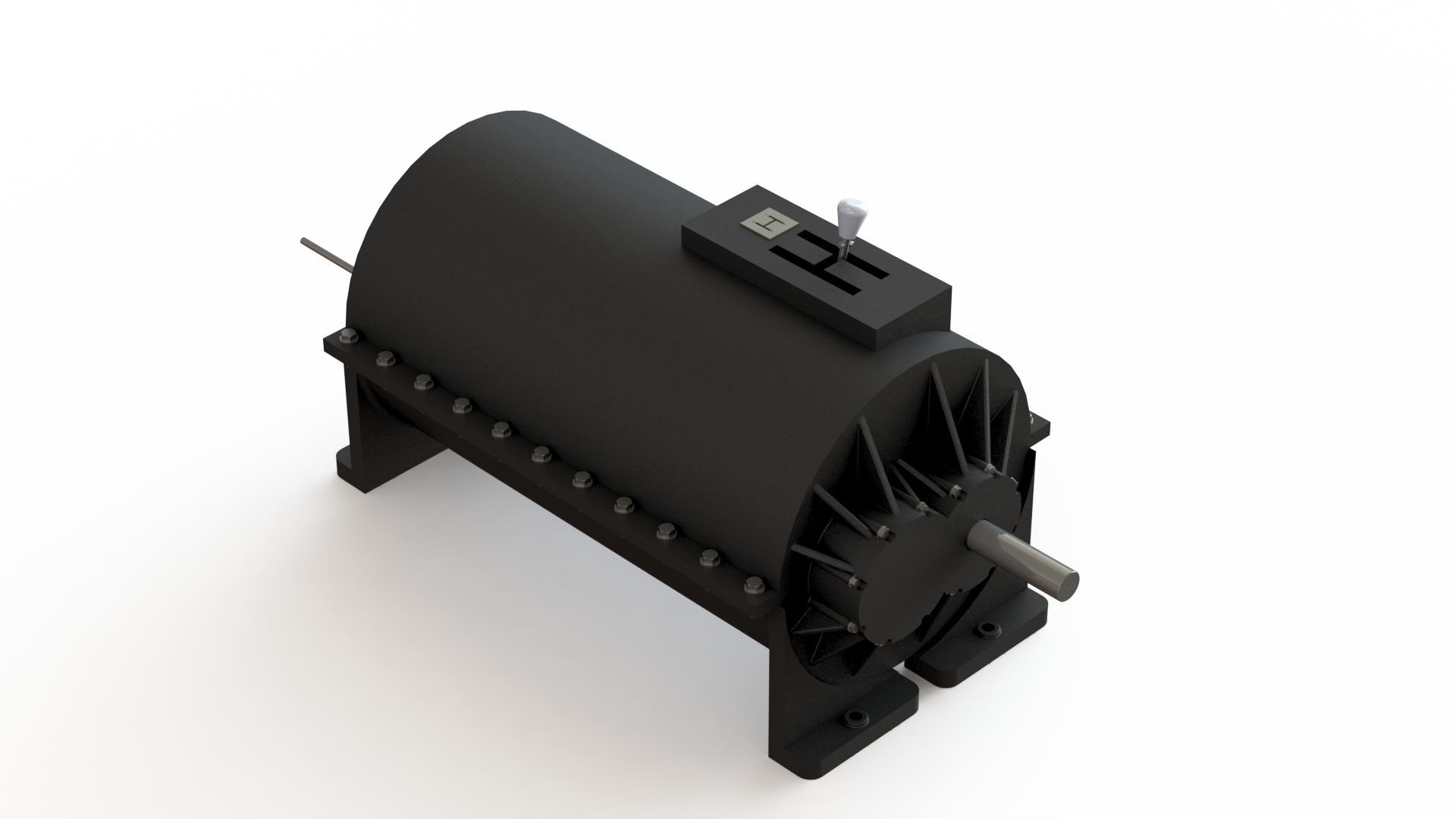

| 7 | Finalgearboxdesign.png | 1.65M |

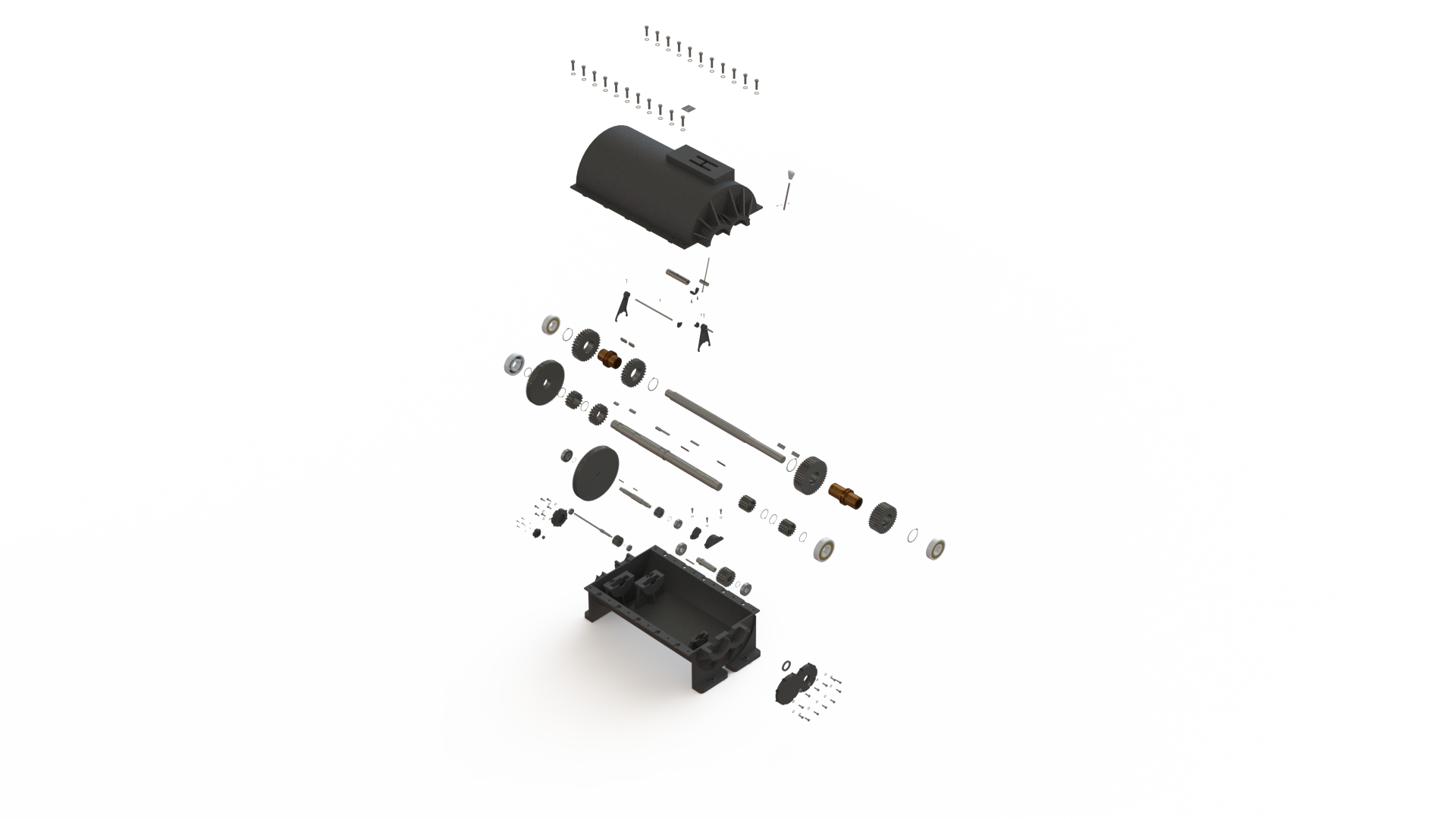

| 8 | Finalgearboxdesignexplodedview.png | 1009.48K |

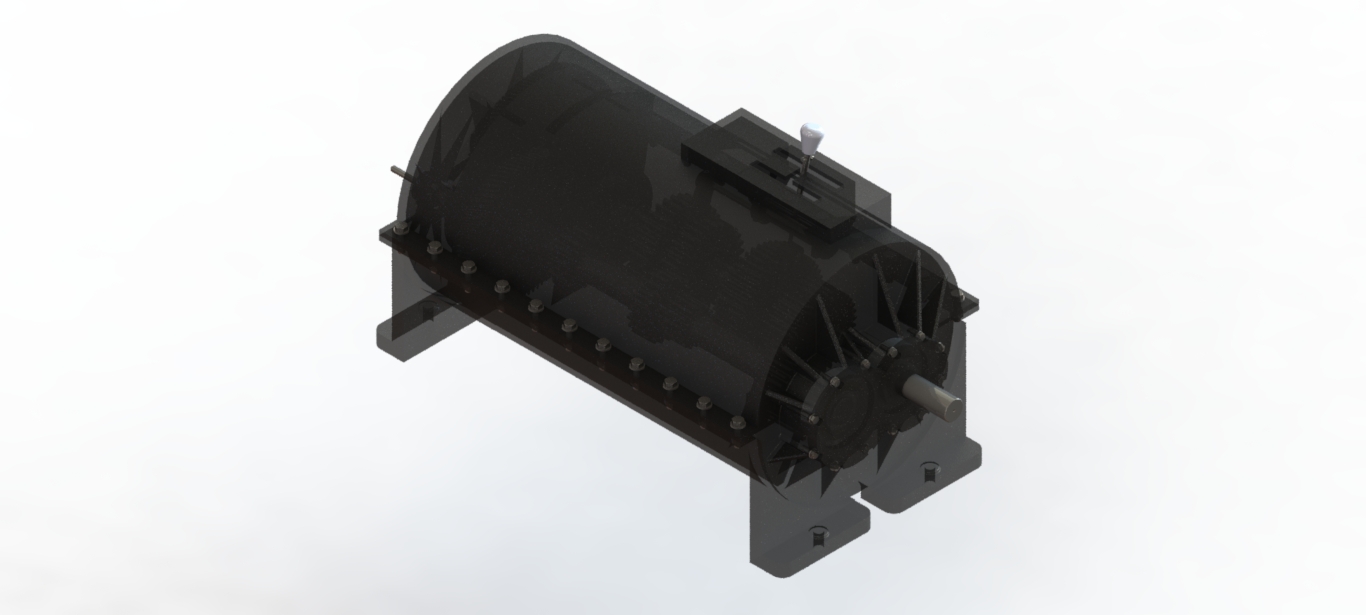

| 9 | Fullcasing.JPG | 158.76K |
| 10 | Gearboxassemblyproductiondrawings.zip | 5.56M |
| 11 | Gearshifthandleassembly.JPG | 51.16K |
| 12 | Idlershaftassembly.JPG | 181.96K |

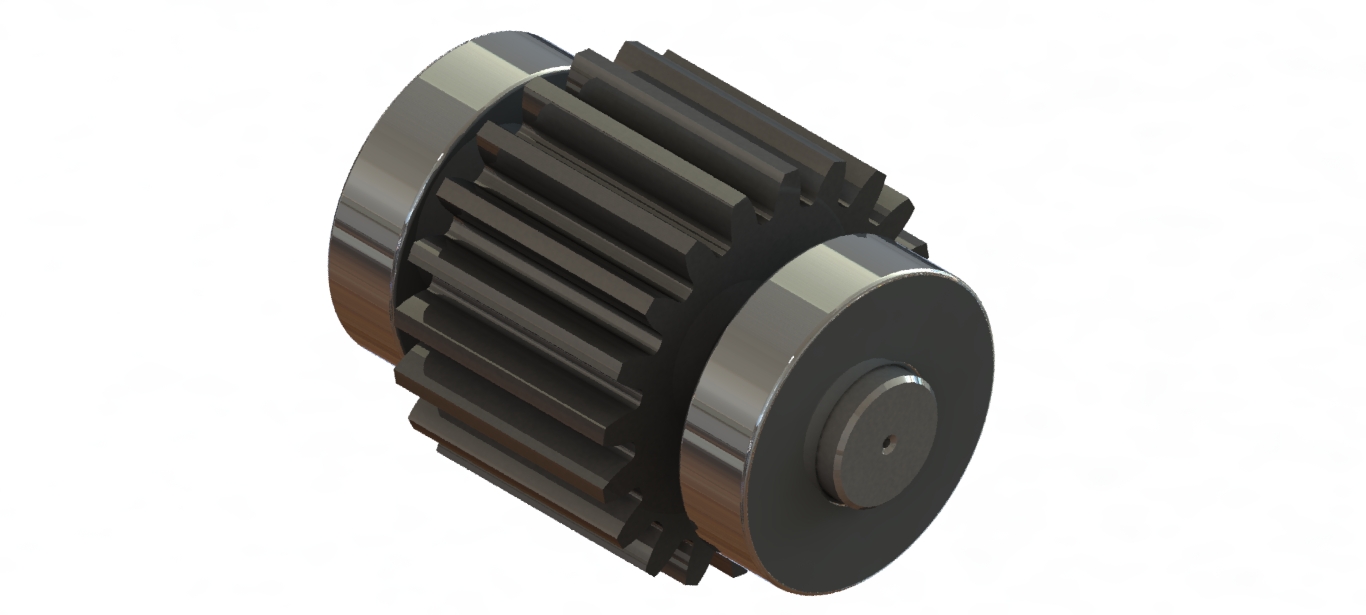

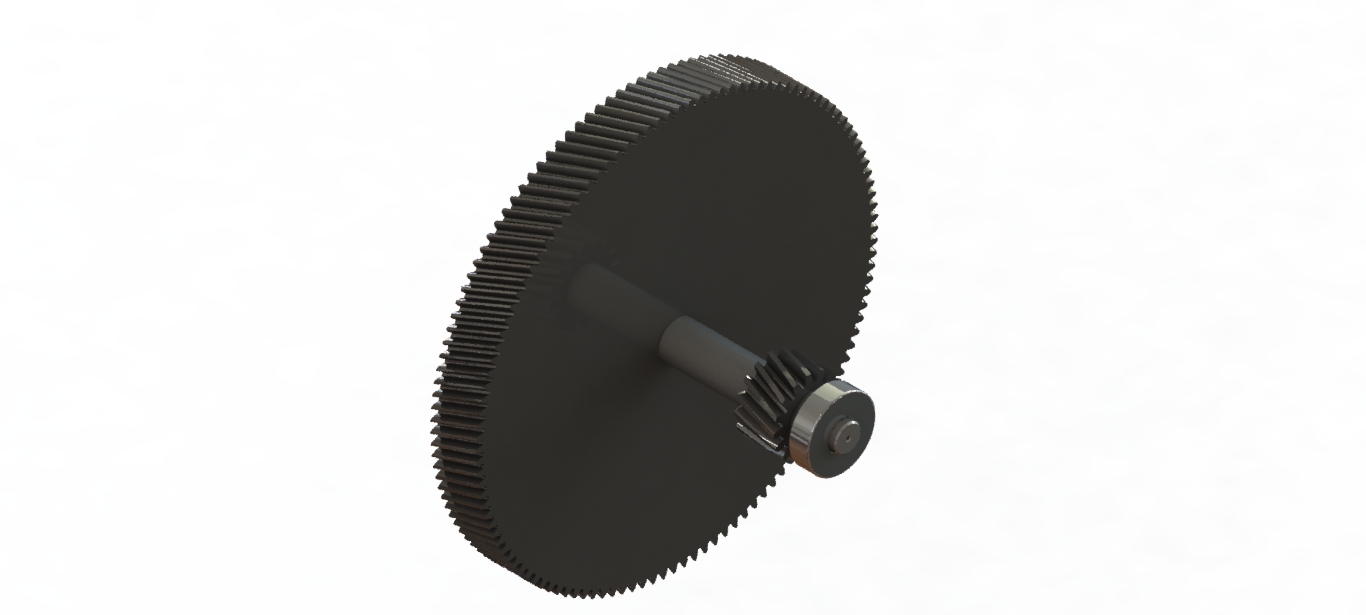

| 13 | Inputshaftassembly.JPG | 151.13K |

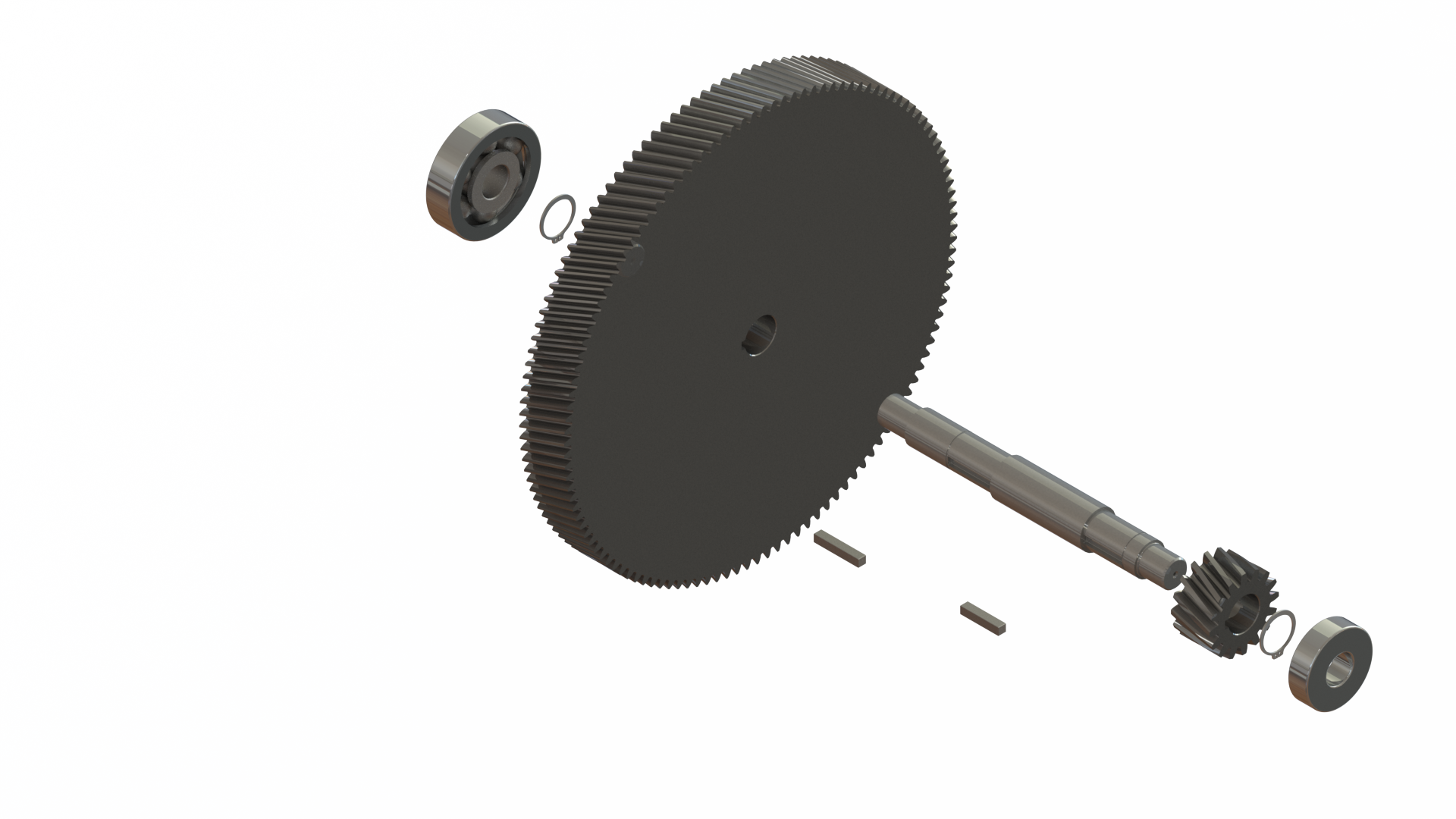

| 14 | Inputshaftexplodedview.png | 1.46M |

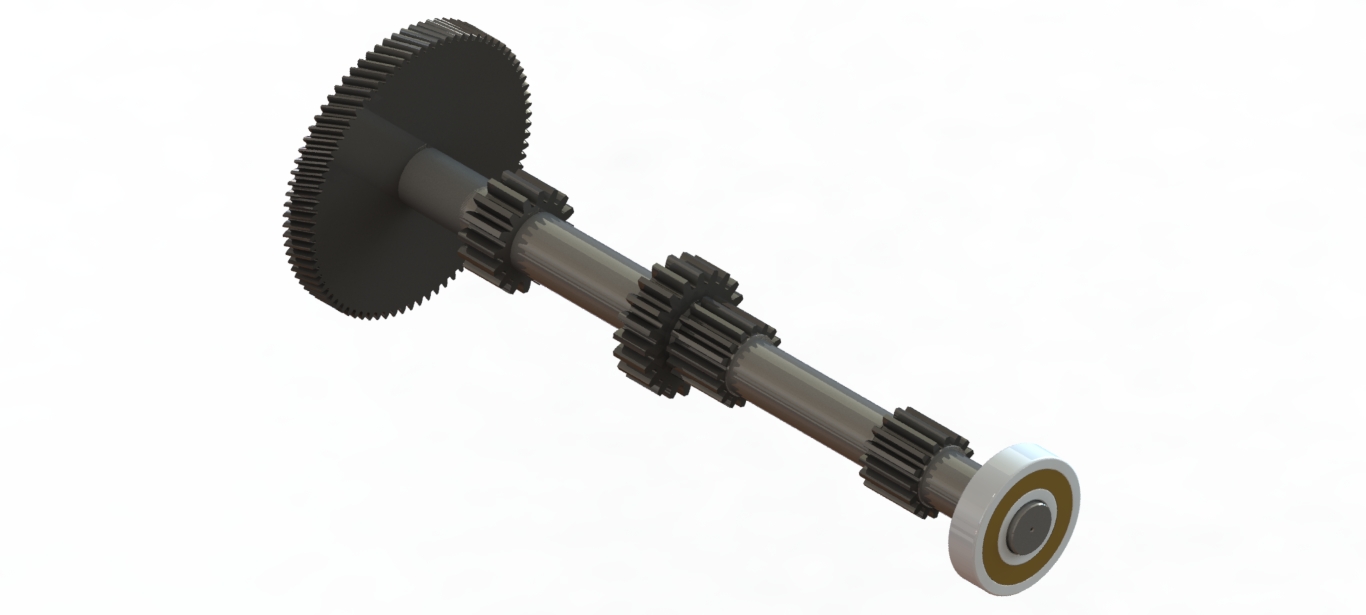

| 15 | Layshaftassembly.JPG | 137.74K |

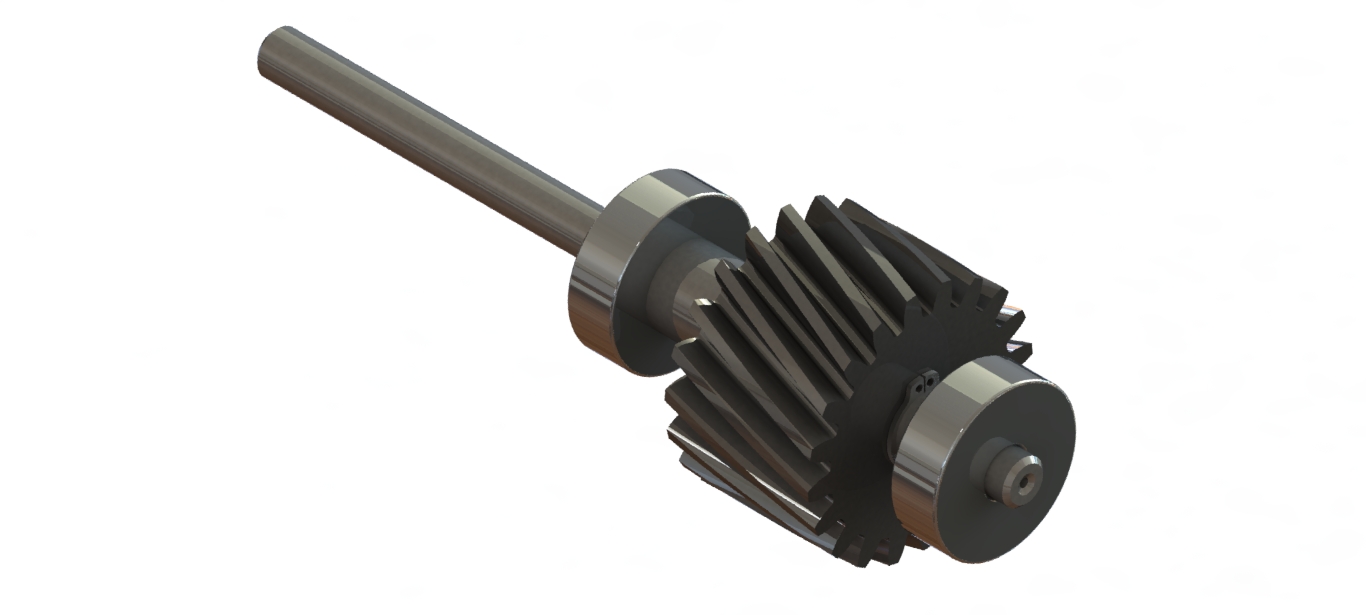

| 16 | Motorshaftassembly.JPG | 129.01K |

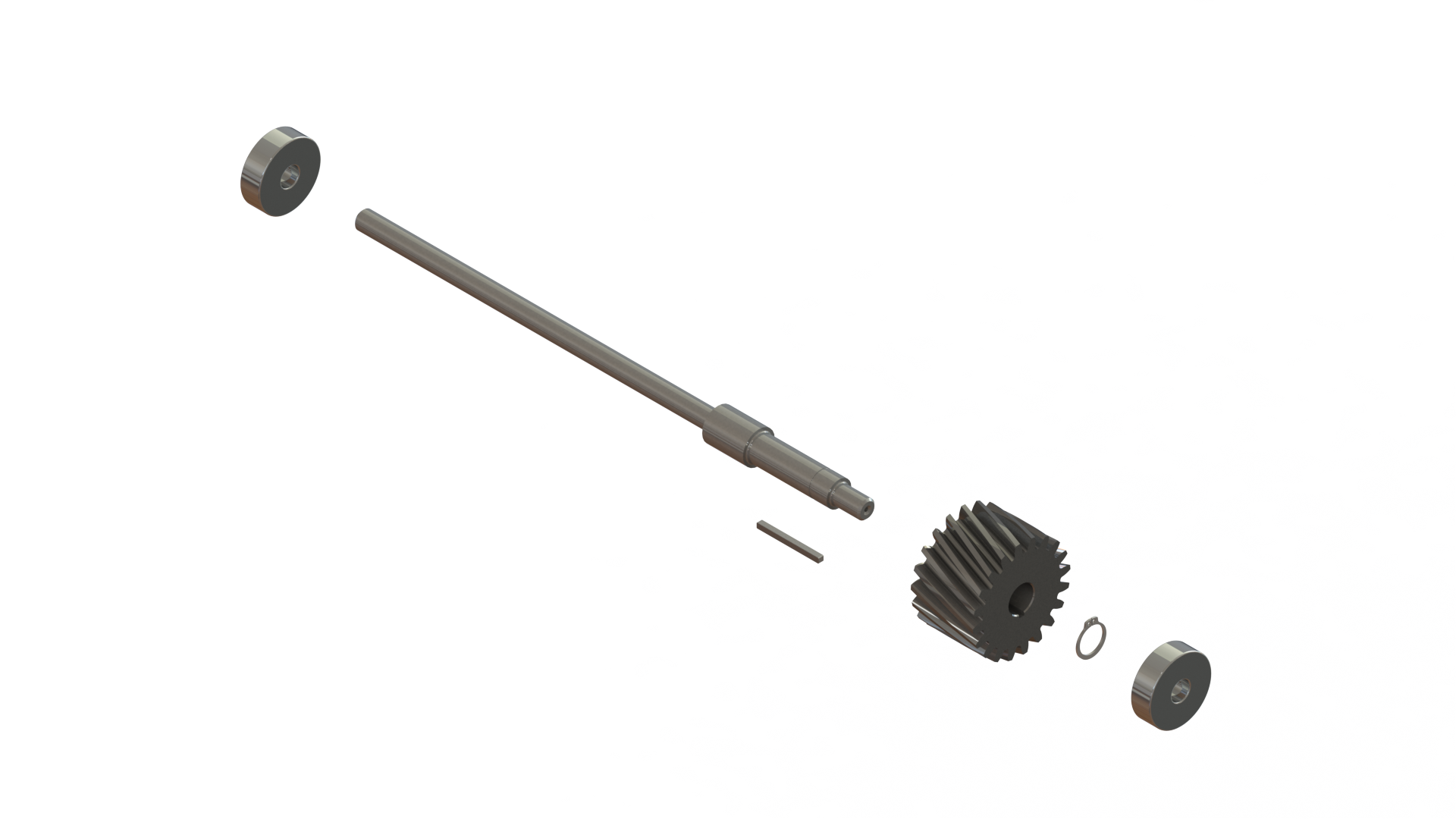

| 17 | Motorshaftassembly.png | 823.36K |

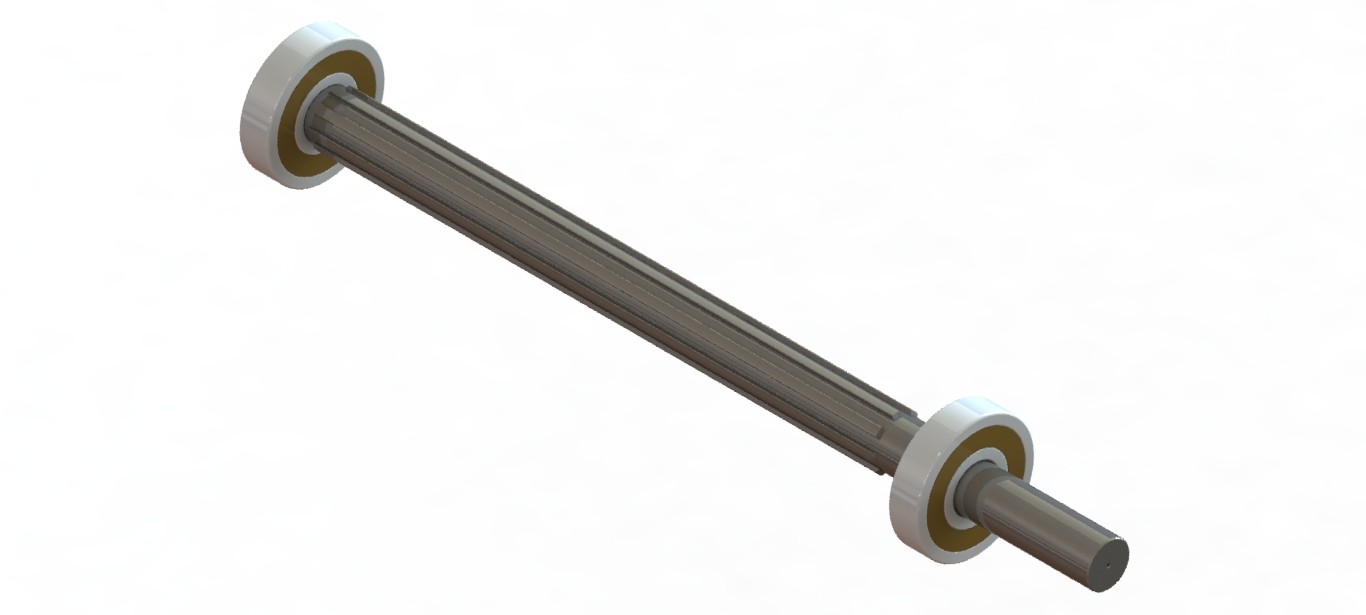

| 18 | Outputshaftassembly.JPG | 136.43K |

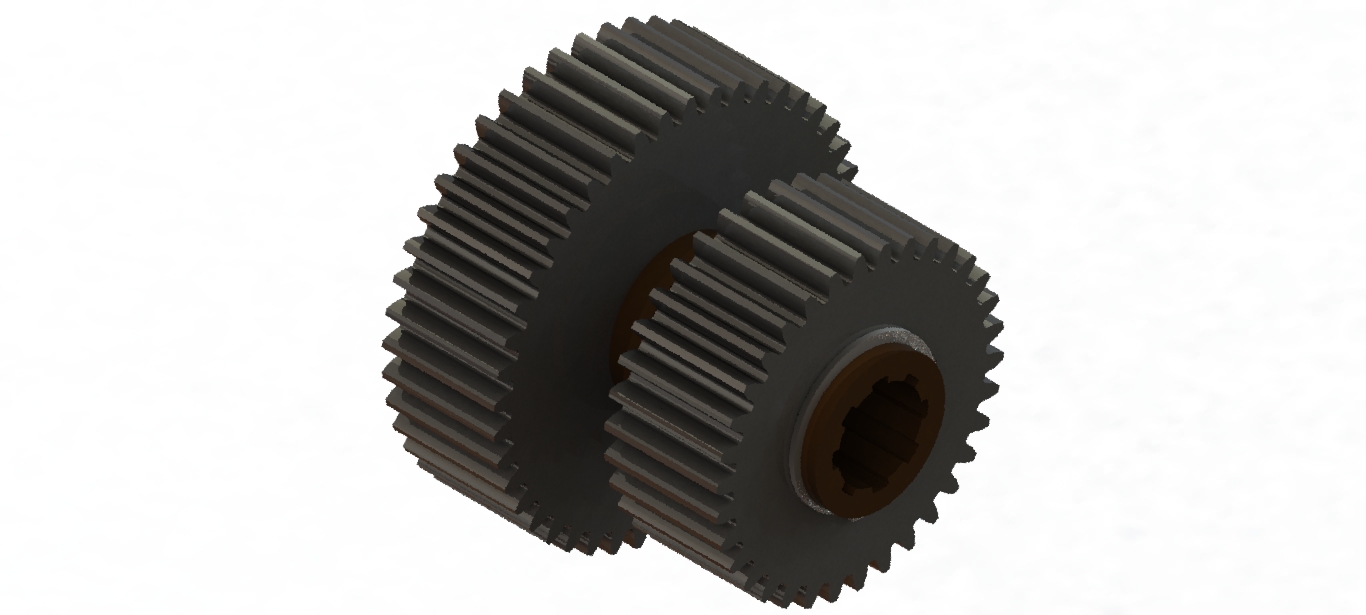

| 19 | Selector1-Rassembly.JPG | 226.60K |

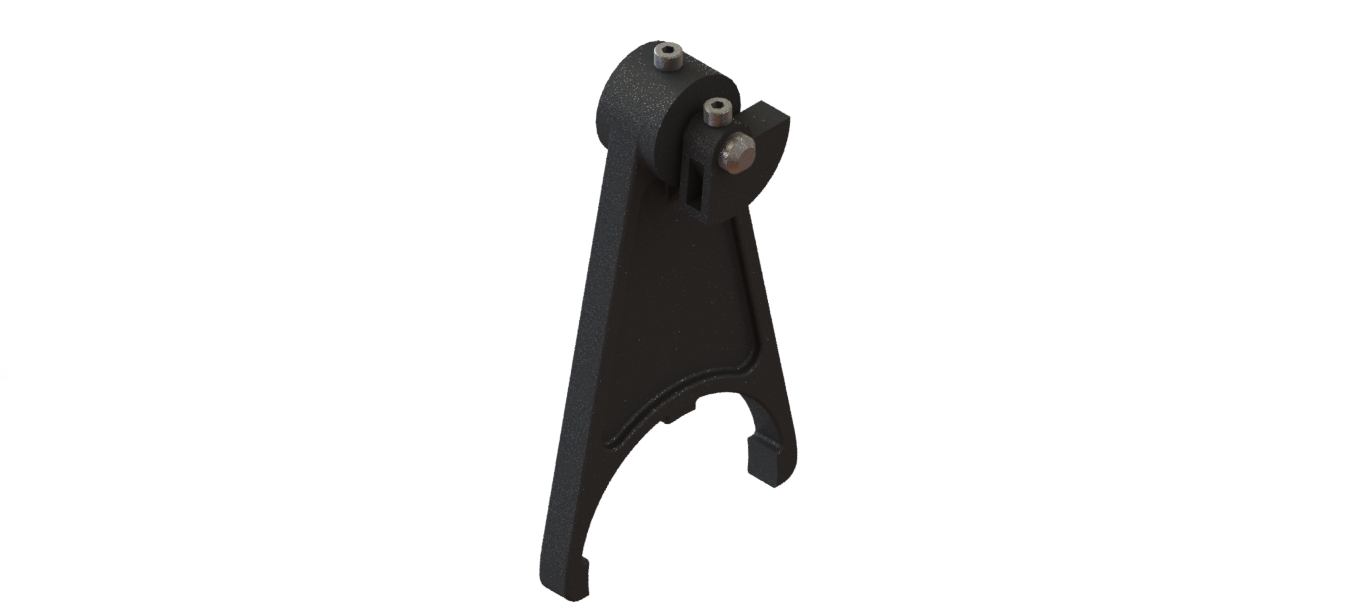

| 20 | Selector1-Rforkassembly.JPG | 68.07K |

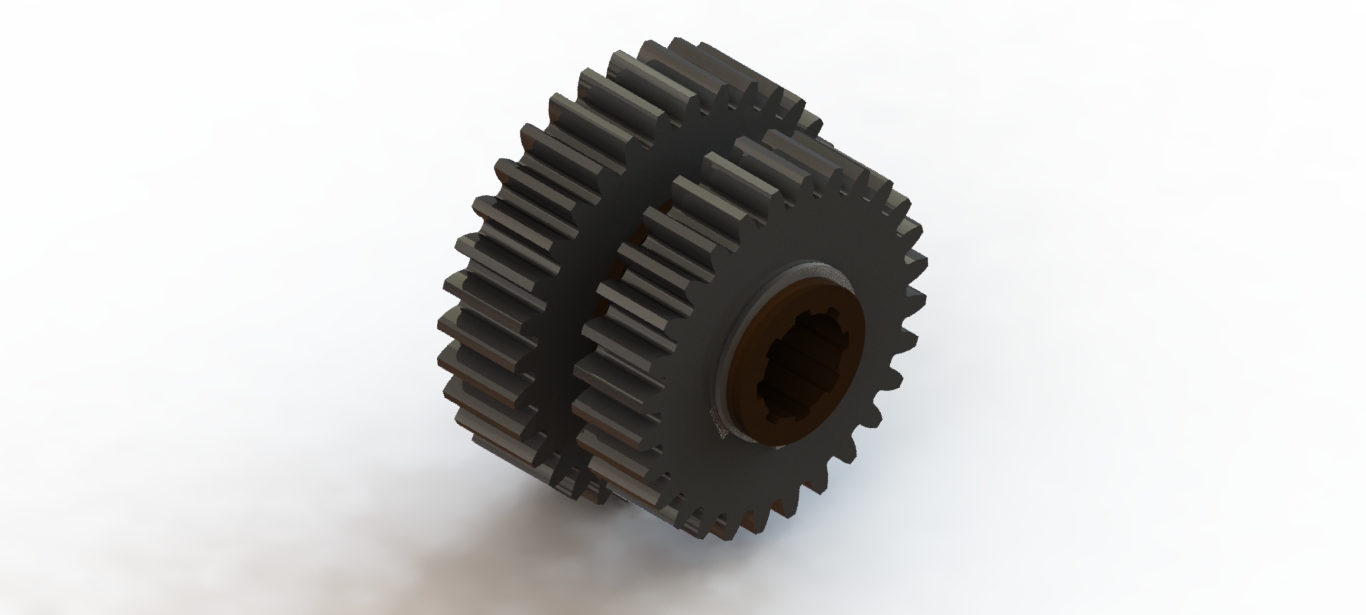

| 21 | Selector2-3assembly.JPG | 176.92K |

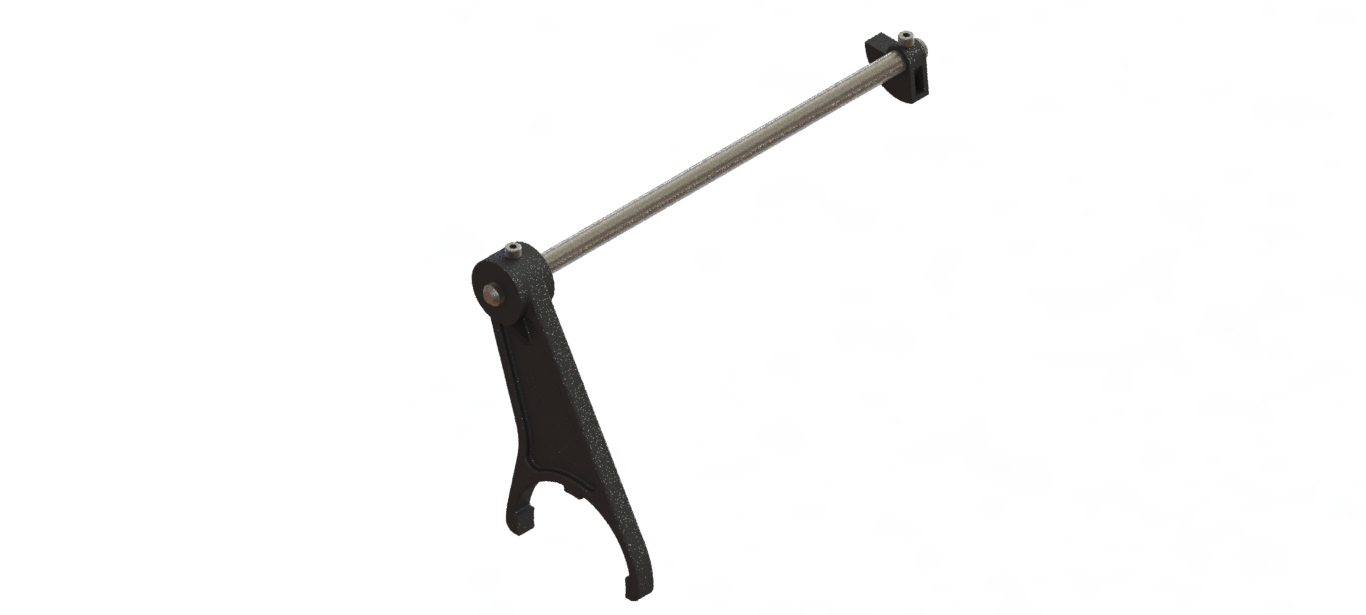

| 22 | Selector2-3forkassembly.JPG | 66.80K |
| 23 | 0.1.Frontpage.docx | 26.16K |
| 24 | 0.2.Content.docx | 14.45K |
| 25 | desktop.ini | 115B |
| 26 | 1.1.Axialloadcalculation.docx | 24.40K |
| 27 | 1.2.Pitchanglecalculation.docx | 24.18K |
| 28 | 1.3.Screwfrictiontorquecalculation.docx | 25.25K |
| 29 | 1.4.Screwsafetycheck.docx | 25.74K |
| 30 | 1.5.Ffrictiontorquecalculation.docx | 24.48K |
| 31 | 1.6.Calculatetheliftingvelocity.docx | 23.83K |
| 32 | 1.7.Selecttheprimemover.docx | 25.94K |
| 33 | desktop.ini | 115B |
| 34 | desktop.ini | 115B |
| 35 | F1.Problemdefinition.docx | 13.56K |
| 36 | F2.Projectbrief.docx | 14.66K |
| 37 | F3.Conceptualdesign.docx | 788.16K |
| 38 | F4.Conceptselection.docx | 16.21K |
| 39 | F5.FinalGearboxdesign.docx | 0B |
| 40 | F6.Manufacturingprocess.docx | 42.28K |
| 41 | 2.1.Helicalgearmoduleselection.docx | 53.32K |
| 42 | 2.2.Spurgearmoduleselection.docx | 62.35K |
| 43 | 2.3.Helicalgearstrengthcalculation.docx | 28.30K |
| 44 | 2.4.Spurgearstrengthcalculation.docx | 68.02K |
| 45 | 2.5.Standardproportionsofgearsystems.docx | 86.52K |
| 46 | desktop.ini | 115B |
| 47 | 3.1.Placementoftheidlegear.docx | 27.81K |
| 48 | 3.2.Motorshaftdiametercalculation.docx | 105.49K |
| 49 | 3.3.Inputshaftdiametercalculation.docx | 72.31K |
| 50 | 3.4.Layshaftdiametercalculation.docx | 198.95K |
| 51 | 3.5.Outputshaftdiametercalculation.docx | 178.42K |
| 52 | 3.6.Idleshaftdiametercalculation.docx | 60.25K |
| 53 | desktop.ini | 115B |
| 54 | 4.1.Keyscalculation.docx | 22.67K |
| 55 | 4.2.Splinecalculation.docx | 16.84K |
| 56 | 4.3.Couplingcalculation.docx | 34.82K |
| 57 | desktop.ini | 115B |
| 58 | 5.1.Bearingselection.docx | 104.92K |
| 59 | desktop.ini | 115B |
| 60 | 6.1.Shaftjustification.docx | 26.19K |
| 61 | 6.2.Gearjustification.docx | 22.12K |
| 62 | 6.3.Fatiguestrengthcalculationofshafts.docx | 248.10K |
| 63 | 6.4..Bendingstressconcentration.docx | 749.34K |
| 64 | 6.5.Helicalgearfinaldimensions.docx | 21.10K |
| 65 | 6.6.Spurgearfinaldimensions.docx | 83.38K |
| 66 | desktop.ini | 115B |
| 67 | 7.1.Lubricationselection.docx | 28.38K |
| 68 | 7.2.Oilsealselection.docx | 19.08K |
| 69 | desktop.ini | 115B |
| 70 | 8.1.Energylossesfromgearmesh.docx | 25.69K |
| 71 | 8.2.Churningpowerlosses.docx | 20.47K |
| 72 | 8.3.Bearingpowerlosses.docx | 20.81K |
| 73 | 8.5.Totalpowerloss.docx | 14.09K |
| 74 | desktop.ini | 115B |
| 75 | 9.1.Gearboxcalculation.docx | 19.07K |
| 76 | desktop.ini | 115B |
| 77 | desktop.ini | 114B |
| 78 | Gearboxlayout.docx | 62.51K |
| 79 | Shaftcalculations.docx | 28.37K |
| 80 | Template.docx | 12.75K |
| 81 | Template2.docx | 27.65K |
| 82 | Couplingformotorshaft.xlsx | 10.72K |
| 83 | Designcalculationofhelicoptertug.xlsx | 523.26K |
| 84 | Gearboxdesigncalculation.xlsx | 1.27M |
| 85 | ~$Design calculation of helicopter tug.xlsx | 165B |
| 86 | ~$Gear box design calculation.xlsx | 165B |
| 87 | Casingbottompartwithidlershaftmounting.SLDASM | 617.79K |
| 88 | Casingtoppartwithpathfollower.SLDASM | 768.38K |
| 89 | Motorshaftwithoilseal.SLDASM | 199.44K |
| 90 | Outputshaftwithoilseal.SLDASM | 228.25K |
| 91 | M4hexheadnutwithwasher.SLDASM | 141.55K |
| 92 | M8hexheadnutwithwasher.SLDASM | 119.97K |
| 93 | Nutboltwasherassembly.SLDASM | 118.23K |
| 94 | Gearshifthandle.SLDASM | 140.75K |
| 95 | Selector1-Rforkassembly.SLDASM | 255.11K |
| 96 | Selector2-3forkassembly.SLDASM | 251.22K |
| 97 | Selectror1-Rassembly.SLDASM | 351.82K |
| 98 | Selectror2-3assembly.SLDASM | 304.97K |
| 99 | Idlergearassembly.SLDASM | 301.75K |
| 100 | Inputshaftassembly.SLDASM | 1.35M |
| 101 | Layshaftassembly.SLDASM | 1.07M |
| 102 | Motorshaftassembly.SLDASM | 478.65K |
| 103 | Outputshaftassembly.SLDASM | 337.06K |
| 104 | FinalIterationassembly.SLDASM | 4.99M |
| 105 | Dummy.SLDPRT | 321.40K |
| 106 | Helixpinion.SLDPRT | 743.35K |
| 107 | Helixwheel.SLDPRT | 2.48M |
| 108 | SpurPinion.SLDPRT | 790.32K |
| 109 | SpurWheel.SLDPRT | 1.04M |
| 110 | Idleshaftmount1.SLDPRT | 151.09K |
| 111 | Idleshaftmount2.SLDPRT | 153.05K |
| 112 | Slidingpathmount.SLDPRT | 103.29K |
| 113 | Numberplate.SLDPRT | 176.55K |
| 114 | Idleshaft.SLDPRT | 168.85K |
| 115 | Inputshaftpart.SLDPRT | 209.79K |
| 116 | Layshaftconfiguration1.SLDPRT | 245.60K |
| 117 | Layshaftconfiguration2.SLDPRT | 327.77K |
| 118 | Motorinputshaft.SLDPRT | 154.49K |
| 119 | Outputshaft.SLDPRT | 232.73K |
| 120 | 73488743-7-bearing_63_28_0.zip | 65.89K |
| 121 | bearing_63_28_0.SLDPRT | 105.15K |
| 122 | bearing_63_28_0.txt | 627B |
| 123 | bearing_63_28_0.SLDPRT | 142.50K |
| 124 | bearing_63_28_0.txt | 627B |
| 125 | 73488255-7-bearing_6300_0.zip | 61.61K |
| 126 | bearing_6300_0.SLDPRT | 100.08K |
| 127 | bearing_6300_0.txt | 625B |
| 128 | bearing_6300_0.SLDPRT | 139.00K |
| 129 | bearing_6300_0.txt | 625B |
| 130 | 73488371-7-bearing_6304_0.zip | 65.72K |
| 131 | bearing_6304_0.SLDPRT | 82.78K |
| 132 | bearing_6304_0.txt | 625B |
| 133 | bearing_6304_0.SLDPRT | 142.50K |
| 134 | bearing_6304_0.txt | 625B |
| 135 | 73488954-7-roulement_6404_2.zip | 374.35K |
| 136 | roulement_6404_2.SLDASM | 153.21K |
| 137 | roulement_6404_2.txt | 669B |
| 138 | roulement_6404_2_01.SLDPRT | 81.19K |
| 139 | roulement_6404_2_02.SLDPRT | 82.80K |
| 140 | roulement_6404_2_03.SLDPRT | 123.01K |
| 141 | roulement_6404_2.SLDASM | 211.00K |
| 142 | roulement_6404_2.txt | 669B |
| 143 | roulement_6404_2_01.SLDPRT | 143.50K |
| 144 | roulement_6404_2_02.SLDPRT | 143.00K |
| 145 | roulement_6404_2_03.SLDPRT | 188.00K |
| 146 | 73488630-7-bearing_6408-2rs_ya5_0.zip | 601.88K |
| 147 | bearing_6408-2rs_ya5_0.SLDASM | 261.72K |
| 148 | bearing_6408-2rs_ya5_0.txt | 641B |
| 149 | bearing_6408-2rs_ya5_0_01.SLDPRT | 124.88K |
| 150 | bearing_6408-2rs_ya5_0_02.SLDPRT | 121.41K |
| 151 | bearing_6408-2rs_ya5_0_03.SLDPRT | 132.22K |
| 152 | bearing_6408-2rs_ya5_0_04.SLDPRT | 35.35K |
| 153 | bearing_6408-2rs_ya5_0_05.SLDPRT | 36.58K |
| 154 | bearing_6408-2rs_ya5_0.SLDASM | 300.00K |
| 155 | bearing_6408-2rs_ya5_0.txt | 641B |
| 156 | bearing_6408-2rs_ya5_0_01.SLDPRT | 171.50K |
| 157 | bearing_6408-2rs_ya5_0_02.SLDPRT | 167.00K |
| 158 | bearing_6408-2rs_ya5_0_03.SLDPRT | 172.50K |
| 159 | bearing_6408-2rs_ya5_0_04.SLDPRT | 74.50K |
| 160 | bearing_6408-2rs_ya5_0_05.SLDPRT | 74.50K |
| 161 | 73488577-7-bearing_6409-z_0.zip | 384.50K |
| 162 | bearing_6409-z_0.SLDASM | 160.93K |
| 163 | bearing_6409-z_0.txt | 629B |
| 164 | bearing_6409-z_0_01.SLDPRT | 102.86K |
| 165 | bearing_6409-z_0_02.SLDPRT | 96.83K |
| 166 | bearing_6409-z_0_03.SLDPRT | 87.89K |
| 167 | bearing_6409-z_0_04.SLDPRT | 39.15K |
| 168 | bearing_6409-z_0.SLDASM | 203.50K |
| 169 | bearing_6409-z_0.txt | 629B |
| 170 | bearing_6409-z_0_01.SLDPRT | 171.00K |
| 171 | bearing_6409-z_0_02.SLDPRT | 164.50K |
| 172 | bearing_6409-z_0_03.SLDPRT | 148.50K |
| 173 | bearing_6409-z_0_04.SLDPRT | 89.50K |

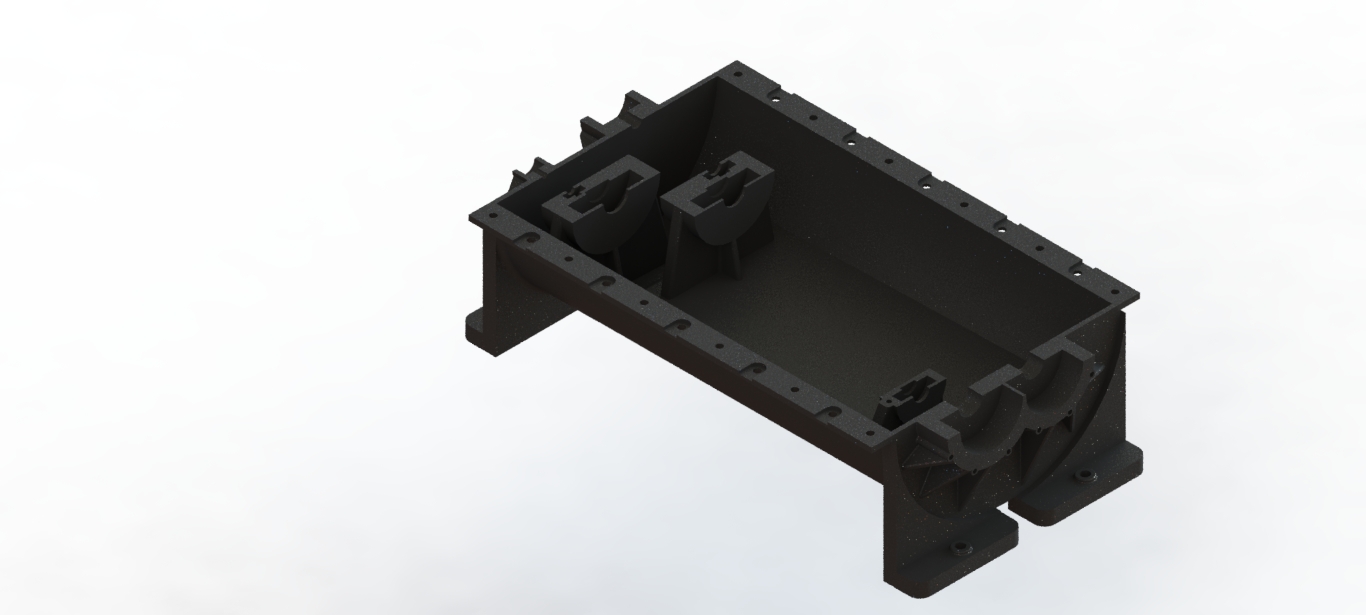

| 174 | Gearboxcasingbottompart.SLDPRT | 1.88M |
| 175 | Gearboxcasingtoppart.SLDPRT | 2.48M |
| 176 | Keysforgears.SLDPRT | 517.28K |
| 177 | MHA40608.SLDPRT | 214.56K |
| 178 | MHSA10208.SLDPRT | 205.15K |
| 179 | MHSA28488.SLDPRT | 207.03K |
| 180 | 1-Rconnector.SLDPRT | 93.91K |
| 181 | 2-3connector.SLDPRT | 76.79K |
| 182 | Gearlockingpart1-R.SLDPRT | 86.29K |
| 183 | Gearlockingpart2-3.SLDPRT | 85.69K |
| 184 | Gearselectorpath.SLDPRT | 139.29K |
| 185 | Handletop.SLDPRT | 113.52K |
| 186 | Mainhandle.SLDPRT | 70.39K |
| 187 | Selector1-Rfork.SLDPRT | 350.87K |
| 188 | Selector1-RV2.SLDPRT | 211.21K |
| 189 | Selector2-3.SLDPRT | 152.82K |
| 190 | Selector2-3fork.SLDPRT | 360.07K |
| 191 | Selector2-3V2.SLDPRT | 274.47K |
| 192 | Selectorpathfollower.SLDPRT | 78.40K |
| 193 | Inputshaft.SLDPRT | 115.90K |
| 194 | Motorshaftcap.SLDPRT | 126.40K |
| 195 | OutputshaftandLayshaftcap.SLDPRT | 198.68K |

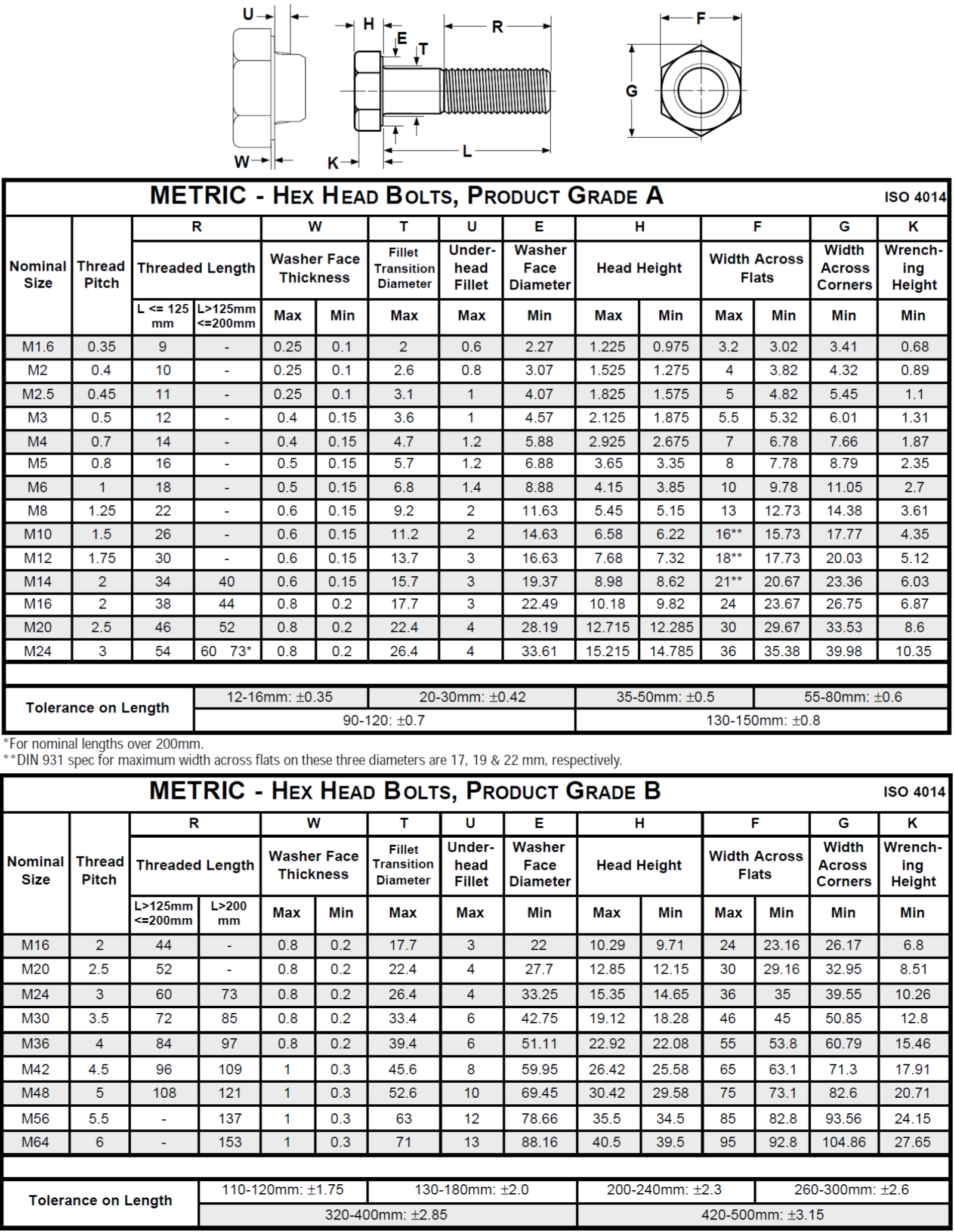

| 196 | DIN-931-Dimensions.png | 1.26M |
| 197 | Hexagonheadscrews.SLDPRT | 250.43K |
| 198 | Hexagonnut.SLDPRT | 133.59K |
| 199 | Washer.SLDPRT | 183.75K |
| 200 | Casingbottompartwithidlershaftmounting.SLDASM | 600.64K |
| 201 | Casingtoppartwithpathfollower.SLDASM | 752.52K |
| 202 | Motorshaftwithoilseal.SLDASM | 199.44K |
| 203 | Outputshaftwithoilseal.SLDASM | 228.25K |
| 204 | M4hexheadnutwithwasher.SLDASM | 141.55K |
| 205 | M8hexheadnutwithwasher.SLDASM | 119.97K |
| 206 | Nutboltwasherassembly.SLDASM | 118.23K |
| 207 | Gearshifthandle.SLDASM | 131.95K |
| 208 | Selector1-Rforkassembly.SLDASM | 253.88K |
| 209 | Selector2-3forkassembly.SLDASM | 254.01K |
| 210 | Selectror1-Rassembly.SLDASM | 334.10K |
| 211 | Selectror2-3assembly.SLDASM | 303.27K |
| 212 | Idlergearassembly.SLDASM | 305.85K |
| 213 | Inputshaftassembly.SLDASM | 1.35M |
| 214 | Layshaftassembly.SLDASM | 1.07M |
| 215 | Motorshaftassembly.SLDASM | 460.07K |
| 216 | Outputshaftassembly.SLDASM | 338.06K |
| 217 | FinalIterationassembly.SLDASM | 5.53M |
| 218 | Dummy.SLDPRT | 321.40K |
| 219 | Helixpinion.SLDPRT | 743.35K |
| 220 | Helixwheel.SLDPRT | 2.48M |
| 221 | SpurPinion.SLDPRT | 790.32K |
| 222 | SpurWheel.SLDPRT | 1.04M |
| 223 | Idleshaftmount1.SLDPRT | 153.28K |
| 224 | Idleshaftmount2.SLDPRT | 155.63K |
| 225 | Slidingpathmount.SLDPRT | 103.81K |
| 226 | Numberplate.SLDPRT | 178.18K |
| 227 | circlipforshaftsnormal_din.sldprt | 355.81K |
| 228 | Idleshaft.SLDPRT | 168.85K |
| 229 | Inputshaftpart.SLDPRT | 209.79K |
| 230 | Layshaftconfiguration1.SLDPRT | 245.60K |
| 231 | Layshaftconfiguration2.SLDPRT | 327.77K |
| 232 | Motorinputshaft.SLDPRT | 154.49K |
| 233 | Outputshaft.SLDPRT | 232.73K |
| 234 | 73488743-7-bearing_63_28_0.zip | 65.89K |
| 235 | bearing_63_28_0.SLDPRT | 105.15K |
| 236 | bearing_63_28_0.txt | 627B |
| 237 | bearing_63_28_0.SLDPRT | 142.50K |
| 238 | bearing_63_28_0.txt | 627B |
| 239 | 73488255-7-bearing_6300_0.zip | 61.61K |
| 240 | bearing_6300_0.SLDPRT | 100.08K |
| 241 | bearing_6300_0.txt | 625B |
| 242 | bearing_6300_0.SLDPRT | 139.00K |
| 243 | bearing_6300_0.txt | 625B |
| 244 | 73488371-7-bearing_6304_0.zip | 65.72K |
| 245 | bearing_6304_0.SLDPRT | 82.78K |
| 246 | bearing_6304_0.txt | 625B |
| 247 | bearing_6304_0.SLDPRT | 142.50K |
| 248 | bearing_6304_0.txt | 625B |
| 249 | 73488954-7-roulement_6404_2.zip | 374.35K |
| 250 | roulement_6404_2.SLDASM | 153.21K |
| 251 | roulement_6404_2.txt | 669B |
| 252 | roulement_6404_2_01.SLDPRT | 81.19K |
| 253 | roulement_6404_2_02.SLDPRT | 82.80K |
| 254 | roulement_6404_2_03.SLDPRT | 123.01K |
| 255 | roulement_6404_2.SLDASM | 211.00K |
| 256 | roulement_6404_2.txt | 669B |
| 257 | roulement_6404_2_01.SLDPRT | 143.50K |
| 258 | roulement_6404_2_02.SLDPRT | 143.00K |
| 259 | roulement_6404_2_03.SLDPRT | 188.00K |
| 260 | 73488630-7-bearing_6408-2rs_ya5_0.zip | 601.88K |
| 261 | bearing_6408-2rs_ya5_0.SLDASM | 261.72K |
| 262 | bearing_6408-2rs_ya5_0.txt | 641B |
| 263 | bearing_6408-2rs_ya5_0_01.SLDPRT | 124.88K |
| 264 | bearing_6408-2rs_ya5_0_02.SLDPRT | 121.41K |
| 265 | bearing_6408-2rs_ya5_0_03.SLDPRT | 132.22K |
| 266 | bearing_6408-2rs_ya5_0_04.SLDPRT | 35.35K |
| 267 | bearing_6408-2rs_ya5_0_05.SLDPRT | 36.58K |
| 268 | bearing_6408-2rs_ya5_0.SLDASM | 300.00K |
| 269 | bearing_6408-2rs_ya5_0.txt | 641B |
| 270 | bearing_6408-2rs_ya5_0_01.SLDPRT | 171.50K |
| 271 | bearing_6408-2rs_ya5_0_02.SLDPRT | 167.00K |
| 272 | bearing_6408-2rs_ya5_0_03.SLDPRT | 172.50K |
| 273 | bearing_6408-2rs_ya5_0_04.SLDPRT | 74.50K |
| 274 | bearing_6408-2rs_ya5_0_05.SLDPRT | 74.50K |
| 275 | 73488577-7-bearing_6409-z_0.zip | 384.50K |
| 276 | bearing_6409-z_0.SLDASM | 160.93K |
| 277 | bearing_6409-z_0.txt | 629B |
| 278 | bearing_6409-z_0_01.SLDPRT | 102.86K |
| 279 | bearing_6409-z_0_02.SLDPRT | 96.83K |
| 280 | bearing_6409-z_0_03.SLDPRT | 87.89K |
| 281 | bearing_6409-z_0_04.SLDPRT | 39.15K |
| 282 | bearing_6409-z_0.SLDASM | 203.50K |
| 283 | bearing_6409-z_0.txt | 629B |
| 284 | bearing_6409-z_0_01.SLDPRT | 171.00K |
| 285 | bearing_6409-z_0_02.SLDPRT | 164.50K |
| 286 | bearing_6409-z_0_03.SLDPRT | 148.50K |
| 287 | bearing_6409-z_0_04.SLDPRT | 89.50K |
| 288 | Gearboxcasingbottompart.SLDPRT | 1.88M |
| 289 | Gearboxcasingtoppart.SLDPRT | 2.51M |
| 290 | Keysforgears.SLDPRT | 517.28K |
| 291 | MHA40608.SLDPRT | 214.56K |
| 292 | MHSA10208.SLDPRT | 205.15K |
| 293 | MHSA28488.SLDPRT | 207.03K |
| 294 | 1-Rconnector.SLDPRT | 93.91K |
| 295 | 2-3connector.SLDPRT | 76.79K |
| 296 | Gearlockingpart1-R.SLDPRT | 86.29K |
| 297 | Gearlockingpart2-3.SLDPRT | 85.69K |
| 298 | Gearselectorpath.SLDPRT | 141.07K |
| 299 | Handletop.SLDPRT | 113.52K |
| 300 | Mainhandle.SLDPRT | 70.39K |
| 301 | Selector1-Rfork.SLDPRT | 350.87K |
| 302 | Selector1-RV2.SLDPRT | 211.21K |
| 303 | Selector2-3.SLDPRT | 152.82K |
| 304 | Selector2-3fork.SLDPRT | 360.07K |
| 305 | Selector2-3V2.SLDPRT | 274.47K |
| 306 | Selectorpathfollower.SLDPRT | 78.40K |
| 307 | Inputshaft.SLDPRT | 118.96K |
| 308 | Motorshaftcap.SLDPRT | 126.40K |
| 309 | OutputshaftandLayshaftcap.SLDPRT | 198.68K |
| 310 | DIN-931-Dimensions.png | 1.26M |
| 311 | Hexagonheadscrews.SLDPRT | 250.43K |
| 312 | Hexagonnut.SLDPRT | 133.59K |
| 313 | Washer.SLDPRT | 183.75K |
| 314 | productiondrawingindex.docx | 16.82K |
| 315 | GearboxexploidedviewA0.PDF | 334.16K |
| 316 | GearboxexploidedviewA0.SLDDRW | 1010.64K |
| 317 | GearboxexploidedviewA1.PDF | 289.98K |
| 318 | GearboxexploidedviewA1.SLDDRW | 1.01M |
| 319 | 1-SHT-GB-CVBA.PDF | 43.46K |
| 320 | 1.SHT-GB-CVBA.SLDDRW | 150.25K |
| 321 | 10-SHT-GB-F1RA.PDF | 29.41K |
| 322 | 10.SHT-GB-F1RA.SLDDRW | 101.65K |
| 323 | 11-SHT-GB-CVTA.PDF | 31.50K |
| 324 | 11.SHT-GB-CVTA.SLDDRW | 112.35K |
| 325 | 12-SHT-GB-GSHA.PDF | 26.24K |
| 326 | 12.SHT-GB-GSHA.SLDDRW | 90.31K |
| 327 | 2-SHT-GB-MTRA.PDF | 33.58K |
| 328 | 2.SHT-GB-MTRA.SLDDRW | 113.19K |
| 329 | 3-SHT-GB-INPA.PDF | 58.79K |
| 330 | 3.SHT-GB-INPA.SLDDRW | 196.13K |
| 331 | 4-SHT-GB-IDLA.PDF | 38.28K |
| 332 | 4.SHT-GB-IDLA.SLDDRW | 122.01K |
| 333 | 5-SHT-GB-LAYA.PDF | 75.60K |
| 334 | 5.SHT-GB-LAYA.SLDDRW | 263.01K |
| 335 | 6-SHT-GB-OUTA.PDF | 32.93K |
| 336 | 6.SHT-GB-OUTA.SLDDRW | 97.64K |
| 337 | 7-SHT-GB-S23A.PDF | 47.40K |
| 338 | 7.SHT-GB-S23A.SLDDRW | 146.49K |
| 339 | 8-SHT-GB-S1RA.PDF | 51.03K |
| 340 | 8.SHT-GB-S1RA.SLDDRW | 159.22K |
| 341 | 9-SHT-GB-F23A.PDF | 29.04K |
| 342 | 9.SHT-GB-F23A.SLDDRW | 105.29K |
| 343 | SHT-GB-F23A-F23P-0.R.PDF | 40.77K |
| 344 | SHT-GB-F23A-F23P-0.R.SLDDRW | 132.00K |
| 345 | SHT-GB-IDLA-IDLP-0.R.PDF | 33.03K |
| 346 | SHT-GB-IDLA-IDLP-0.R.SLDDRW | 126.72K |
| 347 | SHT-GB-IDLA-TRIG-0.R.PDF | 35.96K |
| 348 | SHT-GB-IDLA-TRIG-0.R.SLDDRW | 149.60K |
| 349 | SHT-GB-OUTA-OUTP-0.R.PDF | 30.51K |
| 350 | SHT-GB-OUTA-OUTP-0.R.SLDDRW | 104.06K |
| 351 | SHT-GB-S1RA-S1RP-0.R.PDF | 31.27K |
| 352 | SHT-GB-S1RA-S1RP-0.R.SLDDRW | 102.37K |
| 353 | A1.slddrt | 43.79K |
| 354 | A1.SLDDRW | 47.66K |
| 355 | A2.slddrt | 43.60K |
| 356 | A2.SLDDRW | 48.78K |
| 357 | A4-Report.slddrt | 41.86K |
| 358 | A4-Report.SLDDRW | 43.18K |
| 359 | A4.slddrt | 42.01K |
| 360 | A4.SLDDRW | 48.93K |
此图纸下载需要20金币
立即下载
发布者
任性的百合
创作: 68802
粉丝: 124
加入时间：2024-09-01
模型信息
图纸格式：sldasm,sldprt,pdf,slddrw
文件大小：85.27M
所需金币：20
上传时间：2025-06-02 22:50:22
是否可编辑：可修改，包括参数
版本：SOLIDWORKS 2017
标签
图纸简介
版权说明
用户在本站上传的作品如侵犯到您的权益，请与本站管理员联系删除。用户在本站下载的原创作品，只拥有作品的使用权，著作权归原作者所有，未经合法授权，用户不得以任何形式发布、传播、复制、转售该作品。
0.png)
0.png)
![G027250-_原型_狗移动变速箱[4183-位桶]=机器人机械臂](https://html.lazystones.com/lazy/2216258/image/a146148a-cffc-4ee3-be85-a2c38d426351原图(主)0.png)
0.png)
0.png)
0.png)
0.png)
0.png)
0.png)
0.png)
0.png)
0.png)
0.png)
0.png)
QQ在线客服
官方QQ群
