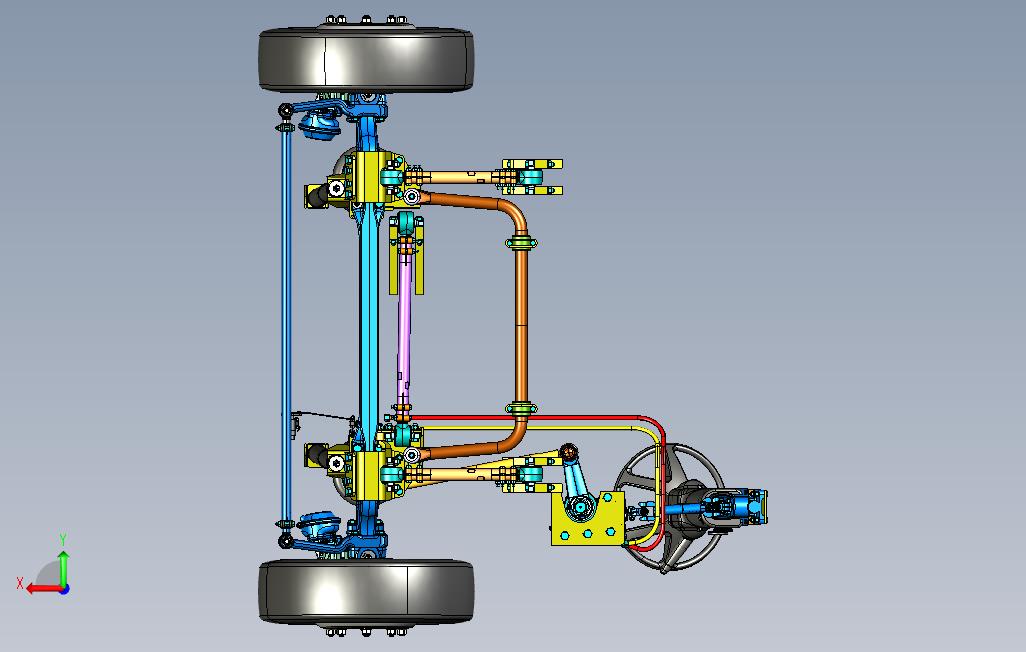

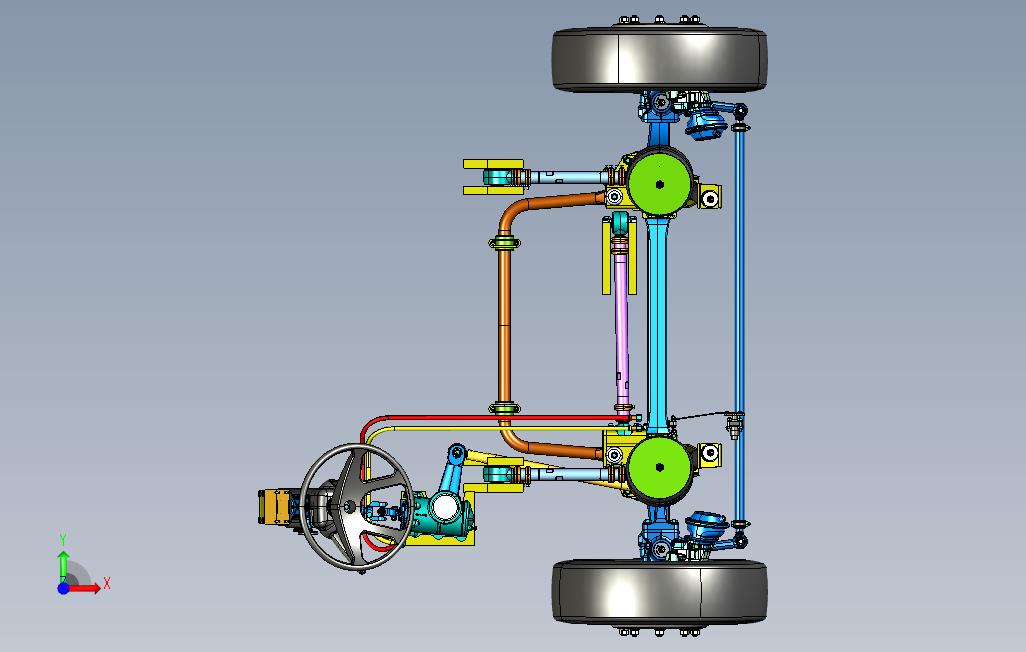

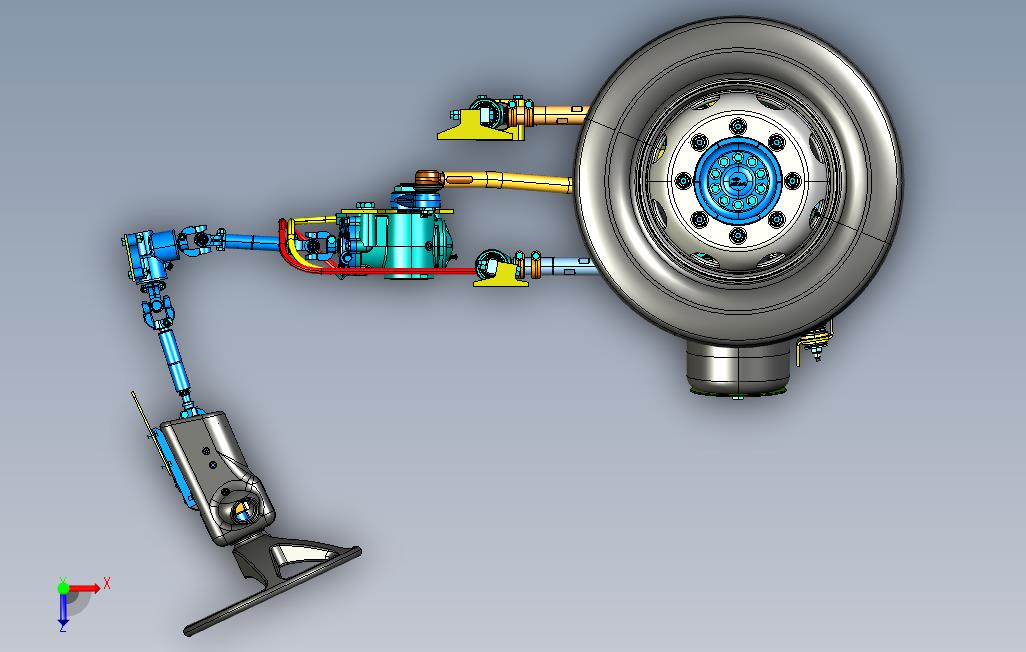

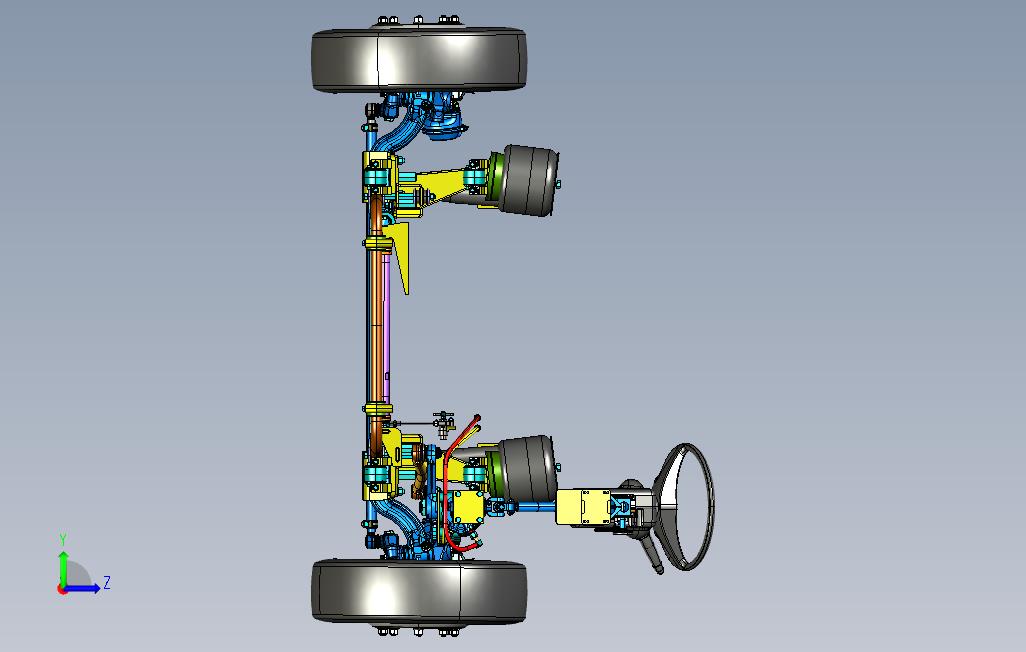

汽车前悬挂和转向系统设计3D模型1（ID:221627）

查找相似图纸

交通运输 / 车辆工程 / 汽车前悬挂和转向系统设计3D模型1

©非原创

108

平面图

文件列表

截图

AI截图渲染

✨AI图片渲染

#	文件名称	文件大小
1	30_BALL_PIN_OF_FEBI.CATPart	104.08K
2	30_FEBI-02545_BALL-JOINT_BODY.CATPart	183.26K
3	30_FEBI-02545_BALL-JOINT_BOOT.CATPart	132.28K
4	AIRSPRING_STAKE_BUSHING.CATPart	65.14K
5	AIRSPRING_STAKE_CENTRAL_PIN.CATPart	49.11K
6	AIRSPRING_STAKE_DISK.CATPart	48.00K
7	AXLE_OF_WABCO_SENSOR.CATPart	90.61K
8	BASIS_OF_LH_STAKE.CATPart	261.36K
9	BASIS_OF_RH_STAKE.CATPart	193.78K
10	BOLT_M10X1C25X70.CATPart	69.99K
11	BOLT_M10X1C5X35.CATPart	70.84K
12	BOLT_M12X1C75X45.CATPart	70.28K
13	BOLT_M12X1C75X70.CATPart	70.06K
14	BOLT_M16X1C5X100.CATPart	70.56K
15	BOLT_M16X1C5X60.CATPart	70.35K
16	BOLT_M16X1C5X65.CATPart	70.77K
17	BOLT_M16X1C5X80.CATPart	70.67K
18	BOLT_M18X1C5X45.CATPart	70.62K
19	BOLT_M18X1C5X55.CATPart	70.53K
20	BOLT_M20X1C5X35.CATPart	70.33K
21	BOLT_M20X1C5X70.CATPart	70.09K
22	BOLT_M8X1C25X20.CATPart	69.89K
23	BOLT_M8X1C25X25.CATPart	69.78K
24	BOLT_M8X50_OF_WABCO_SENSOR.CATPart	69.16K
25	BOOSTER_STEERING_NIPPLE.CATPart	61.95K
26	BRACKET_OF_WABCO_SENSOR.CATPart	92.66K
27	BRAKE_MECHANISM_CHAMBER_CLAMP.CATPart	353.27K
28	BRAKE_MECHANISM_RIGHT_CHAMBER.CATPart	578.04K
29	BRKT_OF_WABCO_HOOK.CATPart	80.35K
30	BUSH_OF_BRKT_LOWER_ROD.CATPart	69.12K
31	BUS_RONT_AXLE_BEAM.CATPart	3.74M
32	BUS_RONT_AXLE_KINGPIN.CATPart	72.23K
33	BUS_RONT_AXLE_KINGPIN_NUT.CATPart	105.39K
34	BUS_RONT_AXLE_WASHER.CATPart	48.68K
35	CARDAN_BOLT.CATPart	59.17K
36	CARRIER_RING_OF_ROD.CATPart	82.01K
37	CLAMP_OF_REACTION_ROD.CATPart	120.48K
38	CLAMP_OF_WABCO.CATPart	85.45K
39	CORE_OF_ROD.CATPart	172.62K
40	CROSS_REACTION_ROD_TUBE.CATPart	219.87K
41	ENGINE_START_KEY.CATPart	196.69K
42	FRONT_AXLE_BALL_PIN.CATPart	127.76K
43	FRONT_AXLE_BALL_PIN_NUT.CATPart	173.94K
44	FRONT_AXLE_BALL_PIN_SPLINT.CATPart	78.21K
45	FRONT_AXLE_BOLT-A.CATPart	89.77K
46	FRONT_AXLE_BOLT-B.CATPart	91.22K
47	FRONT_AXLE_BRAKE_BOLT.CATPart	96.26K
48	FRONT_AXLE_BRAKE_DISK.CATPart	6.14M
49	FRONT_AXLE_HUB_FLANGE.CATPart	1.18M
50	FRONT_AXLE_KNUCKLE_LEVER.CATPart	445.32K
51	FRONT_AXLE_LEFT_KINGPIN_PIECE-A.CATPart	110.53K
52	FRONT_AXLE_LEFT_KINGPIN_PIECE-B.CATPart	49.75K
53	FRONT_AXLE_LEFT_KINGPIN_PIECE-C.CATPart	634.52K
54	FRONT_AXLE_LEFT_KINGPIN_PIECE-D.CATPart	170.55K
55	FRONT_AXLE_LEFT_KNUCKLE.CATPart	1.38M
56	FRONT_AXLE_LEFT_STEERING_LEVER.CATPart	529.21K
57	FRONT_AXLE_PIECE-A.CATPart	124.71K
58	FRONT_AXLE_PIECE-AA.CATPart	84.99K
59	FRONT_AXLE_PIECE-B.CATPart	73.63K
60	FRONT_AXLE_PIECE-C.CATPart	96.25K
61	FRONT_AXLE_PIECE-CC.CATPart	54.17K
62	FRONT_AXLE_PIECE-D.CATPart	102.97K
63	FRONT_AXLE_PIECE-E.CATPart	53.00K
64	FRONT_AXLE_PIECE-F.CATPart	250.40K
65	FRONT_AXLE_PIECE-G.CATPart	92.75K
66	FRONT_AXLE_PIECE-H.CATPart	89.30K
67	FRONT_AXLE_PIECE-K.CATPart	105.22K
68	FRONT_AXLE_RIGHT_KNUCKLE.CATPart	1.38M
69	FRONT_AXLE_RIGHT_STEERING_LEVER.CATPart	529.68K
70	FRONT_AXLE_UNIT-A.CATPart	354.96K
71	FRONT_AXLE_UNIT-AA.CATPart	117.66K
72	FRONT_AXLE_UNIT-AB.CATPart	48.65K
73	FRONT_AXLE_UNIT-B.CATPart	598.47K
74	FRONT_AXLE_UNIT-C.CATPart	198.88K
75	FRONT_AXLE_UNIT-D.CATPart	850.84K
76	FRONT_AXLE_UNIT-E.CATPart	106.77K
77	FRONT_AXLE_UNIT-G.CATPart	1.44M
78	FRONT_AXLE_UNIT-H.CATPart	1.00M
79	FRONT_AXLE_UNIT-K.CATPart	73.86K
80	FRONT_AXLE_UNIT-KM.CATPart	154.56K
81	FRONT_AXLE_UNIT-KN.CATPart	73.67K
82	FRONT_AXLE_UNIT-L.CATPart	78.14K
83	FRONT_AXLE_WHEEL_NUT.CATPart	258.48K
84	FRONT_RIB_FOR_CROSS.CATPart	63.81K
85	GROMMET_OF_STABILIZER.CATPart	60.41K
86	HALF_OF_FIXTURE.CATPart	44.73K
87	HALF_OF_FRONT_STABILIZER.CATPart	194.07K
88	HEAD_OF_ROD.CATPart	161.22K
89	HYDRAULIC_BOOSTER_ADAPTER_NUT.CATPart	100.80K
90	HYDRAULIC_BOOSTER_ANGLE_ADAPTER.CATPart	99.50K
91	HYDRAULIC_BOOSTER_ENTER_NIPPLE.CATPart	56.89K
92	HYDRAULIC_BOOSTER_RETURN_PIPE.CATPart	173.24K
93	INNER_SHAFT.CATPart	1.06M
94	INSERTION_OF_NUT_OF_CARDAN.CATPart	47.72K
95	INSIDE_LOWER_PIECE_BRKT.CATPart	57.79K
96	INSIDE_THREADED_PIECE_ST.CATPart	56.94K
97	INSIDE_UPPER_BRKT_PIECE.CATPart	54.11K
98	KINGPIN_BEARING_LOWERSEAL.CATPart	69.22K
99	KINGPIN_BEARING_PIECE-A.CATPart	79.20K
100	KINGPIN_BEARING_PIECE-B.CATPart	64.88K
101	KINGPIN_BEARING_ROLLERL.CATPart	66.54K
102	KINGPIN_BEARING_SHIELD.CATPart	131.76K
103	KINGPIN_BEARING_UPPERSEAL.CATPart	61.97K
104	LEFT_BRAKE_MECHANISM_CHAMBER.CATPart	302.05K
105	LEFT_BRAKE_MECHANISM_PIECE-A.CATPart	118.38K
106	LEFT_BRAKE_MECHANISM_UNIT-A.CATPart	9.09M
107	LEFT_BRAKE_MECHANISM_UNIT-B.CATPart	235.34K
108	LEFT_BRAKE_MECHANISM_UNIT-C.CATPart	258.12K
109	LEFT_BRAKE_MECHANISM_UNIT-D.CATPart	258.14K
110	LEFT_BRAKE_MECHANISM_UNIT-E.CATPart	257.37K
111	LEFT_STAKE_FRONT_UNIT.CATPart	57.63K
112	LEFT_STAKE_INSIDE_UNIT.CATPart	78.05K
113	LEFT_STAKE_OUTSIDE_UNIT.CATPart	49.76K
114	LEFT_STAKE_REAR_UNIT.CATPart	54.80K
115	LEVER2_OF_WABCO_SENSOR.CATPart	83.88K
116	LH_BRKT_OF_LOWER_ROD.CATPart	234.69K
117	LH_BRKT_OF_STABILIZER.CATPart	94.59K
118	LH_LOWER_BRKT_OF_ABSORBER.CATPart	108.73K
119	LH_TOP_BRKT_OF_ABSORBER.CATPart	92.91K
120	LIMITING_RING_OF_ABSORBER.CATPart	49.26K
121	LOCK_NUT_M10X1C25_REACTION_ROD.CATPart	87.27K
122	LOCK_RING_OF_ROD.CATPart	77.56K
123	LOWER_FRAME_OF_FIXTURE.CATPart	72.63K
124	LOWER_OUTER_SHAFT.CATPart	812.14K
125	LOWER_REACTION_ROD_TUBE.CATPart	225.22K
126	MIDDLE_OUTER_SHAFT.CATPart	487.72K
127	NUT_2M20X1C5.CATPart	120.94K
128	NUT_2M24X1C5.CATPart	139.36K
129	NUT_M10X1C5.CATPart	80.17K
130	NUT_M12X1C75.CATPart	79.39K
131	NUT_M16X1C5.CATPart	80.98K
132	NUT_M18X1C5.CATPart	82.33K
133	NUT_M8X1C25.CATPart	79.20K
134	重复_NUT_OF_CARDAN.CATPart	97.65K
135	OUTSIDE_LOWER_PIECE_BRKT.CATPart	57.80K
136	OUTSIDE_UPPER_BRKT_PIECE.CATPart	54.11K
137	PAD_FOR_STEERING_COLUMN.CATPart	157.63K
138	PIECE-A_FOR_TIE_ROD.CATPart	72.31K
139	PIECE-B_FOR_TIE_ROD.CATPart	205.44K
140	PITMAN_ARM.CATPart	963.37K
141	PITMAN_SHAFT_NUT.CATPart	476.30K
142	PITMAN_SHAFT_WASHER.CATPart	77.22K
143	PLAIN_WASHER_D5D10.CATPart	47.28K
144	PLATE_FOR_CONICAL_GEAR.CATPart	78.13K
145	PLATE_FOR_STEERING_MECHANISM.CATPart	76.55K
146	PRESSURE_STEERING_PIPE.CATPart	177.90K
147	PRODUCT_A_OF_CARDAN.CATPart	79.05K
148	PRODUCT_B_OF_CARDAN.CATPart	52.02K
149	PRODUCT_C_OF_CARDAN.CATPart	54.68K
150	PRODUCT_E_OF_CARDAN.CATPart	40.59K
151	PRODUCT_F_OF_CARDAN.CATPart	78.47K
152	REMOTE_RING_OF_ROD.CATPart	48.60K
153	RH_BRKT_OF_LOWER_ROD.CATPart	189.08K
154	RH_BRKT_OF_STABILIZER.CATPart	94.44K
155	RH_LOWER_BRKT_OF_ABSORBER.CATPart	108.58K
156	RH_TOP_BRKT_OF_ABSORBER.CATPart	92.64K
157	RIGHT_BRAKE_MECHANISM_UNIT-A.CATPart	9.16M
158	RIGHT_BRAKE_MECHANISM_UNIT-B.CATPart	235.19K
159	RIGHT_BRAKE_MECHANISM_UNIT-C.CATPart	259.65K
160	RIGHT_BRAKE_MECHANISM_UNIT-D.CATPart	259.64K
161	RIGHT_BRAKE_MECHANISM_UNIT-E.CATPart	258.70K
162	RIGHT_STAKE_FRONT_UNIT.CATPart	60.31K
163	RIGHT_STAKE_INSIDE_UNIT.CATPart	74.17K
164	RIGHT_STAKE_OUTSIDE_UNIT.CATPart	47.86K
165	RIGHT_STAKE_REAR_UNIT.CATPart	52.50K
166	RIM_6C75X19C5.CATPart	378.75K
167	RING_OF_STABILIZER_BRKT.CATPart	54.88K
168	ROD_OF_STABILIZER.CATPart	83.96K
169	RUBBER_CELL_OF_ROD.CATPart	126.55K
170	SCREW_M6X16.CATPart	69.42K
171	SHOCK_ABSORBER_LOCK_NUT_M16X2.CATPart	103.44K
172	SHOCK_ABSORBER_LOWER_UNIT.CATPart	100.42K
173	SHOCK_ABSORBER_LOW_UNIT_WASHER.CATPart	51.93K
174	SHOCK_ABSORBER_UPPER_UNIT.CATPart	91.63K
175	SHOCK_ABSORBER_UP_UNIT_GROMMET.CATPart	59.77K
176	SHOCK_ABSORBER_UP_UNIT_SPACER.CATPart	47.77K
177	SHOCK_ABSORBER_UP_UNIT_WASHER.CATPart	47.86K
178	SPACER_OF_RODS_LH_BRKT.CATPart	53.50K
179	SPECIAL_BOLT_M18X1C5X60.CATPart	72.07K
180	SPLINT_5X35.CATPart	89.35K
181	SPLINT_5X40.CATPart	88.25K
182	SPRING_WASHER_DIAM-10.CATPart	54.74K
183	SPRING_WASHER_DIAM-12.CATPart	55.18K
184	SPRING_WASHER_DIAM-12H.CATPart	55.02K
185	SPRING_WASHER_DIAM-14.CATPart	55.60K
186	SPRING_WASHER_DIAM-16.CATPart	55.19K
187	SPRING_WASHER_DIAM-18.CATPart	55.60K
188	SPRING_WASHER_DIAM-20.CATPart	55.62K
189	SPRING_WASHER_DIAM-6.CATPart	54.82K
190	SPRING_WASHER_DIAM-8.CATPart	54.97K
191	STABILIZER_ROD_PIECE-A.CATPart	59.93K
192	STABILIZER_ROD_WASHER-A.CATPart	62.88K
193	STABILIZER_ROD_WASHER-B.CATPart	62.86K
194	STAKE_UPPER_THREAD_PIECE.CATPart	52.72K
195	STEERING_BALL_PIN.CATPart	103.34K
196	STEERING_COLUMN_BASIC_BODY.CATPart	158.88K
197	STEERING_COLUMN_BODY_PIECE-A.CATPart	108.37K
198	STEERING_COLUMN_BODY_PIECE-B.CATPart	81.43K
199	STEERING_COLUMN_BODY_PIECE-C.CATPart	72.47K
200	STEERING_COLUMN_BODY_PIECE-D.CATPart	61.48K
201	STEERING_COLUMN_BODY_PIECE-E.CATPart	76.60K
202	STEERING_COLUMN_BODY_PIECE-F.CATPart	59.21K
203	STEERING_COLUMN_BODY_PIECE-G.CATPart	59.22K
204	STEERING_COLUMN_BODY_PIECE-H.CATPart	135.75K
205	STEERING_COLUMN_BODY_PIECE-K.CATPart	100.15K
206	STEERING_COLUMN_BODY_PIECE-L.CATPart	79.09K
207	STEERING_COLUMN_LH_COVER.CATPart	1.17M
208	STEERING_COLUMN_LOCK_LEVER.CATPart	119.12K
209	STEERING_COLUMN_RH_COVER.CATPart	1.06M
210	STEERING_COLUMN_SPRING.CATPart	767.30K
211	STEERING_COLUMN_UNIT-A.CATPart	95.02K
212	STEERING_COLUMN_UNIT-AA.CATPart	58.31K
213	STEERING_COLUMN_UNIT-AB.CATPart	54.79K
214	STEERING_COLUMN_UNIT-AC.CATPart	67.85K
215	STEERING_COLUMN_UNIT-AD.CATPart	47.49K
216	STEERING_COLUMN_UNIT-AF.CATPart	118.43K
217	STEERING_COLUMN_UNIT-AG.CATPart	91.05K
218	STEERING_COLUMN_UNIT-B.CATPart	71.42K
219	STEERING_COLUMN_UNIT-BB.CATPart	52.39K
220	STEERING_COLUMN_UNIT-C.CATPart	76.08K
221	STEERING_COLUMN_UNIT-D.CATPart	76.62K
222	STEERING_COLUMN_UNIT-E.CATPart	83.65K
223	STEERING_COLUMN_UNIT-F.CATPart	51.18K
224	STEERING_COLUMN_UNIT-G.CATPart	47.19K
225	STEERING_COLUMN_UNIT-H.CATPart	54.68K
226	STEERING_COLUMN_UNIT-K.CATPart	84.48K
227	STEERING_COLUMN_WHEEL_SHAFT.CATPart	1.98M
228	STEERING_CONICAL_GEAR.CATPart	4.43M
229	STEERING_GEAR_HOUSING.CATPart	3.63M
230	STEERING_MECHANISM_CAP-A.CATPart	132.07K
231	STEERING_MECHANISM_CAP-B.CATPart	81.76K
232	STEERING_MECHANISM_COVER.CATPart	1.82M
233	STEERING_MECHANISM_COVER_BOLT.CATPart	91.57K
234	STEERING_MECHANISM_DRIVE_SHAFT.CATPart	1.24M
235	STEERING_MECHANISM_PIECE-A.CATPart	901.90K
236	STEERING_MECHANISM_PIECE-B.CATPart	64.16K
237	STEERING_MECHANISM_PIECE-C.CATPart	98.43K
238	STEERING_MECHANISM_PIECE-D.CATPart	87.09K
239	STEERING_MECHANISM_PITMAN_ARM.CATPart	967.53K
240	STEERING_MECHANISM_PITMAN_SHAFT.CATPart	1.45M
241	STEERING_WHEEL.CATPart	729.40K
242	STEERING_WHEEL_SWITCH.CATPart	347.70K
243	STEER_COLUMN_WHEEL_SHAFT_UNIT-A.CATPart	47.20K
244	STEER_COLUMN_WHEEL_SHAFT_UNIT-B.CATPart	121.06K
245	STEER_COLUMN_WHEEL_SHAFT_UNIT-C.CATPart	109.80K
246	STEER_COLUMN_WHEEL_SHAFT_UNIT-D.CATPart	52.48K
247	STEER_MECH_GASKET.CATPart	47.90K
248	STEER_MECH_INLET_CONNECTION.CATPart	145.64K
249	STEER_MECH_OUTLET_CONNECTION.CATPart	146.44K
250	SUSPENSION_LEFT_STROKE_LIMITER.CATPart	108.00K
251	SUSPEN_RH_STROKE_LIMITER.CATPart	107.91K
252	TIE_ROD_CLAMP.CATPart	310.87K
253	TIE_ROD_CLAMP_BOLT.CATPart	70.72K
254	TIE_ROD_CLAMP_NUT.CATPart	84.51K
255	TIE_ROD_JOINT_BODY.CATPart	478.07K
256	TIE_ROD_LH_BODY.CATPart	482.82K
257	TIE_ROD_PIECE-A.CATPart	113.68K
258	TIE_ROD_PIECE-B.CATPart	106.15K
259	TIE_ROD_PIECE-C.CATPart	80.01K
260	TIE_ROD_PIECE-DD.CATPart	90.09K
261	TIE_ROD_PIECE-EE.CATPart	47.45K
262	TIE_ROD_PIECE-FF.CATPart	65.12K
263	TIE_ROD_PIECE-GG.CATPart	177.65K
264	TIE_ROD_PIECE-HH.CATPart	68.23K
265	TIE_ROD_TUBE.CATPart	72.97K
266	TIRE_245_70R_6C75_19C5.CATPart	368.15K
267	TIRE_VALVE_30_27_42.CATPart	121.66K
268	TIRE_VALVE_NUT_6C75X17C5.CATPart	78.47K
269	TRUNNION_CROSS.CATPart	343.45K
270	TUBE_STEER_LINK.CATPart	227.50K
271	UNIT_BRKT_OF_CROSS_ROD.CATPart	56.05K
272	UNIVERSAL-JOINT_FORK.CATPart	528.21K
273	UPPER_FRAME_OF_FIXTURE.CATPart	83.43K
274	UPPER_REACTION_ROD_TUBE.CATPart	224.99K
275	V1E16_LOWER_UNIT_AIRSPRING.CATPart	462.72K
276	V1E16_UPPER_UNIT_AIRSPRING.CATPart	198.13K
277	WABCO_ADJUSTING_ROD.CATPart	47.68K
278	重复_WABCO_HOOK.CATPart	70.22K
279	WABCO_LOWER_JOINT.CATPart	45.14K
280	WABCO_NUT_M5.CATPart	77.28K
281	WABCO_SCREW_M5X20.CATPart	64.17K
282	重复_WABCO_SENSOR.CATPart	95.80K
283	WABCO_SENSOR_ABS.CATPart	656.78K
284	WABCO_SENSOR_ABS_CORRECTOR.CATPart	122.72K
285	WABCO_UPPER_JOINT.CATPart	207.84K
286	WABCO_WASHER_SPRING_5.CATPart	54.74K
287	WHEEL_DISK_6C75X19C5.CATPart	453.47K
288	zhuangpeiti.CATProduct	1.17M
