自动软包电芯极耳短路测试精切一体机（ID:2237677）

机械设备 / 实验测试设备 / 自动软包电芯极耳短路测试精切一体机

©非原创

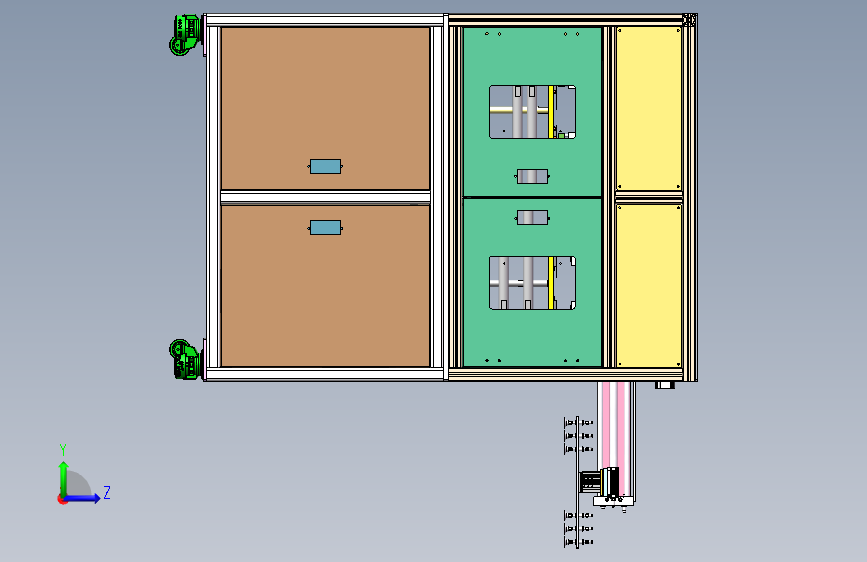

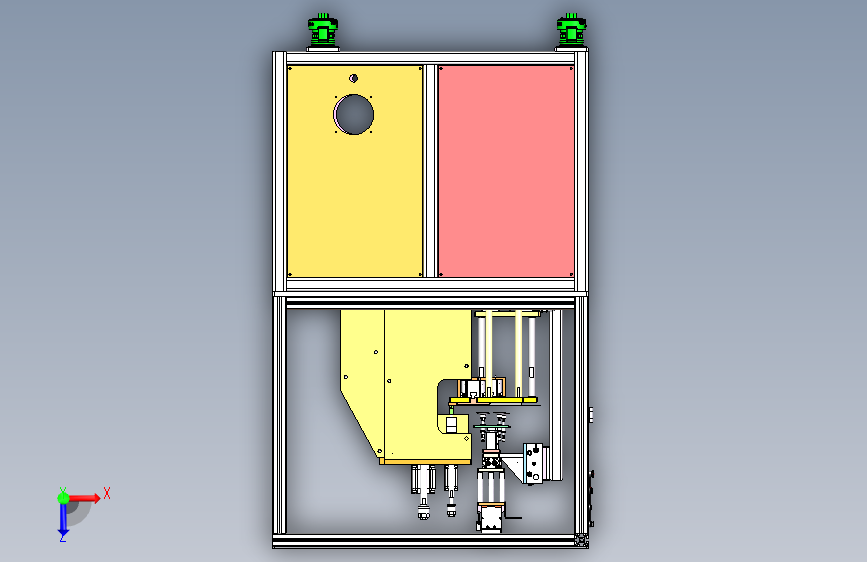

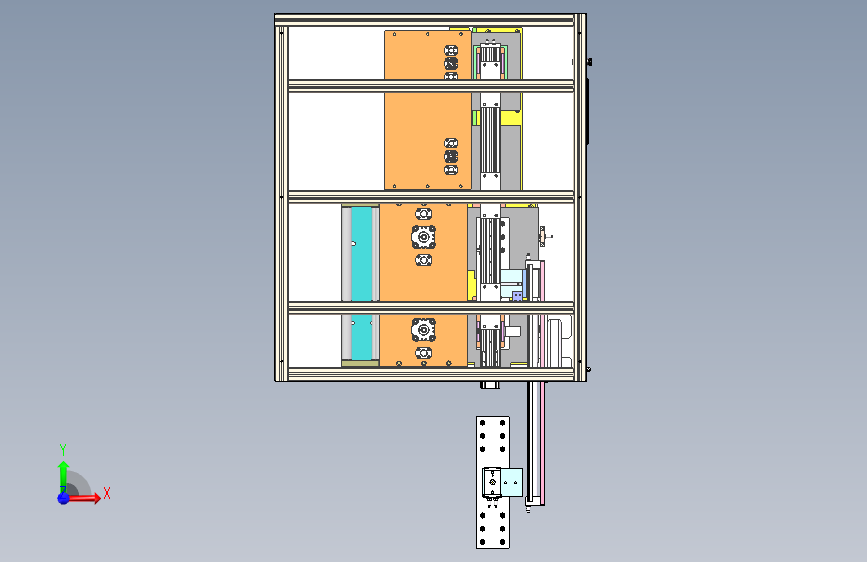

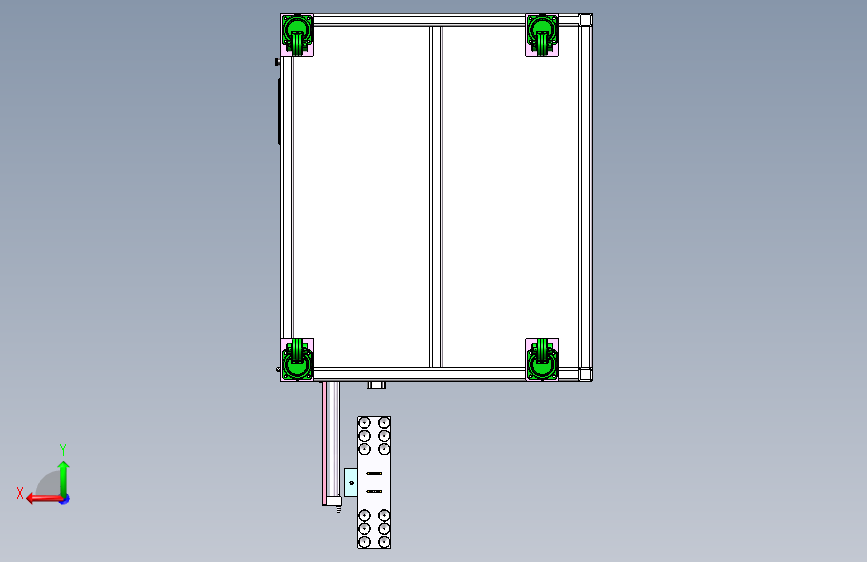

平面图

3D视图

文件列表

#	文件名称	文件大小
1	17493732671595.rar	60.39M
2	10mm阻尼圈.SLDPRT	92.75K
3	1A_MHS4-50D-Y59AL26测式定位气缸.SLDASM	188.78K
4	1A_MHS4-50D-Y59AL26精切定位气缸.SLDASM	188.63K
5	1HGH20滑块.SLDPRT	419.08K
6	1_1_3.sldprt	108.37K
7	1_1_4.sldprt	117.98K
8	1_3.sldprt	545.45K
9	2_1_3.sldprt	34.23K
10	2_3.sldprt	41.49K
11	3030角码.SLDPRT	72.17K
12	3_1_4.sldprt	33.00K
13	3_2.sldprt	41.01K
14	4_1_4.sldprt	38.95K
15	4_2.sldprt	42.64K
16	57步进电机-L560.SLDPRT	136.43K
17	5_1_3.sldprt	31.32K
18	6000轴承.SLDPRT	541.16K
19	61900轴承.SLDPRT	574.44K
20	6_1_1.sldprt	35.38K
21	7_1_1.sldprt	34.88K
22	ACA1007-1油压缓冲器.SLDPRT	225.35K
23	ACPJ20x40-10SBCS1-G-2测试气缸.SLDASM	347.70K
24	ACPJ50x40-10SBCS1-G-2精切气缸.SLDPRT	619.05K
25	AKQ52-G-Z-3030合页.SLDPRT	130.43K
26	CK60-700-SFSI16丝杆.SLDPRT	941.00K
27	CK60-700型材.SLDPRT	498.65K
28	CK60-700盖板.SLDPRT	1.14M
29	CK60-S500MGW12导轨.SLDPRT	153.91K
30	CK60盖板支撑件.SLDPRT	61.85K
31	EE-SX672.SLDPRT	336.64K
32	F-M10X125F浮动接头.SLDPRT	196.19K
33	HGH20CA-600滑轨组件.SLDASM	225.30K
34	HGH20滑轨-600.SLDPRT	221.28K
35	HK60标准内置电机座1.SLDPRT	170.21K
36	HK60标准后板.SLDPRT	119.20K
37	HK60标准滑块.SLDPRT	172.08K
38	HK60电机57电机板.SLDPRT	131.60K
39	HK60轴承盖.SLDPRT	177.26K
40	HRQ10ADS1-H-2测试精切旋转气缸.SLDASM	410.82K
41	MGW12C滑块.SLDPRT	98.27K
42	MIC25x100SCALBCS1-M-2精切前后气缸.SLDPRT	337.70K
43	RMTL20X600SA_CS1-G-2出料无杆气缸.SLDASM	347.23K
44	TBH01-d08-L30等高螺丝.SLDPRT	125.94K
45	TC-04-001.SLDPRT	112.84K
46	TC-04-002.SLDPRT	113.87K
47	TC-04-003.SLDPRT	142.41K
48	TC-04-004.SLDPRT	98.61K
49	TC-04-005.SLDPRT	118.35K
50	TC-04-006.SLDPRT	143.26K
51	TC-04-007.SLDPRT	103.86K
52	TC-04-008.SLDPRT	128.16K
53	TC-04-009.SLDPRT	126.74K
54	TC-04-01.SLDASM	967.89K
55	TC-04-010.SLDPRT	957.42K
56	TC-04-011.SLDPRT	266.65K
57	TC-04-012.SLDPRT	307.74K
58	TC-04-013.SLDPRT	304.41K
59	TC-04-014.SLDPRT	258.61K
60	TC-04-015.SLDPRT	155.99K
61	TC-04-016.SLDPRT	107.83K
62	TC-04-017.SLDPRT	105.56K
63	TC-04-018.SLDPRT	237.82K
64	TC-04-019.SLDPRT	3.56M
65	TC-04-020.SLDPRT	349.58K
66	TC-04-021.SLDPRT	276.63K
67	TC-04-022.SLDPRT	142.54K
68	TC-04-023.SLDPRT	211.54K
69	TC-04-024.SLDPRT	143.09K
70	TC-04-025.SLDPRT	86.05K
71	TC-04-026.SLDPRT	132.20K
72	TC-04-027.SLDPRT	140.49K
73	TC-04-028.SLDPRT	273.67K
74	TC-04-029.SLDPRT	88.08K
75	TC-04-02电芯漏电测试机架.SLDASM	2.05M
76	TC-04-030.SLDPRT	121.95K
77	TC-04-031.SLDPRT	70.39K
78	TC-04-032.SLDPRT	159.54K
79	TC-04-033.SLDPRT	143.25K
80	TC-04-034.SLDPRT	105.47K
81	TC-04-035.SLDPRT	78.16K
82	TC-04-036.SLDPRT	155.65K
83	TC-04-037.SLDPRT	103.89K
84	TC-04-038.SLDPRT	162.65K
85	TC-04-039.SLDPRT	157.46K
86	TC-04-03测试上机架.SLDASM	1.38M
87	TC-04-040.SLDPRT	136.96K
88	TC-04-041.SLDPRT	91.93K
89	TC-04-042.SLDPRT	236.54K
90	TC-04-043.SLDPRT	132.40K
91	TC-04-044.SLDPRT	228.97K
92	TC-04-045.SLDPRT	154.64K
93	TC-04-046.SLDPRT	72.23K
94	TC-04-047.SLDPRT	166.05K
95	TC-04-048.SLDPRT	136.35K
96	TC-04-049.SLDPRT	142.11K
97	TC-04-04测式机构.SLDASM	755.08K
98	TC-04-050.SLDPRT	91.99K
99	TC-04-051.SLDPRT	102.33K
100	TC-04-052.SLDPRT	151.80K
101	TC-04-053.SLDPRT	124.70K
102	TC-04-054.SLDPRT	142.64K
103	TC-04-055.SLDPRT	267.53K
104	TC-04-056.SLDPRT	154.31K
105	TC-04-057.SLDPRT	142.67K
106	TC-04-058.SLDPRT	134.66K
107	TC-04-059.SLDPRT	230.67K
108	TC-04-05测式定位机构.SLDASM	352.44K
109	TC-04-060.SLDPRT	75.12K
110	TC-04-061.SLDPRT	96.42K
111	TC-04-062.SLDPRT	139.81K
112	TC-04-063.SLDPRT	127.27K
113	TC-04-064.SLDPRT	121.32K
114	TC-04-065.SLDPRT	132.79K
115	TC-04-066.SLDPRT	187.30K
116	TC-04-067.SLDPRT	165.48K
117	TC-04-068.SLDPRT	222.83K
118	TC-04-06测式下封头.SLDASM	556.43K

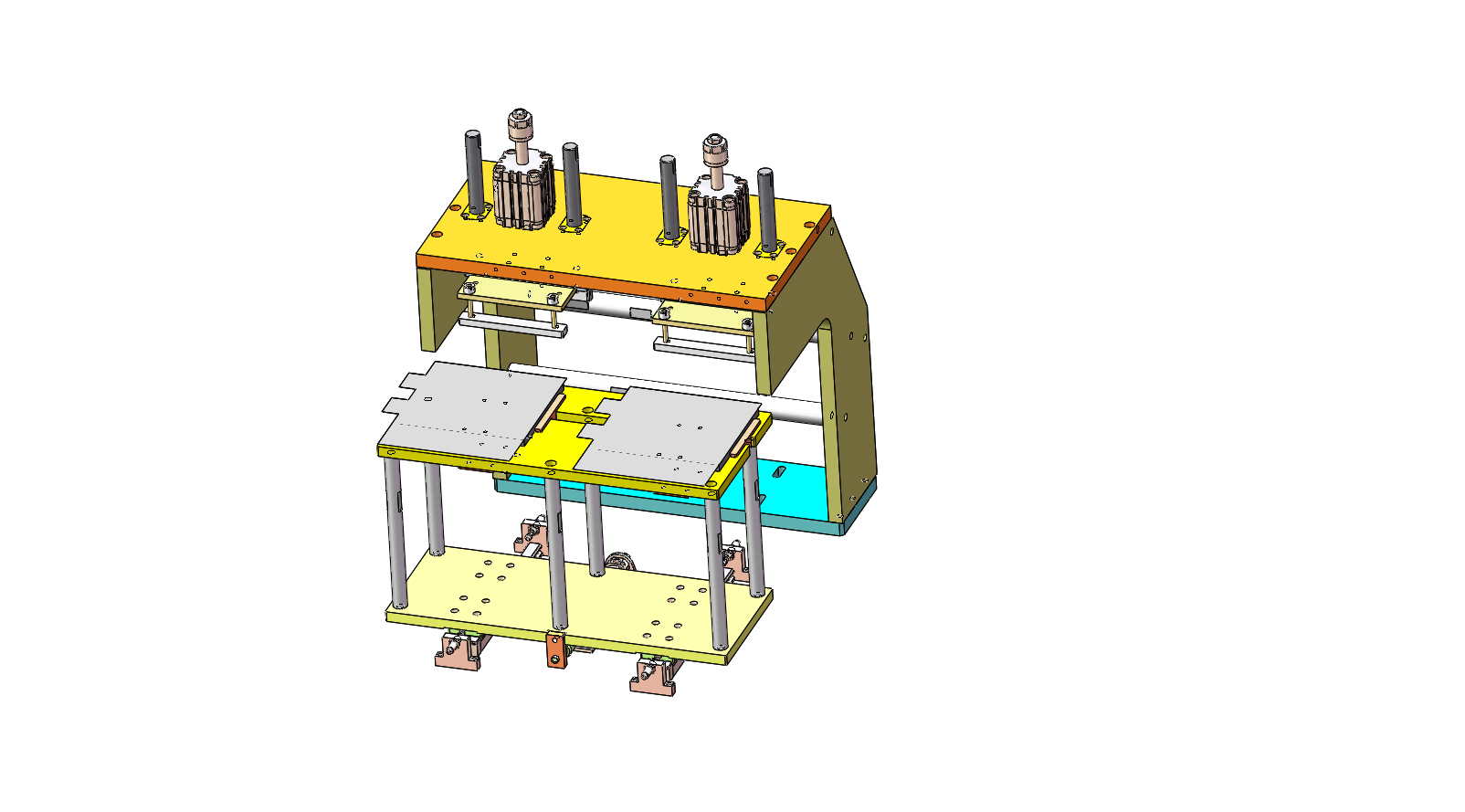

119	TC-04-07电芯切断机构.JPG	262.57K
120	TC-04-07电芯切断机构.SLDASM	1.36M
121	TC-04-08电芯测试下料机械手.SLDASM	2.71M
122	TC-04-09测试精切电池取料机械手.SLDASM	2.66M
123	TC-04-10.SLDASM	707.83K
124	TC-04-11出料机械手.SLDASM	1.12M
125	TC-04-12测试精切取料组件.SLDASM	685.54K
126	TC-04-13电芯切断压料机构.SLDASM	143.36K
127	TC-04-14精切取料组件.SLDASM	167.53K
128	TCL16x20SCS1-G-2测试精切取料气缸.SLDPRT	450.03K
129	WEJ51-d32-WEM11-K-10-4吸盘组件.SLDPRT	212.94K
130	Y-TCL16x20S-666.SLDPRT	491.90K
131	YHRQ10A_DS1-HN-2_旋转气缸666.SLDPRT	609.89K
132	“zongzhuangtu”FC.SLDASM	8.32M
133	三维二维代画（手机淘宝）STP如何打开sw文件重命名.docx	1.44M
134	丝杆螺母SFS1605.SLDPRT	82.26K
135	两位置单极旋钮.SLDPRT	239.39K
136	使用说明-模型.txt	974B

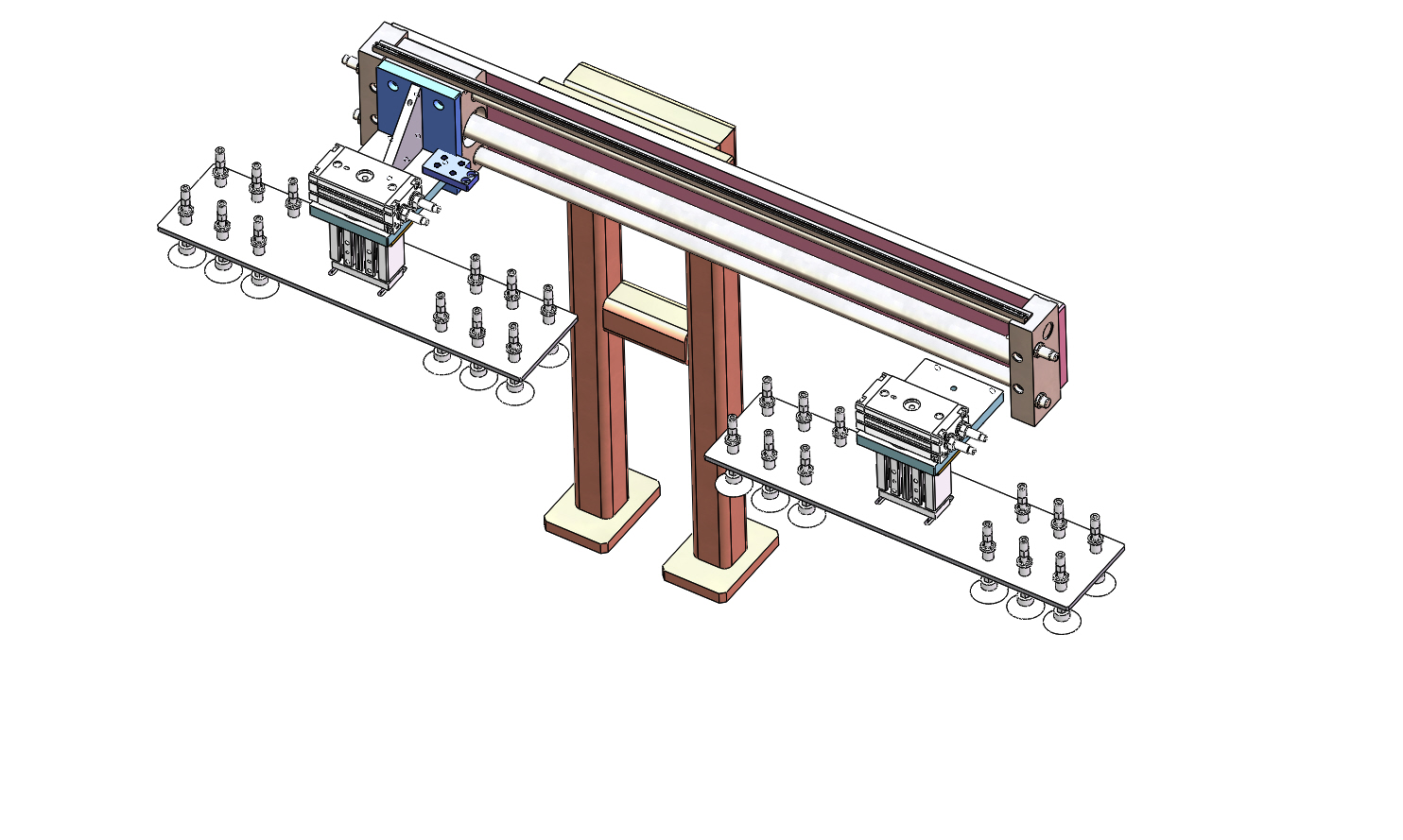

137	出料机械手.JPG	316.51K
138	分体电芯18016010.SLDPRT	142.99K
139	单极复位钮.SLDPRT	199.69K
140	急停按钮.SLDPRT	268.50K
141	机加脚轮组件测试.SLDASM	1.67M
142	机械代画、模型、插件、外挂；全天在线.url	191B

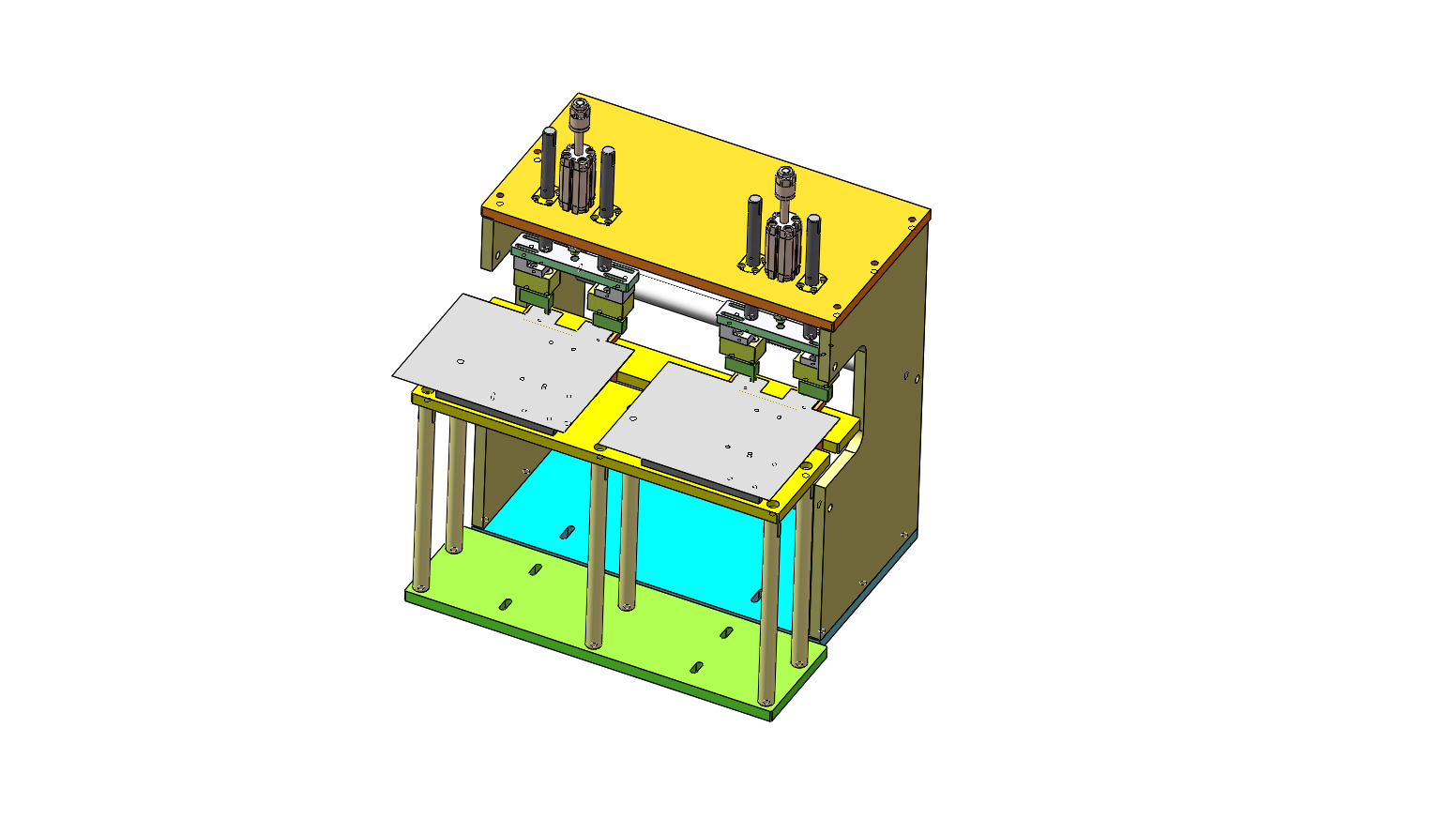

143	极耳短路测式机构.JPG	270.65K

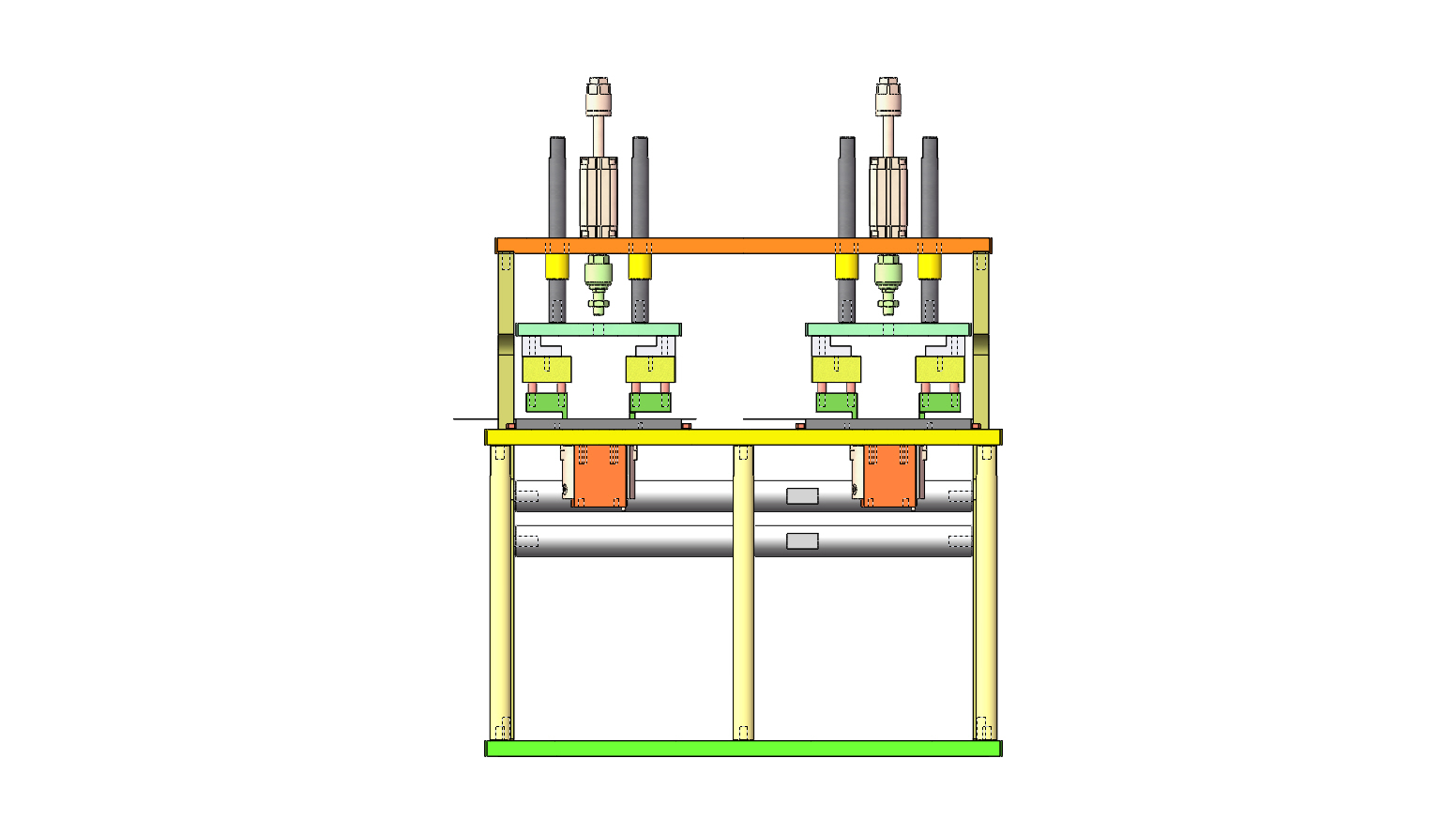

144	极耳短路测式机构前视图.JPG	183.28K

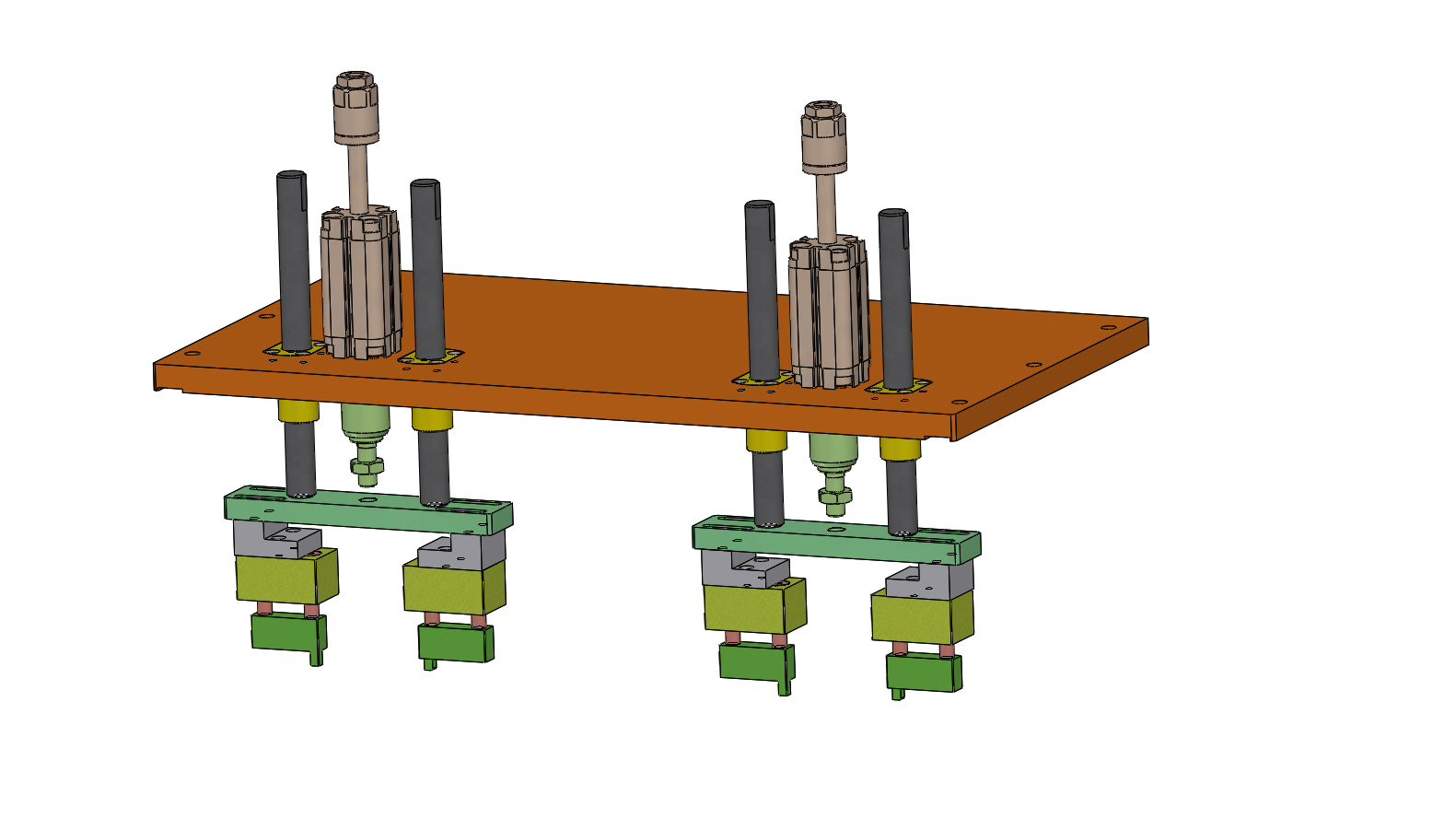

145	测式上封头.JPG	241.99K
146	测式定位气缸手指.SLDPRT	111.81K
147	测式定位气缸本体.SLDPRT	254.74K

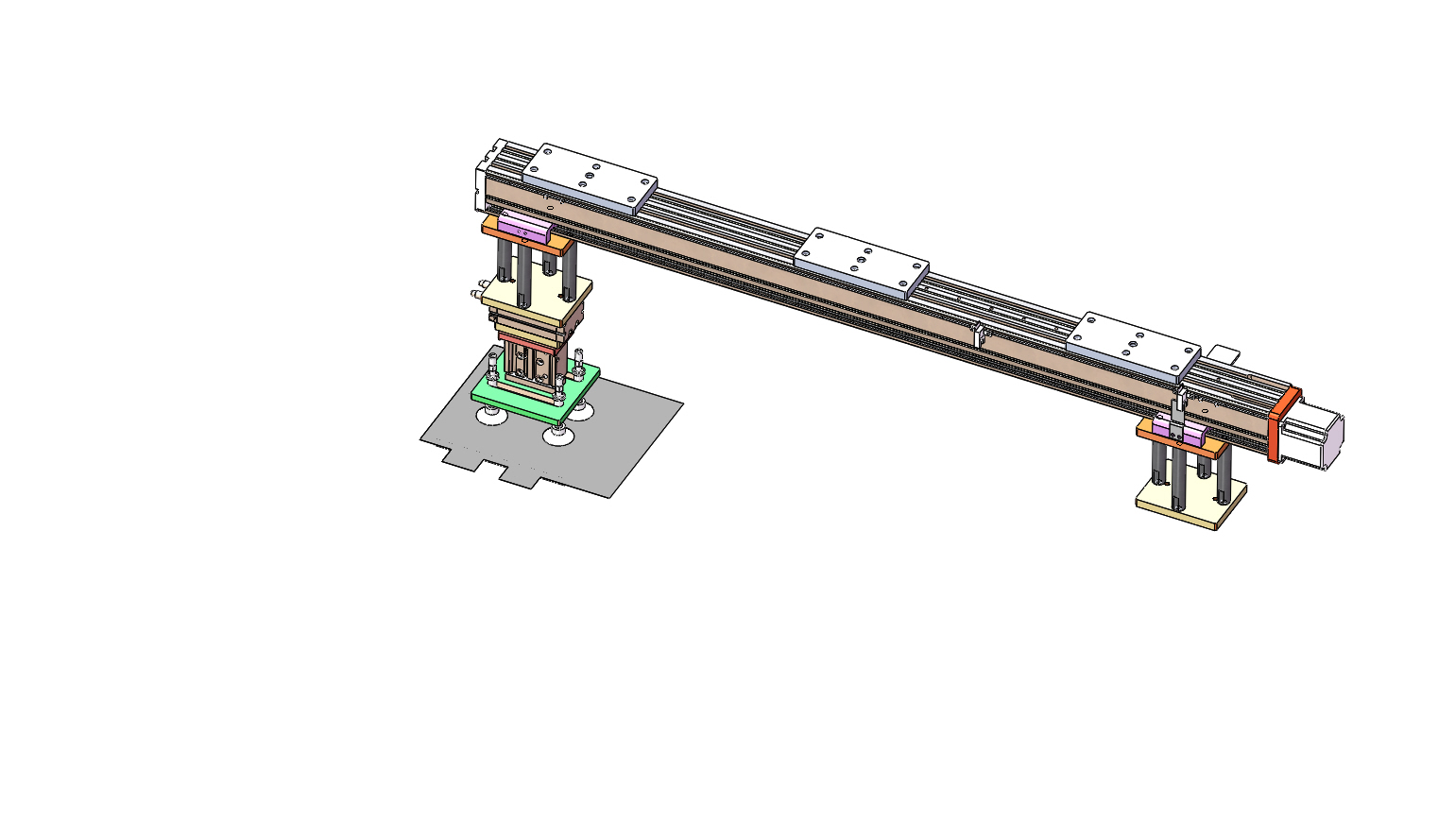

148	测试精切电池取料机械手.JPG	219.22K
149	测试精切电池机械手CK60-S810.SLDASM	1.98M
150	石墨轴套内径16.SLDPRT	127.91K
151	石墨轴套内径20.SLDPRT	125.61K
152	精切定位气缸手指.SLDPRT	111.25K
153	精切定位气缸本体.SLDPRT	255.64K
154	联轴器C20.SLDPRT	120.31K
155	脚轮测试.SLDPRT	3.52M
156	蜂鸣.SLDPRT	155.05K
157	触摸屏TK6070IP.SLDPRT	185.16K

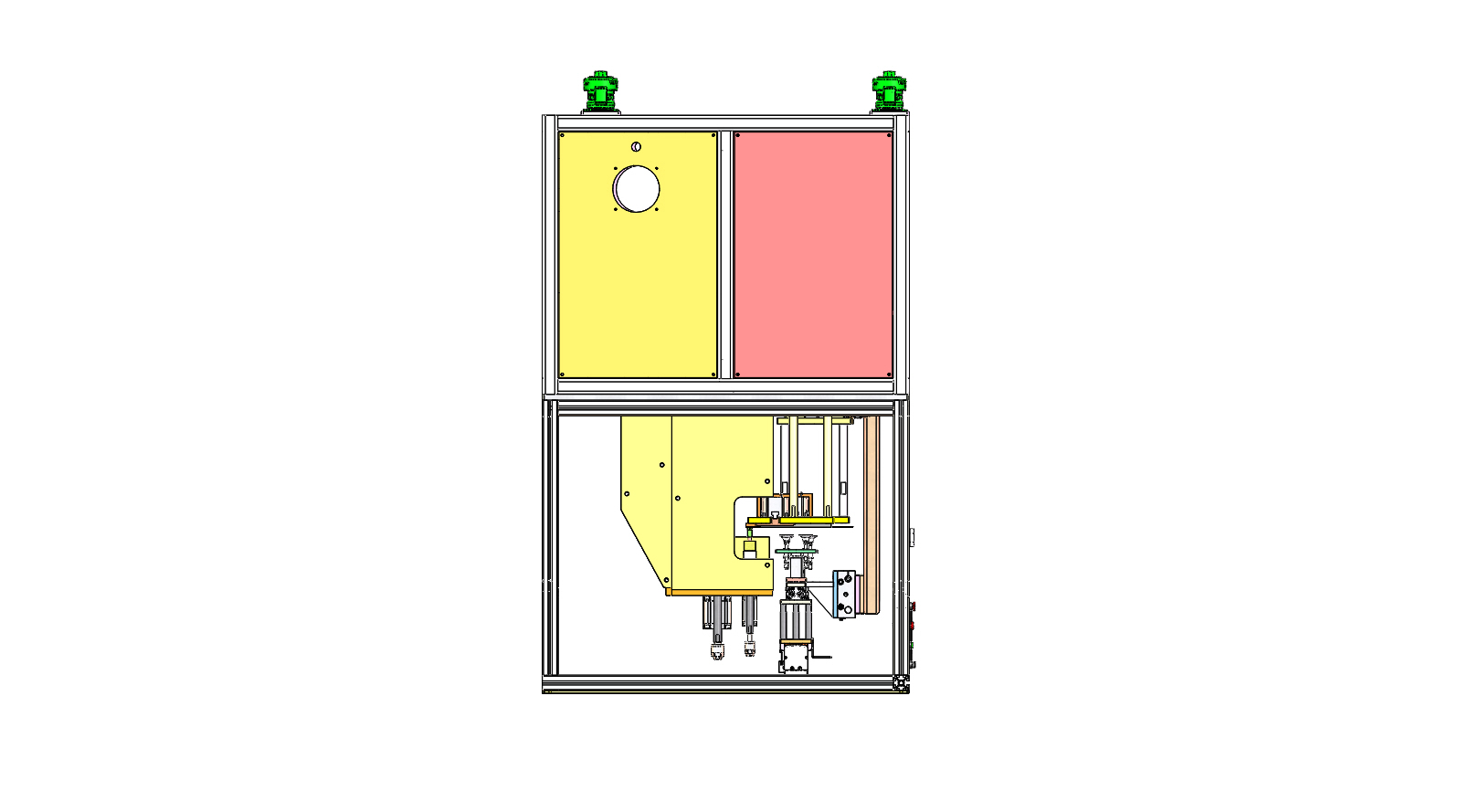

158	软包动力电芯测试侧视图.JPG	138.00K

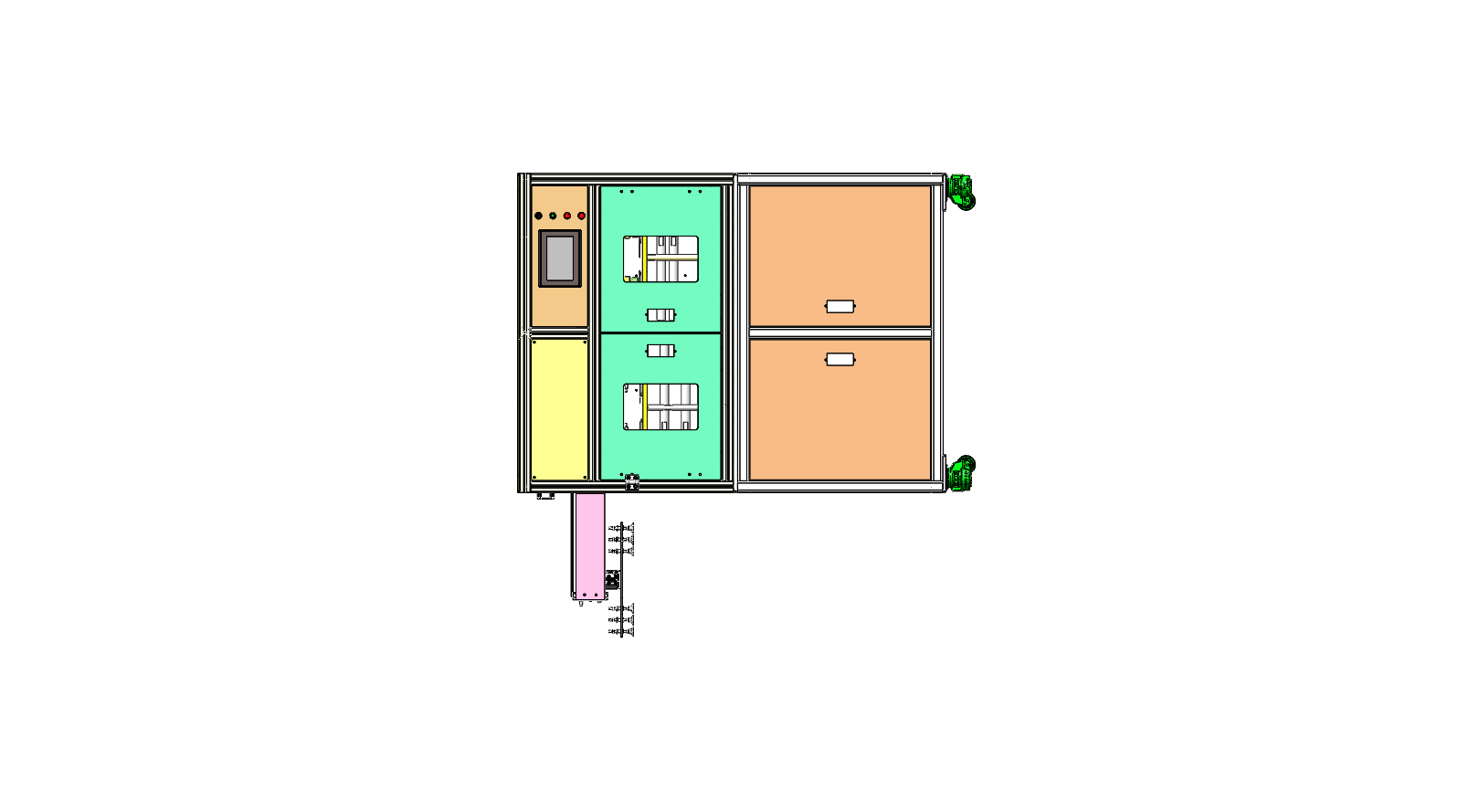

159	软包动力电芯测试前视图.JPG	115.94K

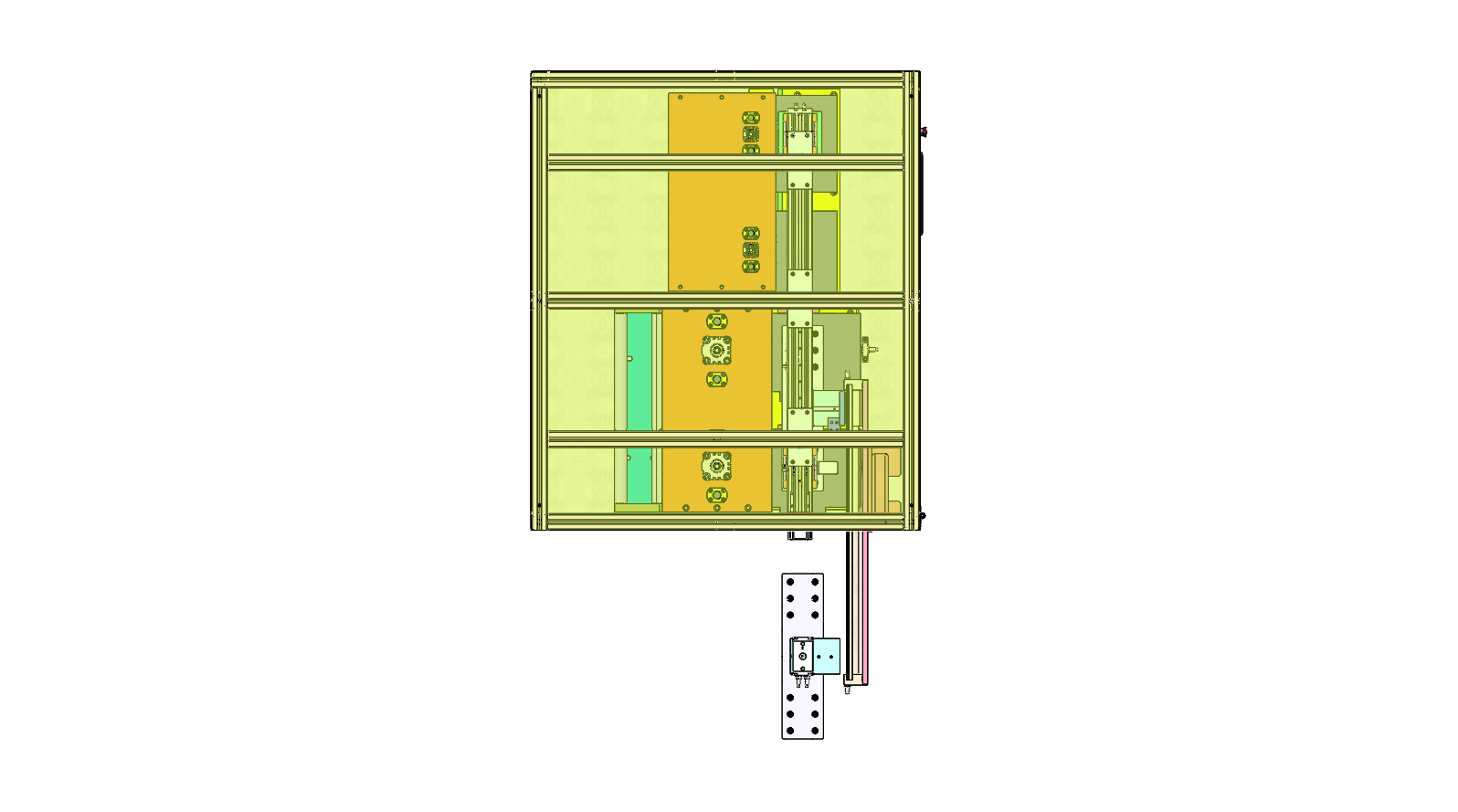

160	软包动力电芯测试府视图.JPG	178.57K

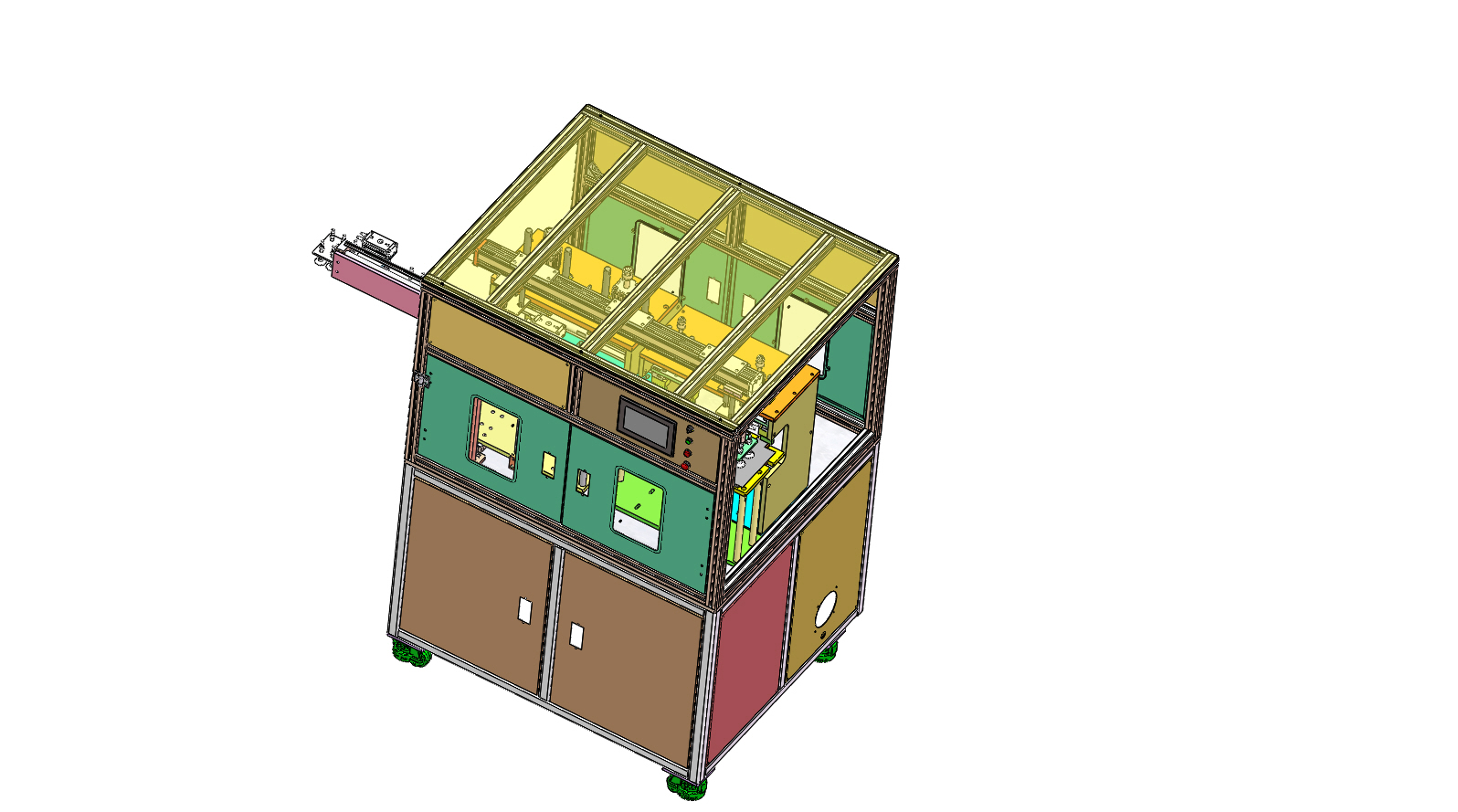

161	软包动力电芯测试总装.JPG	397.19K

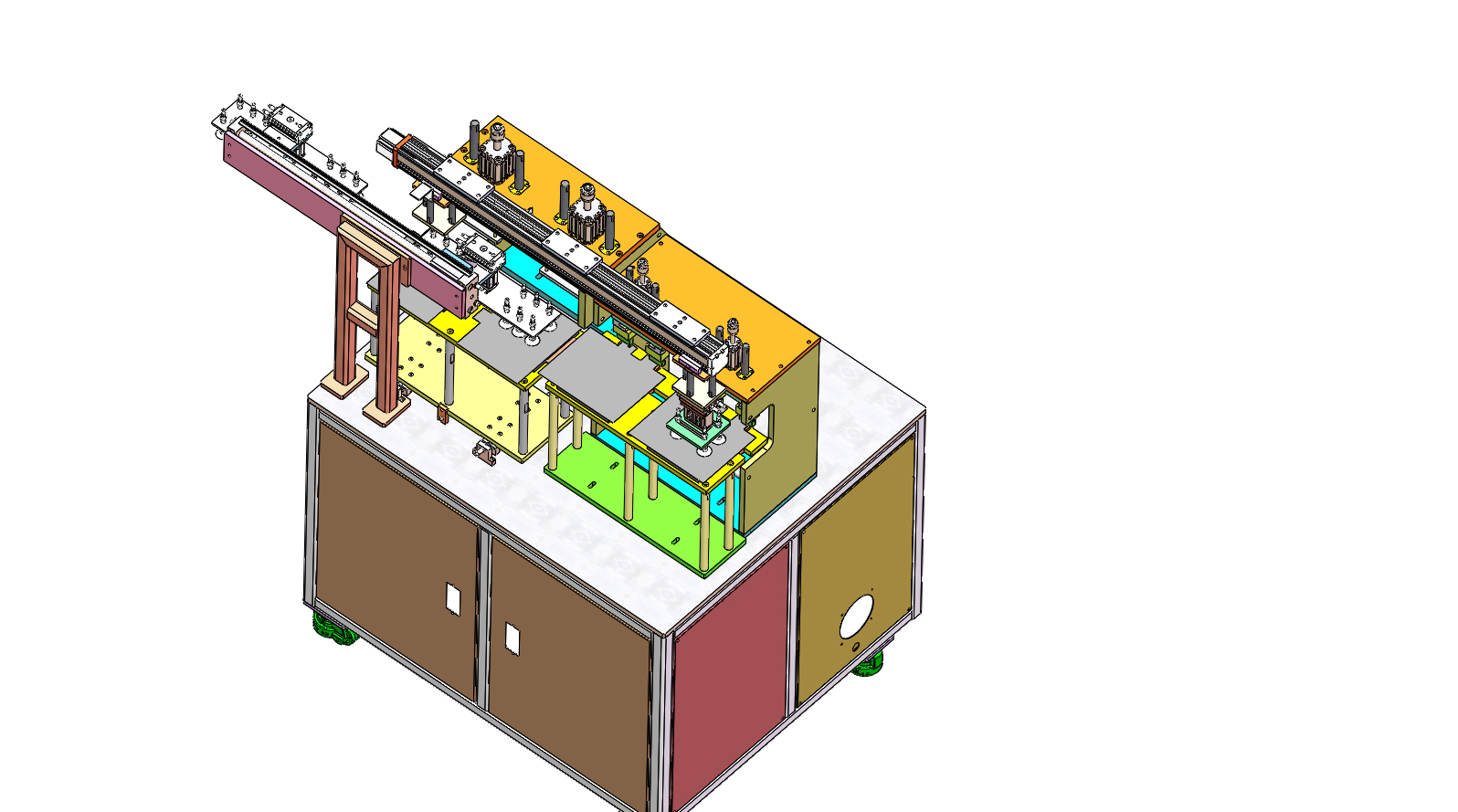

162	软包动力电芯测试总装1.JPG	406.30K
163	连体电芯18016010.SLDPRT	138.27K
