汽车发动机原型（又名涡轮V6）_Inventor 2021_模型图纸下载

首页

图库

工程师

汽车发动机原型（又名涡轮V6）（ID:2264878）

交通运输 / 车辆工程 / 汽车发动机原型（又名涡轮V6）

©非原创

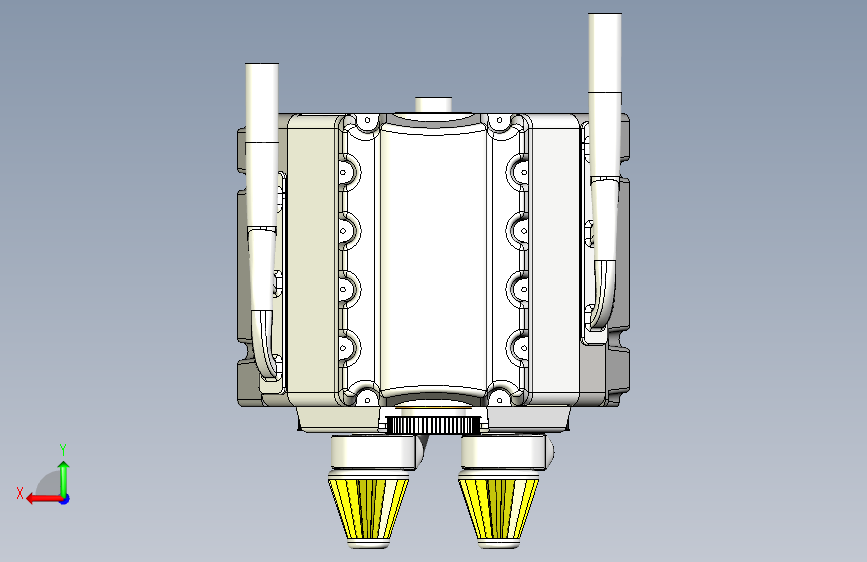

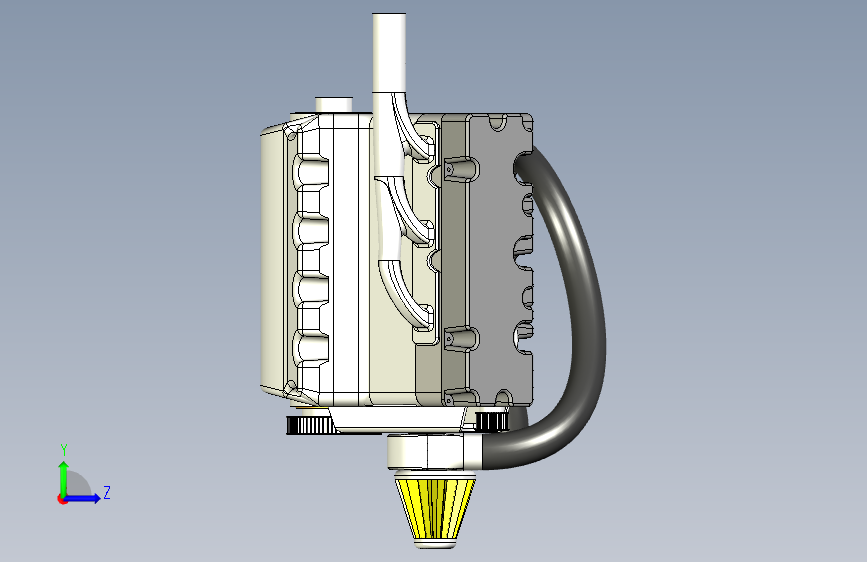

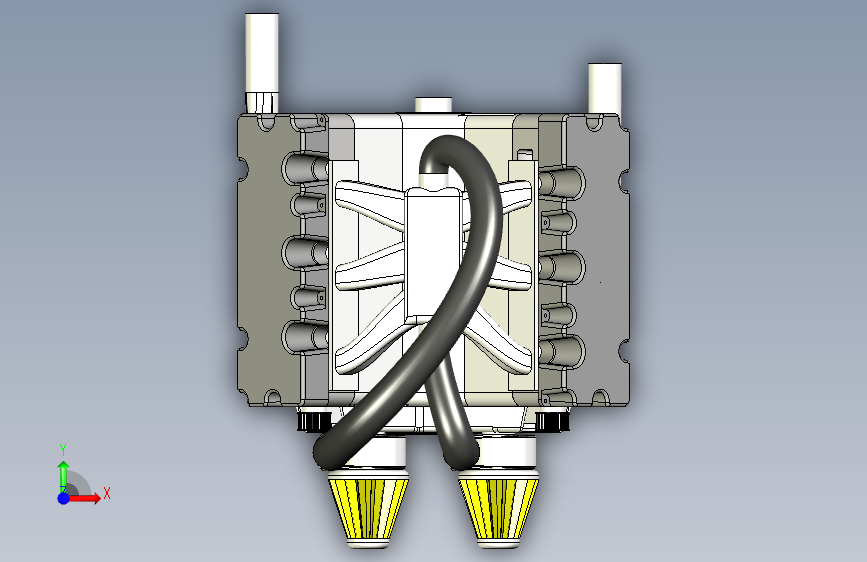

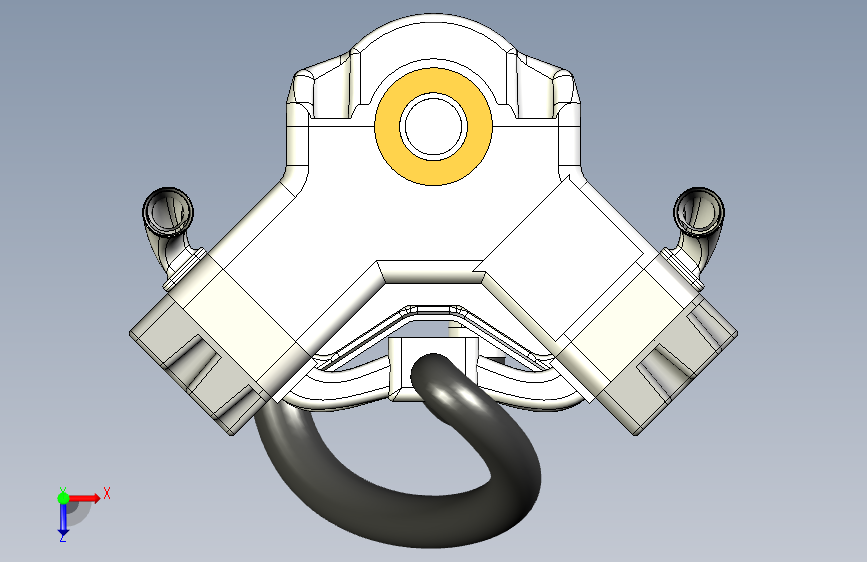

平面图

3D视图

文件列表

#	文件名称	文件大小
1	17497796093512.zip	21.39M
2	Assy-Turbo_engine_v6.iam	2.90M

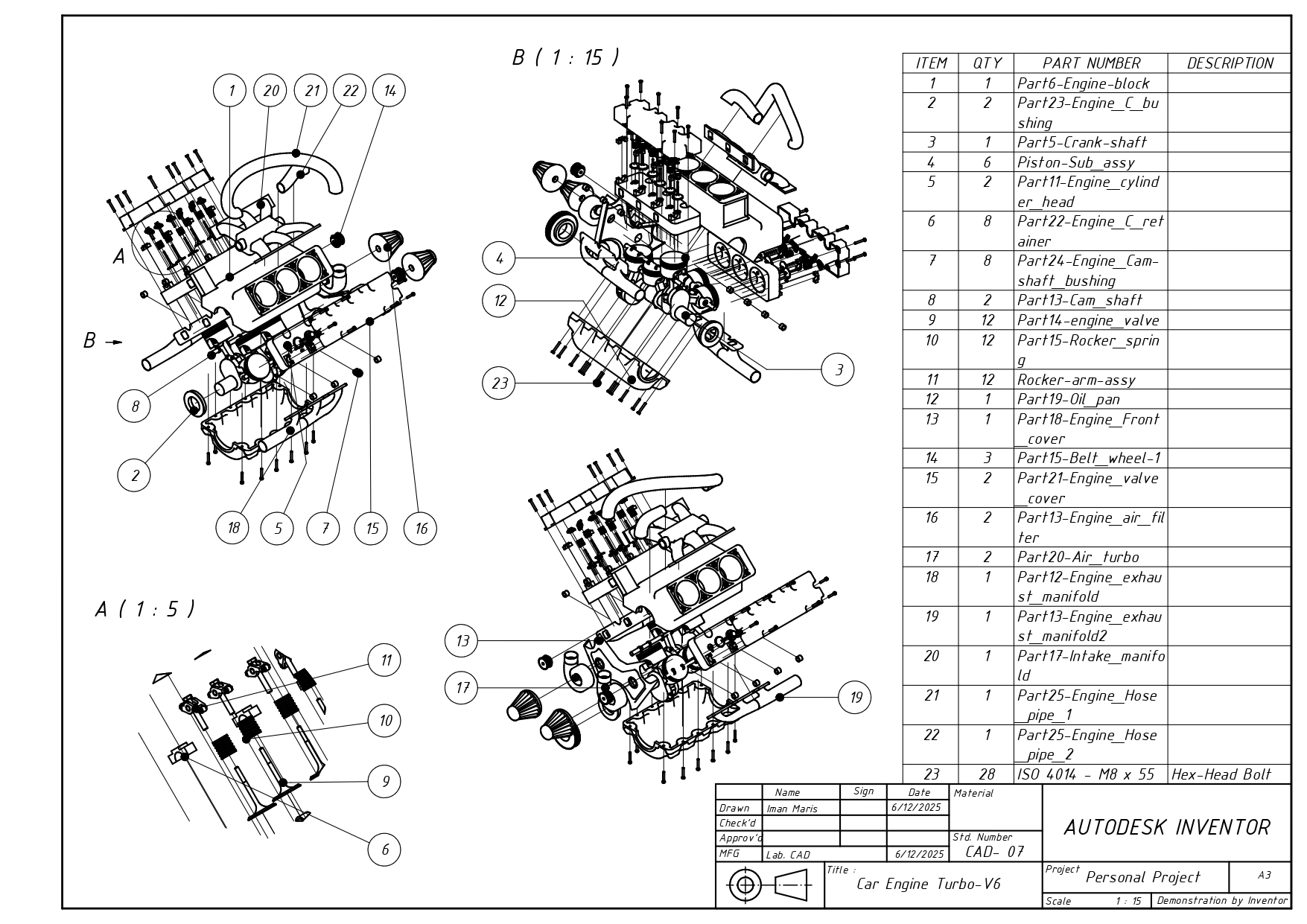

3	Engine-V6drawing_page-0001.jpg	841.46K
4	Part10-Engine_cylinder_head.ipt	813.00K
5	Part11-Engine_exhaust_manifold.ipt	1.42M
6	Part11-Engine_exhaust_manifold2.ipt	1.81M
7	Part12-Engine_air_filter.ipt	496.00K
8	Part13-Cam_shaft.ipt	159.50K
9	Part14-engine_valve.ipt	134.50K
10	Part15-Rocker_spring.ipt	373.00K
11	Part16-Belt-wheel-1.ipt	399.50K
12	Part16-Belt_wheel-2.ipt	680.00K
13	Part17-Intake_manifold.ipt	2.04M
14	Part18-Engine_Front_cover.ipt	783.00K
15	Part19-Oil_pan.ipt	1.51M
16	Part2-Piston_rod_cap.ipt	266.00K
17	Part20-Air_turbo.ipt	1.47M
18	Part21-Engine_valve_cover.ipt	1.06M
19	Part22-Engine_C_retainer.ipt	113.00K
20	Part23-Engine_C_bushing.ipt	96.00K
21	Part24-Engine_Cam-shaft_bushing.ipt	85.50K
22	Part25-Engine_Hose_pipe_1.ipt	691.00K
23	Part25-Engine_Hose_pipe_2.ipt	505.50K
24	Part3-Piston_pin.ipt	96.00K
25	Part4-Piston_head.ipt	396.50K
26	Part5-Crank-shaft.ipt	732.00K
27	Part6-Engine_block.ipt	824.50K
28	Part7-Rocker_arm.ipt	200.00K
29	Part8-Rocker_arm_roll.ipt	94.00K
30	Part9-Rocker_arm_pin.ipt	107.50K
31	Part9-Rocker_arm_pin2.ipt	83.00K
32	Piston-Sub_assy.iam	244.00K
33	Rocker-arm-assy.iam	171.50K
