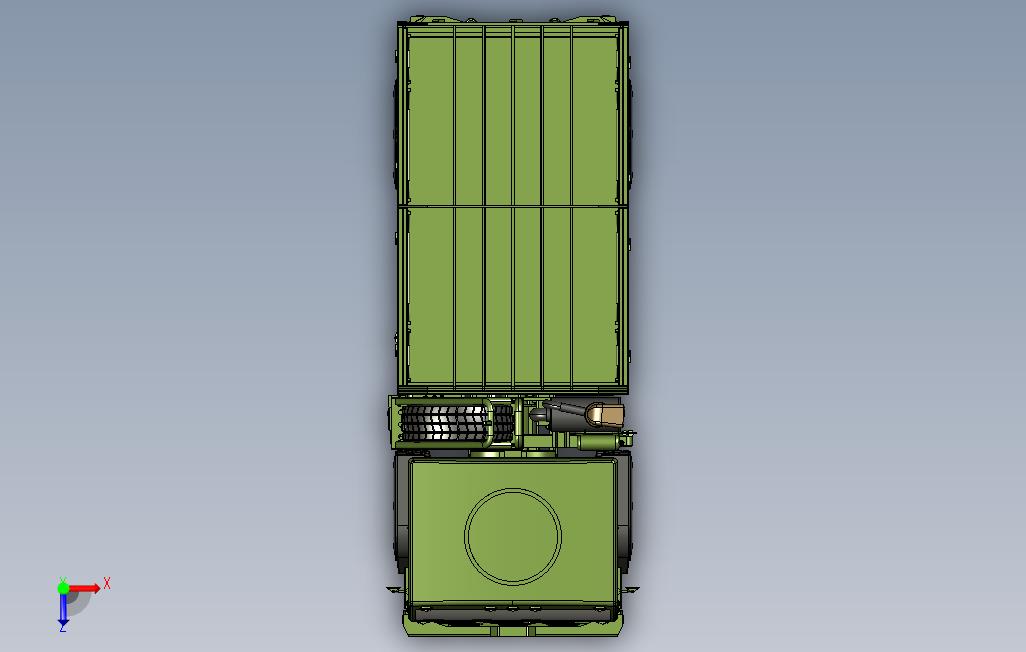

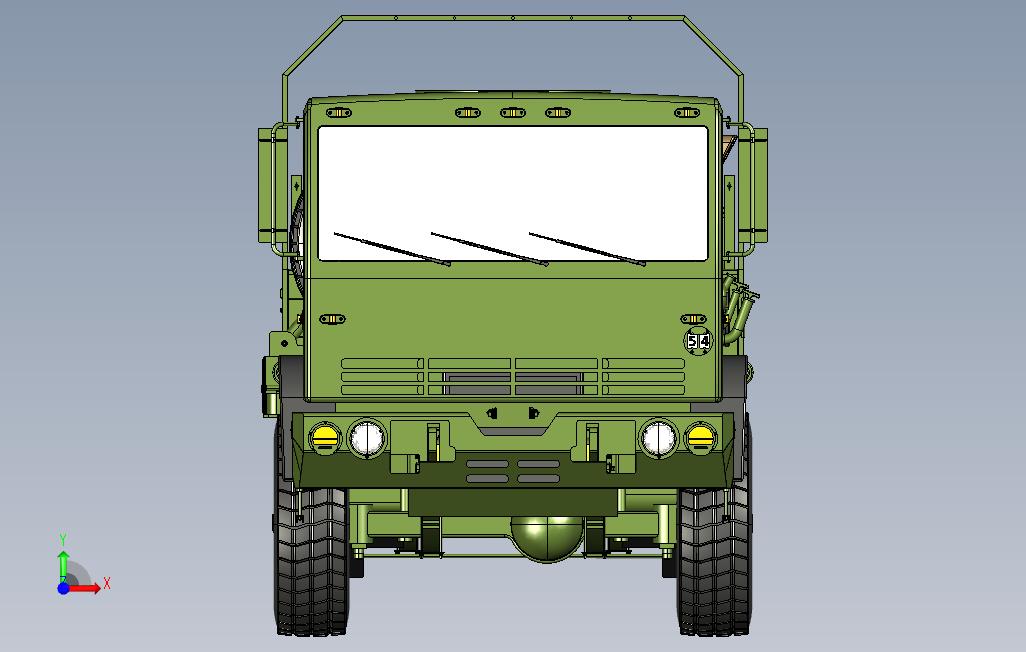

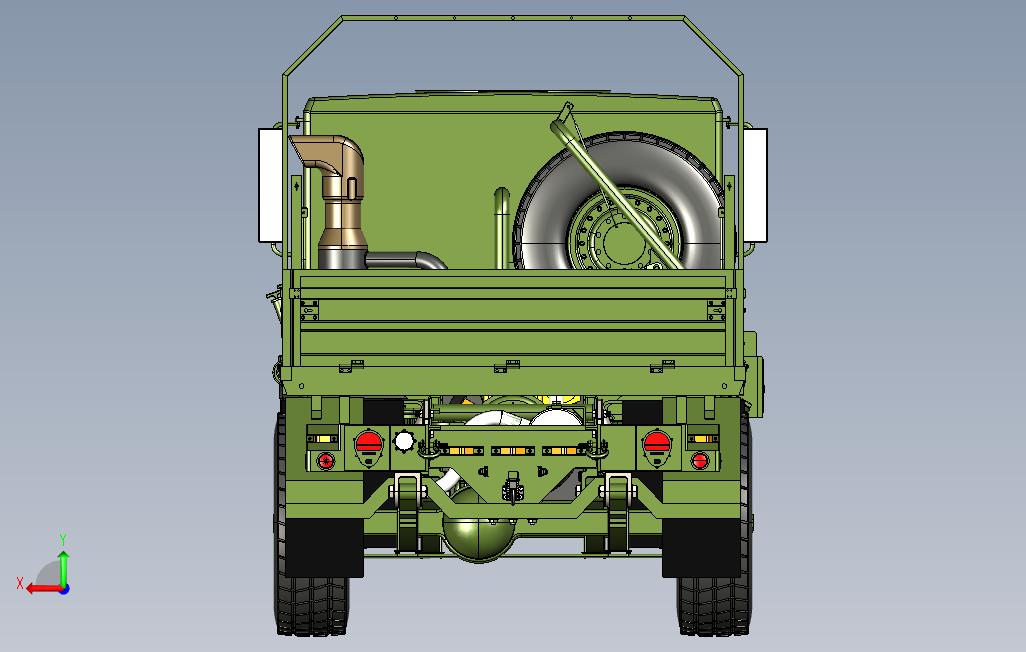

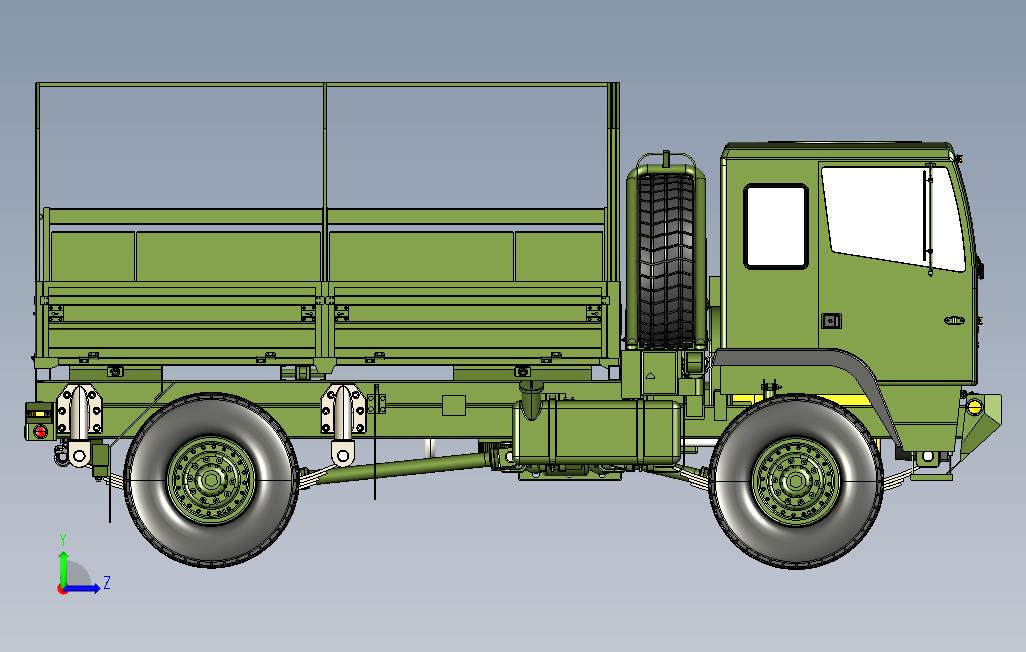

军用4X4卡车CATIA模型（ID:235189）
查找相似图纸
查找相似图纸
截图
AI截图渲染
✨AI图片渲染
4.jpg)
3.jpg)
2.jpg)
0.jpg)
1.jpg)
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 1 hex nut.CATPart | 89.74K |
| 2 | 1 X 50 hex bolt.CATPart | 2.00M |
| 3 | 11585A730_PADDLE-HANDLE PUSH-TO-CLOSE LATCH_11585A73.CATPart | 1.87M |
| 4 | 1_4_20_x_1_91251A542.CATPart | 833.55K |
| 5 | 90316A542_18-8 SS HEX WASHER HEAD SLOTTED MACHINE SCREW_90316A542.CATPart | 891.88K |
| 6 | 91594A320_HITCH PIN WITH TETHER_91594A320.CATPart | 399.27K |
| 7 | 95362A517_MIL. SPEC. B1821BH STEEL HEX HEAD CAP SCREW_95362A517.CATPart | 1.03M |
| 8 | 96880A594_MIL SPEC PAN HEAD PHILLIPS MACHINE SCREW_96880A594.CATPart | 826.26K |
| 9 | 98306A382_STEEL CLEVIS PIN_98306A382.CATPart | 65.15K |
| 10 | 98335A133_ZINC-PLATED STEEL COTTER PINS_98335A133.CATPart | 106.11K |
| 11 | AIR INTAKE INLET.CATPart | 1.19M |
| 12 | AIR INTAKE.CATPart | 1.04M |
| 13 | Allison_transmission.CATPart | 733.02K |
| 14 | AMBER LIGHT_1.CATPart | 583.94K |
| 15 | AMBER MARKER LIGHTS.CATPart | 165.93K |
| 16 | AMBER REFLECTOR.CATPart | 108.06K |
| 17 | BACK LIFT TUBE.CATPart | 131.09K |
| 18 | BATTERY BOX COVER.CATPart | 590.77K |
| 19 | BATTERY BOX.CATPart | 1.68M |
| 20 | CAB MARKER LIGHTS_5.CATPart | 206.89K |
| 21 | CAB REAR SUPPORT.CATPart | 201.09K |
| 22 | cat_3115_diesel.CATPart | 812.23K |
| 23 | CB10-0001.CATPart | 85.49K |
| 24 | CB10-0002.CATPart | 307.26K |
| 25 | CB10-0003.CATPart | 160.96K |
| 26 | CB10-0004.CATPart | 47.65K |
| 27 | CB10-0005.CATPart | 40.19K |
| 28 | CB10-0006.CATPart | 86.71K |
| 29 | CB10-0007.CATPart | 348.24K |
| 30 | CB10-0008.CATPart | 65.73K |
| 31 | CB10-0009.CATPart | 352.69K |
| 32 | CB10-0010.CATPart | 355.24K |
| 33 | CB10-0011.CATPart | 288.09K |
| 34 | CB10-0012.CATPart | 218.89K |
| 35 | CB10-0013.CATPart | 286.44K |
| 36 | CB10-0014.CATPart | 208.36K |
| 37 | CB10-0015.CATPart | 281.89K |
| 38 | CB10-0016.CATPart | 208.28K |
| 39 | CB10-0017.CATPart | 401.53K |
| 40 | CB10-0018.CATPart | 79.60K |
| 41 | CB10-0019.CATPart | 194.61K |
| 42 | CB10-0020.CATPart | 53.67K |
| 43 | CB10-0021.CATPart | 46.97K |
| 44 | CB10-0022.CATPart | 65.57K |
| 45 | CB10-0023.CATPart | 143.59K |
| 46 | CB10-0025_1065A44.CATPart | 920.22K |
| 47 | CB10-0026.CATPart | 65.63K |
| 48 | CB10-0027.CATPart | 143.70K |
| 49 | CB30-0001.CATPart | 158.95K |
| 50 | CB30-0002.CATPart | 71.38K |
| 51 | CONVOY PLACARD.CATPart | 125.95K |
| 52 | Cross Joint Bearing.CATPart | 248.34K |
| 53 | DOOR FENDER 1 DRIVER.CATPart | 139.22K |
| 54 | DOOR FENDER 1 PASS.CATPart | 140.14K |
| 55 | DRIVESHAFT 4 X 4.CATPart | 47.22K |
| 56 | DRIVETRAIN RAILS.CATPart | 152.16K |
| 57 | DRVSH A.CATPart | 53.87K |
| 58 | FRONT BUMPER.CATPart | 1.18M |
| 59 | FRONT SPRING SHACKLE_3.CATPart | 431.95K |
| 60 | FRONT STEP BUMPER.CATPart | 196.72K |
| 61 | FUEL TANK.CATPart | 1.20M |
| 62 | gladhand azul.CATPart | 893.46K |
| 63 | HEADLIGHT BRACKET.CATPart | 232.30K |
| 64 | HEADLIGHT CONNECTOR.CATPart | 167.91K |
| 65 | HYDRAULIC TANK.CATPart | 284.51K |
| 66 | Leaf Pin Mounting Pin.CATPart | 142.75K |
| 67 | Leaf Spring Mount_4.CATPart | 393.53K |
| 68 | LIFTING SHACKLE.CATPart | 286.94K |
| 69 | Light Bracket Left Back.CATPart | 199.05K |
| 70 | LMTV FRONT AXLE.CATPart | 832.01K |
| 71 | LMTV_BACK_AXLE.CATPart | 388.33K |
| 72 | LMTV_CAB.CATPart | 1.14M |
| 73 | LMTV_DOOR_DRIVER.CATPart | 380.69K |
| 74 | LMTV_DOOR_PASS.CATPart | 374.21K |
| 75 | lmtv_leaf_spring.CATPart | 270.66K |
| 76 | LMTV_TRUCK_FRAME_4_X_4.CATPart | 410.28K |
| 77 | MD-PH5 - 5-Ton Pintle Hitch.CATPart | 3.25M |
| 78 | MUD FLAP FR DRV SIDE.CATPart | 103.22K |
| 79 | MUD FLAP FR PASS SIDE.CATPart | 100.52K |
| 80 | MUFFLER.CATPart | 1.44M |
| 81 | PAR-56-Bowl.CATPart | 1.18M |
| 82 | PAR-56-Lens.CATPart | 4.74M |
| 83 | PAR-56-Terminal.CATPart | 63.73K |
| 84 | PAR-56-Terminal_Filament.CATPart | 134.50K |
| 85 | PAR-56-Terminal_Insulator.CATPart | 45.80K |
| 86 | PASSENGER SIDE CONTROLS.CATPart | 132.00K |
| 87 | PLACARD NUMBERS_PLACARD 4.CATPart | 91.59K |
| 88 | PLACARD NUMBERS_PLACARD 5.CATPart | 99.51K |
| 89 | raditor w shroud.CATPart | 265.96K |
| 90 | REARVIEW MIRROR.CATPart | 210.09K |
| 91 | SHACKLE PIN.CATPart | 1.50M |
| 92 | SHOCK DUAL REAR.CATPart | 193.07K |
| 93 | SHOCK SUPPORT FRONT.CATPart | 176.67K |
| 94 | SIDE WINDOW DRIVER.CATPart | 179.85K |
| 95 | SPARE TIRE LOADING ARM.CATPart | 522.94K |
| 96 | SPARE TIRE PLATFORM.CATPart | 667.47K |
| 97 | SPARE TIRE STRUT.CATPart | 230.77K |
| 98 | Support A.CATPart | 97.45K |
| 99 | Support B Lift.CATPart | 146.39K |
| 100 | Support B.CATPart | 253.93K |
| 101 | Support C Lift.CATPart | 133.63K |
| 102 | Support C.CATPart | 148.47K |
| 103 | Support D.CATPart | 104.24K |
| 104 | TAIL LIGHT.CATPart | 588.88K |
| 105 | TIRE RIM.CATPart | 1.93M |
| 106 | TIRE.CATPart | 6.73M |
| 107 | TRANSFER CASE.CATPart | 546.98K |
| 108 | TUBULAR CROSS BRACE.CATPart | 95.06K |
| 109 | Universal Joint.CATPart | 284.55K |
| 110 | WHEEL HUB.CATPart | 1.17M |
| 111 | WHITE BACK LIGHT.CATPart | 469.11K |
| 112 | WWIPER ARM.CATPart | 268.73K |
| 113 | WWIPER BLADE.CATPart | 1.25M |
| 114 | _LMTV_4 X 4A._CATProduct.CATProduct | 384.19K |
| 115 | _NPart#791098.CATPart | 203.71K |
此图纸下载需要15金币
立即下载
发布者
小饭某甲
创作: 564
粉丝: 21
加入时间：2022-08-18
模型信息
图纸ID：235189
图纸格式：catpart,catproduct
文件大小：22.71M
所需金币：15
上传时间：2021-12-12 23:07:58
是否可编辑：可修改，包括参数
软件版本：CATIA
标签
图纸简介
