DMS65-DCR丝杆模组直线滑台（电机下折)[DMS65-L05S300-DT100-C2U-DCR-P5]
（ID:2396931）
改图/画图
截图
AI截图渲染
✨AI图片渲染
![DMS65-DCR丝杆模组直线滑台（电机下折)[DMS65-L05S300-DT100-C2U-DCR-P5] 主视图](https://html.lazystones.com/lazy/2396954/image/0849eff0-24ce-4dba-ae85-ed076800fb3a%E5%8E%9F%E5%9B%BE%28%E4%B8%BB%290.png)

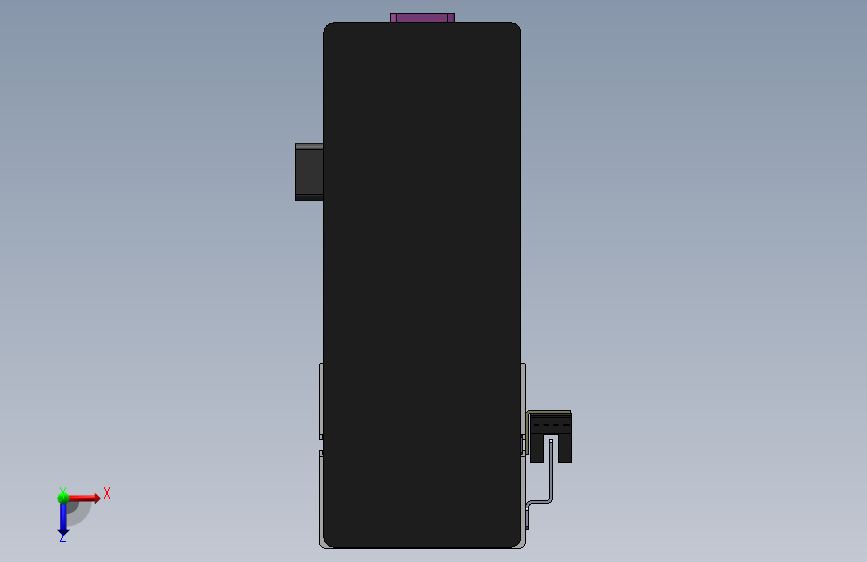

![DMS65-DCR丝杆模组直线滑台（电机下折)[DMS65-L05S300-DT100-C2U-DCR-P5] 俯视图](https://html.lazystones.com/lazy/2396954/image/0d0dd0dd-414f-4a1c-ace7-c5d129da9801%E5%8E%9F%E5%9B%BE%28%E4%B8%8A%291.png)

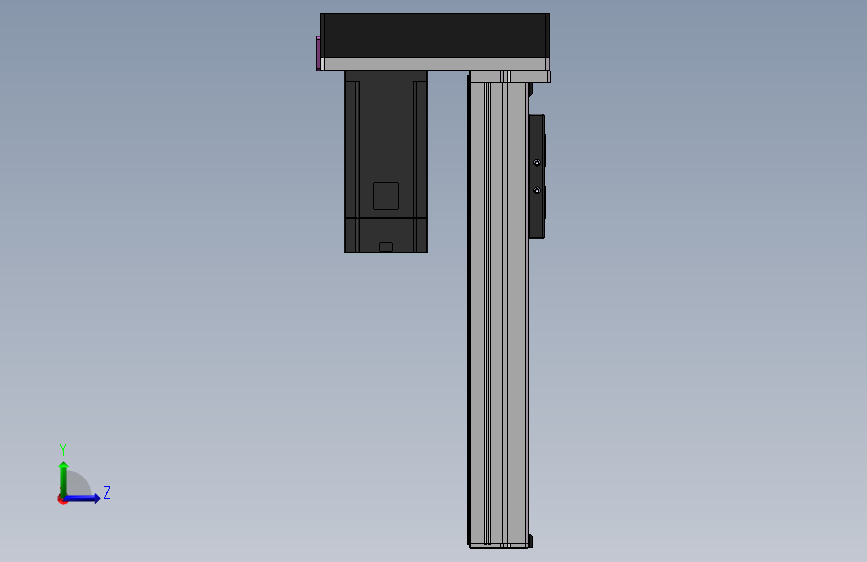

![DMS65-DCR丝杆模组直线滑台（电机下折)[DMS65-L05S300-DT100-C2U-DCR-P5] 左侧视图](https://html.lazystones.com/lazy/2396954/image/c535f269-80f4-4010-9421-b3c7f580994a%E5%8E%9F%E5%9B%BE%28%E5%B7%A6%292.png)

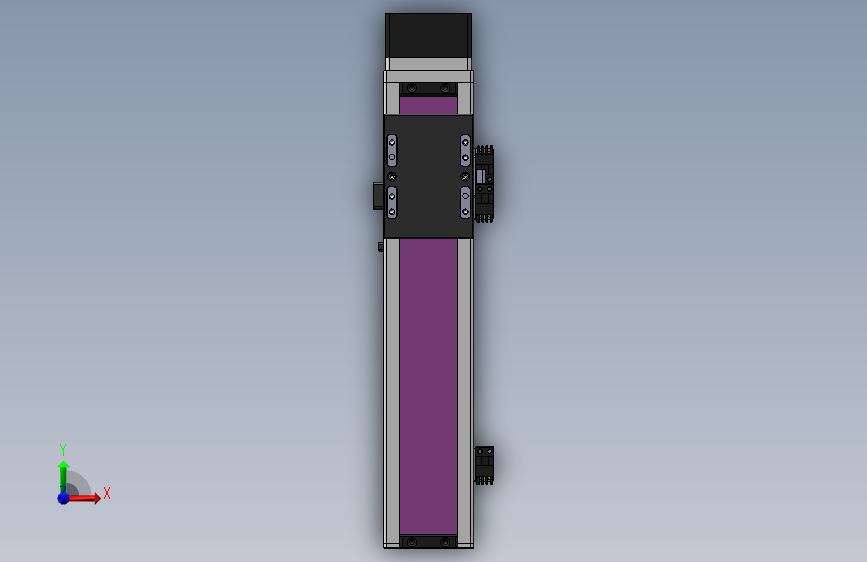

![DMS65-DCR丝杆模组直线滑台（电机下折)[DMS65-L05S300-DT100-C2U-DCR-P5] 正面视图](https://html.lazystones.com/lazy/2396954/image/a4acc6f5-b54f-4144-8bba-4dfcf0758a6f%E5%8E%9F%E5%9B%BE%28%E5%89%8D%293.png)

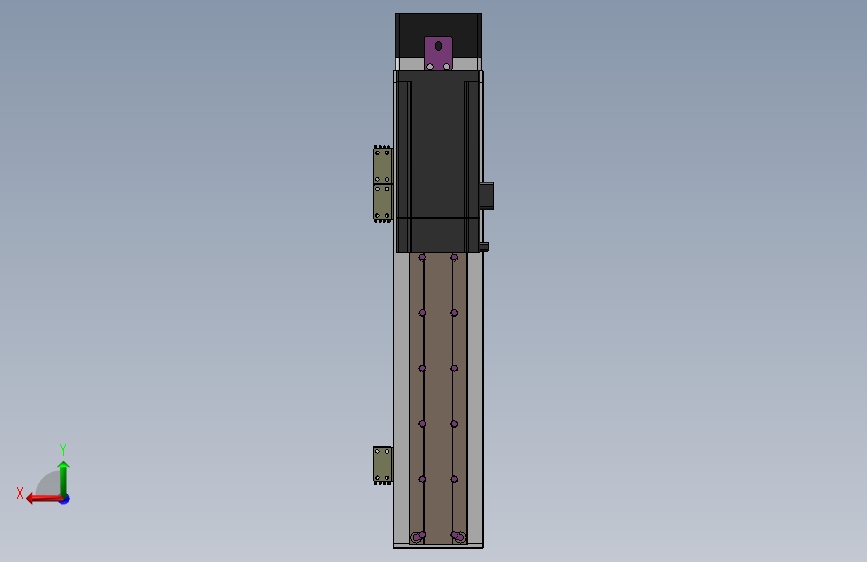

![DMS65-DCR丝杆模组直线滑台（电机下折)[DMS65-L05S300-DT100-C2U-DCR-P5] 背面视图](https://html.lazystones.com/lazy/2396954/image/1f818833-b2c5-4352-be43-927ba2531c4a%E5%8E%9F%E5%9B%BE%28%E5%90%8E%294.png)
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 42步进电机.SLDPRT | 207.86K |
| 2 | DMS65-DCR丝杆模组直线滑台（电机下折[DMS65-L05S300-DT100-C2U-DCR-P5].sldasm | 446.33K |
| 3 | DMS65-DCR丝杆模组直线滑台（电机下折[DMS65-L05S300-DT100-C2U-DCR-P5]_复件45传感器组件-M.sldasm | 125.63K |
| 4 | DMS65-DCR丝杆模组直线滑台（电机下折[DMS65-L05S300-DT100-C2U-DCR-P5]_复件65底座-S200-S-RCR-M.sldprt | 505.73K |
| 5 | DMS65-DCR丝杆模组直线滑台（电机下折[DMS65-L05S300-DT100-C2U-DCR-P5]_复件65滑动座-CR.sldasm | 185.44K |
| 6 | DMS65-DCR丝杆模组直线滑台（电机下折[DMS65-L05S300-DT100-C2U-DCR-P5]_复件65电机转折部分SCM-M.sldprt | 152.64K |
| 7 | DMS65-DCR丝杆模组直线滑台（电机下折[DMS65-L05S300-DT100-C2U-DCR-P5]_复件台达ECMA-C20401S伺服电机-DT100-M.sldprt | 173.89K |
| 8 | DMS65-L10S200-DT400-C2D-DCR-P7-M.SLDASM | 2.34M |
| 9 | 三菱HF-KN13JK伺服电机-MT100.SLDPRT | 253.25K |
| 10 | 三菱HF-KN13JK伺服电机-MT100B.SLDPRT | 290.74K |
| 11 | 台达ECMA-C20401BS伺服电机-DT100B.SLDPRT | 250.99K |
| 12 | 复件45传感器组件-M.sldasm | 125.82K |
| 13 | 复件65底座-S200-S-RCR-M.sldprt | 512.69K |
| 14 | 复件65滑动座-CR.sldasm | 186.35K |
| 15 | 复件65滚珠螺姆安装板SCR.sldprt | 375.98K |
| 16 | 复件65电机转折部分SCM-M.sldprt | 152.01K |
| 17 | 复件EEE-674感应器装配-M.sldprt | 150.17K |
| 18 | 复件EEE-674感应器装配_1M.sldprt | 138.90K |
| 19 | 复件台达ECMA-C20401S伺服电机-DT100-M.sldprt | 174.24K |
| 20 | 复件感应片8.5x28x30-M.sldprt | 63.80K |
| 21 | 复件防护罩65x90-钣金.sldprt | 243.33K |
| 22 | 松下MSME012G1伺服电机-PS100.SLDPRT | 255.00K |
| 23 | 松下MSME012G1伺服电机-PS100B.SLDPRT | 256.25K |
此图纸下载需要5金币
立即下载
发布者
模型信息
图纸ID：2396931
图纸格式：sldprt,sldasm
文件大小：7.46M
所需金币：5
上传时间：2025-07-16 08:01:44
是否可编辑：可修改，包括参数
