NASA 安全锁扣（ID:2477690）

机械设备 / 非标机械 / NASA 安全锁扣

©非原创

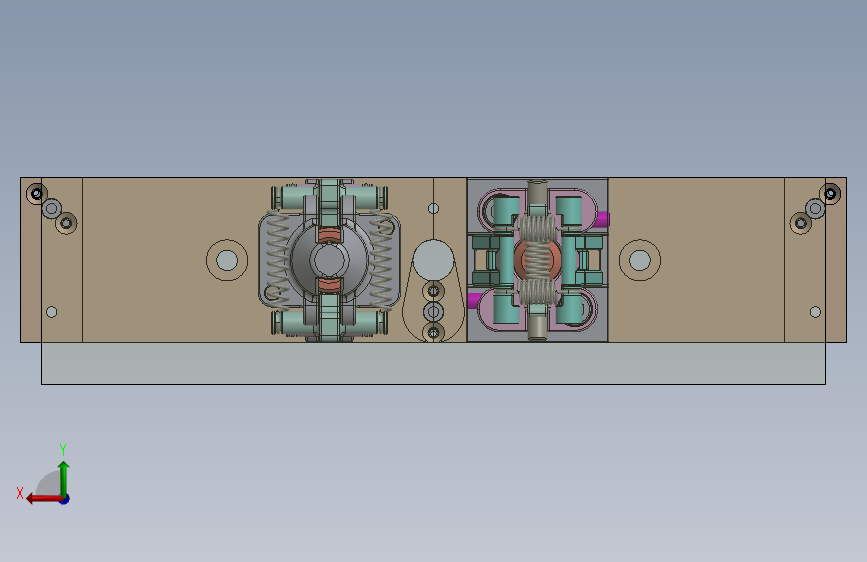

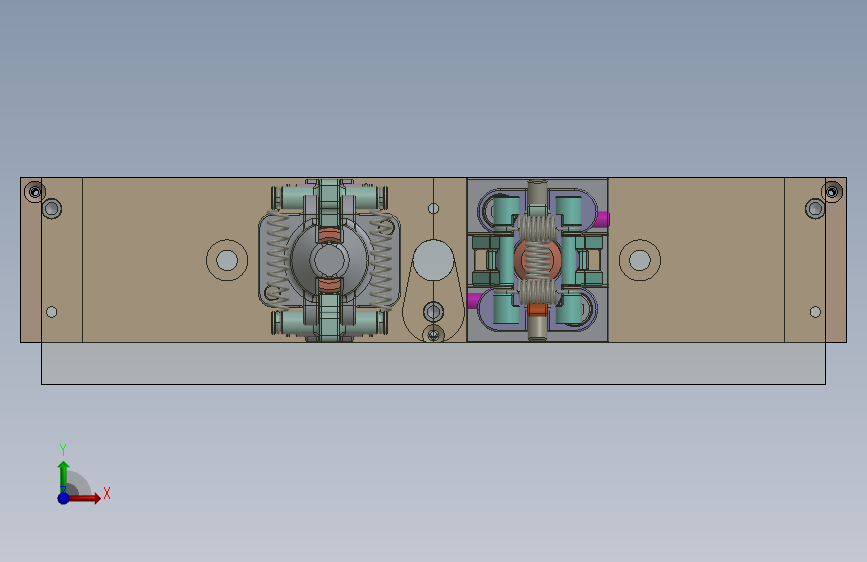

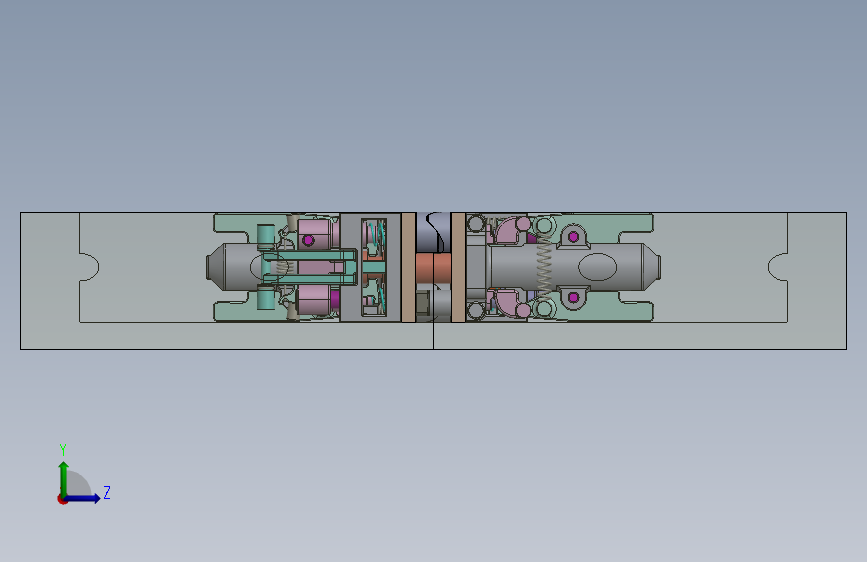

平面图

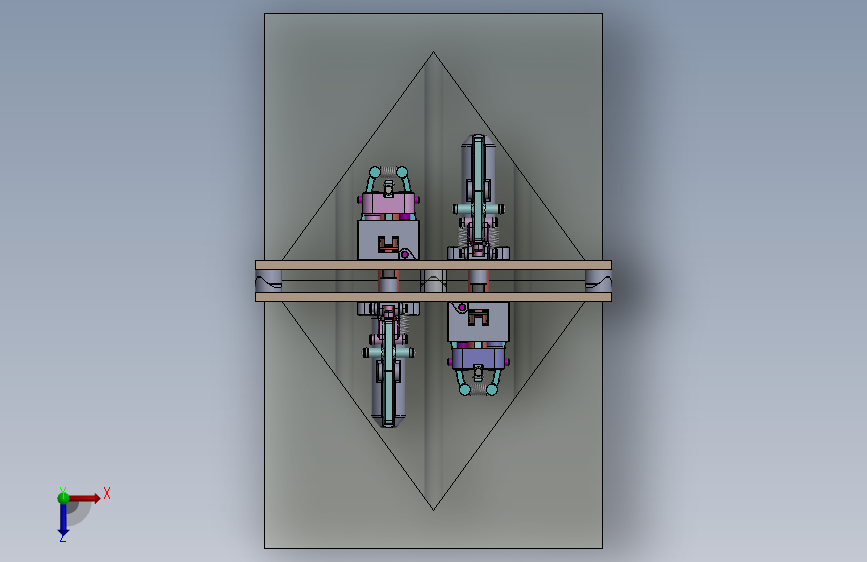

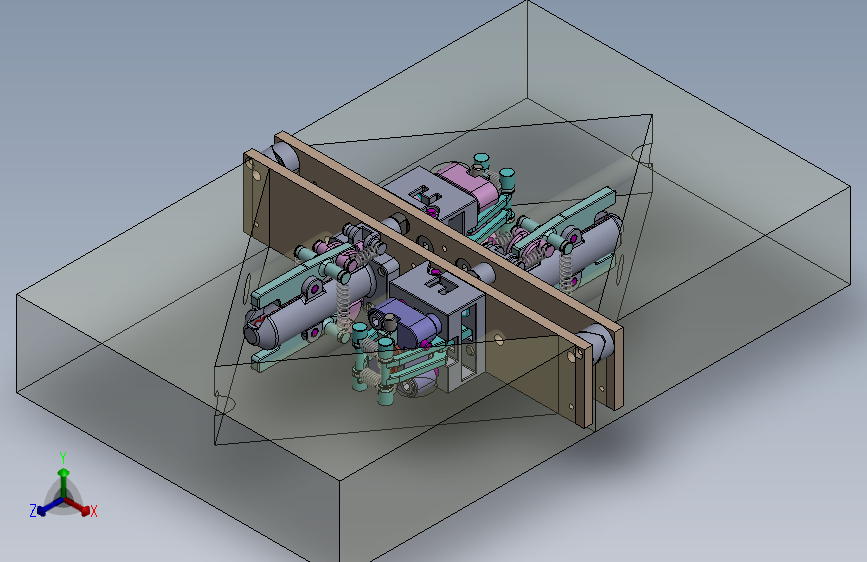

3D视图

文件列表

#	文件名称	文件大小
1	17542258743683.zip	86.59M

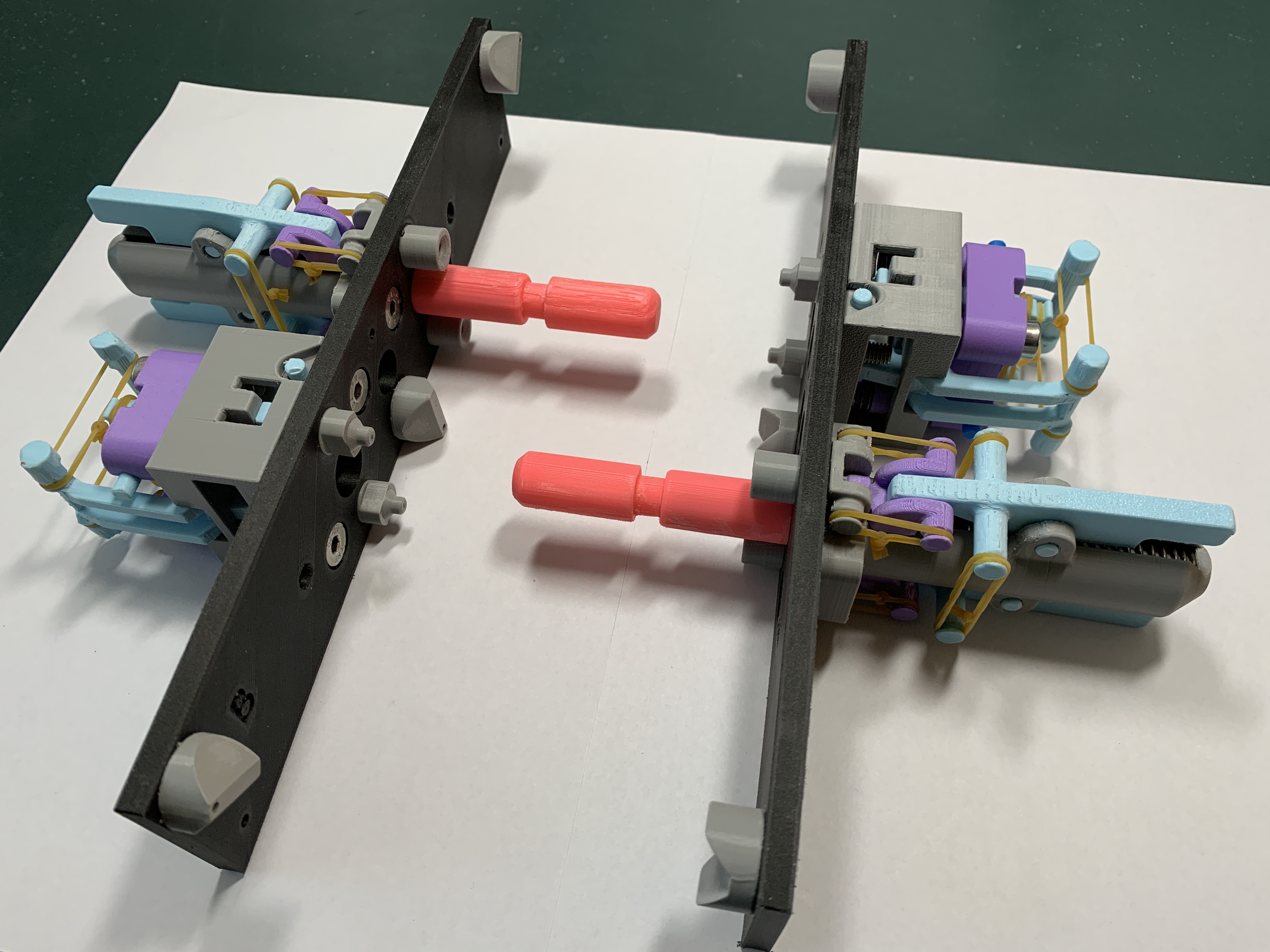

2	Assembly-NASAPositiveConnectionchallenge.JPG	2.14M

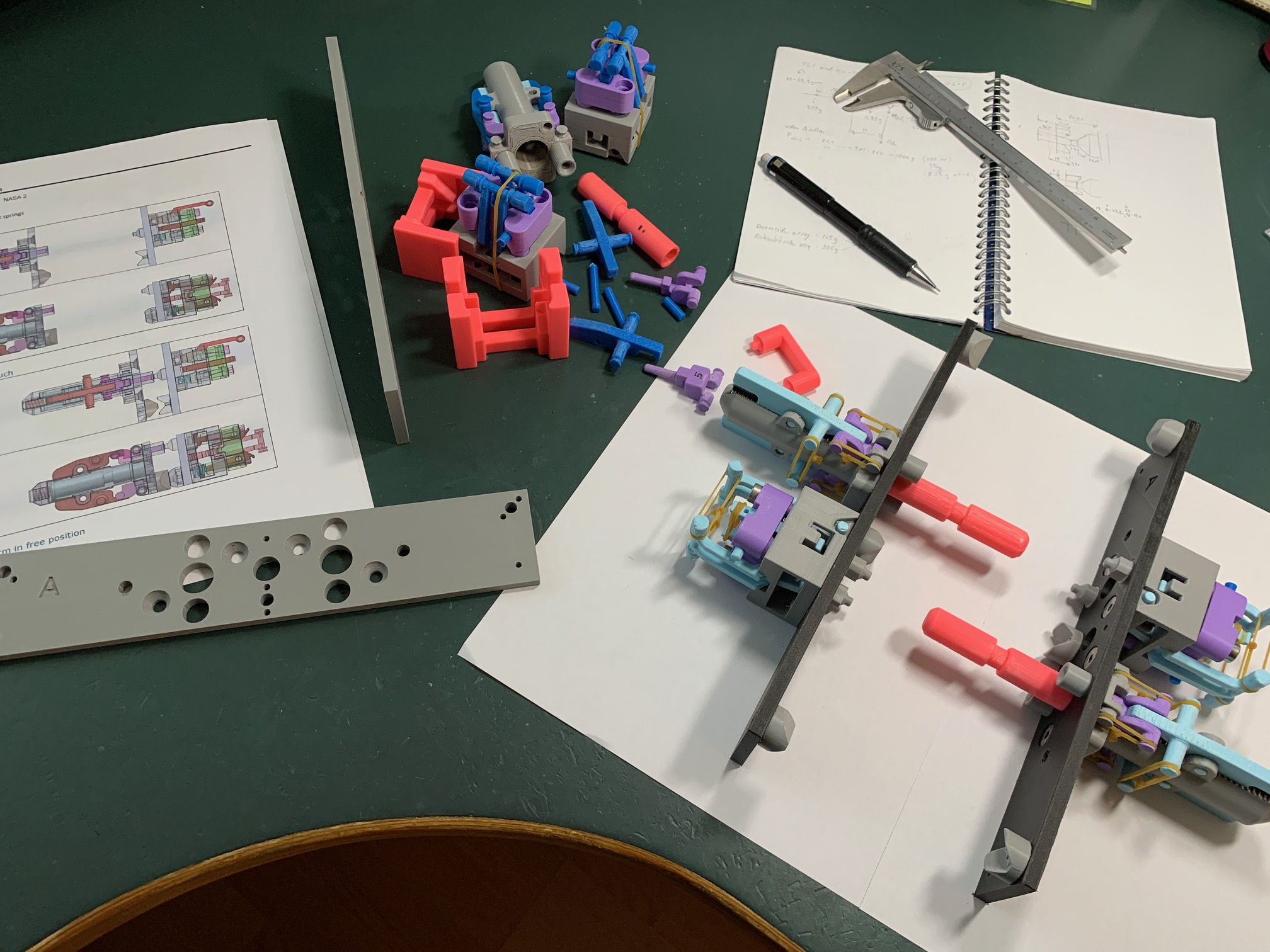

3	History-NASAPositiveConnectionchallenge.JPG	580.67K
4	NASAPositiveConnectionchallenge-rel3.pdf	1.35M
5	Antennas.SLDPRT	39.92K
6	Bushing.SLDPRT	87.52K
7	Counterweight.SLDPRT	65.35K
8	CS-750-SMv4.SLDPRT	103.67K

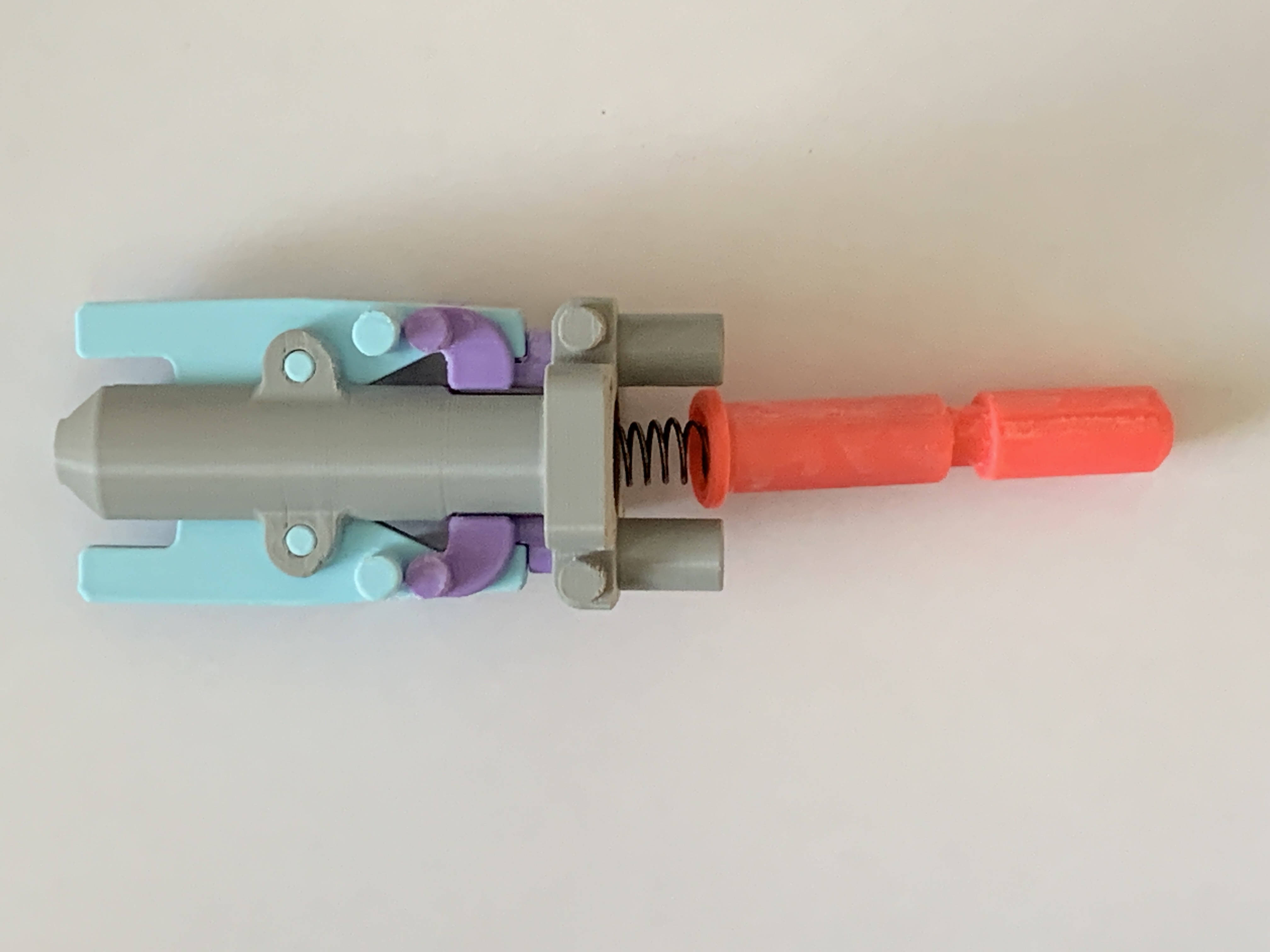

9	IMG_3775.JPG	624.40K

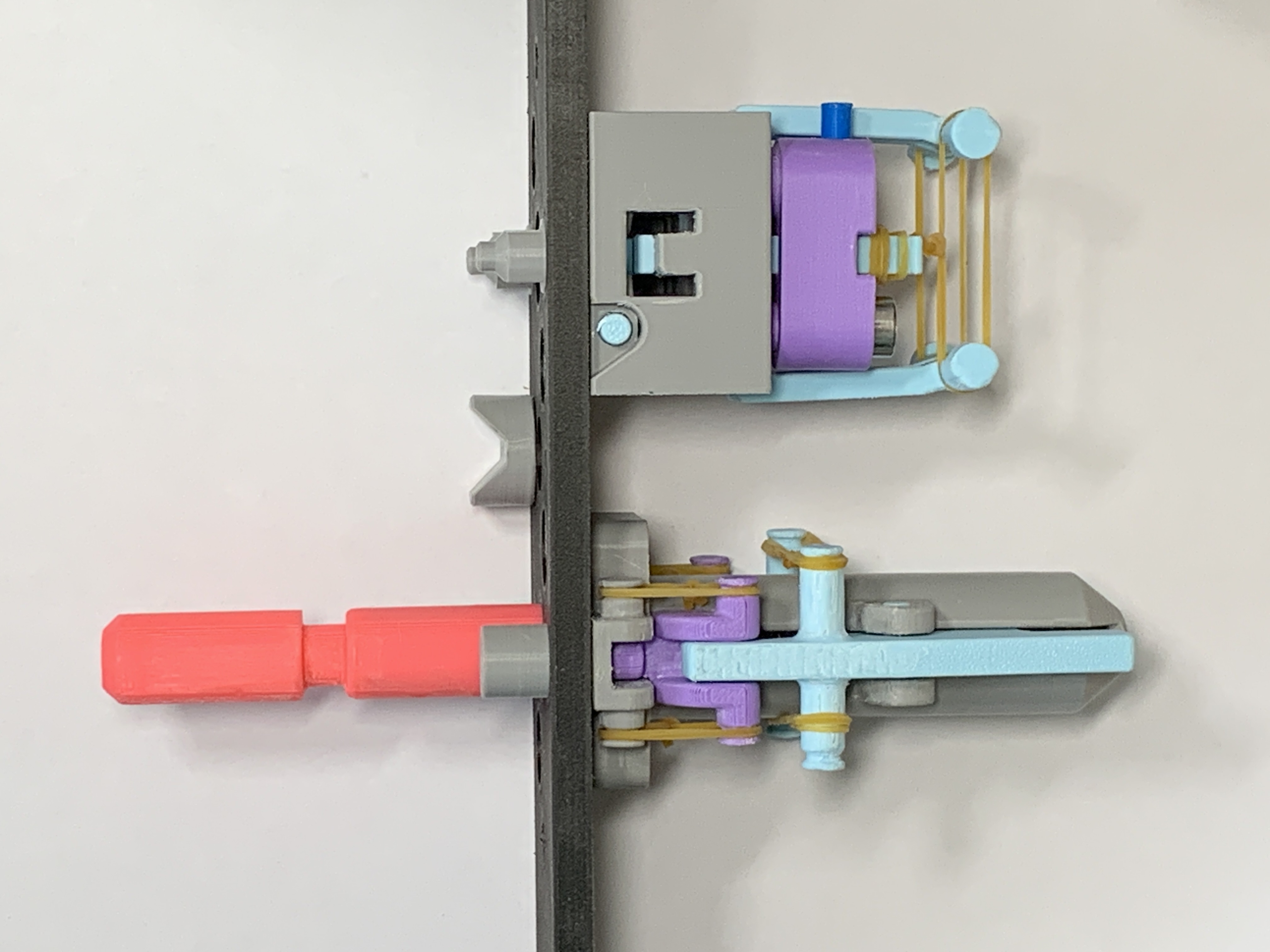

10	IMG_3776.JPG	822.90K

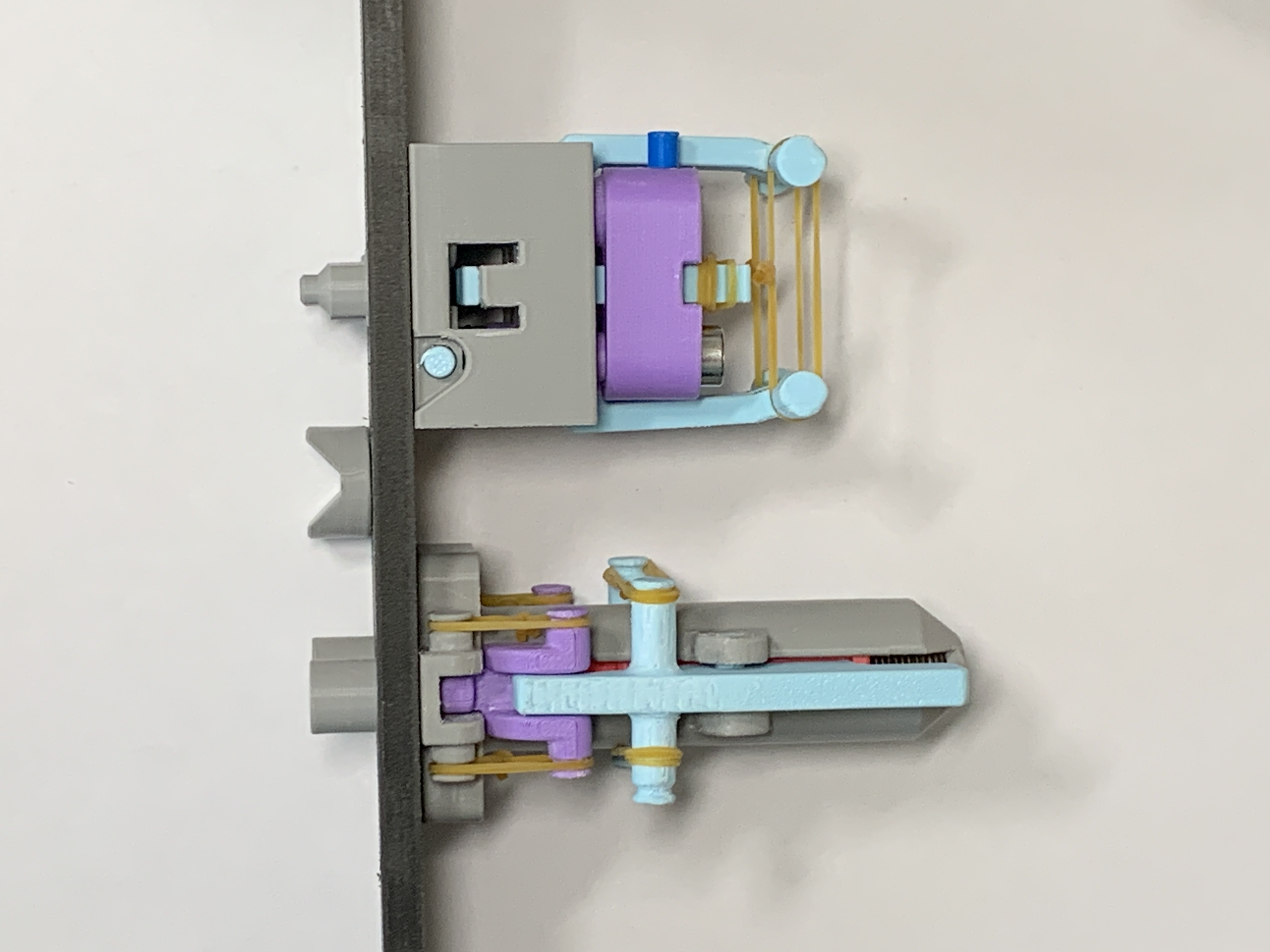

11	IMG_3777.JPG	761.16K

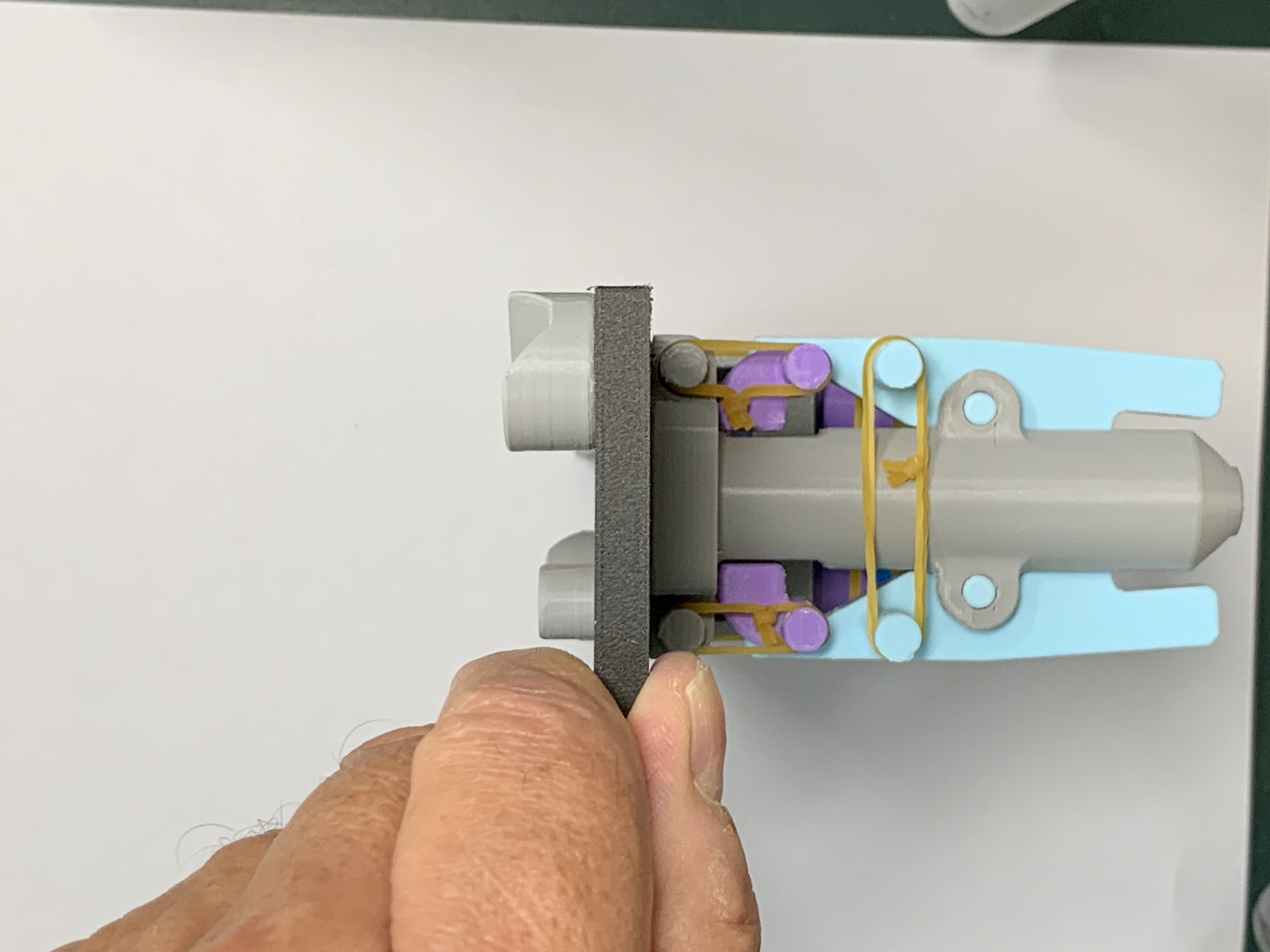

12	IMG_3778.JPG	837.97K

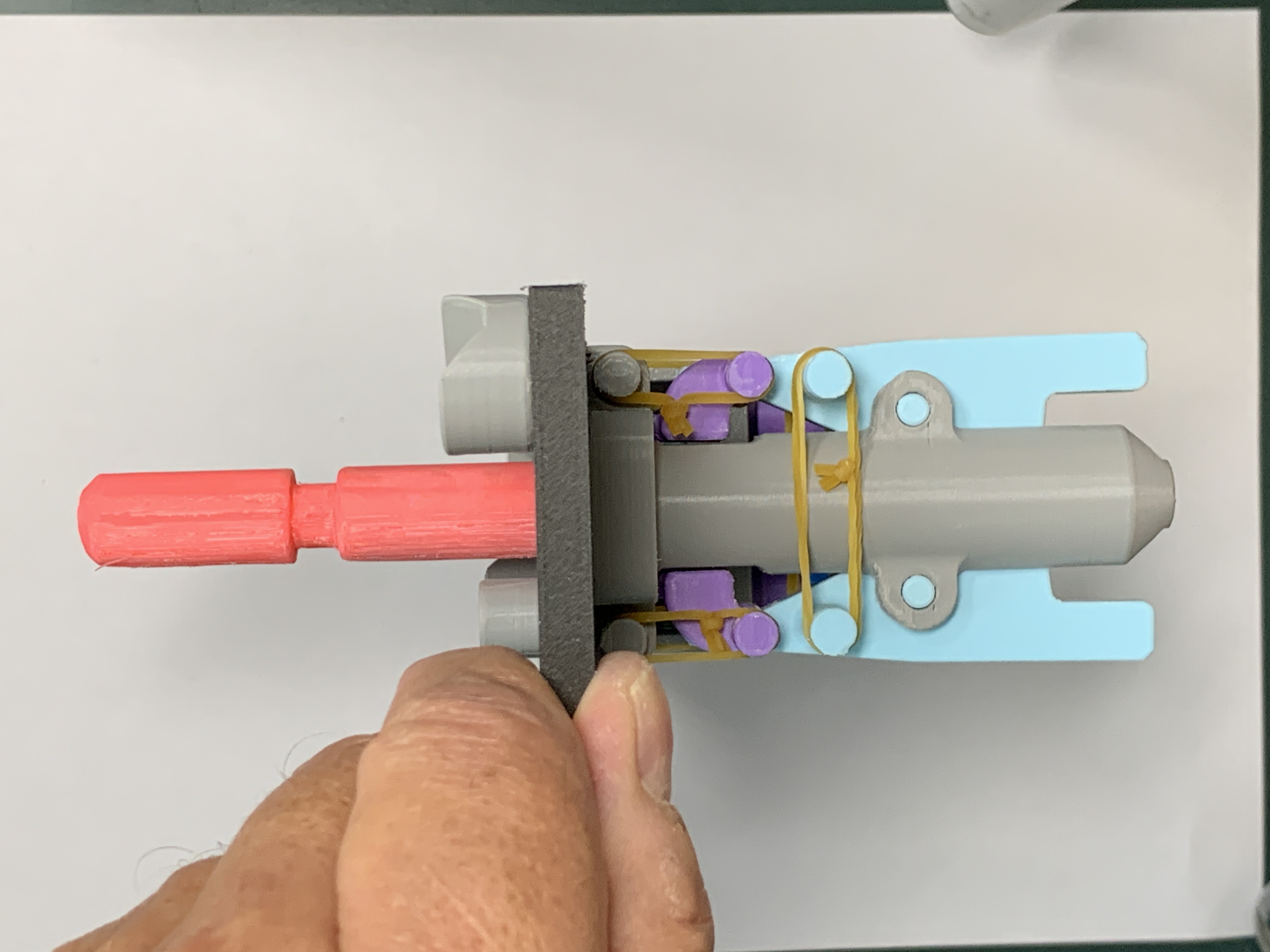

13	IMG_3779.JPG	845.42K
14	JoinplateassyA.SLDASM	3.37M
15	JoinplateassyB.SLDASM	3.32M
16	JointassyLocksite.SLDASM	1.98M
17	JointassyLocksite.SLDDRW	3.56M
18	Jointassyspearsite.SLDASM	1.63M
19	Jointassyspearsite.SLDDRW	3.06M
20	Jointkomplete.SLDASM	3.46M
21	Jointkomplete.STEP	9.97M
22	Lockarm.SLDPRT	748.74K
23	Lockarmspear.SLDPRT	259.18K
24	Lockingblock.SLDPRT	1.04M
25	NegativeSpace.SLDPRT	394.64K
26	Pin.SLDPRT	97.11K
27	Plate_Antenna_Edge.sldprt	203.80K
28	Plate_Antenna_EdgeA.SLDPRT	353.31K
29	Plate_Antenna_EdgeB.SLDPRT	308.47K
30	Pullarm.SLDPRT	303.78K
31	Releasepin.SLDPRT	208.11K
32	Screwcountersunk.SLDPRT	97.22K
33	Screwcylindric.SLDPRT	96.57K
34	Spear.SLDPRT	129.87K
35	Spearhouse.SLDPRT	1.18M
36	Spearrelease.SLDPRT	438.52K
37	Spring-pullarm.SLDPRT	407.20K
38	Spring-spear.SLDPRT	678.56K
39	Spring-spearlock.SLDPRT	393.51K
40	Spring-spearrelease.SLDPRT	595.72K
41	Spring-tension.SLDPRT	572.56K
42	Springpull.SLDPRT	387.13K
43	Tensionblock.SLDPRT	701.16K
44	Tool-release.SLDPRT	109.91K
45	Toolreload.SLDPRT	782.52K
46	VB-375-SM_VB-375-CPM.SLDPRT	105.52K

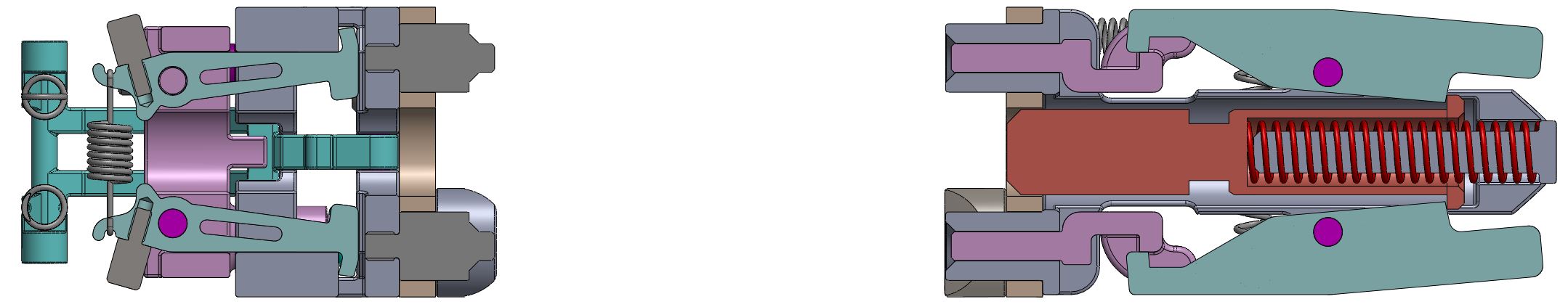

47	0.JPG	100.71K

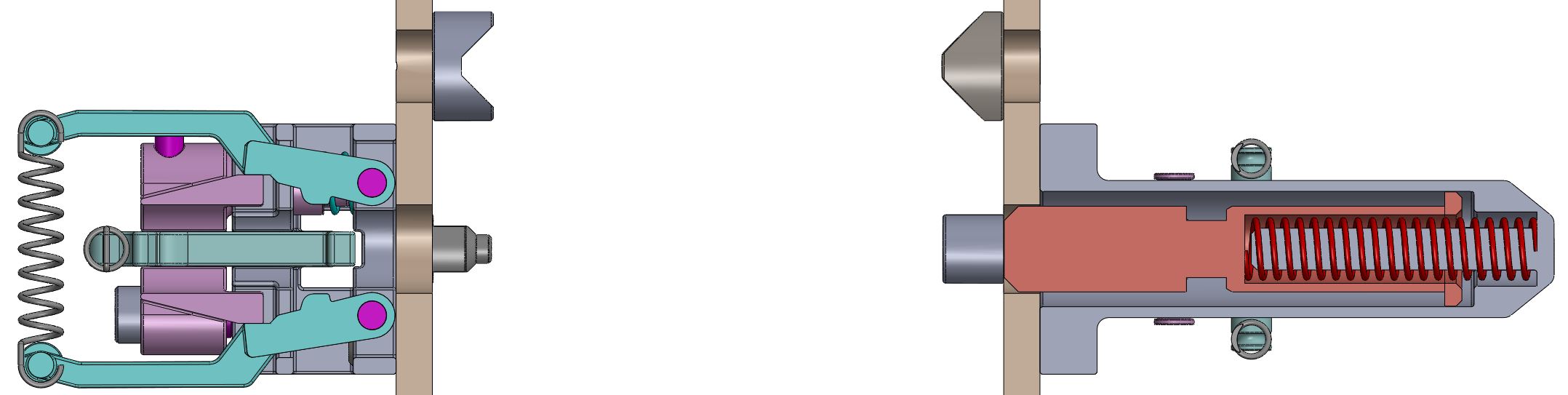

48	0top.JPG	99.48K

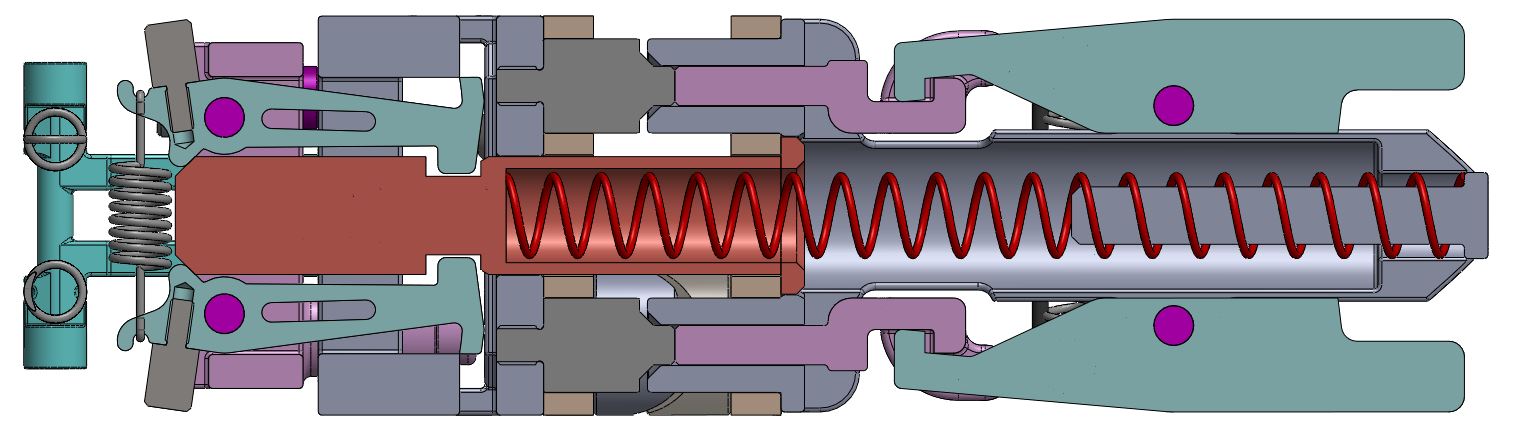

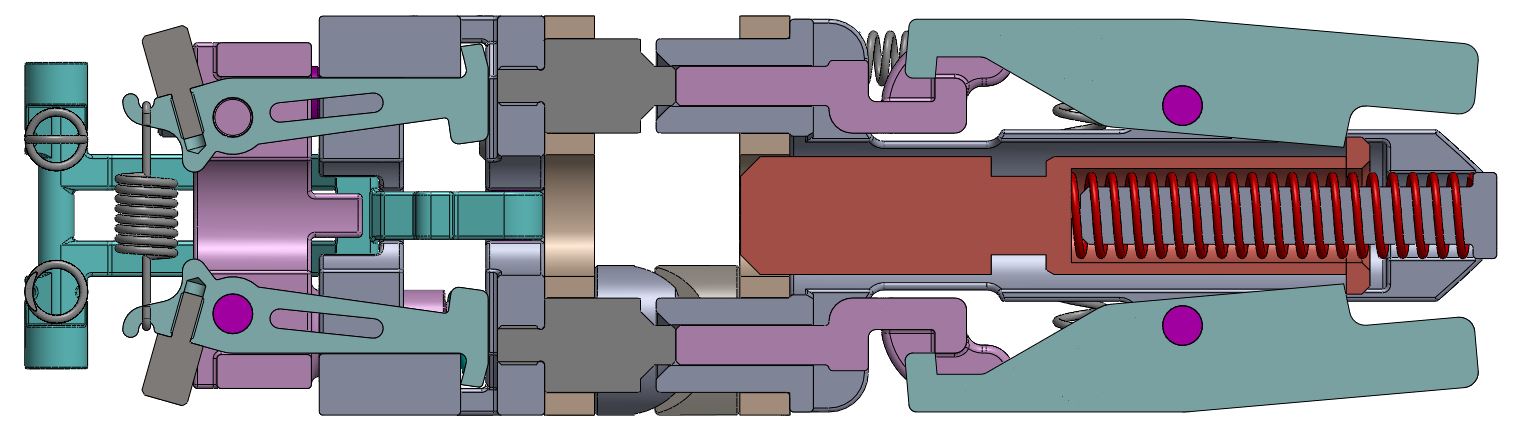

49	1.JPG	96.37K

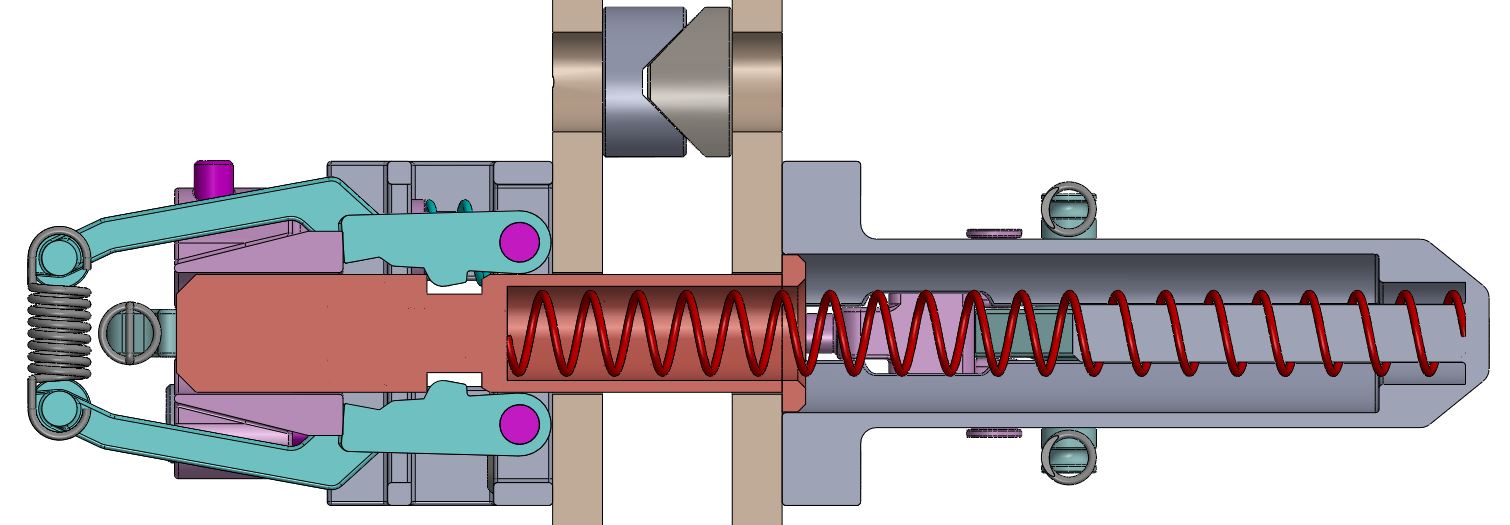

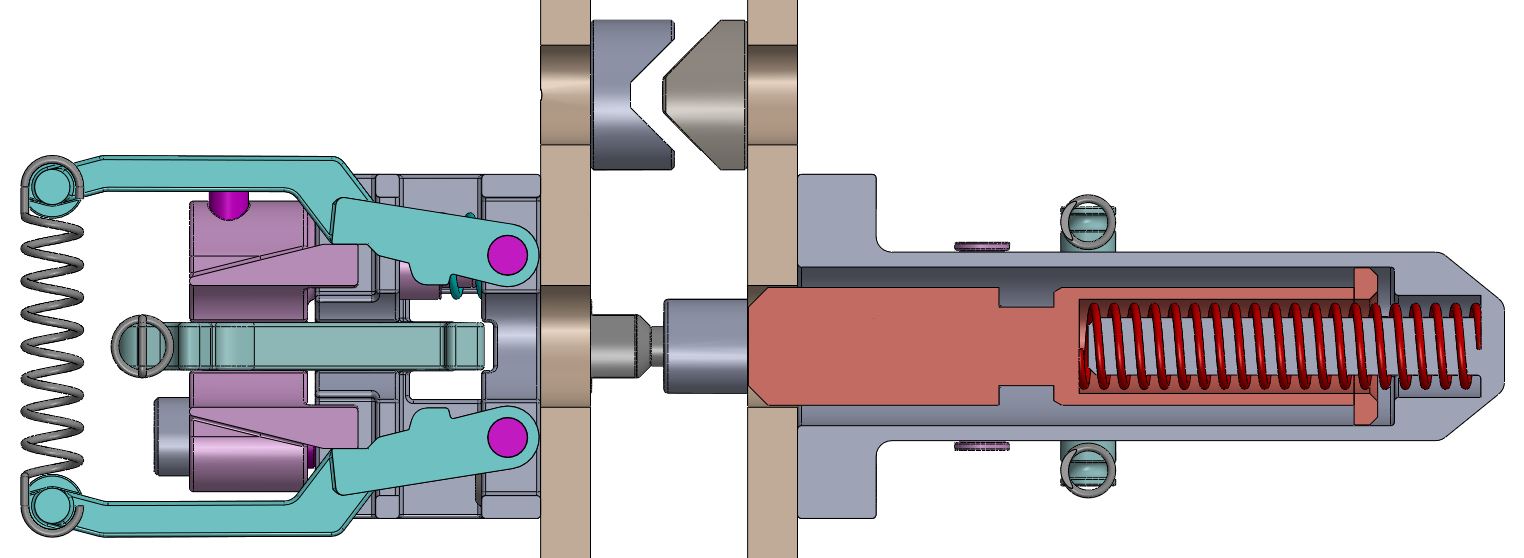

50	1top.JPG	95.95K
51	1½.JPG	95.78K

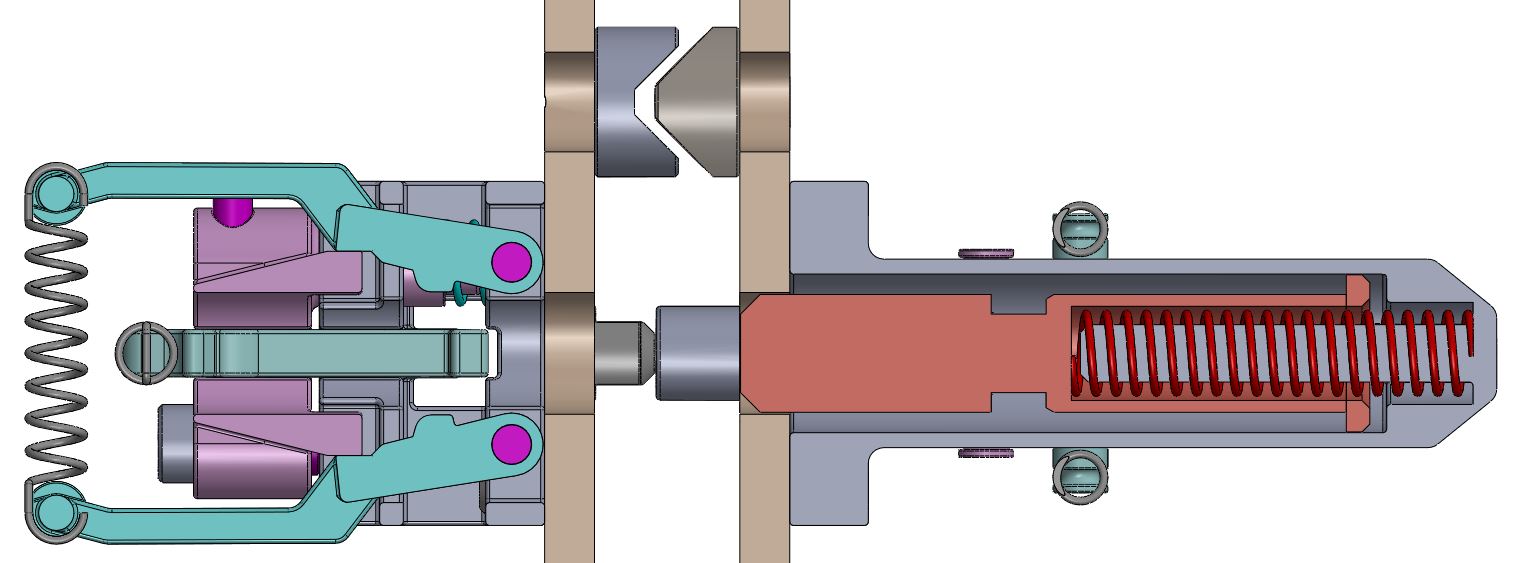

52	1½top.JPG	94.56K

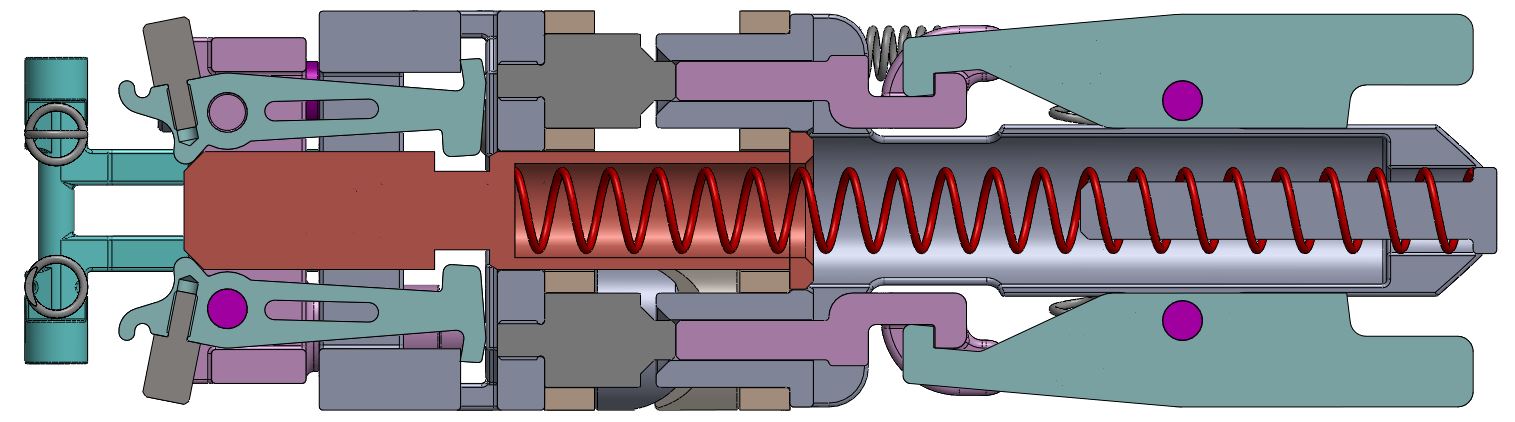

53	2.JPG	97.14K

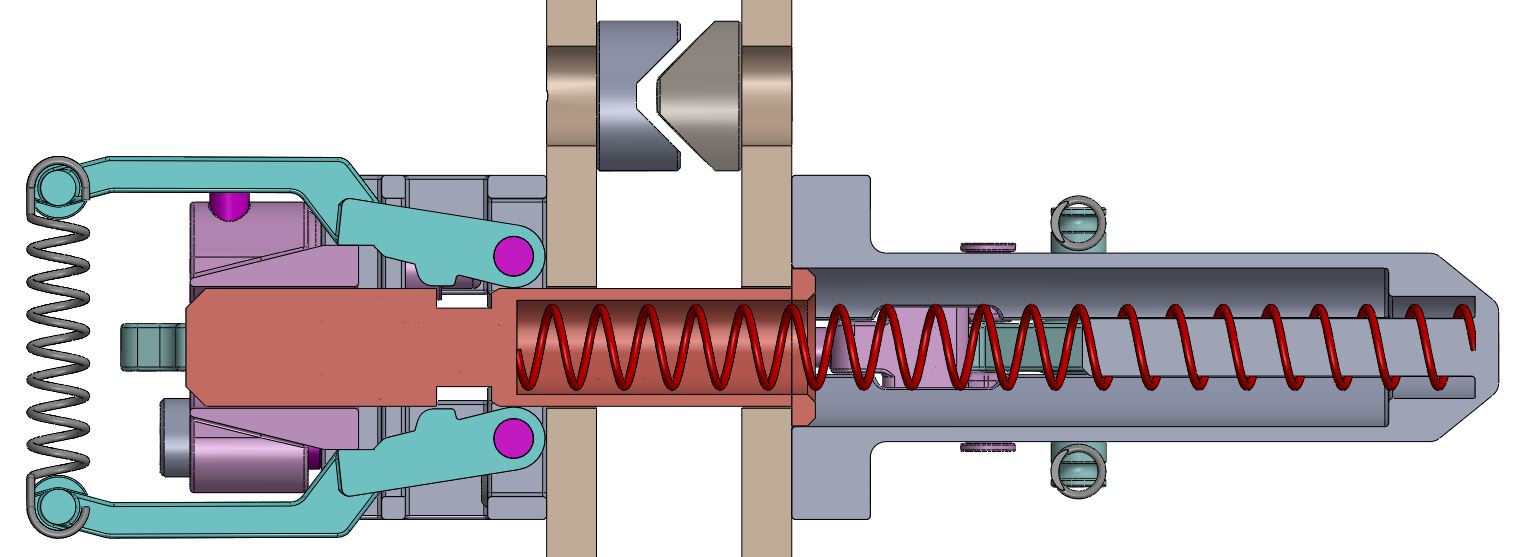

54	2top.JPG	97.63K

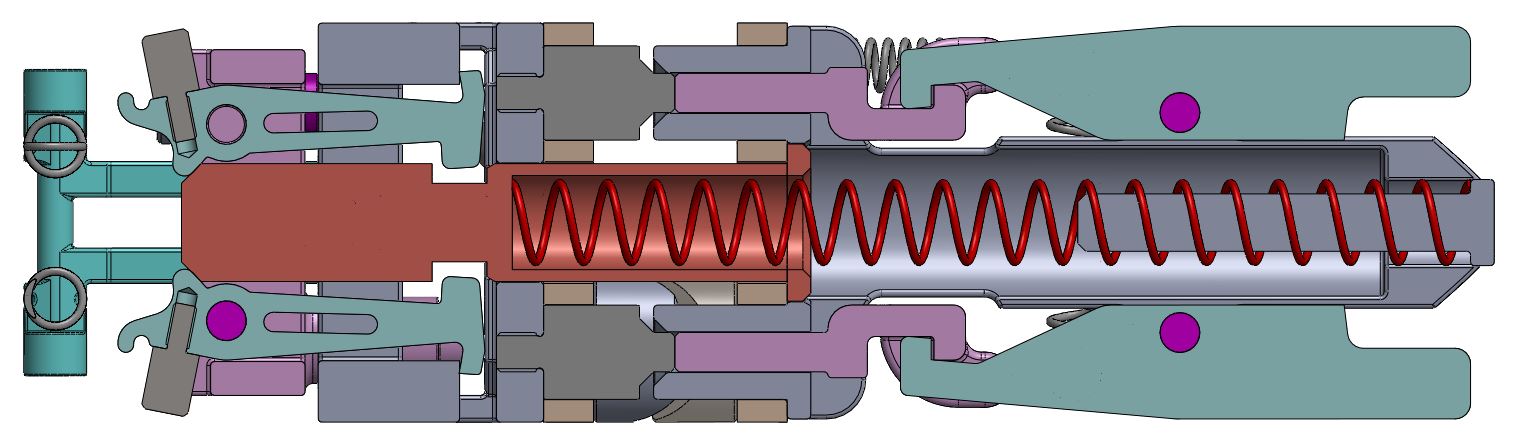

55	3.JPG	96.13K

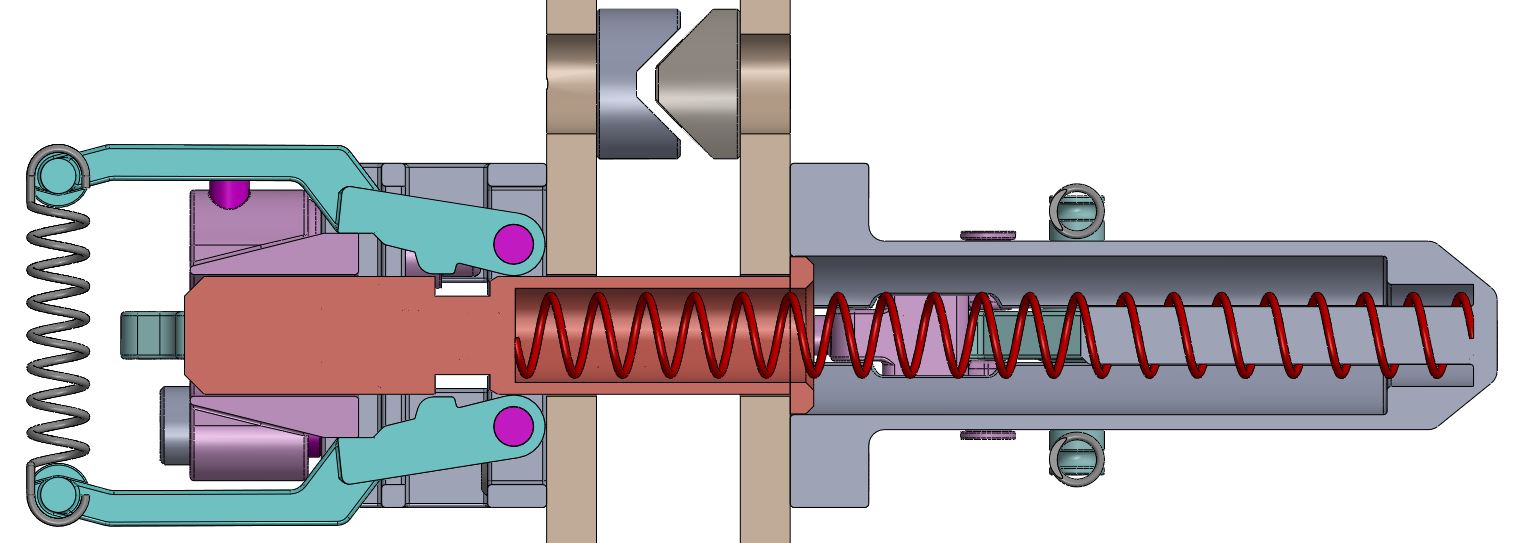

56	3top.JPG	94.71K
57	4.JPG	97.80K

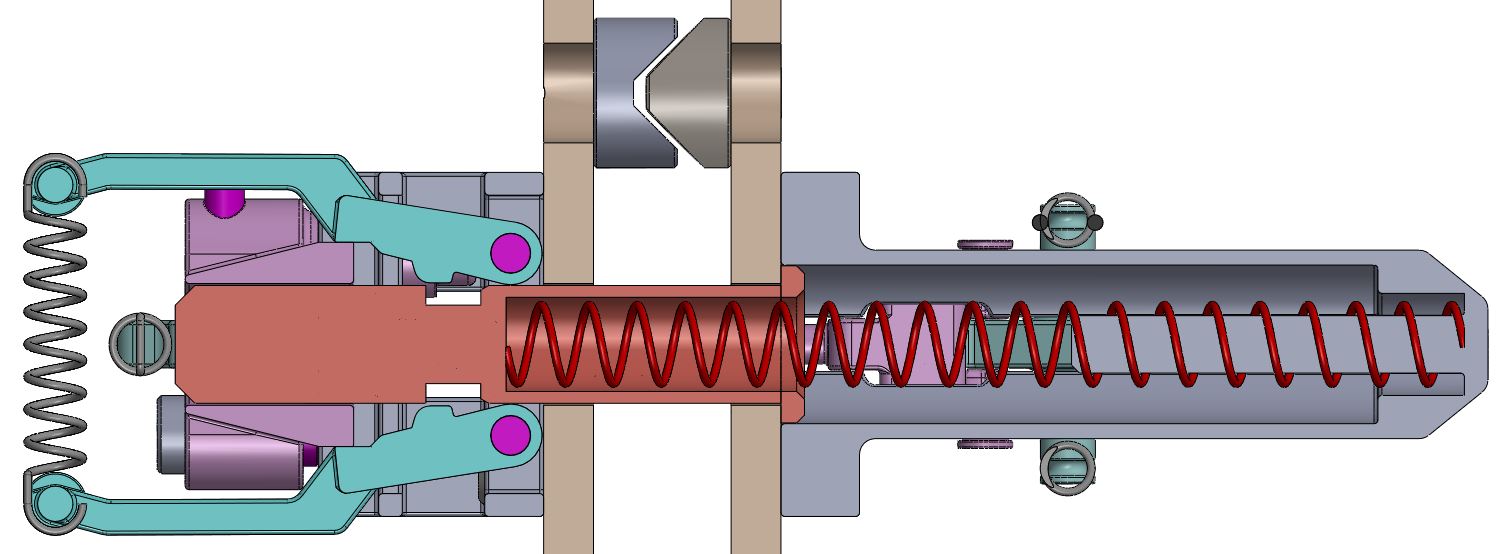

58	4top.JPG	95.68K

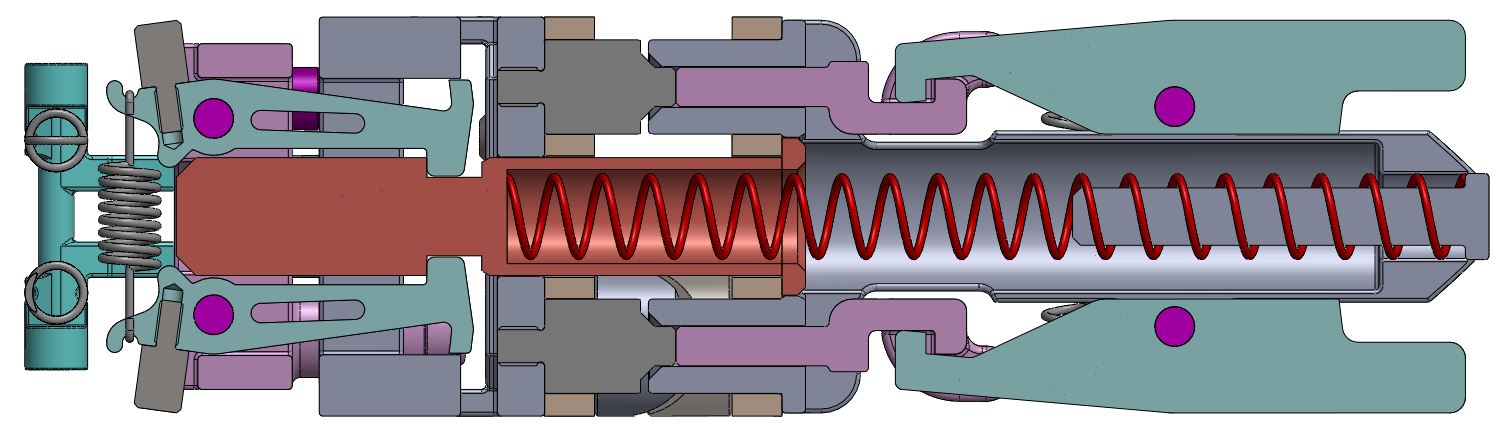

59	5.JPG	97.62K
60	5top.JPG	96.99K

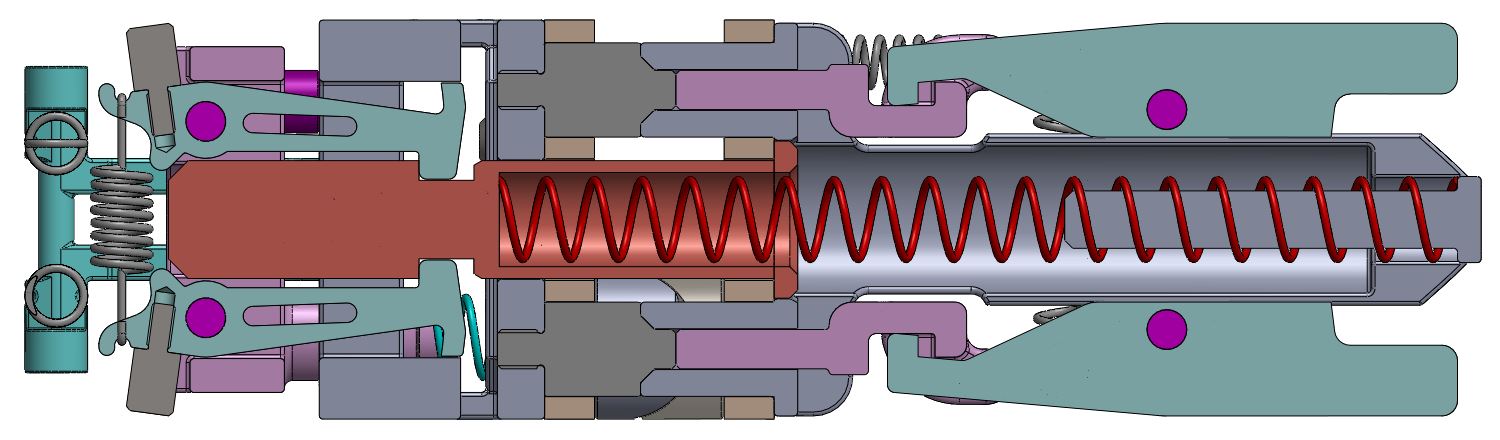

61	5_1.JPG	98.93K

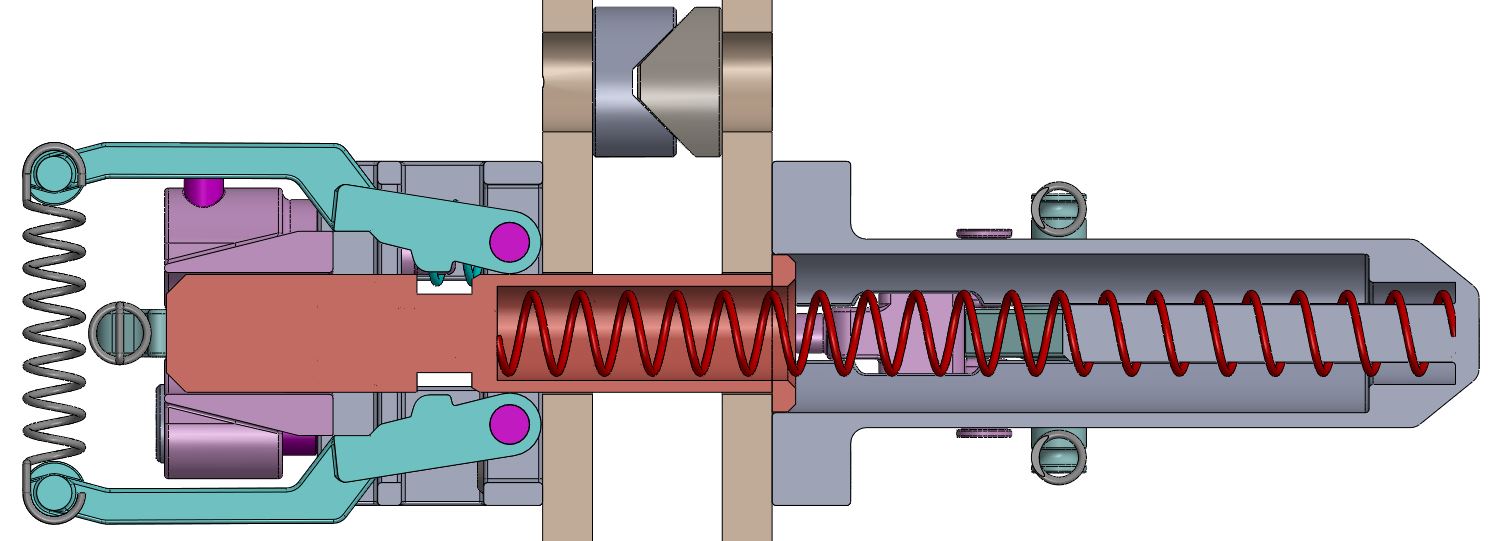

62	5_1top.JPG	95.78K

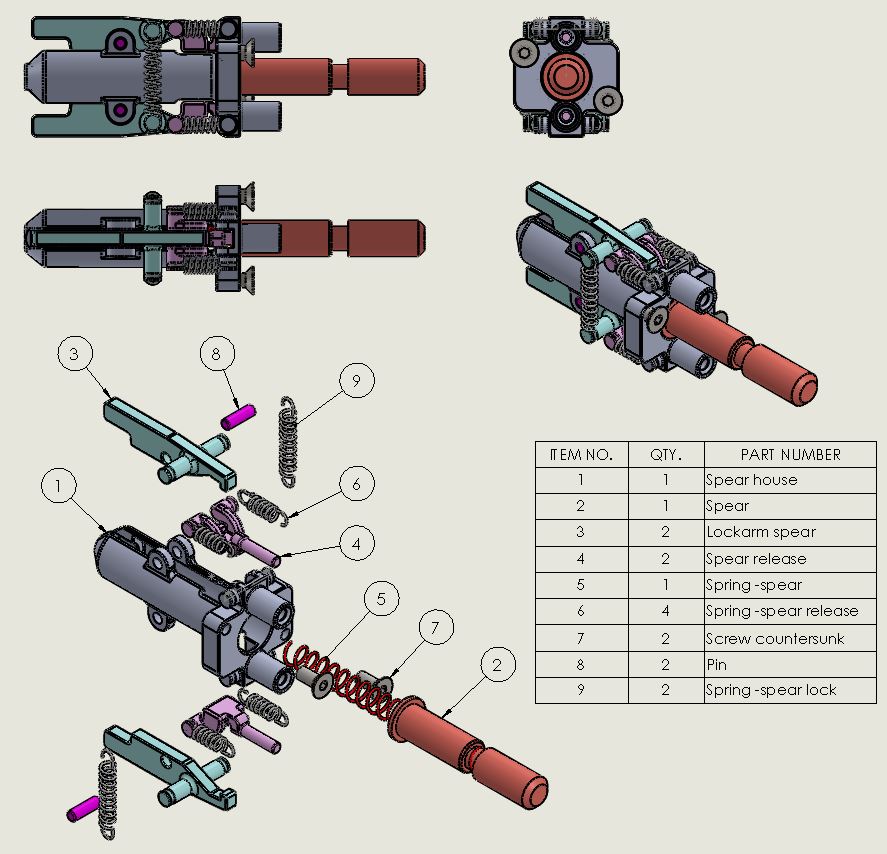

63	5_2.JPG	97.65K

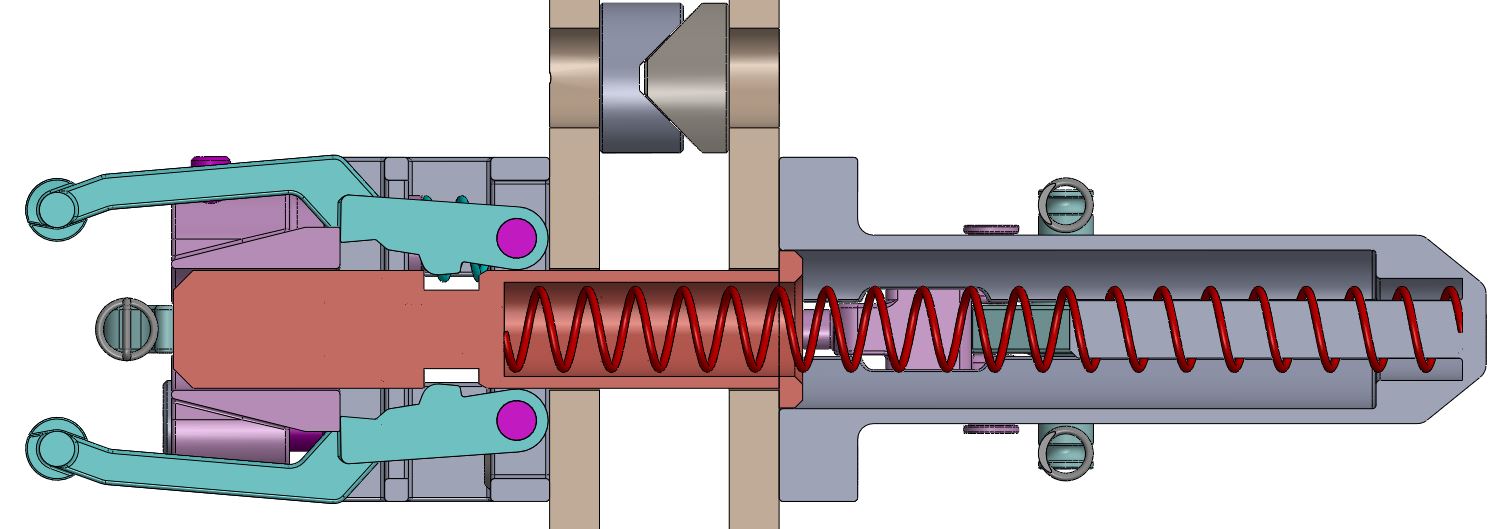

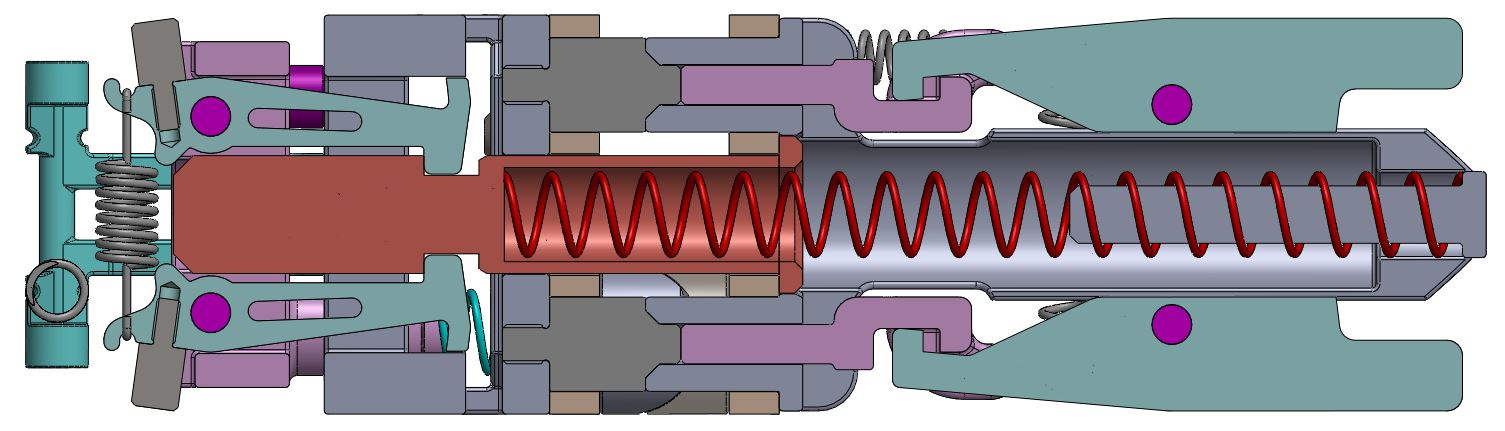

64	5_2top.JPG	88.54K

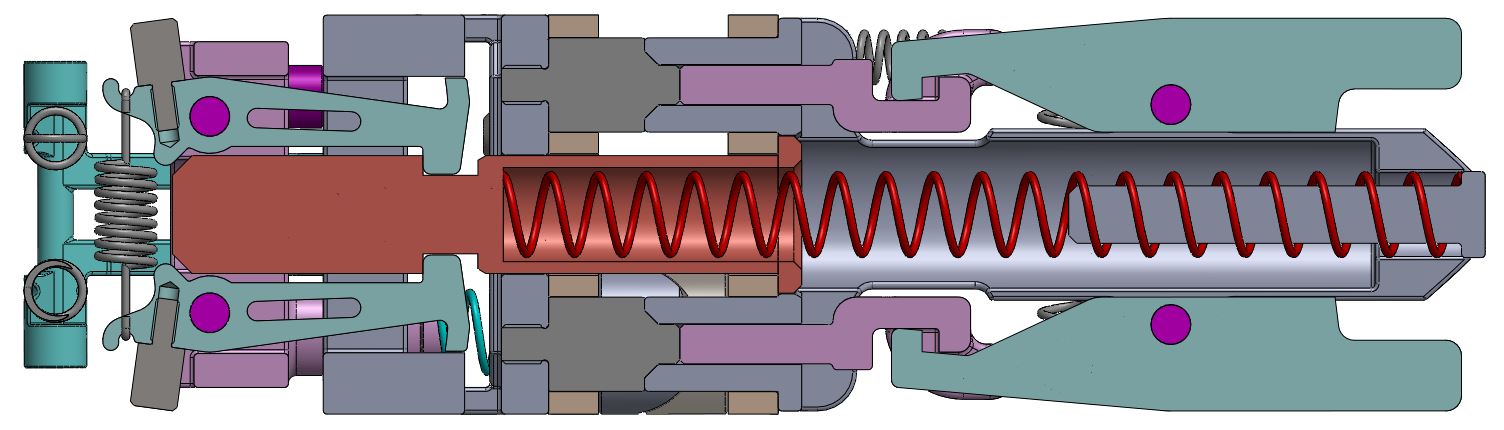

65	6.JPG	98.03K
66	6top.JPG	90.79K
67	6_1.JPG	97.73K

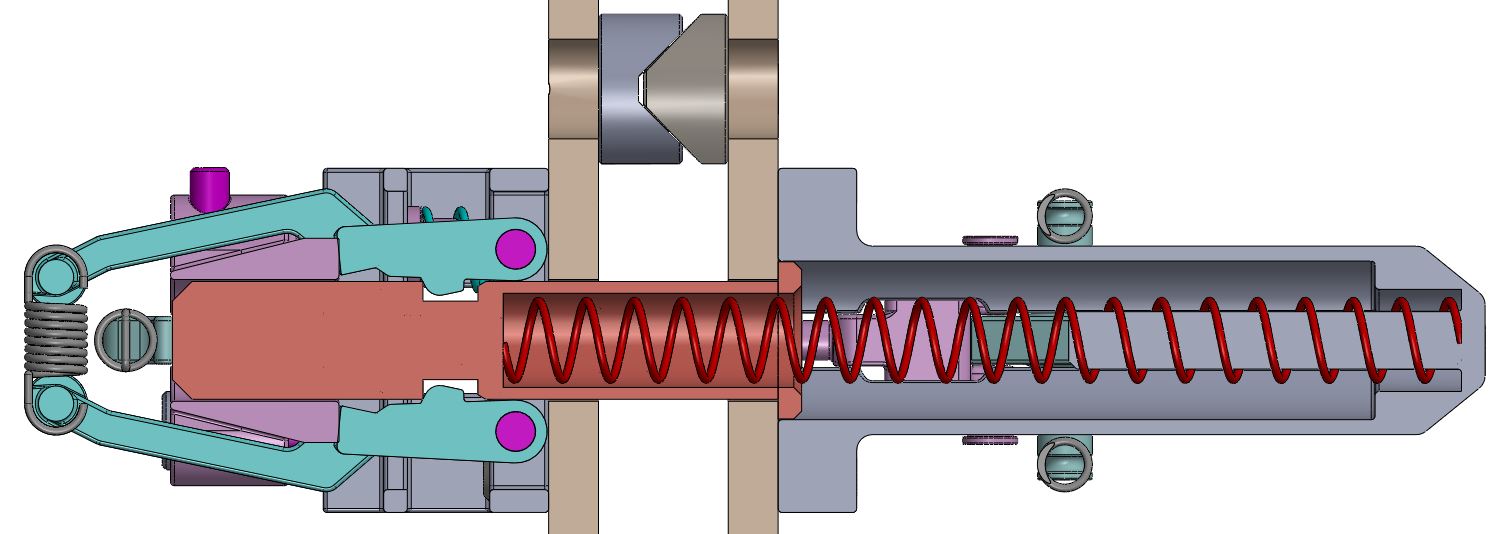

68	6_1top.JPG	91.02K
69	All-modulesapart-ISO.JPG	62.04K

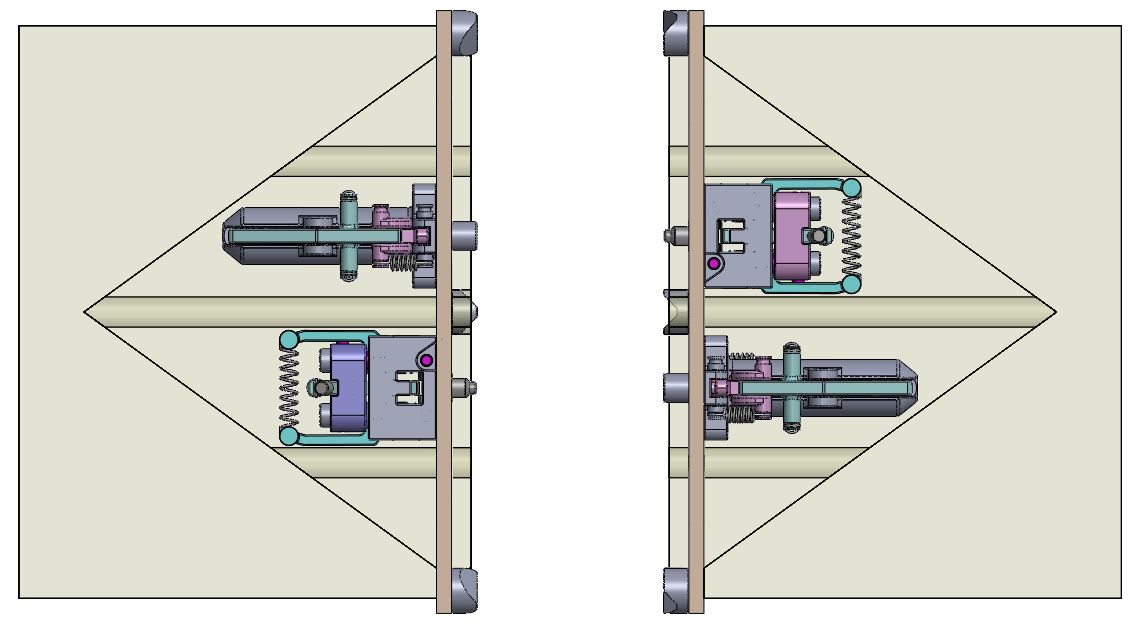

70	All-modulesapart-topview.JPG	75.05K

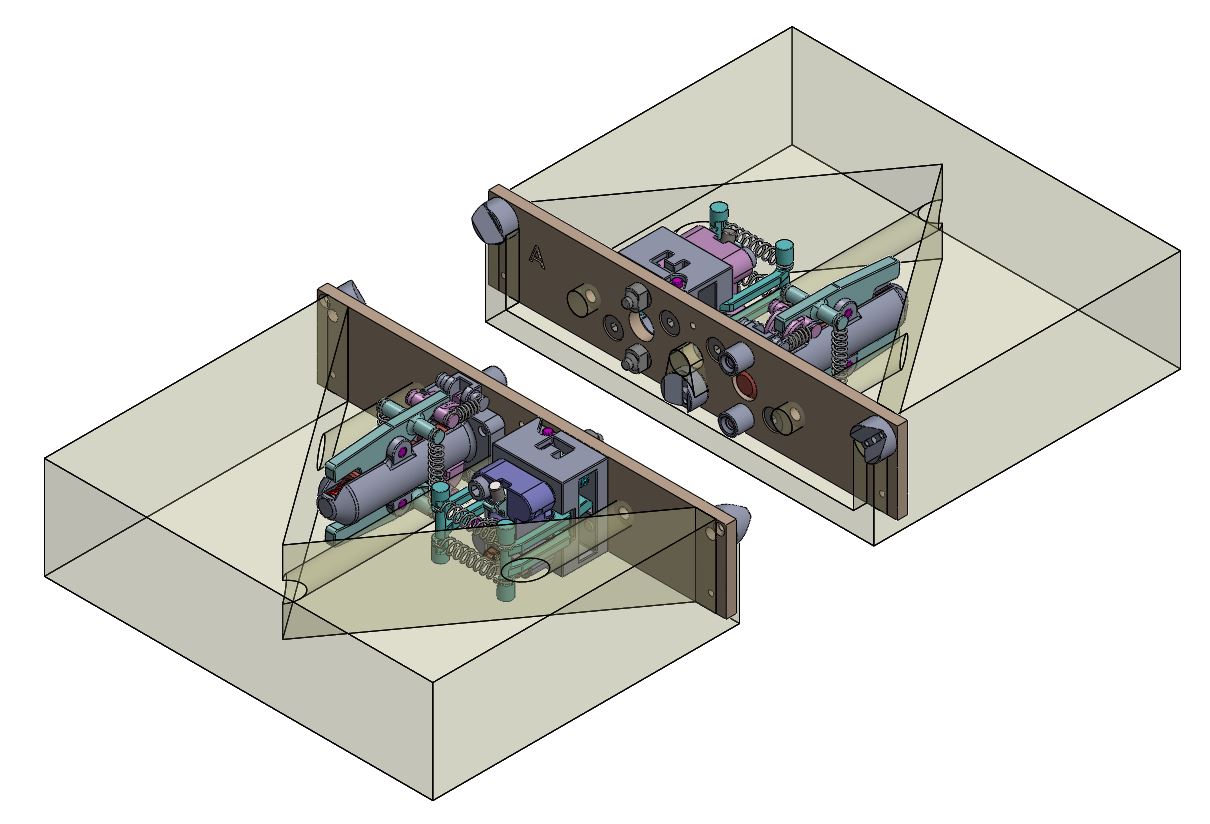

71	All-modulesapart.JPG	106.24K

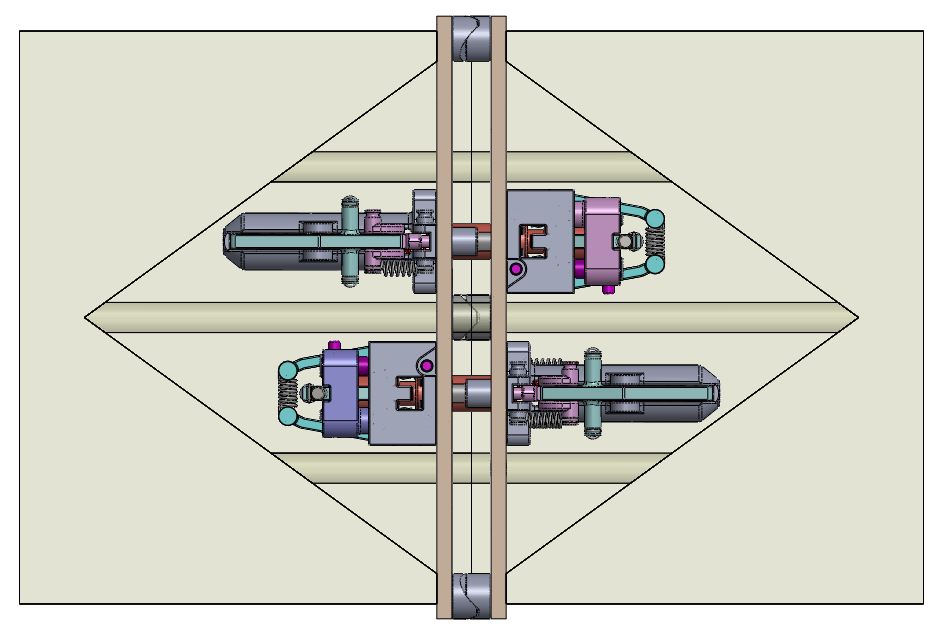

72	All-moduleslatched-topview.JPG	69.04K

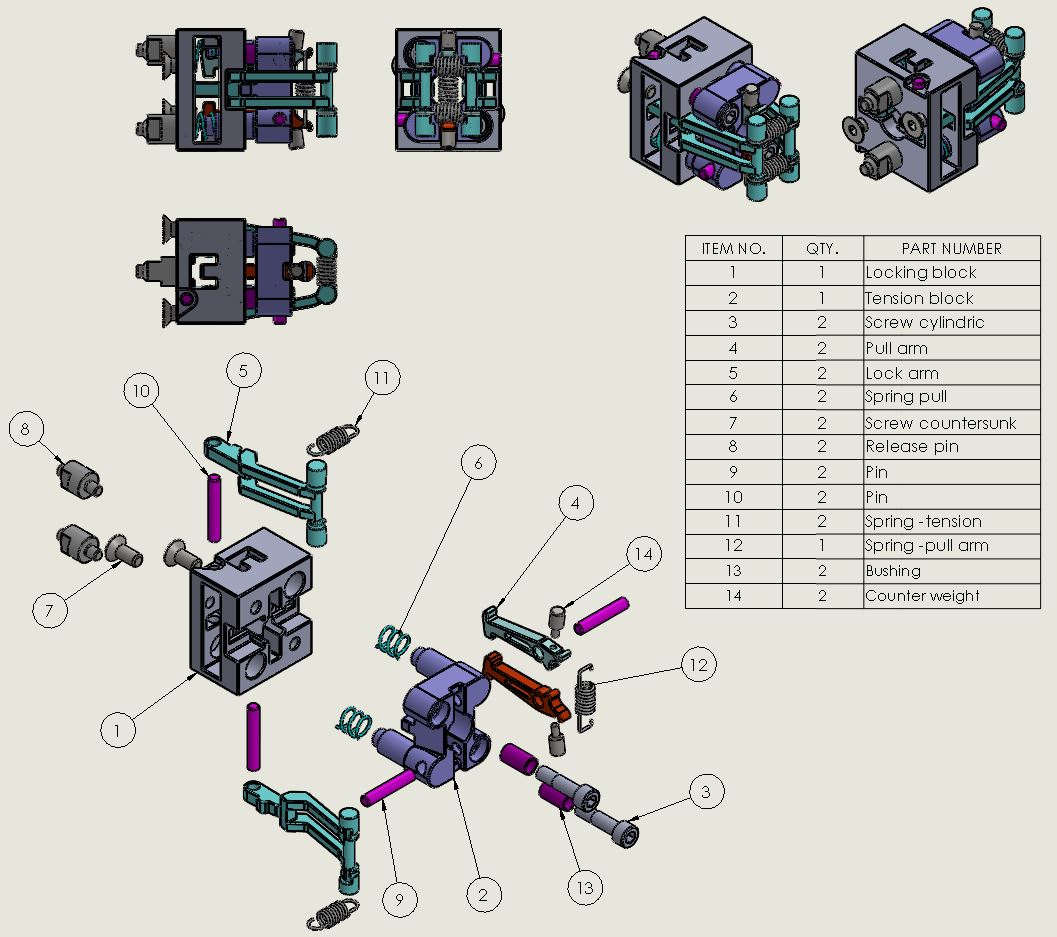

73	Jointassylocksite.JPG	145.17K
74	Jointassyspearsite.JPG	114.43K

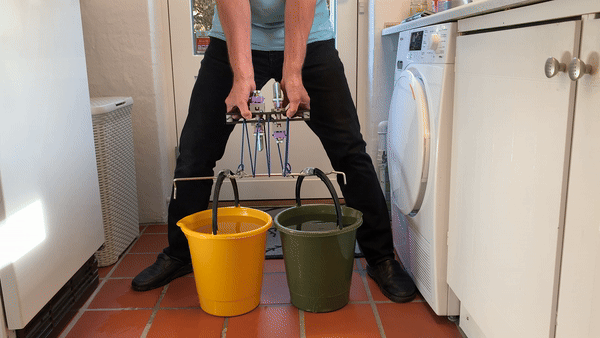

75	NASA20kgBucketlift.gif	9.67M

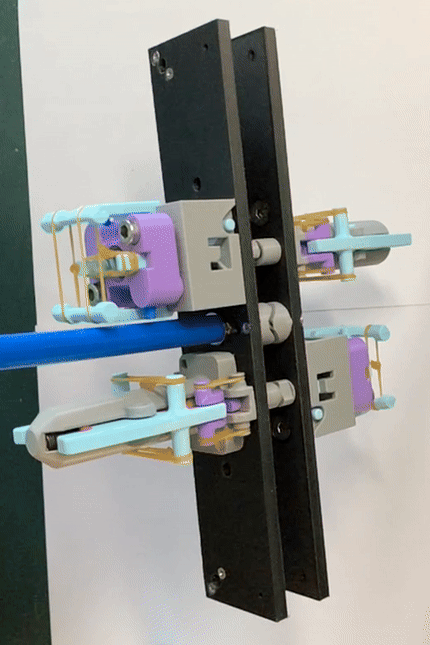

76	NASALatching-Slowmotion.gif	6.38M
77	NASALatching.gif	18.88M

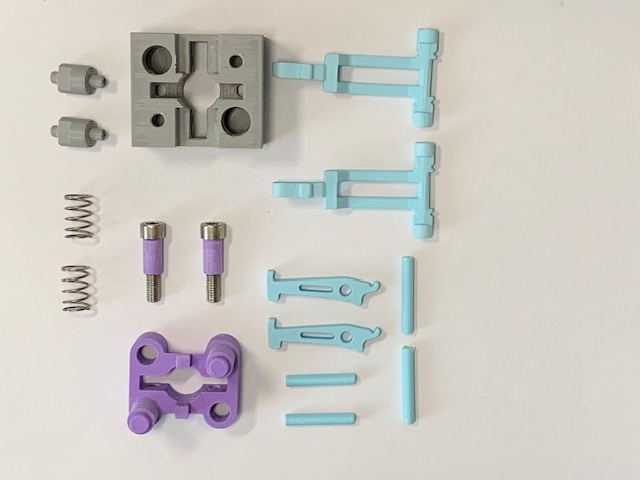

78	Retrackparts.JPG	40.56K

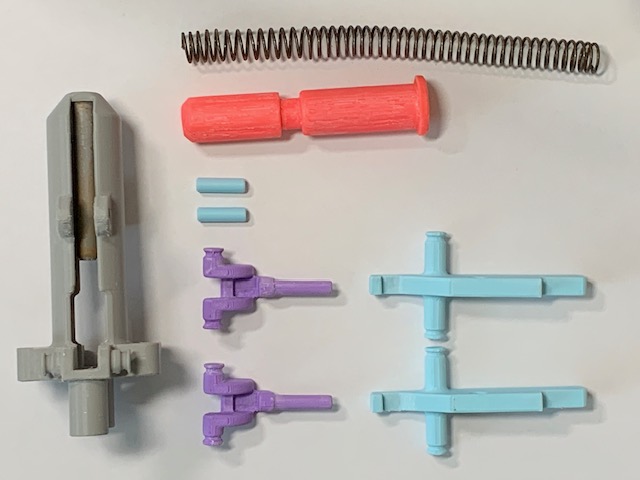

79	Spearparts.JPG	77.91K
