高海拔火箭 Golden Eagle 5（ID:2504511）

交通运输 / 航空航天 / 高海拔火箭 Golden Eagle 5

©非原创

平面图

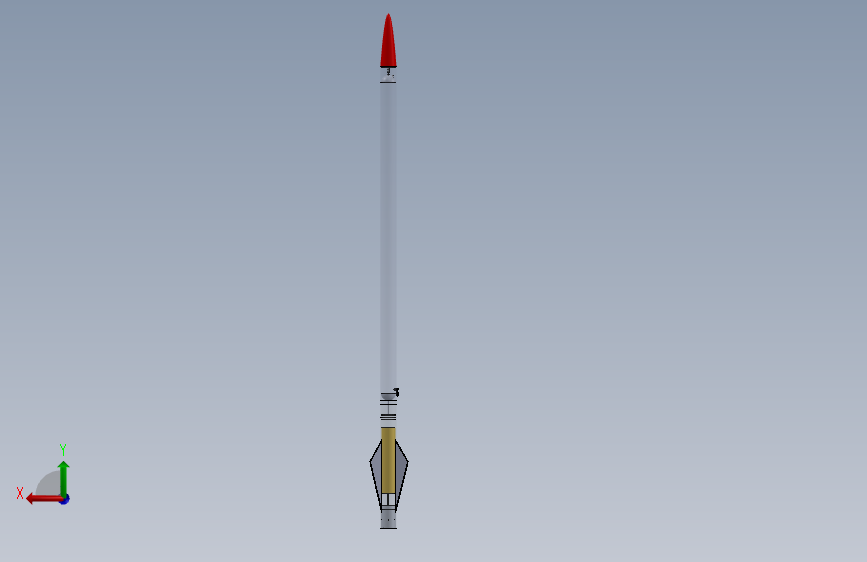

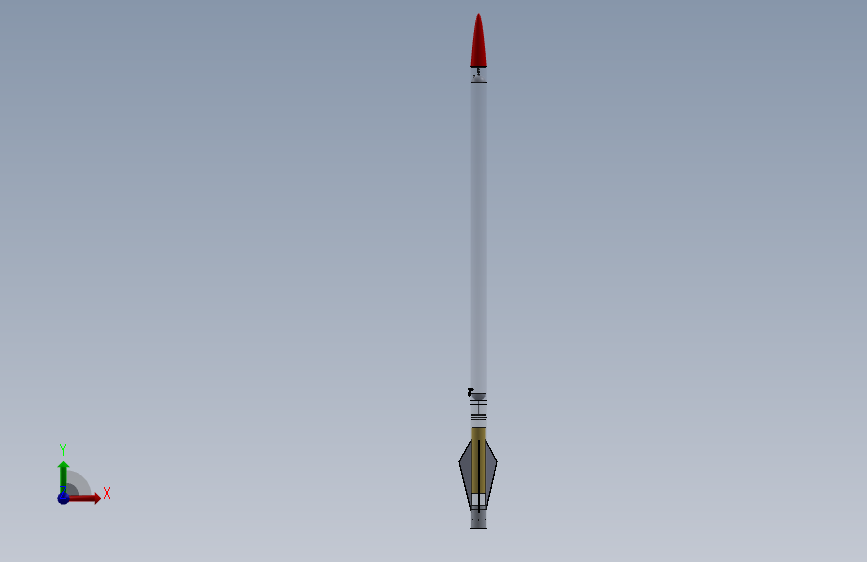

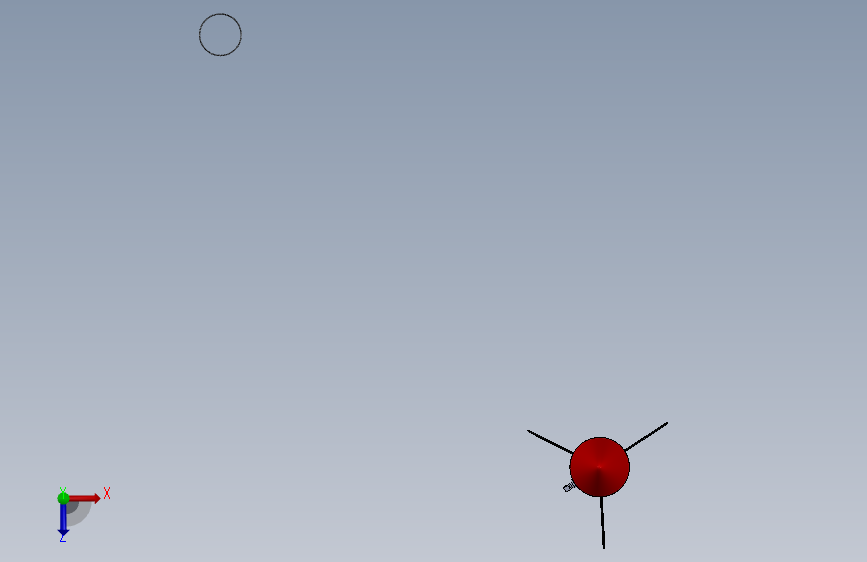

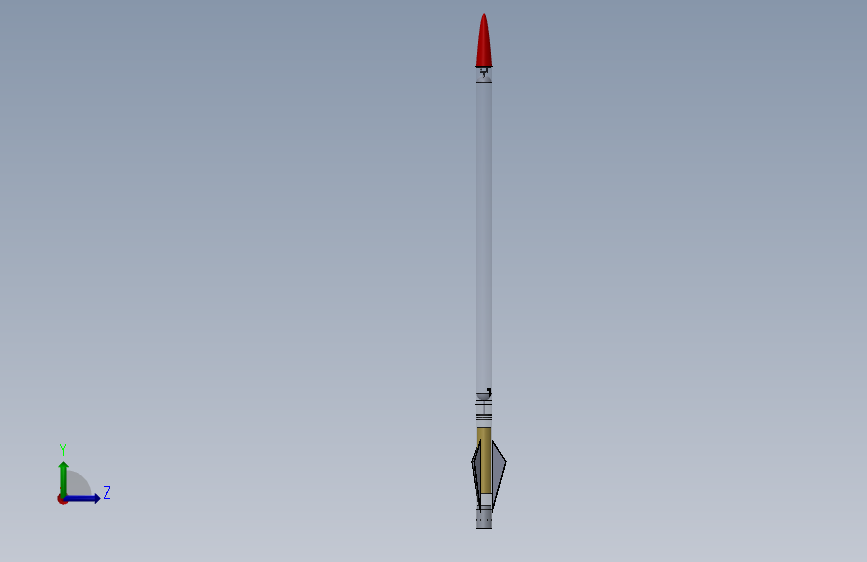

3D视图

文件列表

#	文件名称	文件大小
1	17547146011890.zip	6.35M
2	BottomHalfAssembly.SLDASM	182.57K
3	BottomHalfTubing.SLDPRT	37.22K
4	ConicalNozzleAssembly.PDF	54.69K
5	ConicalNozzleAssembly.SLDASM	86.42K
6	ConicalNozzleAssembly.SLDDRW	105.79K
7	ConicalNozzleSleve.SLDPRT	135.29K
8	desktop.ini	142B

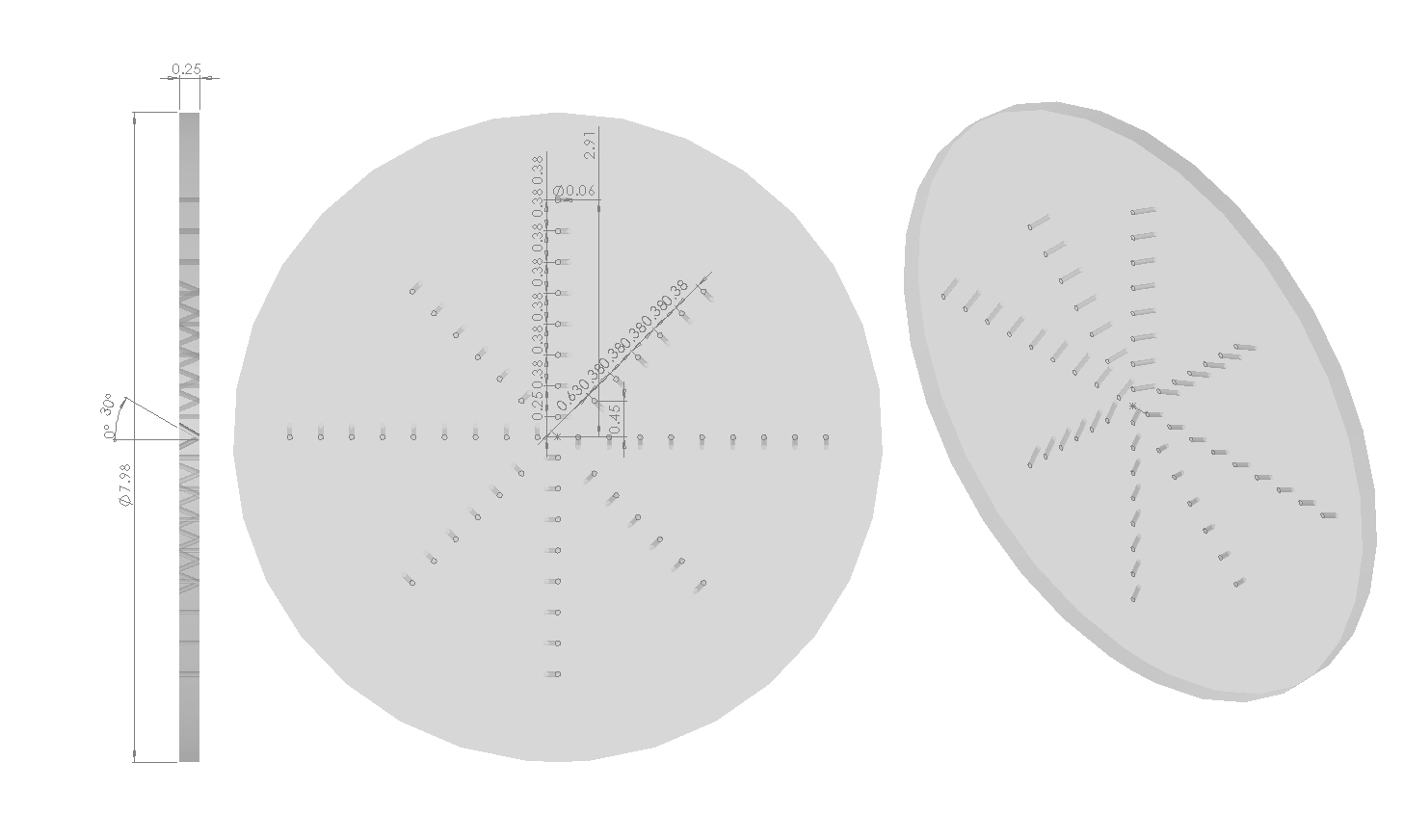

9	DiffusionPlatedesign750-450drop2ndplate.SLDPRT	118.20K
10	DiffusionPlatedesign750-450drop2plate.jpg	175.31K
11	DiffusionPlatedesign750-450drop2plate.PDF	116.55K
12	DiffusionPlatedesign750-450drop2plate.PSD	169.75K
13	DiffusionPlatedesign750-450drop2plate.SLDDRW	205.39K
14	DiffusionPlatedesign750-450drop2plate.SLDPRT	259.25K
15	EndCaps.SLDPRT	148.17K
16	EndCaptop.SLDPRT	151.84K
17	FillValve.SLDPRT	112.26K
18	Fin.SLDPRT	63.80K
19	FlowValveTube.SLDPRT	31.96K
20	FuelgrainCasing.SLDPRT	48.31K
21	FuelgrainRetentionRing.SLDPRT	57.07K
22	FuelgrainwithTubularPort.SLDPRT	48.72K
23	FullGraphiteConicalNozzle.SLDPRT	53.93K
24	GoldenEagle5full.SLDASM	474.59K
25	GoldenEagle5full.SLDDRW	109.95K
26	GoldenEagle5full[Conflict].SLDASM	417.00K
27	GoldenEagle5full_project_folders.html	602B
28	GoldenEagle5Nozzle.SLDPRT	52.66K
29	GoldenEagle5Nozzle.STL	83.68K
30	GoldenEagle5NozzleAluminumCasing.SLDPRT	53.39K
31	GoldenEagle5NozzleAluminumCasing.STL	43.64K
32	GoldenEagle7Airframe6in.SLDPRT	29.13K
33	InjectorPlate.SLDPRT	51.63K
34	LID1.SLDPRT	22.88K
35	LID2.SLDPRT	23.98K
36	NoseconeMount.SLDPRT	72.77K
37	NozzleAssembly.SLDASM	54.47K
38	PlugGraphiteConicalNozzle.SLDPRT	61.50K
39	PostCombustionChamber.SLDPRT	61.98K
40	PowerSeriesNosecone.SLDPRT	151.14K
41	PowerSeriesNosecone[Conflict].SLDPRT	153.73K
42	PowerSeriesNosecone_project_folders.html	1.06K
43	PowerSeriesNosecone_project_folders[Conflict].html	931B
44	Tank1.SLDASM	151.39K
45	Tank1.zip	442.85K
46	Tank8inSchedule40.SLDASM	143.55K
47	Tank8inSchedule40.SLDPRT	52.45K
48	Tank8inSchedule40.zip	442.03K
49	Tank8inSchedule40BottomEndCap.SLDPRT	133.49K
50	Tank8inSchedule40TopEndCap.SLDPRT	150.05K
51	TankTube.SLDPRT	29.61K
52	ValveTree.SLDPRT	182.31K
53	~$Bottom Half Assembly.SLDASM	7B
54	~$Bottom Half Tubing.SLDPRT	7B
55	~$Conical Nozzle Assembly.SLDASM	7B
56	~$Conical Nozzle Sleve.SLDPRT	7B
57	~$Diffusion Plate design (750-450 drop) 2 plate.SLDPRT	7B
58	~$Diffusion Plate design (750-450 drop) 2nd plate.SLDPRT	7B
59	~$Fill Valve.SLDPRT	7B
60	~$Fin.SLDPRT	7B
61	~$Flow Valve Tube.SLDPRT	7B
62	~$Fuelgrain Casing.SLDPRT	7B
63	~$Fuelgrain Retention Ring.SLDPRT	7B
64	~$Fuelgrain with Tubular Port.SLDPRT	7B
65	~$Golden Eagle 5 full.SLDASM	7B
66	~$Golden Eagle 5 full.SLDDRW	7B
67	~$Injector Plate.SLDPRT	7B
68	~$LID1.SLDPRT	7B
69	~$LID2.SLDPRT	7B
70	~$Nosecone Mount.SLDPRT	7B
71	~$Plug Graphite Conical Nozzle.SLDPRT	7B
72	~$Post Combustion Chamber.SLDPRT	7B
73	~$Power Series Nosecone.SLDPRT	7B
74	~$Tank 8in Schedule 40 Bottom End Cap.SLDPRT	7B
75	~$Tank 8in Schedule 40 Top End Cap.SLDPRT	7B
76	~$Tank 8in Schedule 40.SLDASM	7B
