丰田大霸王汽车前车门附件装置Catia三维设计模型图纸（ID:2628488）

机械设备 / 非标机械 / 丰田大霸王汽车前车门附件装置Catia三维设计模型图纸

©非原创

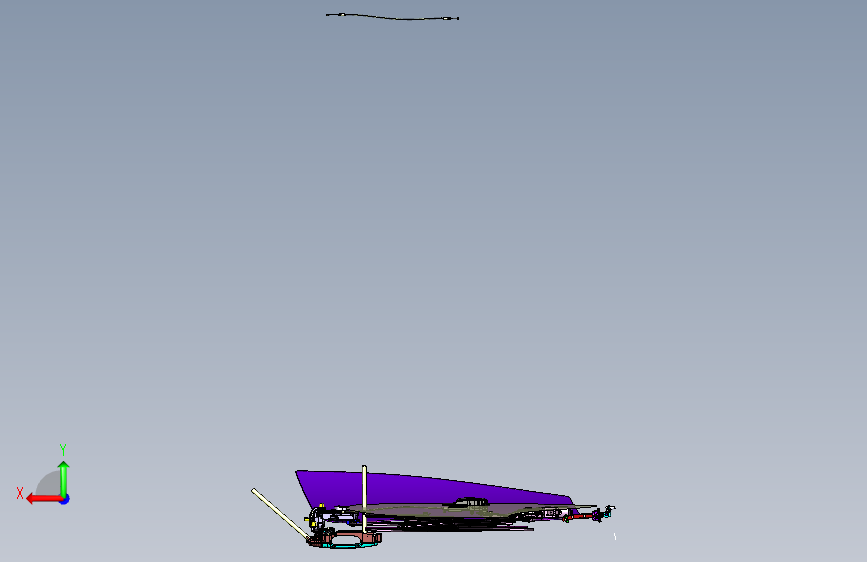

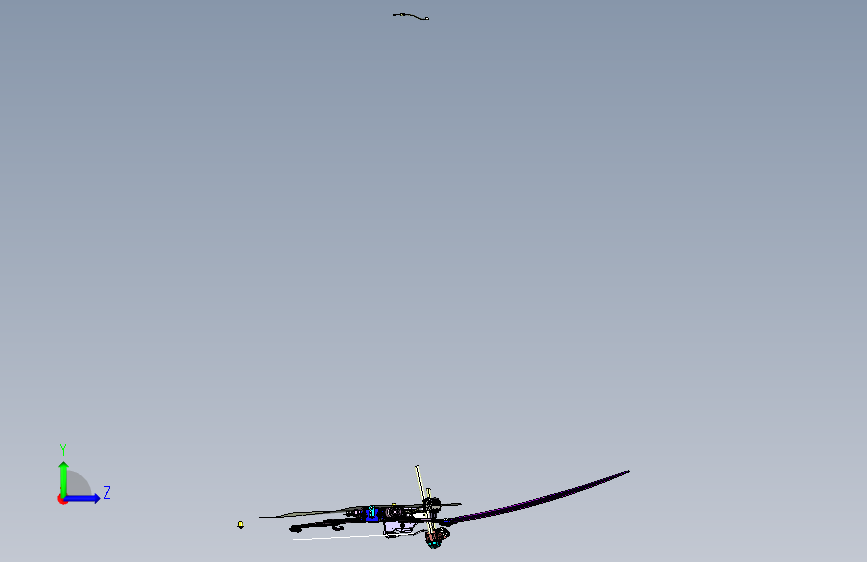

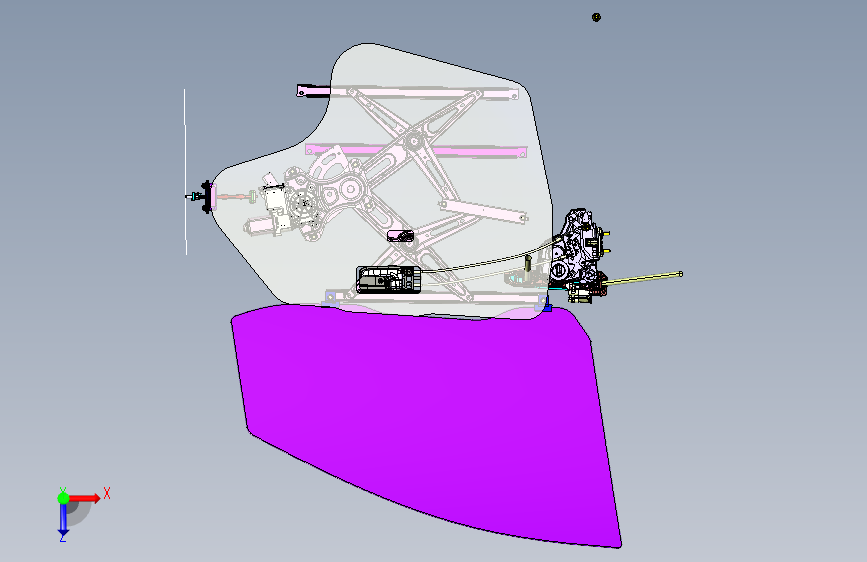

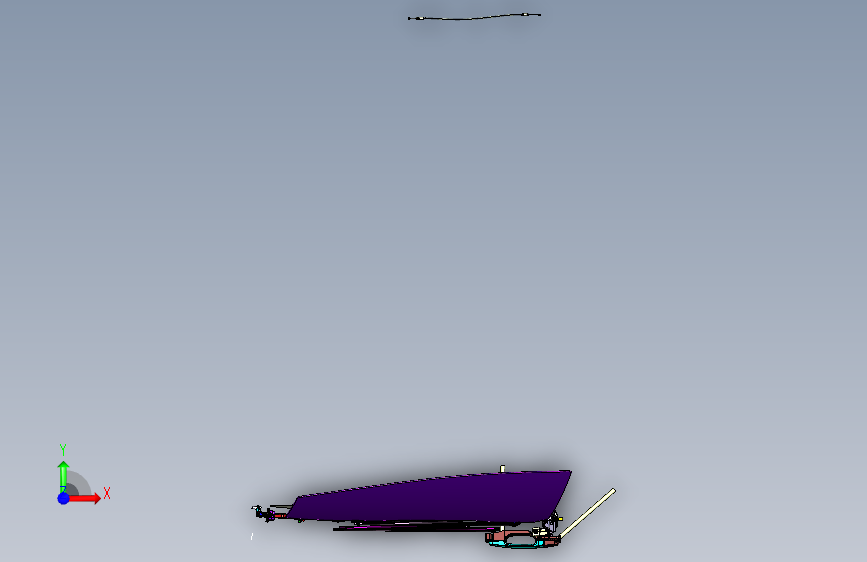

平面图

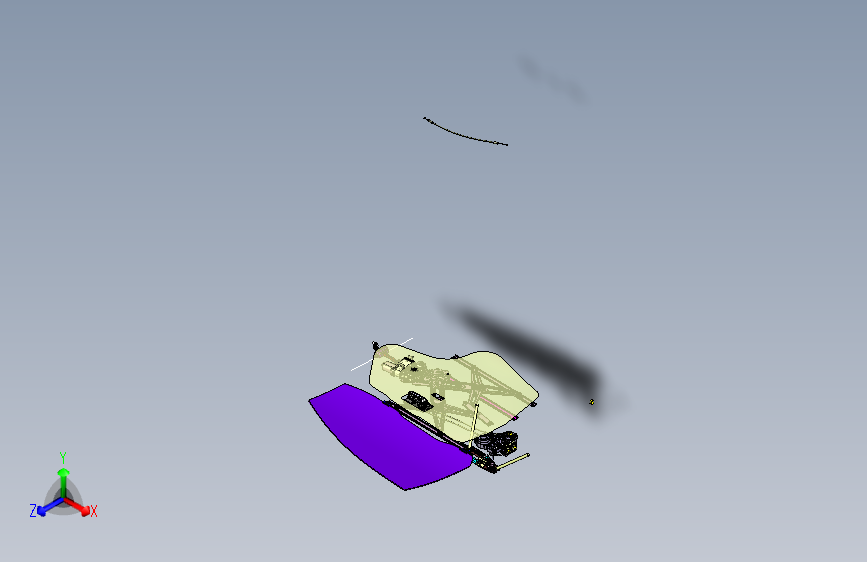

3D视图

文件列表

#	文件名称	文件大小
1	17579103756371.zip	131.20M
2	01816989_ACCESSORIESLFDR.CATProduct	85.76K
3	01816991_ACESSORIESRFDR.CATProduct	70.61K
4	JQ220C4816F31.CATPart	349.41K
5	JQ32006.CATPart	634.45K
6	JQ398A8886.CATPart	301.27K
7	Q1840820.CATPart	154.48K
8	Q1860610.CATPart	208.33K
9	Q2570616.CATPart	178.71K
10	Q2580822.CATPart	182.38K
11	01810542_OUTER_OPENIN_HANDLE_ASSY-DOOR_LH_FRT.CATPart	12.55M
12	01810544_OUTER_OPENIN_HANDLE_ASSY-DOOR_RH_FRT.CATPart	12.92M
13	01811379_LOCK_CATCH_ASSY_DR.CATPart	663.35K
14	01812499_DOOR_LOCK_BODY_ASSY_LH_FRT.CATPart	14.99M
15	01812500_DOOR_LOCK_BODY_ASSY_RH_FRT.CATPart	15.46M
16	01813247_KEY_CYLINDER_ASSY_LF_DR.CATPart	3.05M
17	01816919_FRT_DOOR_OUTER_RELEASE_PULLIN_LEVER_LH.CATPart	225.85K
18	01816920_FRT_DOOR_INNER_LOCKIN_CABLE_ASSY_LH.CATPart	463.79K
19	01816921_FRT_DOOR_INNER_RELEASE_CABLE_ASSY.CATPart	399.31K
20	01816922_FRT_DOOR_OUTER_RELEASE_PULLIN_LEVER_RH.CATPart	223.83K
21	01816923_FRT_DOOR_INNER_LOCKIN_CABLE_ASSY_RH.CATPart	373.97K
22	06810051_INNER_OPENING_HANDLE_ASSY-DOOR_LH_FRT.CATPart	3.61M
23	06810052_INNER_OPENING_HANDLE_ASSY-DOOR_RH_FRT.CATPart	6.71M
24	01813002_WINDOW_GLASS_GUIDE-DOOR_LH_FRT.CATPart	4.03M
25	01813003_WINDOW_GLASS_GUIDE-DOOR_RH_FRT.CATPart	8.45M
26	01813006_WEATHER_STRIP-DOOR_LH_FRT.CATPart	25.88M
27	01813007_WEATHER_STRIP-DOOR_RH_FRT.CATPart	45.97M
28	01813008_OUTER_SEALING_STRIP-DOOR_GLASS_LH_FRT.CATPart	1.63M
29	01813009_OUTER_SEALING_STRIP-DOOR_GLASS_RH_FRT.CATPart	2.69M
30	01813010_INNER_WEATHER_STRIP_LH_FRT.CATPart	1.92M
31	01813011_INNER_WEATHER_STRIP_RH_FRT.CATPart	3.60M
32	01816990_WEATHER_STRIP_DEVICE_LF_DR.CATProduct	16.79K
33	01816992_WEATHER_STRIP_DEVICE_RF_DR.CATProduct	16.79K
34	01812822_WINDOW_REGULATOR_ASSY_LF_DR.CATPart	31.32M
35	01812823_WINDOW_REGULATOR_ASSY_RH_DR.CATPart	31.86M
36	01812826_WINDOW_REGULATOR_ASSY_RH_DR.CATPart	27.38M
37	01812870_LIMITATION_ASSY_FRT_DR.CATPart	5.20M
38	01812843_WATER_RETAINING_FILM_ASSY_LH_FRT.CATPart	373.09K
39	01812844_WATER_RETAINING_FILM_ASSY_RH_FRT.CATPart	190.43K
40	01812569_BUMPER_BLOCK.CATPart	110.97K
41	01812835_DOOR_GLASS_LH_FRT_ASSEMBLY.CATPart	2.20M
42	01812836_DOOR_GLASS_RH_FRT_ASSEMBLY.CATPart	2.76M
