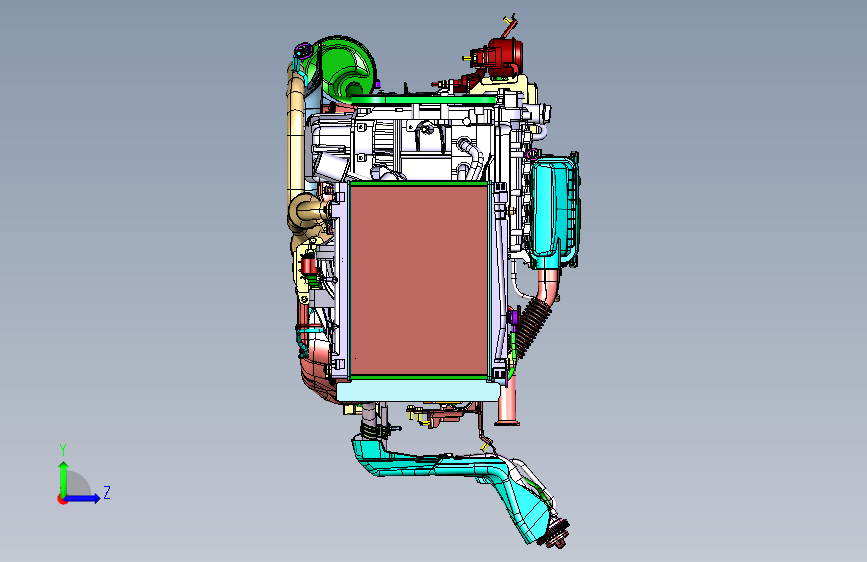

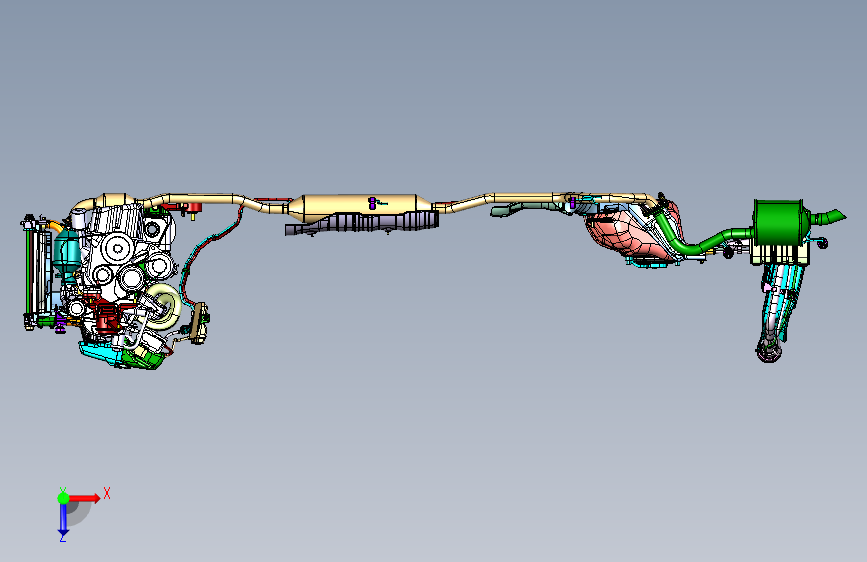

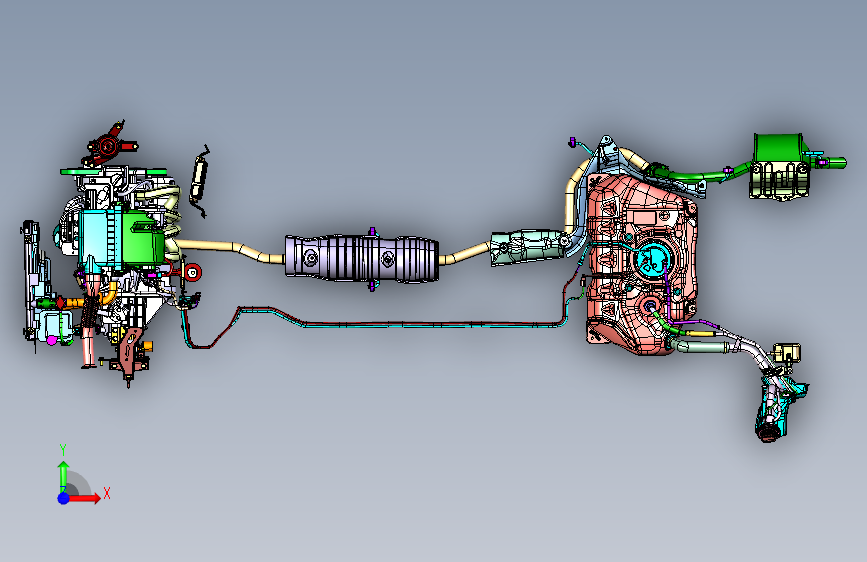

丰田雅力士汽车动力Catia三维设计模型图纸

（ID:2634048）

改图/画图

机械设备 / 非标机械 / 丰田雅力士汽车动力Catia三维设计模型图纸

©非原创

平面图

文件列表

截图

AI截图渲染

✨AI图片渲染

#	文件名称	文件大小
1	CE--1YS样车底盘和动力逆向数据提交说明汇报.ppt	7.47M
2	CE-1YS动力系统BOM表.xls	785.50K
3	CE-1YS整车BOM表-080813底盘动力回复.xls	941.50K
4	zongzhuangtu.CATProduct	195.22K
5	YS07_ENGINE_COOLING_SET.CATProduct	52.06K
6	YS07_RADIATOR_INLET_HOSE.CATPart	1.97M
7	YS07_RADIATOR_OUTLET_HOSE.CATPart	2.13M
8	YS07_RUBBER-RADIATOR_LWR.CATPart	100.49K
9	YS07_RUBBER-RADIATOR_UPR.CATPart	109.30K
10	YS07_STEEL_BAND_ELASTIC_CIRCLIP.CATPart	459.38K
11	YS07_ELECTRONIC_FAN_WITH_RESERVE_TANK_ASSY.CATPart	38.40M
12	YS07_RADIATOR_ASSY.CATPart	29.13M
13	YS07_RADIATOR_ASSY_WITH_ELECTRONIC_FAN.CATProduct	28.74K
14	YS07_RADIATOR_TO_ELECTRONIC_FAN_HOSE.CATPart	62.59K
15	YS07_STEEL_BAND_ELASTIC_CIRCLIP.CATPart	460.96K
16	YS07_BOLT_P07.CATPart	139.21K
17	YS07_CLIP_P03.CATPart	236.44K
18	YS07_EXHAUST_DEVICE.CATProduct	100.05K
19	YS07_FRONT_EXHAUST_PIPE_ASSY.CATPart	8.01M
20	YS07_GASKET-EXHAUST_PIPE_FRT.CATPart	140.41K
21	YS07_GASKET-EXHAUST_PIPE_RR.CATPart	127.30K
22	YS07_HEAT_SHIRLD-EXHAUST_PIPE.CATPart	5.46M
23	YS07_HEAT_SHIRLD-FUEL_TANK.CATPart	8.64M
24	YS07_HEAT_SHIRLD-MIDDLE_MUFFLER.CATPart	21.47M
25	YS07_NUT_P02.CATPart	133.87K
26	YS07_REAR_MUFFLER_ASSY.CATPart	7.56M
27	YS07_SHIELD_FOR_MUFFLER_BK.CATPart	5.47M
28	YS07_SPRING.CATPart	476.53K
29	YS07_SUPPORT-EXHAUST_PIPE.CATPart	1.29M
30	YS07_BOLT_P04.CATPart	108.29K
31	YS07_BOLT_P05.CATPart	92.98K
32	YS07_BOOT_OF_FULE_FILLER_PIPE.CATPart	6.02M
33	YS07_CAP-FUEL-FILLER-ASSY.CATPart	738.07K
34	YS07_CLIP_P02.CATPart	250.40K
35	YS07_FUEL-PUMP-AND-CANISTER-ASSY.CATPart	16.24M
36	YS07_FUEL-TANK-ASSY.CATPart	17.76M
37	YS07_FUEL-TANK-SET.CATProduct	75.39K
38	YS07_GASKET-FUEL-MOUTH.CATPart	1.13M
39	YS07_HOSE-BREATHER-FILLER.CATPart	79.97K
40	YS07_HOSE-FUEL-FILLER.CATPart	432.10K
41	YS07_HOSE_FUEL_TANK_TO_FUEL_AND_GAS_SEGREGATOR.CATPart	492.23K
42	YS07_STEEL_WIRE.CATPart	120.10K
43	YS07_TUBE-FUEL-FILLER-PIPE-UPR-ASSY.CATPart	16.44M
44	YS07_BOLT_P06.CATPart	91.36K
45	YS07_BREATHER_NYLON-PIPE.CATPart	1.75M
46	YS07_CANISTER-CONTROL-VALUE-ASSY.CATPart	3.29M
47	YS07_CANISTER_BREATH_HOSE.CATPart	671.26K
48	YS07_CLAMP_OF_FUEL_INLET_NYLON-MASTER.CATPart	480.94K
49	YS07_FUEL-TUBE-BREATHER-SET.CATProduct	55.33K
50	YS07_FUEL_AND_GAS_SEGREGATOR_ASSY.CATPart	2.45M
51	YS07_FUEL_INLET_NYLON_MASTER.CATPart	2.70M
52	YS07_HOSE_DOFF_CANISTER_GAS.CATPart	562.58K
53	YS07_NO1_DUAL_TUBE_CLIP.CATPart	107.63K
54	YS07_NO2_DUAL_TUBE_CLIP.CATPart	184.28K
55	YS07_NYLON-PIPE_TO_GASOLINE_TANK.CATPart	533.86K
56	YS07_AIR_CLEANER_INLET_HOSE.CATPart	9.72M
57	YS07_INTAKE_SYSTEM_SET.CATProduct	20.86K
58	YS07_AIR_CLEANER_ASSY.CATProduct	20.31K
59	YS07_AIR_CLEANER_ELEMENT.CATPart	1.44M
60	YS07_FRONT_AIR_CLEANER_SHELL.CATPart	35.95M
61	YS07_REAR_AIR_CLEANER_SHELL.CATPart	38.56M
62	YS07_POWER_ASSY.CATPart	65.69M
63	YS07_POWER_ASSY_SET.CATProduct	27.47K
64	YS07_BOLT_P01.CATPart	92.04K
65	YS07_BOLT_P02.CATPart	111.95K
66	YS07_BOOT_OF_CLUTCH_WHEEL_CYLINDER.CATPart	347.35K
67	YS07_CLUTCH_GEARING.CATProduct	50.83K
68	YS07_CLUTCH_WHEEL_CYLINDER_ASSY.CATPart	835.51K
69	YS07_CLUTCH_WHEEL_CYLINDER_OIL_PIPE.CATPart	5.56M
70	YS07_CLUTCH_WHEEL_CYLINDER_OIL_PIPE_RETAINING_BRACKET.CATPart	181.58K
71	YS07_BOLT_P03.CATPart	105.09K
72	YS07_CLIP_P01.CATPart	100.83K
73	YS07_DAMPING_BUSH-ENGINE_LH.CATPart	19.10M
74	YS07_DAMPING_BUSH-ENGINE_RH.CATPart	19.32M
75	YS07_DAMPING_BUSH-ENGINE_RR.CATPart	4.52M
76	YS07_DUST_COVER-DAMPING_BUSH-ENGINE_RR.CATPart	3.71M
77	YS07_ENGINE_LEFT_BRACKET.CATPart	11.73M
78	YS07_ENGINE_REAR_BRACKET.CATPart	2.95M
79	YS07_HEXAGONAL_NUT_WITH_THICK_FLANGE_P01.CATPart	79.67K
80	YS07_POWERTRAIN_MOUNTING_ASSY.CATProduct	81.63K
81	Q1400610.CATPart	97.88K
82	Q1400630.CATPart	98.06K
83	Q1420822.CATPart	128.72K
84	Q1460610.CATPart	178.37K
85	Q1460612.CATPart	137.62K
86	Q18410115.CATPart	107.98K
87	Q1841020.CATPart	108.58K
88	Q1841025.CATPart	109.97K
89	Q1841045.CATPart	108.55K
90	Q1841475.CATPart	113.65K
91	Q2724895.CATPart	142.41K
92	Q32010.CATPart	102.56K
93	Q32106.CATPart	108.70K
94	Q673B08.CATPart	277.51K
