双工位阀体螺纹涂胶机
（ID:2634193）
改图/画图
截图
AI截图渲染
✨AI图片渲染
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 036z_1A1Ax1A1.SLDPRT | 205.75K |
| 2 | 037z_1A1Ax1A1.SLDPRT | 102.44K |
| 3 | 179986-S003-MISUMI-HBLFSN8-45-SEC_1A1Ax1A1.sldasm | 97.01K |
| 4 | 17_ASS_Q1_A2_X_1-1A1.sldprt | 40.79K |
| 5 | 180807-S003_1A1Ax1A1.SLDASM | 237.91K |
| 6 | 180807-S004_1A1Ax1A1.SLDASM | 109.51K |
| 7 | 180807-S005_1A1Ax1A1.SLDASM | 436.73K |
| 8 | 180807-S006_1A1Ax1A1.SLDASM | 361.48K |
| 9 | 180807-S007_1A1Ax1A1.SLDPRT | 105.83K |
| 10 | 180807-Sub006_1A1Ax1A1.SLDASM | 627.46K |
| 11 | 180977-025_1A1Ax1A1.SLDPRT | 84.25K |
| 12 | 180977-026_1A1Ax1A1.SLDPRT | 115.03K |
| 13 | 180977-S006-XKB-4_1A1Ax1A1.SLDPRT | 119.89K |
| 14 | 180977-S007-XB2BS542C_1A1Ax1A1.SLDPRT | 1.31M |
| 15 | 180977-S008_1A1Ax1A1.SLDPRT | 976.06K |
| 16 | 180977-S009_1A1Ax1A1.SLDPRT | 997.74K |
| 17 | 180977-S010_1A1Ax1A1.SLDPRT | 986.81K |
| 18 | 180977-Sub009_1A1Ax1A1.SLDASM | 1.13M |
| 19 | 182559-008_1A1Ax1A1.SLDPRT | 81.11K |
| 20 | 18_ASS_Q1_A2_X_1-1A1.sldprt | 44.48K |
| 21 | 19_ASS_Q1_A2_X_1-1A1.sldprt | 40.69K |
| 22 | 1_X_1-1A1.sldprt | 48.60K |
| 23 | 20_ASS_Q1_A2_X_1-1A1.sldprt | 41.59K |
| 24 | 2_X_1-1A1.sldprt | 42.16K |
| 25 | 5_ASS_Q1_A2_X_1-1A1.sldprt | 43.54K |
| 26 | 6_ASS_Q1_A2_X_1-1A1.sldprt | 51.20K |
| 27 | 7_ASS_Q1_A2_X_1-1A1.sldprt | 89.81K |
| 28 | 8_ASS_Q1_A2_X_1-1A1.sldprt | 51.81K |
| 29 | A-022z_1A1Ax1A1.SLDPRT | 88.45K |
| 30 | A-122z_1A1Ax1A1.SLDPRT | 266.90K |
| 31 | A-222z_1A1Ax1A1.SLDPRT | 147.63K |
| 32 | A-banz_1A1Ax1A1.SLDPRT | 203.27K |
| 33 | A-zhijia1z_1A1Ax1A1.SLDPRT | 113.93K |
| 34 | AC30B-P1A1.sldprt | 49.45K |
| 35 | AC30B-P1_1A1Ax1A1.sldprt | 49.45K |
| 36 | AC30B-P2A1.sldprt | 81.51K |
| 37 | AC30B-P2_1A1Ax1A1.sldprt | 81.51K |
| 38 | AC30B-P3A1.sldprt | 74.16K |
| 39 | AC30B-P3_1A1Ax1A1.sldprt | 74.16K |
| 40 | AC30B-P4A1.sldprt | 74.71K |
| 41 | AC30B-P4_1A1Ax1A1.sldprt | 74.71K |
| 42 | AC30B-P5A1.sldprt | 69.18K |
| 43 | AC30B-P5_1A1Ax1A1.sldprt | 69.18K |
| 44 | ASM0003_Q1_A2_X_2A1.sldasm | 240.45K |
| 45 | assyz_1A1Ax1A1.SLDASM | 156.01K |
| 46 | AV3000-03-5Y_AV3136Body_1A1Ax1A1.SLDPRT | 404.35K |
| 47 | AV3000-03-5Y_AV3136Connector_1A1Ax1A1.SLDPRT | 251.44K |
| 48 | AW30-03CE_AW3020ABody_1A1Ax1A1.SLDPRT | 367.13K |
| 49 | AW30-03CE_AW3020ABowlAssy_1A1Ax1A1.SLDASM | 240.33K |
| 50 | AW30-03CE_AW3020ABowl_1A1Ax1A1.SLDPRT | 180.09K |
| 51 | AW30-03CE_AW3020ADrain_1A1Ax1A1.SLDPRT | 222.61K |
| 52 | AW30-03CE_AW3020AGauge_1A1Ax1A1.SLDPRT | 161.76K |
| 53 | BANNER-OTBVN6Aa1A4A1.SLDPRT | 2.28M |
| 54 | BANNER-OTC-1-YWAa1A4A1.SLDPRT | 355.13K |
| 55 | BANNERTwo-HandControlsMomentaryActionTouchButtonOTBVN6SETAa1A4A1.SLDASM | 1.61M |
| 56 | banner_opti-touch-safety-switch_hex-nutx1Aa1A4A1.SLDPRT | 410.72K |
| 57 | CBM8-12z_1A1Ax1A1.sldprt | 64.06K |
| 58 | CBS6-12_z_1A1A1.sldprt | 80.07K |
| 59 | CBS6-12_z_1A1Ax1A1.sldprt | 80.07K |
| 60 | CLDM4-8-B_X_1A1.sldasm | 30.56K |
| 61 | CMAF65-Fadjusterz_1A1Ax1A1.sldprt | 82.59K |
| 62 | CMAF65-Fbearingz_1A1Ax1A1.sldprt | 93.73K |
| 63 | CMAF65-Fbodyz_1A1Ax1A1.sldprt | 227.12K |
| 64 | CMAF65-Fstopperz_1A1Ax1A1.sldprt | 37.87K |
| 65 | CMAF65-Fswivelz_1A1Ax1A1.sldprt | 158.72K |
| 66 | CMAF65-Fwheelz_1A1Ax1A1.sldprt | 66.90K |
| 67 | CMAF65-Fz_1A1Ax1A1.sldasm | 291.81K |
| 68 | CP_WWE_Q1_A2_X_1-1A1.sldprt | 58.15K |
| 69 | D4NS_4AF_BASEz_1A1Ax1A1.SLDPRT | 99.38K |
| 70 | D4NS_4AF_CAPz_1A1Ax1A1.SLDPRT | 42.98K |
| 71 | D4NS_4AF_HEADz_1A1Ax1A1.SLDPRT | 110.42K |
| 72 | DA2z_1A1Ax1A1.SLDPRT | 101.21K |
| 73 | DA3z_1A1Ax1A1.SLDPRT | 46.07K |
| 74 | DISPLAYERALL-3z_1A1Ax1A1.SLDASM | 88.94K |
| 75 | doorAssy-cz_1A1Ax1A1.SLDASM | 284.38K |
| 76 | doorAssy-zz_1A1Ax1A1.SLDASM | 274.20K |
| 77 | GL-S16FH_SB01-Rz_1A1Ax1A1.sldprt | 247.61K |
| 78 | GL-S16FH_SB01-Tz_1A1Ax1A1.sldprt | 247.87K |
| 79 | GL-S16FH_SB01z_1A1Ax1A1.sldasm | 200.44K |
| 80 | GR1_WWE_Q1_A2_X_1-1A1.sldprt | 49.35K |
| 81 | GR2_WWE_Q1_A2_X_1-1A1.sldprt | 41.14K |
| 82 | GU65_X_1-1A1.sldprt | 35.95K |
| 83 | HBLFSN8-45b_1A1Ax1A1.sldprt | 94.88K |
| 84 | HCBST8-24_Screw_1A1Ax1A1.sldprt | 99.15K |
| 85 | HCBST8washer1_1A1Ax1A1.sldprt | 63.10K |
| 86 | HFHDL5-35-300az_1A1Ax1A1.sldprt | 88.64K |
| 87 | HFHDL5-35-300z_1A1A1.sldprt | 88.30K |
| 88 | HFHDL5-35-300z_1A1Ax1A1.sldprt | 88.30K |
| 89 | HFS6-3030-493z_1A1Ax1A1.sldprt | 97.39K |
| 90 | HFS6-3030-593z_1A1Ax1A1.sldprt | 122.52K |
| 91 | HFS6-3030-780_1A1Ax1A1.sldprt | 105.48K |
| 92 | HFS6-3030-840z_1A1Ax1A1.sldprt | 106.18K |
| 93 | HFS6-3030-900z_1A1A1.sldprt | 105.89K |
| 94 | HFS6-3030-900z_1A1Ax1A1.sldprt | 105.89K |
| 95 | HFS6_3060_188_TPWz_1A1Ax1A1.sldprt | 199.71K |
| 96 | HFS6_3060_96_TPWz_1A1Ax1A1.sldprt | 202.06K |
| 97 | HFS8-4545-1110z_1A1Ax1A1.sldprt | 140.61K |
| 98 | HFS8-4545-1650z_1A1Ax1A1.sldprt | 135.09K |
| 99 | HFS8-4545-455_1A1Ax1A1.sldprt | 146.32K |
| 100 | HFS8-4545-500z_1A1Ax1A1.SLDPRT | 153.52K |
| 101 | HFS8-4545-600z_1A1Ax1A1.SLDPRT | 197.77K |
| 102 | HFS8-4545-740z_1A1Ax1-deA1.SLDPRT | 175.28K |
| 103 | HFS8-4545-740z_1A1Ax1A1.sldprt | 151.58K |
| 104 | HFS8-4545-910z_1A1Ax1A1.sldprt | 141.75K |
| 105 | HHPNDLK845-6-rz_1A1A1.sldprt | 75.17K |
| 106 | HHPNDLK845-6-rz_1A1Ax1A1.sldprt | 75.17K |
| 107 | HHPNDLK845-6-SET-lz_1A1A1.sldprt | 73.70K |
| 108 | HHPNDLK845-6-SET-lz_1A1Ax1A1.sldprt | 73.70K |
| 109 | HHPNDLK845-6-SETz_1A1A1.sldasm | 84.62K |
| 110 | HHPNDLK845-6-SETz_1A1Ax1A1.sldasm | 83.87K |
| 111 | HHPNDRK845-6-rz_1A1A1.sldprt | 74.96K |
| 112 | HHPNDRK845-6-rz_1A1Ax1A1.sldprt | 74.96K |
| 113 | HHPNDRK845-6-SET-lz_1A1A1.sldprt | 74.58K |
| 114 | HHPNDRK845-6-SET-lz_1A1Ax1A1.sldprt | 74.58K |
| 115 | HHPNDRK845-6-SETz_1A1A1.sldasm | 95.00K |
| 116 | HHPNDRK845-6-SETz_1A1Ax1A1.sldasm | 94.68K |
| 117 | HNTT6-6_1z_1A1A1.sldprt | 56.39K |
| 118 | HNTT6-6_1z_1A1Ax1A1.sldprt | 56.39K |
| 119 | HNTT8-6_1z_1A1A1.sldprt | 56.55K |
| 120 | HNTT8-6_1z_1A1Ax1A1.sldprt | 56.55K |
| 121 | HNTT8-8z_1A1Ax1A1.SLDPRT | 176.34K |
| 122 | HNTT8-8_1_1A1Ax1A1.sldprt | 61.62K |
| 123 | ipc-510_asmz_1A1Ax1A1.SLDPRT | 4.01M |
| 124 | KKKKKK-019a1A4A1.SLDPRT | 145.51K |
| 125 | M10垫圈z_1A1Ax1A1.SLDPRT | 117.78K |
| 126 | man-machineinteractionz_1A1Ax1A1.SLDPRT | 165.48K |
| 127 | MDX1000_1500_contz_1A1Ax1A1.SLDPRT | 339.29K |
| 128 | MXS8-20_0__ASS_Q1_A2_X_1-1A1.sldprt | 95.07K |
| 129 | OMRON-D4DS-K2z_1A1Ax1A1.SLDPRT | 109.06K |
| 130 | OMRON-D4NS_4AFz_1A1Ax1A1.SLDASM | 51.79K |
| 131 | PBD1A10-20_ASS_Q1_A2_X_1-1A1.sldprt | 64.91K |
| 132 | PCTA-1136-936-10z_1A1Ax1A1.sldprt | 49.64K |
| 133 | PCTA-1136-951-10z_1A1Ax1A1.sldprt | 59.12K |
| 134 | PCTA-858-511-8-2z_1A1Ax1A1.sldprt | 36.37K |
| 135 | PCTA-858-511-8z_1A1Ax1A1.sldprt | 35.70K |
| 136 | PCTA-858-611-8z_1A1Ax1A1.sldprt | 37.36K |
| 137 | powerindicatorz_1A1Ax1A1.SLDPRT | 64.10K |
| 138 | powerswitchz_1A1Ax1A1.SLDPRT | 268.45K |
| 139 | Pro-facez_1A1Ax1A1.SLDPRT | 287.01K |
| 140 | PRT0001_Q1_X_1-1A1.sldprt | 40.38K |
| 141 | PRT0002_Q1_A1_X_1-1A1.sldprt | 35.40K |
| 142 | PRT0005_ASS_Q1_A2_X_1-1A1.sldprt | 41.65K |
| 143 | PRT0006_ASS_Q1_A2_X_1_1-1A1.sldprt | 106.49K |
| 144 | PRT0006_ASS_Q1_A2_X_2-1A1.sldprt | 105.35K |
| 145 | PRT0007_ASS_Q1_A2_X_1_1-1A1.sldprt | 123.02K |
| 146 | PRT0007_ASS_Q1_A2_X_2-1A1.sldprt | 111.45K |
| 147 | PRT0008_ASS_Q1_A2_X_1_1-1A1.sldprt | 41.77K |
| 148 | PRT0008_ASS_Q1_A2_X_2-1A1.sldprt | 43.61K |
| 149 | PRT0011_ASS_Q1_A2_X_1-1A1.sldprt | 40.99K |
| 150 | PRT0011_X_1-1A1.sldprt | 40.70K |
| 151 | PRT0012_ASS_Q1_A2_X_1-1A1.sldprt | 47.09K |
| 152 | S032-A－1z_1A1Ax1A1.SLDASM | 216.81K |
| 153 | SDE34_X_1-1A1.sldprt | 53.24K |
| 154 | sheetmetalcomponent-111_1A1Ax1A1.SLDPRT | 144.02K |
| 155 | sheetmetalcomponent-xxx_1A1Ax1A1.SLDPRT | 129.87K |
| 156 | sheetmetalcomponent－bz_1A1Ax1A1.SLDPRT | 459.95K |
| 157 | sheetmetalcomponent－daz_1A1Ax1A1.SLDPRT | 260.75K |
| 158 | sheetmetalcomponent－dz_1A1Ax1A1.SLDPRT | 278.27K |
| 159 | sheetmetalcomponent－ez_1A1Ax1A1.SLDPRT | 127.04K |
| 160 | sheetmetalcomponent－gaz_1A1Ax1A1.SLDPRT | 152.52K |
| 161 | sheetmetalcomponent－gz_1A1Ax1A1.SLDPRT | 157.63K |
| 162 | sheetmetalcomponent－hz_1A1Ax1A1.SLDPRT | 149.84K |
| 163 | sheetmetalcomponent－iz_1A1Ax1A1.SLDPRT | 173.39K |
| 164 | sheetmetalcomponent－jz_1A1Ax1A1.SLDPRT | 245.62K |
| 165 | sheetmetalcomponent－kz_1A1Ax1A1.SLDPRT | 191.78K |
| 166 | SPWF8_1A1Ax1A1.sldprt | 59.61K |
| 167 | VHS30-03_VHS3035BABody_1A1Ax1A1.sldprt | 202.88K |
| 168 | VHS30-03_VHS3035BAHandle_1A1Ax1A1.sldprt | 210.66K |
| 169 | XYZSSG60ASSY_Q1_A2_X_2A1.sldasm | 640.31K |
| 170 | Y300T_Y3035DBFrontPlate_1A1Ax1A1.SLDPRT | 142.40K |
| 171 | Y300T_Y3035DBInterface_1A1Ax1A1.SLDPRT | 114.01K |
| 172 | Y300T_Y3035DBRearPlate_1A1Ax1A1.SLDPRT | 156.36K |
| 173 | ZT_X_1-1A1.sldprt | 46.11K |
| 174 | 三色灯_1A1Ax1A1.SLDPRT | 127.66K |
| 175 | 二联件AC30B-03G-VA1.SLDASM | 231.73K |
| 176 | 二联件AC30B-03G-V_1A1Ax1A1.SLDASM | 231.66K |
| 177 | 侧门_1A1Ax1A1.SLDASM | 184.28K |
| 178 | 右侧门-2z_1A1Ax1A1.SLDASM | 149.37K |
| 179 | 右侧门-传送带_1A1Ax1A1.SLDASM | 163.35K |
| 180 | 右侧门z_1A1Ax1A1.SLDASM | 159.38K |
| 181 | 大侧门z_1A1Ax1A1.SLDASM | 167.37K |
| 182 | 显示器支架z_1A1Ax1A1.SLDASM | 224.23K |
| 183 | 显示器盒z_1A1Ax1A1.SLDPRT | 129.68K |
| 184 | 框架3_1A1Ax1A1.SLDASM | 8.09M |
| 185 | 框架z_1A1Ax1A1.SLDASM | 224.77K |
| 186 | 气动元件安装板A1.SLDPRT | 264.77K |
| 187 | 涂胶装配图AA1.SLDASM | 9.65M |
| 188 | 焊接机架-A3ZS1A1.SLDASM | 2.51M |
| 189 | 玻璃罩z_1A1Ax1A1.sldprt | 96.06K |
| 190 | 脚轮z_1A1Ax1A1.SLDASM | 498.31K |
| 191 | 脚轮过渡板z_1A1Ax1A1.SLDPRT | 160.82K |
| 192 | 装配体11z_1A1Ax1A1.SLDASM | 318.87K |
| 193 | 镜向门感应器固定件3z_1A1Ax1A1.SLDPRT | 74.51K |
此图纸下载需要50金币
立即下载
发布者
模型信息
图纸ID：2634193
图纸格式：sldprt,sldasm
文件大小：58.23M
所需金币：50
上传时间：2025-09-16 10:51:15
是否可编辑：可修改，包括参数
软件版本：SOLIDWORKS 2020
标签
双工位
阀体
螺纹
涂胶机
图纸简介

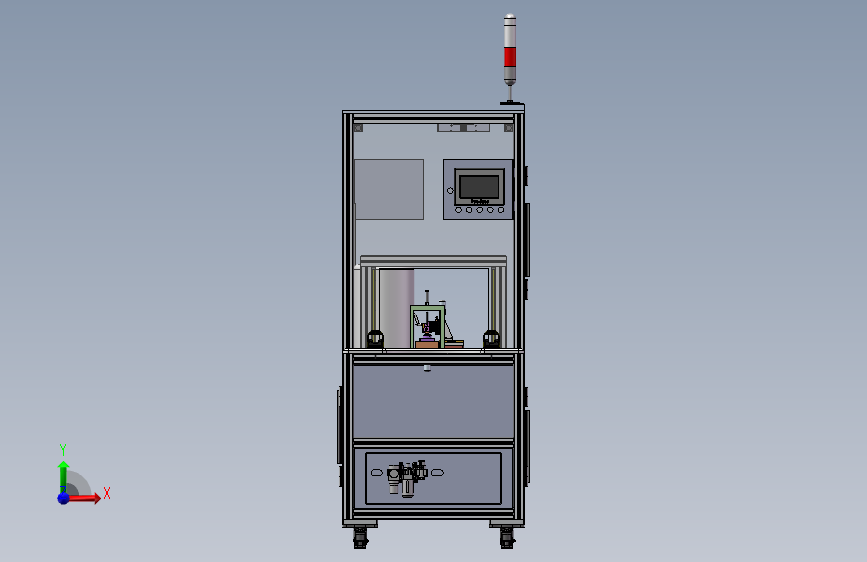

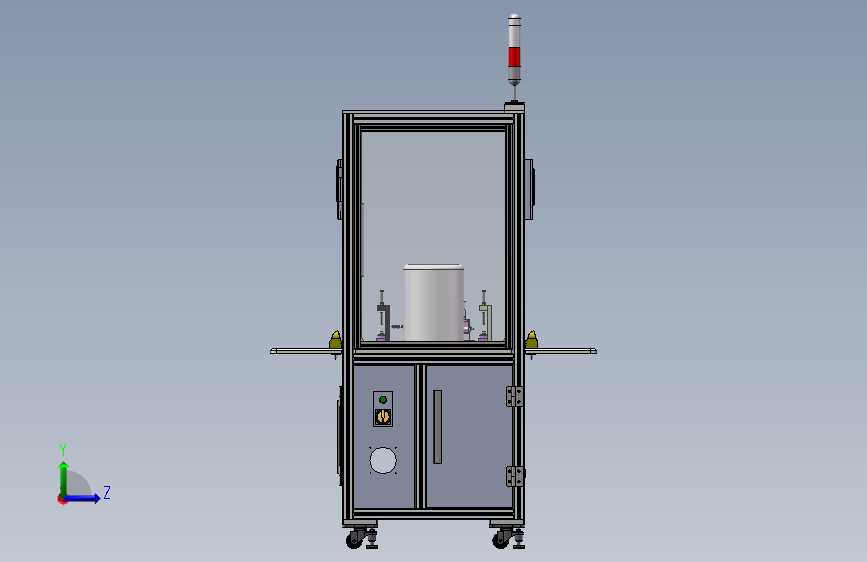

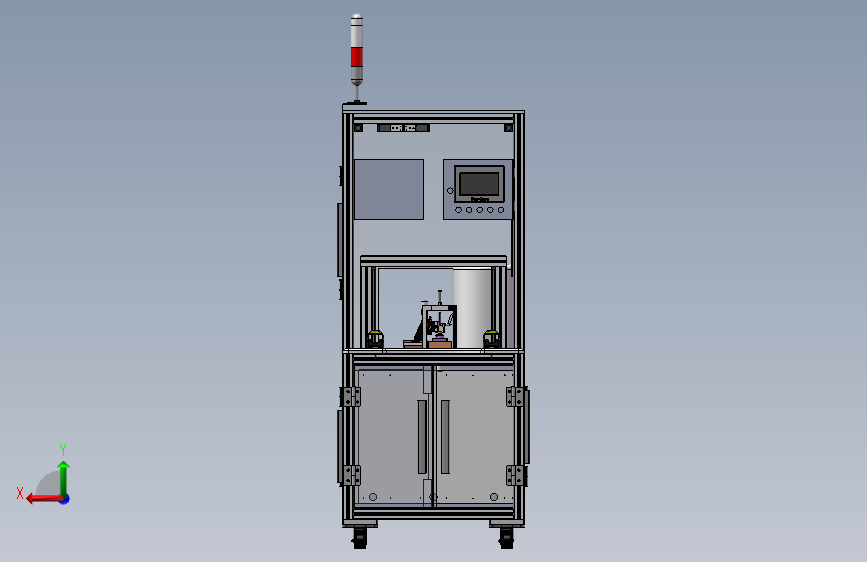

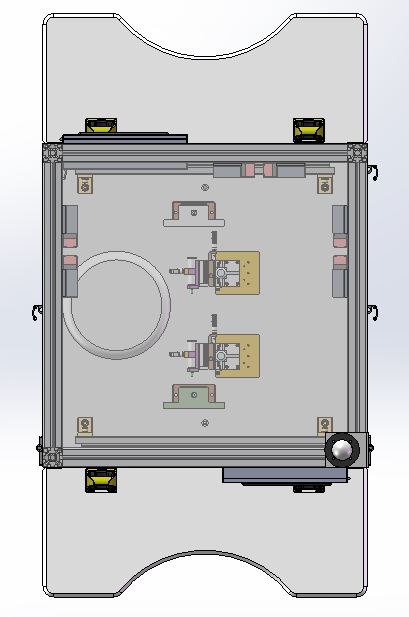

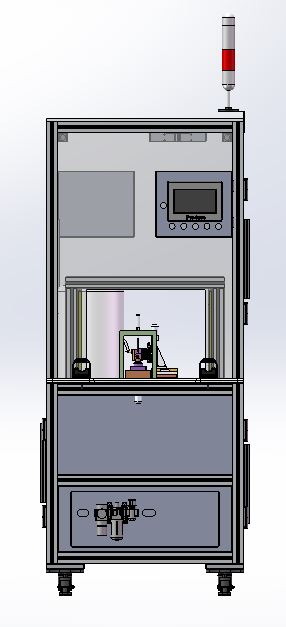

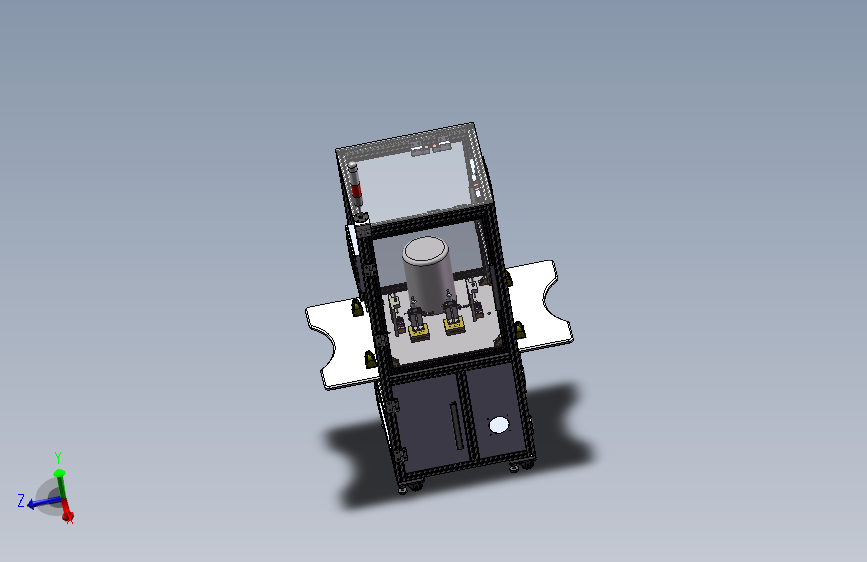

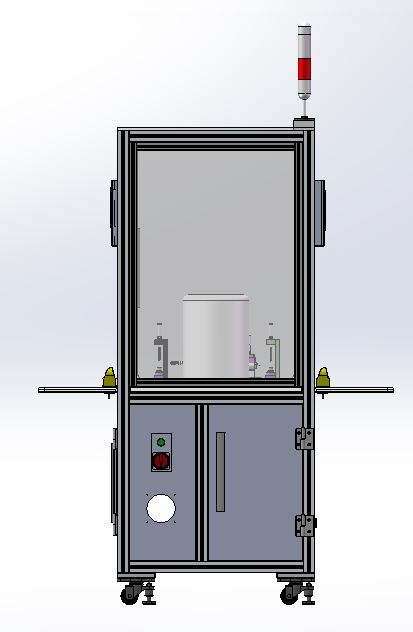

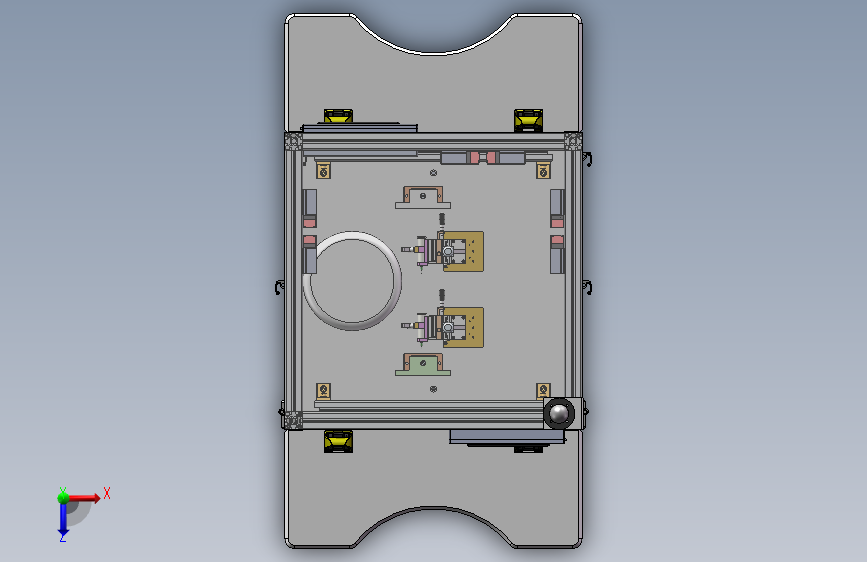

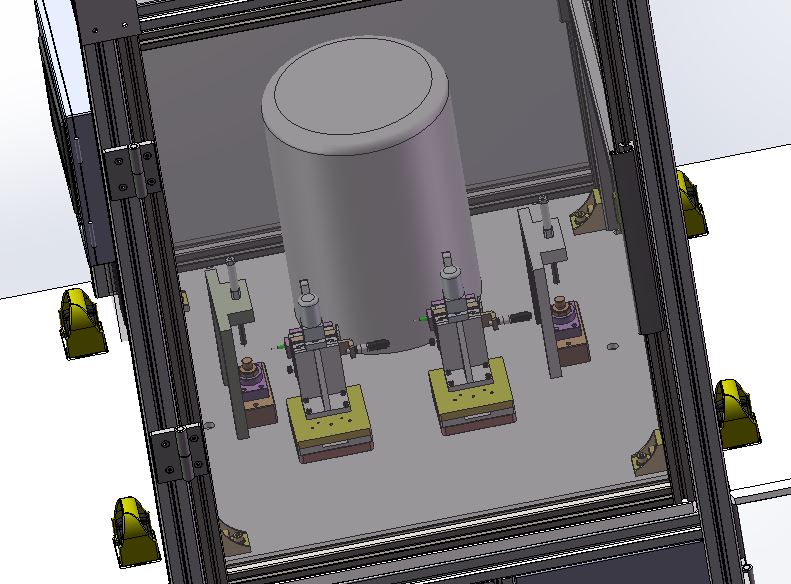

双工位阀体螺纹涂胶机，涂胶头位置可以做X、Y轴、Z轴运动。针头相对产品的位置可以通过调整X、Y轴参数完成。Z轴是头涂胶运动轴。针头进出是由气缸定长运动来完成，微调是手动调节。胶体行前期杂质分离处理及真空除泡处理。
