江铃陆风X8汽车开关Catia三维设计模型图纸（ID:2638343）
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 17581057273217.zip | 37.04M |
| 2 | 3720100HW___APPLY_THE_BRAKE_LAMP_SWITCH____P00_071030.CATPart | 743.47K |
| 3 | 3746470LC___INFORMTION_ALARM_BUGLE_________P00_071030.CATPart | 896.28K |
| 4 | 3774015HW___IGNITION_LOCK__________________P00_071030.CATPart | 2.12M |

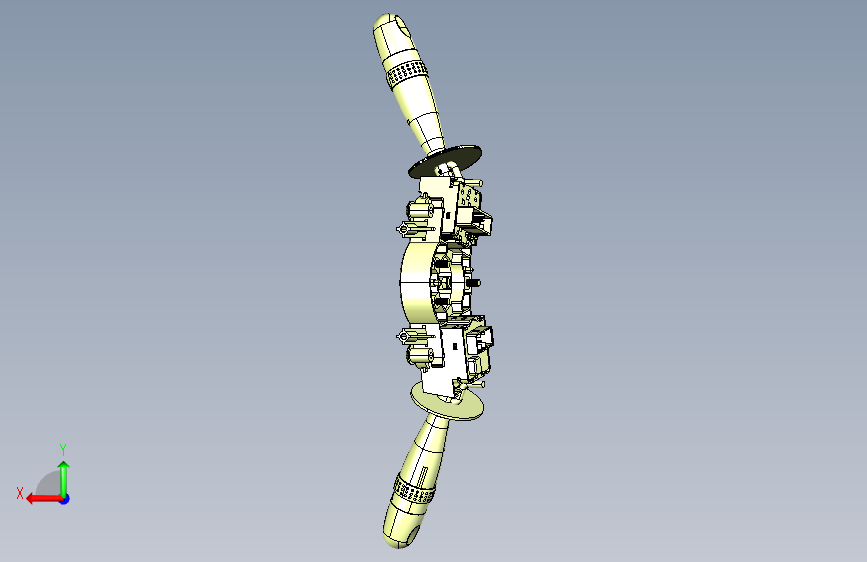

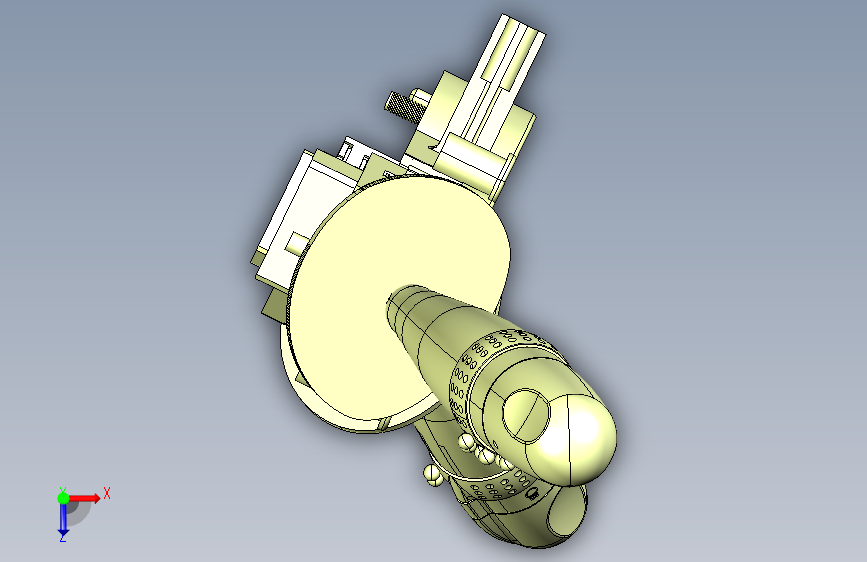

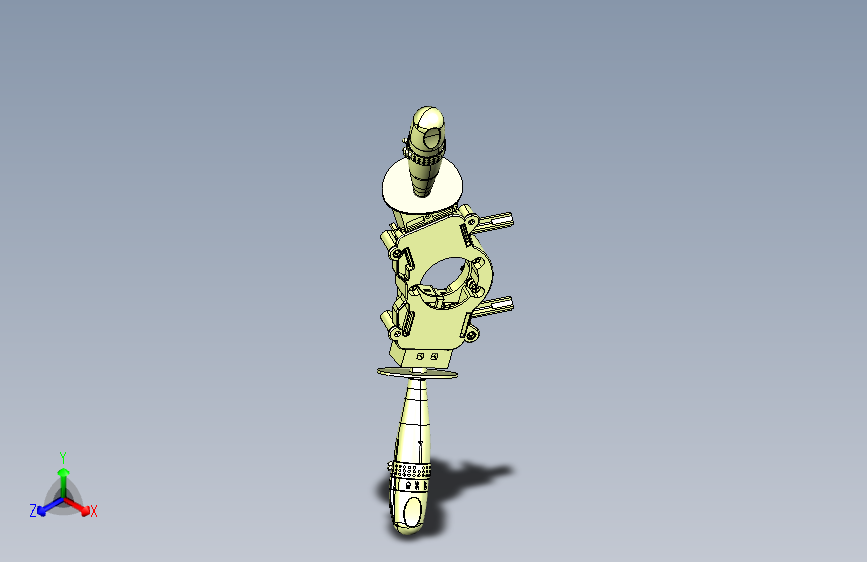

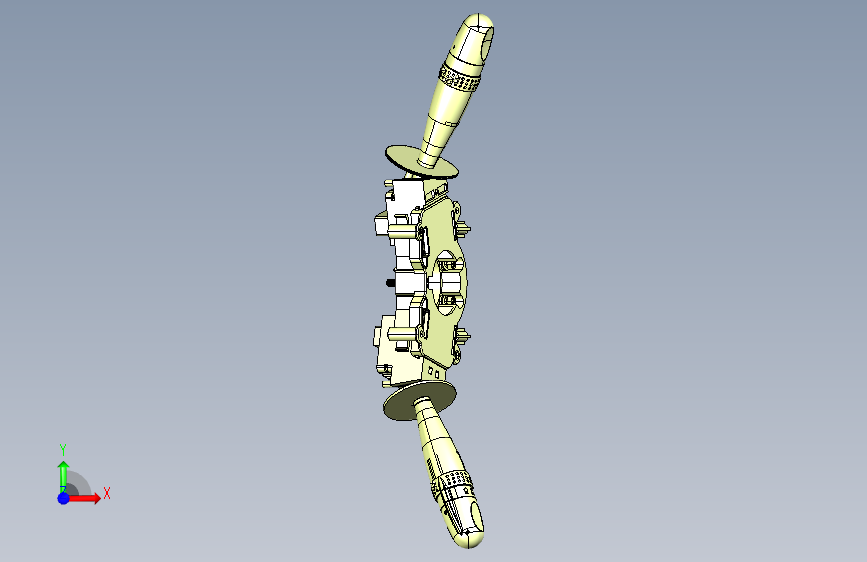

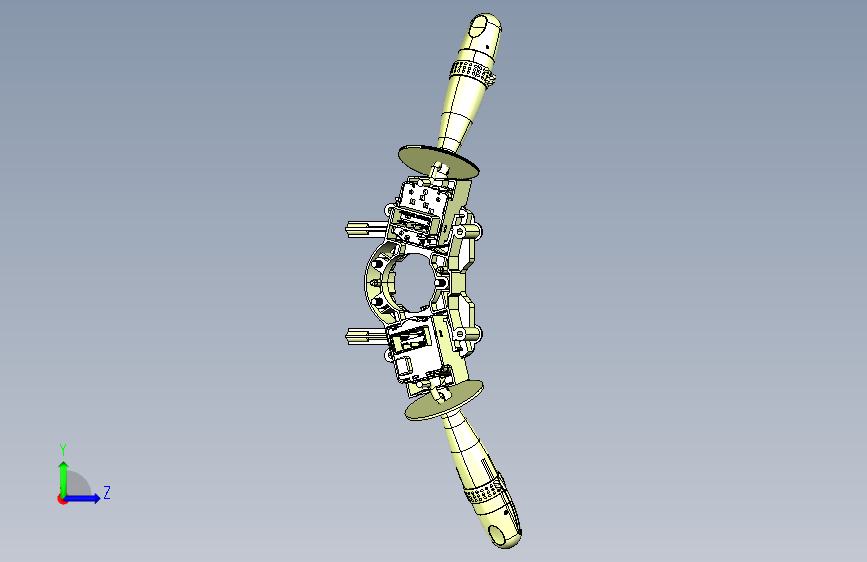

| 5 | 3774020LC___COMBINATION_SWITCH_____________P00_071030.CATPart | 20.30M |
| 6 | 3774025LC___COMBINATION_SWITCH_BRACKET_____P00_071030.CATPart | 480.02K |
| 7 | 3774104LC___COMBINATION_SWITCH_UP_SHUCK____P00_071030.CATPart | 2.79M |
| 8 | 3774105LC___COMBINATION_SWITCH_DOWN_SHUCK__P00_071030.CATPart | 5.07M |
| 9 | 3792010LC___CENTER_SWITCH__________________P00_071030.CATPart | 1.37M |
| 10 | 3792020LC___MIRROR_SWITCH__________________P00_071030.CATPart | 3.71M |
| 11 | 3792030LC___BACKDROP_LIGHT_ADJUST_SWITCH___P00_071023.CATPart | 3.41M |
| 12 | 3792040HW___FOUR_WHEEL_DRIVE_SWITCH________P01_071130.CATPart | 1.63M |
| 13 | 3792050LC___NEAR_LIGHT_ADJUST_SWITCH_______P00_071030.CATPart | 1.93M |
| 14 | 3792060LC___OBLIGATE_SW_COVER_ASSY_________P00_071030.CATPart | 970.22K |
| 15 | 3792070LC___HEAD_DOOR_LAMP_SWITCH_1________P00_071030.CATPart | 4.09M |
| 16 | 3792070LC___HEAD_DOOR_LAMP_SWITCH_2________P00_071030.CATPart | 4.01M |
| 17 | 3792070LC___REAR_DOOR_LAMP_SWITCH_3________P00_071030.CATPart | 4.05M |
| 18 | 3792070LC___REAR_DOOR_LAMP_SWITCH_4________P00_071030.CATPart | 4.00M |
| 19 | 6104105LC___POWER_WINDOW_SWITCH_FR_LH______P00_071210.CATPart | 7.85M |
| 20 | 6104205LC___POWER_WINDOW_SWITCH_FR_RH______P00_071130.CATPart | 4.35M |
| 21 | 6204105LC_S_POWER_WINDOW_SWITCH_RR_LH______P00_071130.CATPart | 3.15M |
| 22 | 6204105LC_S_POWER_WINDOW_SWITCH_RR_RH______P00_071130.CATPart | 3.42M |
此图纸下载需要250金币
立即下载
发布者
静
创作: 7669
粉丝: 5
加入时间：2025-05-27
模型信息
图纸格式：catpart
文件大小：37.93M
所需金币：250
上传时间：2025-09-17 18:42:34
是否可编辑：可修改，包括参数
版本：CATIA V5R14
