长安尊行G501 -进气系统（ID:2657861）

机械设备 / 非标机械 / 长安尊行G501 -进气系统

©非原创

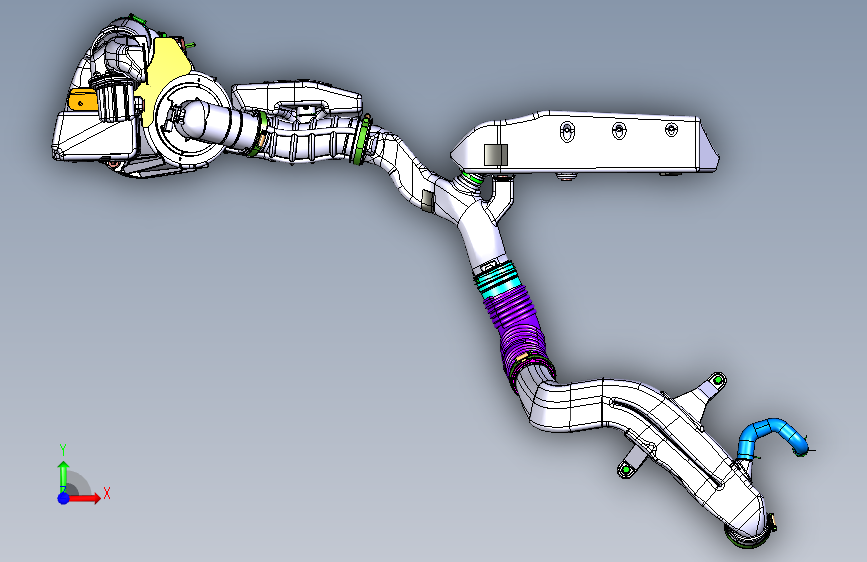

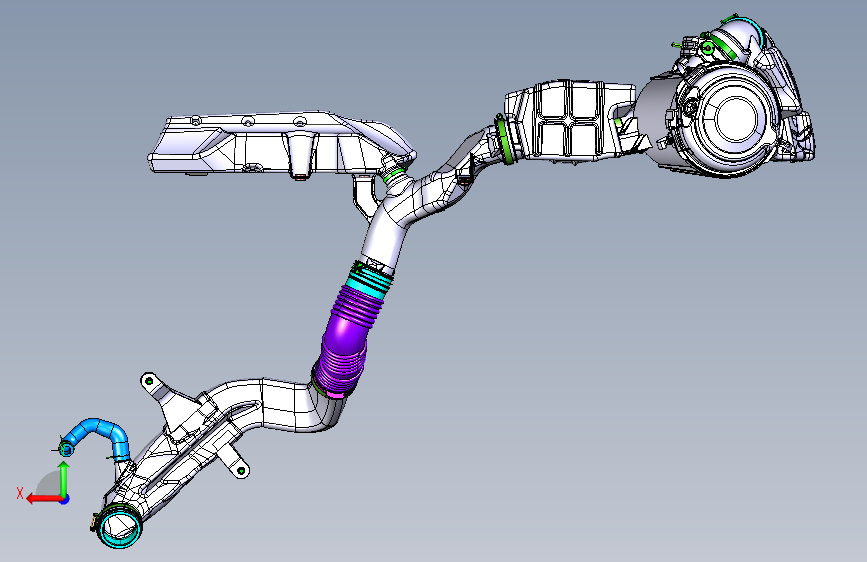

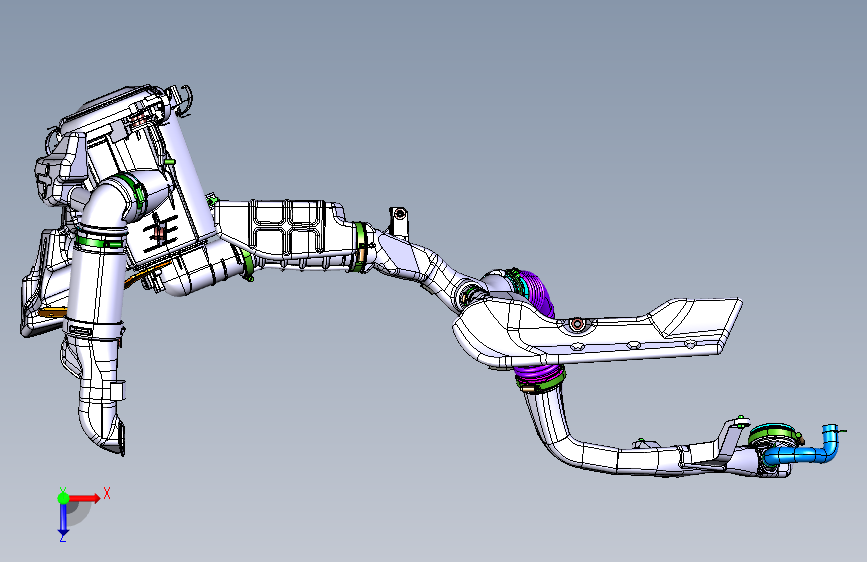

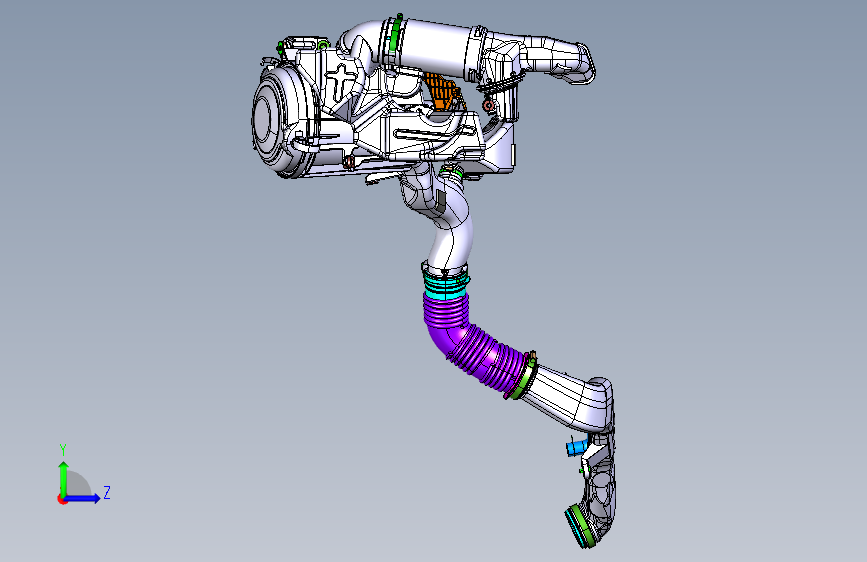

平面图

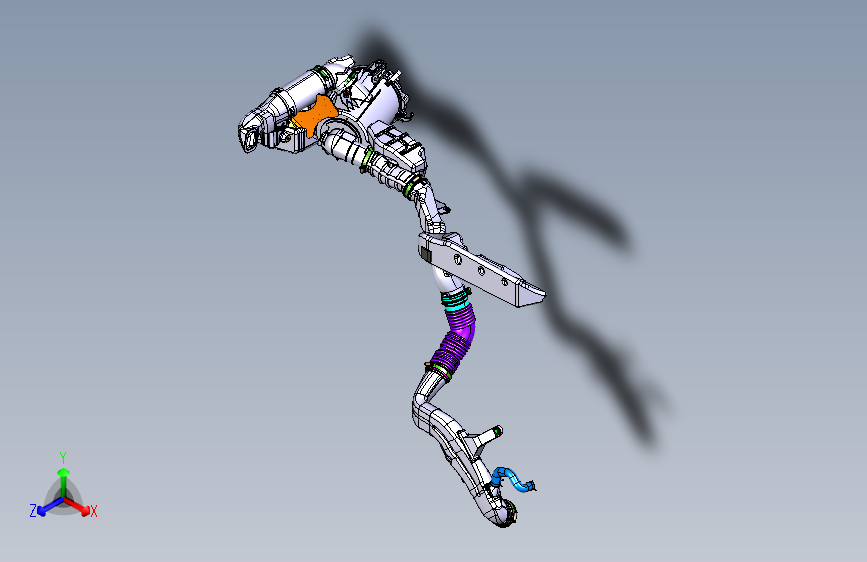

3D视图

文件列表

#	文件名称	文件大小
1	17586881436841.zip	40.64M
2	G501_1109110-AU01_001_AIR_FILTER.CATPart	18.86M
3	G501_1132001-AU01_001_INTAKE_SYSTEM_DEVICE.CATProduct	139.77K
4	G501_1132100-AU01_001_INTAKE_PORT_ASSY.CATProduct	37.86K
5	G501_1132110-AU01_001_INTAKE_PORT.CATPart	11.52M
6	G501_1132117-AU01_001_HOSE-SIDE_AIR_VENT.CATPart	264.11K
7	G501_1132200-AU01_001_AIR_INTAKE_AND_RESONANT_CAVITY_ASSY-REAR.CATProduct	100.08K
8	G501_1132211-AU01_001_RESONANT_CAVITY_ONE.CATPart	8.59M
9	G501_1132212-AU01_001_RESONANT_CAVITY_TWO.CATPart	3.33M
10	G501_1132213-AU01_001_RESONANT_CAVITY_THREE.CATPart	3.51M
11	G501_1132221-AU01_001_INLET_BELLOW-DOWN.CATPart	4.35M
12	G501_1132222-AU01_001_INLET_BELLOW-UP.CATPart	4.98M
13	G501_1132223-AU01_001.CATPart	800.51K
14	G501_1132231-AU01_001_AIR_FILTER_BOX-AIR_INTAKE-MIDDLE.CATPart	5.41M
15	G501_1132232-AU01_001_AIR_FILTER_BOX-AIR_INTAKE-FRONT.CATPart	9.60M
16	G501_1132310-AU01_001_RUBBER_A.CATPart	103.88K
17	G501_1132311-AU01_001_HEXAGONAL_HEAD_BOLT_AND_SPRING_WASHER_AND_PLAIN_WASHERASSEMBLIE.CATPart	114.44K
18	G501_1132320-AU01_001_RUBBER_B.CATPart	80.50K
19	G501_1132330-AU01_001_RUBBER_C.CATPart	303.60K
20	G501_1132340-AU01_001_RUBBER_D.CATPart	72.69K
21	G501_1132381-AU01_001_SEALING_RUBBER_A.CATPart	128.68K
22	G501_1132382-AU01_001_CLIP-NUT.CATPart	114.44K
23	G501_1132383-AU01_001_SEALING_RUBBER_B.CATPart	75.55K
24	G501_1132384-AU01_001_SEALING_RUBBER_C.CATPart	120.16K
25	G501_1703101-AU01_AU01_HEXAGONAL_HEAD_BOLT_AND_SPRING_WASHER_AND_PLAIN_WASHERASSEMBLIE.CATPart	140.50K
26	Q1460816.CATPart	107.50K
27	Q1460825.CATPart	144.72K
28	Q2214219.CATPart	135.12K
29	Q671B25.CATPart	146.06K
30	Q671B29.CATPart	150.76K
31	Q671B36.CATPart	111.44K
32	Q675100.CATPart	294.02K
33	Q67590.CATPart	587.16K
34	Q67650.CATPart	311.97K
