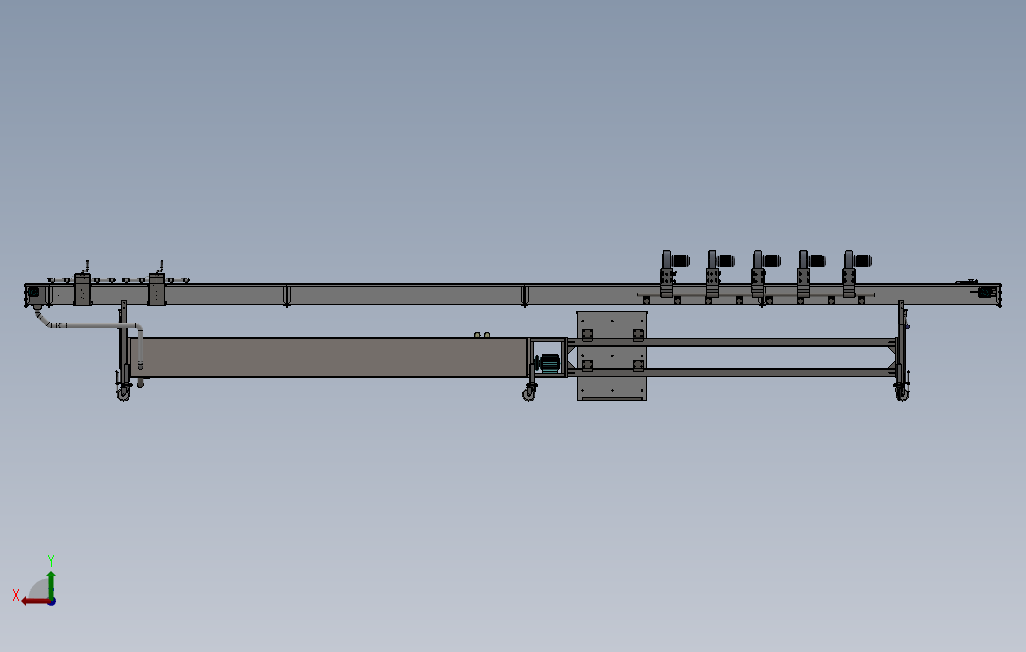

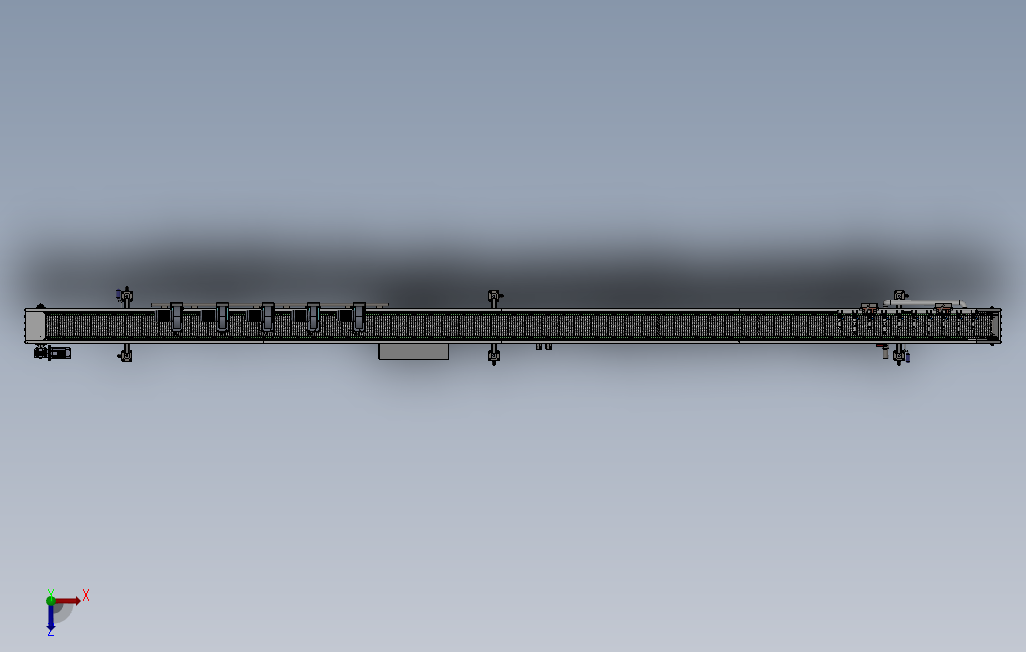

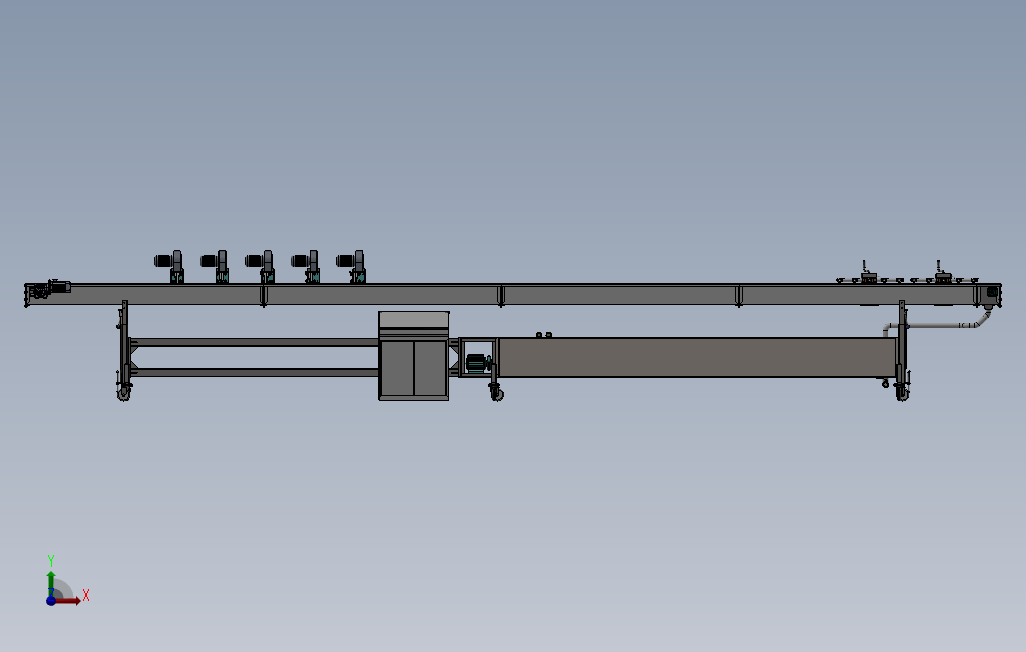

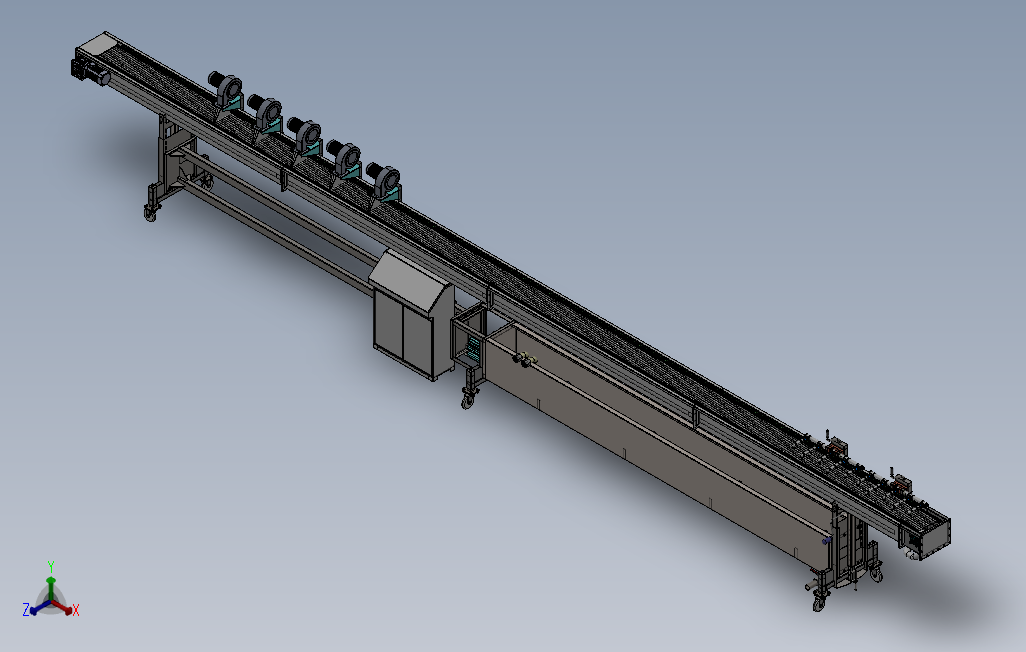

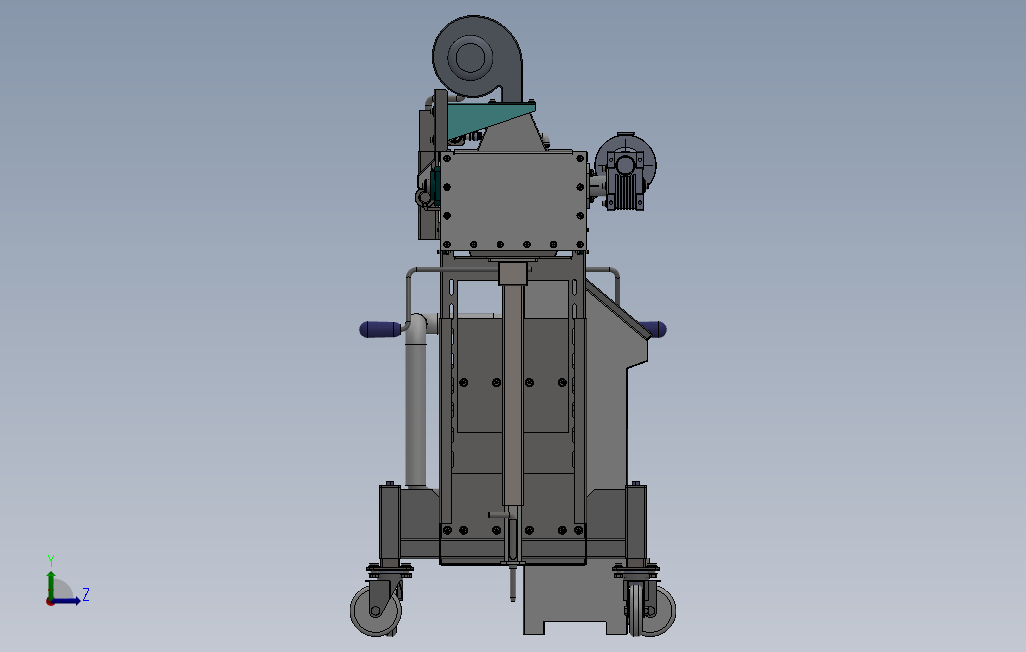

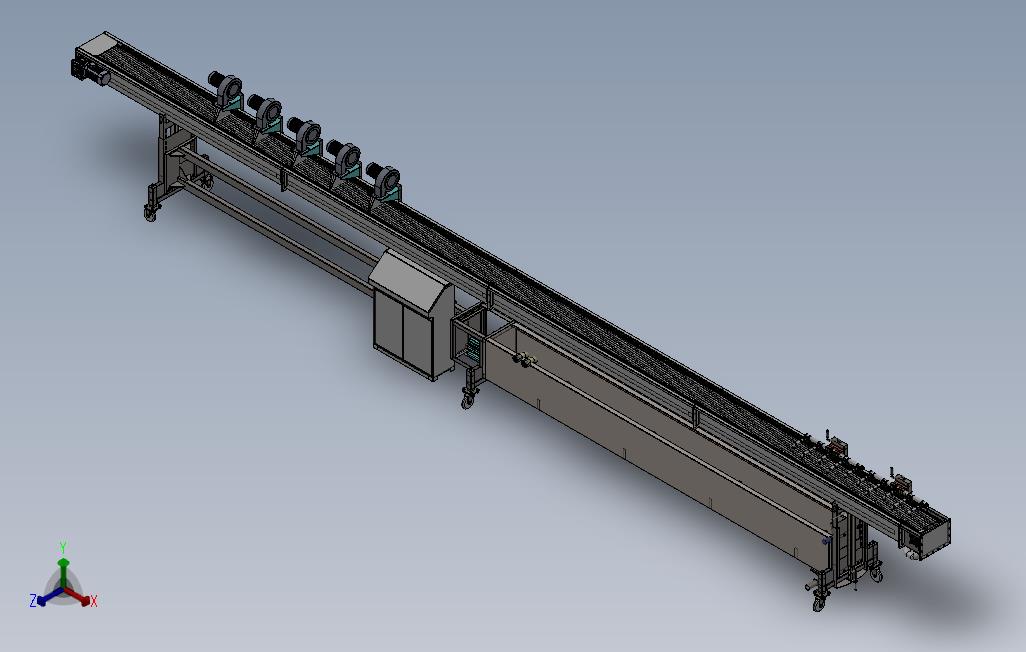

10米不锈钢输送设备（ID:267274）
0.png)
2.png)
3.png)
4.png)
1.png)
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 1 in ball valve.sldprt | 585.00K |
| 2 | 1 pipe 1水管.SLDPRT | 265.50K |
| 3 | 1.5 in flange answered 1.5in法兰接.SLDPRT | 222.00K |
| 4 | 10M cooling belt.SLDASM | 19.65M |
| 5 | 111.SLDPRT | 494.00K |
| 6 | 112.SLDPRT | 192.50K |
| 7 | 113.SLDPRT | 259.00K |
| 8 | 125 Taiwan 125脚轮.SLDASM | 214.50K |
| 9 | 2400 sinks 2400水槽.SLDPRT | 255.00K |
| 10 | 2in管.SLDPRT | 167.50K |
| 11 | 4 three 4三通.SLDPRT | 273.00K |
| 12 | 4 tube 4管.SLDPRT | 133.50K |
| 13 | 45 ° 1.5 In bend 45°1.5In弯.SLDPRT | 160.00K |
| 14 | 4Bending 4 弯.SLDPRT | 315.50K |
| 15 | 8 X8X55 flat key 8X8X55平键.SLDPRT | 134.00K |
| 16 | 90 ° 1.5 in bend 90°1.5in弯.SLDPRT | 176.00K |
| 17 | Activity set 活动套.SLDPRT | 256.00K |
| 18 | Adjusting screw 调节螺丝.SLDPRT | 1.13M |
| 19 | Adjusting screw调节螺丝.SLDPRT | 164.00K |
| 20 | Adjustment bearing combination 调整轴承组合.SLDASM | 1.77M |
| 21 | Basin group 水斗组.SLDASM | 207.50K |
| 22 | basin 水斗.SLDPRT | 602.50K |
| 23 | Bearing shaft 承载轴.SLDPRT | 214.50K |
| 24 | blower 鼓风机.SLDASM | 382.00K |
| 25 | Bolt sleeve 螺栓套.SLDPRT | 198.00K |
| 26 | Caster adjustment box 脚轮调节方块.SLDPRT | 230.00K |
| 27 | Caster wheel polyurethane pulley 脚轮聚氨酯滑轮.SLDPRT | 190.00K |
| 28 | Casters Universal 万向脚轮.SLDASM | 634.50K |
| 29 | Centrifugal fan fixed support.上接板SLDPRT.SLDPRT | 329.50K |
| 30 | Centrifugal fan. 风机SLDPRT.SLDPRT | 996.00K |
| 31 | Chain net unit 链网.SLDASM | 7.88M |
| 32 | Chain net unit 链网单元(逆时针）.SLDPRT | 6.25M |
| 33 | Chain net unit 链网单元(顺时针）.SLDPRT | 3.81M |
| 34 | Chain of 链片.SLDPRT | 1.10M |
| 35 | Cistern flange gasket 水槽法兰密封垫.SLDPRT | 255.50K |
| 36 | Cistern power period of combination 水槽动力段组合.SLDASM | 5.12M |
| 37 | CKZJ1251plate.sldprt | 160.50K |
| 38 | Combination sink 水槽组合.SLDASM | 343.00K |
| 39 | Connecting piece 连接件.SLDPRT | 273.50K |
| 40 | Connecting plate接板.SLDPRT | 219.00K |
| 41 | Connection bridge 连接桥架.SLDASM | 338.00K |
| 42 | Connection end plate 连接端板.SLDPRT | 390.00K |
| 43 | Connection tube 连接方管.SLDPRT | 229.50K |
| 44 | Connector 连接器.SLDASM | 325.50K |
| 45 | connector 连接器.SLDPRT | 315.50K |
| 46 | Cooler bolt connection 冷却器螺接.SLDPRT | 1.08M |
| 47 | Cooler fixed linking piece冷却器固定压板.SLDPRT | 280.00K |
| 48 | Cooler group冷却器组.SLDASM | 1.63M |
| 49 | Cooler stents冷却器支架.SLDPRT | 533.50K |
| 50 | cooler冷却器.SLDPRT | 313.00K |
| 51 | cover 上盖.SLDPRT | 456.00K |
| 52 | cross recessed hex bolts indentation gb.sldprt | 718.00K |
| 53 | CSPJbody12513body.sldprt | 323.50K |
| 54 | Different diameter three 异径三通.SLDPRT | 438.50K |
| 55 | Door (right away) 门（右开）.SLDPRT | 441.50K |
| 56 | Door pin 门销.SLDPRT | 218.00K |
| 57 | Down the front panel 下前面板.SLDPRT | 291.00K |
| 58 | Dynamic axis 动力轴.SLDPRT | 277.00K |
| 59 | Electric cabinet gusset plate 电控箱扣板.SLDPRT | 288.50K |
| 60 | Electric control cabinet body 电控柜主体.SLDPRT | 1.40M |
| 61 | Electric control cabinet combination 电控柜组合.SLDASM | 772.50K |
| 62 | Electricity ark thread board 电柜螺纹板.SLDPRT | 223.00K |
| 63 | Fan flange. 出风口SLDPRT.SLDPRT | 312.50K |
| 64 | Fixed plate 固定板.SLDPRT | 271.00K |
| 65 | floor 底板.SLDPRT | 311.00K |
| 66 | Forward panel 上前面板.SLDPRT | 376.00K |
| 67 | GB_FASTENER_NUT_SNC1 M6-N.sldprt | 531.00K |
| 68 | GB_FASTENER_SCREWS_HSHCS M6X25-N.sldprt | 228.50K |
| 69 | GB_FASTENER_WASHER_SMWC 6.sldprt | 124.00K |
| 70 | handle 手柄.SLDPRT | 191.50K |
| 71 | Handle 摇手.SLDPRT | 113.50K |
| 72 | hex lobular socket head cap screws-8.8 gb.sldprt | 965.50K |
| 73 | hex socket set screws with flat point gb.sldprt | 428.00K |
| 74 | hexagon flange head tapping screws gb.sldprt | 558.50K |
| 75 | hexagon nuts grade c gb.sldprt | 712.50K |
| 76 | hexagon socket button head screws gb.sldprt | 746.50K |
| 77 | hexagon socket countersunk head screws gb.sldprt | 530.00K |
| 78 | hexagon socket countersunk head screws gb1.SLDPRT | 442.50K |
| 79 | hexagon socket head cap screws gb.sldprt | 1.09M |
| 80 | hexagon weld nuts gb.sldprt | 441.00K |
| 81 | hose 软管.SLDPRT | 244.00K |
| 82 | housing 轴承座.SLDPRT | 451.50K |
| 83 | Inside strengthen version 内侧加强版.SLDPRT | 217.00K |
| 84 | Installation board 安装板.SLDPRT | 272.50K |
| 85 | Jack auxiliary body 千斤顶辅助体.SLDPRT | 273.50K |
| 86 | jack Subject 千斤顶主体.SLDPRT | 247.00K |
| 87 | Lift screw 升降螺杆.SLDPRT | 1.24M |
| 88 | Lifting device 升降器.SLDASM | 1.24M |
| 89 | Lifting device升降器（1）.SLDPRT | 377.50K |
| 90 | Lifting device升降器（2）.SLDPRT | 243.50K |
| 91 | moter flange.SLDPRT | 297.00K |
| 92 | Nets chain ChangXiao 网链长销.SLDPRT | 175.50K |
| 93 | Of stiffened plate 筋板.SLDPRT | 173.50K |
| 94 | Outlet connection board 出风口连接板.SLDPRT | 163.50K |
| 95 | Paragraph shaft 尾段轴.SLDPRT | 266.50K |
| 96 | PE rail PE轨道 动力段.SLDPRT | 152.00K |
| 97 | PE rail PE轨道.SLDPRT | 150.00K |
| 98 | Pipe joint 管接头.SLDPRT | 341.50K |
| 99 | plain washers--product grade c gb.sldprt | 402.00K |
| 100 | plain washers-l series-grades ac gb.sldprt | 205.50K |
| 101 | Plastic handles 塑料手柄.SLDPRT | 299.00K |
| 102 | Plug 1管闷头.SLDPRT | 238.50K |
| 103 | Pool combination 水池组合.SLDASM | 5.72M |
| 104 | Pool connection board 水池连接板.SLDPRT | 288.00K |
| 105 | Pool stents 水池支架.SLDPRT | 632.50K |
| 106 | Pool stents groups 水池支架组.SLDASM | 387.00K |
| 107 | Pools and stents 水池和支架.SLDASM | 6.77M |
| 108 | Positioning pin定位销.SLDPRT | 219.00K |
| 109 | Pull ring 拉手环.SLDPRT | 243.50K |
| 110 | Pulley installation board滑轮安装板.SLDPRT | 249.50K |
| 111 | Pump mounting bracket 水泵安装支架.SLDPRT | 674.50K |
| 112 | Rail Angle iron 轨道角铁 动力段.SLDPRT | 218.00K |
| 113 | Rail Angle iron 轨道角铁.SLDPRT | 201.50K |
| 114 | RV moter .SLDASM | 633.00K |
| 115 | RV speed motor .SLDPRT | 2.01M |
| 116 | Screw plate 螺纹板.SLDPRT | 398.00K |
| 117 | Shaft end gasket 轴端垫圈.SLDPRT | 180.00K |
| 118 | Sink flange 水槽法兰.SLDPRT | 357.50K |
| 119 | Sink for power 水槽动力段.SLDPRT | 340.00K |
| 120 | Sink paragraph combination 水槽尾段组合.SLDASM | 940.50K |
| 121 | Sink paragraph 水槽尾段.SLDPRT | 326.00K |
| 122 | Sink the endplate 尾端水槽端板.SLDPRT | 265.00K |
| 123 | Sink the endplate 水槽端板.SLDPRT | 265.50K |
| 124 | Slipknot 活扣.SLDPRT | 283.50K |
| 125 | Spray 喷淋.SLDASM | 2.21M |
| 126 | spring lock washers--normal type gb.sldprt | 323.50K |
| 127 | sprocket 链轮.SLDPRT | 780.00K |
| 128 | Square nut 方螺母.SLDPRT | 173.00K |
| 129 | Stent board 支架内板.SLDPRT | 509.50K |
| 130 | Stent outer plate支架外板.SLDPRT | 517.50K |
| 131 | Stents groups 支架组.SLDASM | 785.00K |
| 132 | Tension adjusting fixing piece 涨紧调整固定件.SLDPRT | 2.90M |
| 133 | Tension adjusting plate 涨紧调整板.SLDPRT | 303.50K |
| 134 | The ferrule 套圈.SLDPRT | 228.00K |
| 135 | The hinge 外铰链.SLDPRT | 239.50K |
| 136 | the jack 千斤顶组.SLDASM | 216.00K |
| 137 | The machine 风机组.SLDASM | 994.00K |
| 138 | The spray head 喷淋头.SLDPRT | 563.00K |
| 139 | The supporting plate 2 撑板2.SLDPRT | 142.00K |
| 140 | The track 道轨.SLDASM | 161.00K |
| 141 | The wind machine plate 风机下板.SLDPRT | 387.50K |
| 142 | Threading hole plate 穿线孔盖板.SLDPRT | 337.00K |
| 143 | To pin set 地销套.SLDPRT | 177.50K |
| 144 | To pin 地销.SLDPRT | 150.00K |
| 145 | Tube 管.SLDPRT | 139.50K |
| 146 | UCFLU bearing housing.SLDPRT | 460.50K |
| 147 | under tank.SLDPRT | 701.00K |
| 148 | 【机械 工程 建筑 工业 自动化学习资料库 免费共享】.url | 124B |
| 149 | 吸水管过滤管.SLDPRT | 5.55M |
| 150 | 水泵马达.SLDPRT | 1.12M |
| 151 | 球阀.SLDASM | 317.00K |
| 152 | 球阀2.SLDPRT | 525.00K |
| 153 | 球阀3.SLDPRT | 312.50K |
| 154 | 等径90°弯头II系列长半径50[GB／T12459-2005].SLDPRT | 277.00K |
| 155 | 镜向The hinge 外铰链.SLDPRT | 79.50K |
| 156 | 镜向镜向The hinge 外铰链.SLDPRT | 80.00K |
此图纸下载需要100金币
立即下载
发布者
勤劳的猎豹v17329337329
创作: 15228
粉丝: 63
加入时间：2022-04-20
模型信息
图纸格式：sldprt,sldasm
文件大小：90.92M
所需金币：100
上传时间：2022-05-22 16:01:40
是否可编辑：可修改，包括参数
版本：SOLIDWORKS 2011
标签
图纸简介
版权说明
用户在本站上传的作品如侵犯到您的权益，请与本站管理员联系删除。用户在本站下载的原创作品，只拥有作品的使用权，著作权归原作者所有，未经合法授权，用户不得以任何形式发布、传播、复制、转售该作品。
