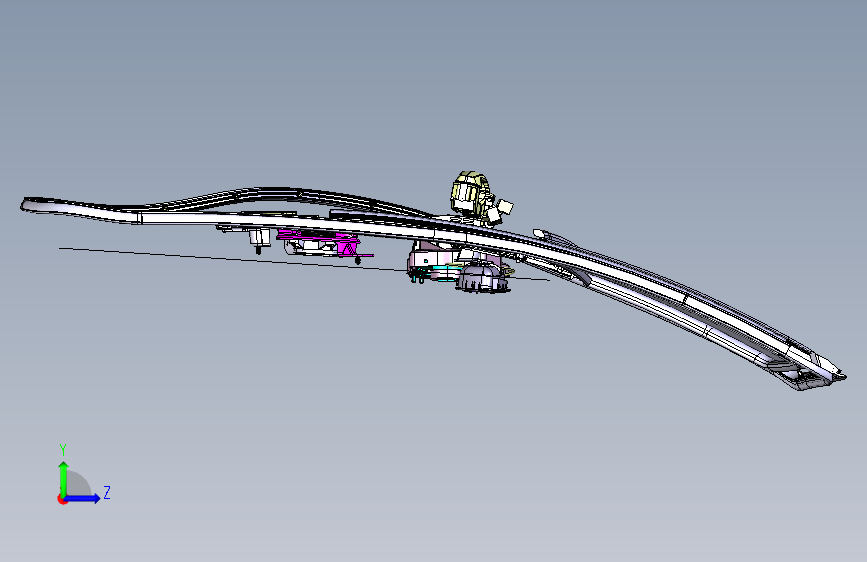

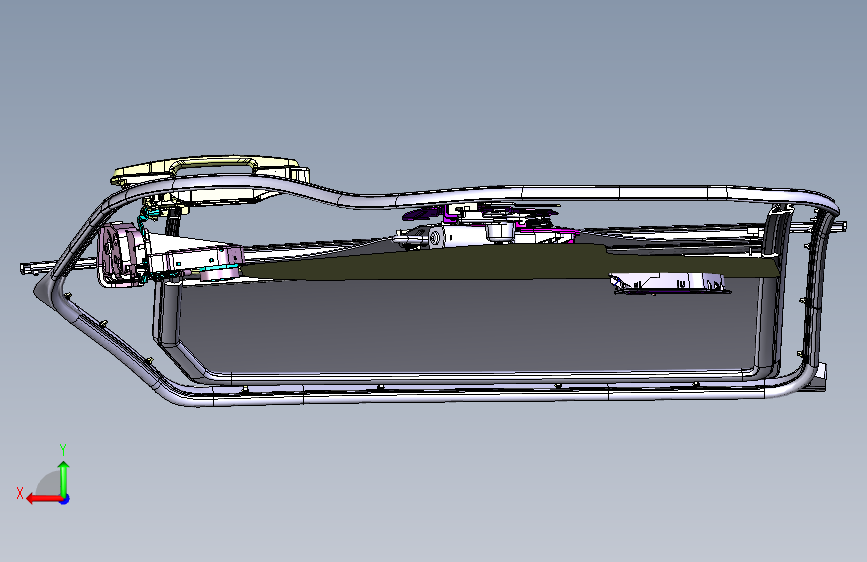

海马CE-1 右后车门附件装置 (2)（ID:2808482）

机械设备 / 非标机械 / 海马CE-1 右后车门附件装置 (2)

©非原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	17624419076616.zip	98.26M
2	01811743_ACESSORIES_RR_DR.CATProduct	76.63K
3	01811744_WATER_RETAINING_FILM_RH_RR.CATPart	358.15K
4	01811745_WEATHER_STRIP_DEVICE_RR_DR.CATProduct	32.65K
5	01811746_WEATHER_STRIP_DOOR_ASSY_RH_RR.CATPart	25.79M
6	01811747_WINDOW_GLASS_GUIDE_DOOR_RH_RR.CATPart	18.59M
7	01811748_OUTER_WEATEHR_STRIP_DOOR_GLASS_RH_RR.CATPart	5.27M
8	01811749_INNER_WEATHER_STRIP_DOOR_GLASS_RH_RR.CATPart	2.58M
9	01811753_LOCK_ASSY-DOOR_RH_RR.CATProduct	25.38K
10	01811755_OUTER_OPENING_HANDLE_ASSY_DOOR_RH_RR.CATPart	10.24M
11	01811756_INNER_OPENING_HANDLE_ASSY_DOOR_RH_RR.CATPart	12.32M
12	01811757_WINDOW_REGULATOR_RR_DR.CATProduct	18.06K
13	01811758_WINDOW_REGULATOR_ASSY_RR_DR.CATPart	23.59M
14	01811760_GLASS_SUB_ASSY_DOOR_RH_RR.CATPart	2.17M
15	01811839_WINDOW_REGULATOR_ASSY_RR_DR.CATPart	31.05M
16	01814365_RR_DOOR_INNER_RELEASE_CABLE_ASSY1.CATPart	815.25K
17	01814367_RR_DOOR_INNER_LOCKING_CABLE_ASSY_RH.CATPart	812.70K
18	01814636_ACESSORIES_RR_DR.CATProduct	44.26K
19	01814637_WINDOW_REGULATOR_RR_DR.CATProduct	24.85K
20	01814639_WINDOW_REGULATOR_RR_DR.CATProduct	21.51K
21	1810532_LOCK_ASSY_DOOR_RH_RR.CATPart	61.94M
