门式起重机（ID:284152）

查找相似图纸

机械设备 / 工程机械 / 门式起重机

©非原创

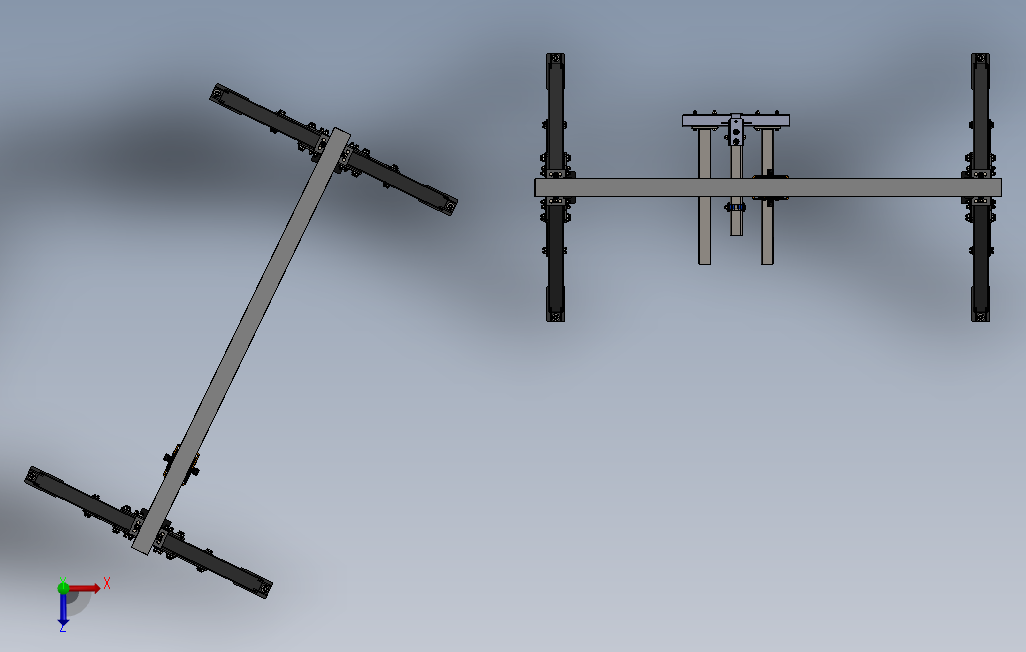

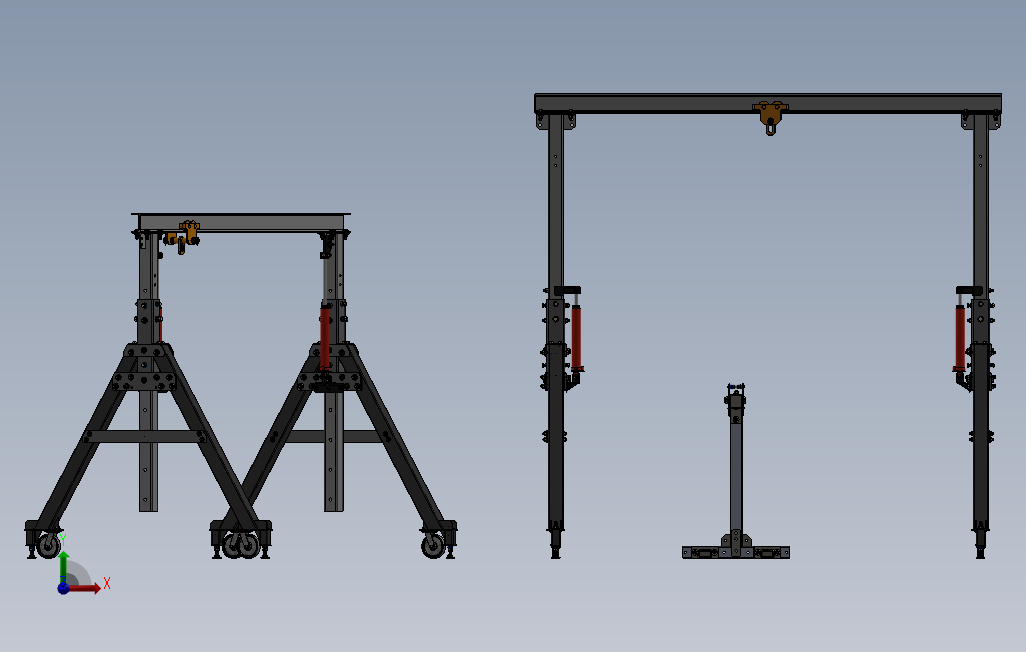

平面图

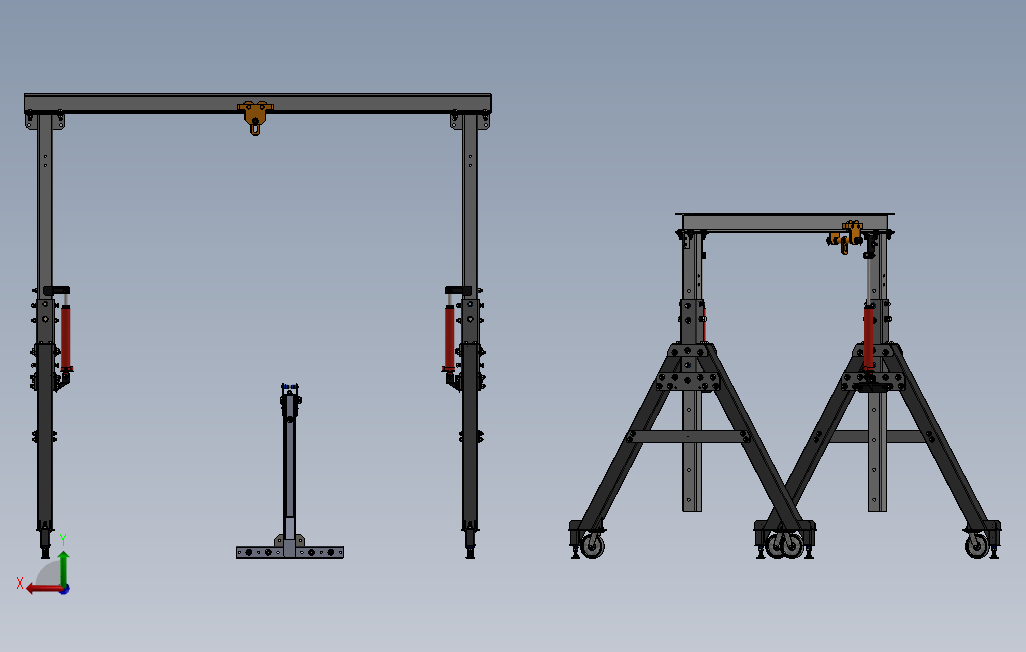

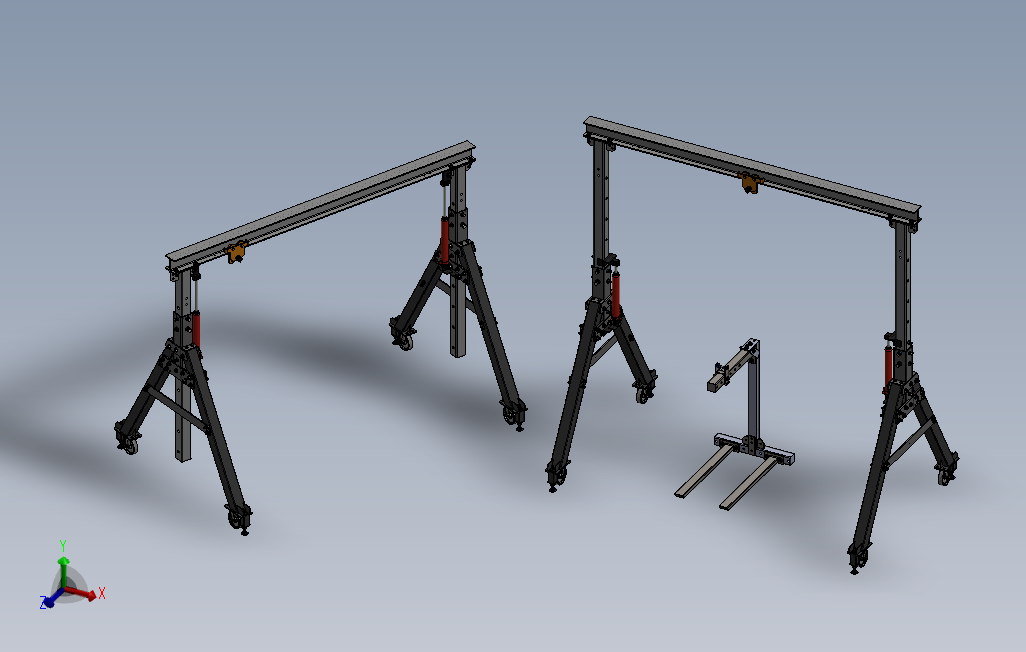

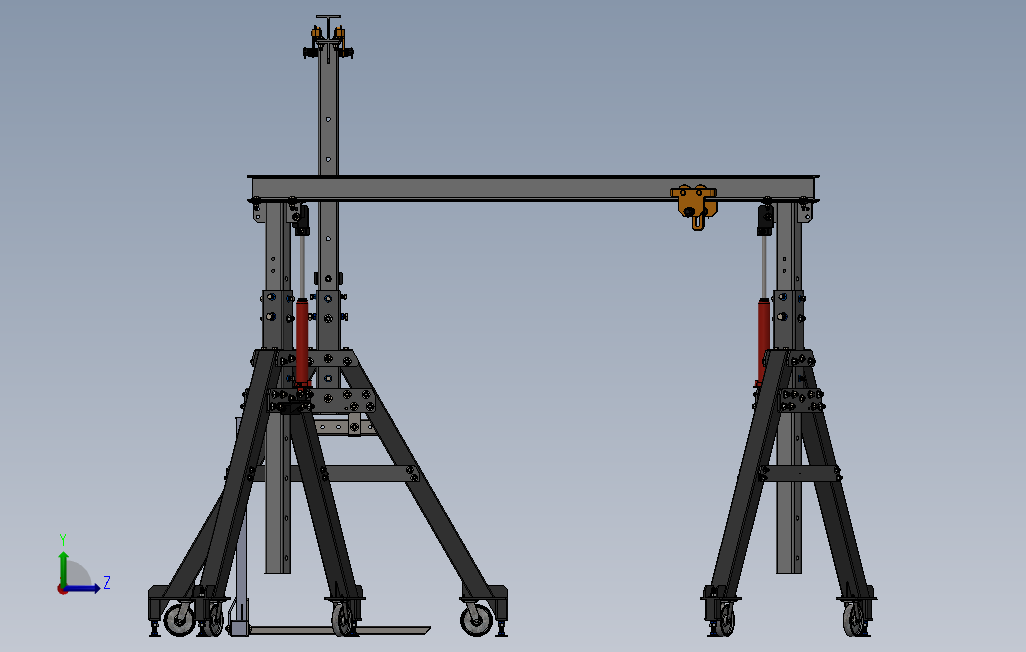

3D视图

文件列表

截图

AI截图渲染

✨AI图片渲染

#	文件名称	文件大小
1	.STEP GANTRY HOIST CRANE.STEP	16.52M
2	8inch Caster Wheel.SLDPRT	404.21K
3	ALL-THREAD 0.750 FASTENER-1.SLDASM	346.87K
4	All-Thread 0.750-1.SLDPRT	274.22K
5	All-Thread 0.750-2.SLDPRT	256.28K
6	ALL-THREAD 0.875 FASTENER-1.SLDASM	362.40K
7	ALL-THREAD 0.875 FASTENER-2.SLDASM	368.53K
8	All-Thread 0.875-1.SLDPRT	270.39K
9	All-Thread 0.875-2.SLDPRT	274.46K
10	Angle Hydraulic Mount.SLDDRW	76.73K
11	Angle Hydraulic Mount.SLDPRT	105.70K
12	Bolt Welded in Ram Lift.SLDPRT	269.68K
13	Bolt-01 0.375.SLDPRT	492.48K
14	Bolt-01 0.625.SLDPRT	415.37K
15	Bolt-01 0.750.SLDPRT	493.95K
16	Bolt-01 1.000.SLDPRT	145.74K
17	Bolt-02 0.375.SLDPRT	353.48K
18	Bolt-02 0.625.SLDPRT	426.64K
19	Bolt-02 0.750.SLDPRT	150.42K
20	Bolt-02 0.875.SLDPRT	372.20K
21	Bolt-03 0.625.SLDPRT	435.21K
22	Bolt-03 0.750.SLDPRT	435.46K
23	BOLT-ON CENTER CONNECTION UNIT.SLDASM	1.12M
24	BOLT-ON SIDE STANCHION HIGH.SLDASM	3.32M
25	BOLT-ON SIDE STANCHION LOW.SLDASM	3.20M
26	BOLT-ON SIDE STANCHION ON FLOOR.SLDASM	3.21M
27	BOLT-ON SIDE STANCHION.SLDASM	3.20M
28	BOLT-ON SIDE V-LEG.SLDASM	1.09M
29	BOLT-ON UPRIGHT TUBING UNIT.SLDASM	278.36K
30	Bronze-Washer.SLDPRT	135.49K
31	Center Outer Tubing.SLDPRT	326.08K
32	Cotter Pin.SLDPRT	124.99K

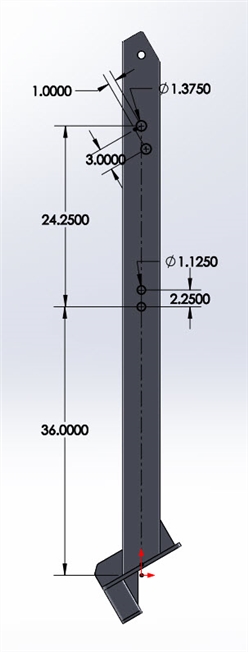

33	cross-bar-hole-dim-3.jpg	22.07K
34	Drawing UpperMost Ram Bracket.SLDDRW	127.04K
35	FOOD PAD THREADED UNIT.SLDASM	472.52K
36	Food Pad.SLDPRT	104.71K

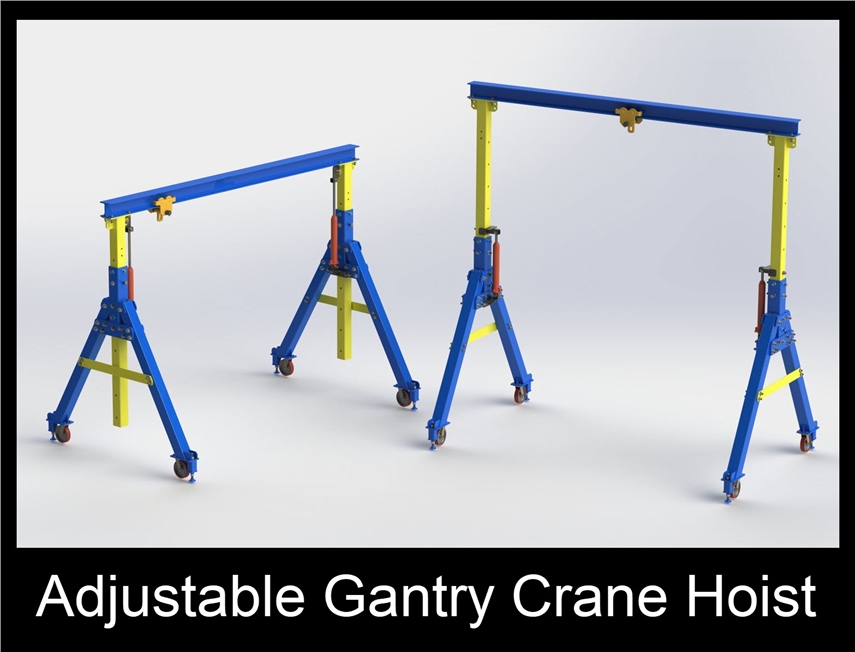

37	Gantry Crane Hoist GrabCAD Title.jpg	140.37K
38	GANTRY HOIST 06-10-2015.SLDASM	2.75M

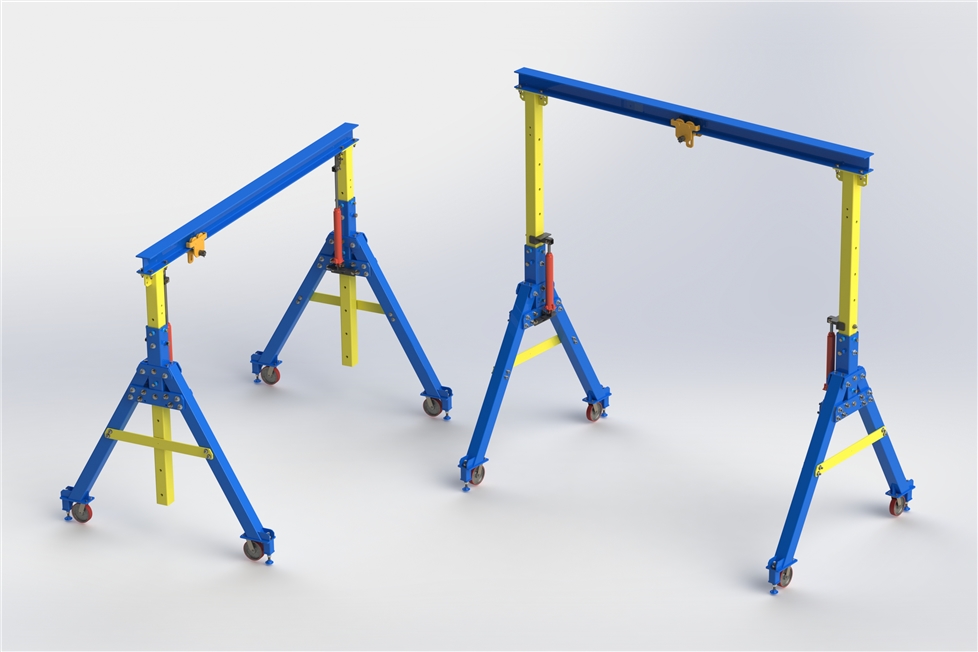

39	Gantry Hoist Crane Solidworks CAD.JPG	1.82M

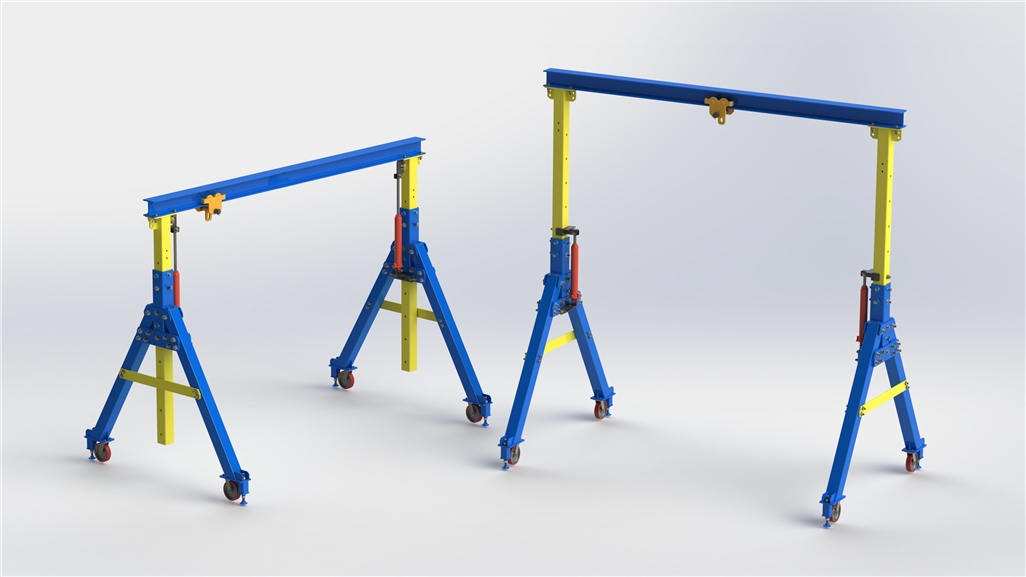

40	Gantry Hoist Crane Solidworks Render.JPG	2.54M

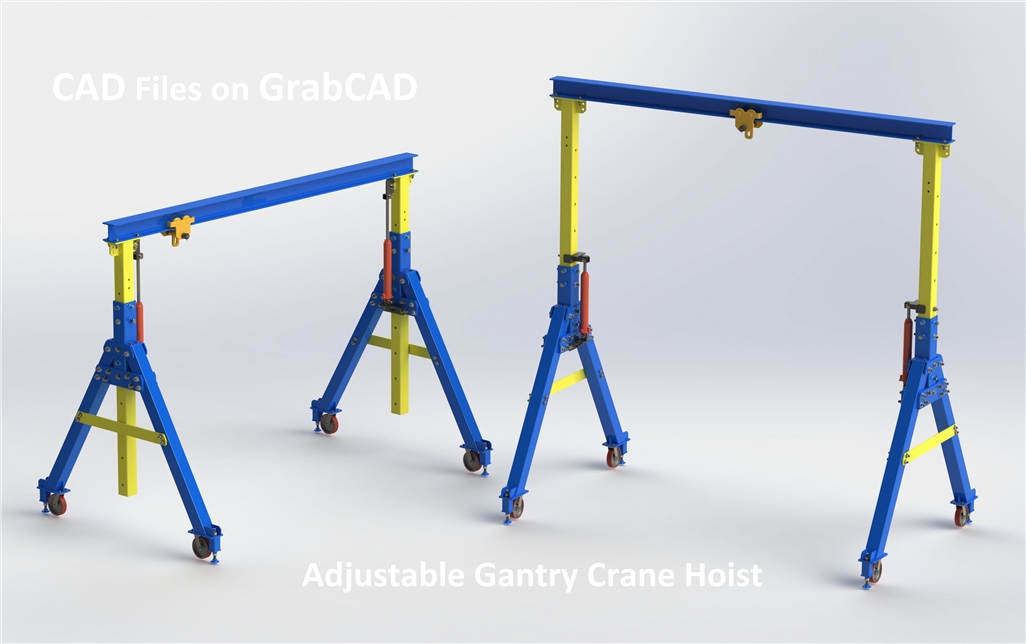

41	Gantry Hoist Crane Solidworks.JPG	329.43K
42	GANTRY HOIST Floor Position.SLDASM	4.71M
43	GANTRY HOIST High Position.SLDASM	3.95M
44	GANTRY HOIST Low Position.SLDASM	3.85M

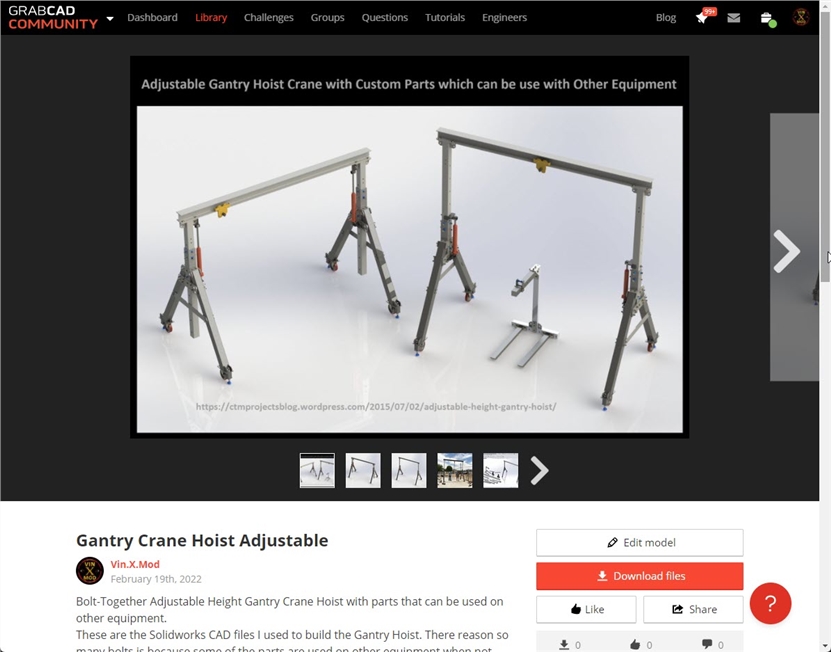

45	GrabCAD Download for Gantry Crane.jpg	111.42K

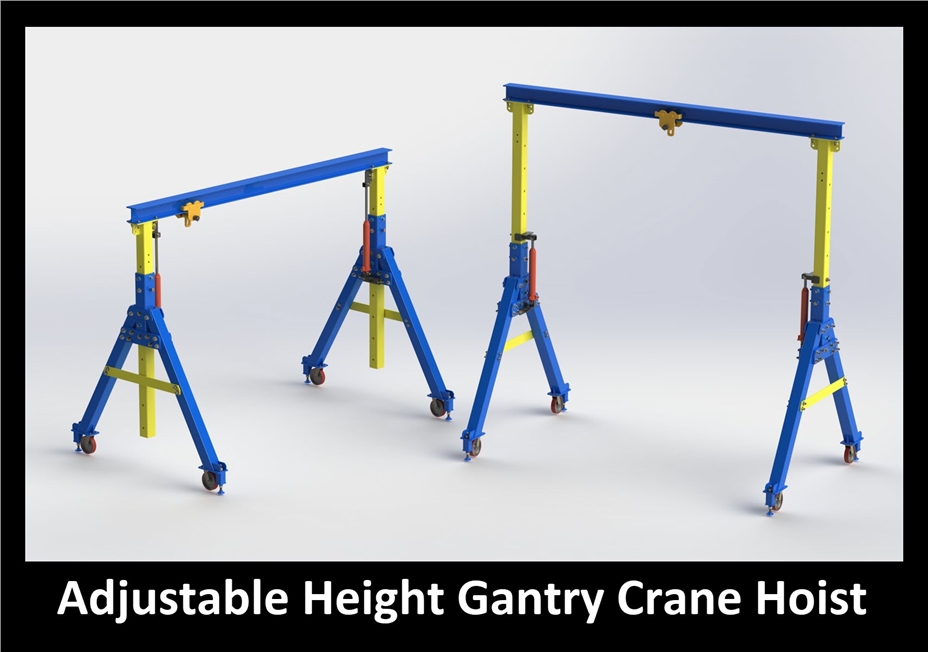

46	GrabCAD Gantry Crane Hoist.jpg	138.87K
47	HIGH POSITION MOUNT BRACKET.SLDASM	242.46K

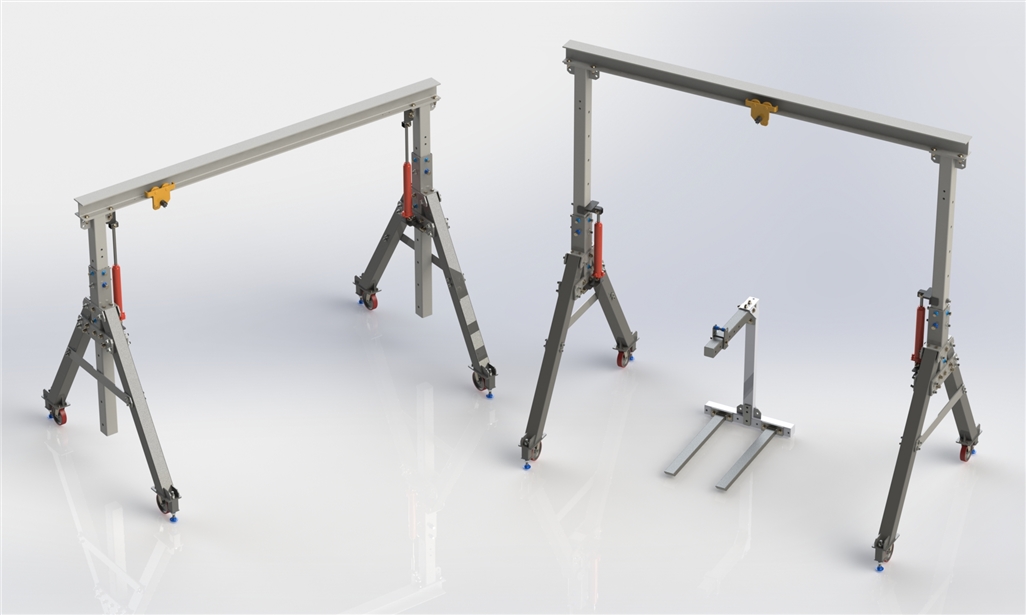

48	high-and-low-position-rendering.jpg	710.27K

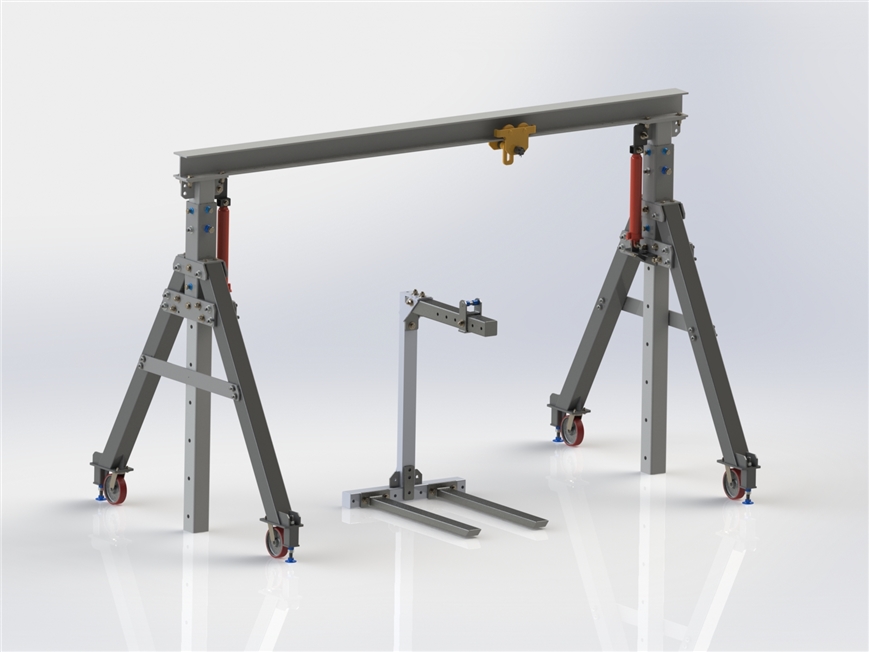

49	hoist-on-floor-rendering.jpg	559.96K
50	I-Beam 13ft.SLDPRT	175.74K
51	I-Beam Trolley.SLDASM	704.04K
52	IGES GANTRY HOIST CRANE.IGS	41.32M

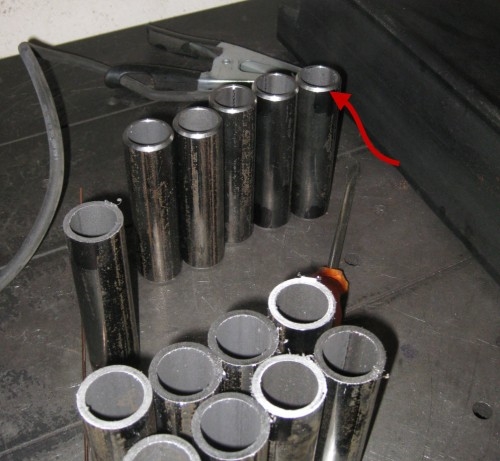

53	inner-hole-tubing.jpg	53.44K

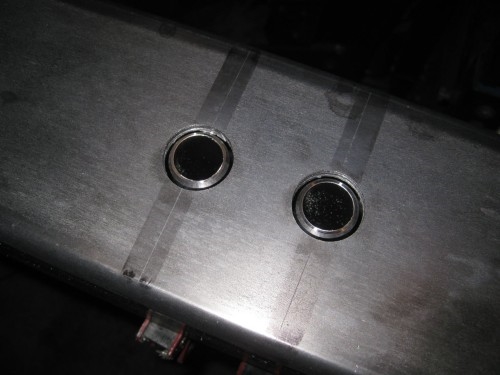

54	inner-tubing-ready-to-weld.jpg	34.29K

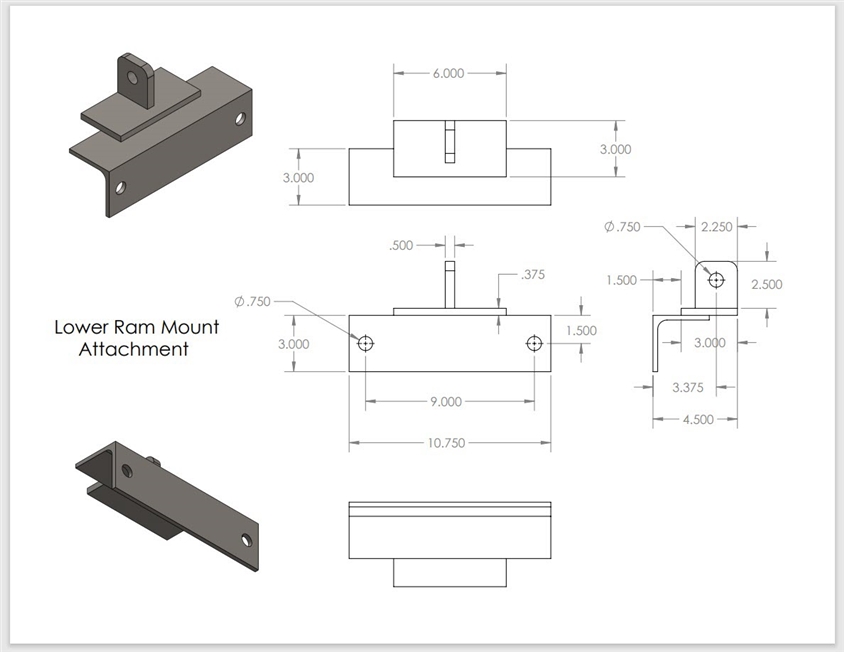

55	Leg Mount Plate 6 inch.SLDPRT	97.35K
56	Lower Ram Mount Attachment.jpg	69.88K

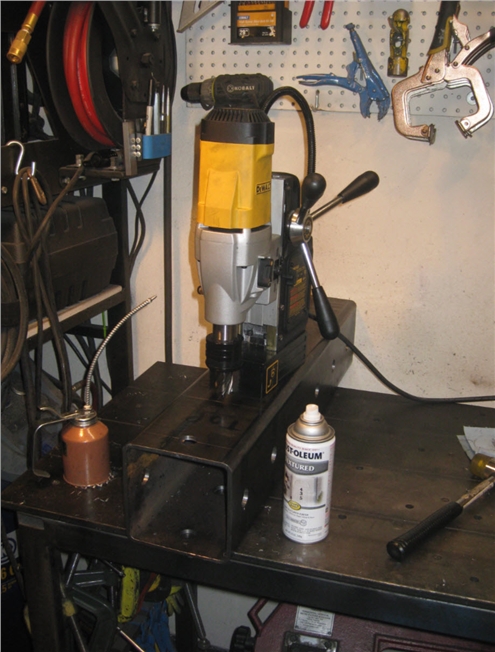

57	magdrill-holes-1.jpg	171.04K
58	Main Vert SqTubing.SLDPRT	192.36K
59	Nut 0.875 Galv.SLDPRT	209.36K
60	Nut 0.875.SLDPRT	271.61K
61	Nut Steel 0.750.SLDPRT	179.59K

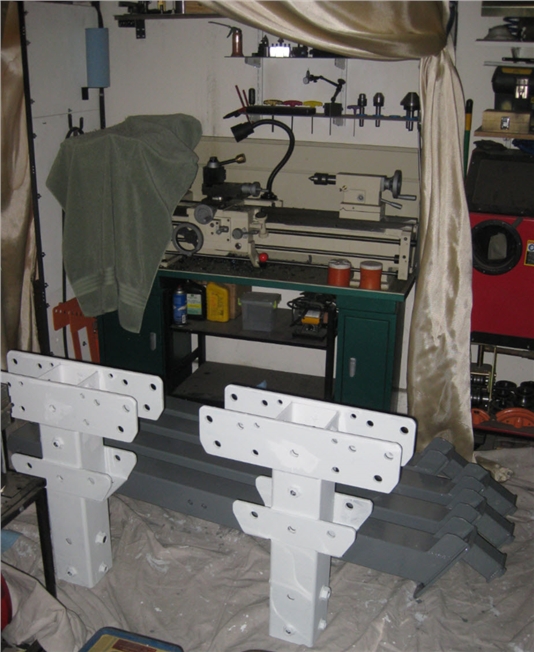

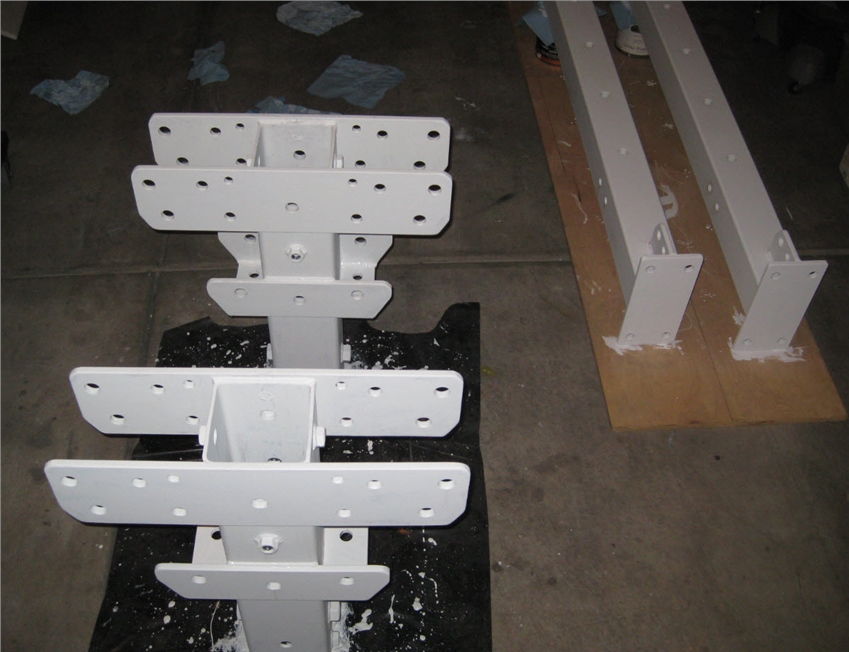

62	painting-1.jpg	142.44K

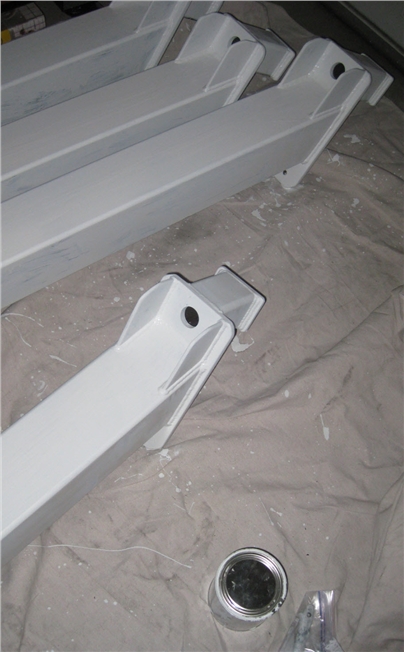

63	painting-2.jpg	160.40K
64	painting-3.jpg	152.53K
65	PALLET FORKS ASSEMBLY.SLDASM	970.23K
66	PDF Ram Attachments.PDF	94.99K
67	PDF Upper Ram Lift Attachment.PDF	26.33K
68	PDF UpperMost Ram Bracket.PDF	122.92K

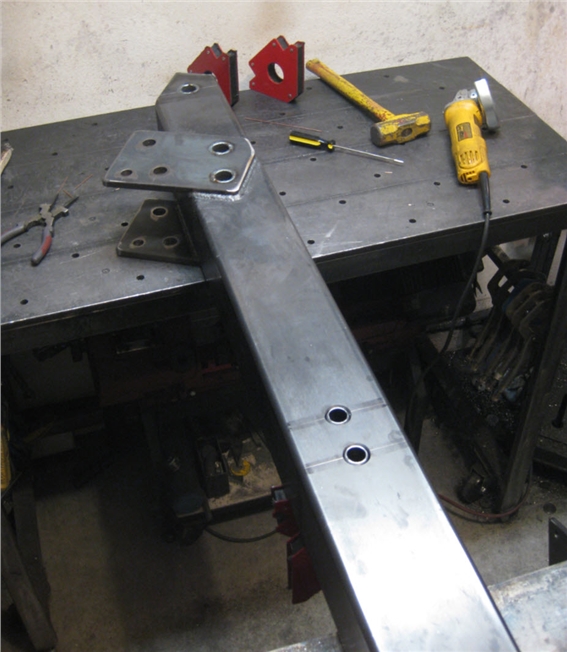

69	pipeholes-2.jpg	122.75K
70	Ram Body HF60315.SLDPRT	557.76K
71	Ram Lift Attachment-1.SLDPRT	155.66K
72	RAM LIFT.SLDASM	35.42K
73	Ram Shaft HF60315.SLDPRT	65.58K
74	Raw Steel Nut 1.000.SLDPRT	242.97K
75	Side Flatbar V-Brace.SLDPRT	97.26K
76	Side V-SqTubing.SLDPRT	389.87K
77	Snap Ring.SLDPRT	179.08K

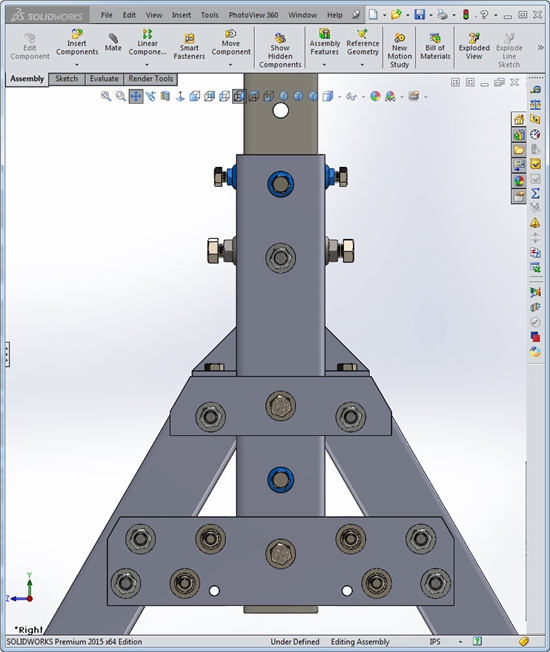

78	solidworks-metal-thing.jpg	148.88K
79	SW Hoist Versions.SLDASM	4.88M

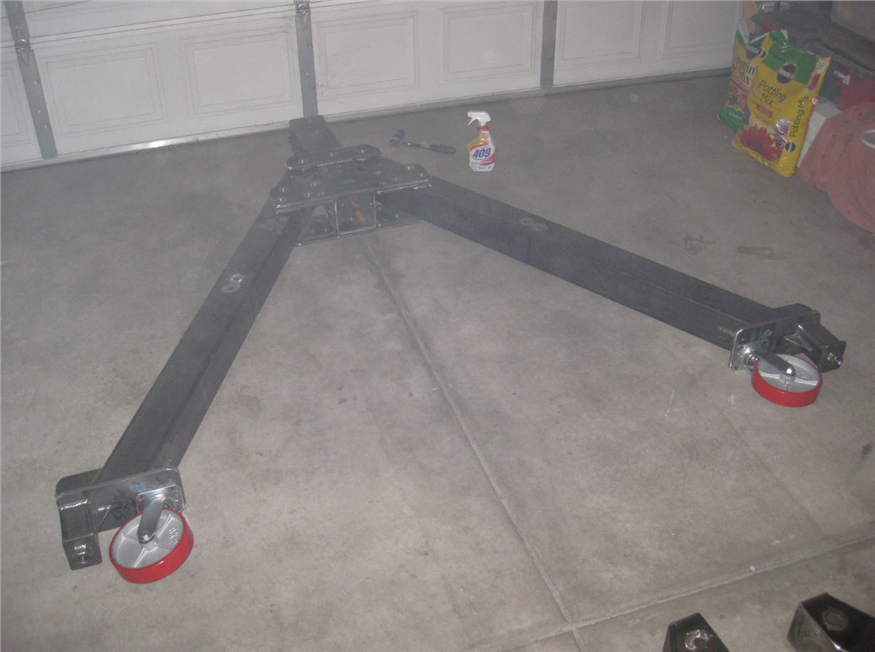

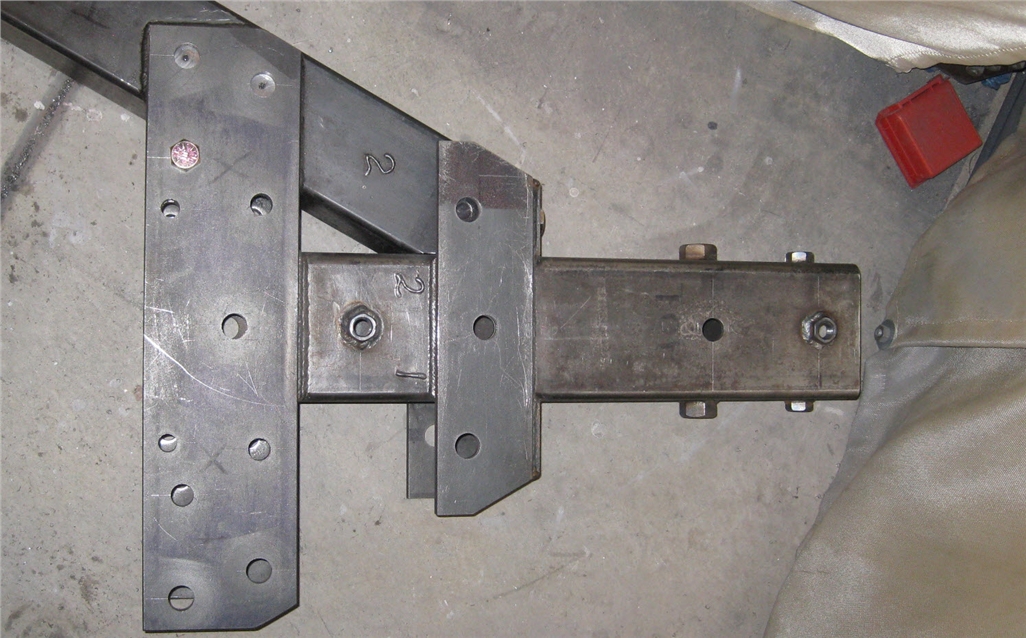

80	testing-fitup.jpg	327.42K

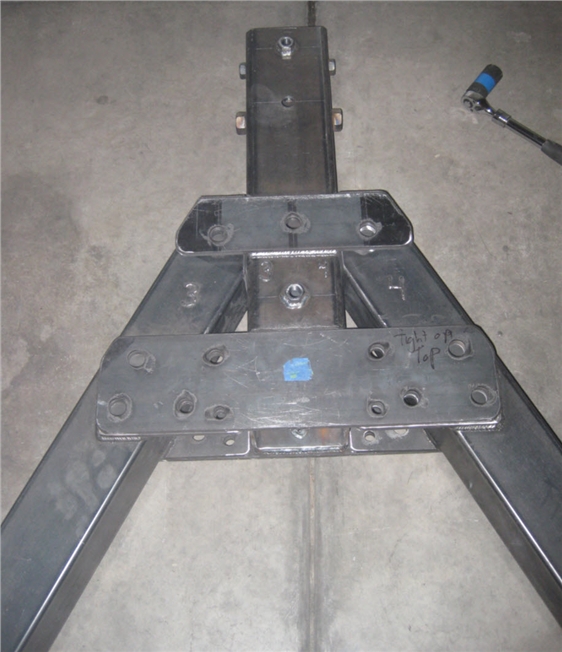

81	testing-leg-fitup.jpg	114.28K
82	testing-side-fitup.jpg	135.47K

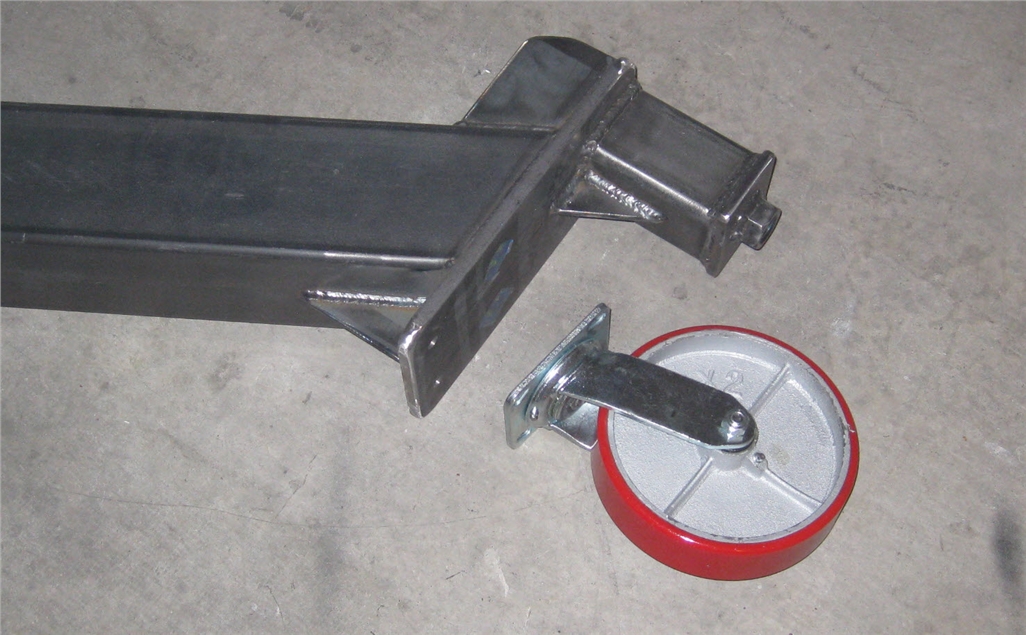

83	testing-wheel-fitup.jpg	231.00K
84	Threaded 1inch Rod.SLDPRT	305.67K
85	Trolley Center Shaft.SLDPRT	142.40K
86	Trolley Hanger.SLDPRT	202.15K
87	Trolley Nut.SLDPRT	500.38K
88	TROLLEY SIDE.SLDASM	166.16K
89	Trolley Side.SLDPRT	253.89K
90	Trolley Wheel.SLDPRT	113.66K
91	Upper Ram Lift Attachment.SLDDRW	72.43K
92	UpperMost Ram Bracket.SLDPRT	135.91K
93	Washer 0.750.SLDPRT	154.70K
94	Washer 0.875 Galv.SLDPRT	256.39K
95	Washer 0.875.SLDPRT	134.50K
96	Washer 1.000.SLDPRT	163.04K
97	Washer Shaft.SLDPRT	98.78K
98	WASHERS GROUP.SLDASM	132.27K
99	Weld Nut 0.750.SLDPRT	228.12K
100	Weld Nut 1.000.SLDPRT	231.46K

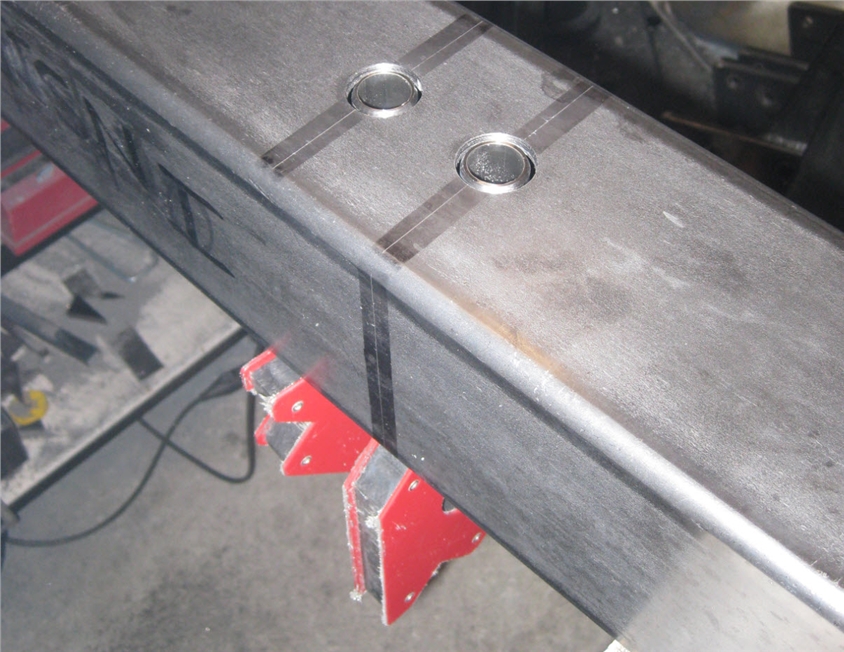

101	welding-inner-hole-tubing.jpg	210.83K
