9英寸带锯（ID:2879254）
截图
AI截图渲染
✨AI图片渲染
0.png)
3.png)
4.png)
1.png)
2.png)
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 17656174719183.zip | 52.50M |
| 2 | bandsaw.png | 53.61K |

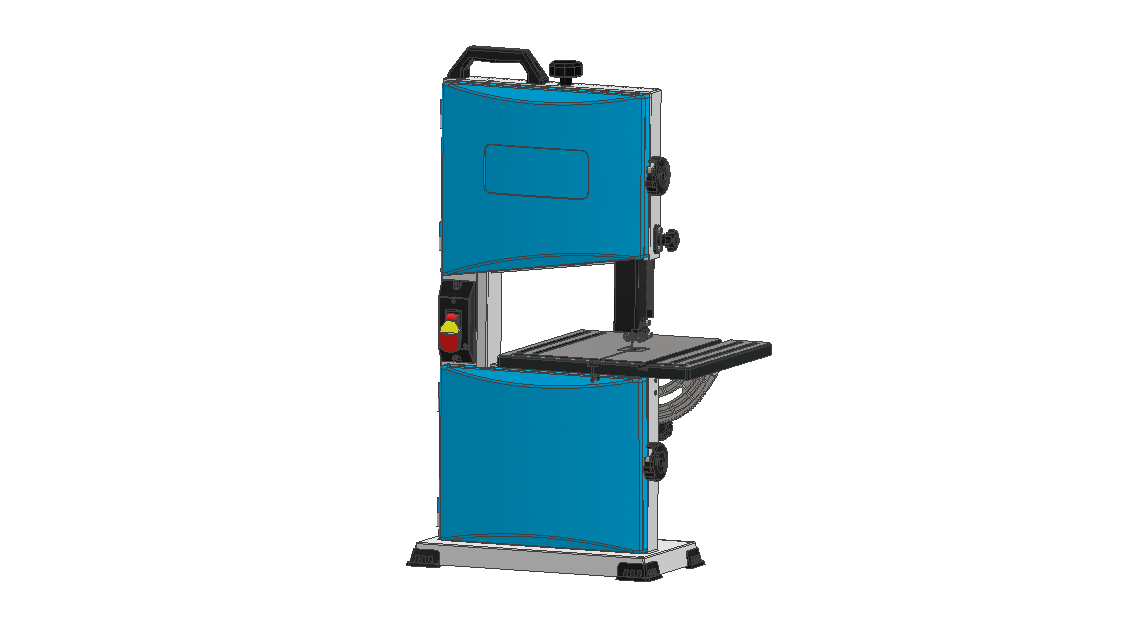

| 3 | bandsaw1.png | 48.15K |
| 4 | bandsaw2.png | 83.04K |
| 5 | bandsawback.png | 52.76K |
| 6 | 帶鋸機.stp | 15.99M |
| 7 | 帶鋸機爆炸圖.dwg | 2.85M |
| 8 | 10mm彈簧墊片.ipt | 162.50K |
| 9 | 14x5mm軸承.ipt | 118.00K |
| 10 | 17x6mm軸承.ipt | 117.00K |
| 11 | 26x10mm軸承6000zz型.ipt | 117.50K |
| 12 | 5mm彈簧墊片.ipt | 176.00K |
| 13 | 8mm圓柱銷.ipt | 83.00K |
| 14 | 8mm彈簧墊片.ipt | 164.00K |
| 15 | D形螺帽.ipt | 94.00K |
| 16 | M10x1.5.ipt | 167.00K |
| 17 | M12防鬆螺帽.ipt | 191.50K |
| 18 | M4x10十字螺絲.ipt | 173.00K |
| 19 | M4x6止付螺絲.ipt | 172.50K |
| 20 | M4墊片-OD9.ipt | 95.50K |
| 21 | M5x10.ipt | 196.50K |
| 22 | M5x10十字螺絲.ipt | 170.00K |
| 23 | M5x12.ipt | 194.50K |
| 24 | M5x14.ipt | 192.00K |
| 25 | M5x16.ipt | 192.00K |
| 26 | M5x6止付螺絲.ipt | 173.50K |
| 27 | M5x8.ipt | 197.50K |
| 28 | M5x8十字螺絲.ipt | 177.00K |
| 29 | M5台階螺絲.ipt | 147.00K |
| 30 | M5墊片-OD10.ipt | 96.00K |
| 31 | M5方形螺帽.ipt | 91.50K |
| 32 | M5軸承銷桿螺釘.ipt | 198.50K |
| 33 | M5齒墊.ipt | 163.50K |
| 34 | M6x10.ipt | 196.00K |
| 35 | M6x10十字螺絲.ipt | 170.50K |
| 36 | M6x12.ipt | 194.00K |
| 37 | M6x16.ipt | 192.50K |
| 38 | M6x16外六角.ipt | 195.50K |
| 39 | M6x16蝴蝶螺絲.ipt | 240.50K |
| 40 | M6x22.ipt | 194.00K |
| 41 | M6墊片-OD12.ipt | 96.00K |
| 42 | M6墊片-OD18.ipt | 95.50K |
| 43 | M6螺帽.ipt | 172.50K |
| 44 | M6襯套.ipt | 114.50K |
| 45 | M6防鬆螺帽.ipt | 203.00K |
| 46 | M8x14.ipt | 195.00K |
| 47 | M8x25.ipt | 192.50K |
| 48 | M8x65方頸螺栓.ipt | 123.00K |
| 49 | M8x80方頸螺栓.ipt | 119.50K |
| 50 | M8墊片-OD16.ipt | 85.00K |
| 51 | M8墊片-OD24.ipt | 87.00K |
| 52 | M8蓋頭螺帽.ipt | 206.50K |
| 53 | OD2.9-9.5mm螺絲.ipt | 165.00K |
| 54 | OD3-9mm螺絲.ipt | 166.50K |
| 55 | OD4.8-13mm自攻螺絲.ipt | 162.00K |
| 56 | 上蓋.ipt | 399.50K |
| 57 | 上輪盤.ipt | 375.50K |
| 58 | 上輪盤軸.ipt | 121.00K |
| 59 | 下蓋.ipt | 398.50K |
| 60 | 下輪盤.ipt | 364.00K |
| 61 | 下輪盤軸.ipt | 125.50K |
| 62 | 任意把手.ipt | 296.50K |
| 63 | 偏心輪.ipt | 137.00K |
| 64 | 偏心輪軸.ipt | 140.00K |
| 65 | 偏擺旋鈕壓縮彈簧.ipt | 276.00K |
| 66 | 偏擺調整旋鈕.ipt | 334.50K |
| 67 | 出塵管.ipt | 198.50K |
| 68 | 台嵌.ipt | 178.00K |
| 69 | 塞子.ipt | 106.00K |
| 70 | 壓縮彈簧.ipt | 616.50K |
| 71 | 孔用擋圈.ipt | 115.50K |
| 72 | 導塊擋板.ipt | 215.00K |
| 73 | 導軌.ipt | 839.00K |
| 74 | 導軌徑向軸承座上.ipt | 254.50K |
| 75 | 導軌徑向軸承座下.ipt | 257.50K |
| 76 | 導軌檔板.ipt | 157.50K |
| 77 | 導軌滑塊.ipt | 143.00K |
| 78 | 導軌護蓋.ipt | 240.50K |
| 79 | 導軌護蓋彈簧.ipt | 448.50K |
| 80 | 導軌軸向軸承座上.ipt | 107.00K |
| 81 | 導軌軸向軸承座下.ipt | 101.50K |
| 82 | 導軌高度調整旋鈕.ipt | 353.50K |
| 83 | 導軌高度調整旋鈕襯套.ipt | 127.50K |
| 84 | 導軌高度鎖定塊.ipt | 111.00K |
| 85 | 導軌高度鎖定旋鈕.ipt | 338.00K |
| 86 | 導軌齒輪.ipt | 266.00K |
| 87 | 工作台.ipt | 1.69M |
| 88 | 工作台旋轉把手.ipt | 504.50K |
| 89 | 帶鋸機.iam | 2.91M |
| 90 | 從動齒輪.ipt | 370.50K |
| 91 | 微調把手.ipt | 341.50K |
| 92 | 微調支架.ipt | 186.50K |
| 93 | 把手.ipt | 497.00K |
| 94 | 拉不脫M16.ipt | 226.00K |
| 95 | 指針.ipt | 153.00K |
| 96 | 旋轉座.ipt | 1.08M |
| 97 | 旋轉把手螺栓.ipt | 128.50K |
| 98 | 本體.ipt | 1.25M |
| 99 | 橡膠輪圈.ipt | 87.00K |
| 100 | 止推墊圈.ipt | 190.50K |
| 101 | 毛刷.ipt | 170.50K |
| 102 | 毛刷隔套.ipt | 96.00K |
| 103 | 波形墊圈.ipt | 541.50K |
| 104 | 海綿墊圈.ipt | 99.50K |
| 105 | 漲鬆把手.ipt | 101.00K |
| 106 | 漲鬆把手座.ipt | 139.50K |
| 107 | 皮帶.ipt | 613.00K |
| 108 | 腳墊.ipt | 231.50K |
| 109 | 軸用擋圈.ipt | 115.00K |
| 110 | 輪盤支架.ipt | 175.00K |
| 111 | 鋸帶下護蓋.ipt | 270.00K |
| 112 | 鋸帶導塊下.ipt | 220.00K |
| 113 | 鋸帶張力彈簧.ipt | 714.00K |
| 114 | 鋸條.ipt | 1.25M |
| 115 | 門把.ipt | 653.00K |
| 116 | 開關.ipt | 566.50K |
| 117 | 開關蓋板.ipt | 415.50K |
| 118 | 開關面板.ipt | 98.00K |
| 119 | 限位軸套.ipt | 118.00K |
| 120 | 電源線.ipt | 338.00K |
| 121 | 馬達.ipt | 1.40M |
| 122 | 馬達齒輪.ipt | 302.50K |
此图纸下载需要5金币
立即下载
发布者
过了夏天就立秋
创作: 137747
粉丝: 383
加入时间：2022-04-21
模型信息
图纸ID：2879254
图纸格式：stp,dwg,ipt,iam
文件大小：53.76M
所需金币：5
上传时间：2025-12-13 17:17:59
是否可编辑：可修改，包括参数
软件版本：Inventor 2022
