旋转吹瓶机模架--1352415--1200（ID:2886800）

机械设备 / 非标机械 / 旋转吹瓶机模架--1352415--1200

©非原创

平面图

3D视图

文件列表

截图

AI截图渲染

✨AI图片渲染

#	文件名称	文件大小
1	176628330742.zip	6.29M

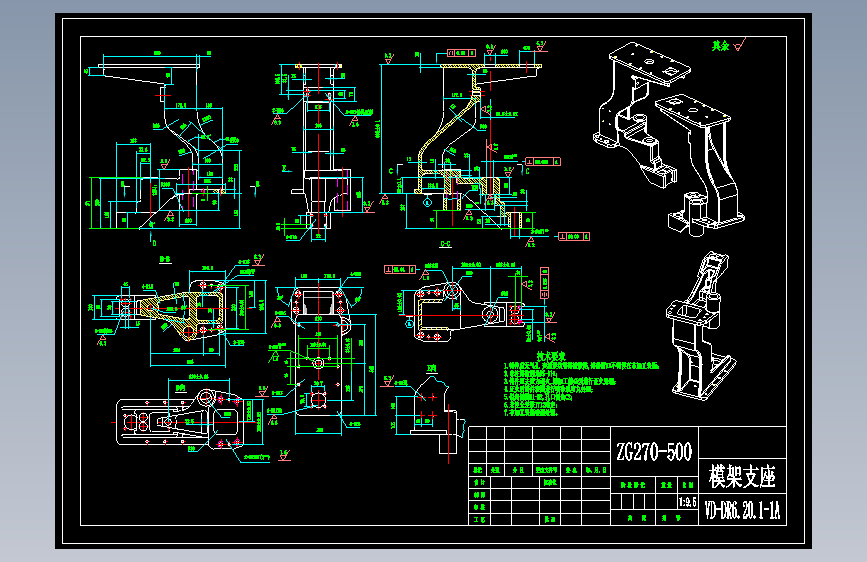

2	VD-DR6.20.1-1A模架支座.dwg	477.13K
3	VD-DR6.20.1-2A支承块.dwg	103.94K
4	VD-DR6.20.1-3调节套.dwg	94.19K
5	VD-DR6.20.1-4模架定位轴.dwg	102.44K
6	VD-DR6.20.1-5调节垫块.dwg	95.44K
7	VD-DR6.20.1-6调节座.dwg	92.94K
8	VD-DR6.20.1-7挡圈.dwg	88.47K
9	VD-DR6.20.1.00模架支座组件.dwg	155.75K
10	VD-DR6.20.2-1A左模架.dwg	635.03K
11	VD-DR6.20.2-2导套.dwg	95.19K
12	VD-DR6.20.2-3压块.dwg	91.97K
13	VD-DR6.20.2-4拉杆.dwg	92.69K
14	VD-DR6.20.2-5弹簧座.dwg	89.72K
15	VD-DR6.20.2-6螺套.dwg	92.22K
16	VD-DR6.20.2-7调节杆.dwg	91.72K
17	VD-DR6.20.2.00左模架组件.dwg	221.50K
18	VD-DR6.20.3-10A锁模长轴.dwg	109.91K
19	VD-DR6.20.3-11锁模轴弹簧.dwg	93.19K
20	VD-DR6.20.3-12A弹簧座.dwg	95.69K
21	VD-DR6.20.3-1锁模短轴Ⅰ.dwg	97.19K
22	VD-DR6.20.3-2连接轴.dwg	94.94K
23	VD-DR6.20.3-3锁模短轴Ⅱ.dwg	96.94K
24	VD-DR6.20.3-4锁模短轴Ⅲ.dwg	94.94K
25	VD-DR6.20.3-5锁模轴座.dwg	125.34K
26	VD-DR6.20.3-6垫圈Ⅰ.dwg	88.47K
27	VD-DR6.20.3-7调整垫圈.dwg	89.72K
28	VD-DR6.20.3-8垫圈Ⅱ.dwg	88.22K
29	VD-DR6.20.3-9轴套.dwg	90.22K
30	VD-DR6.20.3.00锁模装置.dwg	207.56K
31	VD-DR6.20.4-10底模升降导柱.dwg	96.69K
32	VD-DR6.20.4-11导套.dwg	94.19K
33	VD-DR6.20.4-12弹簧座.dwg	92.94K
34	VD-DR6.20.4-13定位销.dwg	90.97K
35	VD-DR6.20.4-1A底模座.dwg	100.44K
36	VD-DR6.20.4-2调整垫.dwg	91.97K
37	VD-DR6.20.4-3A底模升降支架.dwg	182.88K
38	VD-DR6.20.4-4弹簧托板.dwg	209.56K
39	VD-DR6.20.4-5缓冲座.dwg	96.19K
40	VD-DR6.20.4-6缓冲轴.dwg	92.44K
41	VD-DR6.20.4-7缓冲垫.dwg	91.97K
42	VD-DR6.20.4-8底模轴承轴.dwg	94.19K
43	VD-DR6.20.4-9底模轴承套.dwg	89.47K
44	VD-DR6.20.4.00底模升降装置.dwg	243.94K
45	VD-DR6.20.5-1A右模架.dwg	494.81K
46	VD-DR6.20.5-2导套Ⅰ.dwg	96.69K
47	VD-DR6.20.5-3导套Ⅱ.dwg	100.44K
48	VD-DR6.20.5-4导套Ⅲ.dwg	96.69K
49	VD-DR6.20.5-5导套Ⅳ.dwg	95.94K
50	VD-DR6.20.5-6压块.dwg	92.94K
51	VD-DR6.20.5.00右模架组件.dwg	140.28K
52	VD-DR6.20.6-10摆臂.dwg	99.19K
53	VD-DR6.20.6-11隔套Ⅲ.dwg	89.22K
54	VD-DR6.20.6-12隔套Ⅳ.dwg	89.22K
55	VD-DR6.20.6-13摆臂垫圈.dwg	90.47K
56	VD-DR6.20.6-14轴套.dwg	91.22K
57	VD-DR6.20.6-15限位挡圈.dwg	95.69K
58	VD-DR6.20.6-16摆臂轴.dwg	111.16K
59	VD-DR6.20.6-17摆臂垫圈Ⅱ.dwg	90.47K
60	VD-DR6.20.6-1销轴Ⅰ.dwg	94.44K
61	VD-DR6.20.6-2连杆.dwg	96.19K
62	VD-DR6.20.6-3隔套Ⅰ.dwg	89.72K
63	VD-DR6.20.6-4销轴Ⅱ.dwg	94.19K
64	VD-DR6.20.6-5隔套Ⅱ.dwg	89.72K
65	VD-DR6.20.6-6垫片.dwg	89.47K
66	VD-DR6.20.6-7转轴.dwg	96.19K
67	VD-DR6.20.6-8摆杆.dwg	130.56K
68	VD-DR6.20.6-9摆臂轴承轴.dwg	93.44K
69	VD-DR6.20.6.00摆臂连杆组件.dwg	212.84K
70	VD-R12.20-36底模升降压缩弹簧.dwg	90.97K
71	VD-R12.20.2-4A锁模芯轴.dwg	92.69K
72	VD-R12.20.2锁模装置.dwg	128.09K
73	VD-R12.20.3-6塞圈.dwg	89.47K

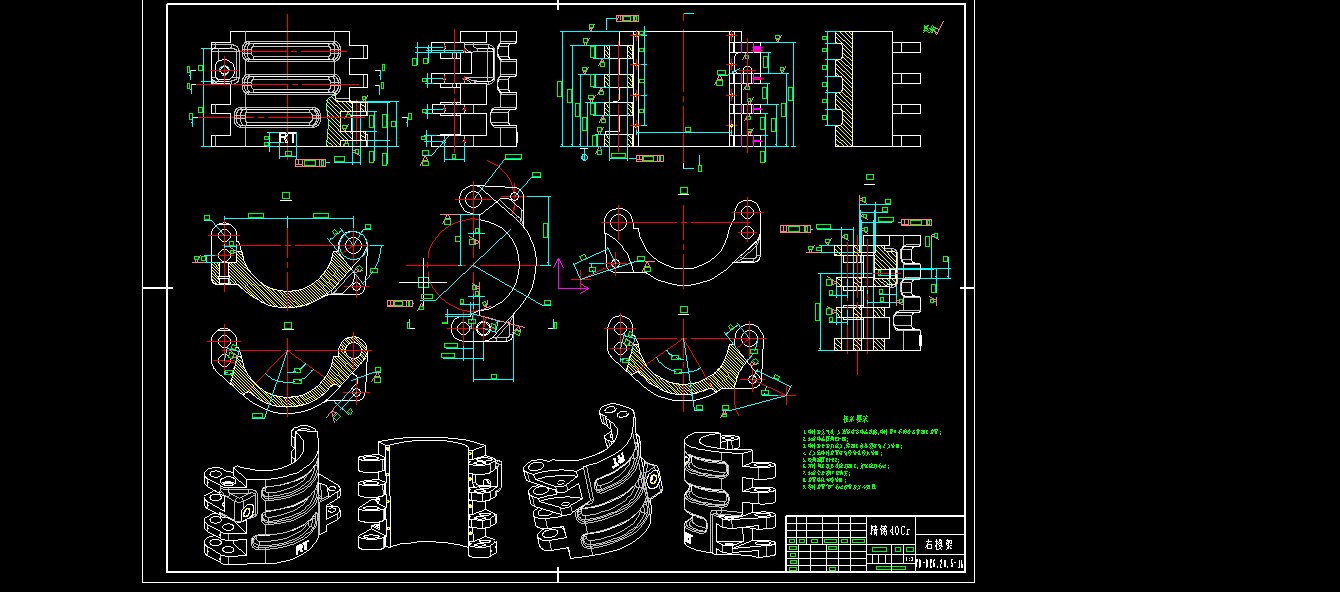

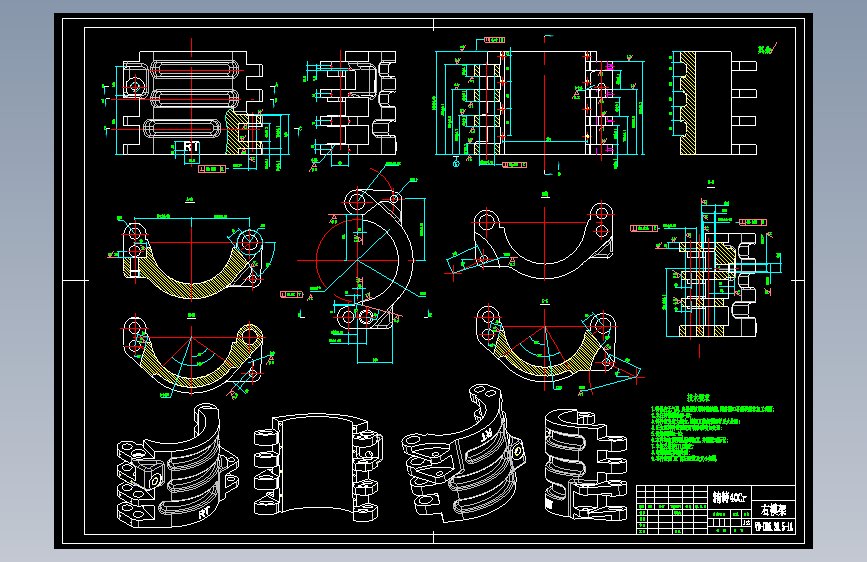

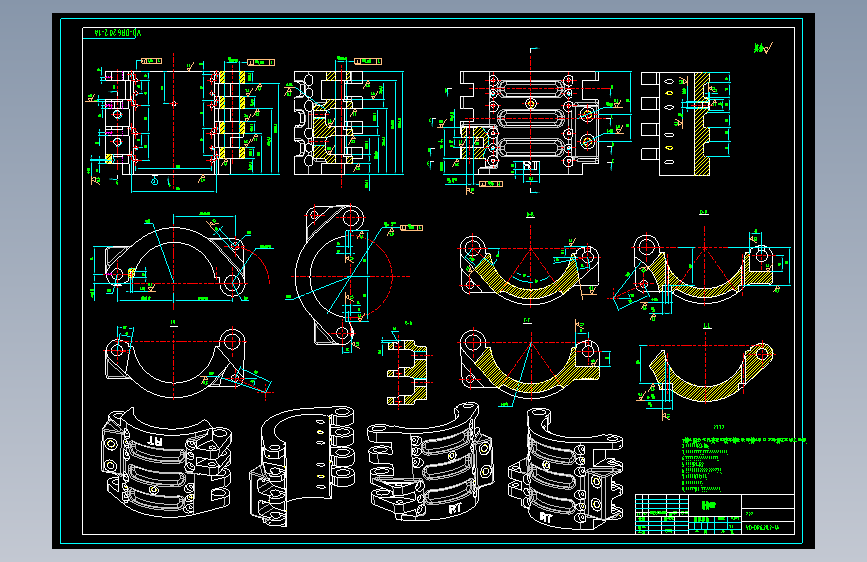

74	右模架.jpg	184.67K

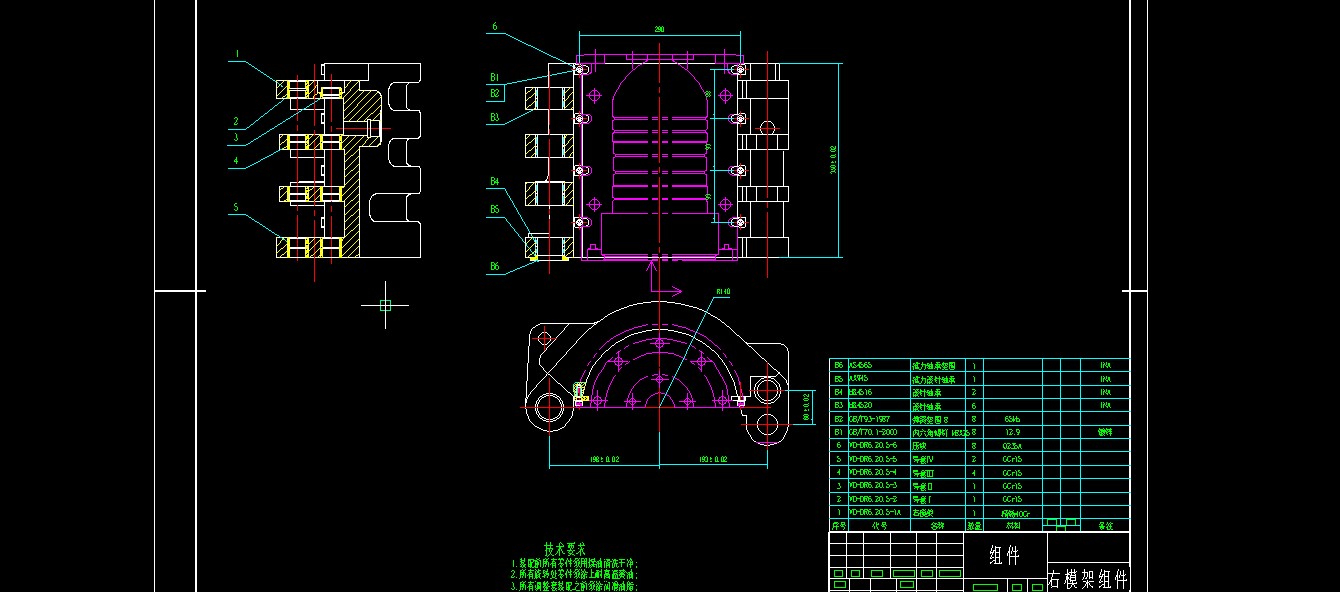

75	右模架组件.jpg	132.59K

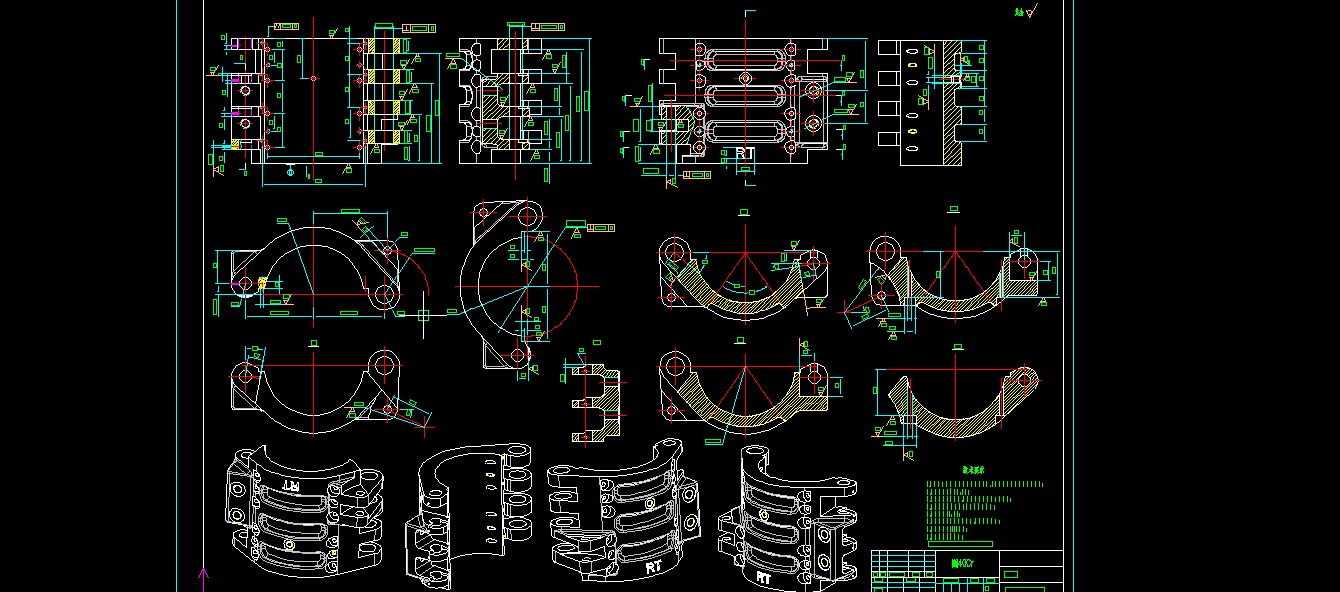

76	左模架.jpg	211.37K

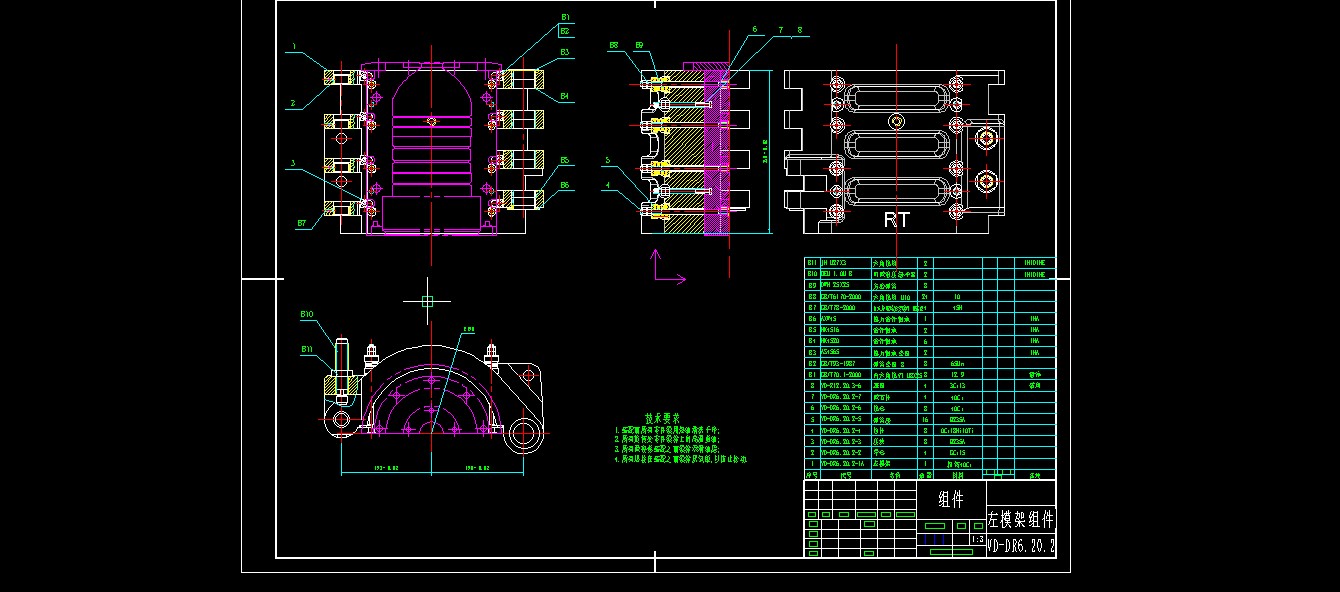

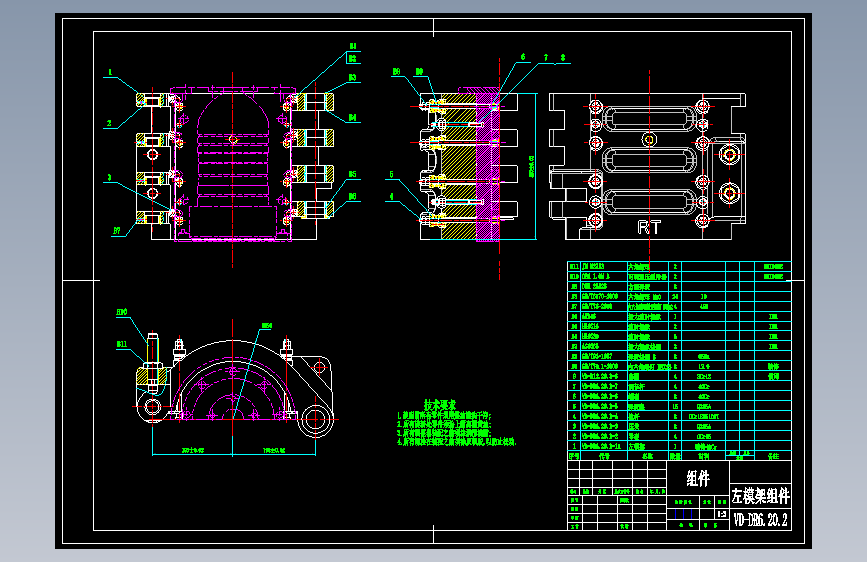

77	左模架组件.jpg	158.92K

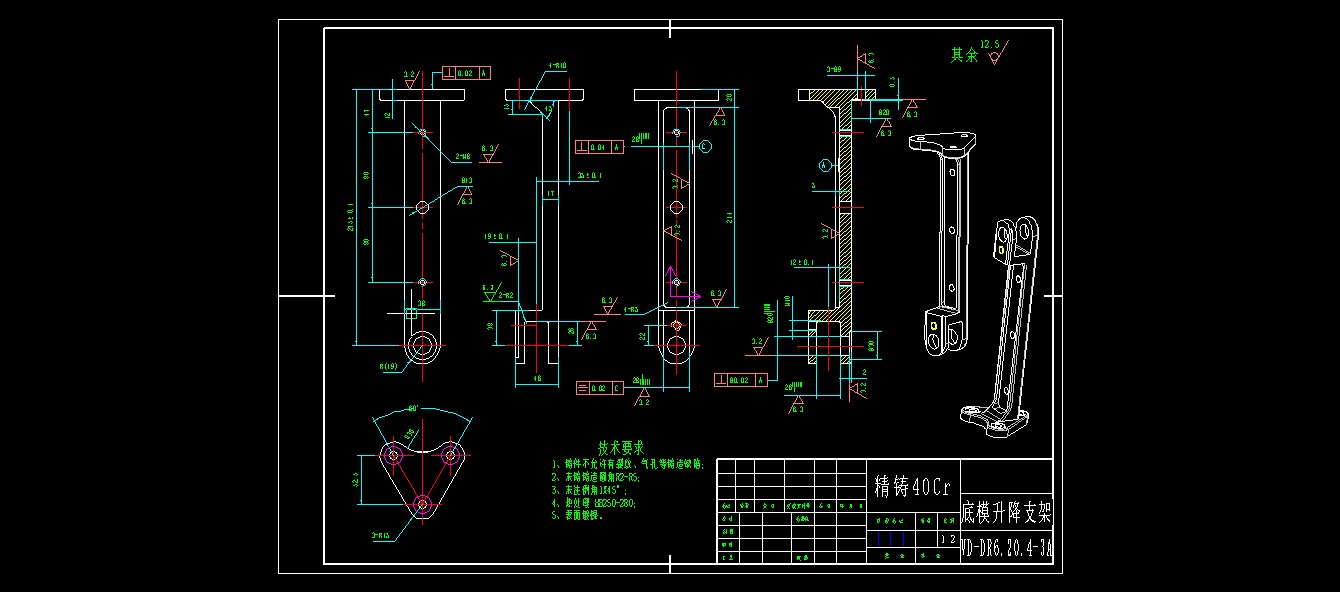

78	底模升降支架.jpg	118.38K

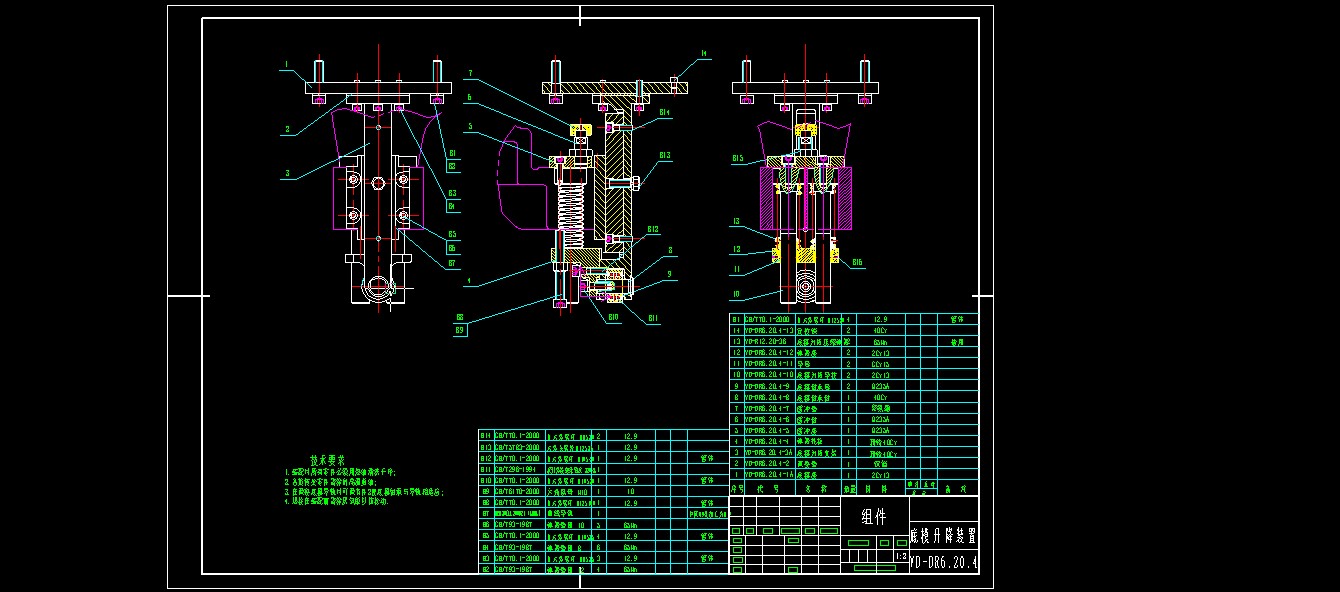

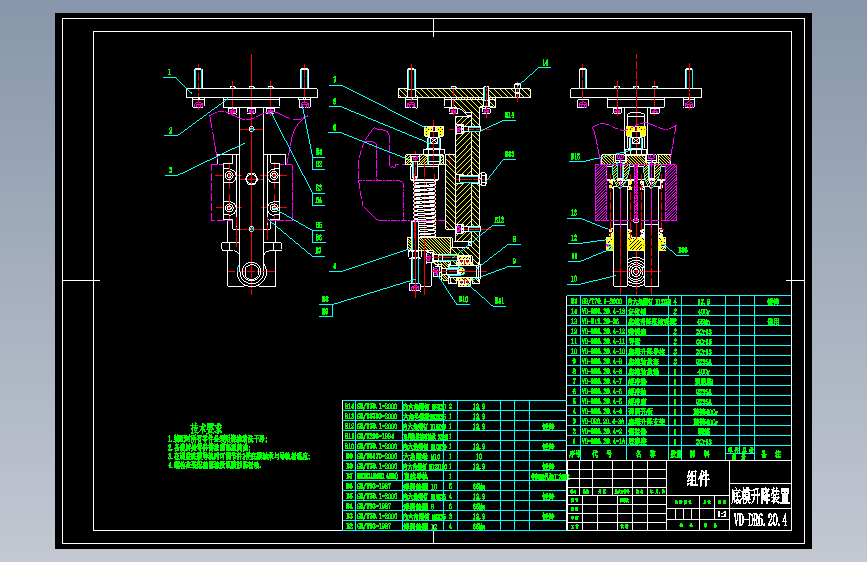

79	底模升降装置.jpg	162.71K

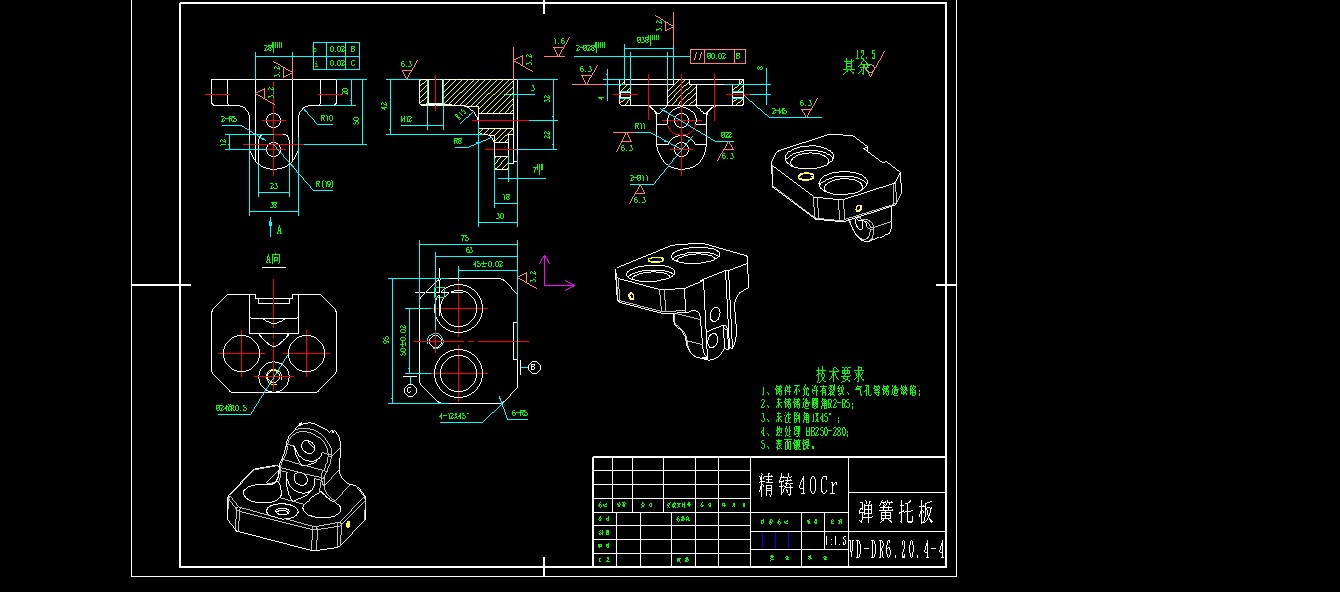

80	弹簧托板.jpg	126.02K

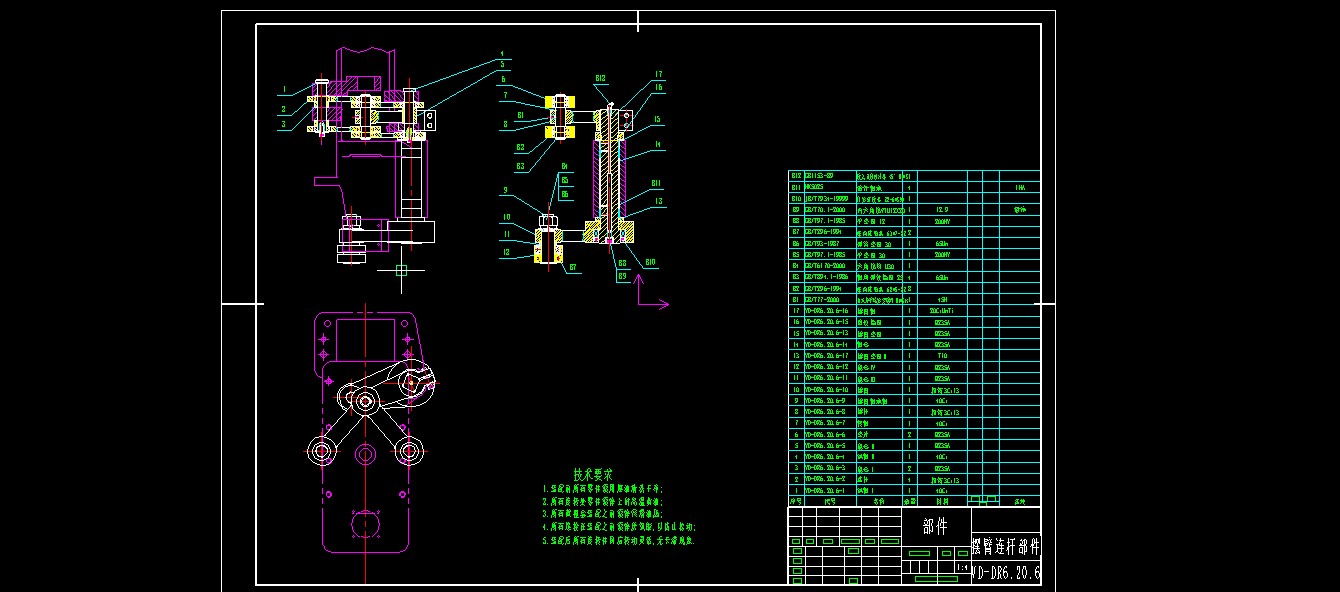

81	摆臂连杆组件.jpg	149.58K
82	旋转吹瓶机模架外购件清单.xls	35.50K

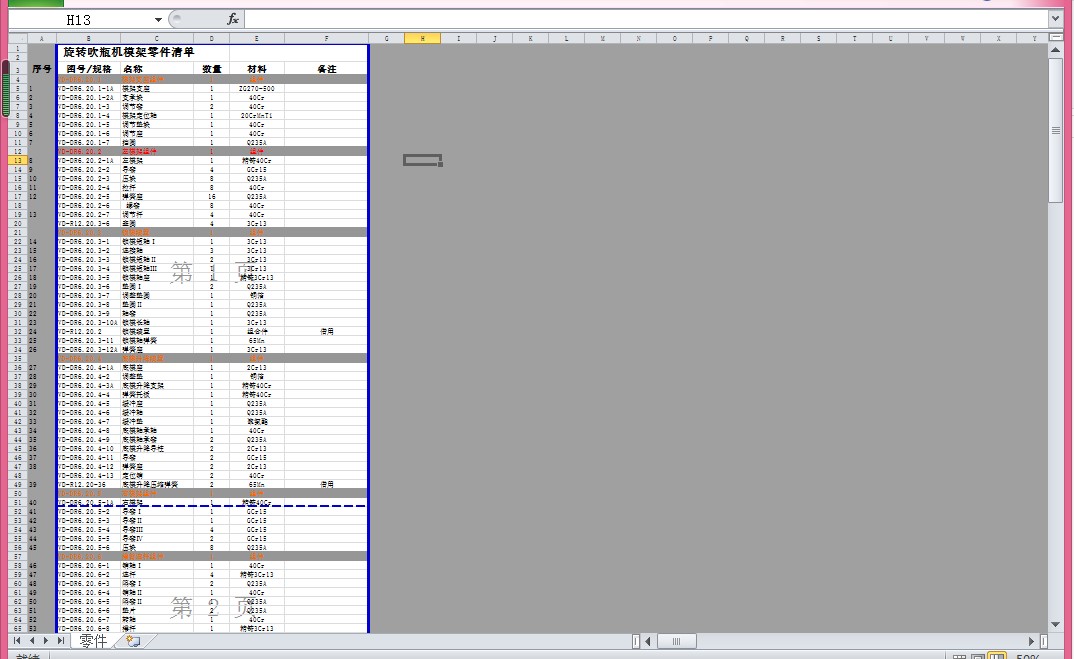

83	旋转吹瓶机模架零件清单.jpg	132.56K
84	旋转吹瓶机模架零件清单.xls	44.50K

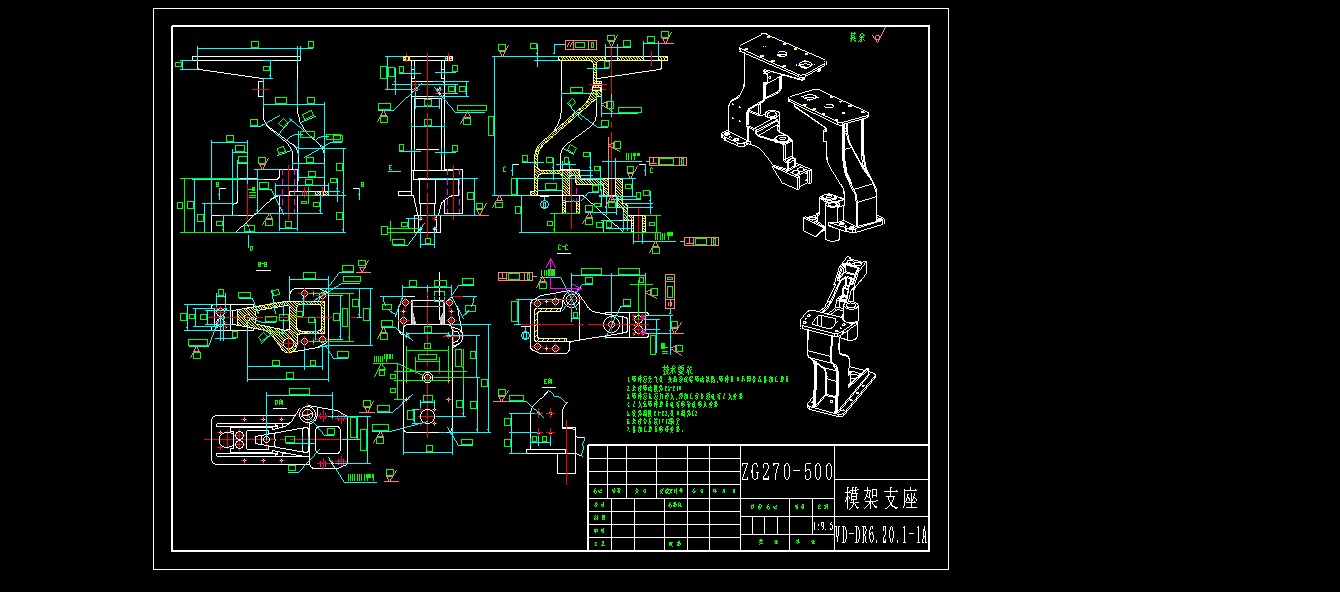

85	模架支座.jpg	160.21K

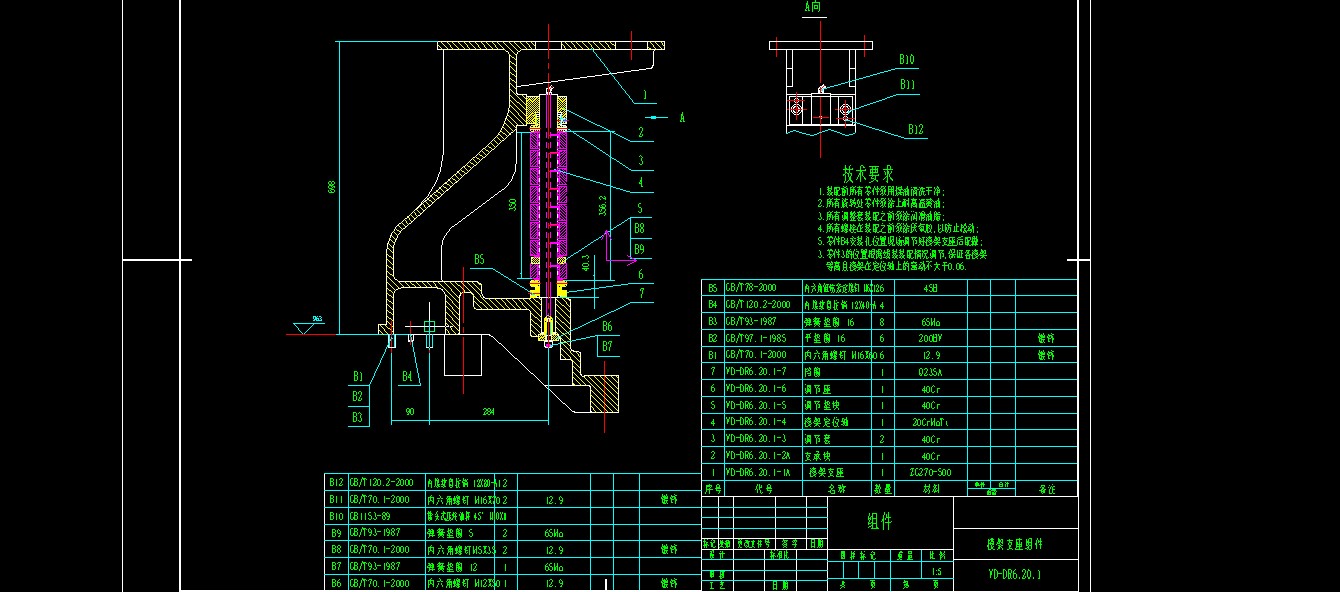

86	模架支座组件.jpg	170.31K

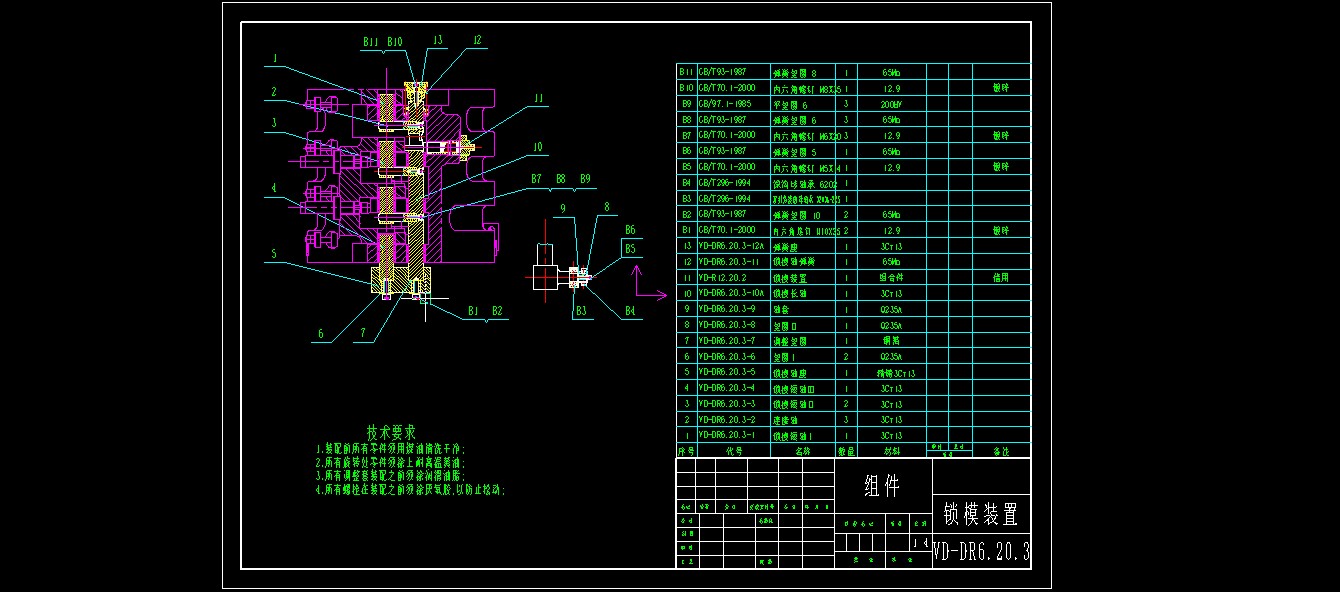

87	锁模装置.jpg	170.97K
