单缸平衡梁蒸汽机

（ID:3039046）

改图/画图

机械设备 / 非标机械 / 单缸平衡梁蒸汽机

©非原创

平面图

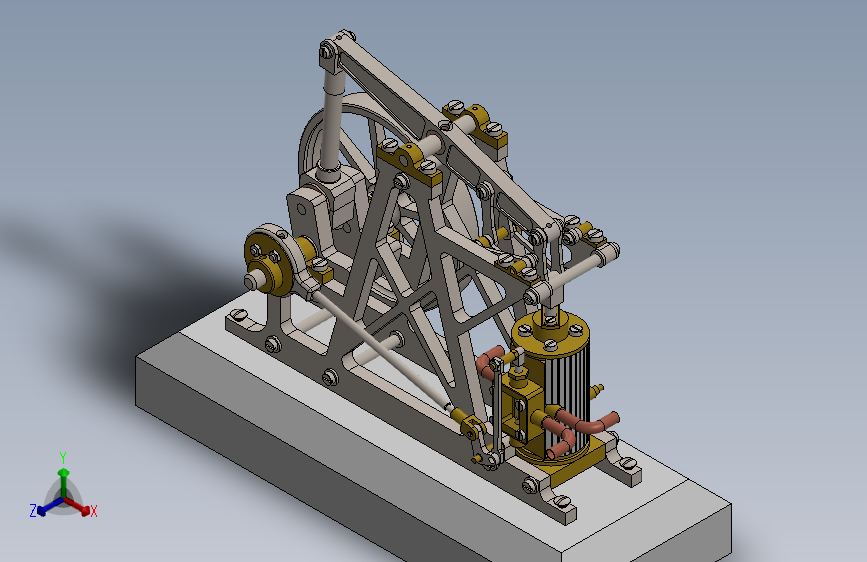

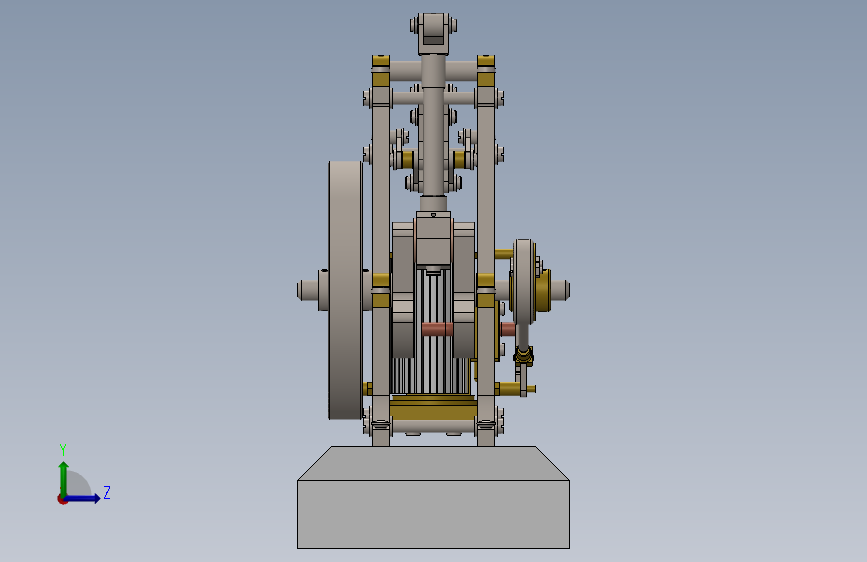

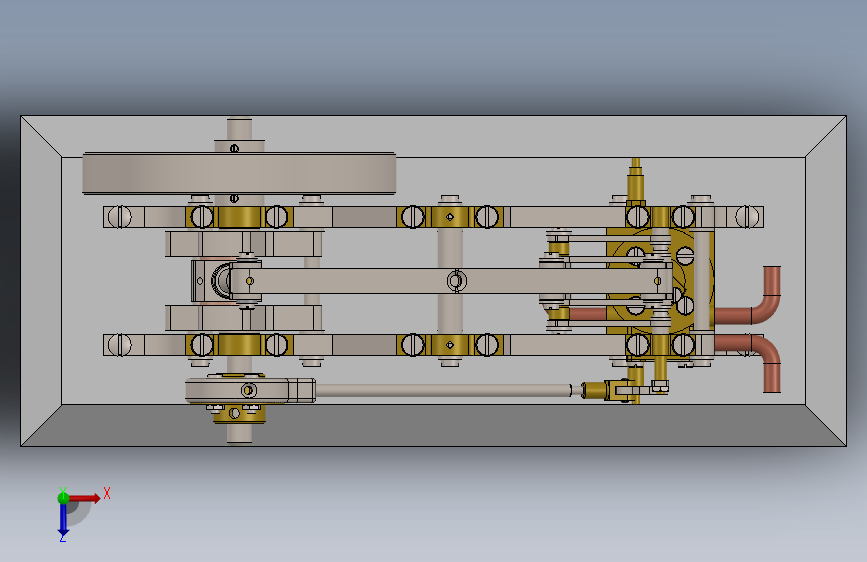

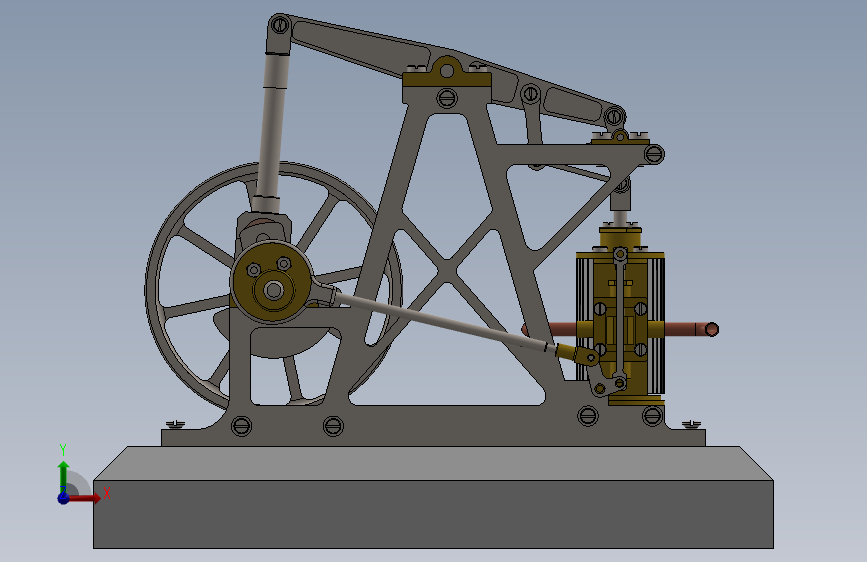

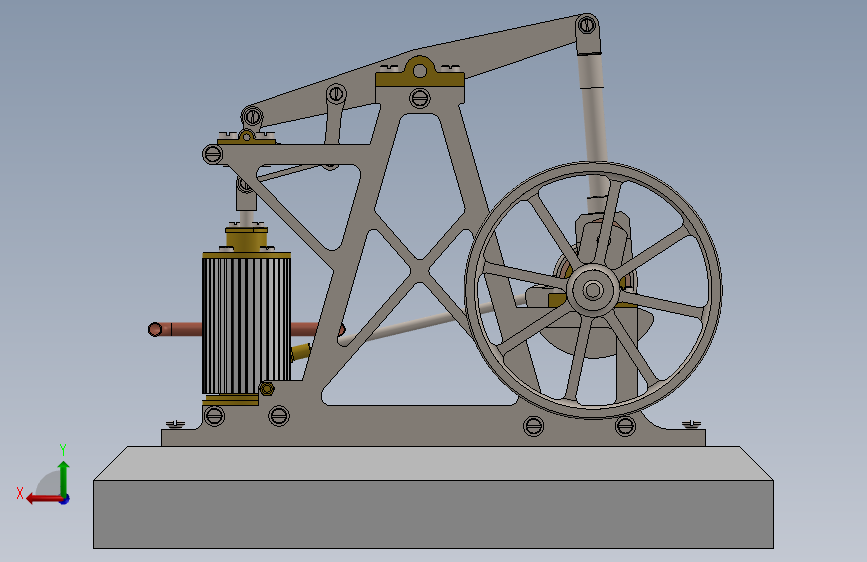

3D视图

文件列表

截图

AI截图渲染

✨AI图片渲染

#	文件名称	文件大小
1	balancier-gerry-dykstra-09-05-02-1.pdf	6.08M
2	ASSEMBLY100.SLDASM	429.47K
3	ASSEMBLY101.SLDASM	514.67K
4	ASSEMBLY102.SLDASM	105.47K
5	ASSEMBLY103.SLDASM	93.02K
6	ASSEMBLY104.SLDASM	139.26K
7	ASSEMBLY105.SLDASM	161.39K
8	ASSEMBLY106.SLDASM	396.58K
9	ASSEMBLY107.SLDASM	270.21K
10	ASSEMBLY108.SLDASM	207.24K
11	ASSEMBLY109.SLDASM	179.46K
12	SINGLECYLINDERBALANCEBEAMSTEAMENGINE.SLDASM	1.34M
13	countersunkslottedraisedheadscrew_iso.SLDPRT	161.31K
14	flatwasherregular_am.SLDPRT	114.24K
15	hexthinnutchamferedgradeab_iso.SLDPRT	169.83K
16	slottedcheeseheadscrew_iso.SLDPRT	482.46K
17	GBE-00-WOODENBASE.SLDPRT	274.53K
18	GBE-01-MAINFRAME.SLDPRT	223.81K
19	GBE-02-MAINFRAMESPREADERBAR.SLDPRT	94.12K
20	GBE-03-CYLINDERBOTTOMLIDRESTINGBLOCK.SLDPRT	90.75K
21	GBE-04-CYLINDERBOTTOMLID.SLDPRT	111.92K
22	GBE-05-CYLINDERBLOCK.SLDPRT	164.72K
23	GBE-06-CYLINDERTOPLID.SLDPRT	118.68K
24	GBE-07-CYLINDERRODPACKINGGLAND.SLDPRT	118.38K
25	GBE-08-STEAMCHEST.SLDPRT	144.00K
26	GBE-09-STEAMCHESTCOVER.SLDPRT	74.28K
27	GBE-10-VALVERODPACKINGGLAND.SLDPRT	75.42K
28	GBE-11-PISTONROD.SLDPRT	88.34K
29	GBE-12-PISTON.SLDPRT	85.33K
30	GBE-13-PISTONRING.SLDPRT	79.21K
31	GBE-14-VALVEROD.SLDPRT	98.09K
32	GBE-15-VALVE.SLDPRT	83.52K
33	GBE-16-MAINPIVOTSHAFTSUPPORT.SLDPRT	105.03K
34	GBE-17-MAINCRANKBEARING.SLDPRT	107.72K
35	GBE-18-GROUNDINGLINKMOUNTINGBLOCK.SLDPRT	94.39K
36	GBE-19-CYLINDERMANTEL.SLDPRT	308.68K
37	GBE-20-IN-OUTLETPIPE.SLDPRT	136.80K
38	GBE-21-MAINPIVOTSHAFT.SLDPRT	122.42K
39	GBE-22-MAINPIVOTSHAFTLOCKINGPIN.SLDPRT	81.17K
40	GBE-23-MAINBEAM.SLDPRT	199.31K
41	GBE-24-MAINBEAMENDBUSHING.SLDPRT	88.20K
42	GBE-25-BEAMPARALLELLINKS.SLDPRT	91.88K
43	GBE-26-BEAMPARALLELLINKBELOWBUSHING-1.SLDPRT	85.71K
44	GBE-27-GROUNDINGLINK-1.SLDPRT	85.06K
45	GBE-28-BEAMPARALLELLINKBELOWBUSHING-2.SLDPRT	79.81K
46	GBE-29-GROUNDINGLINKSPACER.SLDPRT	86.95K
47	GBE-30-GROUNDINGLINK-2.SLDPRT	91.46K
48	GBE-31-LINKBOTTOMSPACER.SLDPRT	92.77K
49	GBE-32-CRANKANDCRANKSHAFT.SLDPRT	163.10K
50	GBE-33-MAINCONNECTIONRODYOKE.SLDPRT	124.35K
51	GBE-34-MAINCONNECTIONROD.SLDPRT	84.16K
52	GBE-35-CONNECTIONRODCRANKBEARING.SLDPRT	194.79K
53	GBE-36-FLYWHEEL.SLDPRT	328.60K
54	GBE-37-ECCENTRIC.SLDPRT	185.28K
55	GBE-38-ECCENTRICSIDECOVERS.SLDPRT	72.78K
56	GBE-39-ECCENTRICHOUSING.SLDPRT	208.12K
57	GBE-40-ECCENTRICCONNETINGROD.SLDPRT	74.61K
58	GBE-41-ECCENTRICCONNETINGRODYOKE.SLDPRT	168.92K
59	GBE-42-VALVELINKBELLCRANK.SLDPRT	83.83K
60	GBE-43-VALVESTEMOFFSETPOST.SLDPRT	109.66K
61	GBE-44-VALVELINKROD.SLDPRT	83.35K
62	GBE-45-BELLCRANKPOST.SLDPRT	108.58K
63	GBE-46M25x6LOCKINGSCREW.SLDPRT	83.59K
64	HX-SHCS0.112-48x0.4375x0.4375-N.SLDPRT	246.05K
65	HX-SHCS0.112-48x0.5x0.5-N.SLDPRT	244.08K
